ADJUST TILT, SIDE SHIFT, AND EACH SIDE PLATE FROM THE OPERATOR CONTROLS.
FLOATING DESIGN
SELF-LEVELING ACTION FOLLOWS SURFACE CONTOURS FOR UNIFORM PASSES.
6-INCH MAXIMUM DEPTH
REMOVE PAVEMENT IN CONTROLLED LAYERS WITH UP TO 6″ OF CUTTING DEPTH.
REPLACEABLE WEAR PARTS
FREE-SPINNING CARBIDE PICKS AND AR400 SKID SHOES SUPPORT MAINTENANCE.

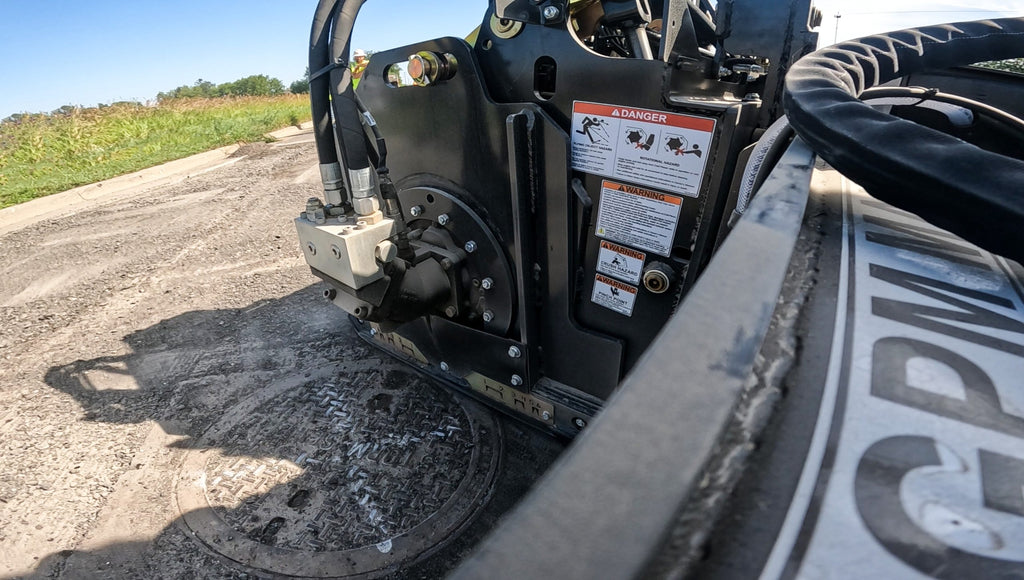

DIRECT-DRIVE PISTON MOTOR
A DIRECT-DRIVE PISTON MOTOR POWERS THE CUTTING DRUM; THE PRESSURE GAUGE HELPS MONITOR LOAD.
Description
Key Benefits
Technical Specs
Applications
DESCRIPTION

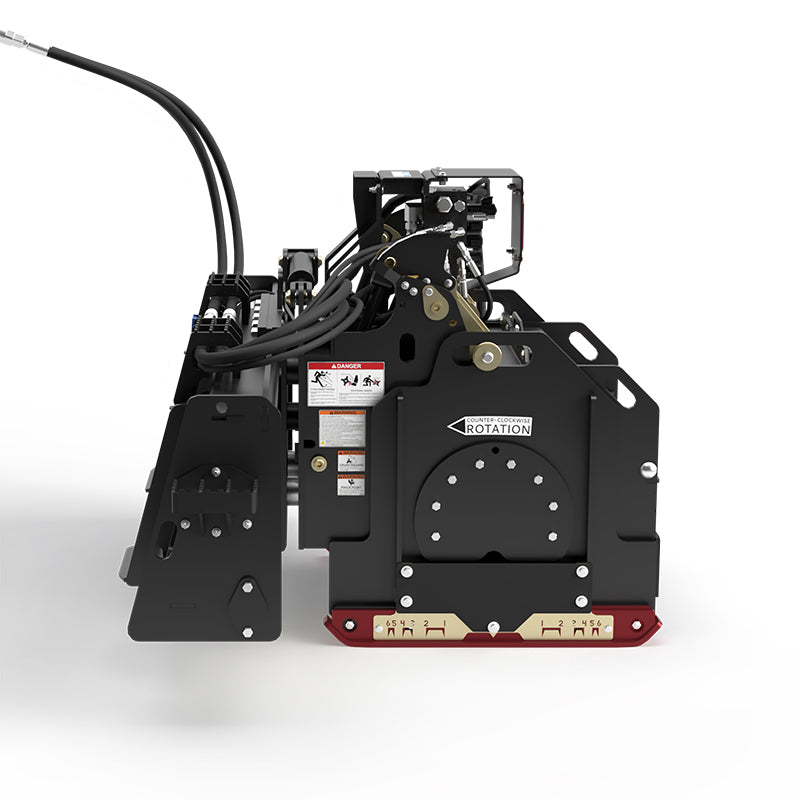

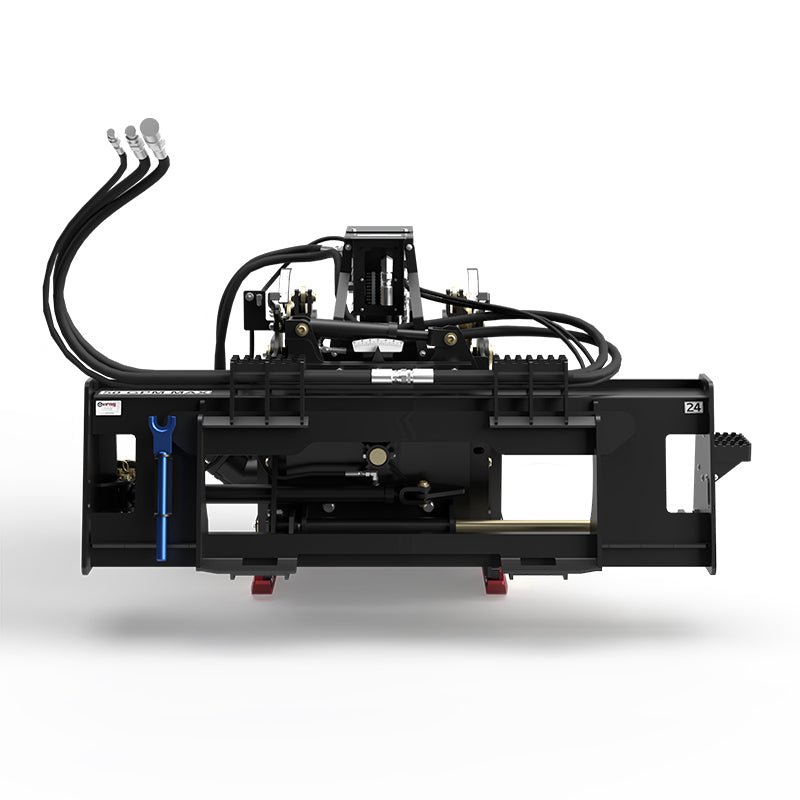

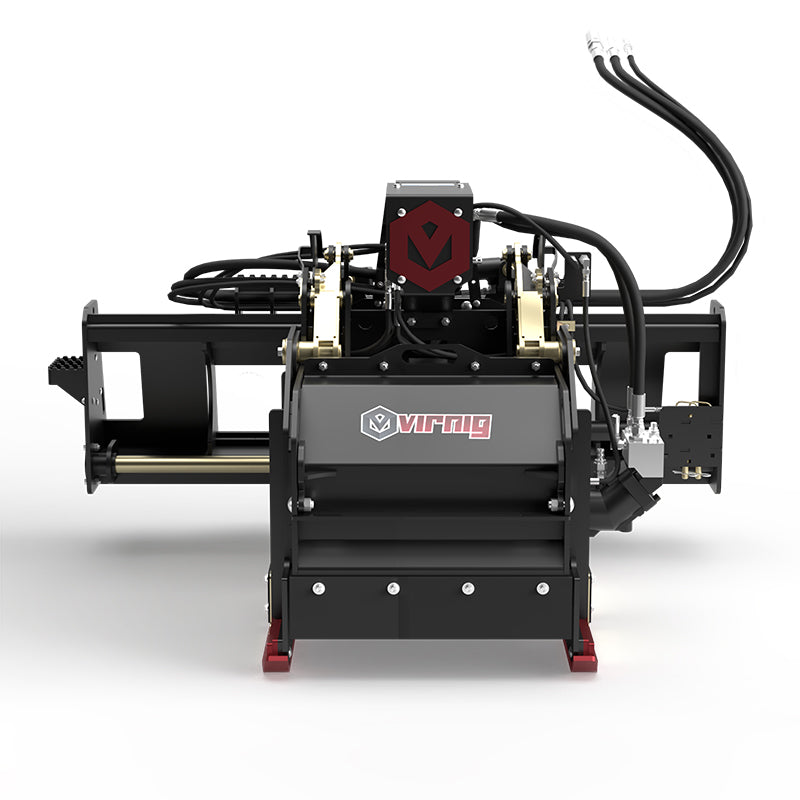

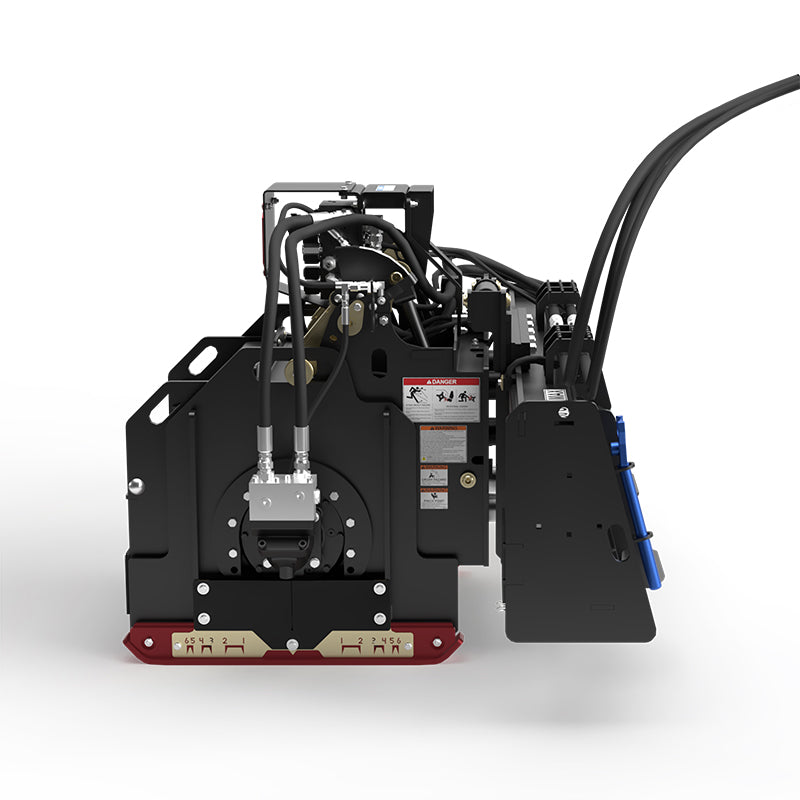

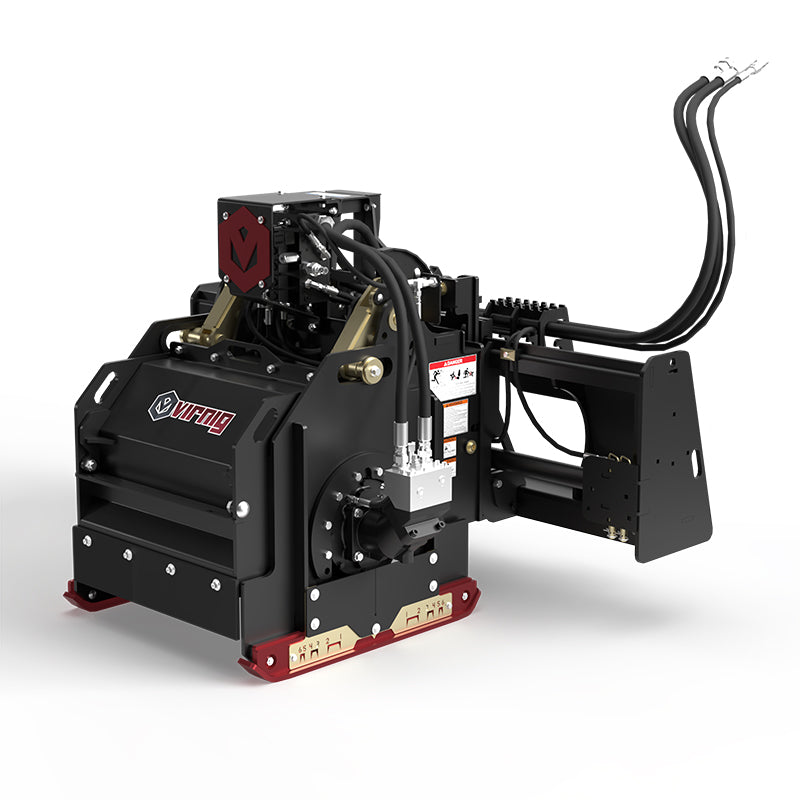

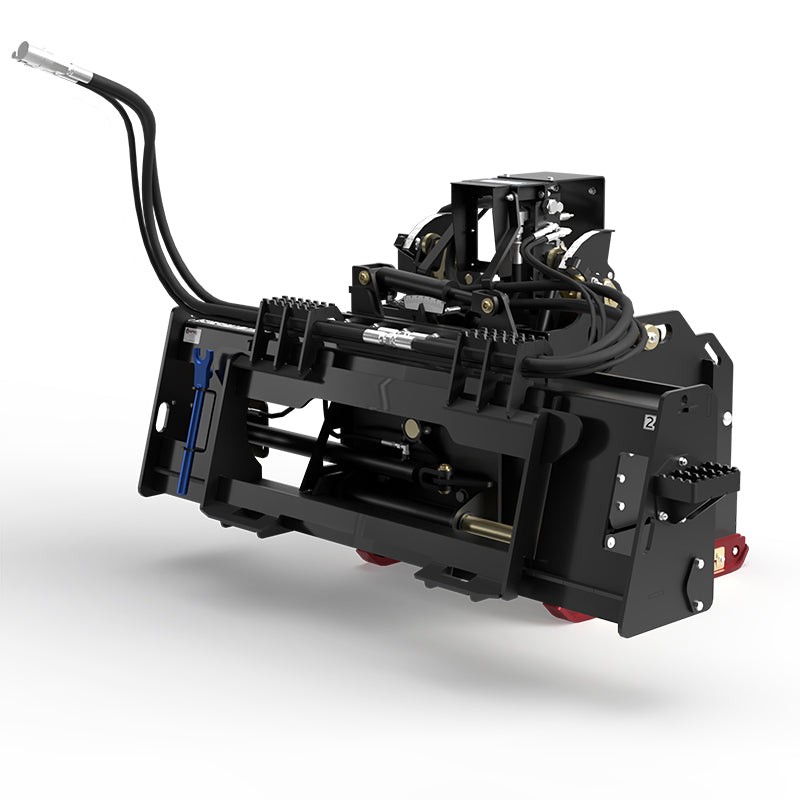

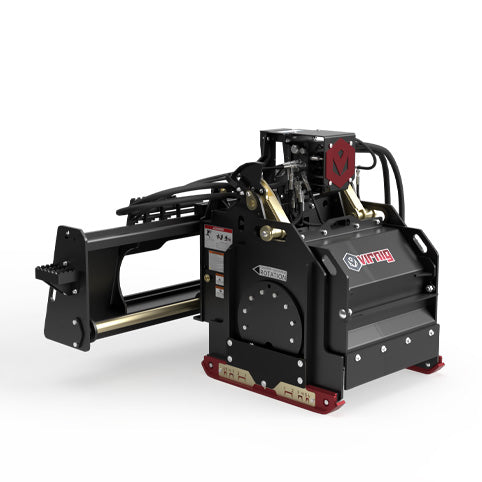

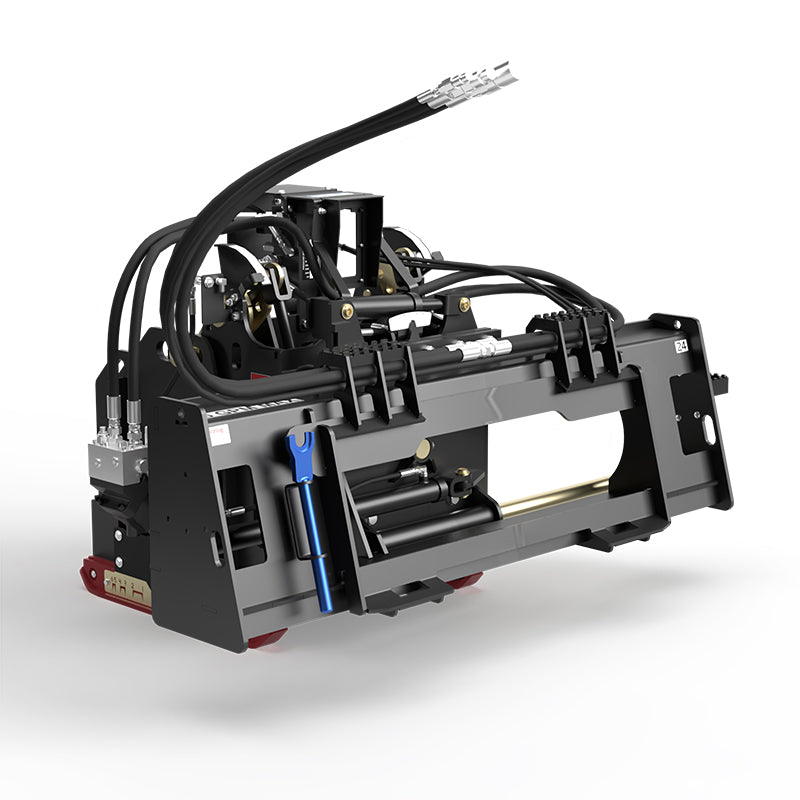

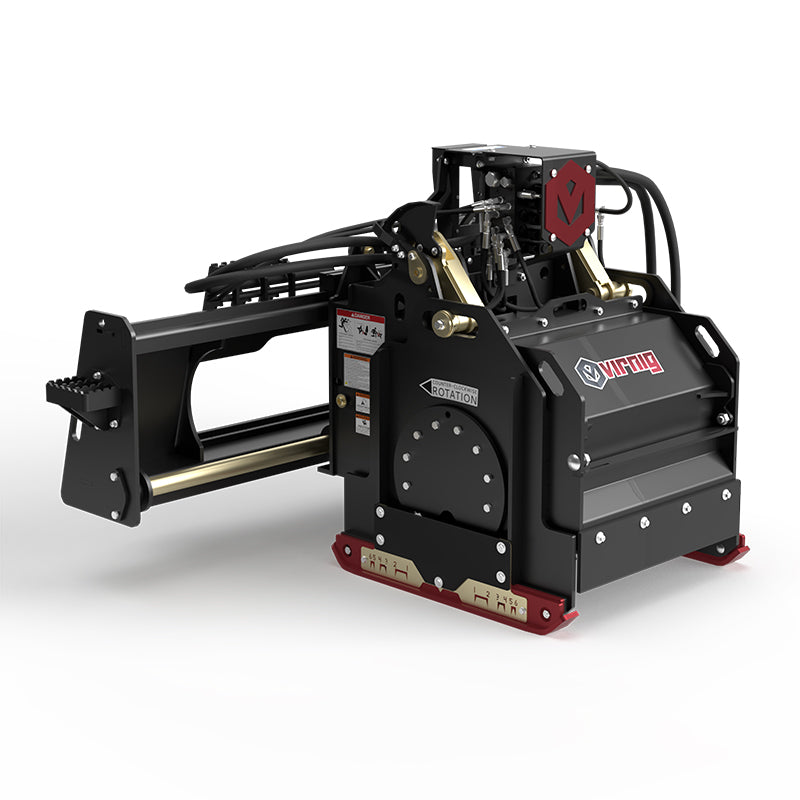

The Virnig Cold Planer mills asphalt and concrete with five cutting widths from 18-48 inches. A direct-drive bent-axis piston motor and replaceable carbide picks handle pavement removal, surface repairs, and transitions alongside existing concrete.
Five-function control operates tilt, side shift, and both side plates independently or together. The live operator display and button controls make adjustments accessible, while the self-leveling floating design follows surface contours for consistent passes.
Every configuration includes the selected electrical controller. Choose the connection that matches your loader, including manufacturer-specific high-flow systems. Standard asphalt picks are included, or select the width-matched concrete pick package.
Hydraulic suitability depends on both flow and pressure. The 18-inch model requires at least 26 GPM, while wider models need more flow at lower operating pressure. Confirm the exact flow-pressure combination, case drain, electrical system, and loader capacity before ordering. Match the controller and actual hydraulic flow at operating pressure to your loader before use.
KEY BENEFITS
Five-function operation: Adjust tilt, side shift, and each side plate from the operator controls.
Floating design: Self-leveling action follows surface contours for uniform passes.
6-inch maximum depth: Remove pavement in controlled layers.
Replaceable wear parts: Free-spinning carbide picks and AR400 skid shoes support maintenance.
Price includes planer and selected electrical controller. No water tank or water spray system is included; request those options separately.
Case drain required. Verify loader capacity and controls; attachment weight ranges approximately 2,160-2,920 lb without water tank.
APPLICATIONS

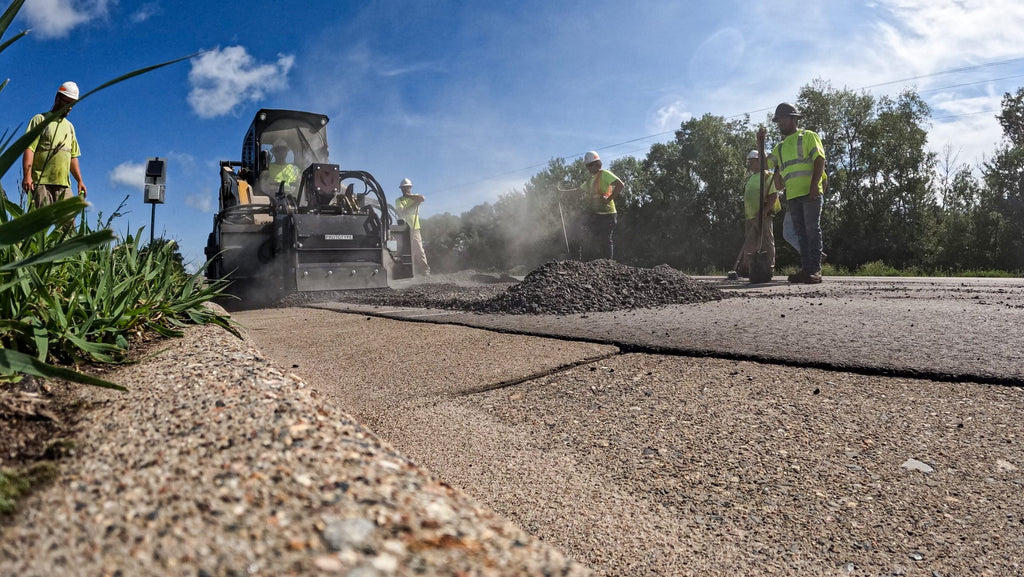

Asphalt milling and patch preparation
Concrete surface removal with selected concrete picks
Pavement transitions and utility repair
Road and parking-area maintenance
VIRNIG COLD PLANER
WORKING DESIGN
Exclusive user-friendly controls with live operator display, toggle through and activate functions with the press of a button. No complicated button combos necessary.
Plug-and-play electrical system cross-compatible with most high flow skid and track loaders for quick and easy setup.
Five function operation: control tilt, side-shift, and adjust both side plates independently or simultaneously.
Self-leveling and floating design adapts to surface contours for consistent depth, flat surfaces and uniform passes.
Outer drum pick placement minimizes risk of damaging concrete curbs, aprons and other areas where concrete meets asphalt.
CONFIGURATION AND SPECIFICATIONS
Maximum hydraulic flow 50 GPM; maximum operating pressure 4,500 PSI.
Minimum flow at 4,000 PSI by width: 18/24/30 inch = 26 GPM; 40 inch = 29 GPM; 48 inch = 32 GPM.
At 3,500 PSI minimum flows are 26 / 26 / 29 / 32 / 36 GPM for 18 / 24 / 30 / 40 / 48 inch widths.
At 3,000 PSI minimum flows are 26 / 28 / 32 / 37 GPM for 18 / 24 / 30 / 40 inch widths; 48 inch is not specified.
