VIRNIG

Concrete Bucket

For Skid Steers & Track Loaders

Reinforced Concrete Placement Bucket

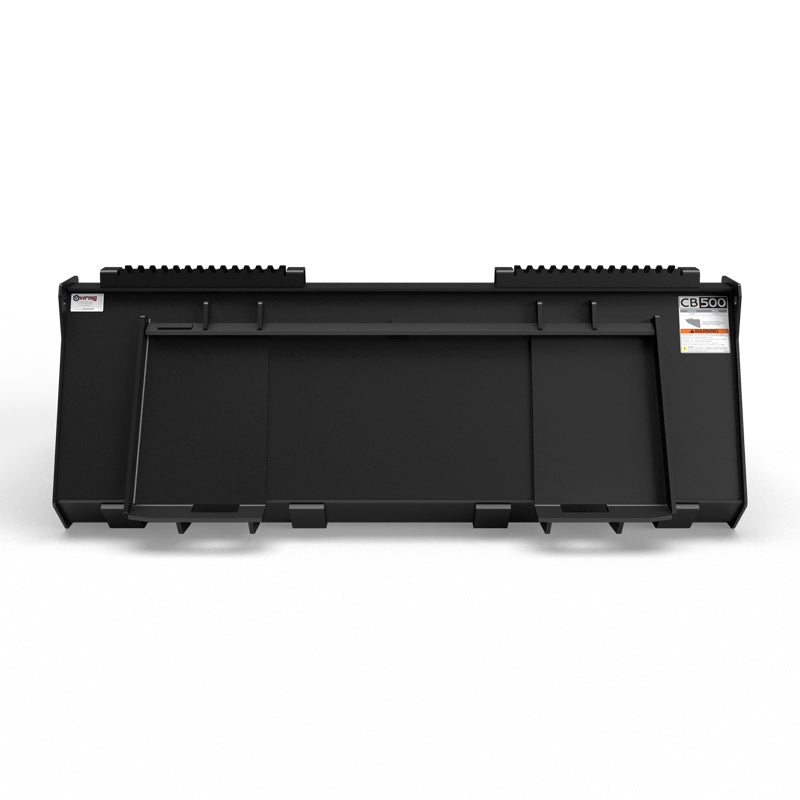

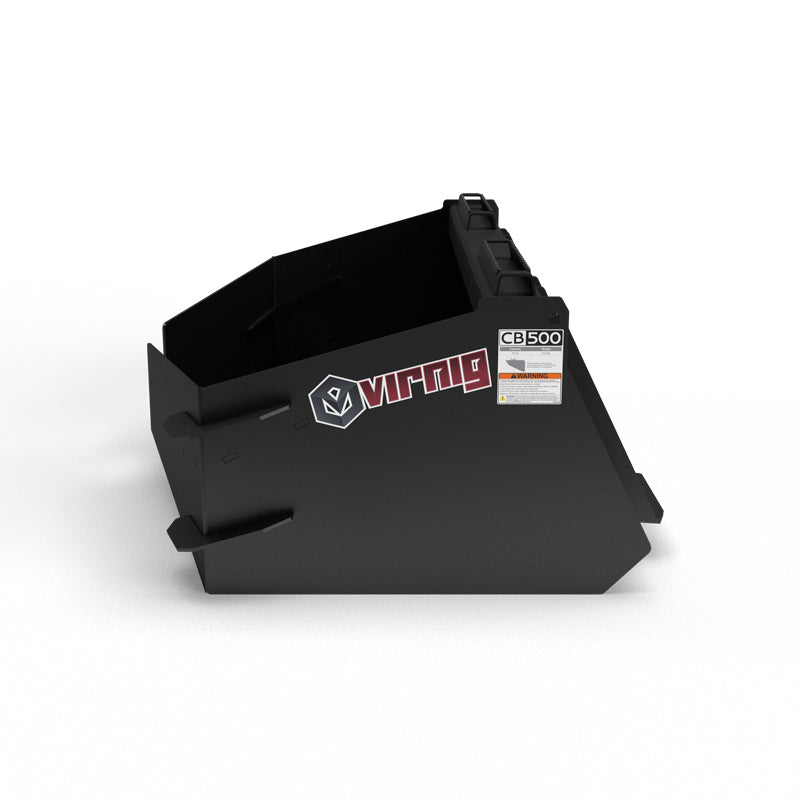

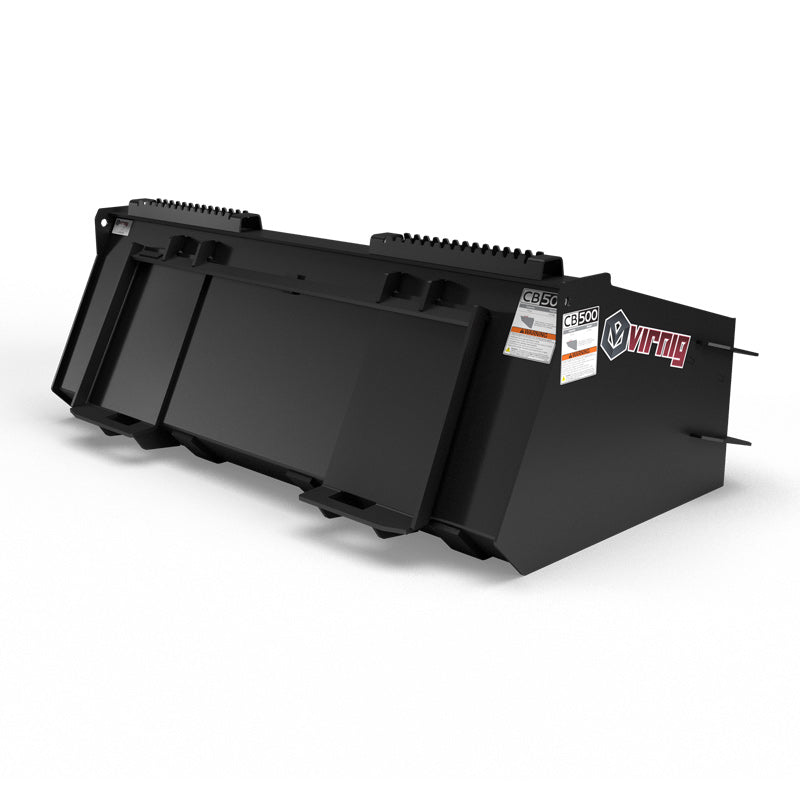

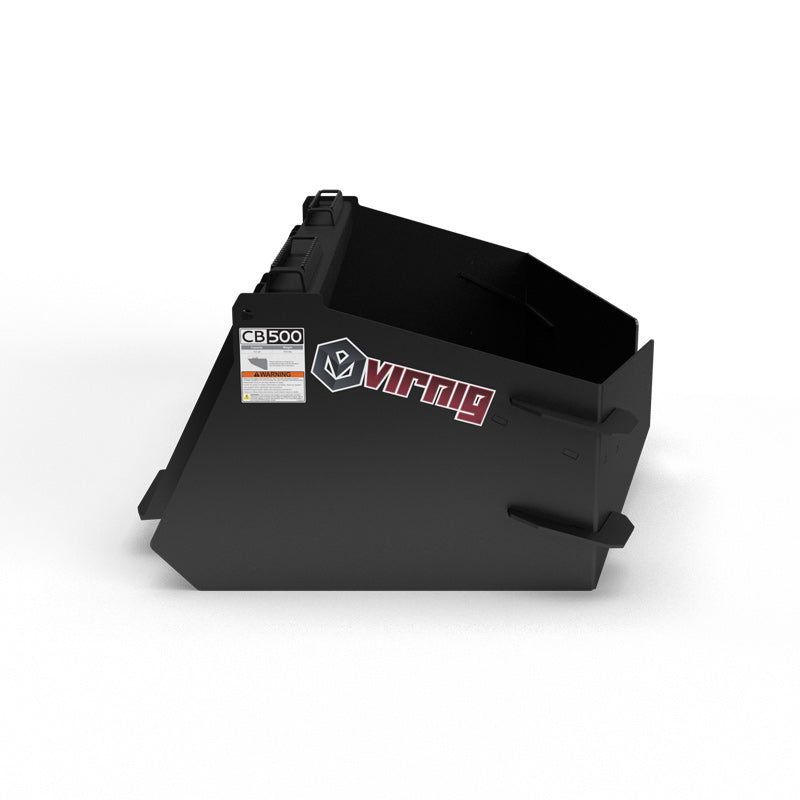

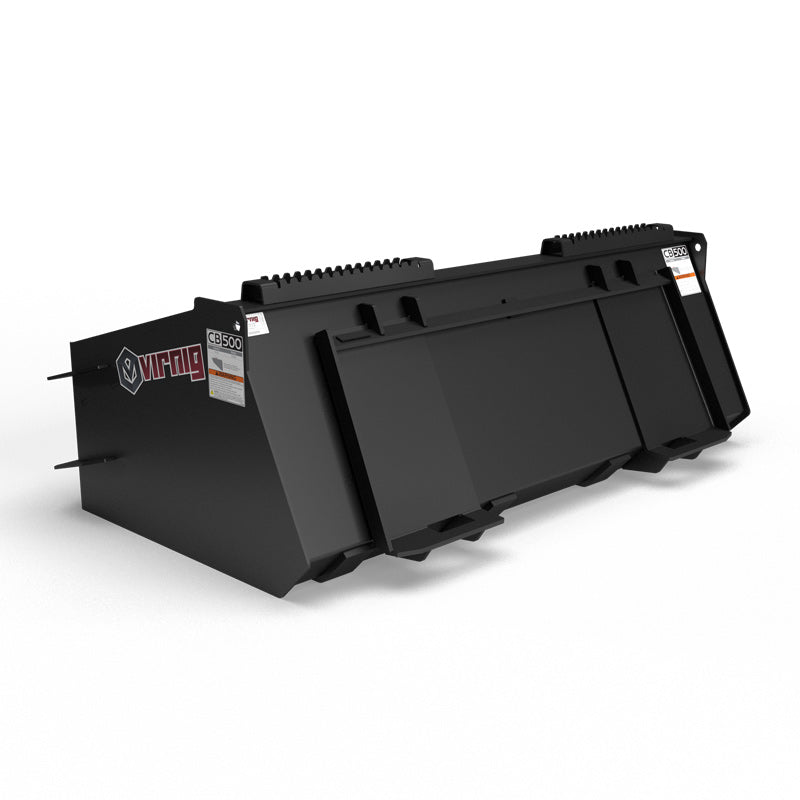

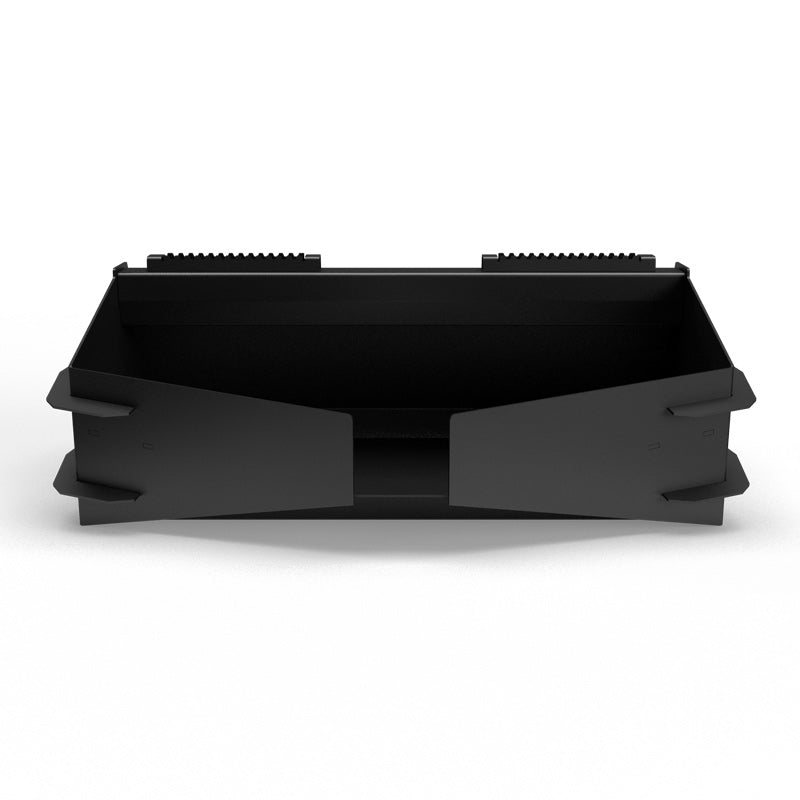

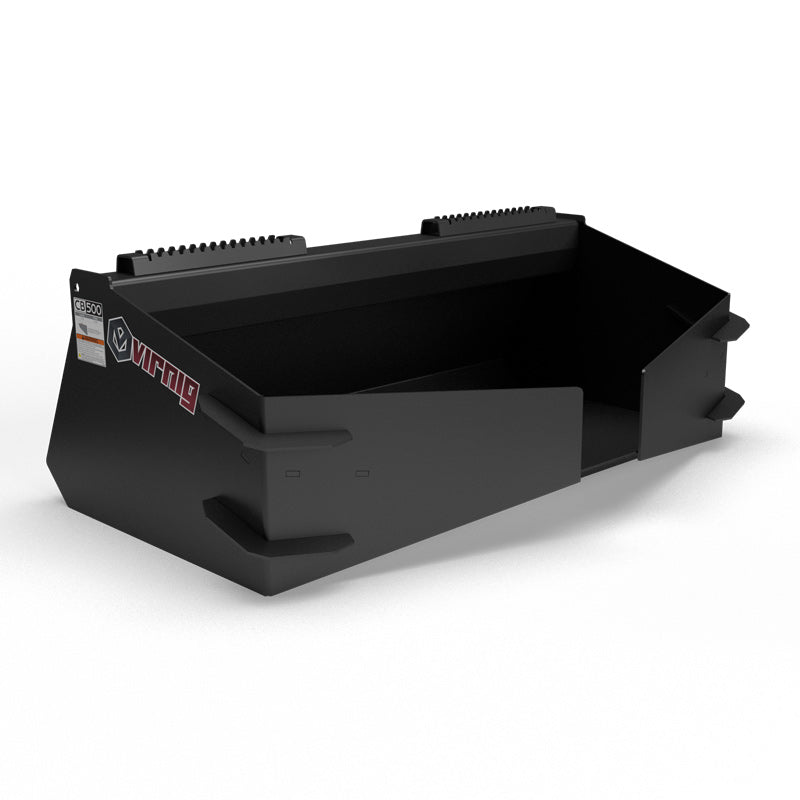

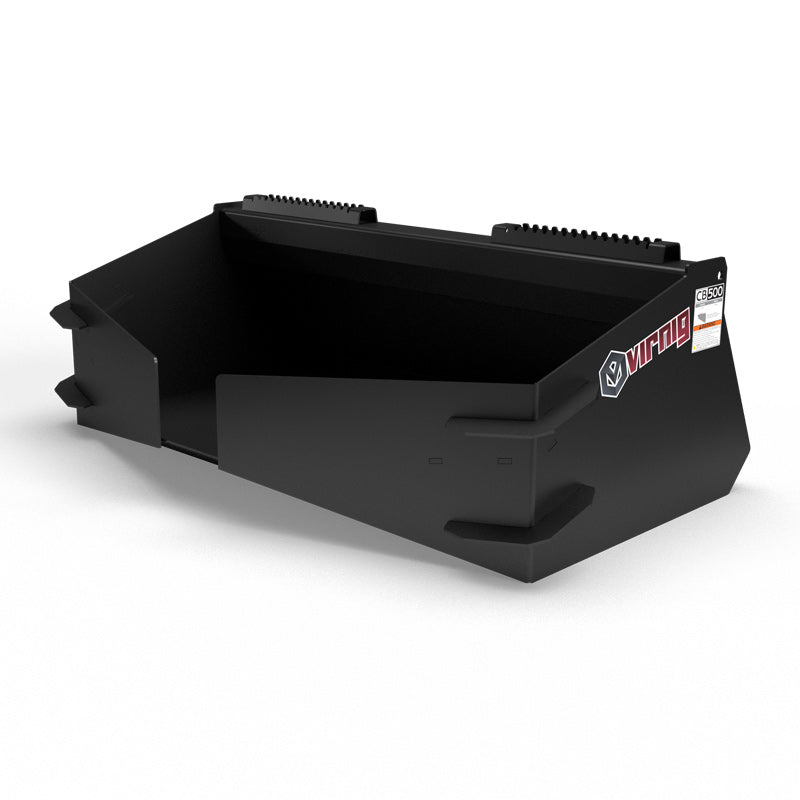

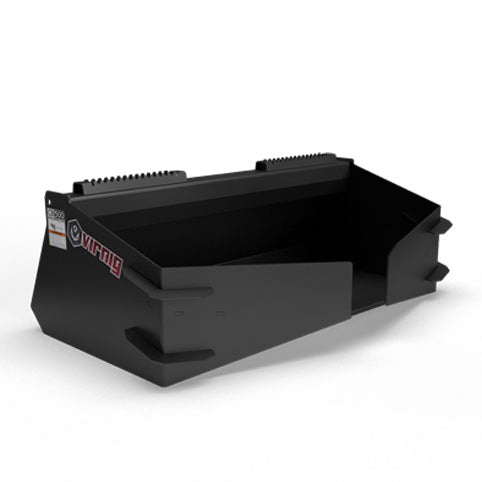

Virnig Concrete Bucket

Virnig

Virnig Concrete Bucket

SKU: CB500 Currently In Stock

Sale price$1,685.00 USD

MOST IMPORTANT FEATURES

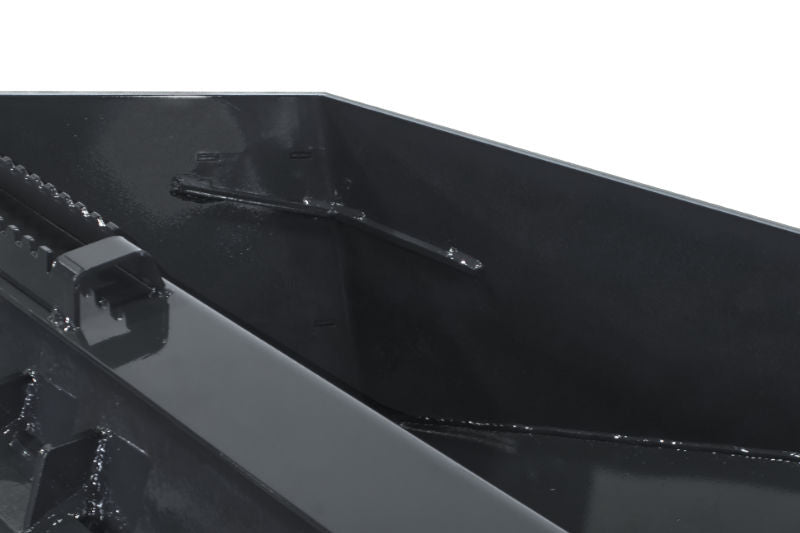

FILL-LEVEL MARKERS

INTERNAL METAL MARKERS SHOW THE FILL LEVEL TO HELP GAUGE THE LOAD BEFORE TRANSPORT.

REINFORCED CORNERS

REINFORCED CORNERS SUPPORT THE BUCKET AT THE JUNCTIONS OF ITS FLOOR AND SIDE WALLS.

MATERIAL HANDLING

VIRNIG CONCRETE BUCKET CARRIES AND POURS CONCRETE AND OTHER FREE-FLOWING MATERIALS.

BATCH CAPACITY OPTIONS

CHOOSE A ½ OR ¾ CU. YD. MAXIMUM-CAPACITY BUCKET TO MATCH THE BATCH AND CARRIER.

WIDTH OPTIONS

TWO BUCKET SIZES OFFER DIFFERENT WIDTHS FOR MATCHING THE LOAD AND WORKING AREA.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

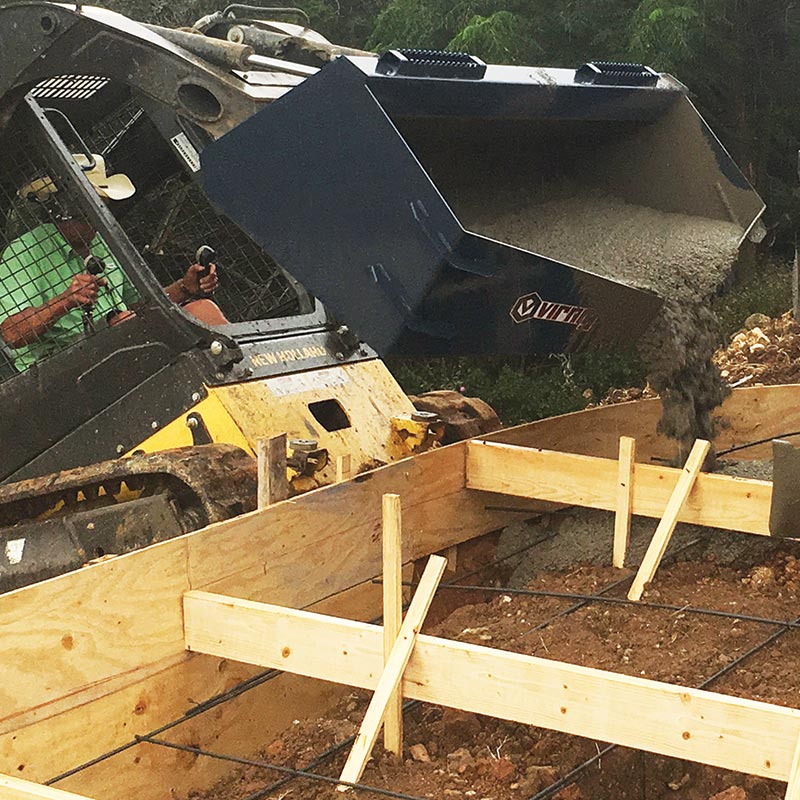

The Virnig Concrete Bucket carries and pours concrete and other suitable free-flowing materials with a loader-mounted bucket. It provides a way to move material from the loading point to the placement area where the machine can travel, giving the operator control over transport and the final pouring position.

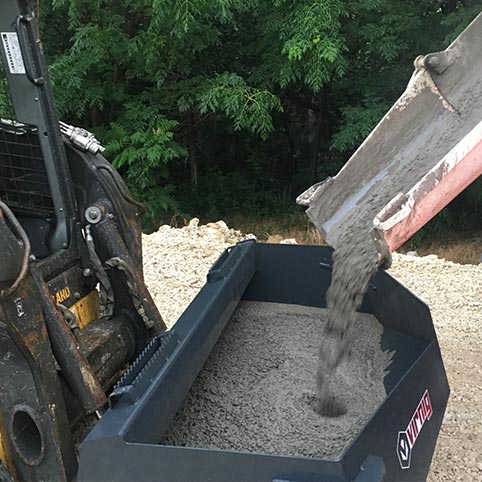

Metal markers inside the bucket show the fill level, helping the operator monitor the amount being carried. Reinforced corners strengthen the bucket at its transitions. The bucket arrangement is intended for carrying and placement; it does not mix the contents or replace the need to manage the material's working time and consistency.

Choose the bucket size around the carrier's capacity and the density of the load. Concrete is heavy, so a bucket's available volume should not be treated as permission to fill beyond the loader's lifting limit. Plan the route and unloading position before filling, and account for both the bucket's own weight and the material inside it.

KEY BENEFITS

  • Metal markers inside bucket show fill level.
  • Reinforced corners.
  • Virnig concrete bucket carries and pours concrete and other free-flowing materials.
  • Maximum capacity (cu. yd.): 0.5 | 0.75
  • Width: overall / inside (in.): 63.5 / 59.1 | 82.5 / 78.1

TECHNICAL SPECIFICATIONS

  • Models: CB500 CB750
  • Width: Overall / Inside (in.): CB500: 63.5 / 59.1; CB750: 82.5 / 78.1
  • Overall Height (in.): CB500: 22.5; CB750: 23.7
  • Depth: Overall / Inside (in.): CB500: 42.9 / 38.5; CB750: 44.7 / 40.7
  • Maximum Capacity (cu. yd.): CB500: 0.5; CB750: 0.75
  • Chute Width (in.): CB500: 8.0; CB750: 12.75
  • Shell Thickness (in.): 0.19
  • Structural Wear Bars Under Bucket (1/2” x 3”): 3
  • Approximate Weight (lbs): CB500: 515; CB750: 630
  • Recommended Loader Capacity: Attachment weight and load MUST NOT exceed operating capacity of loader.

APPLICATIONS

  • Concrete placement
  • Small pours
  • Moving free-flowing material

VIRNIG CONCRETE BUCKET

WORKING DESIGN

  • Metal markers inside bucket show fill level.
  • Reinforced corners.

CONFIGURATION AND SPECIFICATIONS

  • Models: CB500 CB750
  • Width: Overall / Inside (in.): CB500: 63.5 / 59.1; CB750: 82.5 / 78.1
  • Overall Height (in.): CB500: 22.5; CB750: 23.7
  • Depth: Overall / Inside (in.): CB500: 42.9 / 38.5; CB750: 44.7 / 40.7
  • Maximum Capacity (cu. yd.): CB500: 0.5; CB750: 0.75
  • Chute Width (in.): CB500: 8.0; CB750: 12.75
  • Shell Thickness (in.): 0.19
  • Structural Wear Bars Under Bucket (1/2” x 3”): 3
  • Approximate Weight (lbs): CB500: 515; CB750: 630

READY FOR THE FIELD

  • Metal markers inside bucket show fill level.
  • Reinforced corners.
  • Virnig concrete bucket carries and pours concrete and other free-flowing materials.
  • Maximum capacity (cu. yd.): 0.5 | 0.75
  • Width: overall / inside (in.): 63.5 / 59.1 | 82.5 / 78.1
