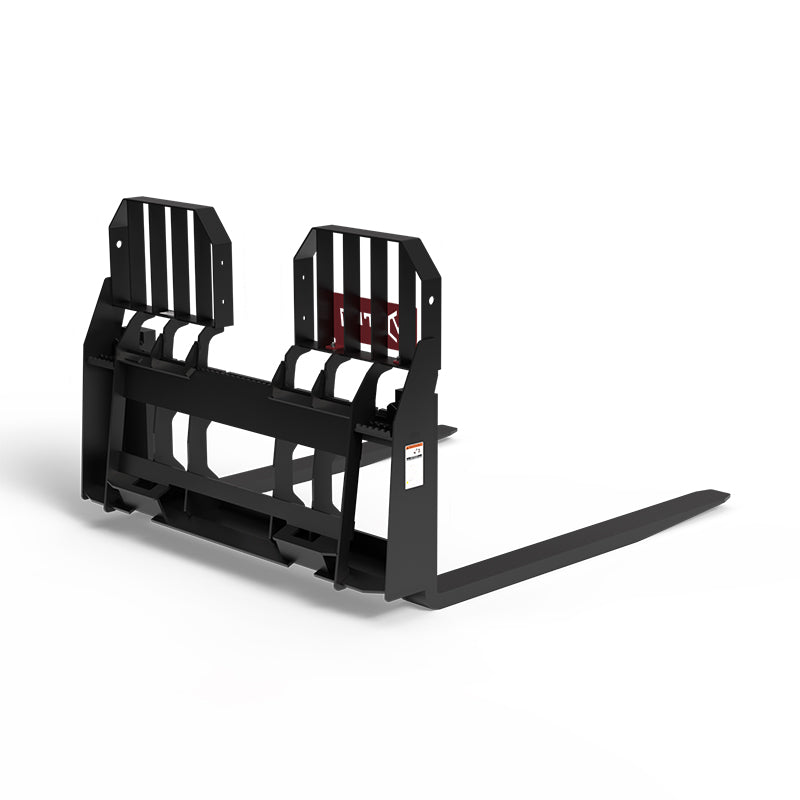

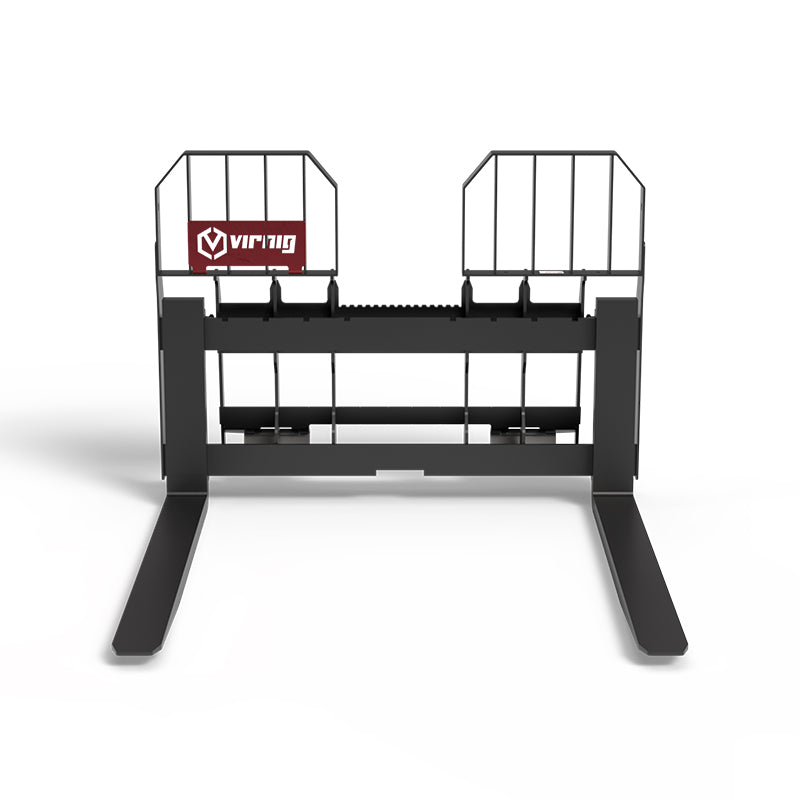

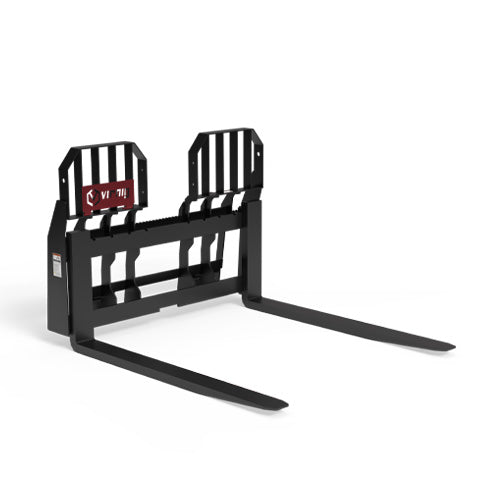

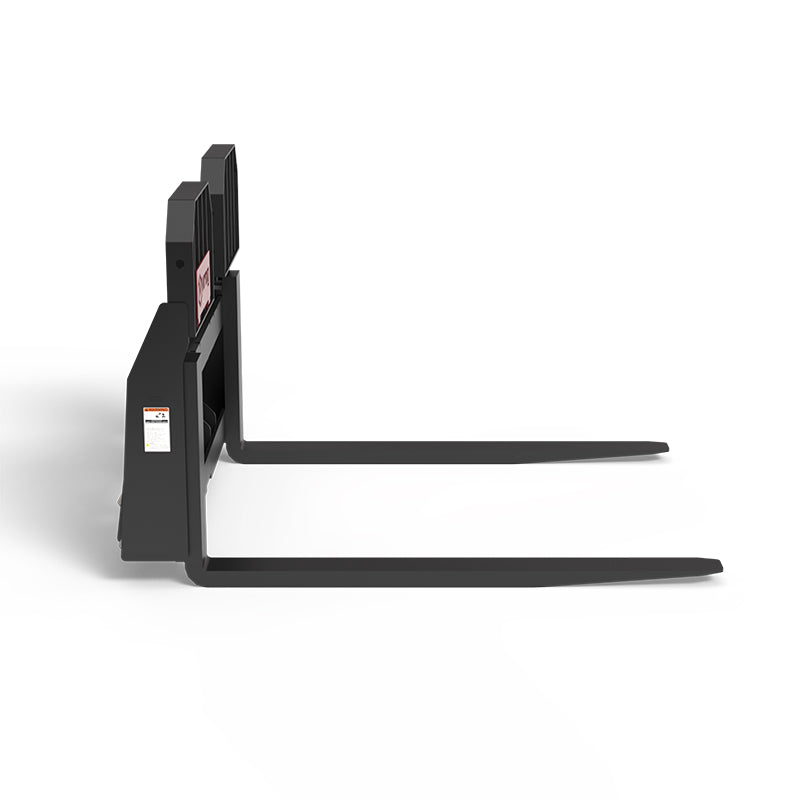

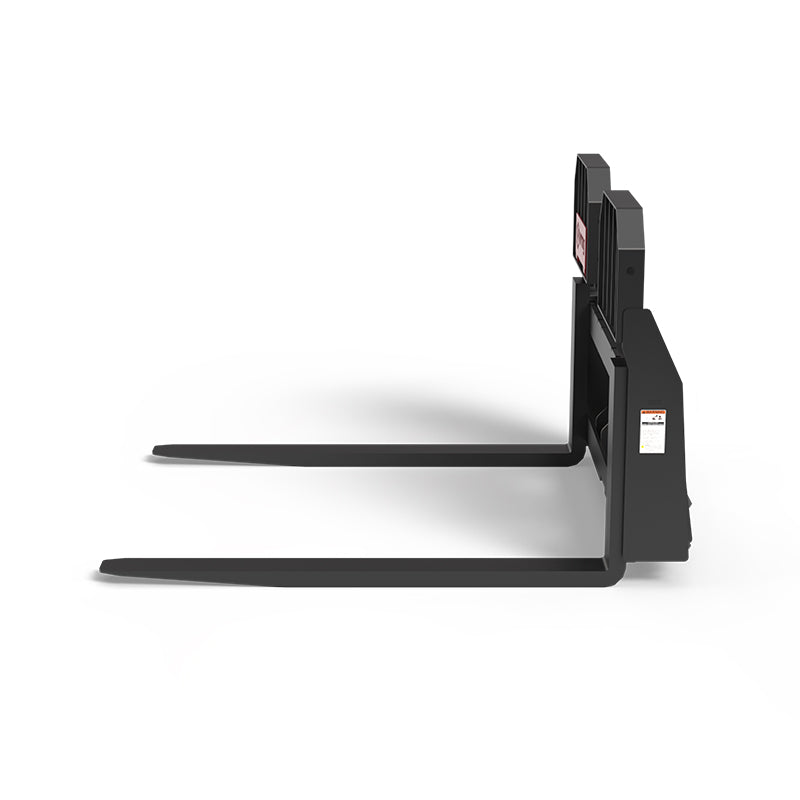

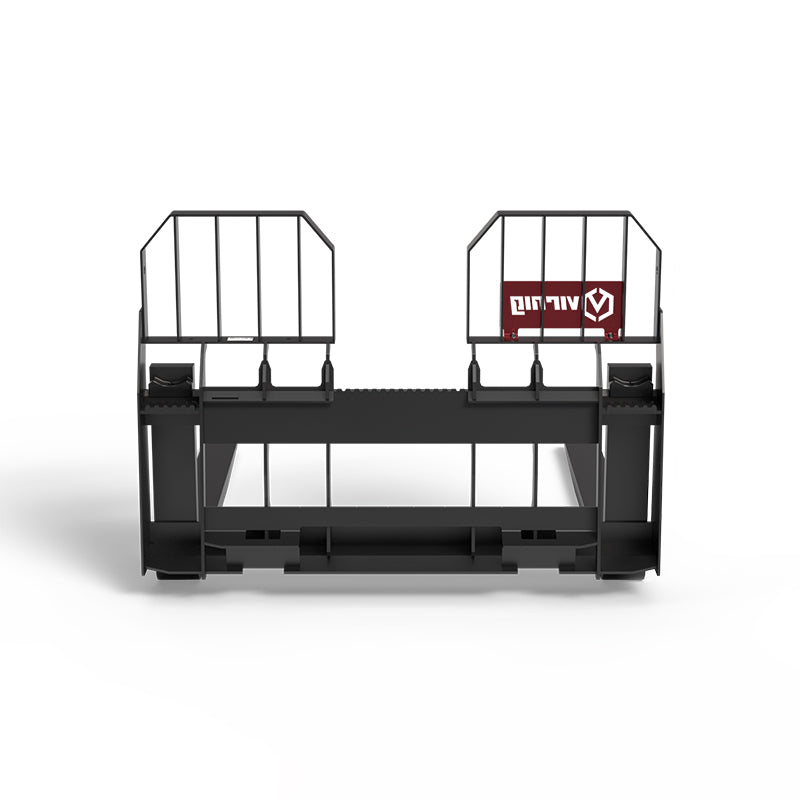

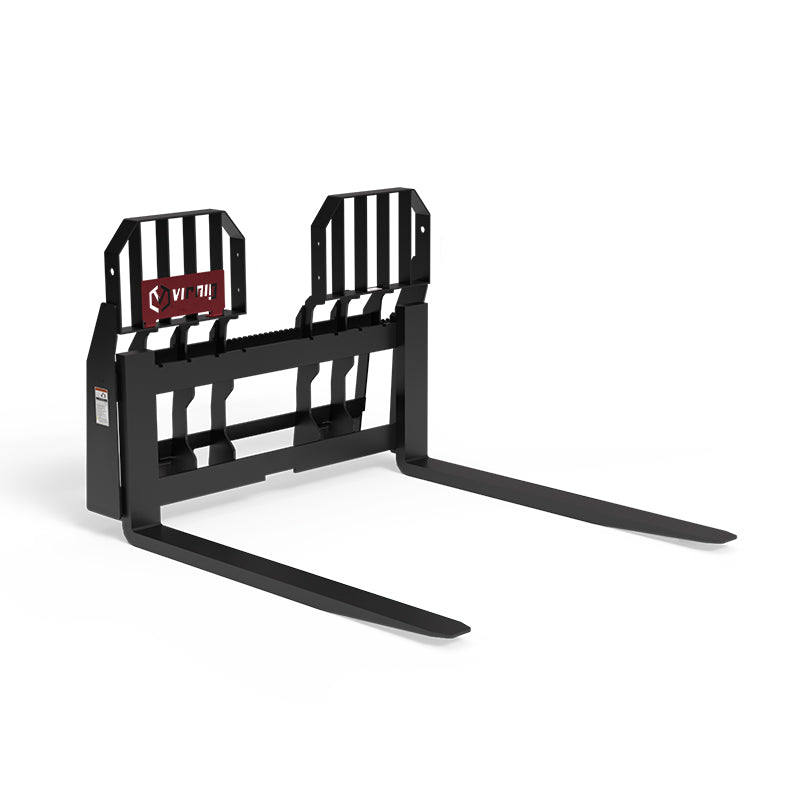

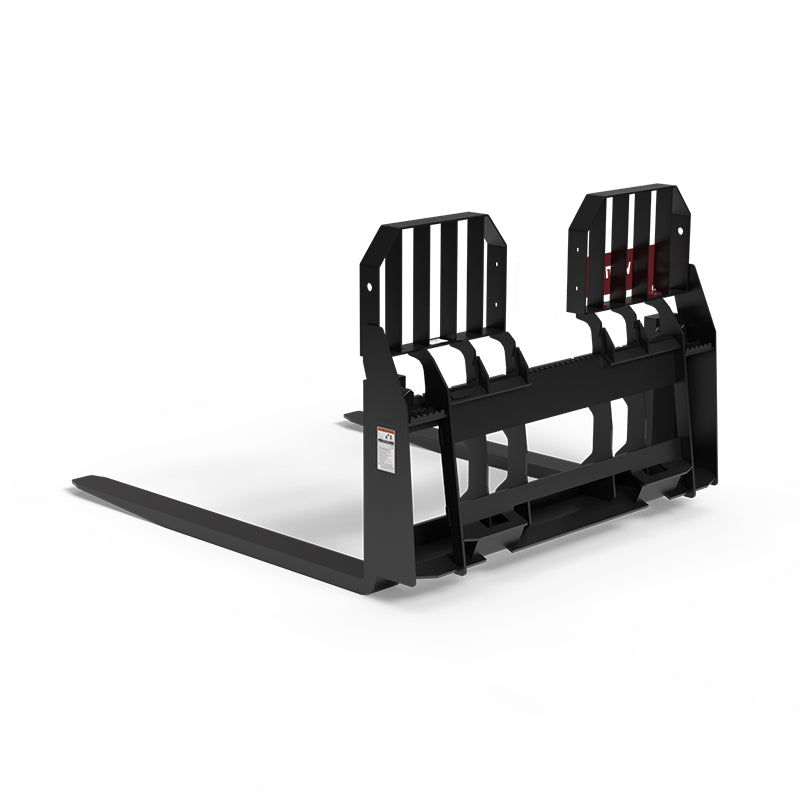

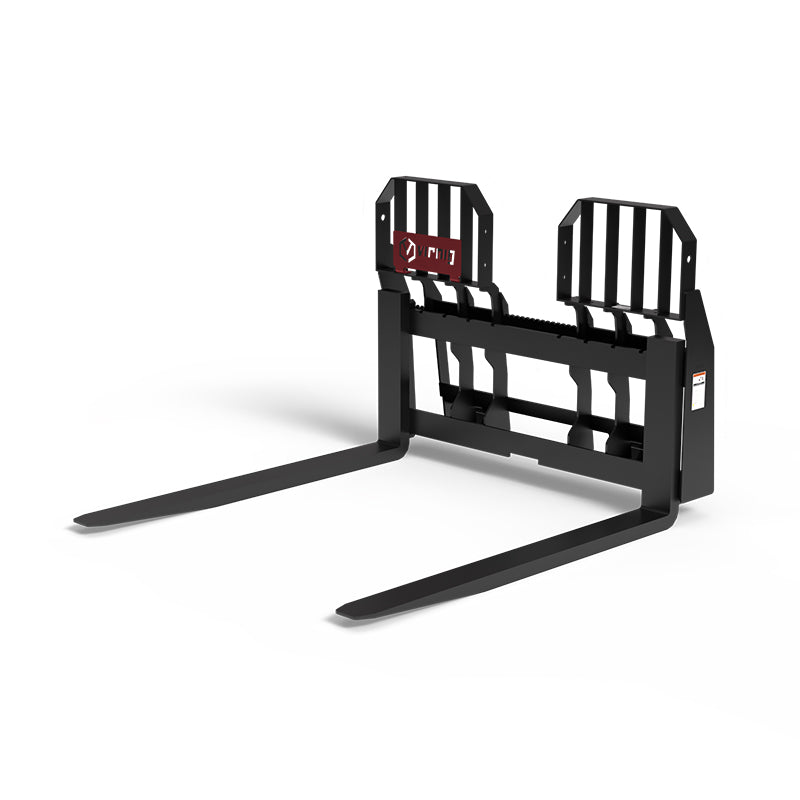

Virnig CWL Rail Pallet Fork Class 3

Virnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differ
Virnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differ
Virnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differ
Virnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differ
Virnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differ
Virnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differ
Virnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differ
Virnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differ
Virnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differVirnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differVirnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differVirnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differVirnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differVirnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differVirnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differVirnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differVirnig CWL Rail Pallet Fork Class 3; manufacturer family image, configuration may differ
Virnig

Virnig CWL Rail Pallet Fork Class 3

SKU: WLPF4810 Currently In Stock

$2,690.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

WHEEL LOADER MOUNT POSITION

THE HIGHER QUICK-ATTACH POSITION MATCHES THE FORK FRAME TO COMPACT WHEEL LOADERS.

HIGH-VISIBILITY BACKREST

THE ¼″ HIGH-VISIBILITY BACKREST SUPPORTS LOADS WHILE PRESERVING FORWARD SIGHTLINES.

CLASS 3 FORK RAIL

A 1¼″ BEVELED RAIL PROVIDES THE SUPPORTING CARRIAGE FOR CLASS 3 FORK TINES.

FLUSH LOAD BACKREST

THE BACKREST SITS FLUSH WITH THE TINES TO HELP STABILIZE MATERIAL AGAINST THE FRAME.

PALLET HANDLING

VIRNIG CWL RAIL PALLET FORK CLASS 3 HANDLES PALLETIZED MATERIALS WITH ADJUSTABLE FORGED FORK TINES.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig CWL Rail Pallet Fork Class 3 handles palletized loads with a frame configured for compact wheel loaders. Its quick-attach location is mounted higher for the CWL arrangement, distinguishing this fork from a standard skid steer frame even when the tine lengths appear similar.

A ¼″ high-visibility brickguard helps the operator monitor the load, while the backrest sits flush with the tines to help stabilize material against the frame. The 1¼″ beveled rail supports the Class 3 fork arrangement, and adjustable tine spacing allows the support points to be set around the pallet or load.

Available 48″, 60″, and 72″ tines provide different reaches, with a 10,000 lb fork rating for this family. That rating does not override the wheel loader's capacity at the actual load center and steering position. Confirm the loader interface and complete attachment weight before selecting the tine length for your handling requirements.

KEY BENEFITS

  • Quick attach mounted higher for CWL compatibility.
  • 1/4″ high visibility brickguard.
  • 1-1/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Virnig CWL Rail Pallet Fork Class 3 handles palletized materials with adjustable forged fork tines.

TECHNICAL SPECIFICATIONS

  • Models: WLPF4810 | WLPF6010 | WLPF7210
  • Width, Overall w/ Step / Frame (in.): 59.5
  • Overall Height (in.): 44.4
  • Tine, Length / Width / Thickness (in.): WLPF4810: 48.0 / 5.0 / 2.0; WLPF6010: 60.0 / 5.0 / 2.0; WLPF7210: 72.0 / 5.0 / 2.0
  • Tine Space, Min / Max (in.): 13.0 / 53.0
  • Approximate Weight (lbs): WLPF4810: 745; WLPF6010: 815; WLPF7210: 880
  • Capacity (lbs): 10000

APPLICATIONS

  • Pallet loading
  • Material staging
  • Jobsite unloading

VIRNIG CWL RAIL PALLET FORK CLASS 3

WORKING DESIGN

  • Quick attach mounted higher for CWL compatibility.
  • 1/4″ high visibility brickguard.
  • 1-1/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.

CONFIGURATION AND SPECIFICATIONS

  • Models: WLPF4810 | WLPF6010 | WLPF7210
  • Width, Overall w/ Step / Frame (in.): 59.5
  • Overall Height (in.): 44.4
  • Tine, Length / Width / Thickness (in.): WLPF4810: 48.0 / 5.0 / 2.0; WLPF6010: 60.0 / 5.0 / 2.0; WLPF7210: 72.0 / 5.0 / 2.0
  • Tine Space, Min / Max (in.): 13.0 / 53.0
  • Approximate Weight (lbs): WLPF4810: 745; WLPF6010: 815; WLPF7210: 880
  • Capacity (lbs): 10000

READY FOR THE FIELD

  • Quick attach mounted higher for CWL compatibility.
  • 1/4″ high visibility brickguard.
  • 1-1/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Virnig CWL Rail Pallet Fork Class 3 handles palletized materials with adjustable forged fork tines.
