VIRNIG

Digging Tree Puller

For Skid Steers & Track Loaders

1″ AR400 Digging Jaws

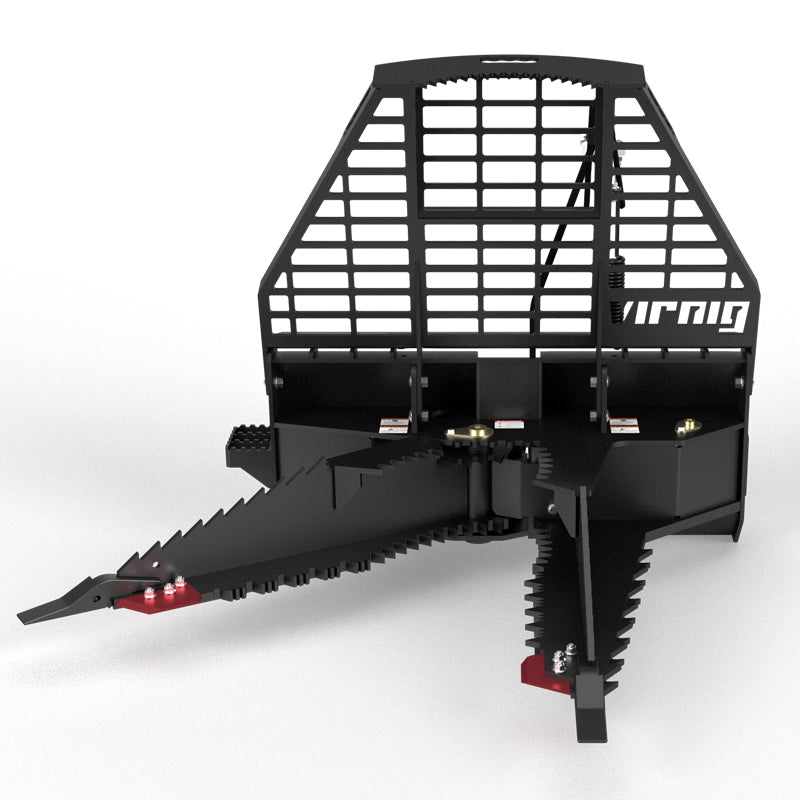

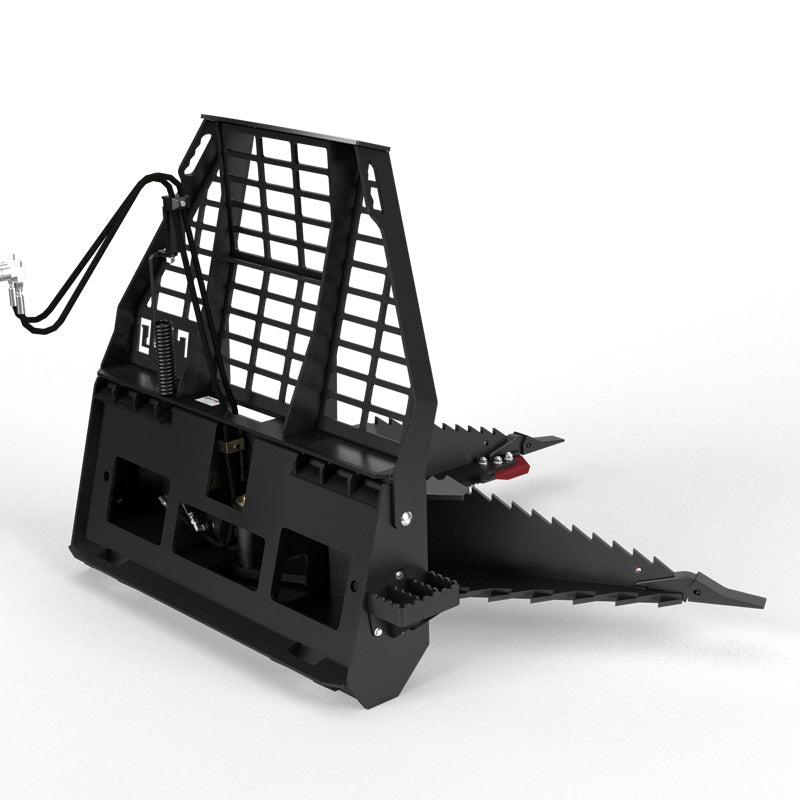

Virnig Digging Tree Puller

Virnig

Virnig Digging Tree Puller

SKU: DTP Currently In Stock

Sale price$5,360.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

REPLACEABLE CUTTING EDGES

UNIQUE REPLACEABLE CUTTING EDGES FOR PUNCHING THROUGH HARD SOIL, CUTTING ROOTS AND GRUBBING TREES.

FIXED JAW

THE FIXED JAW HELPS CENTER THE TREE OR POST AS THE LOADER APPROACHES.

AR400 DIGGING JAWS

1″ THICK AR400 SERRATED JAWS AND REPLACEABLE SERIES 23 TEETH FOR AGGRESSIVE DIGGING.

TREE STABILIZING SERRATIONS

SERRATIONS ON THE GUARD AND JAW BASE HELP STABILIZE THE TREE DURING PULLING.

ANGLED PROTECTIVE GUARD

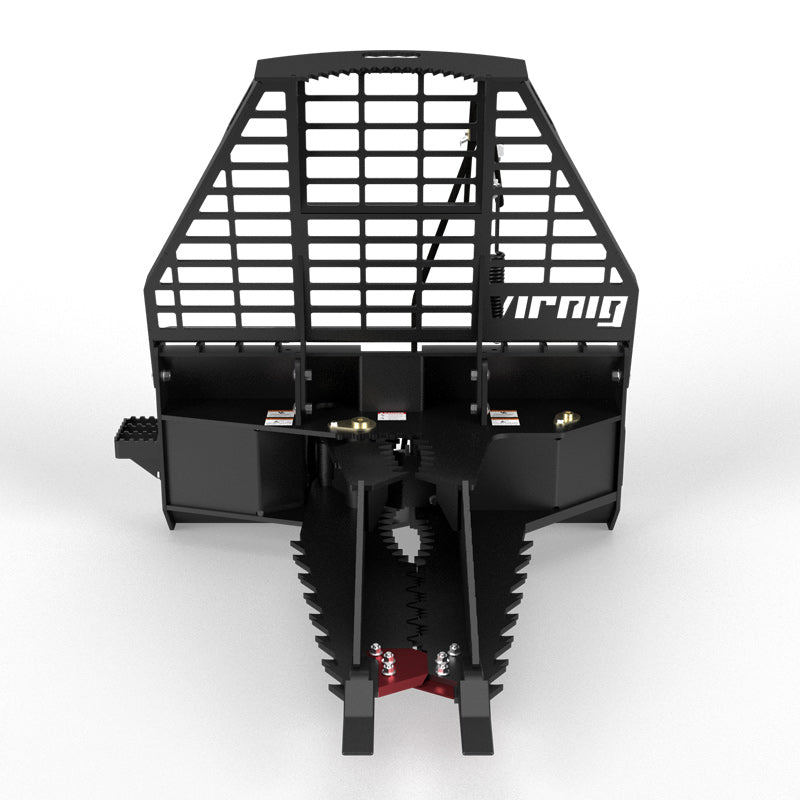

3/8″ THICK GUARD ANGLED FORWARD AND ON CORNERS TO SHED FALLING TREES AWAY FROM LOADER.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

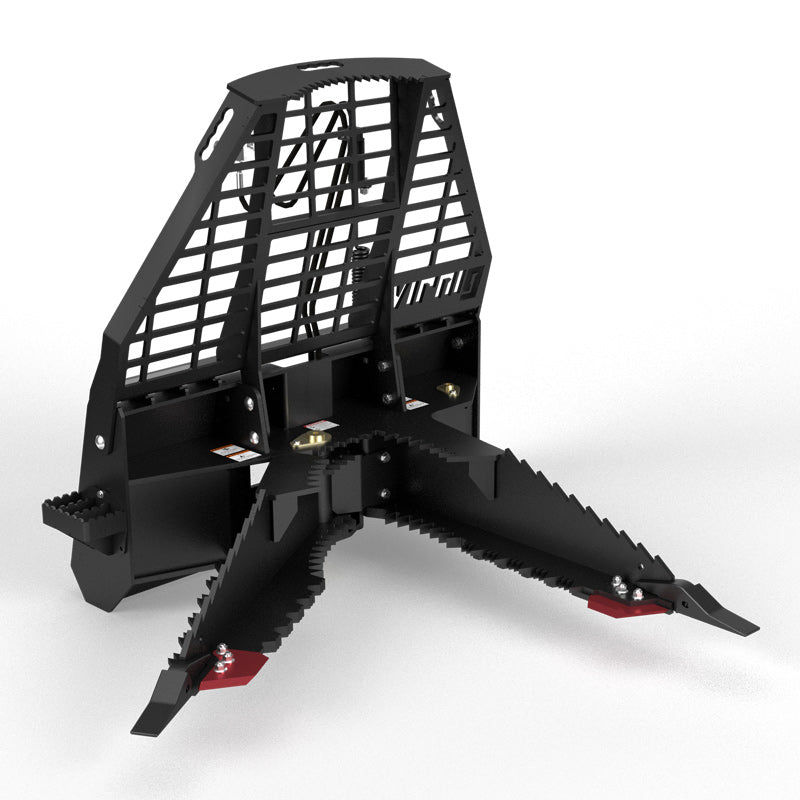

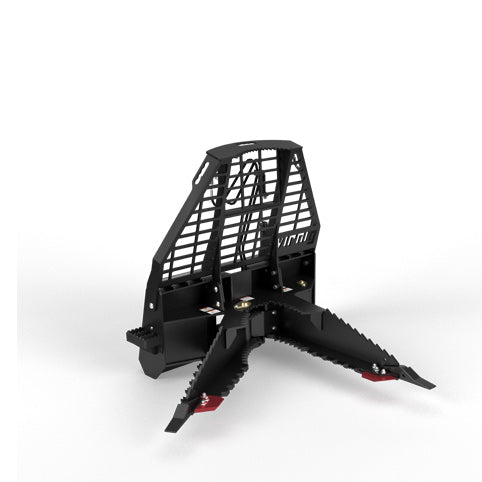

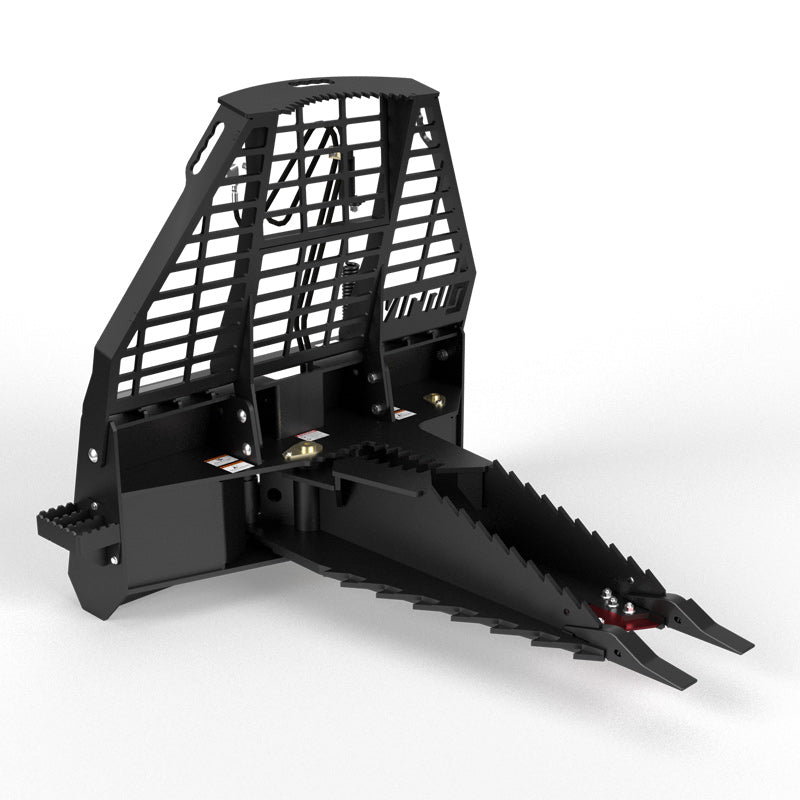

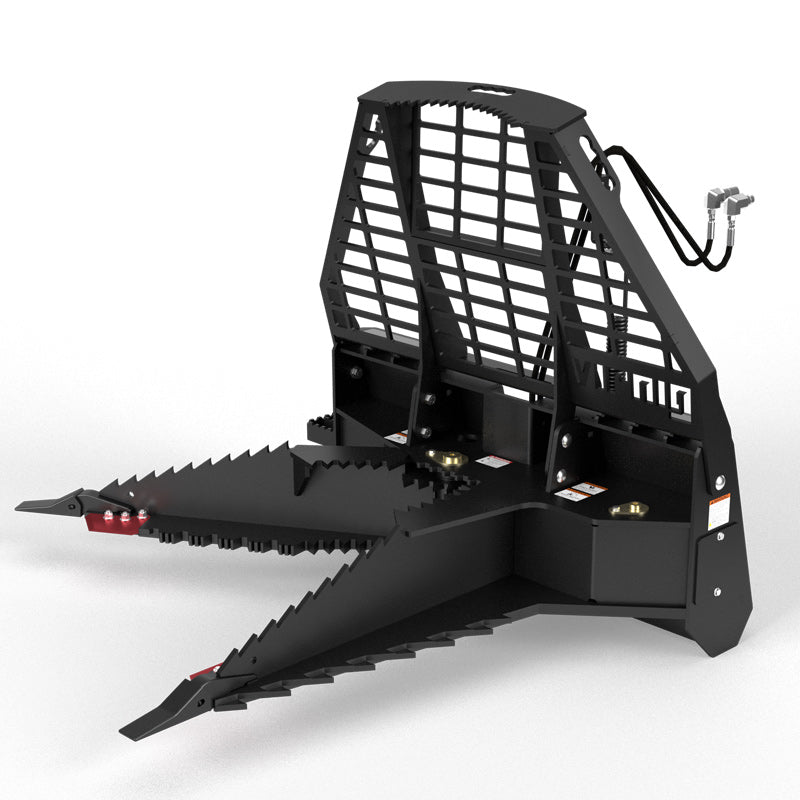

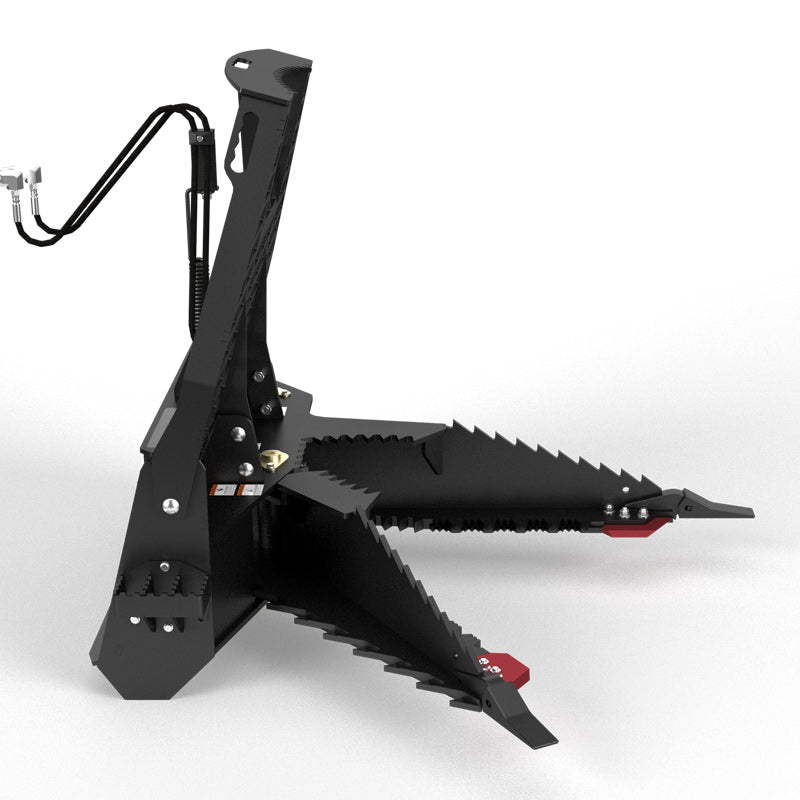

The Virnig Digging Tree Puller combines hydraulic gripping with a digging front for trees, stumps, roots, and rocks. Replaceable cutting edges work into hard soil and roots, while a fixed jaw helps center the object as the loader approaches. This arrangement supports loosening material before it is gripped and pulled.

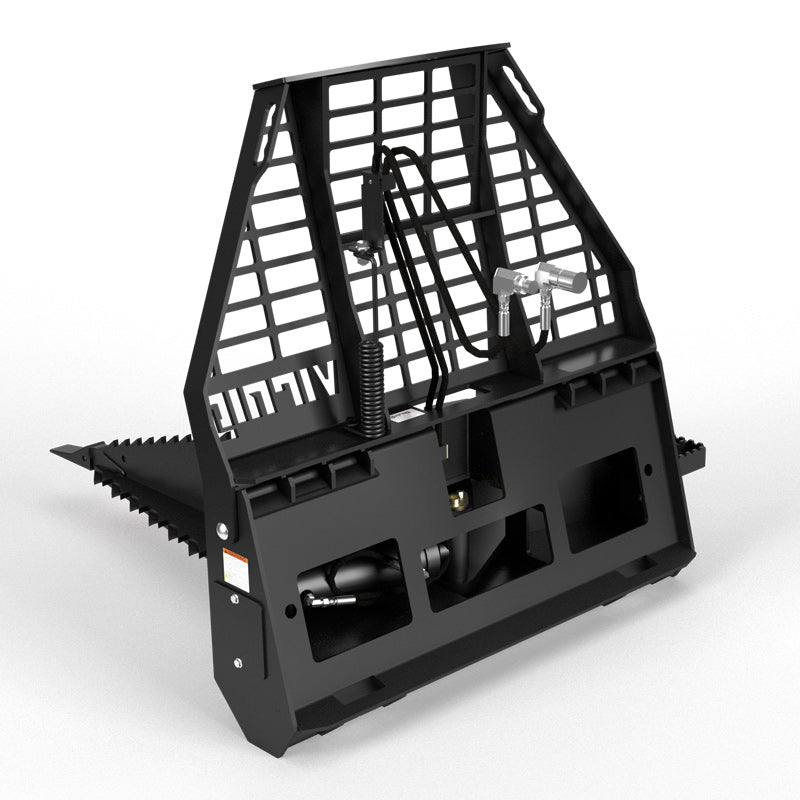

One-inch AR400 serrated jaws and replaceable Series 23 teeth provide the ground-engaging structure. Serrations at the guard top and jaw base help stabilize the object during pulling. The ⅜″ guard angles forward and at the corners to help shed material away from the loader, while the 3½″ cylinder is housed inside the frame.

A hard stop helps protect the cylinder from excess stress as the attachment works against resistant material. The replaceable edges and teeth provide service points at the parts most exposed to digging wear. Match the complete attachment and removal task to the loader's capacity, keeping the carrier stable throughout digging, gripping, and pulling.

KEY BENEFITS

  • Unique replaceable cutting edges for punching through hard soil, cutting roots and grubbing trees.
  • Fixed jaw provides max strength and helps center objects while approaching.
  • 1″ thick AR400 serrated jaws and replaceable series 23 teeth for aggressive digging.
  • Tree stabilizing serrations on guard top and jaw base.
  • 3/8″ thick guard angled forward and on corners to shed falling trees away from loader.

TECHNICAL SPECIFICATIONS

  • Models: DTP
  • Overall Width (in.): 50.4
  • Overall Height (in.): 48.4
  • Overall Depth (in.): 58.0
  • Guard Height / Width (in.): 27.4 / 46.4
  • Max Jaw Opening: Front / Base (in.): 32.0 / 14.0
  • Space Between Digging Teeth (in.): 6.2
  • Jaw Thickness (in.): 1.0¹
  • Max Digging Depth (in.): 42.5
  • Cylinder Bore / Stroke (in.): 3.5 / 8.0
  • Cylinder Pins / Pivot Pins (in.): 1.6 / 2.2
  • Approximate Weight (lbs): 830
  • Recommended Loader Capacity: Greater than 1800 lbs
  • ¹Laminated 1/2" AR400 Plate (150,000 PSI Min Yield Strength) & 1/2" Grade 50 Plate (50,000 PSI Min Yield Strength).

APPLICATIONS

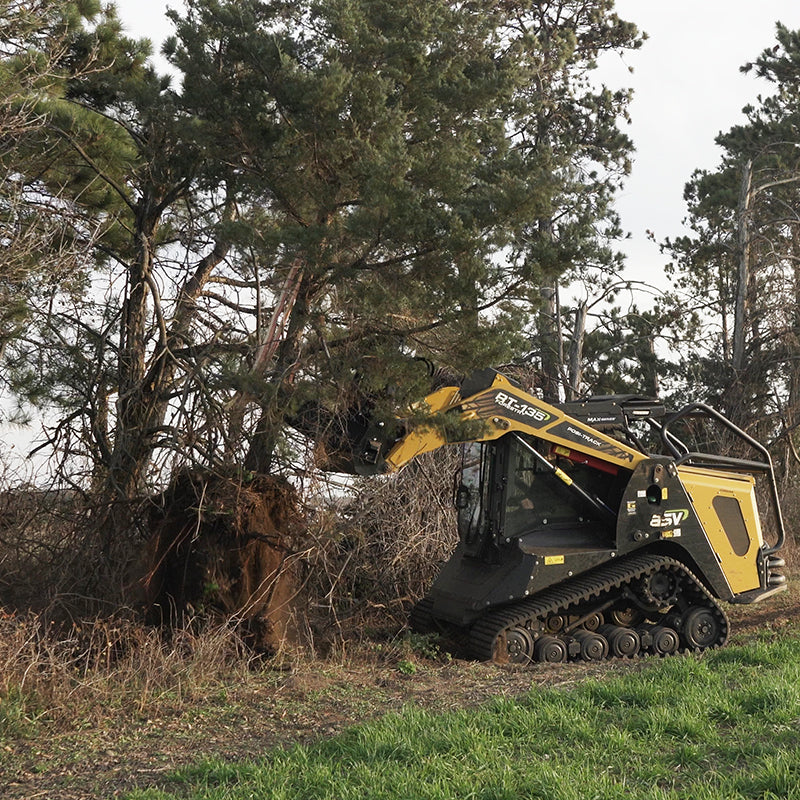

  • Tree removal
  • Root grubbing
  • Stump and rock extraction

VIRNIG DIGGING TREE PULLER

WORKING DESIGN

  • Unique replaceable cutting edges for punching through hard soil, cutting roots and grubbing trees.
  • Fixed jaw provides max strength and helps center objects while approaching.
  • 1″ thick AR400 serrated jaws and replaceable series 23 teeth for aggressive digging.
  • Tree stabilizing serrations on guard top and jaw base.
  • 3/8″ thick guard angled forward and on corners to shed falling trees away from loader.

CONFIGURATION AND SPECIFICATIONS

  • Models: DTP
  • Overall Width (in.): 50.4
  • Overall Height (in.): 48.4
  • Overall Depth (in.): 58.0
  • Guard Height / Width (in.): 27.4 / 46.4
  • Max Jaw Opening: Front / Base (in.): 32.0 / 14.0
  • Space Between Digging Teeth (in.): 6.2

READY FOR THE FIELD

  • Unique replaceable cutting edges for punching through hard soil, cutting roots and grubbing trees.
  • Fixed jaw provides max strength and helps center objects while approaching.
  • 1″ thick AR400 serrated jaws and replaceable series 23 teeth for aggressive digging.
  • Tree stabilizing serrations on guard top and jaw base.
  • 3/8″ thick guard angled forward and on corners to shed falling trees away from loader.
