VIRNIG

Dozer Blade – 6 Way

For Skid Steers & Track Loaders

Dozer Blade – 6 Way

Request QuoteAdd To Cart

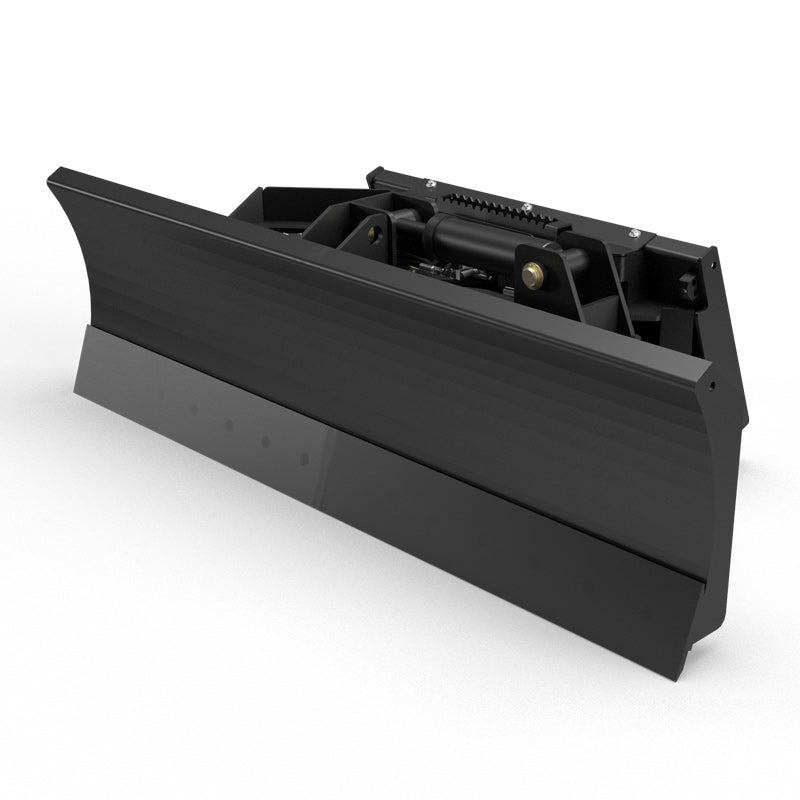

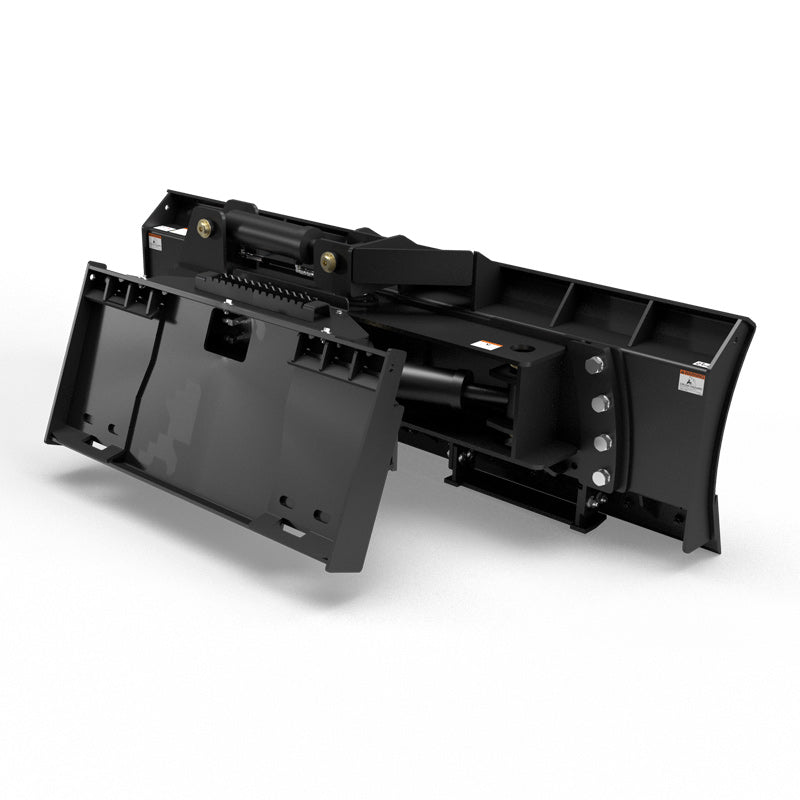

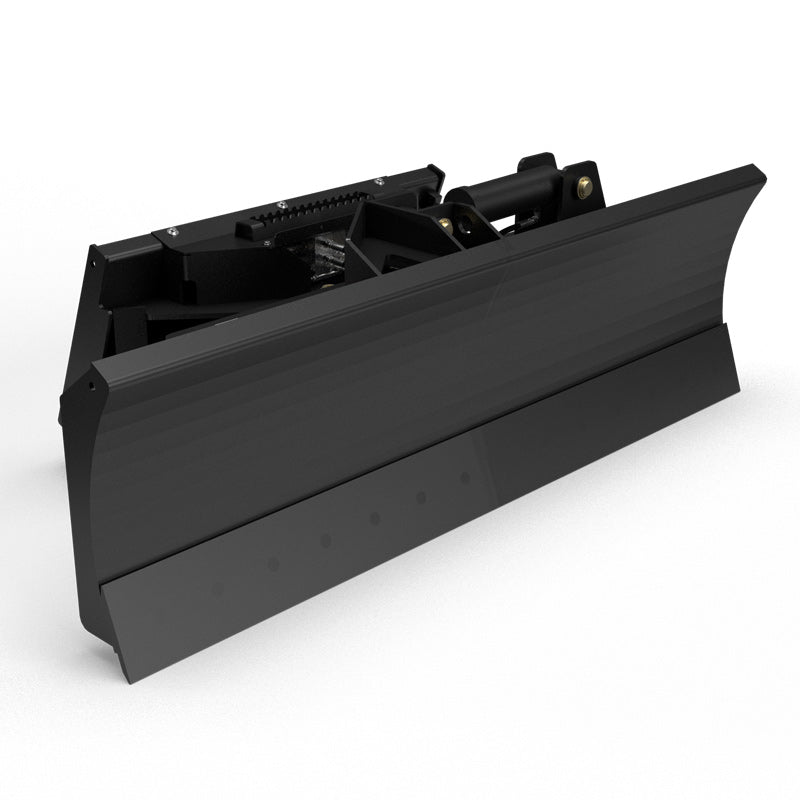

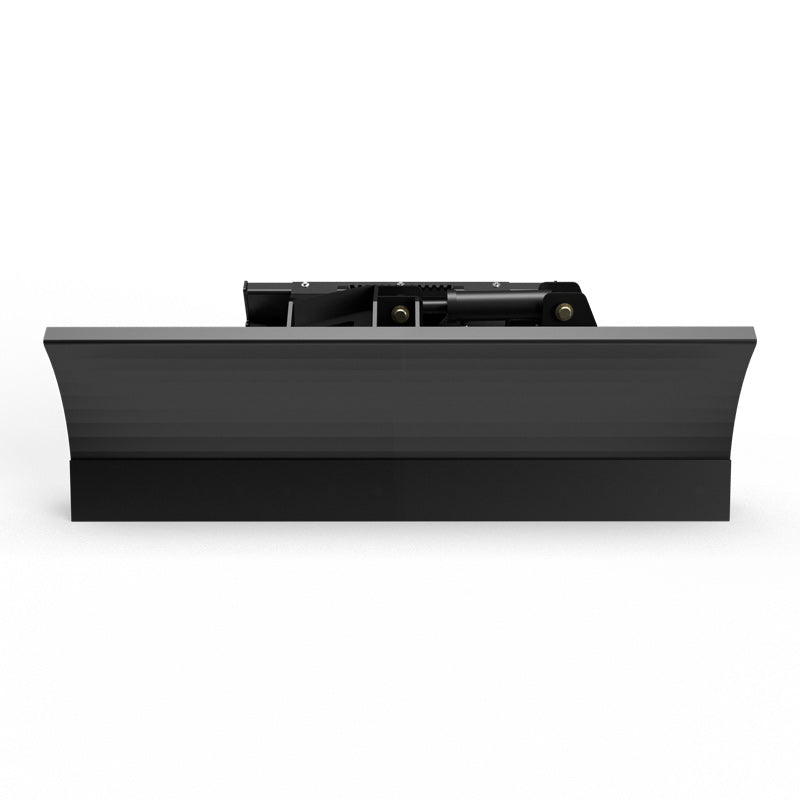

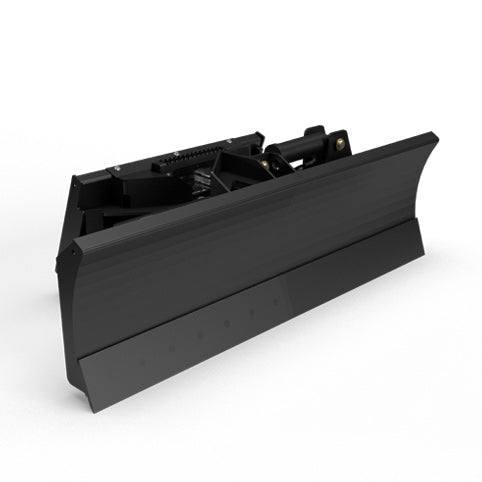

Virnig Dozer Blade - 6 Way

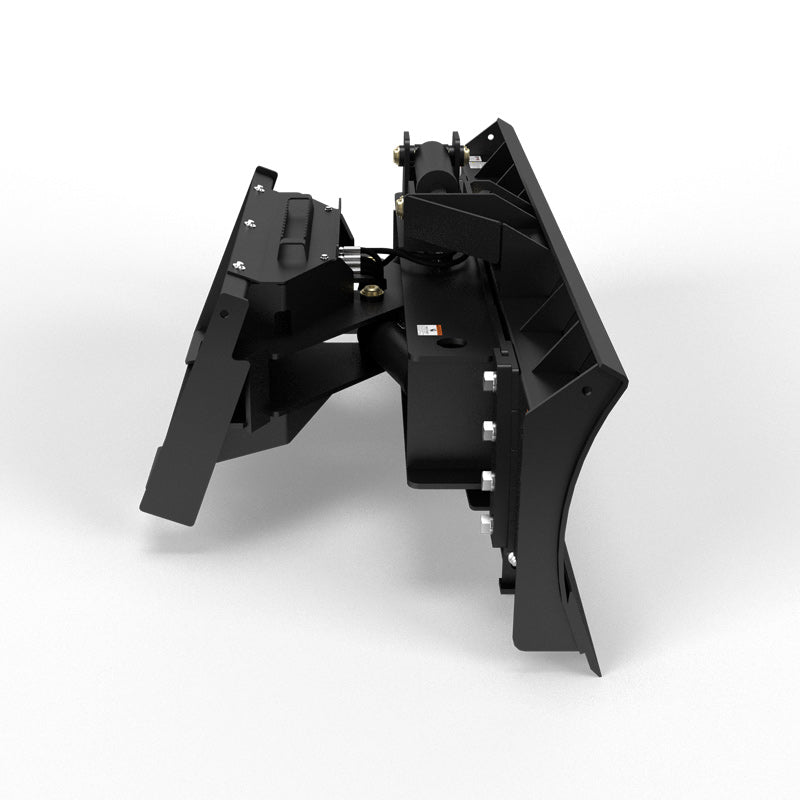

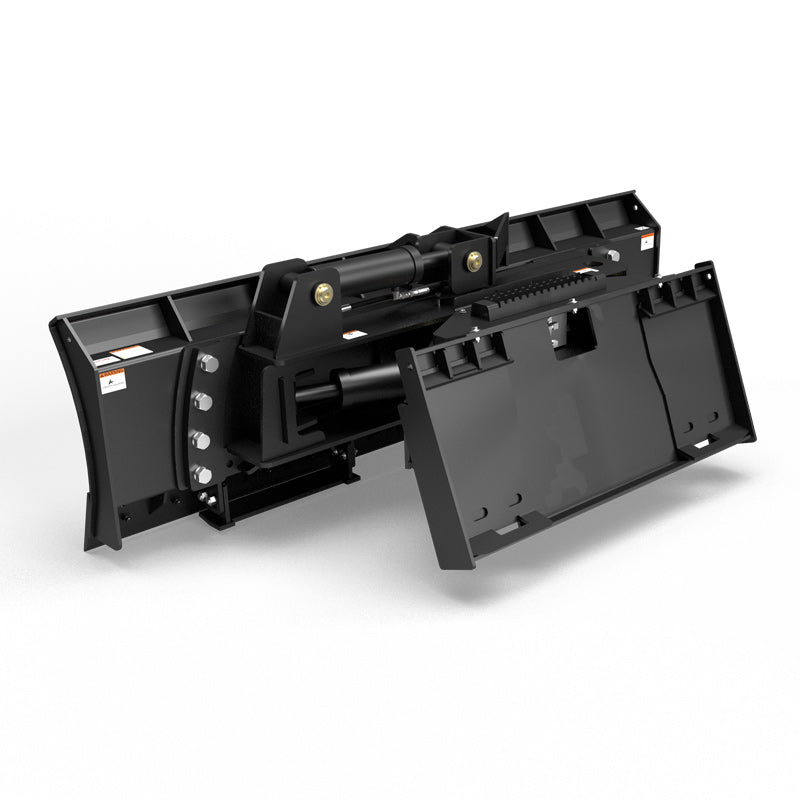

Virnig Dozer Blade – 6 Way; manufacturer family image, configuration may differ

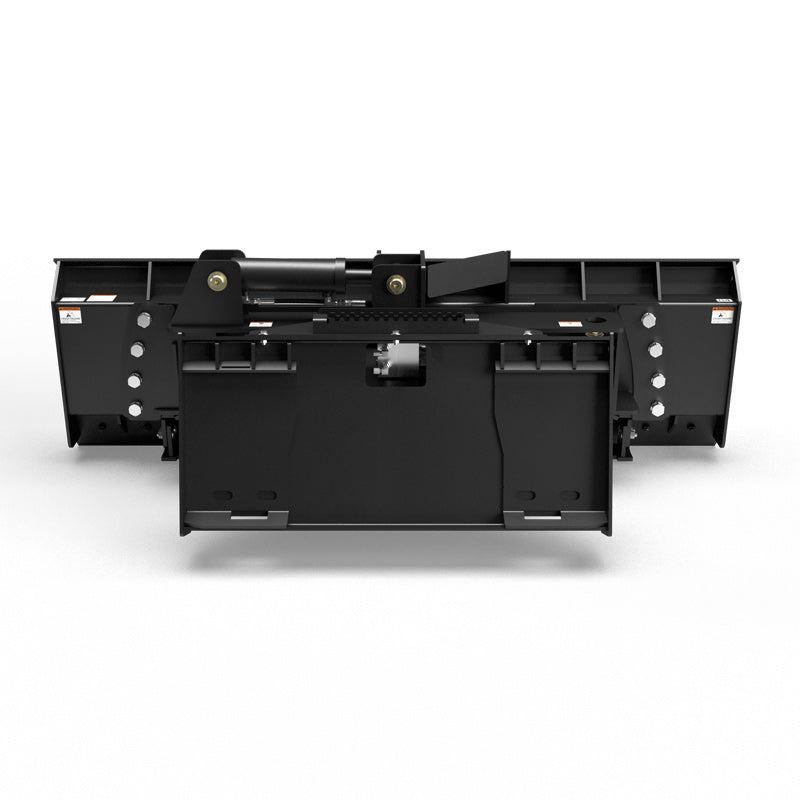

Virnig Dozer Blade – 6 Way; manufacturer family image, configuration may differ

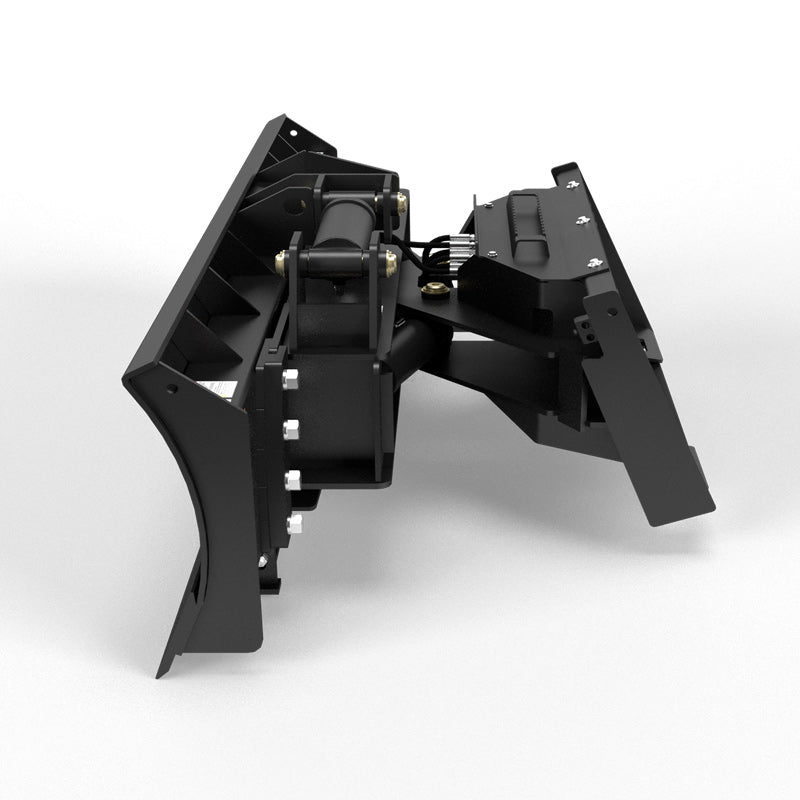

Virnig Dozer Blade – 6 Way; manufacturer family image, configuration may differ
Virnig Dozer Blade – 6 Way; manufacturer family image, configuration may differ
Virnig Dozer Blade – 6 Way; manufacturer family image, configuration may differ
Virnig Dozer Blade – 6 Way; manufacturer family image, configuration may differ
Virnig Dozer Blade – 6 Way; manufacturer family image, configuration may differ
Virnig Dozer Blade – 6 Way; manufacturer family image, configuration may differ
Virnig Dozer Blade – 6 Way; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig Dozer Blade – 6 Way; manufacturer family image, configuration may differVirnig Dozer Blade – 6 Way; manufacturer family image, configuration may differVirnig Dozer Blade – 6 Way; manufacturer family image, configuration may differVirnig Dozer Blade – 6 Way; manufacturer family image, configuration may differVirnig Dozer Blade – 6 Way; manufacturer family image, configuration may differVirnig Dozer Blade – 6 Way; manufacturer family image, configuration may differVirnig Dozer Blade – 6 Way; manufacturer family image, configuration may differVirnig Dozer Blade – 6 Way; manufacturer family image, configuration may differVirnig Dozer Blade – 6 Way; manufacturer family image, configuration may differ
Virnig

Virnig Dozer Blade - 6 Way

SKU: DZR72+ELC7-G3 Currently In Stock

$11,455.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

ADJUSTABLE WORKING ANGLE

ANGLE THE BLADE 30° LEFT OR RIGHT AND TILT 10° FROM INSIDE THE CAB.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

REPLACEABLE CUTTING EDGE

A ⅝″ X 8″ REVERSIBLE BOLT-ON EDGE PROVIDES A SERVICEABLE GROUND-CONTACT SURFACE.

GRADING

VIRNIG DOZER BLADE - 6 WAY ANGLES AND TILTS FROM THE CAB FOR CONTROLLED GRADING AND MATERIAL MOVEMENT.

WIDTH OPTIONS

MULTIPLE BLADE WIDTHS LET YOU MATCH COVERAGE TO THE LOADER AND WORKING SPACE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig 6-Way Dozer Blade gives the operator hydraulic angle and tilt control for grading and moving material. Angle the blade up to 30° left or right and tilt it up to 10° from inside the cab, allowing the cutting position to be changed as the work moves across a site.

The combination of angle and tilt helps direct material to the side while shaping the surface beneath the blade. A ⅝″ × 8″ reversible steel bolt-on edge provides the working contact surface and can be turned as it wears. NitroSteel® cylinder rods and Teflon®-coated pivot bushings equip the moving hydraulic connections.

Choose the blade width around the loader, working space, and material being moved, and confirm the required hydraulic and control connections. This is a grading and dozing blade without a trip edge or trip moldboard. Its rigid working arrangement should be considered when selecting the attachment for the surface and obstacles expected on the job.

KEY BENEFITS

  • Angle the blade 30° left or right and tilt 10° from inside the cab.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 5/8″ x 8″ reversible steel bolt-on edge.
  • Virnig dozer blade - 6 way angles and tilts from the cab for controlled grading and material movement.
  • Overall width (in.): 74.0 | 86.0 | 98.0

TECHNICAL SPECIFICATIONS

  • Models: DZR72 DZR84 DZR96
  • Overall Width (in.): DZR72: 74.0; DZR84: 86.0; DZR96: 98.0
  • Height: Overall / Blade (in.): 28.1 / 25.8
  • Overall Depth (in.): 38.0
  • Blade Angle (degrees): (+/-) 30
  • Width at Full Angle (in.): DZR72: 64.1; DZR84: 74.5; DZR96: 84.9
  • Blade Oscillation (degrees): (+/-) 10
  • Moldboard Thickness (in.): 0.375
  • Cutting Edge (in.): 5/8 x 8 Bolt-on
  • Cylinder Bore / Stroke (in.): 3.5 / 8.0
  • Pins: Cylinder / Hinge / Oscillation (in.): 1.563 / 2.125 / 2.125
  • Approximate Weight (lbs): DZR72: 1510; DZR84: 1575; DZR96: 1640
  • Recommended Loader Capacity: Greater than 1800 lbs
  • Price includes the selected electrical controller. Match the controller to the carrier connection and hydraulic system.

APPLICATIONS

  • Grading
  • Backfilling
  • Material spreading

VIRNIG DOZER BLADE - 6 WAY

WORKING DESIGN

  • Angle the blade 30° left or right and tilt 10° from inside the cab.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 5/8″ x 8″ reversible steel bolt-on edge.

CONFIGURATION AND SPECIFICATIONS

  • Models: DZR72 DZR84 DZR96
  • Overall Width (in.): DZR72: 74.0; DZR84: 86.0; DZR96: 98.0
  • Height: Overall / Blade (in.): 28.1 / 25.8
  • Overall Depth (in.): 38.0
  • Blade Angle (degrees): (+/-) 30
  • Width at Full Angle (in.): DZR72: 64.1; DZR84: 74.5; DZR96: 84.9
  • Blade Oscillation (degrees): (+/-) 10
  • Moldboard Thickness (in.): 0.375
  • Cutting Edge (in.): 5/8 x 8 Bolt-on

READY FOR THE FIELD

  • Angle the blade 30° left or right and tilt 10° from inside the cab.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 5/8″ x 8″ reversible steel bolt-on edge.
  • Virnig dozer blade - 6 way angles and tilts from the cab for controlled grading and material movement.
  • Overall width (in.): 74.0 | 86.0 | 98.0
