VIRNIG

Feed Pusher

For Skid Steers & Track Loaders

5 Width And 8 Angle Adjustments

Request QuoteAdd To Cart

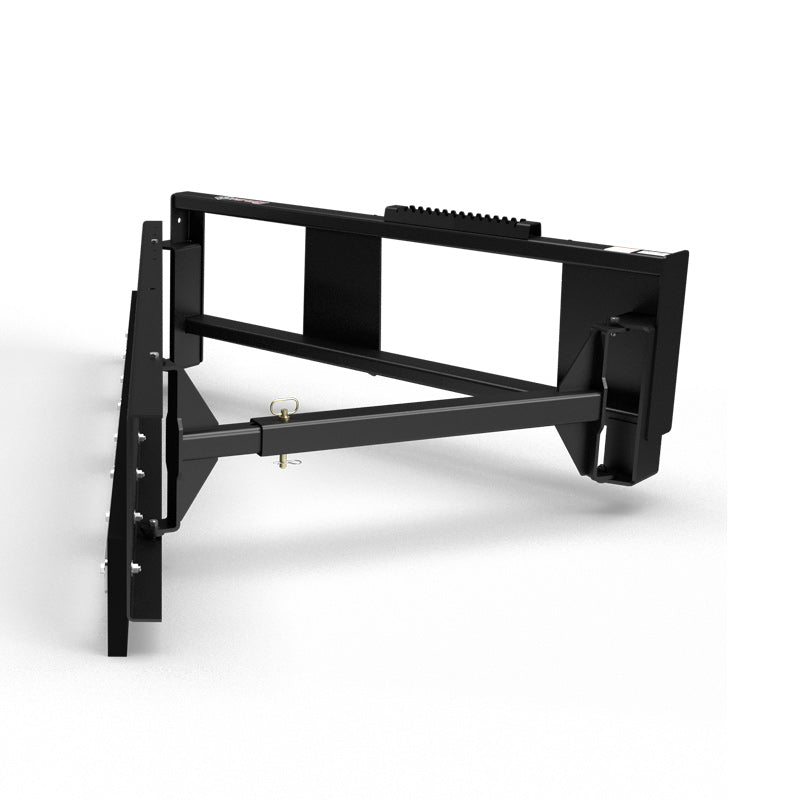

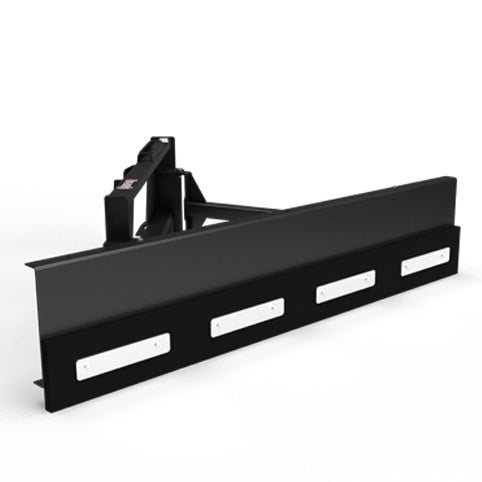

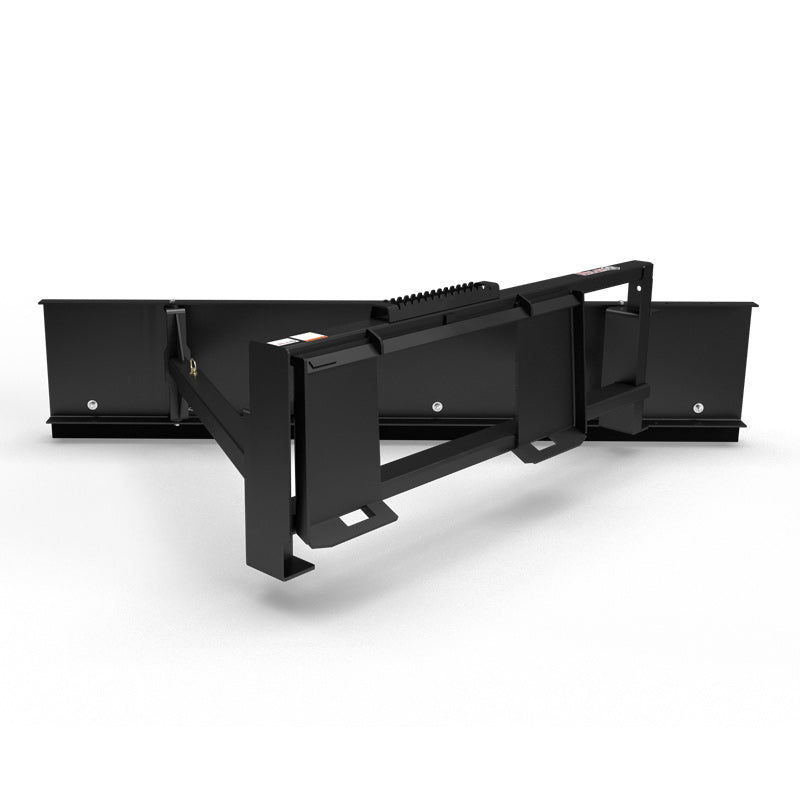

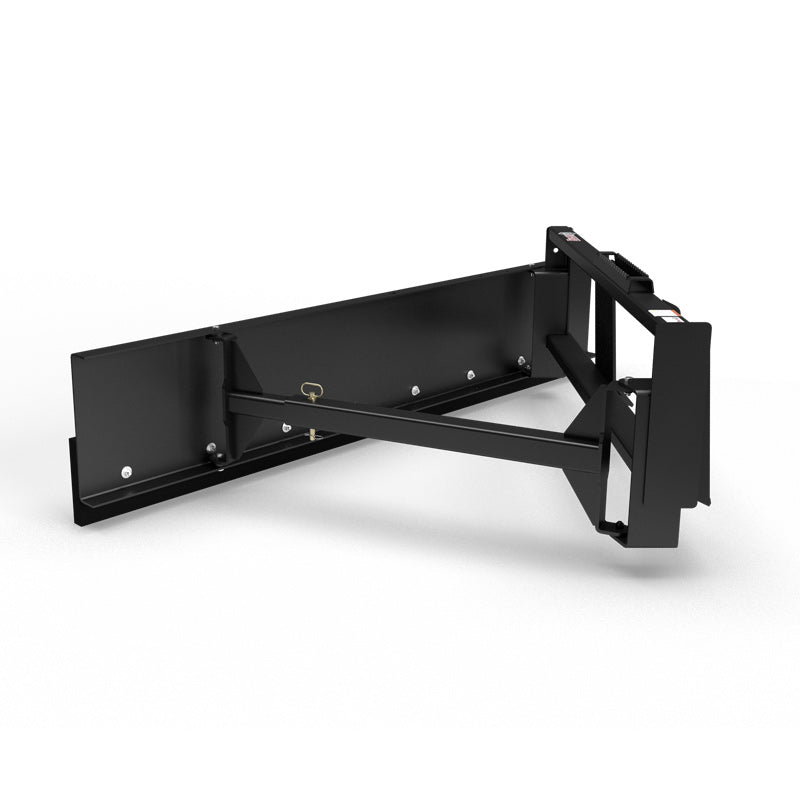

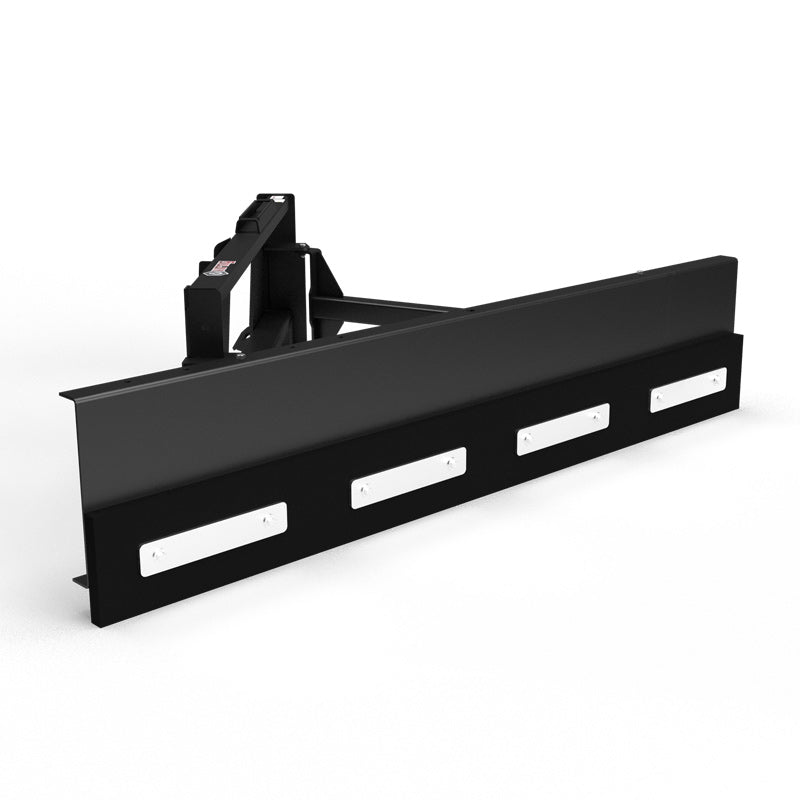

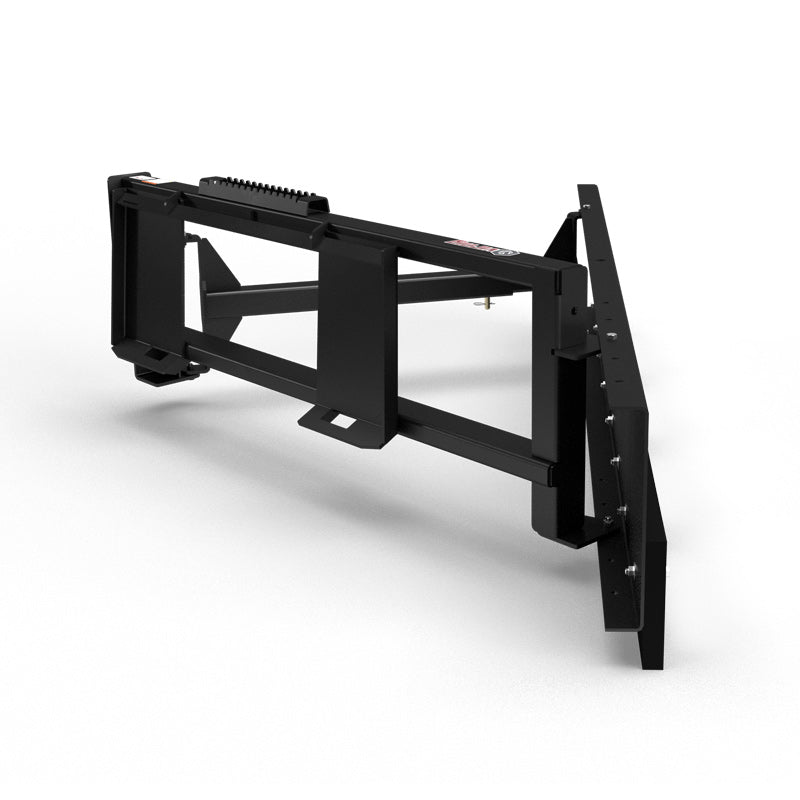

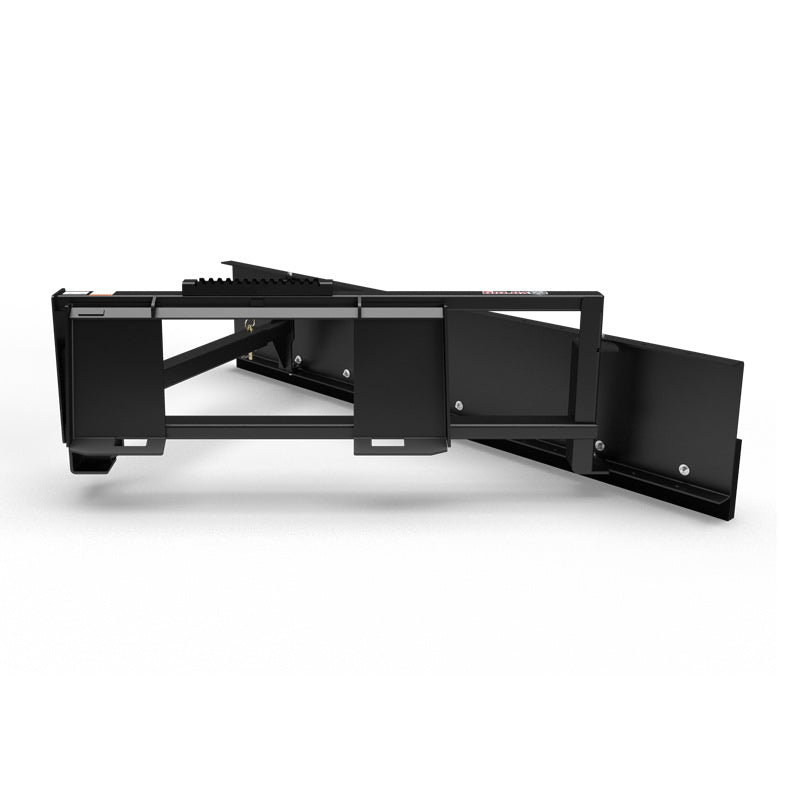

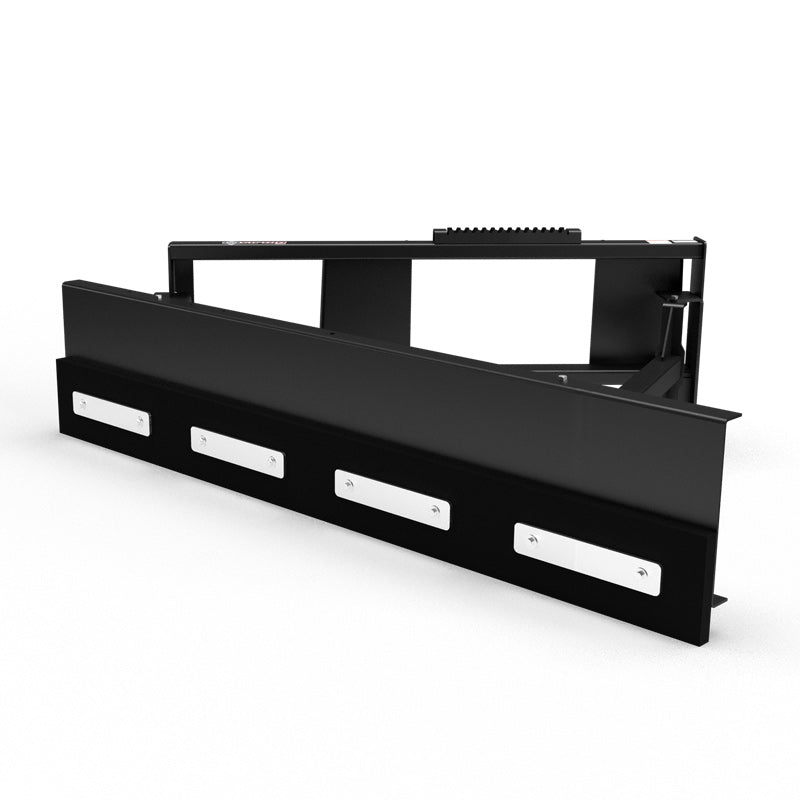

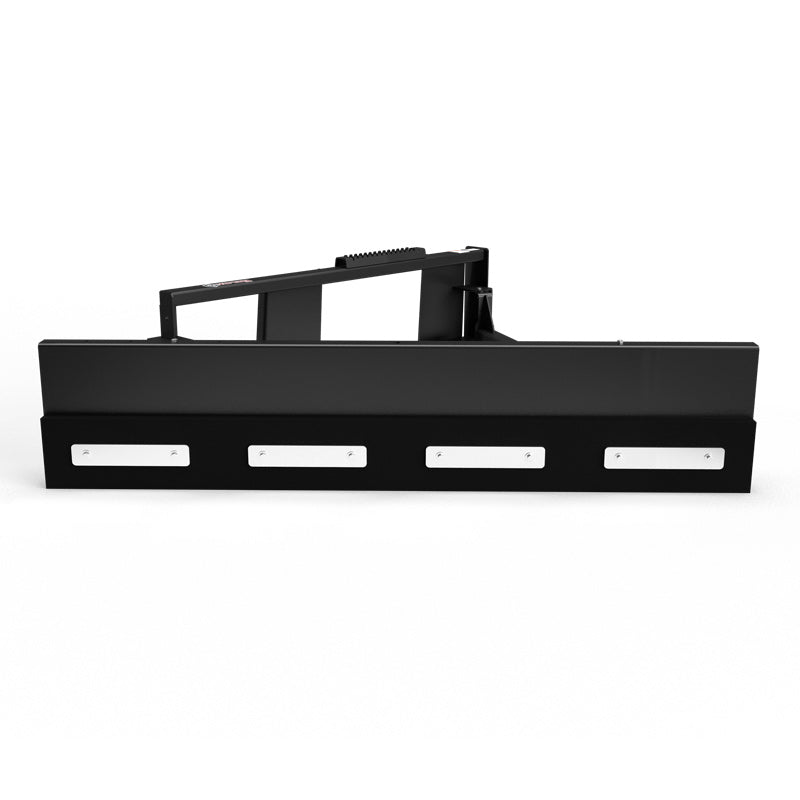

Virnig Feed Pusher

Virnig Feed Pusher; manufacturer family image, configuration may differ
Virnig Feed Pusher; manufacturer family image, configuration may differ
Virnig Feed Pusher; manufacturer family image, configuration may differ
Virnig Feed Pusher; manufacturer family image, configuration may differ
Virnig Feed Pusher; manufacturer family image, configuration may differ
Virnig Feed Pusher; manufacturer family image, configuration may differ
Virnig Feed Pusher; manufacturer family image, configuration may differ
Virnig Feed Pusher; manufacturer family image, configuration may differ
Virnig Feed Pusher; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig Feed Pusher; manufacturer family image, configuration may differVirnig Feed Pusher; manufacturer family image, configuration may differVirnig Feed Pusher; manufacturer family image, configuration may differVirnig Feed Pusher; manufacturer family image, configuration may differVirnig Feed Pusher; manufacturer family image, configuration may differVirnig Feed Pusher; manufacturer family image, configuration may differVirnig Feed Pusher; manufacturer family image, configuration may differVirnig Feed Pusher; manufacturer family image, configuration may differVirnig Feed Pusher; manufacturer family image, configuration may differ
Virnig

Virnig Feed Pusher

SKU: FPV Currently In Stock

$2,265.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

ADJUSTABLE PUSHING WIDTH

FIVE WIDTH SETTINGS POSITION THE FEED PUSHER TO KEEP FEED AWAY FROM THE TIRES.

ADJUSTABLE PUSHING ANGLE

EIGHT ANGLE SETTINGS DIRECT FEED ALONG THE ALLEY TO SUIT THE PUSHING PASS.

REVERSIBLE RUBBER EDGE

A REVERSIBLE 1½″ X 10″ RUBBER EDGE PROVIDES UP TO 6″ OF USABLE WEAR.

FEED ALLEY MAINTENANCE

VIRNIG FEED PUSHER REPOSITIONS FEED ALONG THE FEEDING AREA WITH ADJUSTABLE WIDTH AND ANGLE.

BROAD FEED COVERAGE

A 96″ STRAIGHT WIDTH PROVIDES BROAD FEED COVERAGE BEFORE WIDTH AND ANGLE ADJUSTMENTS.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Feed Pusher repositions feed along the feeding area with an adjustable working width and angle. It gives the loader a dedicated tool for moving feed back into reach, while allowing the attachment's position to be set so the tires stay clear of the material being pushed.

Five width adjustments help place the working edge relative to the loader, and eight angle adjustments direct the material through the pass. This combination lets the operator configure the pusher for the feed area instead of relying on a fixed blade position. It is intended for repositioning feed rather than digging or carrying a bucket load.

A 1½″ × 10″ reversible rubber edge provides up to 6″ of usable wear. Reversing the edge makes use of both working sides before replacement is needed. Choose the attachment setup around the loader and feeding layout, then set the width and angle for the path and direction in which the feed needs to move.

KEY BENEFITS

  • 5 width adjustments to keep feed away from tires.
  • 8 angle adjustments to push feed efficiently.
  • 1-1/2” x 10” reversible rubber edge allows 6″ of wear.
  • Virnig feed pusher repositions feed along the feeding area with adjustable width and angle.
  • Overall width, straight (in.): 96.0

TECHNICAL SPECIFICATIONS

  • Models: FPV
  • Overall Width, Straight (in.): 96.0
  • Overall Height (in.): 20.0
  • Width Adjustment Position: 1 | 2 | 3 | 4 | 5
  • Angle: Min / Max (in.): 38.4 / 58.2 | 40.9 / 61.6 | 43.0 / 65.0 | 44.6 / 68.3 | 45.6 / 71.7
  • Push Width: Min / Max (in.): 50.5 / 75.2 | 45.6 / 72.5 | 40.5 / 70.2 | 35.4 / 68.3 | 30.1 / 67.2
  • Discharge Distance: Min / Max (in.) (Measured from Center Line of Loader): 48.7 / 49.5 | 51.3 / 53.9 | 53.3 / 58.1 | 54.6 / 62.1 | 55.3 / 66.0
  • Approximate Weight (lbs): 520

APPLICATIONS

  • Feed alley maintenance
  • Repositioning livestock feed
  • Barn cleanup

VIRNIG FEED PUSHER

WORKING DESIGN

  • 5 width adjustments to keep feed away from tires.
  • 8 angle adjustments to push feed efficiently.
  • 1-1/2” x 10” reversible rubber edge allows 6″ of wear.

CONFIGURATION AND SPECIFICATIONS

  • Models: FPV
  • Overall Width, Straight (in.): 96.0
  • Overall Height (in.): 20.0
  • Width Adjustment Position: 1 | 2 | 3 | 4 | 5
  • Angle: Min / Max (in.): 38.4 / 58.2 | 40.9 / 61.6 | 43.0 / 65.0 | 44.6 / 68.3 | 45.6 / 71.7
  • Push Width: Min / Max (in.): 50.5 / 75.2 | 45.6 / 72.5 | 40.5 / 70.2 | 35.4 / 68.3 | 30.1 / 67.2
  • Discharge Distance: Min / Max (in.) (Measured from Center Line of Loader): 48.7 / 49.5 | 51.3 / 53.9 | 53.3 / 58.1 | 54.6 / 62.1 | 55.3 / 66.0

READY FOR THE FIELD

  • 5 width adjustments to keep feed away from tires.
  • 8 angle adjustments to push feed efficiently.
  • 1-1/2” x 10” reversible rubber edge allows 6″ of wear.
  • Virnig feed pusher repositions feed along the feeding area with adjustable width and angle.
  • Overall width, straight (in.): 96.0
