VIRNIG

Hay Bucket Grapple

For Skid Steers & Track Loaders

3/4 x 6″ Weld-On Edge

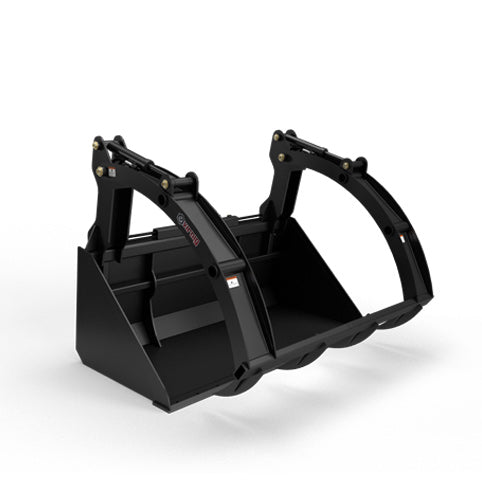

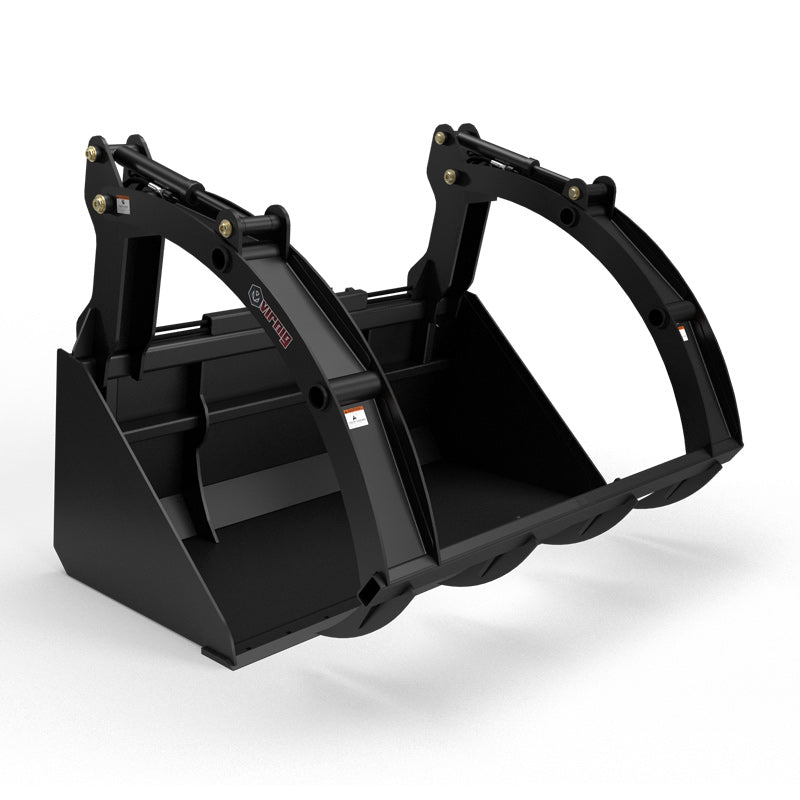

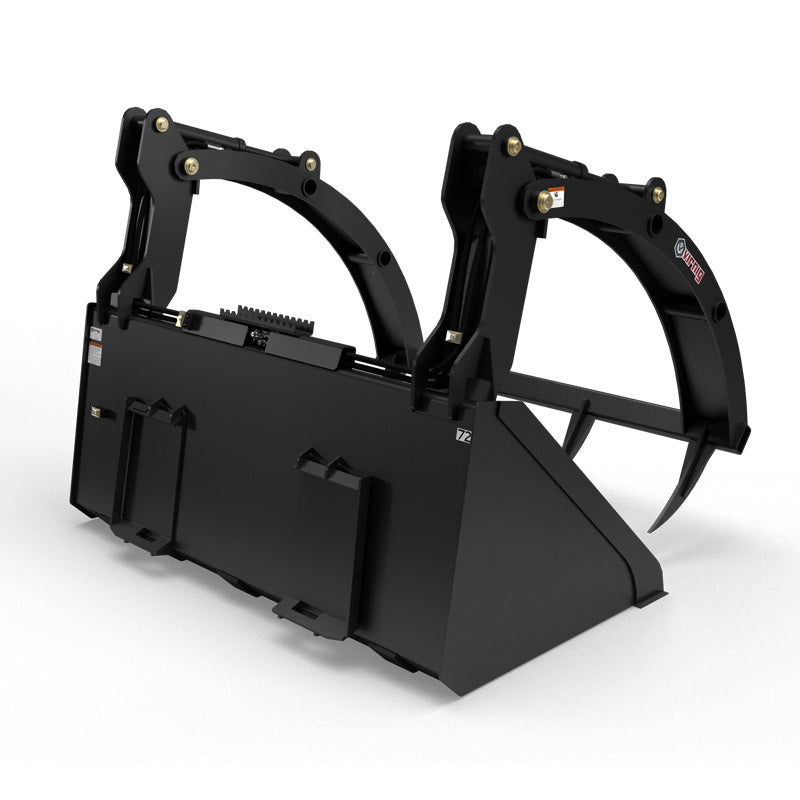

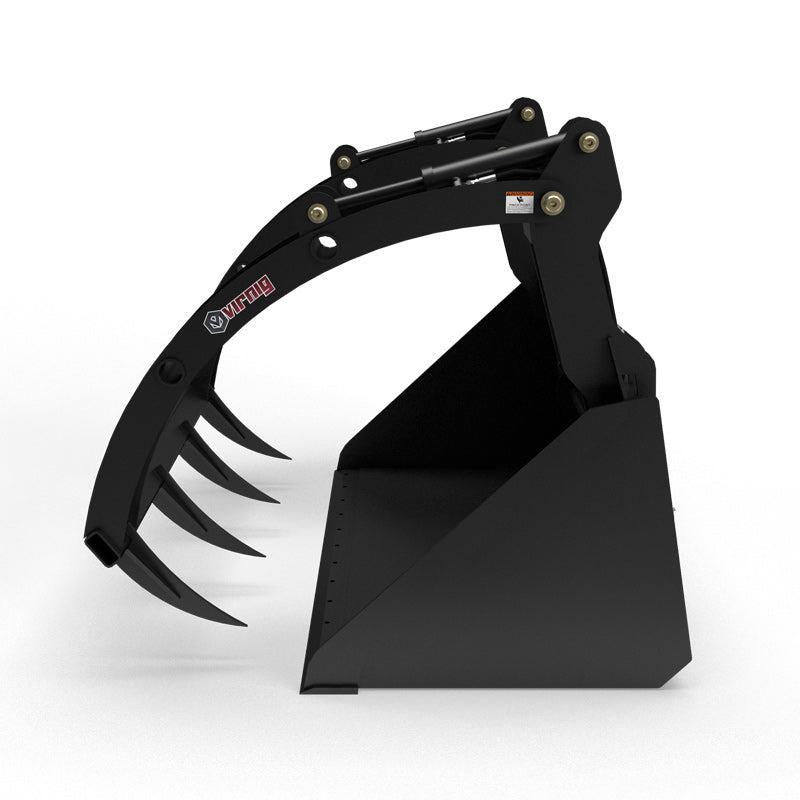

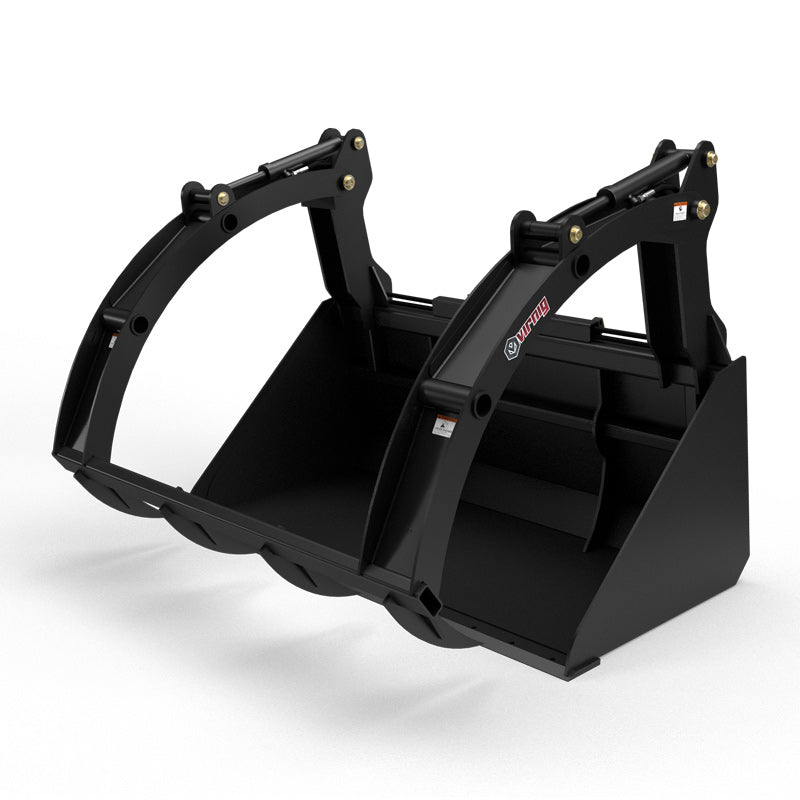

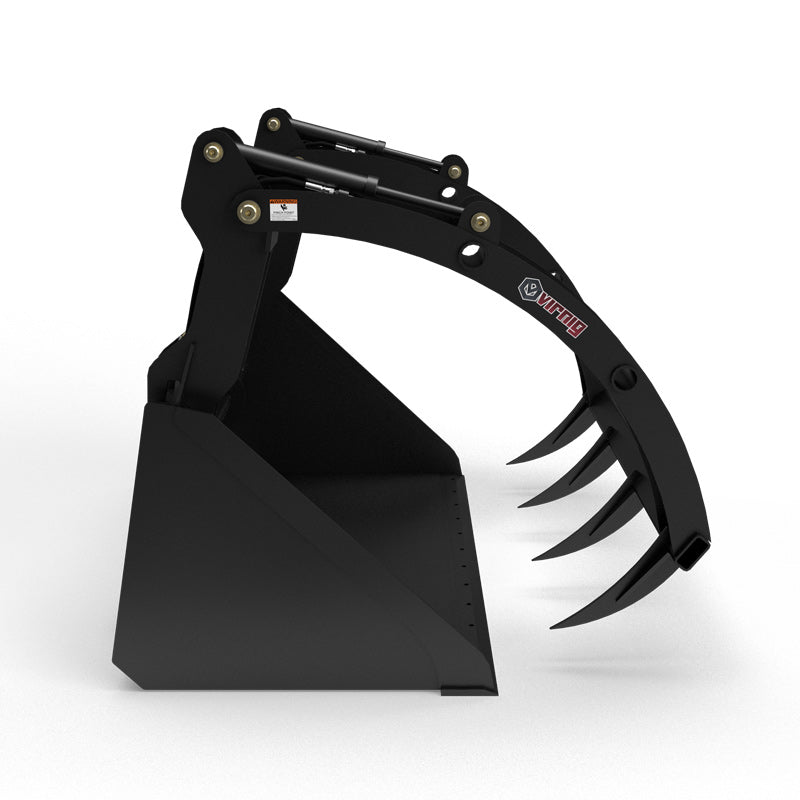

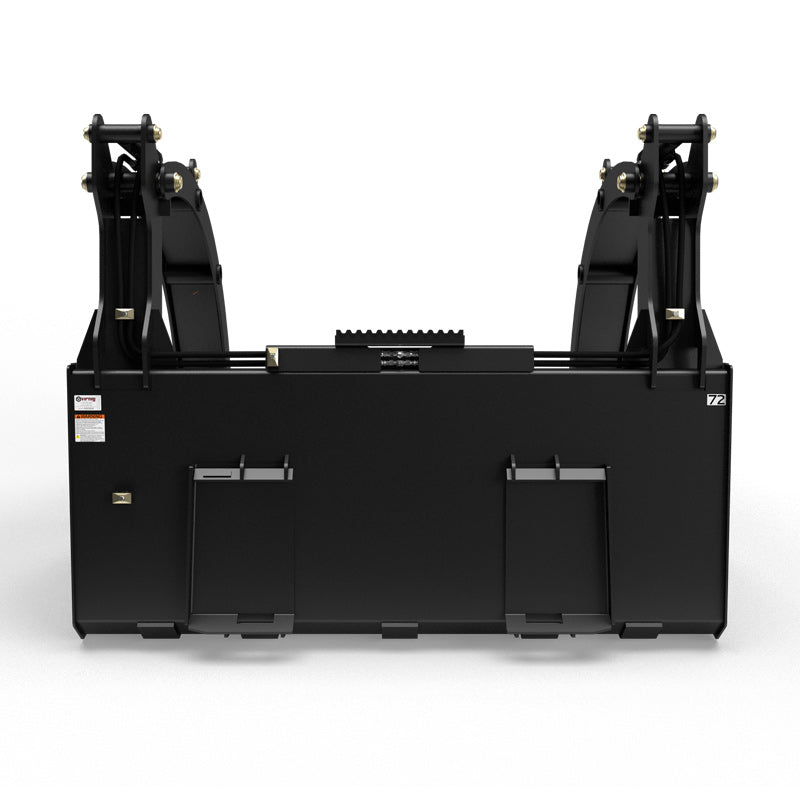

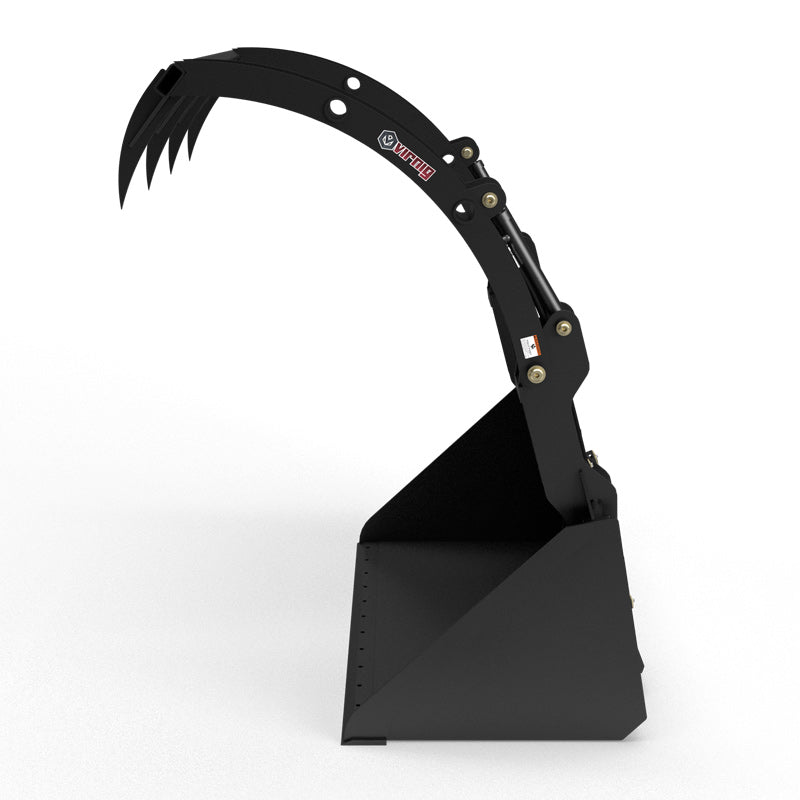

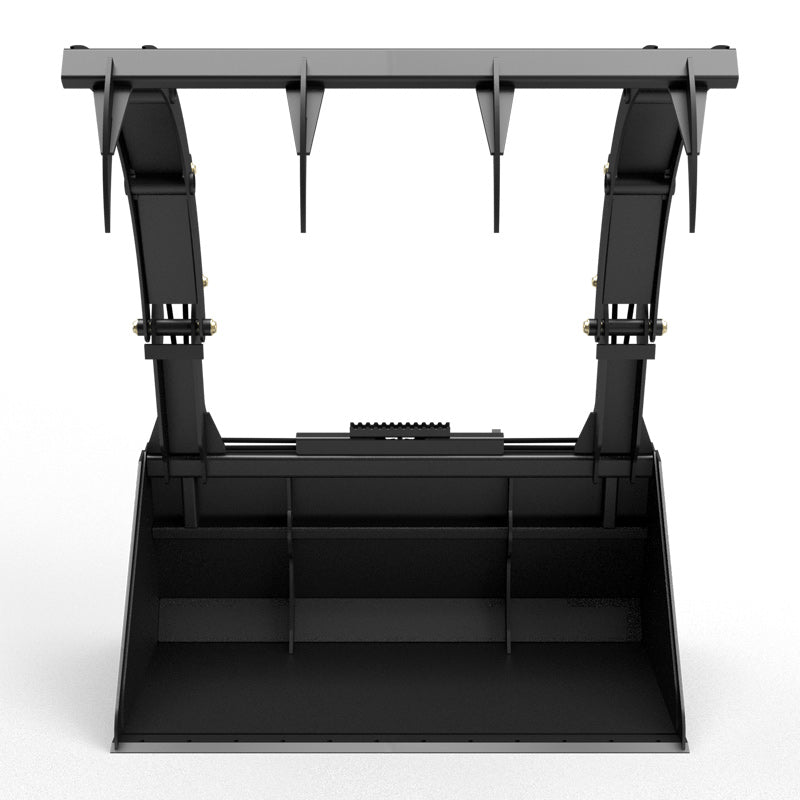

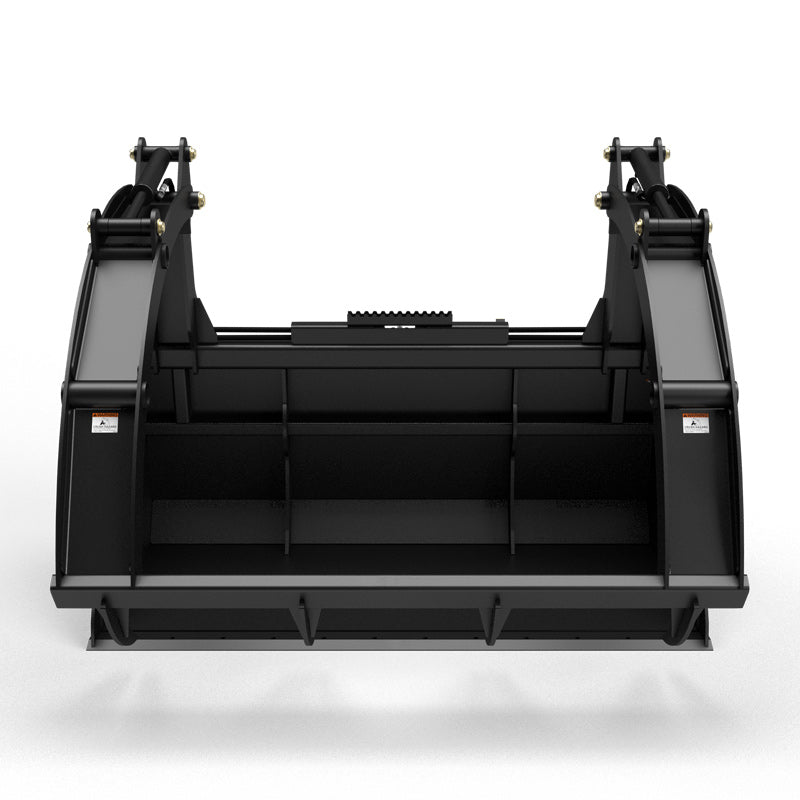

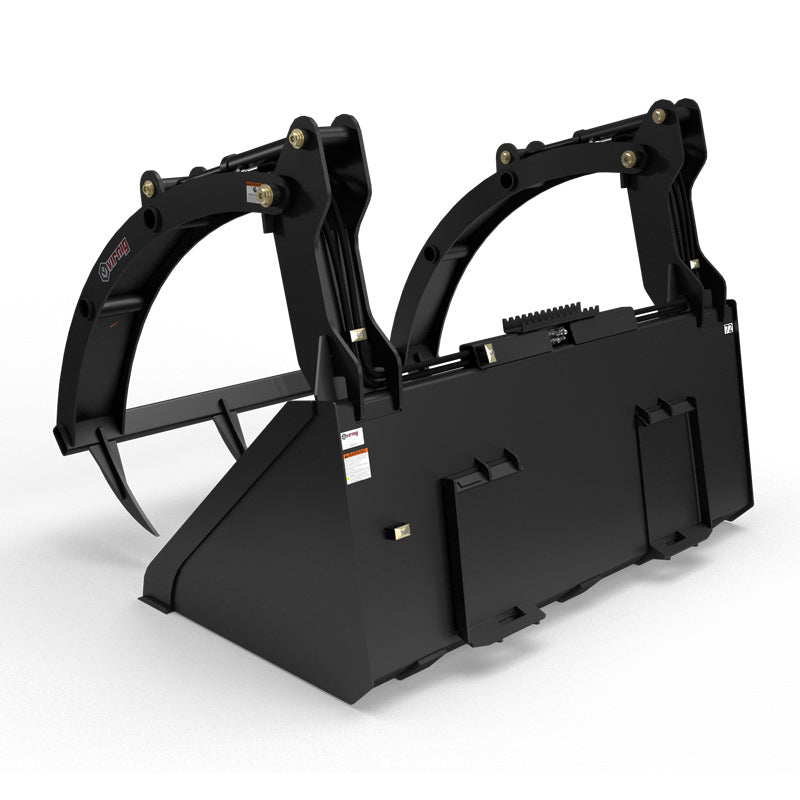

Virnig Hay Bucket Grapple

Virnig

Virnig Hay Bucket Grapple

SKU: HBG72 Currently In Stock

Sale price$7,470.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S WORKING CONTACT WITH THE GROUND.

MATERIAL HANDLING

VIRNIG HAY BUCKET GRAPPLE COMBINES A BUCKET FLOOR AND HYDRAULIC GRAPPLE FOR HAY BALES AND SILAGE.

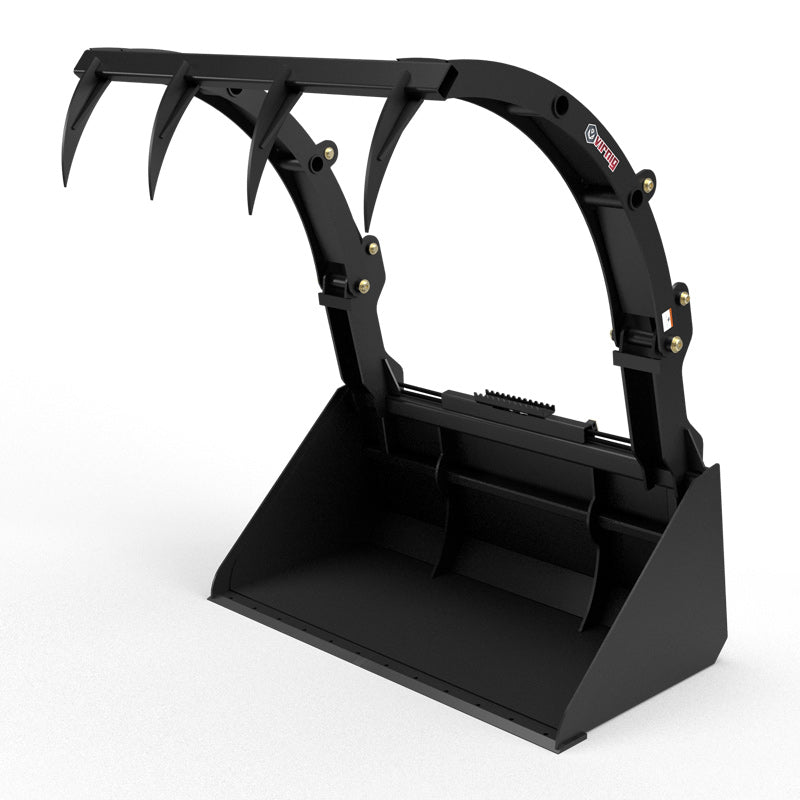

GRAPPLE JAW OPENING

THE 74.3″ JAW OPENING PROVIDES ROOM FOR BALES AND BULKY AGRICULTURAL LOADS.

WIDTH OPTIONS

CHOOSE THE BUCKET WIDTH TO MATCH YOUR LOADER, BALE SIZE AND FEEDING AREA.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Hay Bucket Grapple combines a solid bucket floor and hydraulic grapple for handling hay bales and silage. The bucket supports material from below while the grapple holds it against the attachment, giving operators a way to handle both loose agricultural material and larger loads with one tool.

A ¾″ × 6″ weld-on edge forms the bucket's leading working surface. Unlike an open skeleton grapple, the bucket floor retains loose material that would otherwise fall through the lower frame. The upper grapple adds load retention when the material is too bulky or uneven to remain secure in a plain bucket.

NitroSteel® cylinder rods and Teflon®-coated bushings equip the hydraulic pivots for repeated opening and closing. Select the bucket width and weight around the loader and the material being handled. Check the carrier's rated capacity for the complete load, particularly when a large bale moves the center of gravity forward of the bucket.

KEY BENEFITS

  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 3/4″ x 6″ weld-on edge.
  • Virnig hay bucket grapple combines a bucket floor and hydraulic grapple for hay bales and silage.
  • Grapple jaw opening (in.): 74.3
  • Width: overall / inside (in.): 73.5 / 71.25 | 85.5 / 83.25

TECHNICAL SPECIFICATIONS

  • Models: HBG72 HBG84
  • Width: Overall / Inside (in.): HBG72: 73.5 / 71.25; HBG84: 85.5 / 83.25
  • Height: Overall / Bucket (in.): 58.3 / 31.4
  • Overall Depth (in.): 40.0
  • Grapple Tine Thickness (in.): 0.5¹
  • Number of Grapple Tines: 4
  • Space Between Grapple Tines (in.): 19.3
  • Grapple Jaw Opening (in.): 74.3
  • Bucket Capacity: Struck / Heaped (cu. ft.): HBG72: 27.7 / 33.2; HBG84: 32.2 / 38.8
  • Structural Wear Bars Under Bucket (1/2”x4”): 5
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Approximate Weight (lbs): HBG72: 1350; HBG84: 1450
  • Recommended Loader Capacity: Greater than 2400 lbs
  • ¹Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Hay bale handling
  • Silage loading
  • Light agricultural materials

VIRNIG HAY BUCKET GRAPPLE

WORKING DESIGN

  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 3/4″ x 6″ weld-on edge.

CONFIGURATION AND SPECIFICATIONS

  • Models: HBG72 HBG84
  • Width: Overall / Inside (in.): HBG72: 73.5 / 71.25; HBG84: 85.5 / 83.25
  • Height: Overall / Bucket (in.): 58.3 / 31.4
  • Overall Depth (in.): 40.0
  • Grapple Tine Thickness (in.): 0.5¹
  • Number of Grapple Tines: 4
  • Space Between Grapple Tines (in.): 19.3
  • Grapple Jaw Opening (in.): 74.3
  • Bucket Capacity: Struck / Heaped (cu. ft.): HBG72: 27.7 / 33.2; HBG84: 32.2 / 38.8

READY FOR THE FIELD

  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 3/4″ x 6″ weld-on edge.
  • Virnig hay bucket grapple combines a bucket floor and hydraulic grapple for hay bales and silage.
  • Grapple jaw opening (in.): 74.3
  • Width: overall / inside (in.): 73.5 / 71.25 | 85.5 / 83.25
