VIRNIG

Land Leveler

For Skid Steers & Track Loaders

72-90″ Widths

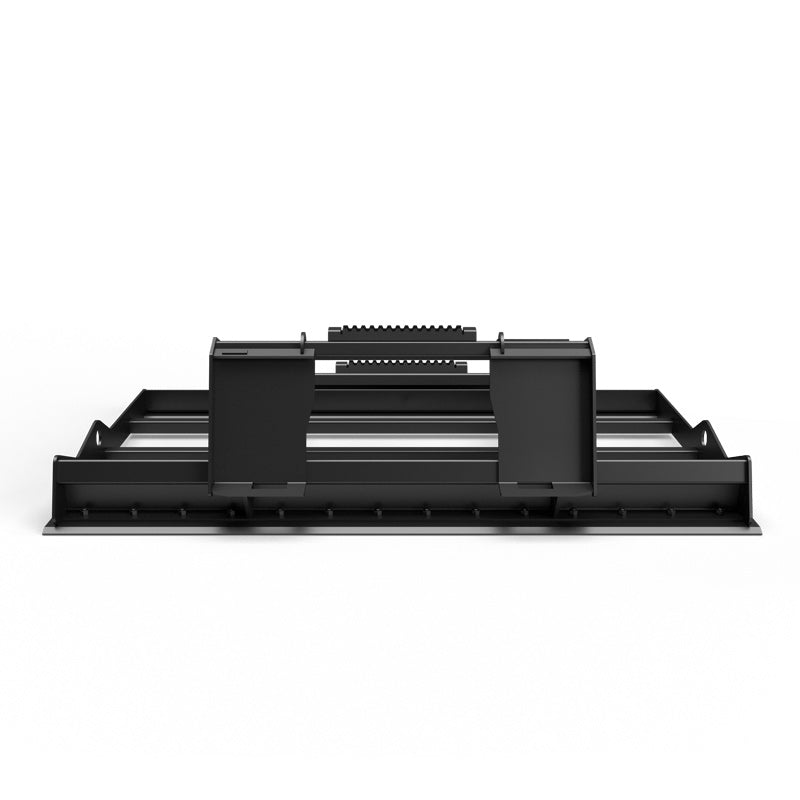

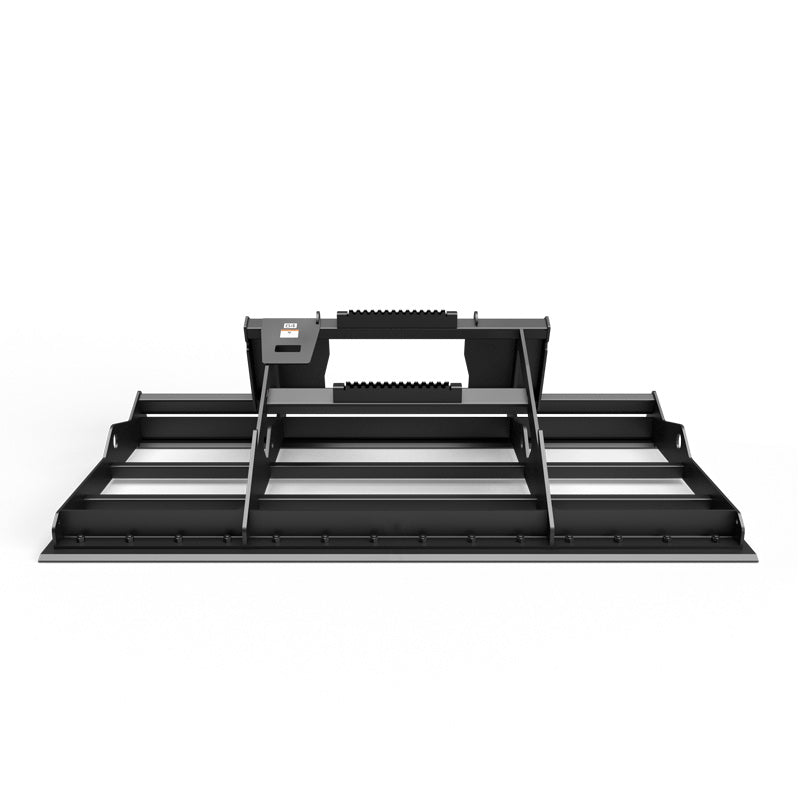

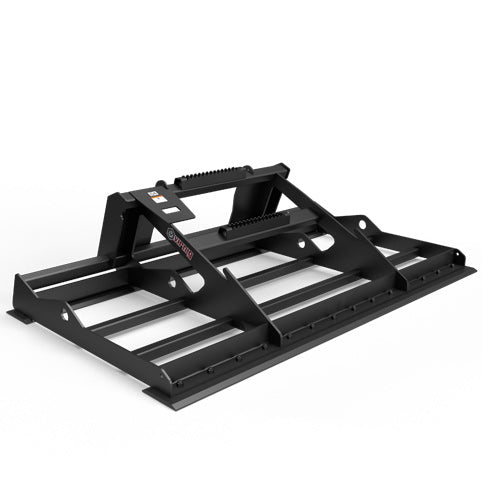

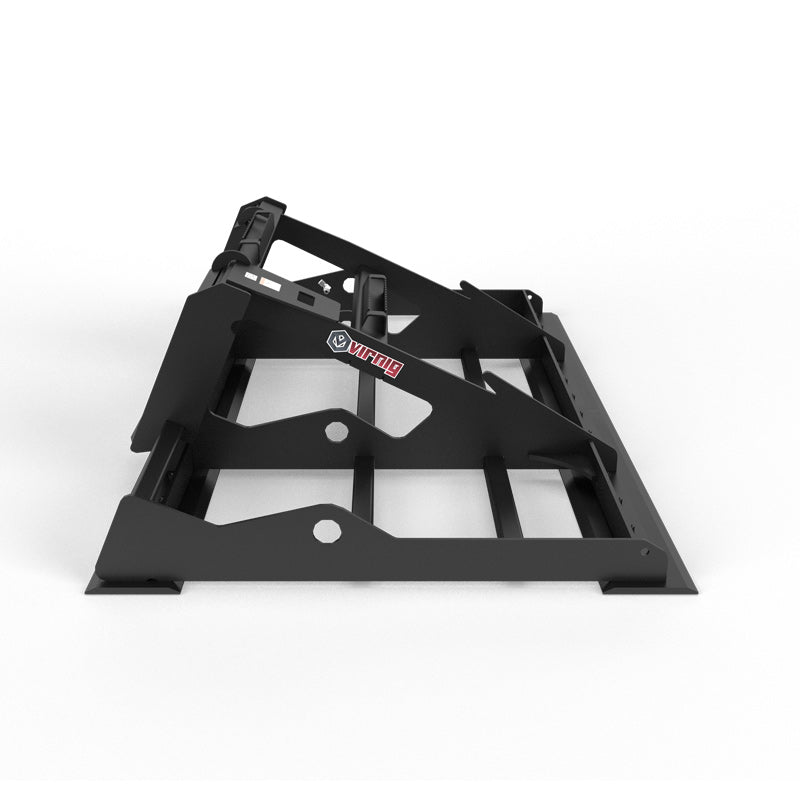

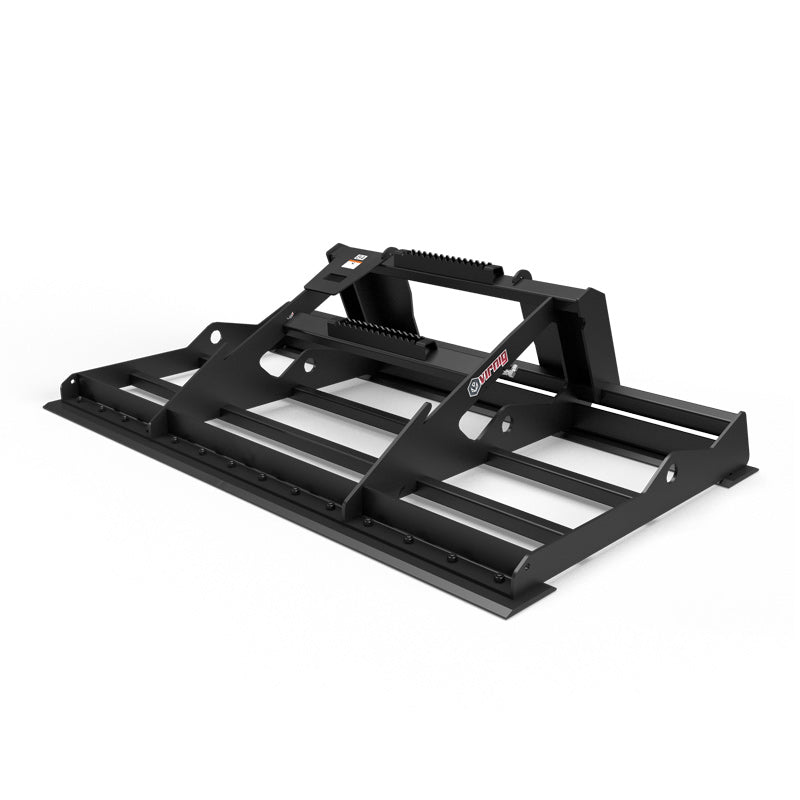

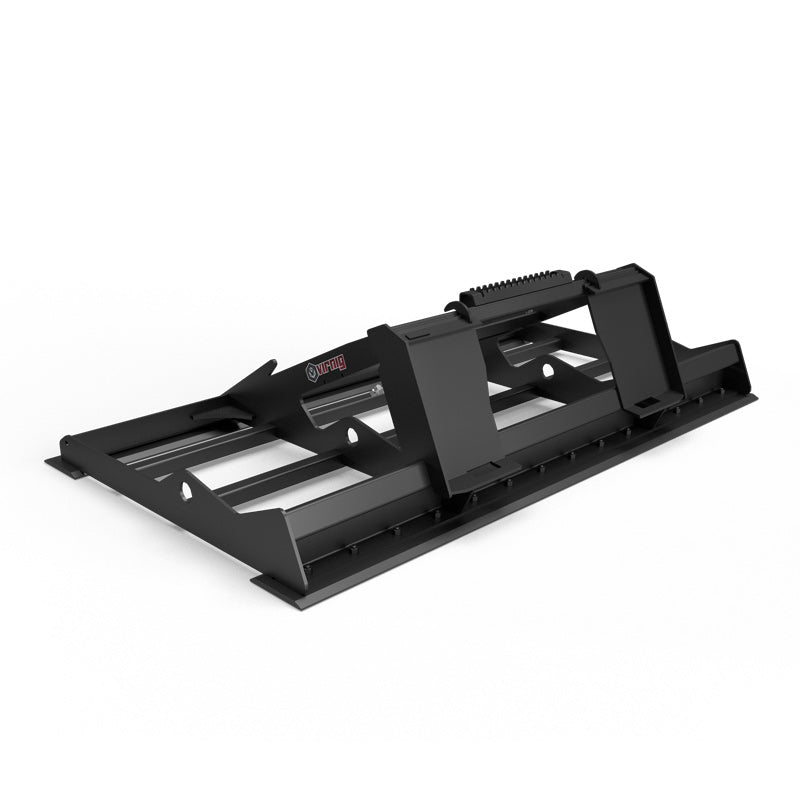

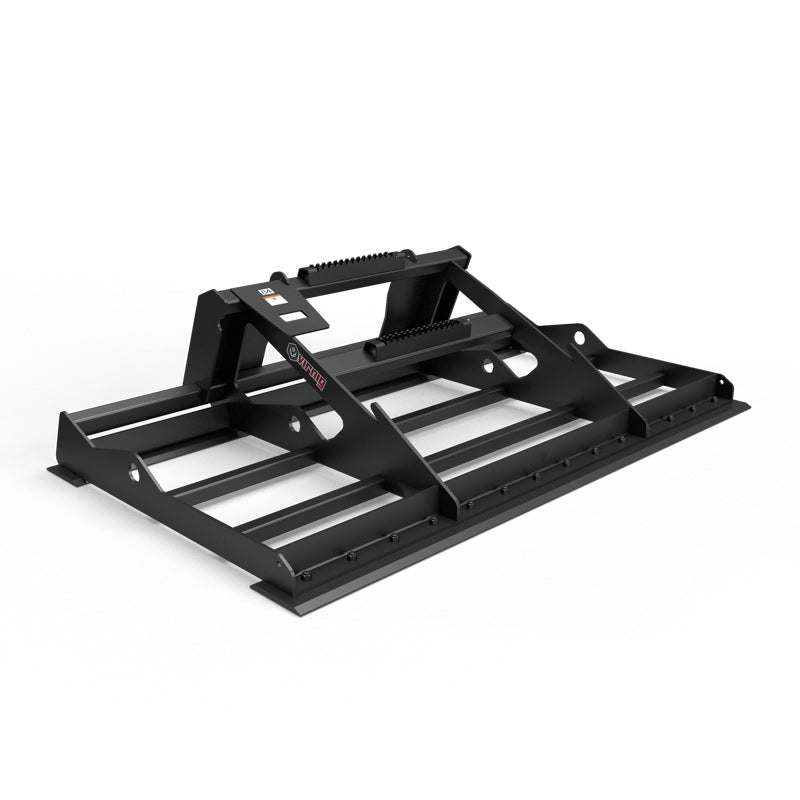

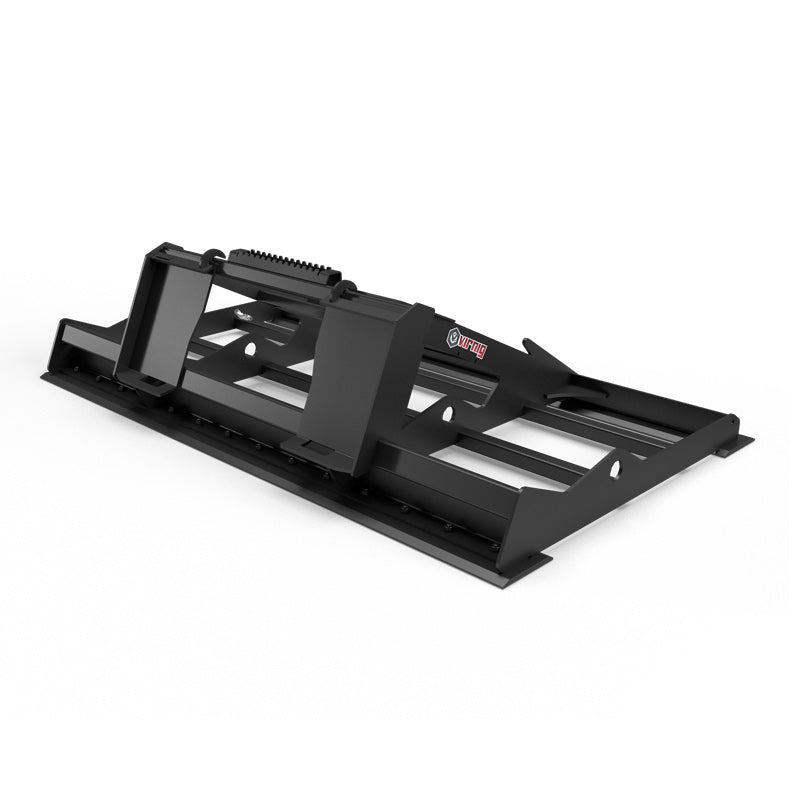

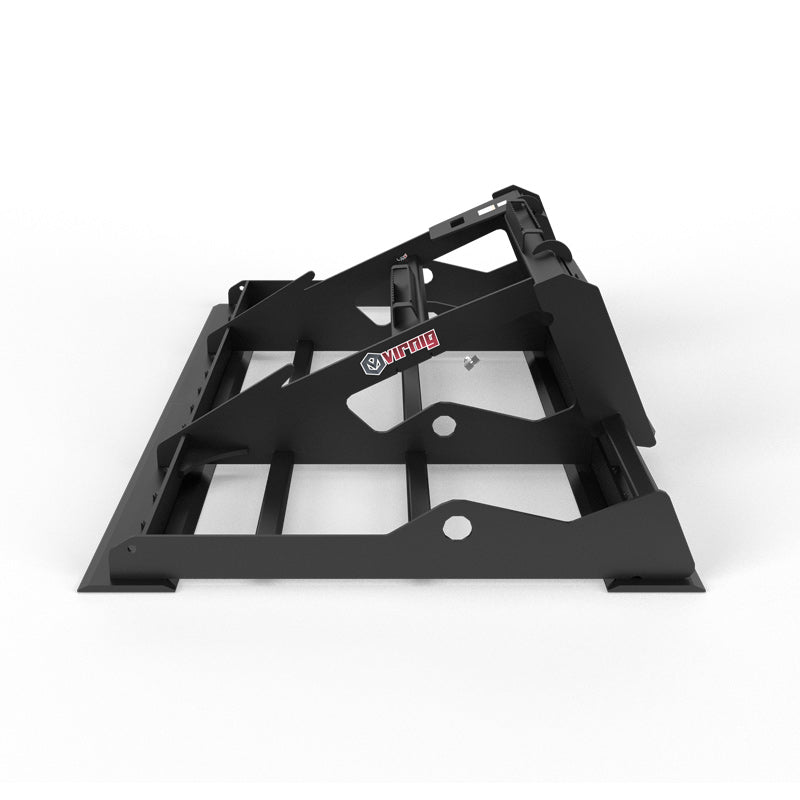

Virnig Land Leveler

Virnig

Virnig Land Leveler

SKU: LLV72 Currently In Stock

Sale price$3,445.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

HEAVY-DUTY DESIGN FOR AGGRESSIVE CUTTING

THE HEAVY-DUTY FRAME SUPPORTS AGGRESSIVE CUTTING WHEN BREAKING DOWN UNEVEN GROUND.

BLADE VISIBILITY

WIDELY SPACED BLADES GIVE THE OPERATOR CONTROL OVER CUTTING AND LEVELING PASSES.

REPLACEABLE CUTTING EDGE

A ⅝″ REVERSIBLE BOLT-ON EDGE CAN BE TURNED OR REPLACED AS THE WORKING EDGE WEARS.

GRADING AND LEVELING

VIRNIG LAND LEVELER CUTS, GRADES, AND LEVELS UNEVEN GROUND IN FORWARD OR REVERSE.

WIDTH OPTIONS

FOUR FRAME WIDTHS LET YOU MATCH THE LEVELER TO YOUR LOADER AND GRADING AREA.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

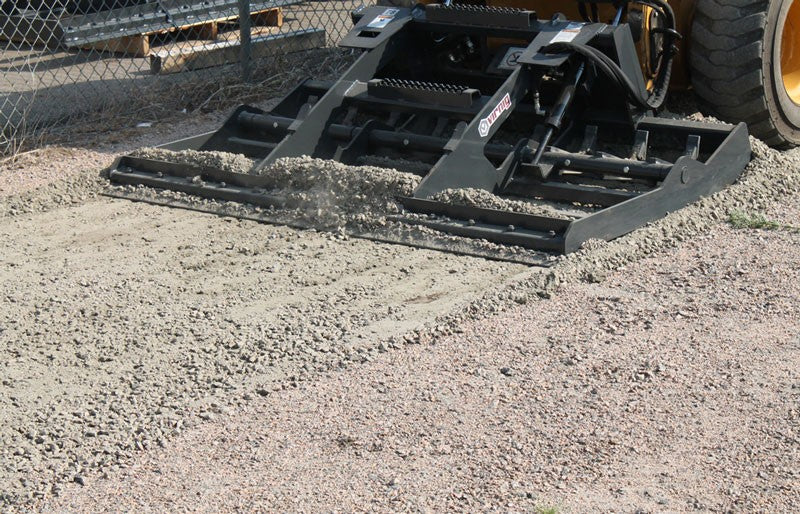

The Virnig Land Leveler cuts, grades, and levels uneven ground while working in either forward or reverse. Its heavy-duty frame and widely positioned blades give the operator a broad grading footprint, making it useful for spreading material, cutting high spots, and making repeated finishing passes across a prepared surface.

Reversible steel bolt-on cutting edges provide renewable working surfaces as the edges wear. The blade arrangement is designed for controlled material movement, allowing the loader to push or pull through the work without switching to a different grading attachment. Choose the leveler width around the machine and the coverage needed for each pass.

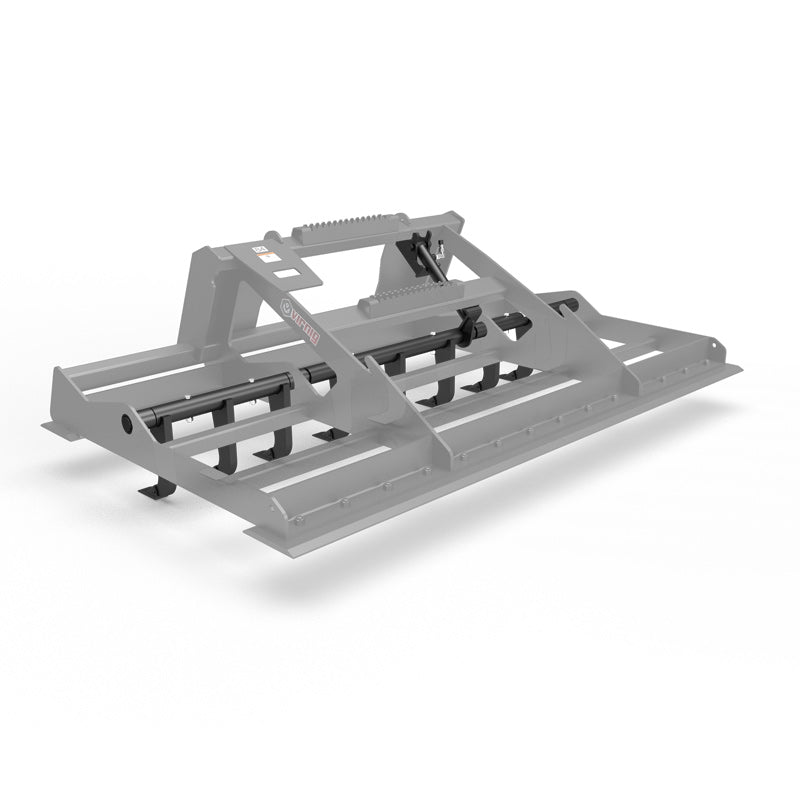

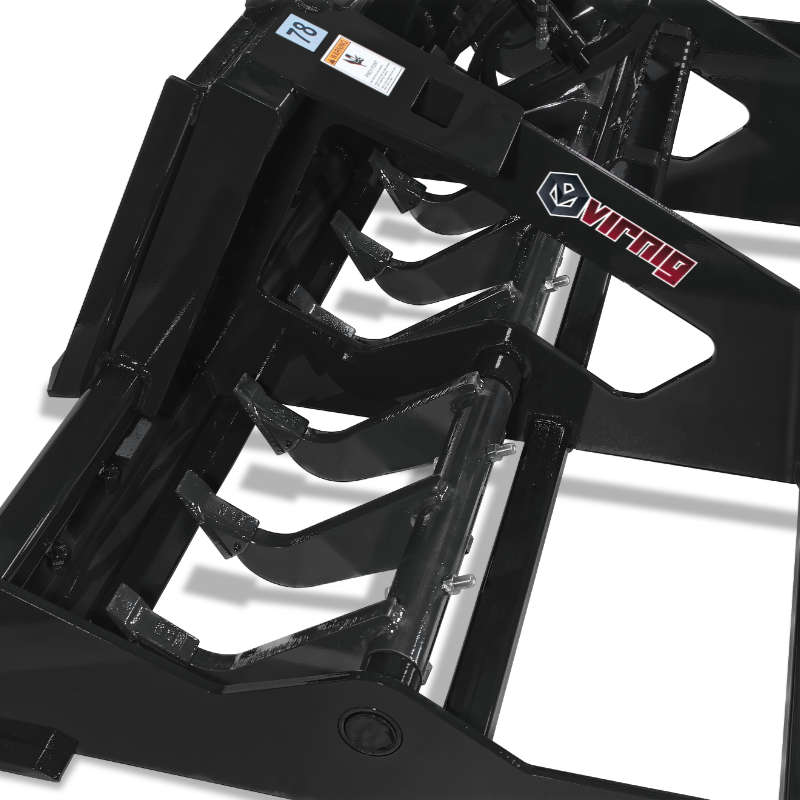

A model-matched hydraulic scarifier is available for loosening harder ground before leveling. That option adds hydraulic requirements and attachment weight; the leveler without the scarifier remains a passive grading implement. Select the configuration for your actual ground preparation needs and confirm the carrier's capacity for the complete attachment before ordering.

KEY BENEFITS

  • Heavy-duty design for aggressive cutting.
  • Wide blade location for precise control.
  • 5/8″ thick reversible steel bolt-on edge.
  • Virnig land leveler cuts, grades, and levels uneven ground in forward or reverse.
  • Overall width (in.): 73.0 | 80.0 | 86.0 | 92.0

TECHNICAL SPECIFICATIONS

  • Models: LLV72 LLV78 LLV84 LLV90
  • Overall Width (in.): LLV72: 73.0; LLV78: 80.0; LLV84: 86.0; LLV90: 92.0
  • Overall Height (in.): 23.5
  • Overall Depth (in.): LLV72: 49.5; LLV78: 51.5; LLV84: 51.5; LLV90: 51.5
  • Bolt-On Edge (in.): LLV72: 5/8 x 6; LLV78: 5/8 x 8; LLV84: 5/8 x 8; LLV90: 5/8 x 8
  • Approximate Weight (lbs): LLV72: 710; LLV78: 790; LLV84: 820; LLV90: 850
  • Recommended Loader Capacity: Greater than 1500 lbs
  • MODEL HYDRAULIC SCARIFIER SPECS:: SK72 | SK78 | SK84 | SK90
  • Number of Teeth: LLV72: 9; LLV78: 9; LLV84: 9; LLV90: 10
  • Digging Depth (in.): 6.0
  • Approximate Weight (lbs): LLV72: 195; LLV78: 205; LLV84: 215; LLV90: 245
  • *Designed for use on Virnig Manufacturing, Inc. Land Levelers Only.
  • Models: SK72 SK78 SK84 SK90

APPLICATIONS

  • Site preparation
  • Soil leveling
  • Finish grading

VIRNIG LAND LEVELER

WORKING DESIGN

  • Heavy-duty design for aggressive cutting.
  • Wide blade location for precise control.
  • 5/8″ thick reversible steel bolt-on edge.

CONFIGURATION AND SPECIFICATIONS

  • Models: LLV72 LLV78 LLV84 LLV90
  • Overall Width (in.): LLV72: 73.0; LLV78: 80.0; LLV84: 86.0; LLV90: 92.0
  • Overall Height (in.): 23.5
  • Overall Depth (in.): LLV72: 49.5; LLV78: 51.5; LLV84: 51.5; LLV90: 51.5
  • Bolt-On Edge (in.): LLV72: 5/8 x 6; LLV78: 5/8 x 8; LLV84: 5/8 x 8; LLV90: 5/8 x 8
  • Approximate Weight (lbs): LLV72: 710; LLV78: 790; LLV84: 820; LLV90: 850
  • Recommended Loader Capacity: Greater than 1500 lbs
  • MODEL HYDRAULIC SCARIFIER SPECS:: SK72 | SK78 | SK84 | SK90
  • Number of Teeth: LLV72: 9; LLV78: 9; LLV84: 9; LLV90: 10

READY FOR THE FIELD

  • Heavy-duty design for aggressive cutting.
  • Wide blade location for precise control.
  • 5/8″ thick reversible steel bolt-on edge.
  • Virnig land leveler cuts, grades, and levels uneven ground in forward or reverse.
  • Overall width (in.): 73.0 | 80.0 | 86.0 | 92.0
