VIRNIG

Manure Slurry Bucket

For Skid Steers & Track Loaders

66-84″ Widths

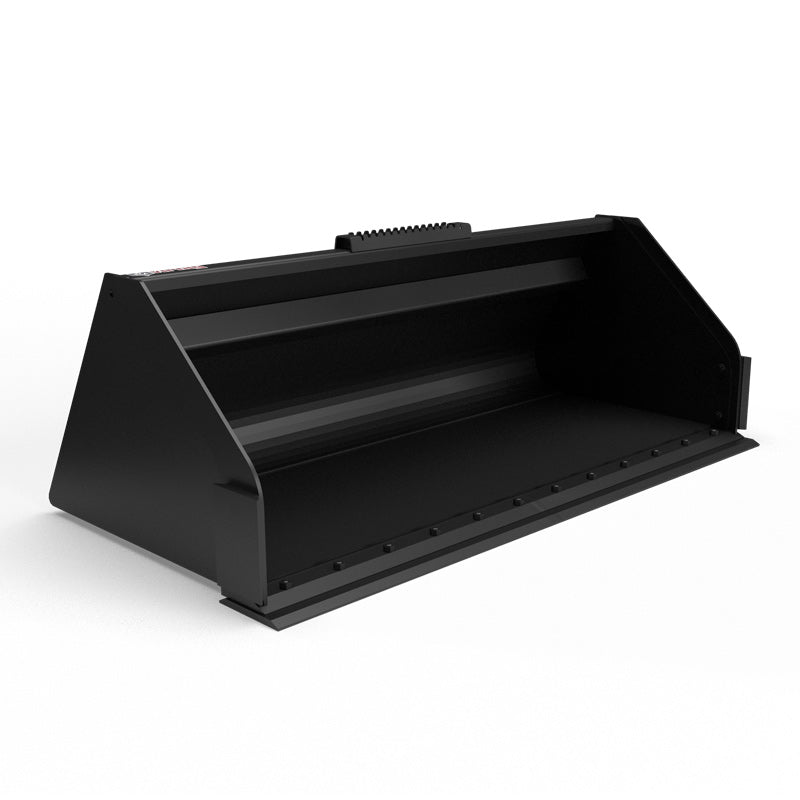

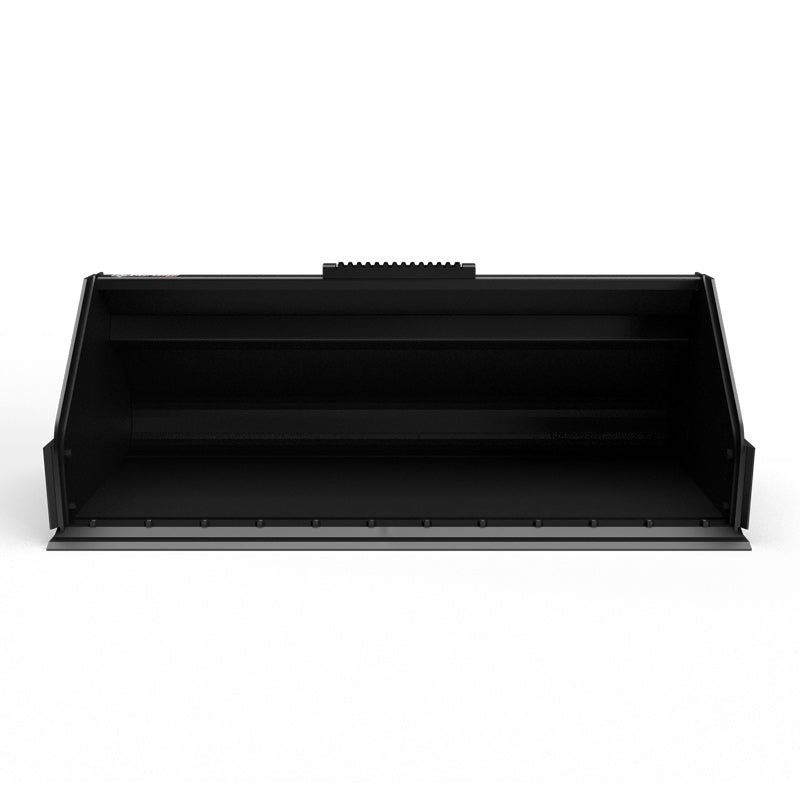

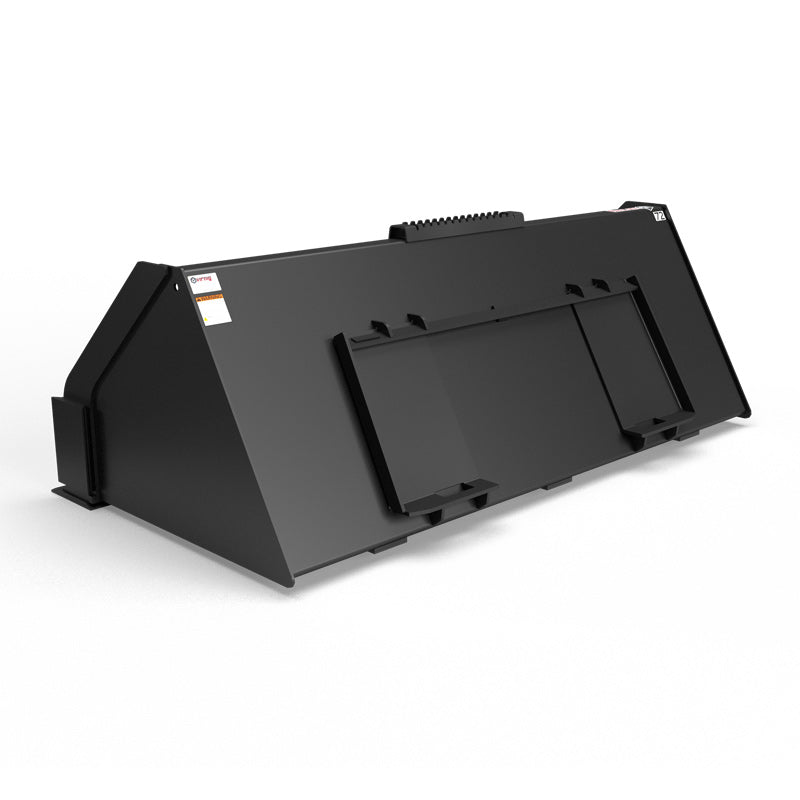

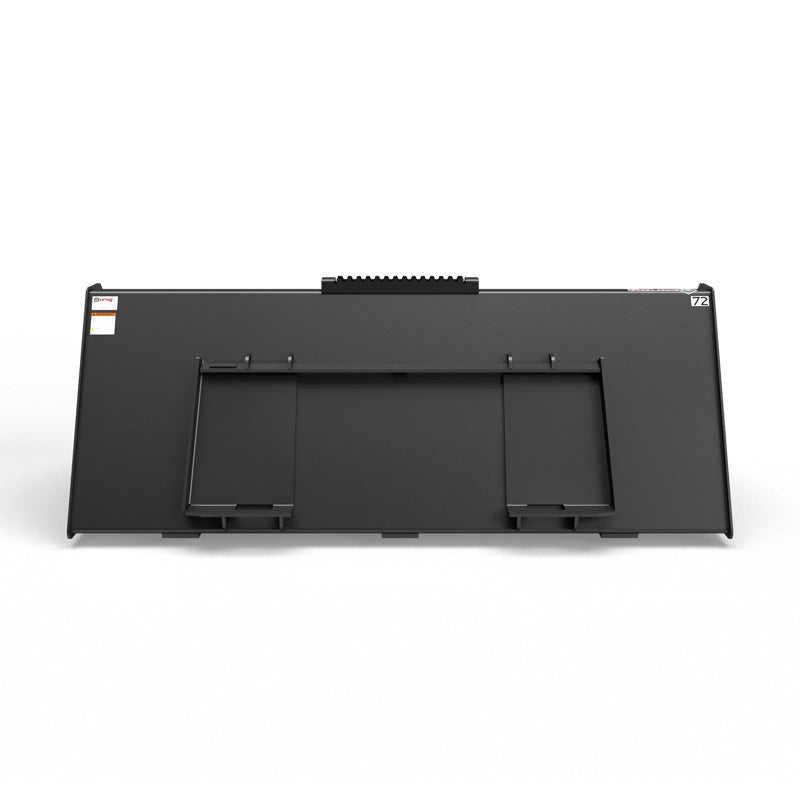

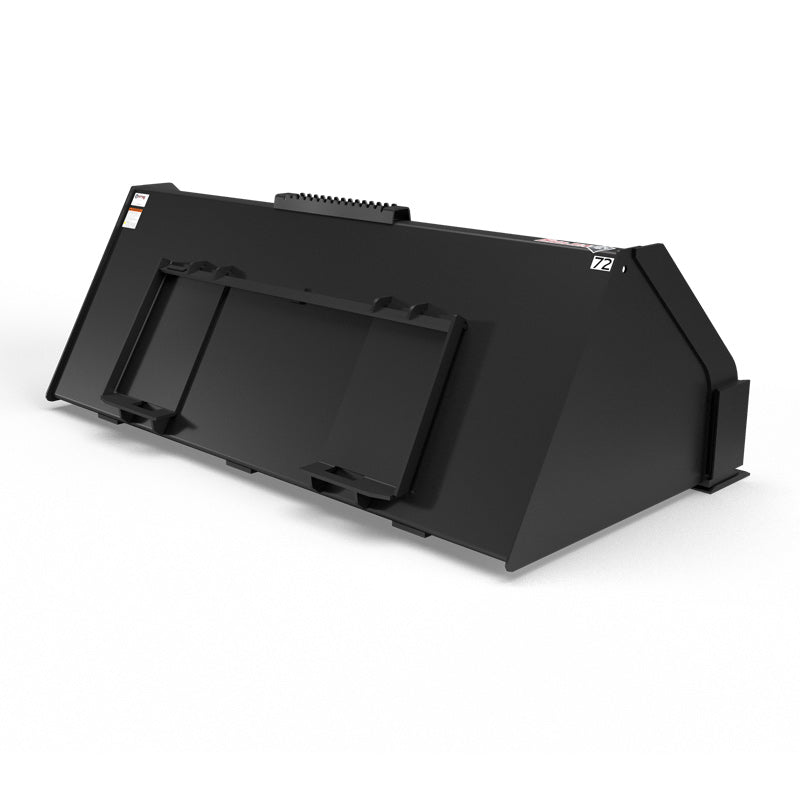

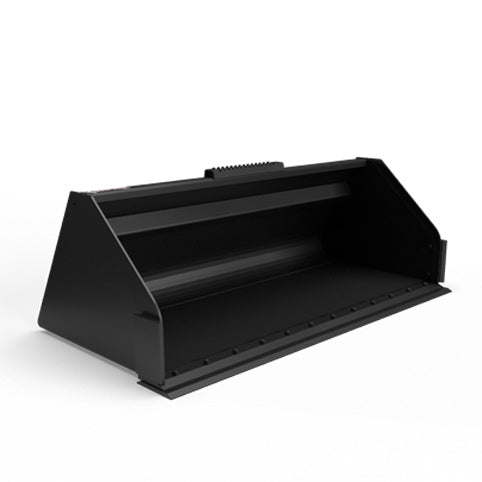

Virnig Manure Slurry Bucket

Virnig

Virnig Manure Slurry Bucket

SKU: MSB66 Currently In Stock

Sale price$2,355.00 USD

MOST IMPORTANT FEATURES

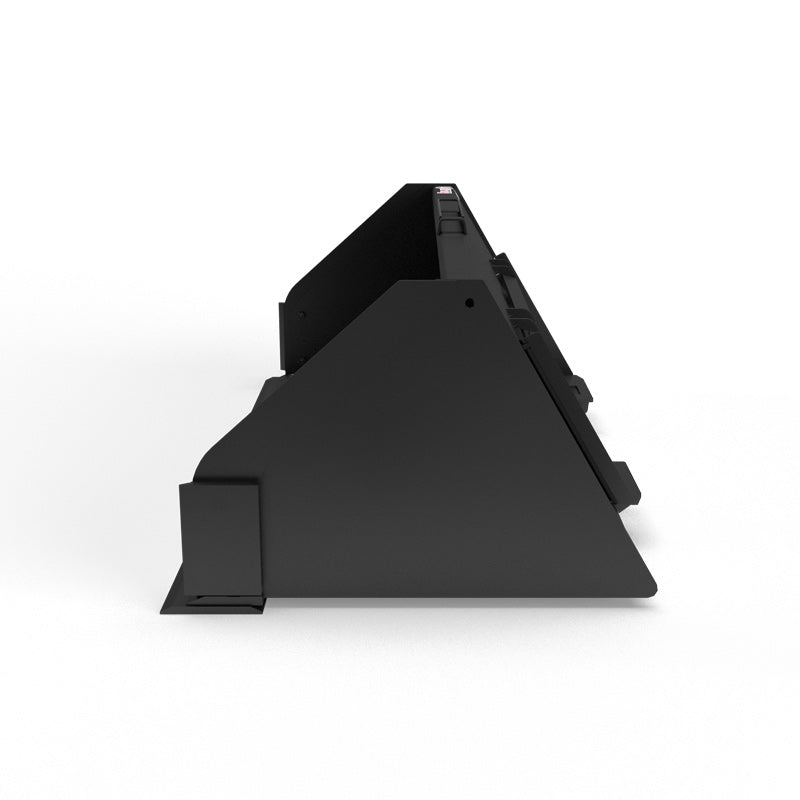

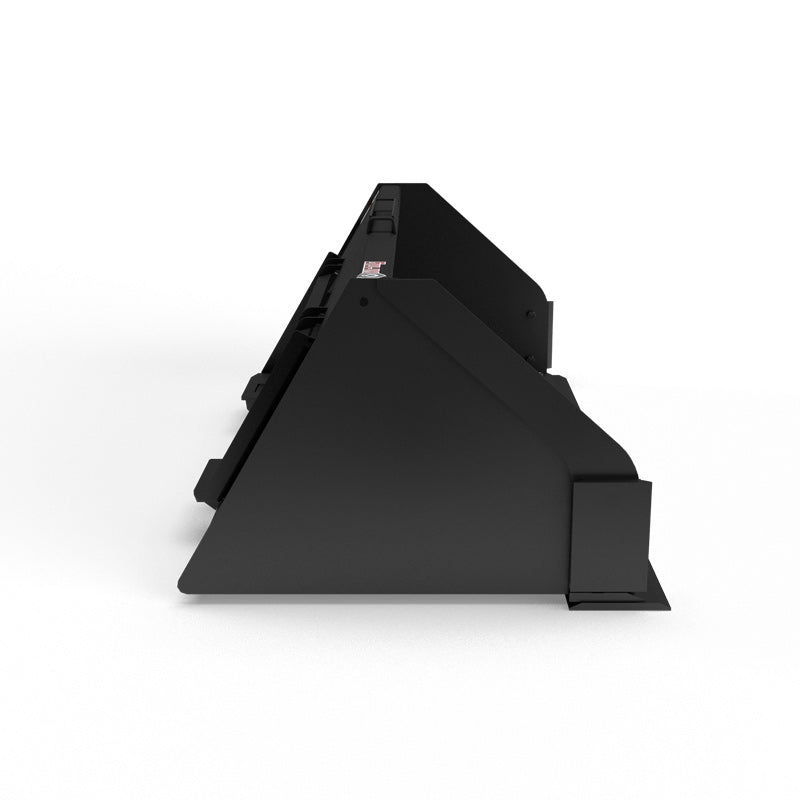

SPILLAGE-CONTROL PROFILE

A 60° BACK ANGLE AND FORMED TOP HELP RETAIN SLURRY WHILE THE BUCKET IS CARRIED.

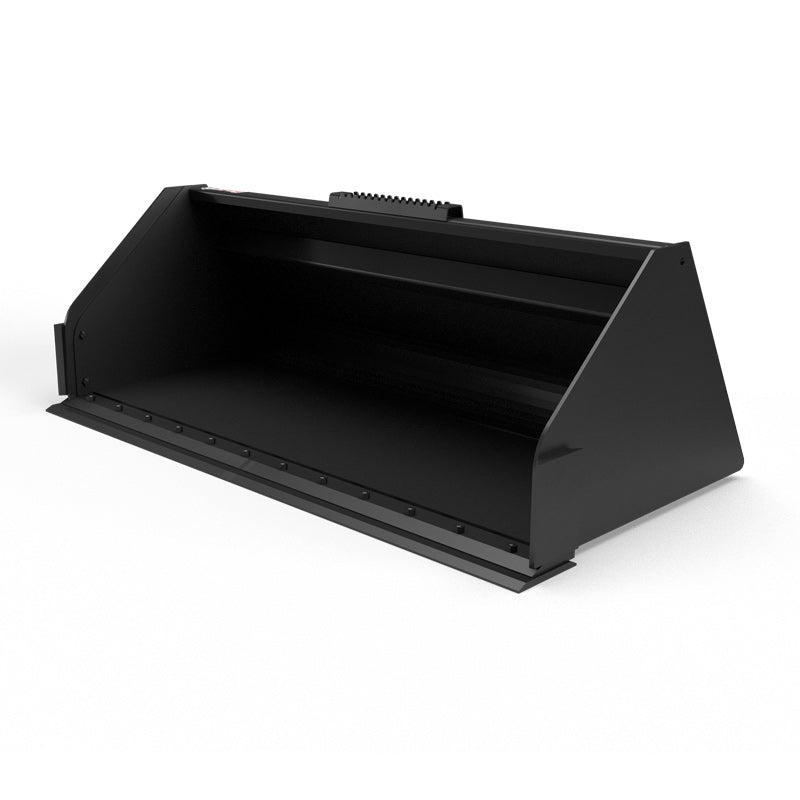

CURVED BUCKET INTERIOR

THE CURVED INTERIOR HELPS MATERIAL RELEASE DURING DUMPING AND CLEANOUT.

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE INCLUDES HOLES FOR FITTING OPTIONAL CUTTING EDGES.

REPLACEABLE SIDE EDGES

REVERSIBLE, BOLT-ON SIDE EDGES PROVIDE REPLACEABLE WEAR SURFACES ALONG THE BUCKET.

FARM MATERIAL HANDLING

VIRNIG MANURE SLURRY BUCKET CARRIES SLURRY AND BULK FARM MATERIAL WITH A STEEP BACK ANGLE AND CURVED INTERIOR.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Manure Slurry Bucket carries slurry and bulk farm material with a steep-backed bucket designed around load retention and cleanout. Its 60° back angle and formed top profile help limit spillage as material is moved, while the curved interior gives loose material fewer corners to collect in during unloading.

A ¾″ × 6″ weld-on edge forms the leading working surface and includes holes for compatible optional edges. Reversible bolt-on side wear edges provide serviceable protection at the sides of the bucket. These renewable wear points are useful on an attachment that regularly contacts the surface while gathering farm material.

Choose the bucket width and volume around the loader and the density of the material being handled. A full bucket of slurry can place a substantial load on the carrier, so account for both attachment weight and contents. The steep back and curved interior support carrying and emptying material, while the operator controls fill level and travel position.

KEY BENEFITS

  • 60° back angle and top formed profile to limit spillage.
  • Curved inside for easier clean out.
  • 3/4″ x 6″ weld-on edge with holes for optional edges.
  • Reversible bolt-on side wear edges.
  • Virnig Manure Slurry Bucket carries slurry and bulk farm material with a steep back angle and curved interior.

TECHNICAL SPECIFICATIONS

  • Models: MSB66 MSB72 MSB78 MSB84
  • Width: Overall / Inside (in.): 68.3 / 65.3 74.3 / 71.3 80.3 / 77.3 86.3 / 83.3
  • Overall Height (in.): 25.3
  • Depth: Overall / Inside (in.): 37.0 / 32.6
  • Bucket Capacity: Struck / Heaped (cu. ft.): 16.9 / 20.3 18.4 / 22.1 20.0 / 24.0 21.5 / 25.8
  • Structural Wear Bars Under Bucket (1/2”x4”): MSB66: 3; MSB72: 3; MSB78: 4; MSB84: 4
  • Approximate Weight (lbs): MSB66: 600; MSB72: 710; MSB78: 770; MSB84: 810
  • Recommended Loader Capacity: Greater than 1500 lbs

APPLICATIONS

  • Slurry handling
  • Farm cleanup
  • Bulk material loading

VIRNIG MANURE SLURRY BUCKET

WORKING DESIGN

  • 60° back angle and top formed profile to limit spillage.
  • Curved inside for easier clean out.
  • 3/4″ x 6″ weld-on edge with holes for optional edges.
  • Reversible bolt-on side wear edges.

CONFIGURATION AND SPECIFICATIONS

  • Models: MSB66 MSB72 MSB78 MSB84
  • Width: Overall / Inside (in.): 68.3 / 65.3 74.3 / 71.3 80.3 / 77.3 86.3 / 83.3
  • Overall Height (in.): 25.3
  • Depth: Overall / Inside (in.): 37.0 / 32.6
  • Bucket Capacity: Struck / Heaped (cu. ft.): 16.9 / 20.3 18.4 / 22.1 20.0 / 24.0 21.5 / 25.8
  • Structural Wear Bars Under Bucket (1/2”x4”): MSB66: 3; MSB72: 3; MSB78: 4; MSB84: 4
  • Approximate Weight (lbs): MSB66: 600; MSB72: 710; MSB78: 770; MSB84: 810
  • Recommended Loader Capacity: Greater than 1500 lbs

READY FOR THE FIELD

  • 60° back angle and top formed profile to limit spillage.
  • Curved inside for easier clean out.
  • 3/4″ x 6″ weld-on edge with holes for optional edges.
  • Reversible bolt-on side wear edges.
  • Virnig Manure Slurry Bucket carries slurry and bulk farm material with a steep back angle and curved interior.
