VIRNIG

Pick-Up Broom

For Skid Steers & Track Loaders

60-84″ Widths

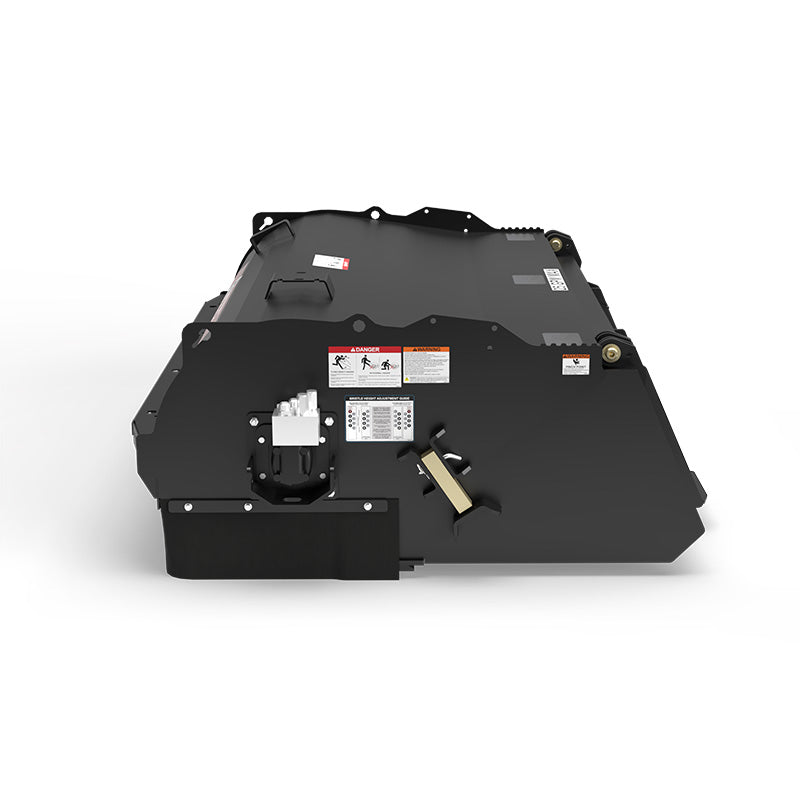

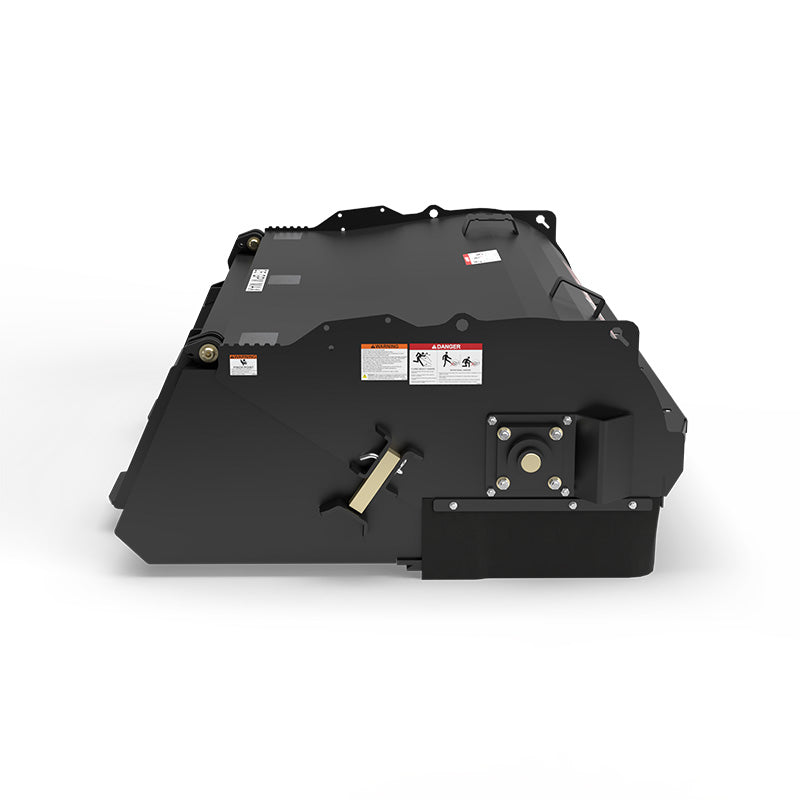

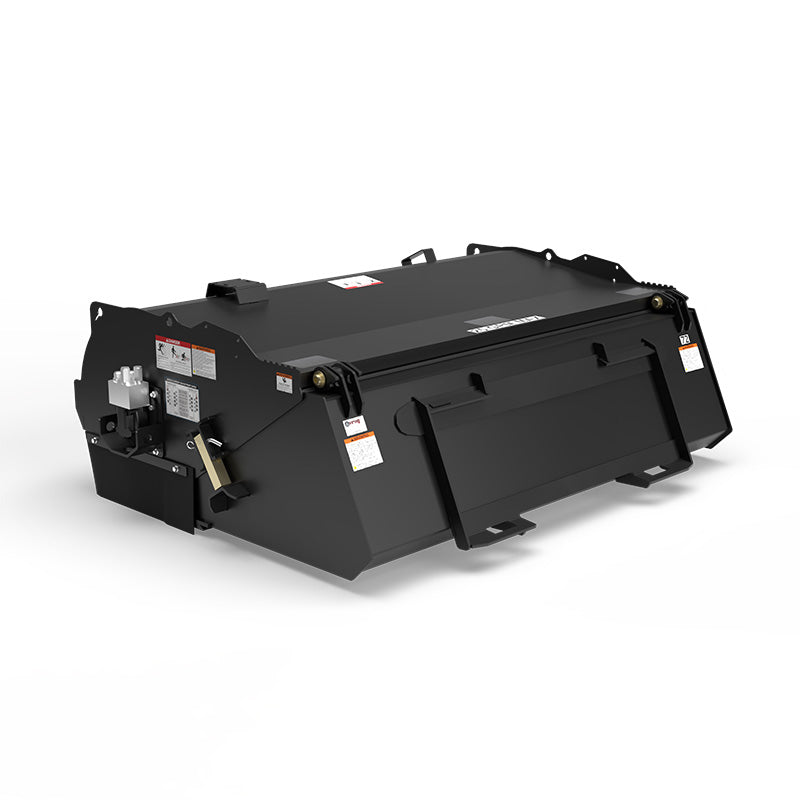

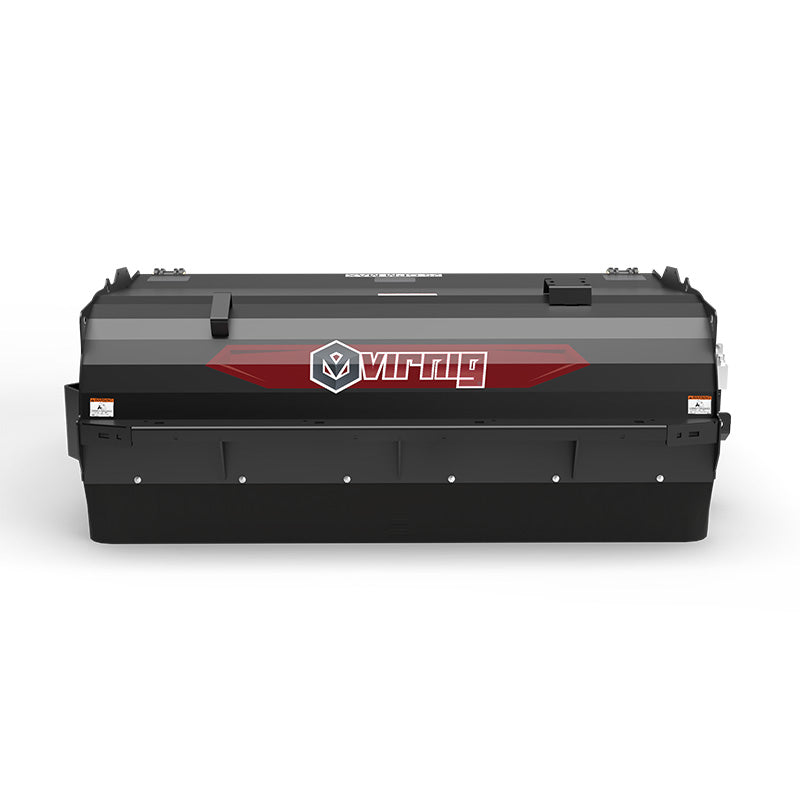

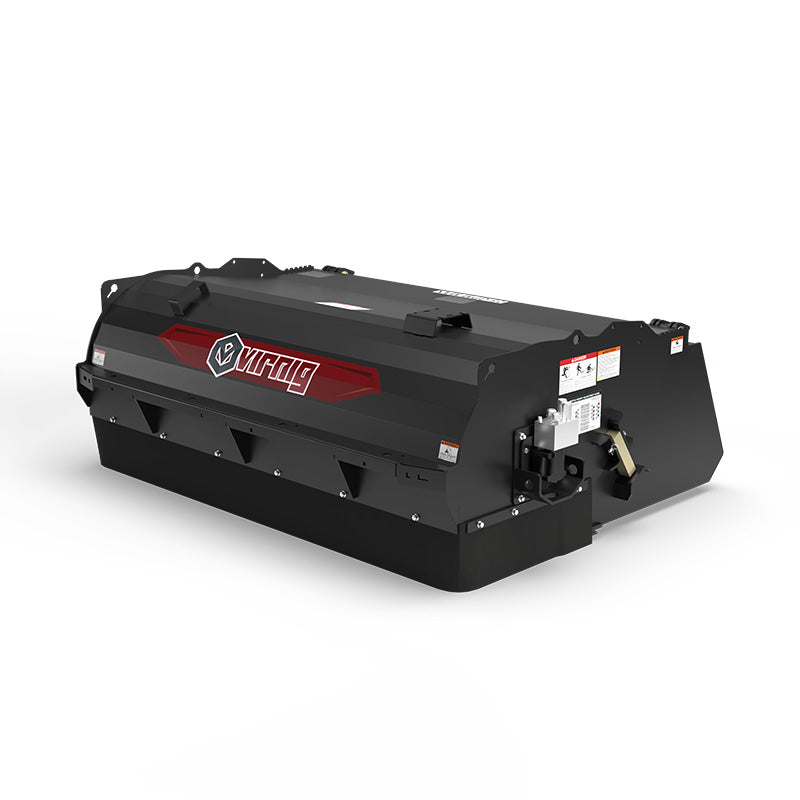

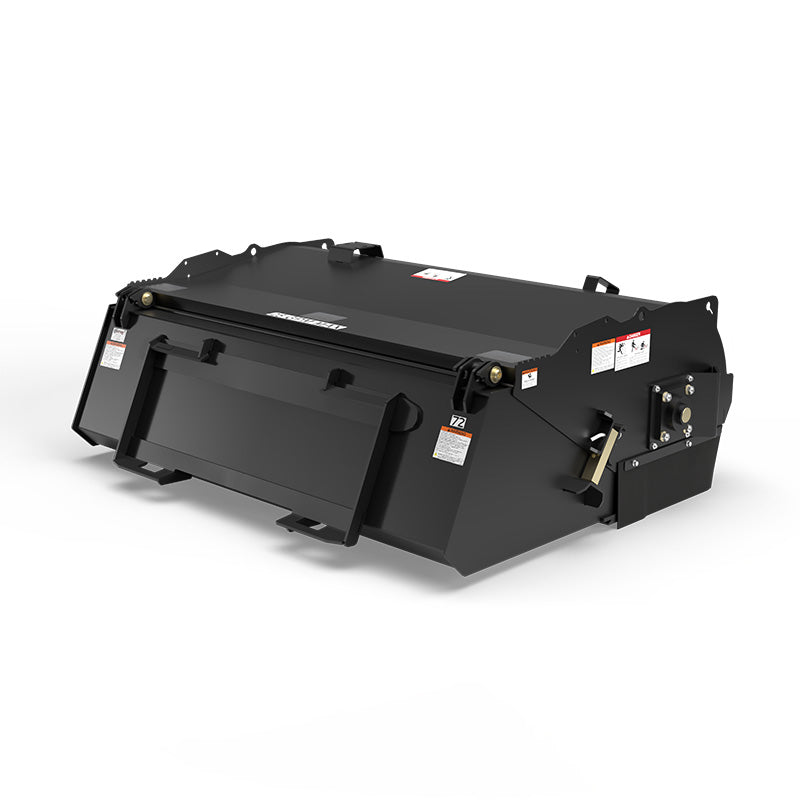

Virnig Pick-Up Broom

Virnig

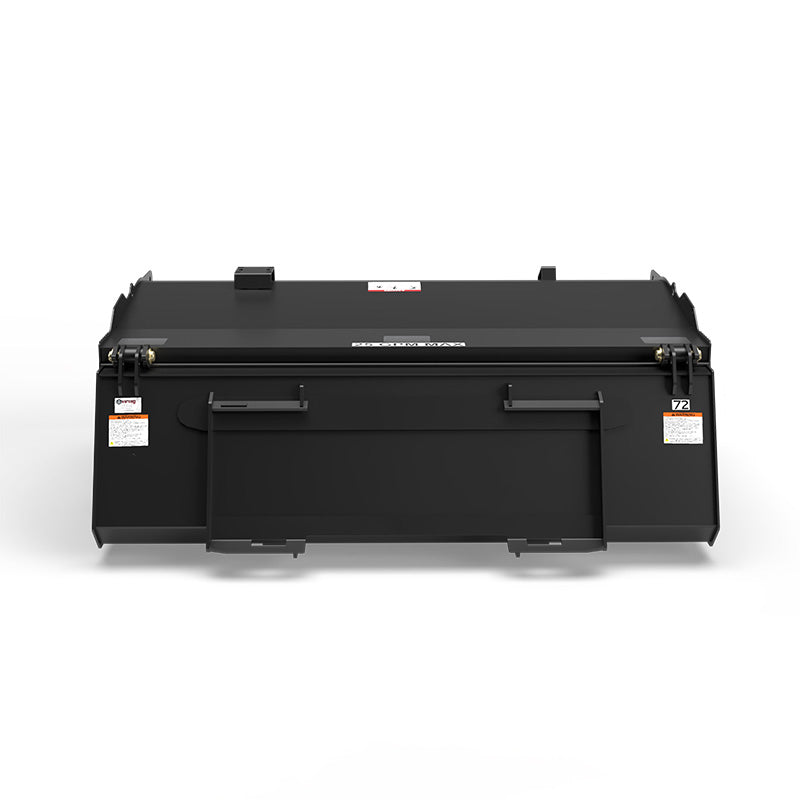

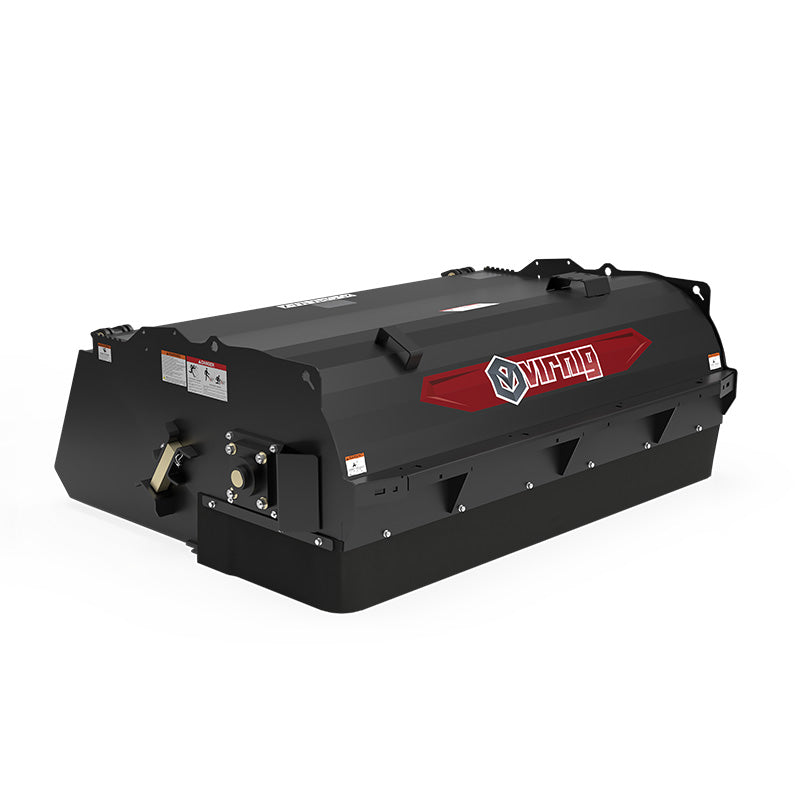

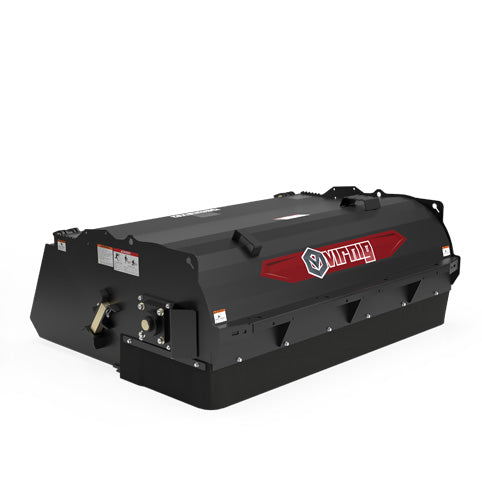

Virnig Pick-Up Broom

SKU: PUB60 Currently In Stock

Sale price$8,270.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

GUARDED DRIVE

A RECESSED MOTOR AND GUARDED, GREASEABLE 2″ BEARING PROTECT AND SUPPORT THE BROOM DRIVE.

REINFORCED COLLECTION BUCKET

HEAVY-DUTY BUCKET WITH WEAR BARS, BOLT-ON EDGE AND REINFORCED QUICK ATTACH MOUNT.

EIGHT-POSITION BRISTLE ADJUSTMENT

8-POSITION PIN SYSTEM MAKES IT EASY TO ADJUST BRISTLE HEIGHT IN 3/4″ INCREMENTS.

SERVICEABLE BRISTLES

REPLACE WORN BRISTLE WAFERS WITHOUT DISCONNECTING THE HYDRAULIC HOSES.

WAFER OPTIONS

POLY/WIRE WAFERS ARE STANDARD; ALL-POLY WAFERS OFFER AN ALTERNATIVE FOR THE SURFACE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

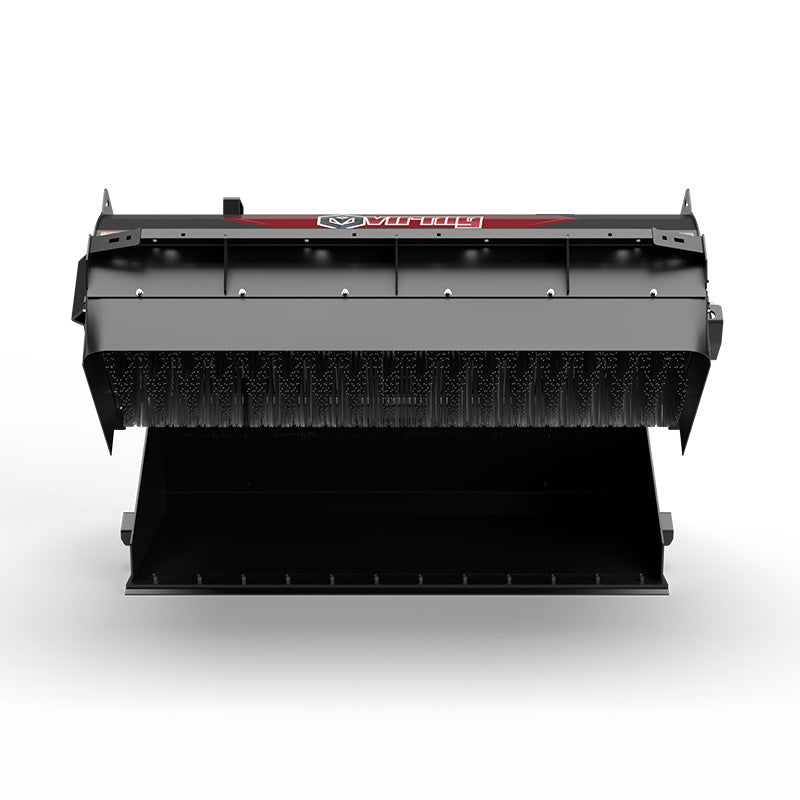

The Virnig Pick-Up Broom sweeps loose debris into a collection bucket so it can be carried away from paved work areas. It combines brushing and collection in one attachment, making it useful when material needs to be removed from the site rather than simply swept into a windrow alongside the travel path.

The heavy-duty bucket includes wear bars, a bolt-on edge, and a reinforced quick-attach mount. A recessed motor and guarded 2″ greasable bearing protect key rotating components. An eight-position pin system adjusts bristle height in ¾″ increments, allowing the brush position to be reset as the wafers wear.

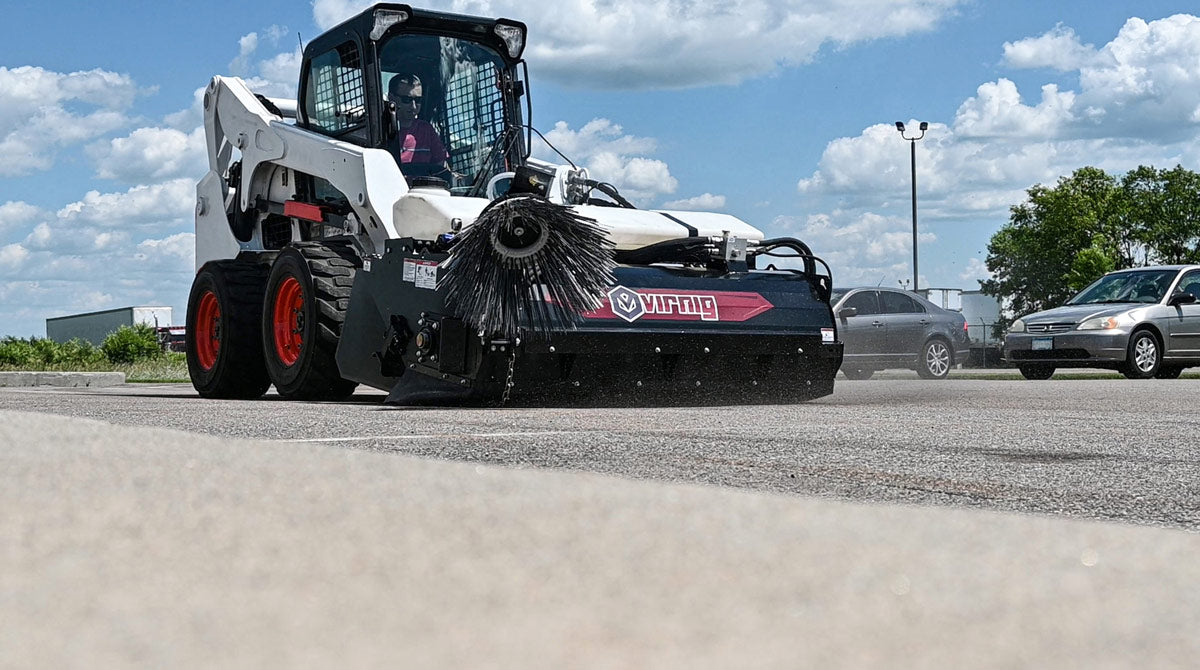

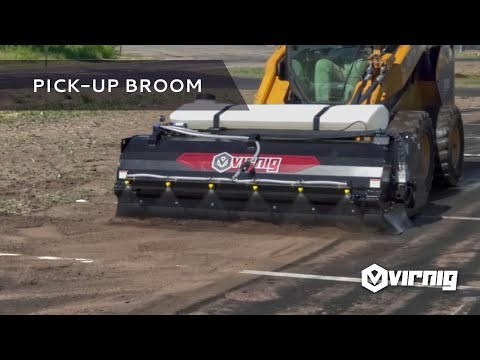

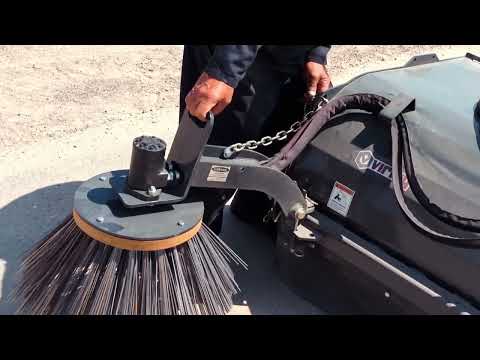

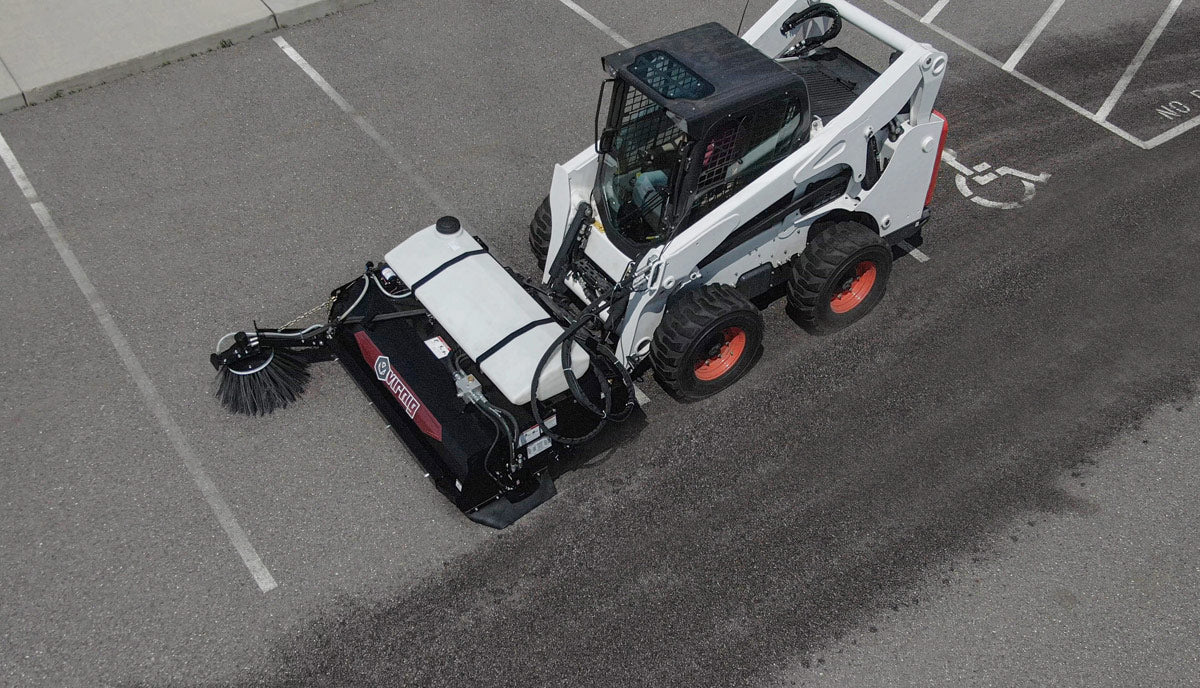

Standard poly/wire wafers can be replaced without disconnecting the hoses, and all-poly wafers are also available. An optional gutter brush extends the sweeping setup, while an optional 40-gallon water kit supports dust control. Choose those options specifically when needed; this standard broom is separate from the model with a built-in internal water tank.

KEY BENEFITS

  • Recessed and guarded motor. Guarded 2″ greasable bearing.
  • Heavy-duty bucket with wear bars, bolt-on edge and reinforced quick attach mount.
  • 8-position pin system makes it easy to adjust bristle height in 3/4″ increments.
  • Replace wafers easily without disconnecting hoses.
  • Standard with poly/wire wafers. All poly wafers available.

TECHNICAL SPECIFICATIONS

  • Models: PUB60 PUB72 PUB84
  • Sweeping Width (in.): PUB60: 60.0; PUB72: 72.0; PUB84: 84.0
  • Overall Width (in.): PUB60: 67.3; PUB72: 79.3; PUB84: 91.3
  • Overall Height (in.): 30.8
  • Overall Depth (in.): 61.8
  • Number of 26 Inch Diameter Wafers: PUB60: 29; PUB72: 35; PUB84: 41
  • Recommended Flow Rate (GPM): 15-25 Standard Flow Only
  • Approximate Weight (lbs): PUB60: 975; PUB72: 1100; PUB84: 1225
  • Recommended Loader Capacity: Greater than 1500 lbs¹
  • ¹Recommended Loader Capacity with Water Kit installed is 1800 lbs.

APPLICATIONS

  • Paved yard cleanup
  • Parking area sweeping
  • Construction cleanup

VIRNIG PICK-UP BROOM

WORKING DESIGN

  • Recessed and guarded motor. Guarded 2″ greasable bearing.
  • Heavy-duty bucket with wear bars, bolt-on edge and reinforced quick attach mount.
  • 8-position pin system makes it easy to adjust bristle height in 3/4″ increments.
  • Replace wafers easily without disconnecting hoses.
  • Standard with poly/wire wafers. All poly wafers available.

CONFIGURATION AND SPECIFICATIONS

  • Models: PUB60 PUB72 PUB84
  • Sweeping Width (in.): PUB60: 60.0; PUB72: 72.0; PUB84: 84.0
  • Overall Width (in.): PUB60: 67.3; PUB72: 79.3; PUB84: 91.3
  • Overall Height (in.): 30.8
  • Overall Depth (in.): 61.8
  • Number of 26 Inch Diameter Wafers: PUB60: 29; PUB72: 35; PUB84: 41
  • Recommended Flow Rate (GPM): 15-25 Standard Flow Only
  • Approximate Weight (lbs): PUB60: 975; PUB72: 1100; PUB84: 1225
  • Recommended Loader Capacity: Greater than 1500 lbs¹

READY FOR THE FIELD

  • Recessed and guarded motor. Guarded 2″ greasable bearing.
  • Heavy-duty bucket with wear bars, bolt-on edge and reinforced quick attach mount.
  • 8-position pin system makes it easy to adjust bristle height in 3/4″ increments.
  • Replace wafers easily without disconnecting hoses.
  • Standard with poly/wire wafers. All poly wafers available.
