VIRNIG

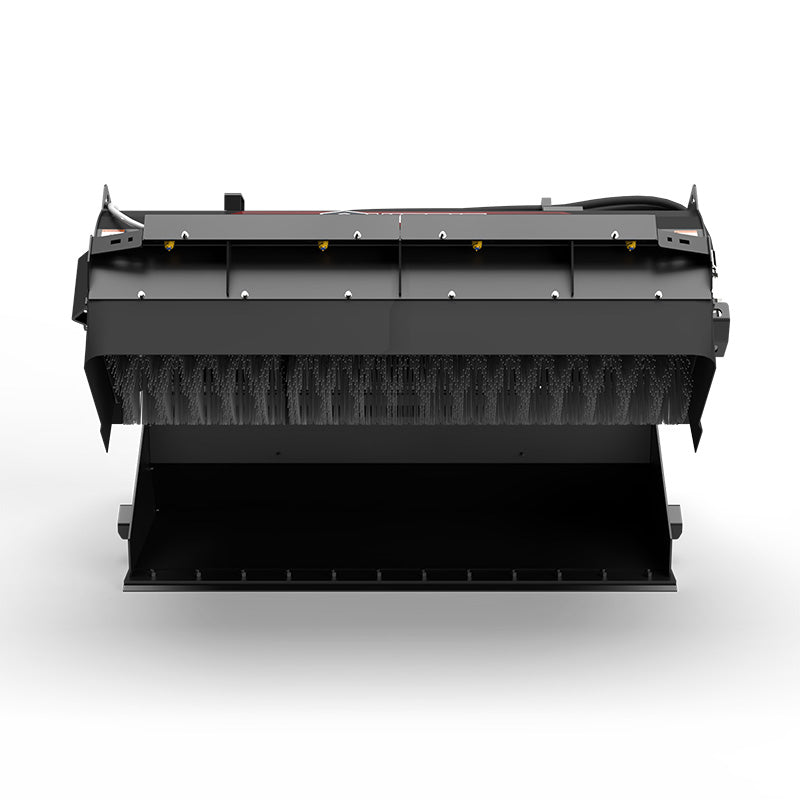

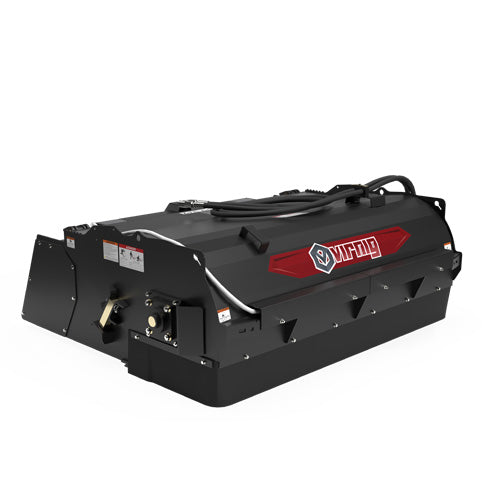

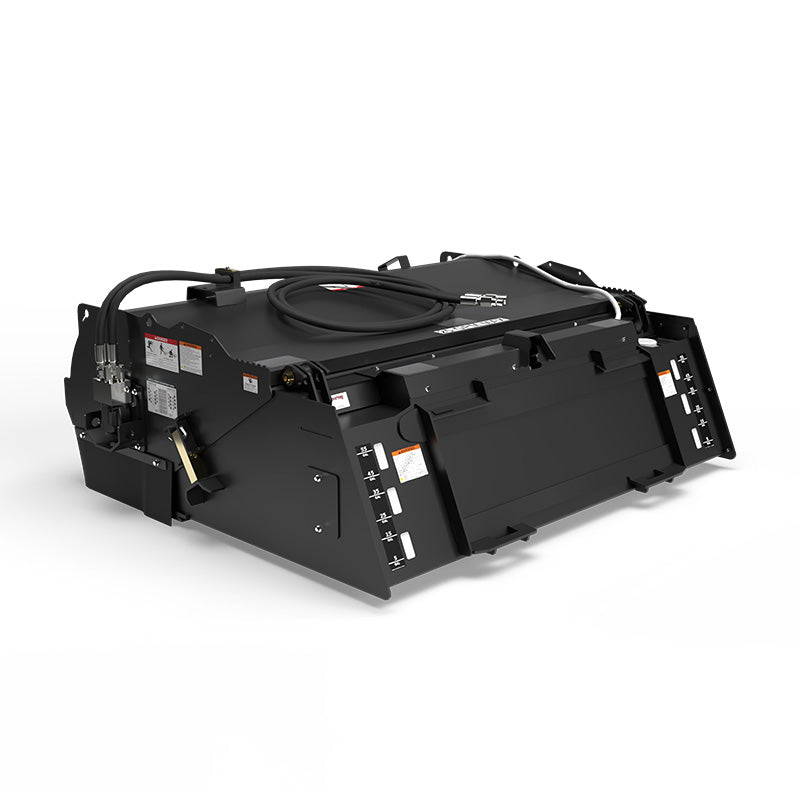

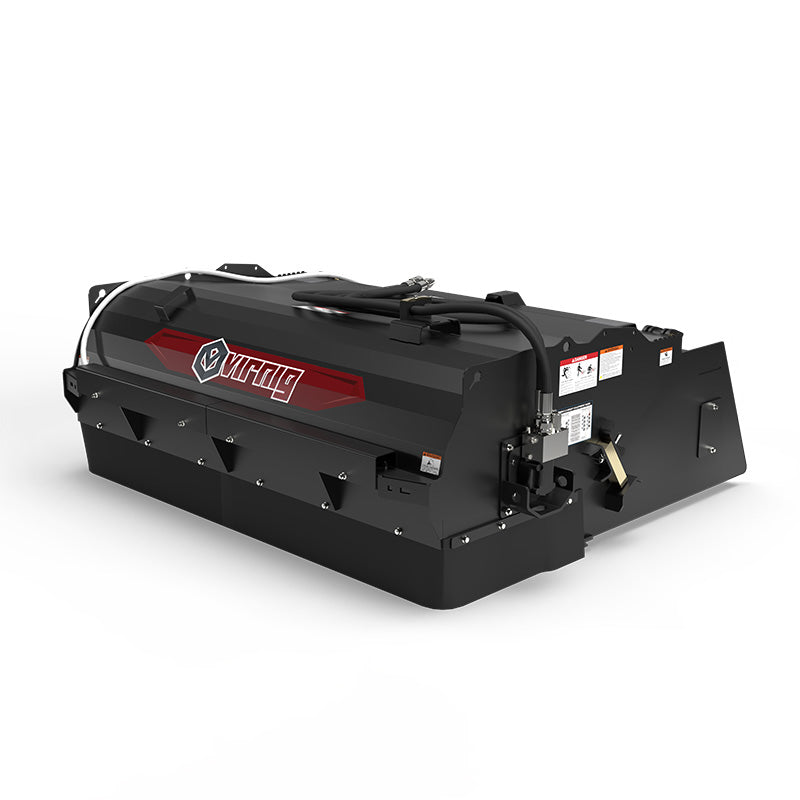

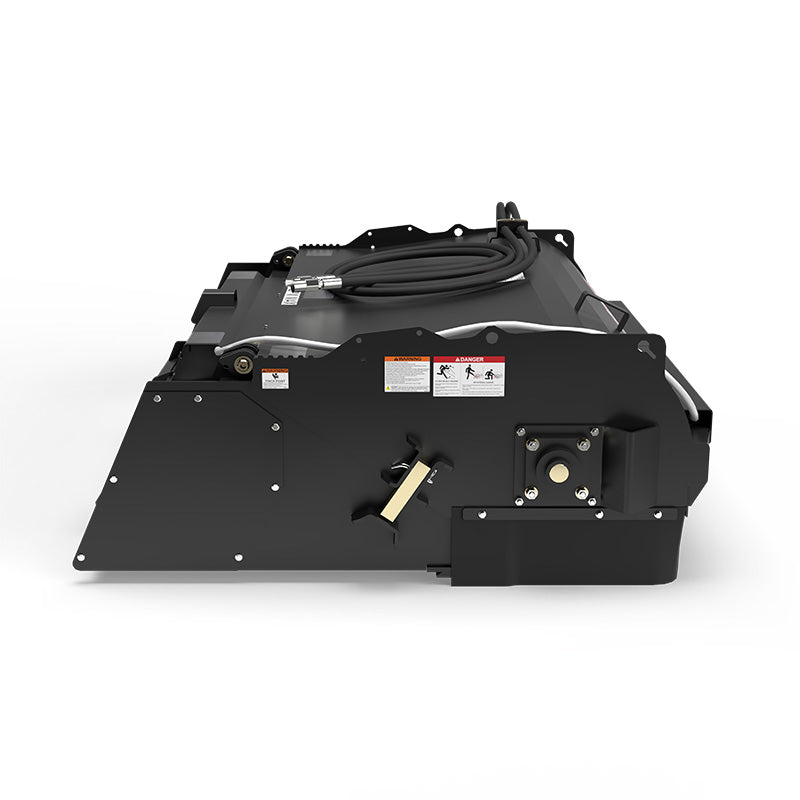

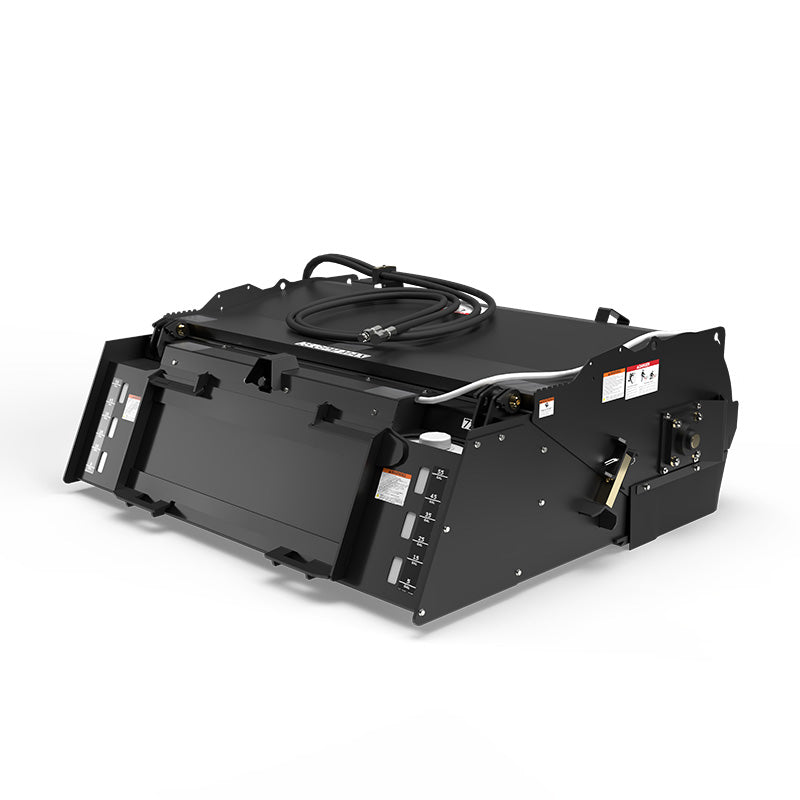

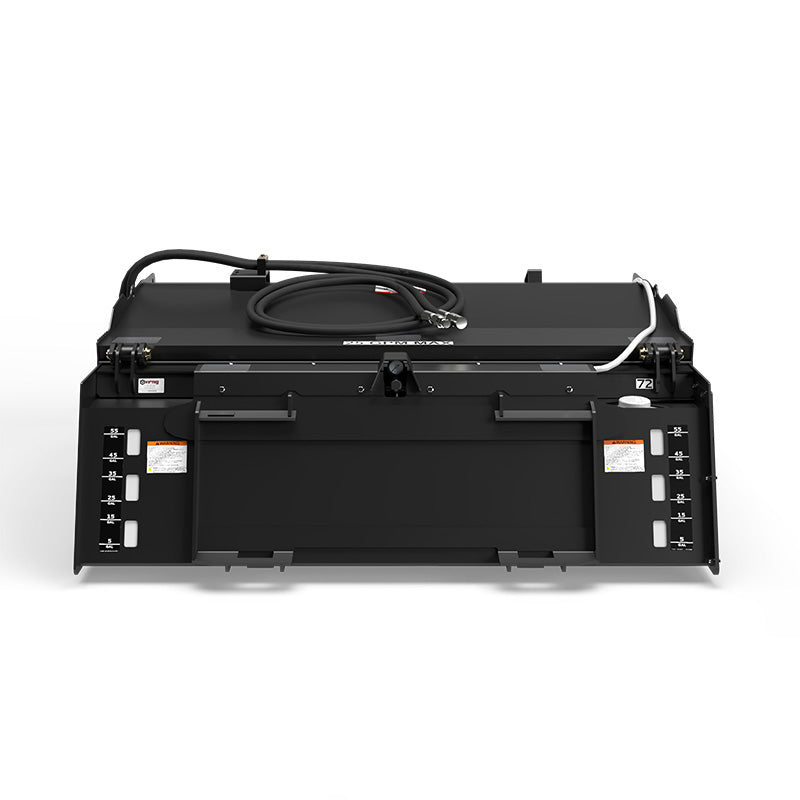

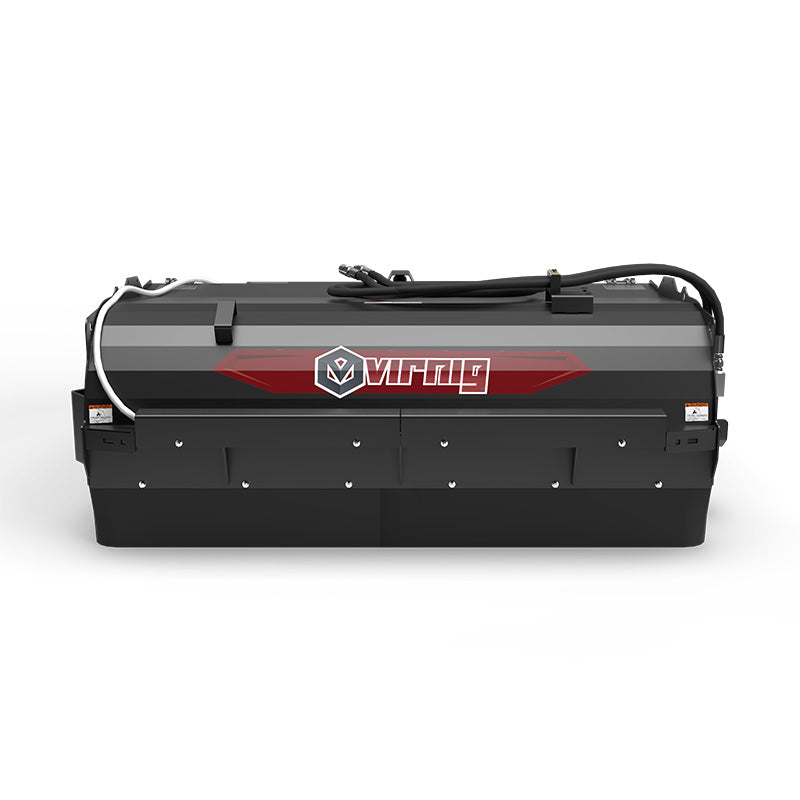

Pick-Up Broom – Internal Water Tank

For Skid Steers & Track Loaders

55-Gallon Internal Water Tank

Virnig

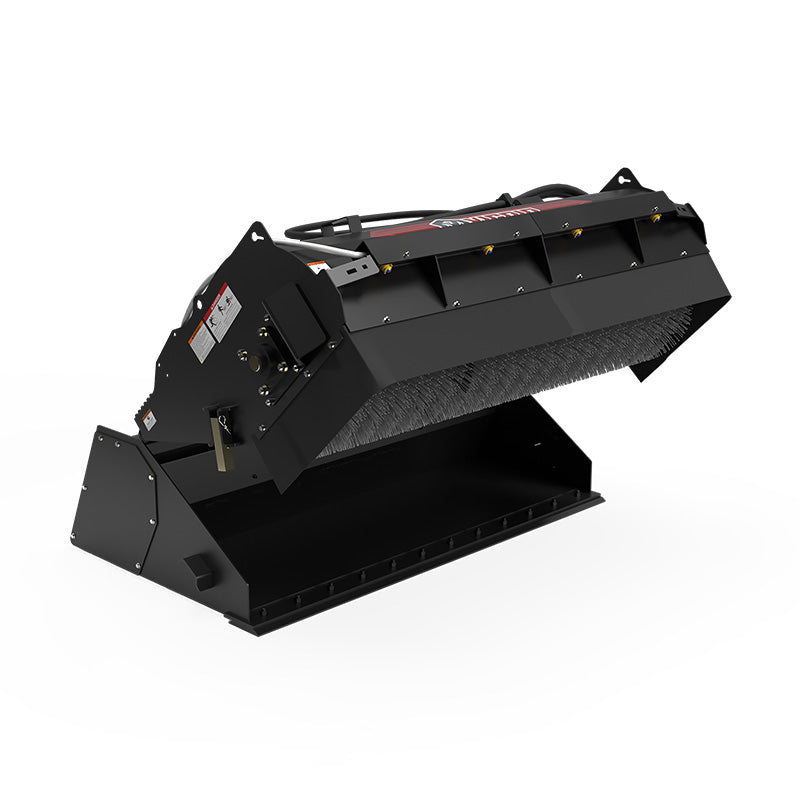

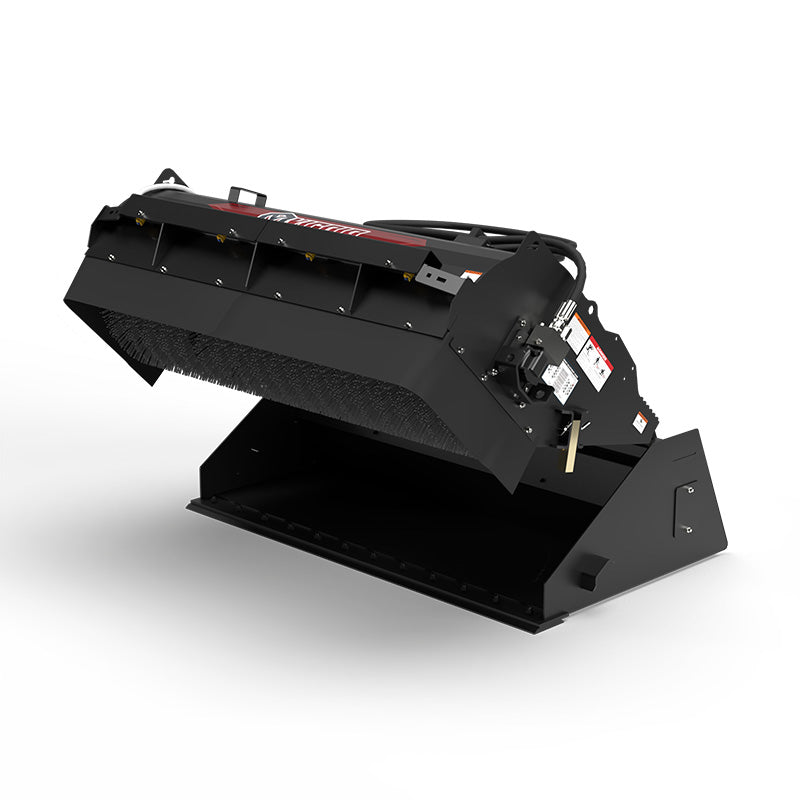

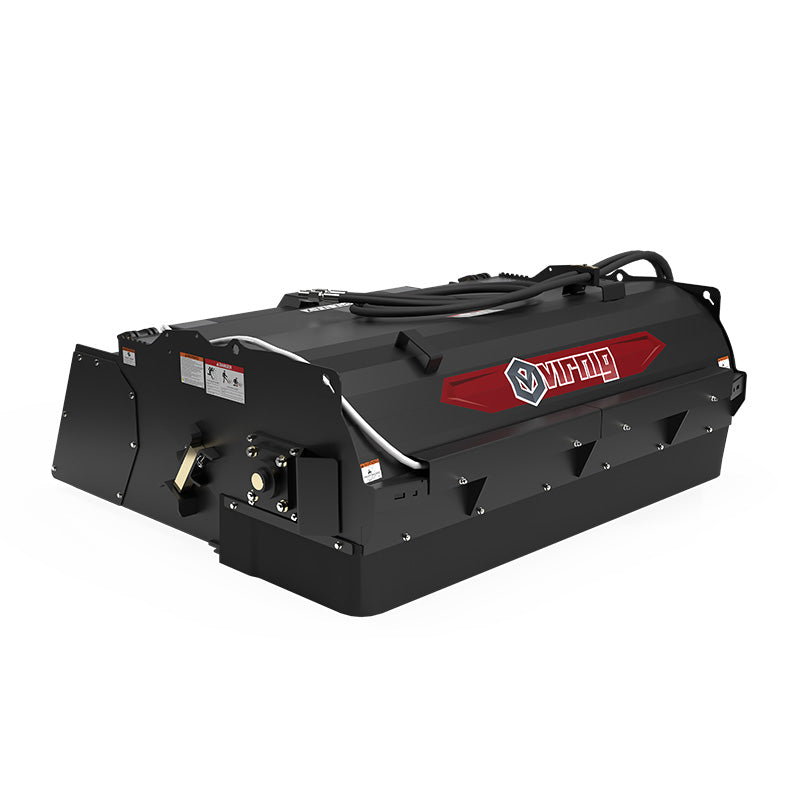

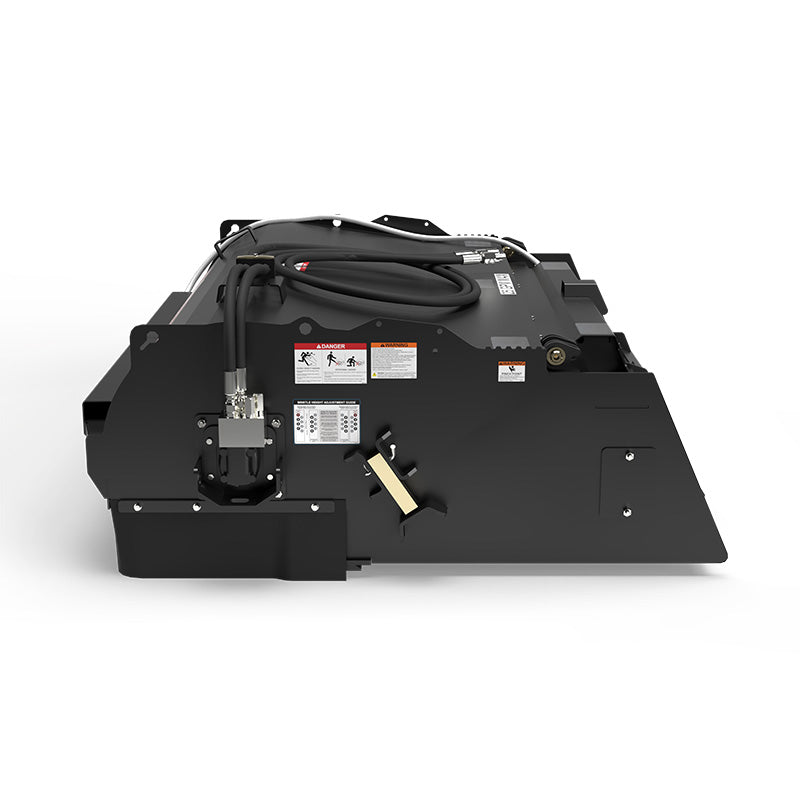

Virnig Pick-Up Broom - Internal Water Tank

SKU: PBWI72 Currently In Stock

Sale price$12,010.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

INTEGRATED WATER TANK

55-GALLON INTERNAL WATER TANK WITH CAPACITY INDICATORS PROVIDES 35 MINUTES OF CONTINUOUS RUNTIME.

PROTECTED SPRAY NOZZLES

SPRAY NOZZLES INTEGRATED INTO PUSH BAR FOR CLEAN ROUTING AND ADDED PROTECTION.

ADJUSTABLE WATER FLOW

AN ADJUSTMENT KNOB CONTROLS SPRAY PRESSURE AND FLOW TO SUIT SWEEPING CONDITIONS.

GUARDED DRIVE

A RECESSED MOTOR AND GUARDED, GREASEABLE 2″ BEARING PROTECT AND SUPPORT THE BROOM DRIVE.

REPLACEABLE CUTTING EDGE

HEAVY-DUTY BUCKET WITH WEAR BARS, BOLT-ON EDGE AND REINFORCED QUICK ATTACH MOUNT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Pick-Up Broom with Internal Water Tank sweeps and collects paved-area debris while carrying its dust-control water inside the attachment. The integrated 55-gallon tank keeps the water system with the broom, giving operators a self-contained collection and spray arrangement for dusty cleanup work.

Tank capacity indicators help track the water supply, which provides approximately 35 minutes of continuous runtime. Spray nozzles are integrated into the push bar for protected routing, and an adjustment knob controls water pressure and flow. The internal layout distinguishes this model from the standard pick-up broom with an optional external water kit.

A heavy-duty collection bucket includes wear bars, a bolt-on edge, and a reinforced quick-attach mount. The recessed motor and guarded 2″ greasable bearing protect rotating components, while the eight-position pin system adjusts bristle height in ¾″ increments. Account for water and collected material weight when matching the complete working attachment to the loader.

KEY BENEFITS

  • 55-gallon internal water tank with capacity indicators provides 35 minutes of continuous runtime.
  • Spray nozzles integrated into push bar for clean routing and added protection.
  • Control water pressure and flow rate with adjustment knob.
  • Recessed and guarded motor. Guarded 2″ greasable bearing.
  • Heavy-duty bucket with wear bars, bolt-on edge and reinforced quick attach mount.

TECHNICAL SPECIFICATIONS

  • Models: PBWI72 PBWI84
  • Sweeping Width (in.): PBWI72: 72.0; PBWI84: 84.0
  • Overall Width (in.): PBWI72: 79.3; PBWI84: 91.3
  • Overall Height (in.): 30.8
  • Overall Depth (in.): 68.6
  • Number of 26 Inch Diameter Wafers: PBWI72: 35; PBWI84: 41
  • Recommended Flow Rate (GPM): 15-25 Standard Flow Only
  • Approximate Weight (lbs): PBWI72: 1365; PBWI84: 1400
  • Recommended Loader Capacity: Greater than 2000 lbs

APPLICATIONS

  • Dust-controlled sweeping
  • Paved yard cleanup
  • Construction cleanup

VIRNIG PICK-UP BROOM - INTERNAL WATER TANK

WORKING DESIGN

  • 55-gallon internal water tank with capacity indicators provides 35 minutes of continuous runtime.
  • Spray nozzles integrated into push bar for clean routing and added protection.
  • Control water pressure and flow rate with adjustment knob.
  • Recessed and guarded motor. Guarded 2″ greasable bearing.
  • Heavy-duty bucket with wear bars, bolt-on edge and reinforced quick attach mount.

CONFIGURATION AND SPECIFICATIONS

  • Models: PBWI72 PBWI84
  • Sweeping Width (in.): PBWI72: 72.0; PBWI84: 84.0
  • Overall Width (in.): PBWI72: 79.3; PBWI84: 91.3
  • Overall Height (in.): 30.8
  • Overall Depth (in.): 68.6
  • Number of 26 Inch Diameter Wafers: PBWI72: 35; PBWI84: 41
  • Recommended Flow Rate (GPM): 15-25 Standard Flow Only
  • Approximate Weight (lbs): PBWI72: 1365; PBWI84: 1400
  • Recommended Loader Capacity: Greater than 2000 lbs

READY FOR THE FIELD

  • 55-gallon internal water tank with capacity indicators provides 35 minutes of continuous runtime.
  • Spray nozzles integrated into push bar for clean routing and added protection.
  • Control water pressure and flow rate with adjustment knob.
  • Recessed and guarded motor. Guarded 2″ greasable bearing.
  • Heavy-duty bucket with wear bars, bolt-on edge and reinforced quick attach mount.
