VIRNIG

Power Rake

For Skid Steers & Track Loaders

72-90″ Widths

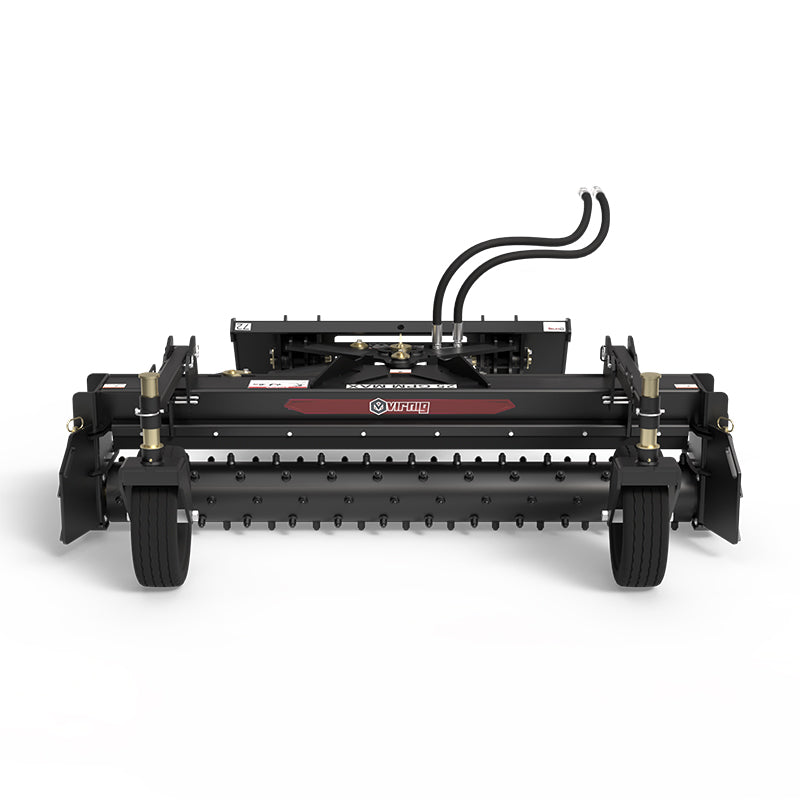

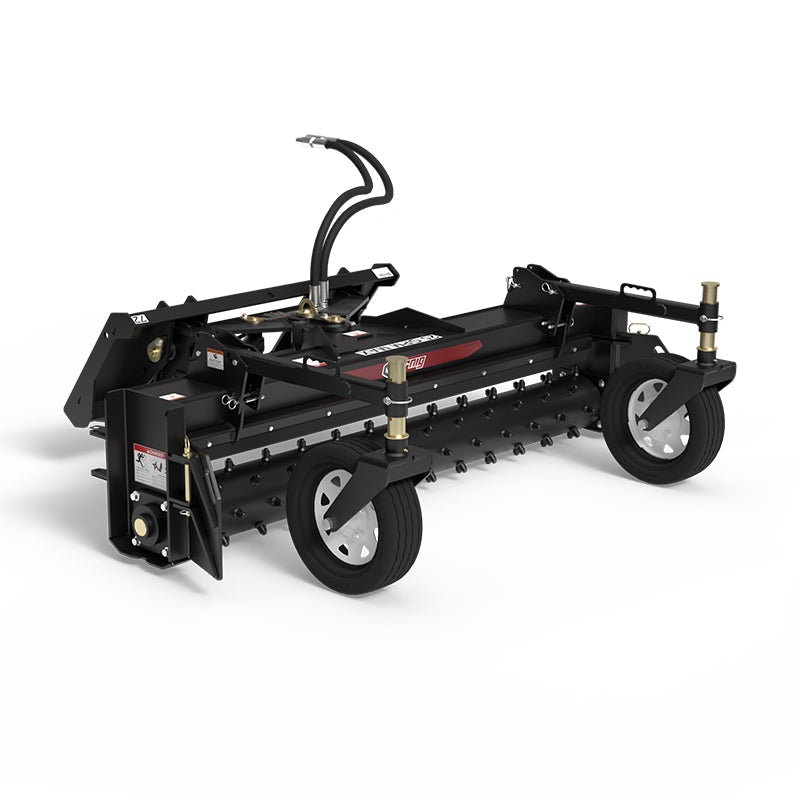

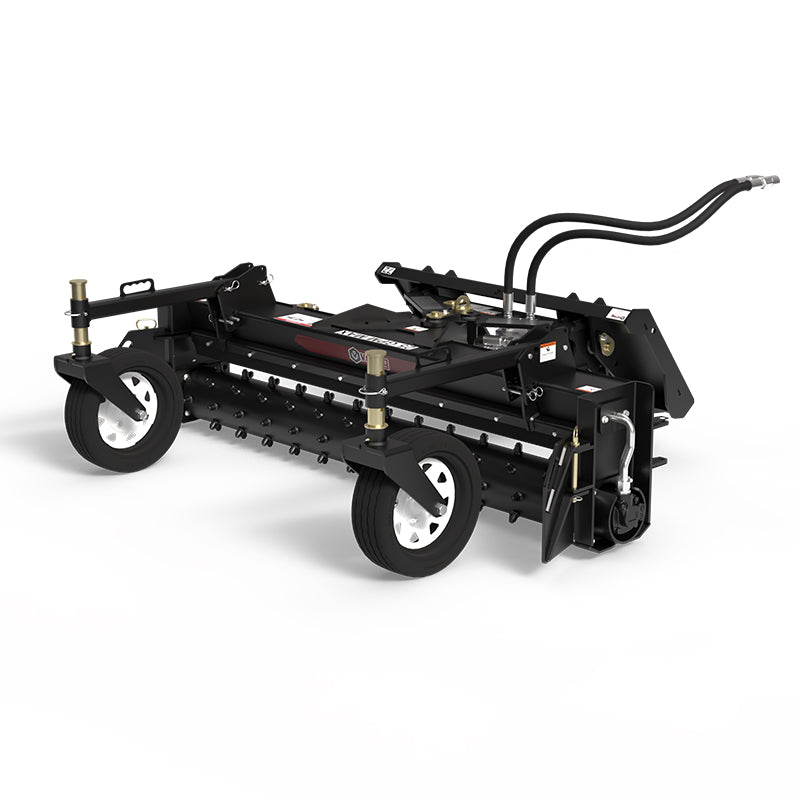

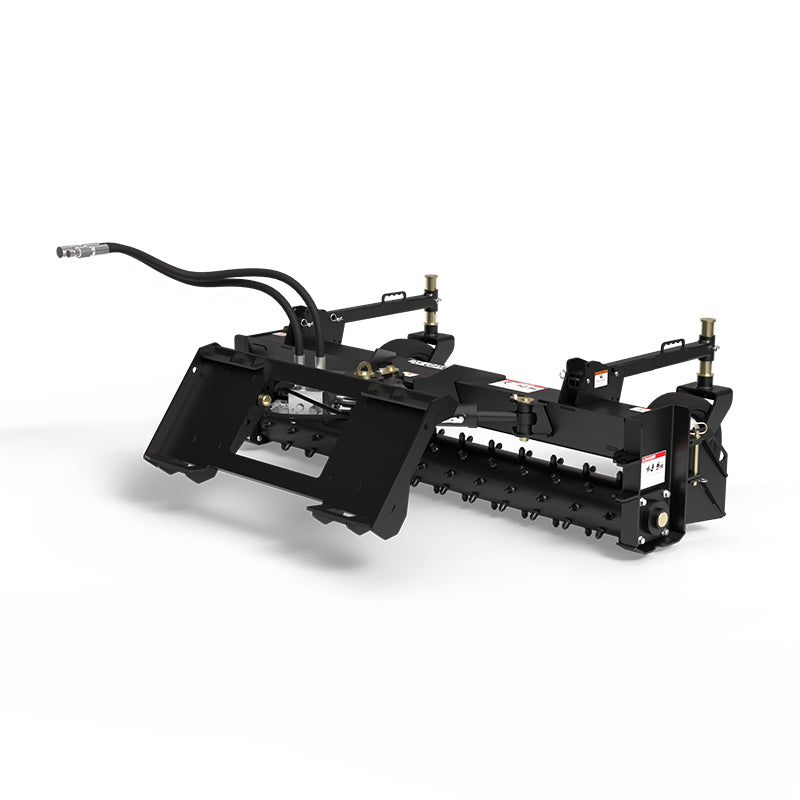

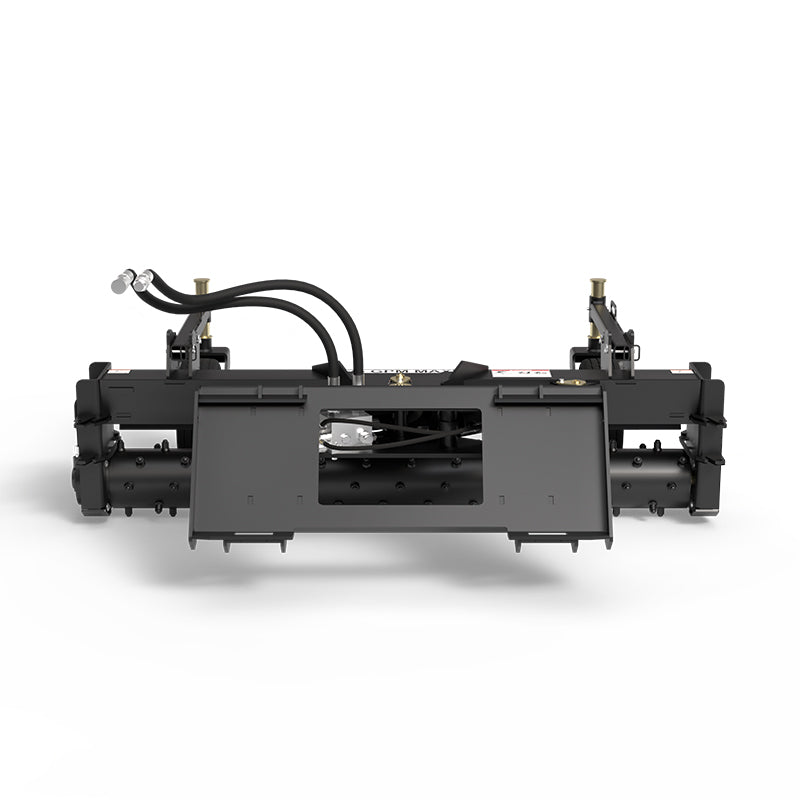

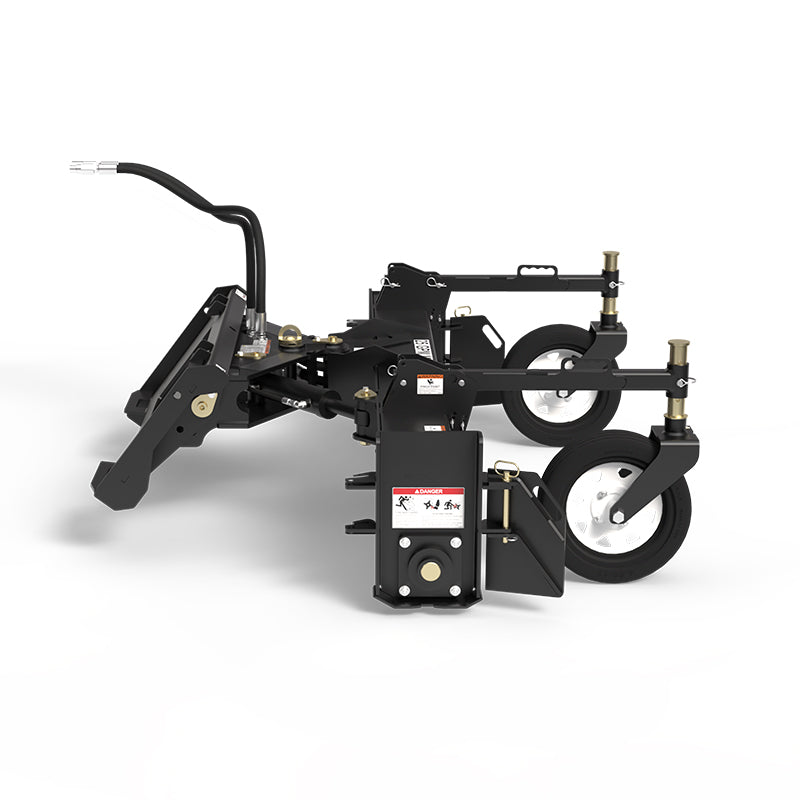

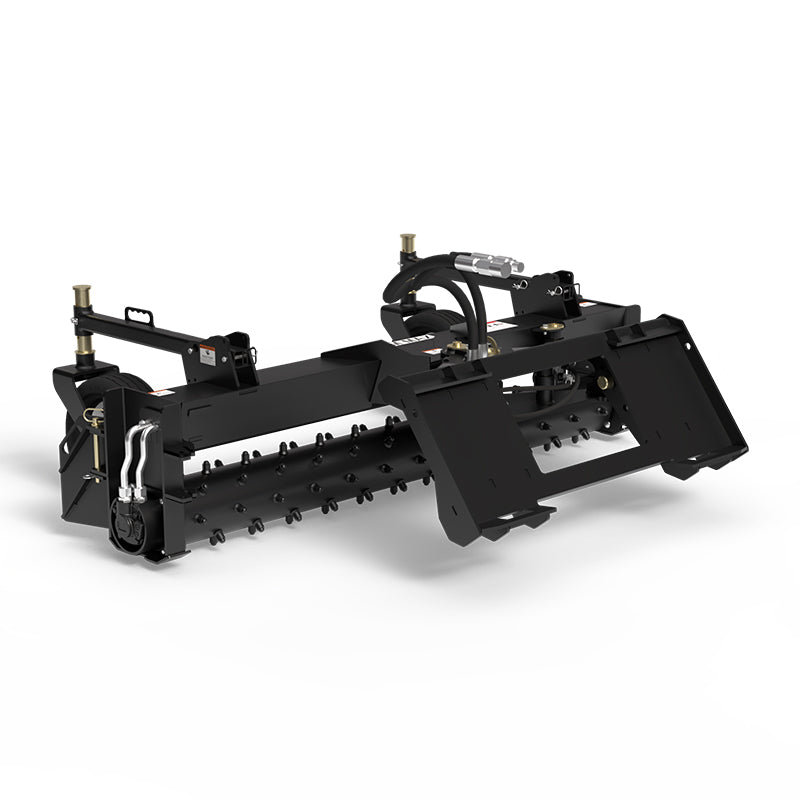

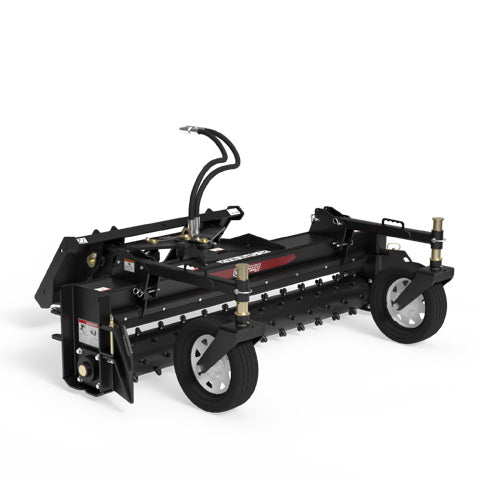

Virnig Power Rake

Virnig

Virnig Power Rake

SKU: PRK72 Currently In Stock

Sale price$12,755.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

TERRAIN-FOLLOWING DESIGN

22° FLOATING DESIGN AUTOMATICALLY FOLLOWS TERRAIN WHILE PROVIDING FULL DOWN PRESSURE.

FLAT-FREE TIRES

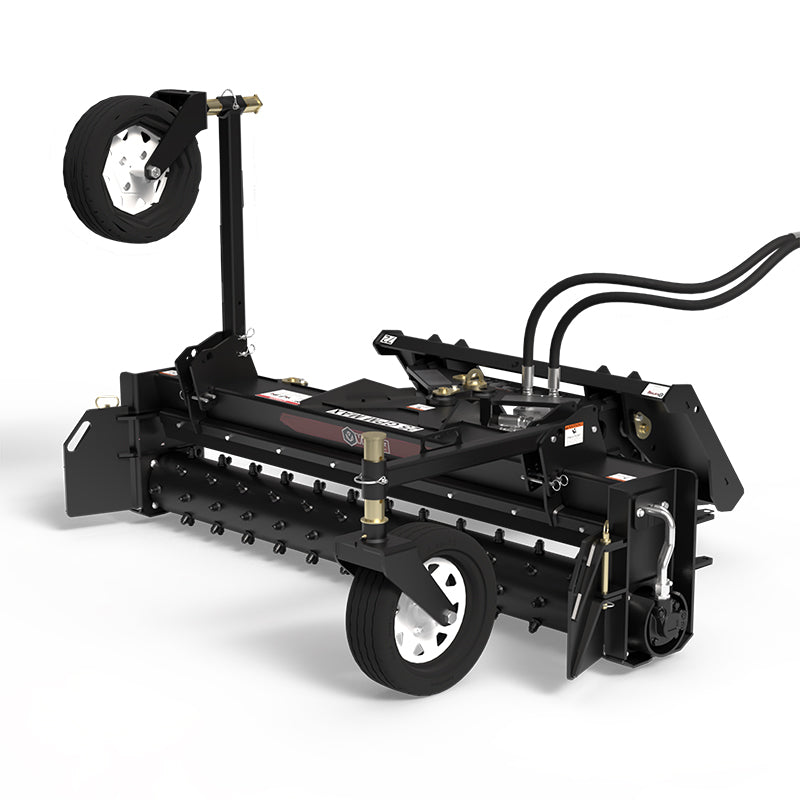

FLAT FREE TIRES WITH QUICK HEIGHT ADJUSTMENT IN 1/2″ INCREMENTS. WHEEL ARMS FLIP UP FOR STORAGE.

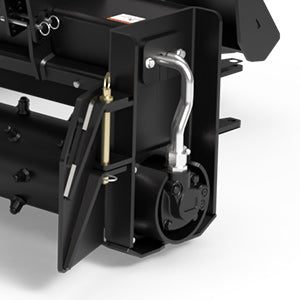

MOTOR OPTIONS

CHOOSE MOTOR OPTION: HIGH TORQUE FOR TOUGH SOIL OR HIGH SPEED (~60% FASTER) FOR PRODUCTIVITY IN LIGHTER CONDITIONS - SAME PROFESSIONAL FINISH.

MATERIAL FLOW CONTROL

ADJUST THE MATERIAL BARRIER TO CONTROL HOW MUCH MATERIAL PASSES THROUGH THE RAKE.

MATERIAL CONTAINMENT

MOVE THE REMOVABLE SIDE PLATES TO THE FRONT OR REAR TO CONTAIN MATERIAL WHILE RAKING.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Power Rake grades and conditions soil while separating surface debris to prepare a finished seedbed. Its floating design follows changing terrain through 22° of movement and still allows full down pressure, giving operators a way to work the surface without holding the rake in one rigid position.

Round carbide teeth condition the soil, while an adjustable barrier controls material flow and the resulting finish. Removable side plates can mount at the front or back to contain material for different passes. Flat-free tires support the rake, with quick height adjustments in ½″ increments to set the working position.

Choose the high-torque motor for tougher soil or the high-speed motor for productivity in lighter conditions. The wheel arms flip up for storage when the job is finished. Match the selected motor's hydraulic requirements to the loader and choose the width around your work area, carrier capacity, and typical soil preparation tasks.

KEY BENEFITS

  • 22° floating design automatically follows terrain while providing full down pressure.
  • Flat free tires with quick height adjustment in 1/2″ increments. Wheel arms flip up for storage.
  • Choose motor option: high torque for tough soil or high speed (~60% faster) for productivity in lighter conditions - same professional finish.
  • Adjustable barrier to control material flow and finish quality.
  • Removable side plates mount to front or back for material containment.

TECHNICAL SPECIFICATIONS

  • Models: PRK72 | PRK84 | PRK90
  • Working Width, Straight (in.): PRK72: 72.0; PRK84: 84.0; PRK90: 90.0
  • Working Width, Full Angle (in.): PRK72: 66.8; PRK84: 77.9; PRK90: 83.4
  • Overall Width (in.): PRK72: 81.0; PRK84: 93.0; PRK90: 99.0
  • Overall Height (in.): 26.0
  • Overall Depth (in.): 60.0
  • Drum Diameter (in.): 7.5
  • Teeth (qty.): PRK72: 101; PRK84: 118; PRK90: 127
  • Float Link Angle (degrees): 22
  • Rake Angle (degrees): (+/-) 21
  • Recommended Flow Rate (GPM): 15-25
  • Approximate Weight (lbs): PRK72: 915; PRK84: 960; PRK90: 985
  • Recommended Operating Cap (50%): Greater than 1500

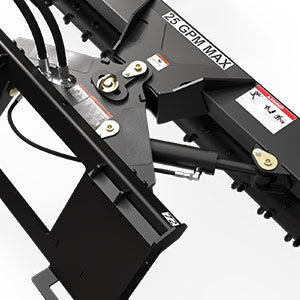

  • Base manual adjustment is included. Hydraulic angle or rotation upgrades and required electrical controls are available by quote and are not included.

APPLICATIONS

  • Seedbed preparation
  • Soil conditioning
  • Gravel and landscape grading

VIRNIG POWER RAKE

WORKING DESIGN

  • 22° floating design automatically follows terrain while providing full down pressure.
  • Flat free tires with quick height adjustment in 1/2″ increments. Wheel arms flip up for storage.
  • Choose motor option: high torque for tough soil or high speed (~60% faster) for productivity in lighter conditions - same professional finish.
  • Adjustable barrier to control material flow and finish quality.
  • Removable side plates mount to front or back for material containment.

CONFIGURATION AND SPECIFICATIONS

  • Models: PRK72 | PRK84 | PRK90
  • Working Width, Straight (in.): PRK72: 72.0; PRK84: 84.0; PRK90: 90.0
  • Working Width, Full Angle (in.): PRK72: 66.8; PRK84: 77.9; PRK90: 83.4
  • Overall Width (in.): PRK72: 81.0; PRK84: 93.0; PRK90: 99.0
  • Overall Height (in.): 26.0
  • Overall Depth (in.): 60.0
  • Drum Diameter (in.): 7.5
  • Teeth (qty.): PRK72: 101; PRK84: 118; PRK90: 127
  • Float Link Angle (degrees): 22

READY FOR THE FIELD

  • 22° floating design automatically follows terrain while providing full down pressure.
  • Flat free tires with quick height adjustment in 1/2″ increments. Wheel arms flip up for storage.
  • Choose motor option: high torque for tough soil or high speed (~60% faster) for productivity in lighter conditions - same professional finish.
  • Adjustable barrier to control material flow and finish quality.
  • Removable side plates mount to front or back for material containment.
