VIRNIG

Rail Pallet Fork Hex-Guard

For Skid Steers & Track Loaders

4,000-6,200 lb Fork Capacity

Request QuoteAdd To Cart

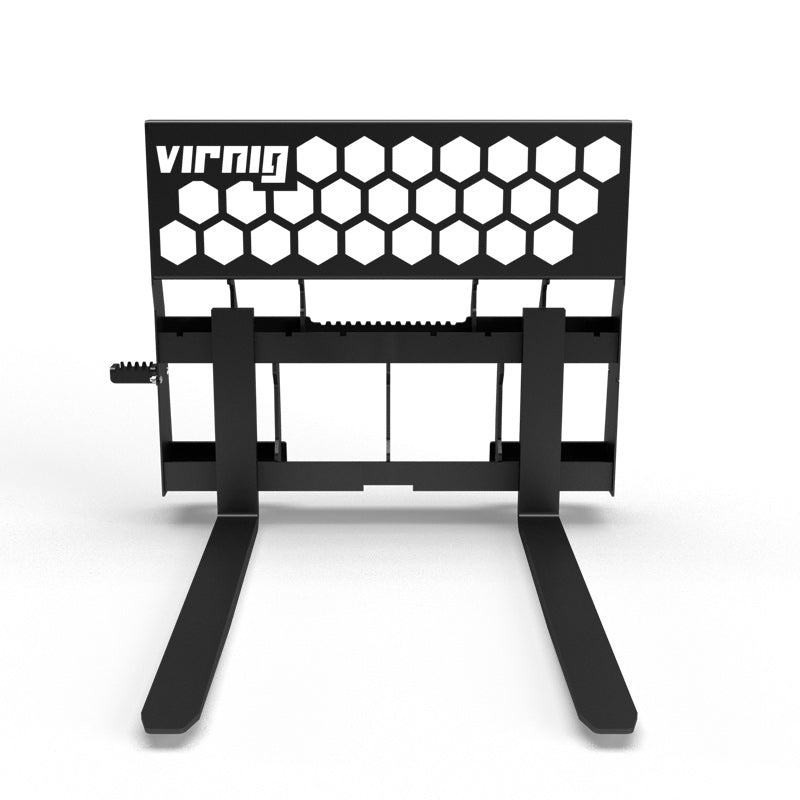

Virnig Rail Pallet Fork Hex-Guard

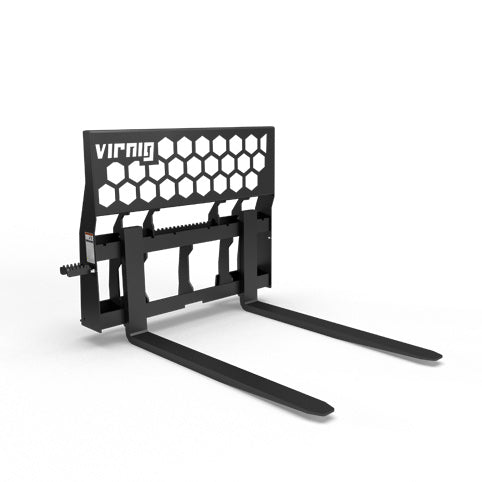

Virnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ

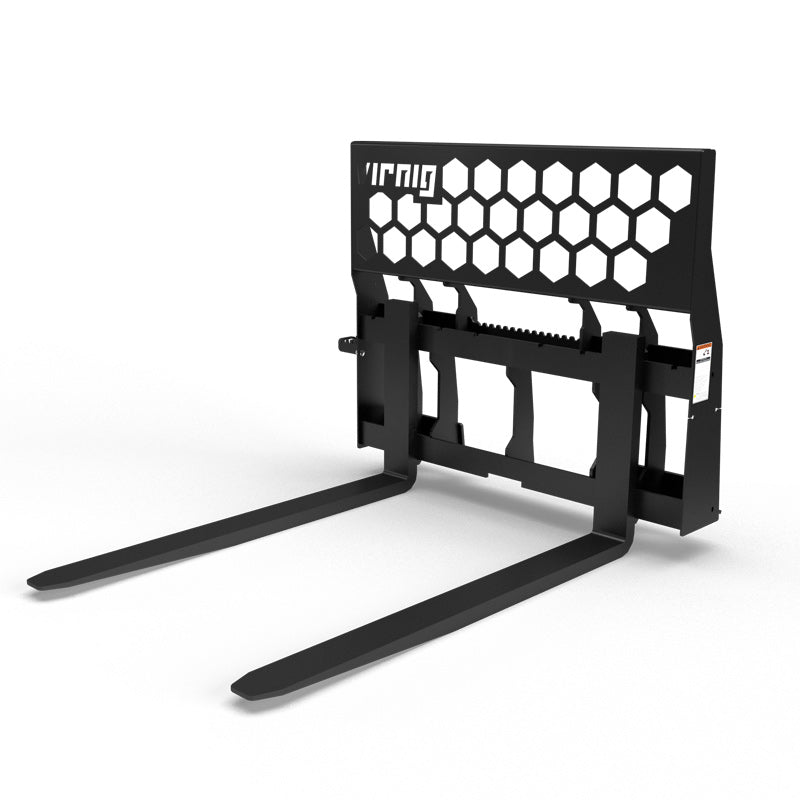

Virnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ

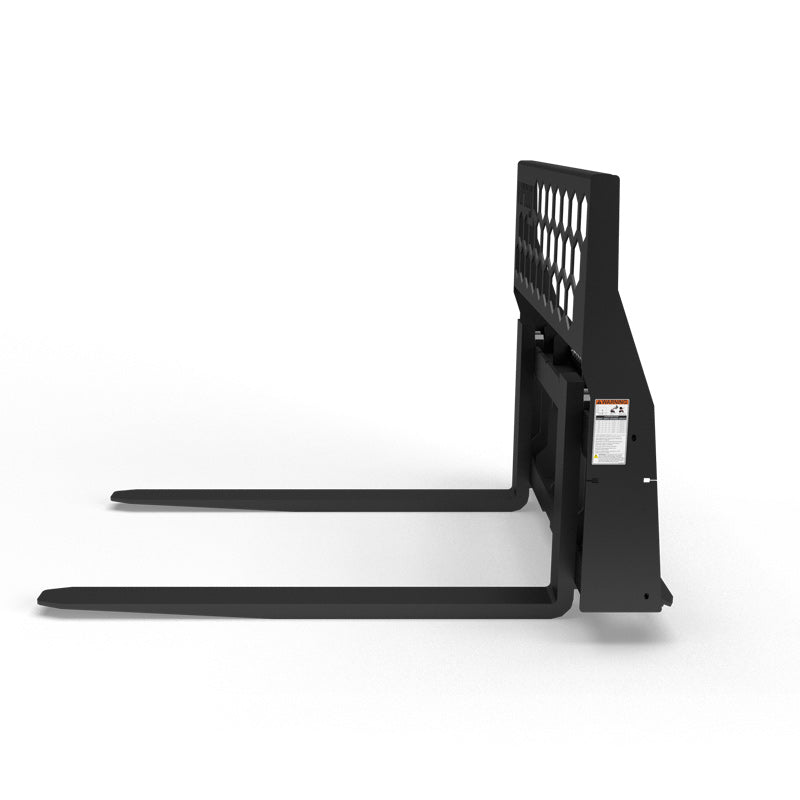

Virnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ

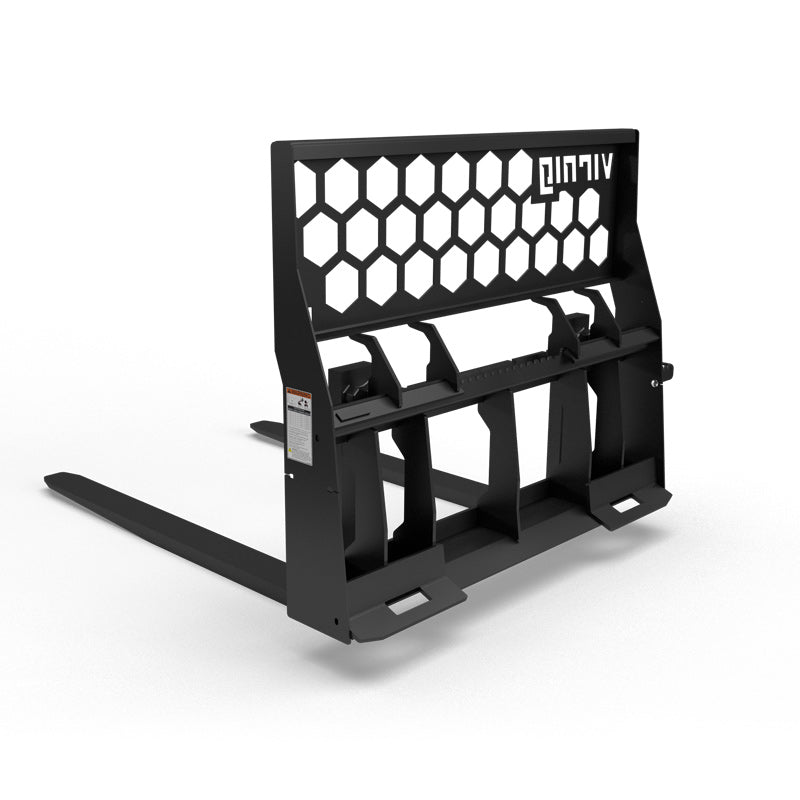

Virnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ

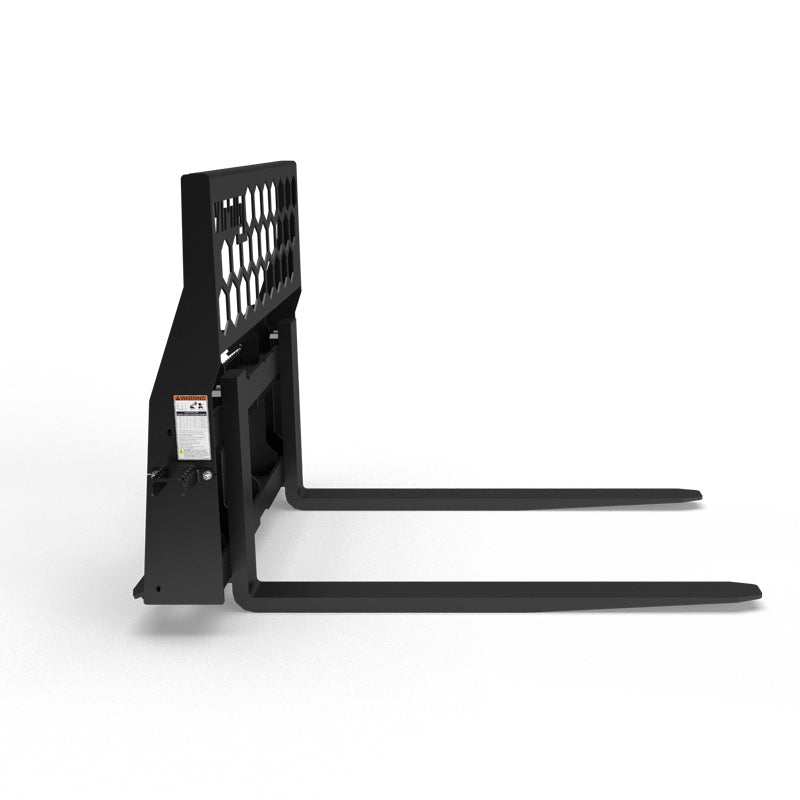

Virnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ

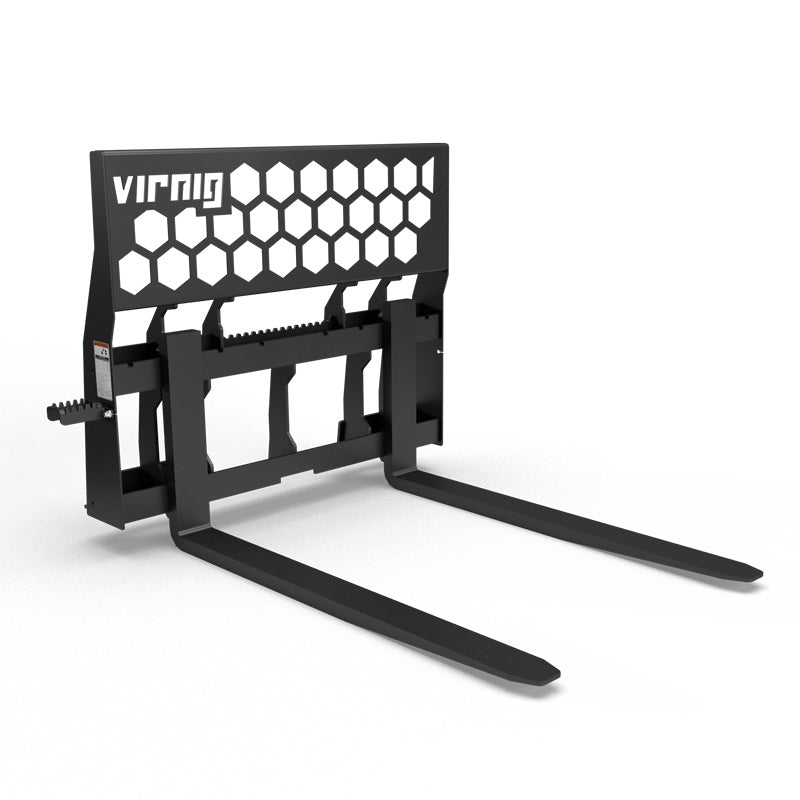

Virnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Virnig

Virnig Rail Pallet Fork Hex-Guard

SKU: PFHG4240 Currently In Stock

$1,465.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

LOAD BACKREST

A 3/16″ CLASSIC VIRNIG BRICKGUARD PROVIDES A BACKREST FOR PALLETIZED LOADS.

BEVELED FORK RAIL

A ¾″ BEVELED RAIL SUPPORTS THE FORK TINES ACROSS THE CARRIAGE.

FLUSH LOAD BACKREST

THE BACKREST SITS FLUSH WITH THE TINES TO HELP STABILIZE MATERIAL AGAINST THE FRAME.

CENTERED MOUNT BRACING

CENTERED QUICK-ATTACH BRACING KEEPS THE HOOKUP AREA ACCESSIBLE WHEN MOUNTING THE FORK.

ACCESS STEP

FIT THE BOLT-ON STEP ON EITHER SIDE TO SUIT THE OPERATOR'S ACCESS ROUTE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Rail Pallet Fork Hex-Guard moves palletized material with adjustable forged tines and the classic Virnig brickguard. Its 3⁄16″ guard provides a backrest behind the load, while the open guard pattern allows the operator to monitor the tine and pallet position during approach and placement.

A ¾″ beveled rail carries the adjustable forks, and the brickguard is flush with the tines to help stabilize material held against the frame. Bracing centered on the quick-attach area assists with loader hookup. The bolt-on step can be fitted on either side, allowing the entry arrangement to suit the machine.

Select the tine length and fork rating for the material being handled and check the complete attachment weight against the loader's capacity. The Hex-Guard configuration uses a different backrest from the Hi-Vis and Walk-Through models. Choose the guard style around visibility and access preferences while keeping the fork and carrier ratings appropriate for the load.

KEY BENEFITS

  • 3/16″ classic Virnig brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.
  • Bolt-on step installs on either side.

TECHNICAL SPECIFICATIONS

  • Overall width with step / frame width: 50.5 / 45.5 inches.
  • Overall height: 37 inches.
  • Tine spacing, minimum / maximum: 8.8 / 40.9 inches.
  • PFHG4240: tine length / width / thickness 42 / 4 / 1.375 inches; approximate attachment weight 345 lb; fork capacity 4,000 lb.
  • PFHG4840: tine length / width / thickness 48 / 4 / 1.375 inches; approximate attachment weight 365 lb; fork capacity 4,000 lb.
  • PFHG4255: tine length / width / thickness 42 / 4 / 1.5 inches; approximate attachment weight 365 lb; fork capacity 5,500 lb.
  • PFHG4855: tine length / width / thickness 48 / 4 / 1.5 inches; approximate attachment weight 380 lb; fork capacity 5,500 lb.
  • PFHG6055: tine length / width / thickness 60 / 4 / 1.5 inches; approximate attachment weight 415 lb; fork capacity 5,500 lb.
  • PFHG4862: tine length / width / thickness 48 / 4 / 1.75 inches; approximate attachment weight 395 lb; fork capacity 6,200 lb.
  • PFHG7255: 72-inch tines; fork capacity 5,500 lb. Assembled weight and tine cross-section are not published in the available specification table; contact us to confirm those dimensions.
  • Stay within the carrier rated capacity, which may be lower than the fork rating.

APPLICATIONS

  • Pallet loading
  • Material staging
  • Jobsite unloading

VIRNIG RAIL PALLET FORK: HEX-GUARD

WORKING DESIGN

  • 3/16″ classic Virnig brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.
  • Bolt-on step installs on either side.

CONFIGURATION AND SPECIFICATIONS

  • Overall width with step / frame width: 50.5 / 45.5 inches.
  • Overall height: 37 inches.
  • Tine spacing, minimum / maximum: 8.8 / 40.9 inches.
  • PFHG4240: tine length / width / thickness 42 / 4 / 1.375 inches; approximate attachment weight 345 lb; fork capacity 4,000 lb.
  • PFHG4840: tine length / width / thickness 48 / 4 / 1.375 inches; approximate attachment weight 365 lb; fork capacity 4,000 lb.
  • PFHG4255: tine length / width / thickness 42 / 4 / 1.5 inches; approximate attachment weight 365 lb; fork capacity 5,500 lb.
  • PFHG4855: tine length / width / thickness 48 / 4 / 1.5 inches; approximate attachment weight 380 lb; fork capacity 5,500 lb.
  • PFHG6055: tine length / width / thickness 60 / 4 / 1.5 inches; approximate attachment weight 415 lb; fork capacity 5,500 lb.
  • PFHG4862: tine length / width / thickness 48 / 4 / 1.75 inches; approximate attachment weight 395 lb; fork capacity 6,200 lb.

READY FOR THE FIELD

  • 3/16″ classic Virnig brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.
  • Bolt-on step installs on either side.
