VIRNIG

Rail Pallet Fork Hi-Vis Class 3

For Skid Steers & Track Loaders

10,000 lb Fork Capacity

Virnig

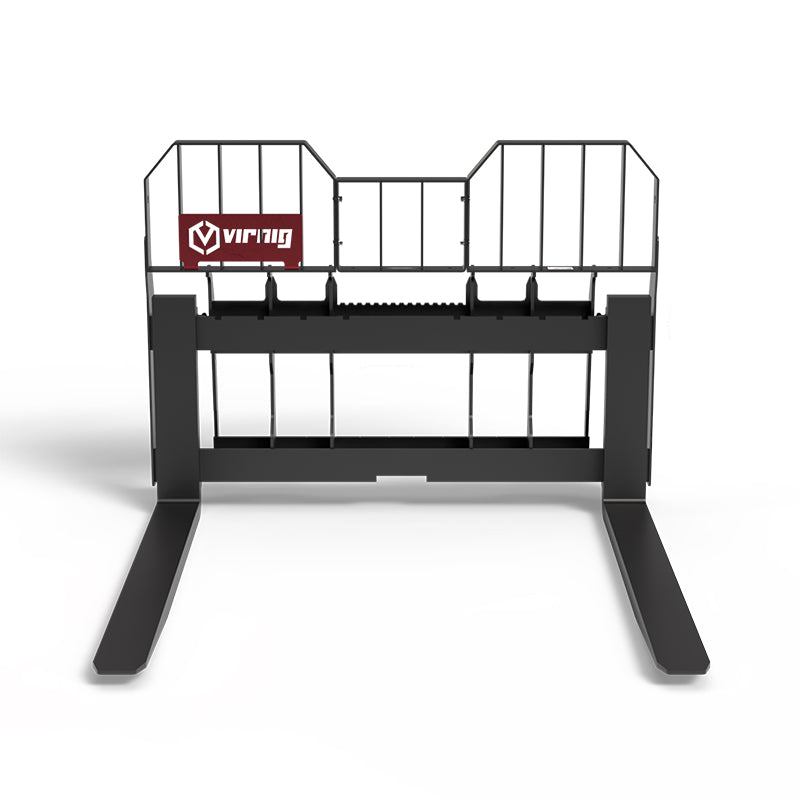

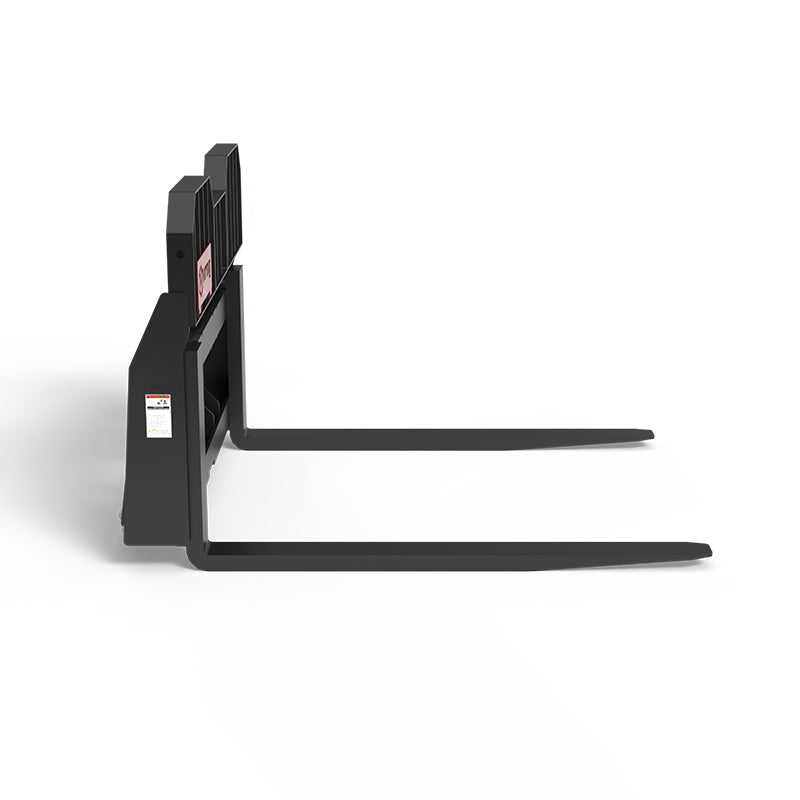

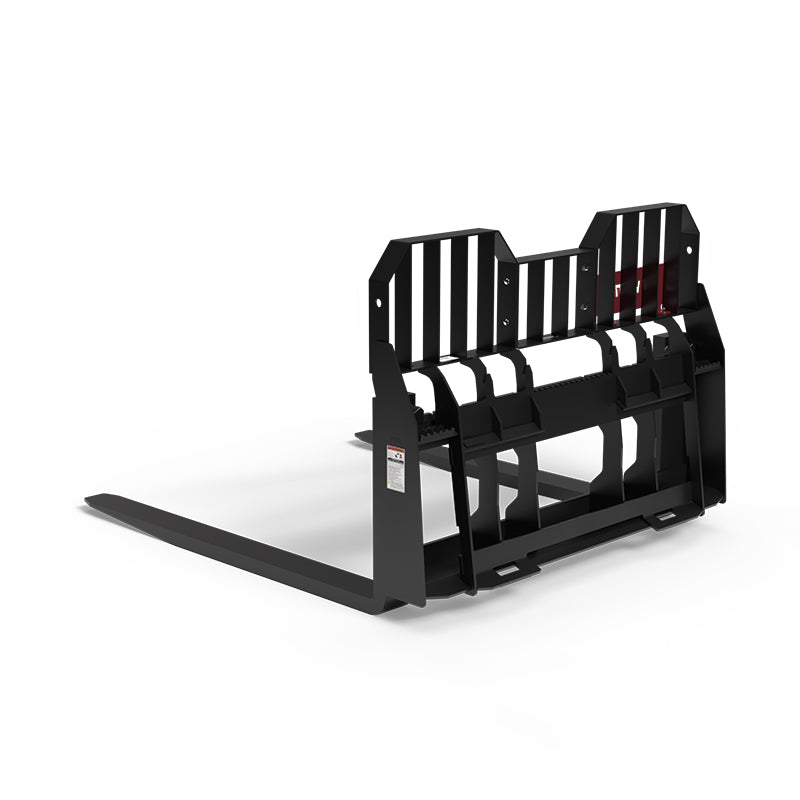

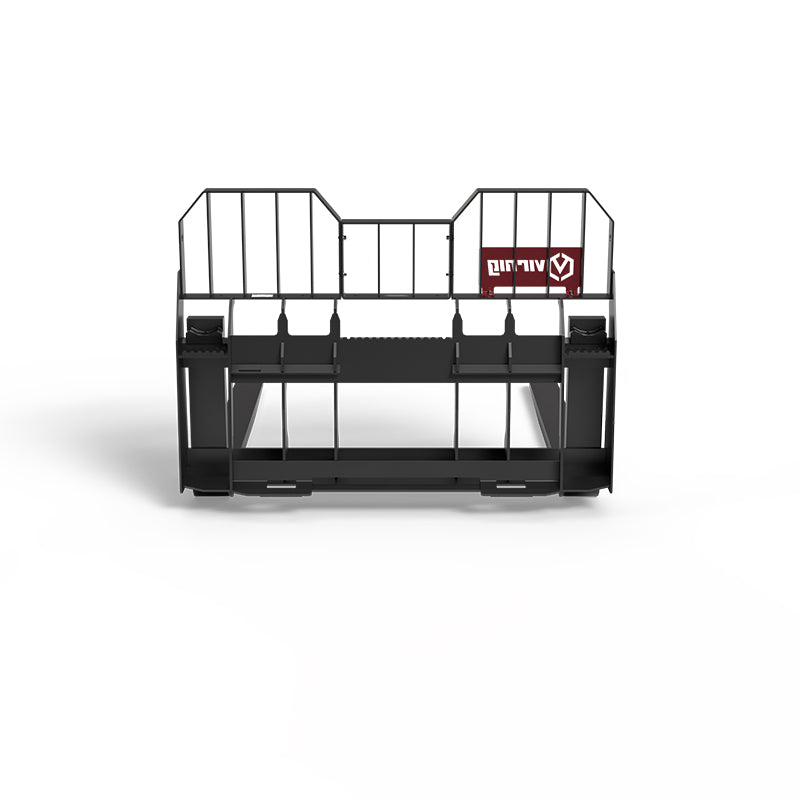

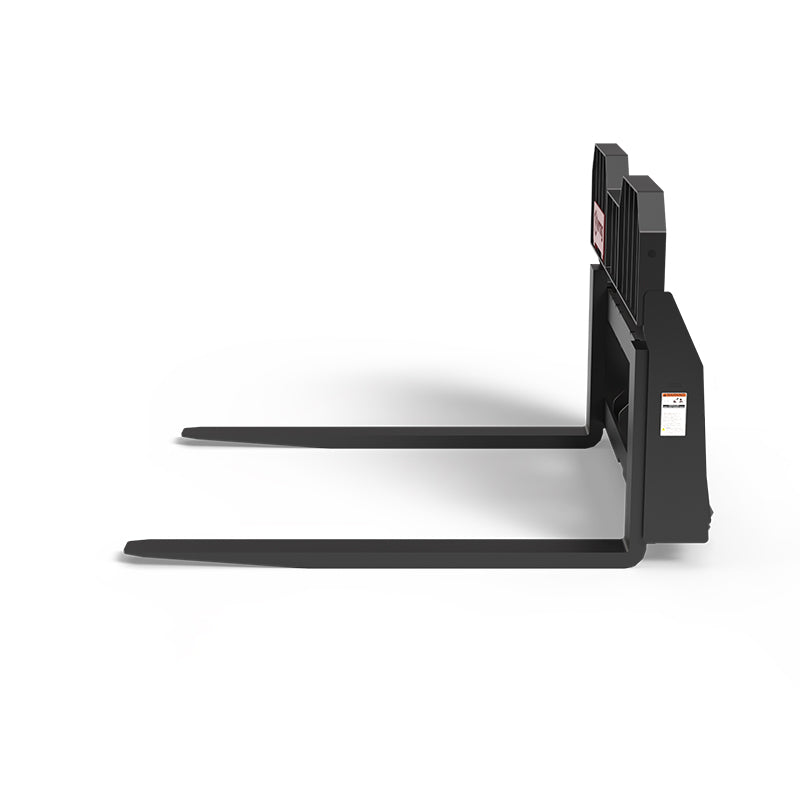

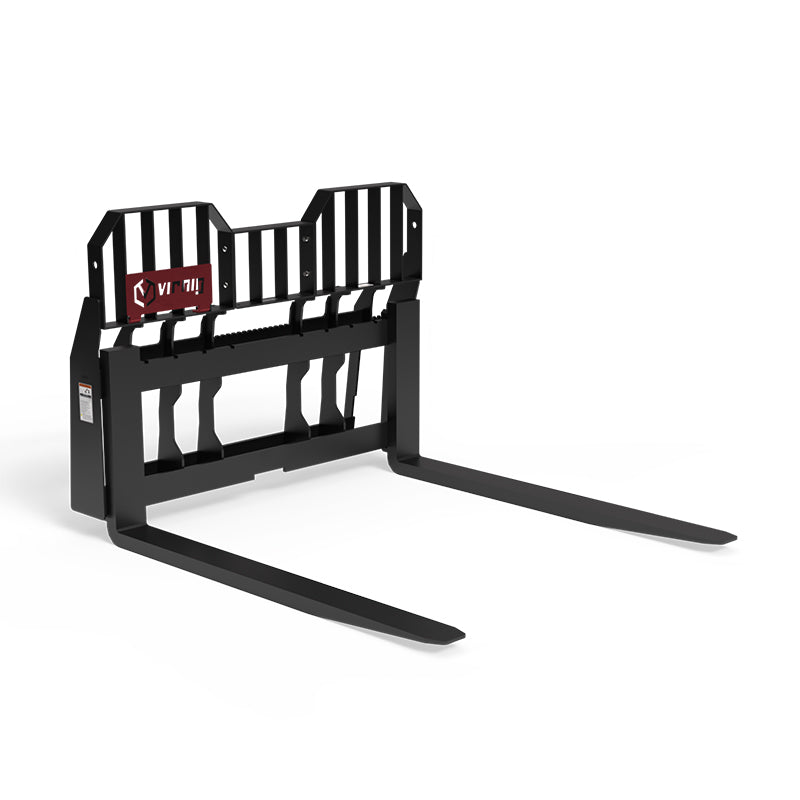

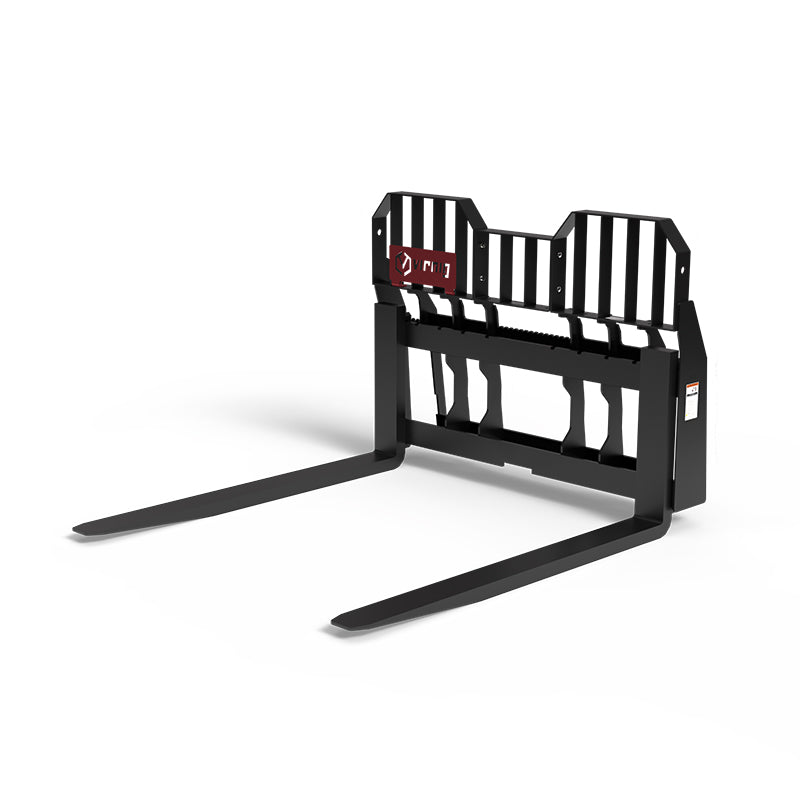

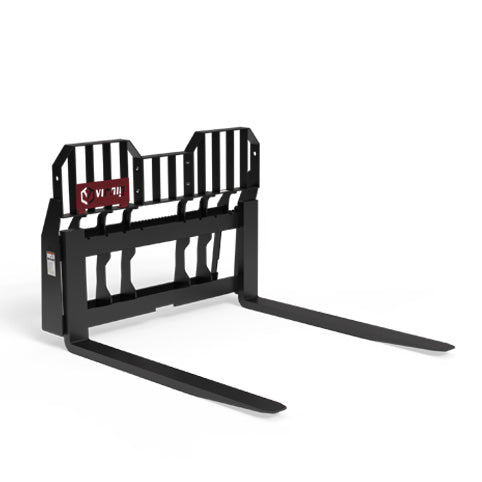

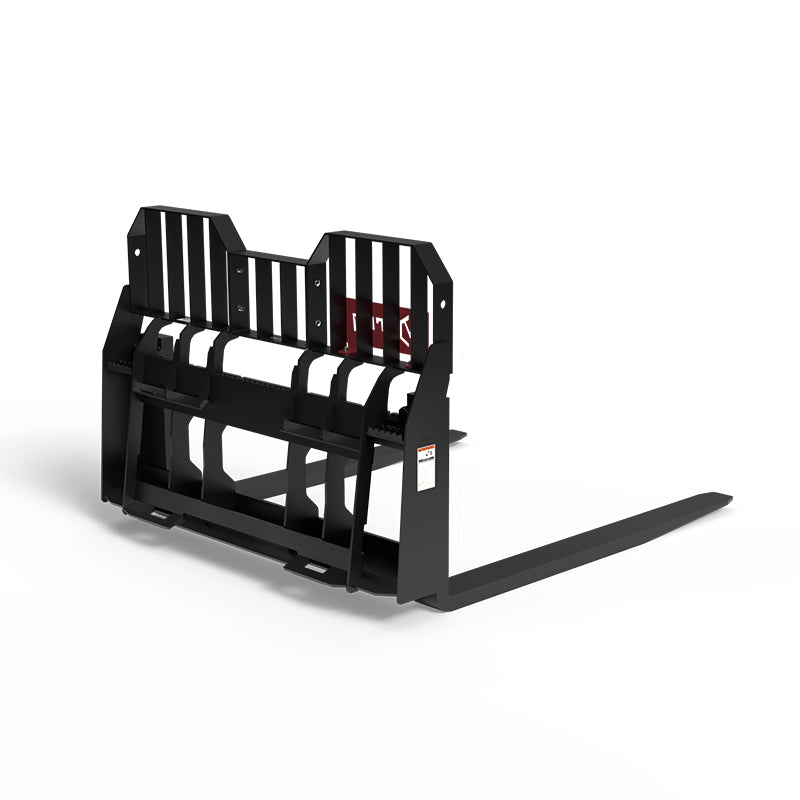

Virnig Rail Pallet Fork Hi-Vis Class 3

SKU: HPF4810 Currently In Stock

Sale price$2,730.00 USD

MOST IMPORTANT FEATURES

WALK-THROUGH ACCESS

REMOVE THE CENTER BACKREST SECTION TO CREATE WALK-THROUGH ACCESS TO THE CAB.

HIGH-VISIBILITY BACKREST

THE ¼″ HIGH-VISIBILITY BACKREST SUPPORTS LOADS WHILE PRESERVING FORWARD SIGHTLINES.

BEVELED FORK RAIL

A 1¼″ BEVELED RAIL PROVIDES THE SUPPORTING CARRIAGE FOR CLASS 3 FORK TINES.

FLUSH LOAD BACKREST

THE BACKREST SITS FLUSH WITH THE TINES TO HELP STABILIZE MATERIAL AGAINST THE FRAME.

ACCESS STEP

THE ACCESS STEP CAN BE INSTALLED ON EITHER SIDE TO SUIT THE LOADER AND OPERATOR.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Rail Pallet Fork Hi-Vis Class 3 provides a Class 3 fork configuration with an open-view brickguard for handling palletized material. The ¼″ high-visibility guard helps the operator monitor the load, while the forged tines provide the lower support for pickup, transport, and placement.

A 1¼″ beveled rail distinguishes this Class 3 frame from the lighter rail arrangements in the range. The brickguard is flush with the tines to help stabilize the load, and its center section can be removed for a walk-through arrangement. The step can be installed on either side to suit the carrier setup.

Choose tine length and the selected configuration's capacity around the material being handled. Check the loader's capacity at the intended load center and include the attachment's weight in the calculation. This Hi-Vis Class 3 model is a separate fork class and frame choice, so its components should not be treated as interchangeable with Class 2 selections.

KEY BENEFITS

  • Remove center section to change to a walk-through brickguard.
  • 1/4″ high visibility brickguard.
  • 1-1/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Integrated step installed on either side.

TECHNICAL SPECIFICATIONS

  • Models: HPF4810 | HPF6010 | HPF7210
  • Tine lengths: HPF4810: 48; HPF6010: 60; HPF7210: 72 inches.
  • Tine width / thickness: 5 / 2 inches.
  • Frame width: 59.5 inches.
  • Overall height: 44.4 inches.
  • Tine spacing, minimum / maximum: 13 / 53 inches.
  • Attachment weight by model (lb): 755 | 825 | 890.
  • Fork capacity: 10,000 lb. The carrier rated capacity may be lower.

APPLICATIONS

  • Pallet loading
  • Material staging
  • Jobsite unloading

VIRNIG RAIL PALLET FORK: HI-VIS CLASS 3

WORKING DESIGN

  • Remove center section to change to a walk-through brickguard.
  • 1/4″ high visibility brickguard.
  • 1-1/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Integrated step installed on either side.

CONFIGURATION AND SPECIFICATIONS

  • Models: HPF4810 | HPF6010 | HPF7210
  • Tine lengths: HPF4810: 48; HPF6010: 60; HPF7210: 72 inches.
  • Tine width / thickness: 5 / 2 inches.
  • Frame width: 59.5 inches.
  • Overall height: 44.4 inches.
  • Tine spacing, minimum / maximum: 13 / 53 inches.
  • Attachment weight by model (lb): 755 | 825 | 890.
  • Fork capacity: 10,000 lb. The carrier rated capacity may be lower.

READY FOR THE FIELD

  • Remove center section to change to a walk-through brickguard.
  • 1/4″ high visibility brickguard.
  • 1-1/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Integrated step installed on either side.
