VIRNIG

Rail Pallet Fork Walk-Through

For Skid Steers & Track Loaders

4,000-6,200 lb Fork Capacity

Request QuoteAdd To Cart

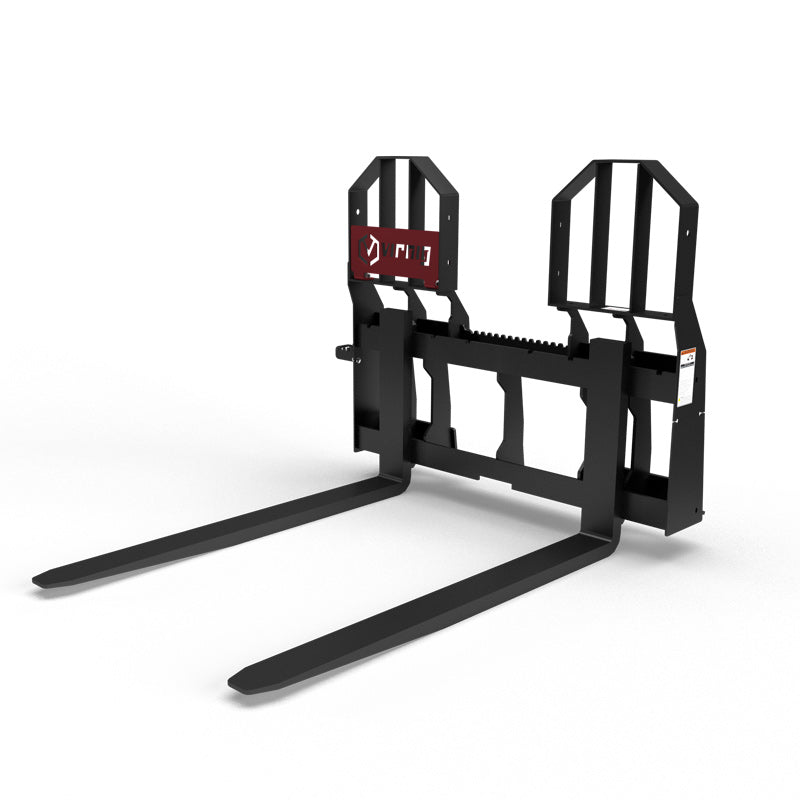

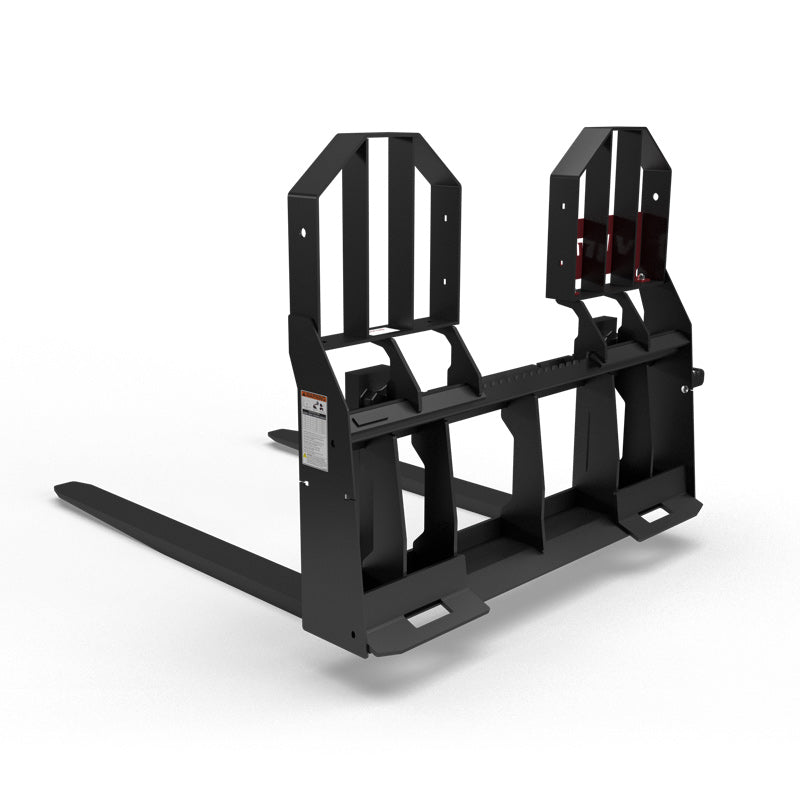

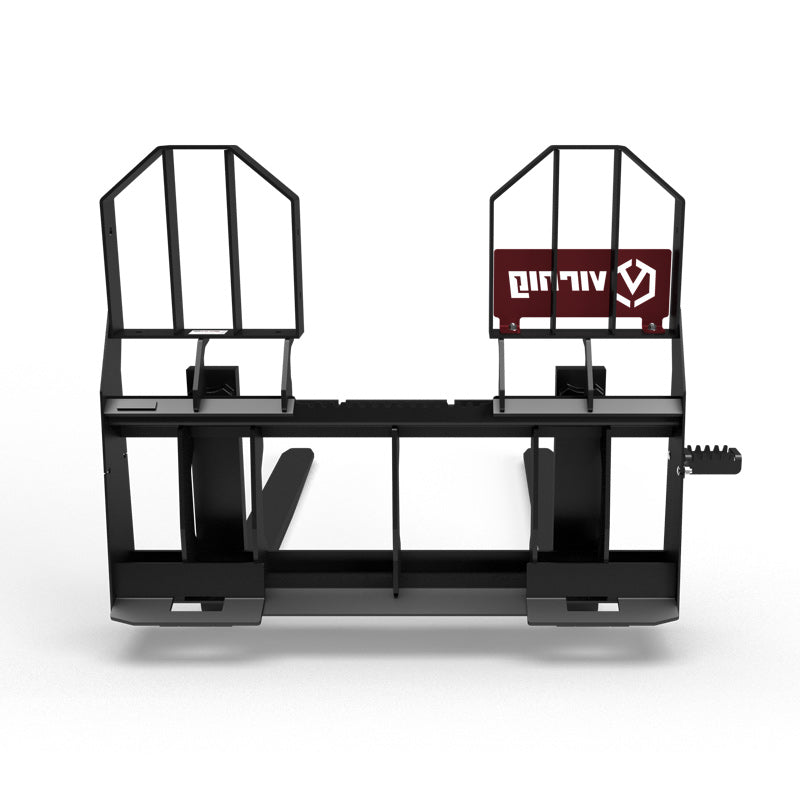

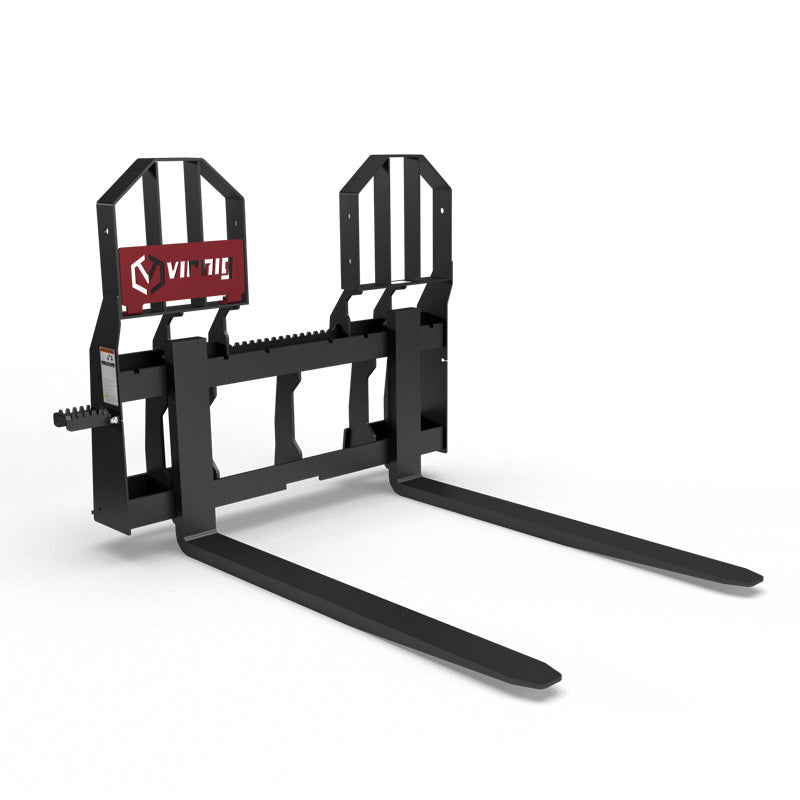

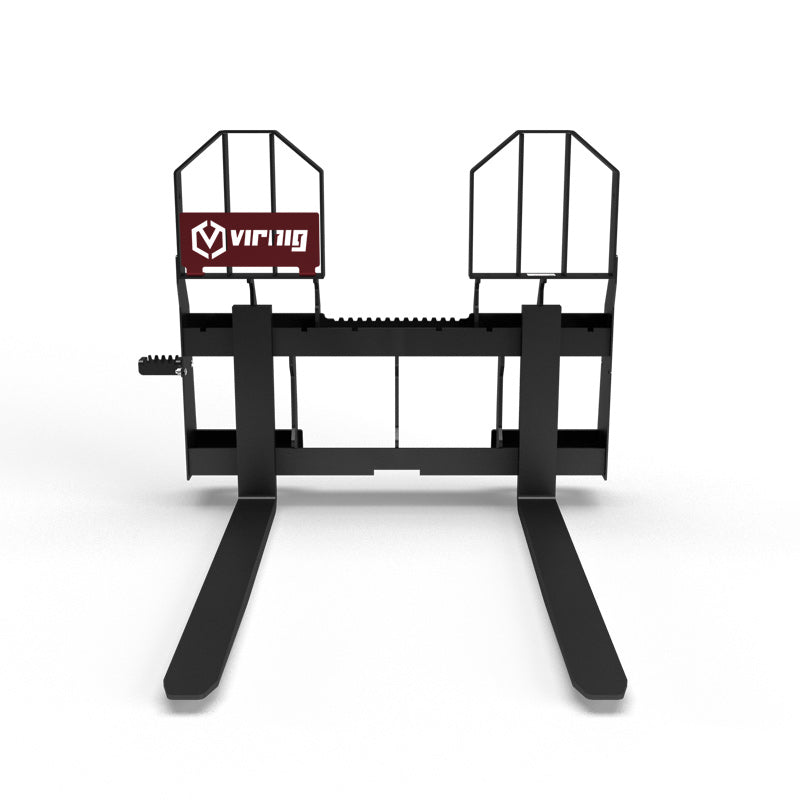

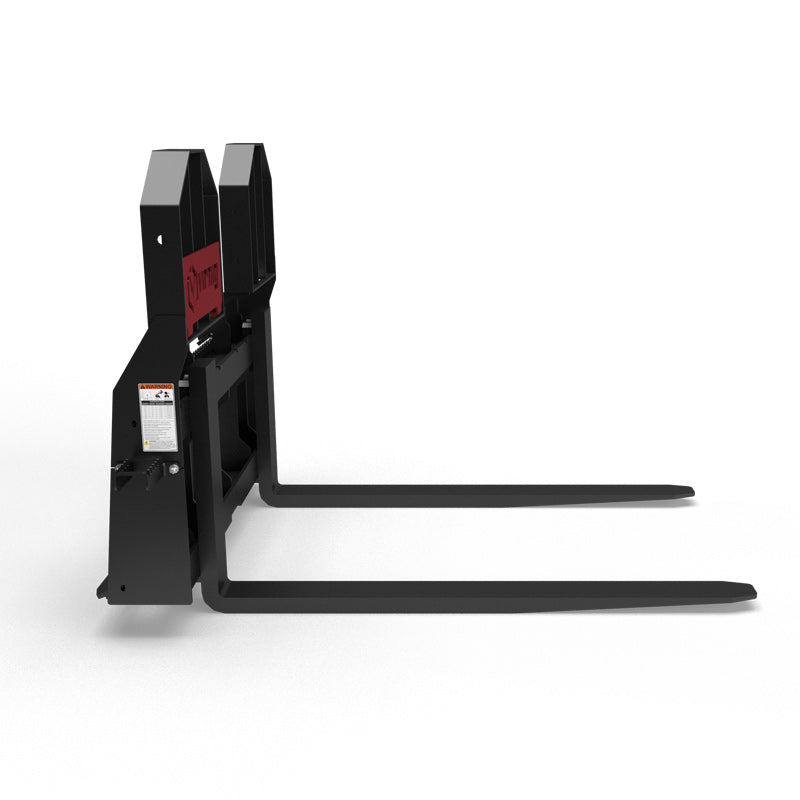

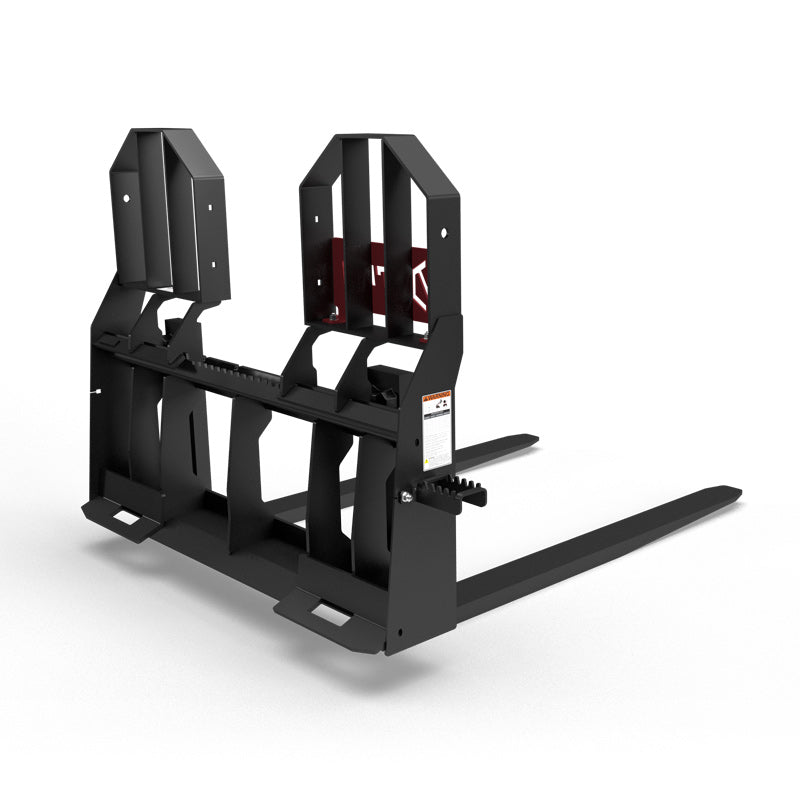

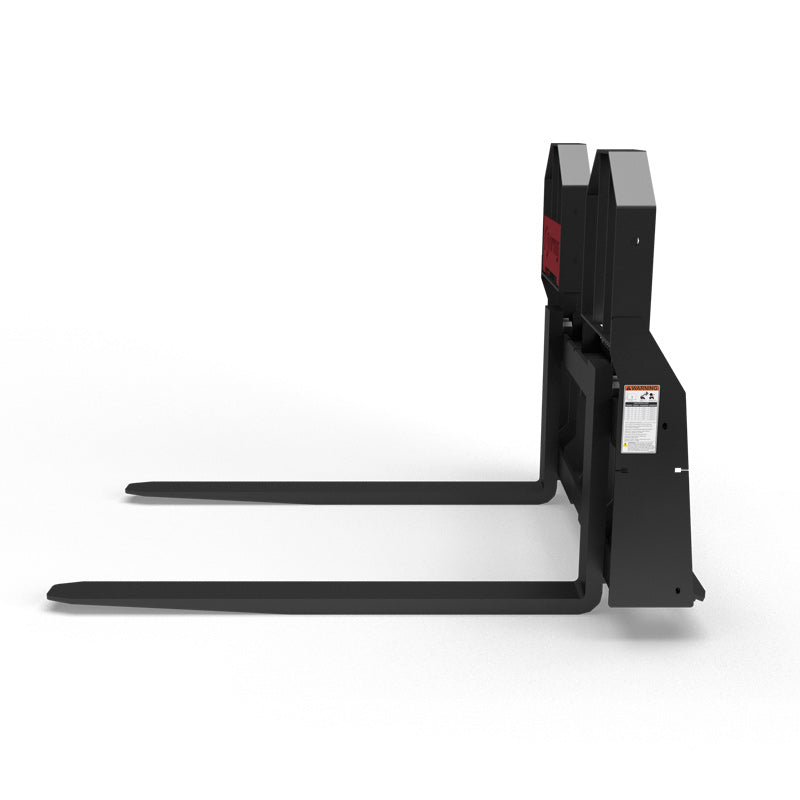

Virnig Rail Pallet Fork Walk-Through

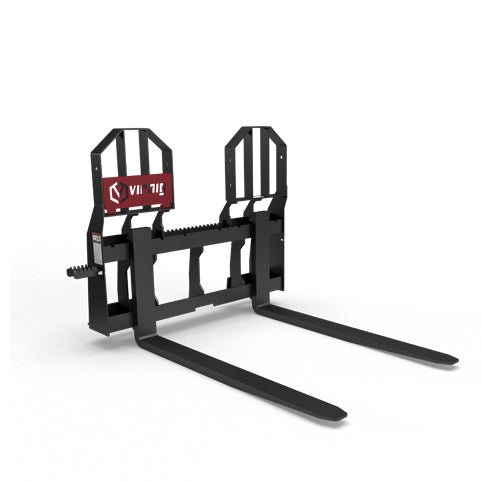

Virnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig

Virnig Rail Pallet Fork Walk-Through

SKU: PFWT4240 Currently In Stock

$1,425.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

WALK-THROUGH ACCESS

THE WALK-THROUGH FRAME PROVIDES A CLEARER ROUTE BETWEEN THE FORKS AND THE CAB.

HIGH-VISIBILITY BACKREST

THE ¼″ HIGH-VISIBILITY BACKREST SUPPORTS LOADS WHILE PRESERVING FORWARD SIGHTLINES.

BEVELED FORK RAIL

A ¾″ BEVELED RAIL SUPPORTS THE FORK TINES ACROSS THE CARRIAGE.

FLUSH LOAD BACKREST

THE BACKREST SITS FLUSH WITH THE TINES TO HELP STABILIZE MATERIAL AGAINST THE FRAME.

CENTERED MOUNT BRACING

CENTERED QUICK-ATTACH BRACING KEEPS THE HOOKUP AREA ACCESSIBLE WHEN MOUNTING THE FORK.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Rail Pallet Fork Walk-Through combines adjustable forged tines with a backrest opening for access to the loader cab. It suits pallet handling work where the operator wants a dedicated walk-through frame while still retaining a high-visibility brickguard around the load support area.

The ¼″ brickguard sits flush with the tines to help stabilize material against the frame. A ¾″ beveled rail supports the adjustable fork arrangement, allowing tine spacing to be set around the pallet. Bracing centered on the quick-attach area helps align the frame during hookup, and a bolt-on step can be installed on either side.

Choose tine length and capacity around the actual load and the carrier's lifting limits. Longer tines change the reach available beneath material and can move the load center farther from the machine. This standard rail walk-through model is separate from the wide rail and Class 3 configurations, which use different frame arrangements.

KEY BENEFITS

  • Walk-through design allows quick cab access.
  • 1/4″ high visibility brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.

TECHNICAL SPECIFICATIONS

  • Overall width with step / frame width: 50.5 / 45.5 inches.
  • Overall height: 37 inches.
  • Tine spacing, minimum / maximum: 8.8 / 40.9 inches.
  • PFWT4240: tine length / width / thickness 42 / 4 / 1.375 inches; approximate attachment weight 355 lb; fork capacity 4,000 lb.
  • PFWT4840: tine length / width / thickness 48 / 4 / 1.375 inches; approximate attachment weight 375 lb; fork capacity 4,000 lb.
  • PFWT4255: tine length / width / thickness 42 / 4 / 1.5 inches; approximate attachment weight 375 lb; fork capacity 5,500 lb.
  • PFWT4855: tine length / width / thickness 48 / 4 / 1.5 inches; approximate attachment weight 390 lb; fork capacity 5,500 lb.
  • PFWT6055: tine length / width / thickness 60 / 4 / 1.5 inches; approximate attachment weight 425 lb; fork capacity 5,500 lb.
  • PFWT4862: tine length / width / thickness 48 / 4 / 1.75 inches; approximate attachment weight 405 lb; fork capacity 6,200 lb.
  • PFWT7255: 72-inch tines; fork capacity 5,500 lb. Assembled weight and tine cross-section are not published in the available specification table; contact us to confirm those dimensions.
  • Stay within the carrier rated capacity, which may be lower than the fork rating.

APPLICATIONS

  • Pallet loading
  • Material staging
  • Jobsite unloading

VIRNIG RAIL PALLET FORK: WALK-THROUGH

WORKING DESIGN

  • Walk-through design allows quick cab access.
  • 1/4″ high visibility brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.

CONFIGURATION AND SPECIFICATIONS

  • Overall width with step / frame width: 50.5 / 45.5 inches.
  • Overall height: 37 inches.
  • Tine spacing, minimum / maximum: 8.8 / 40.9 inches.
  • PFWT4240: tine length / width / thickness 42 / 4 / 1.375 inches; approximate attachment weight 355 lb; fork capacity 4,000 lb.
  • PFWT4840: tine length / width / thickness 48 / 4 / 1.375 inches; approximate attachment weight 375 lb; fork capacity 4,000 lb.
  • PFWT4255: tine length / width / thickness 42 / 4 / 1.5 inches; approximate attachment weight 375 lb; fork capacity 5,500 lb.
  • PFWT4855: tine length / width / thickness 48 / 4 / 1.5 inches; approximate attachment weight 390 lb; fork capacity 5,500 lb.
  • PFWT6055: tine length / width / thickness 60 / 4 / 1.5 inches; approximate attachment weight 425 lb; fork capacity 5,500 lb.
  • PFWT4862: tine length / width / thickness 48 / 4 / 1.75 inches; approximate attachment weight 405 lb; fork capacity 6,200 lb.

READY FOR THE FIELD

  • Walk-through design allows quick cab access.
  • 1/4″ high visibility brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.
