VIRNIG

Rail Pallet Fork Walk-Through Class 3

For Skid Steers & Track Loaders

10,000 lb Fork Capacity

Virnig

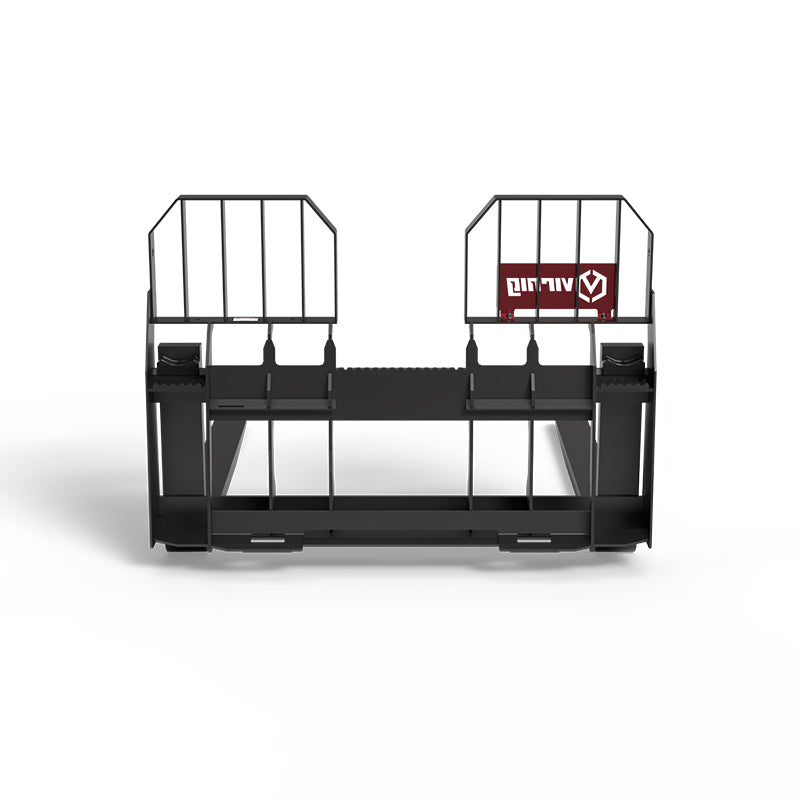

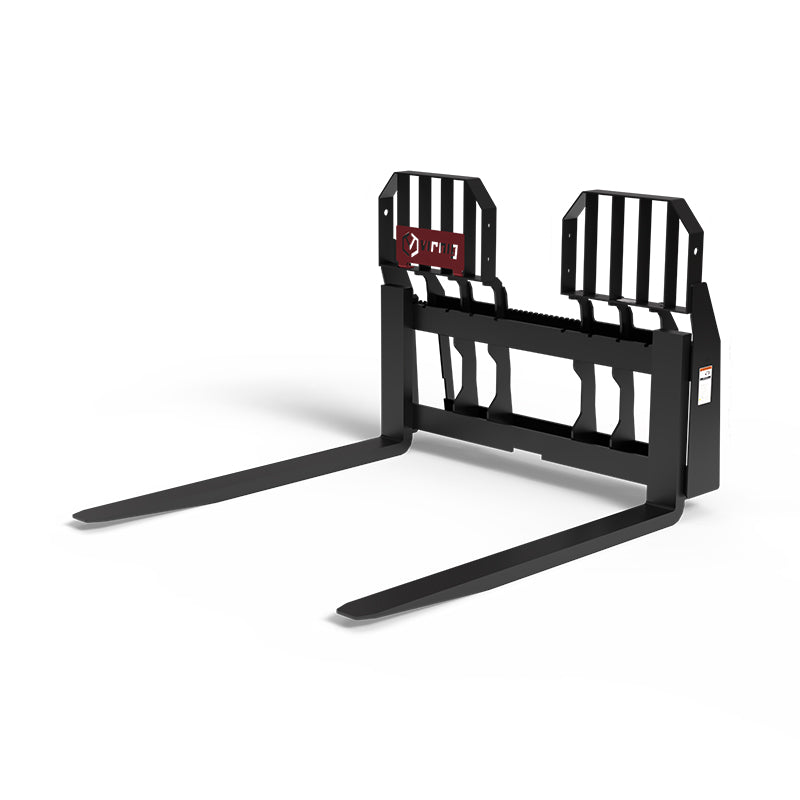

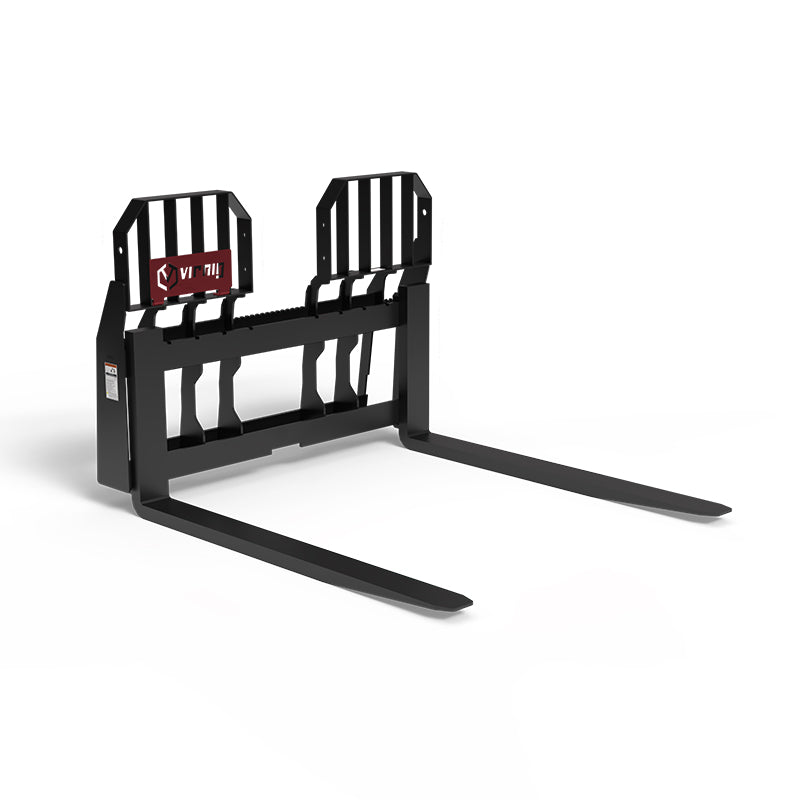

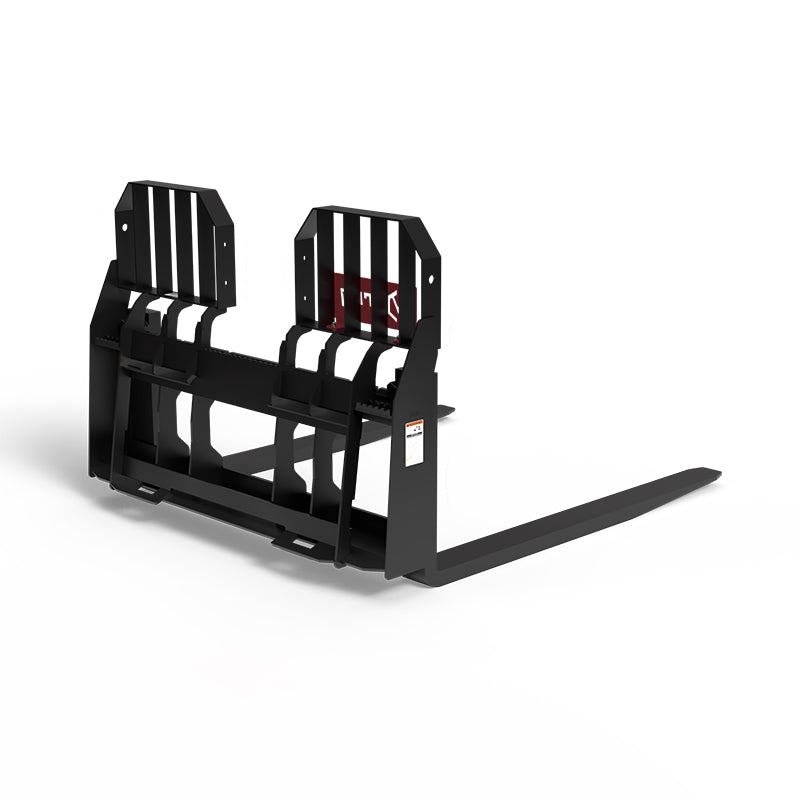

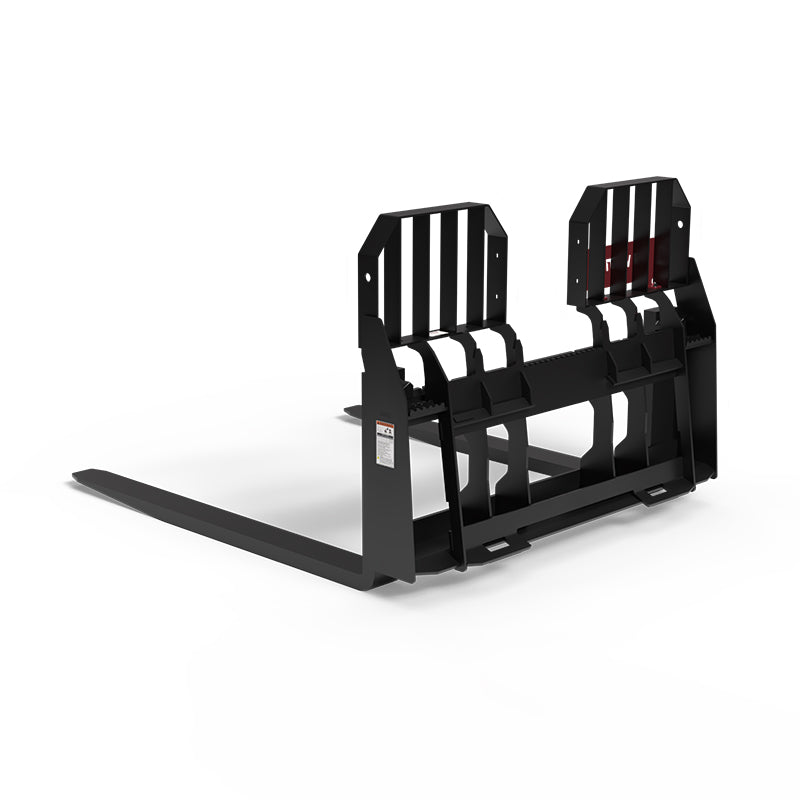

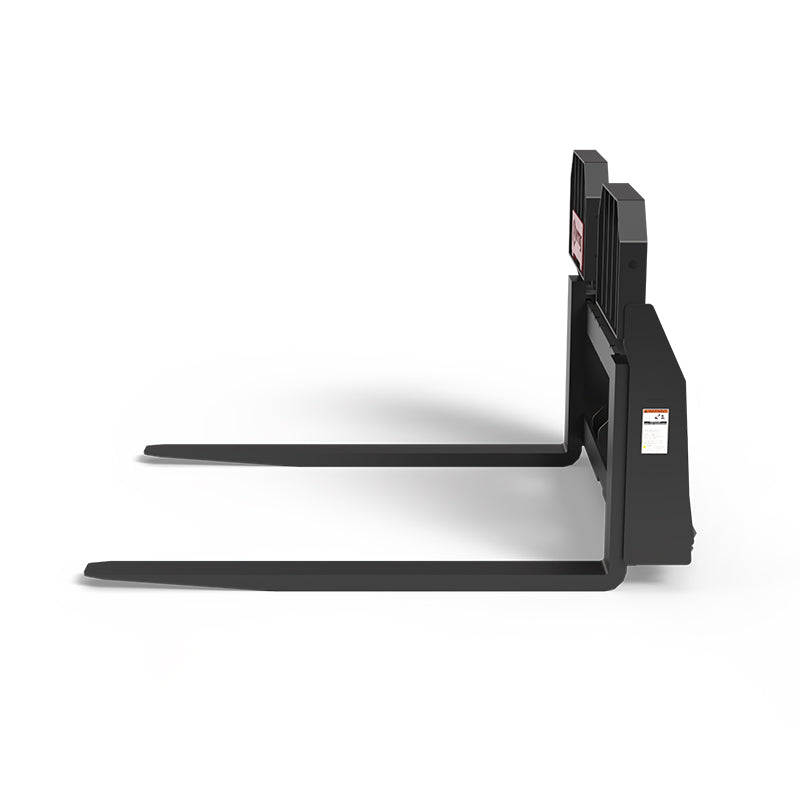

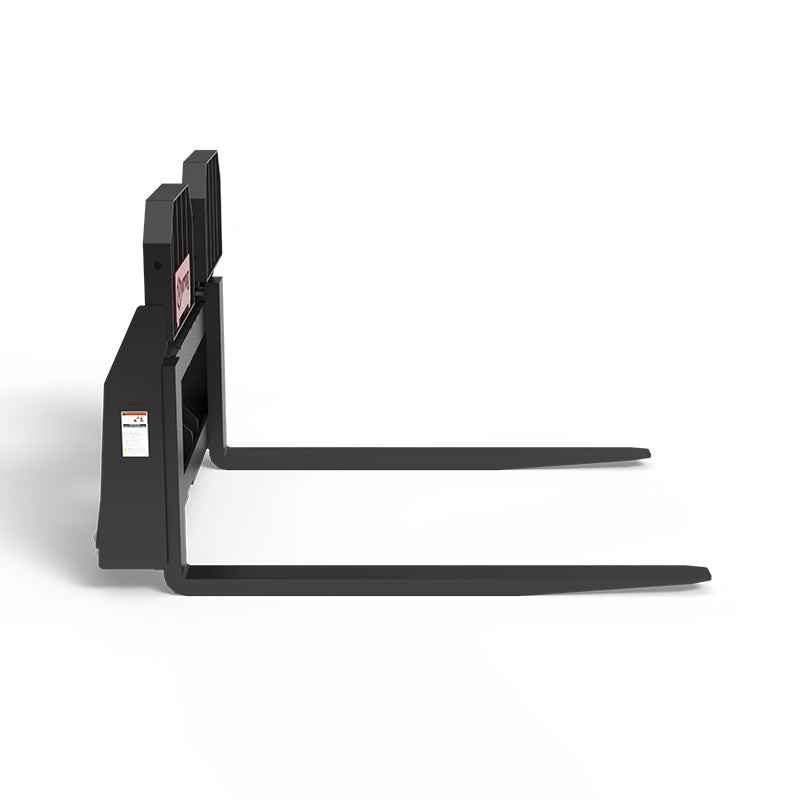

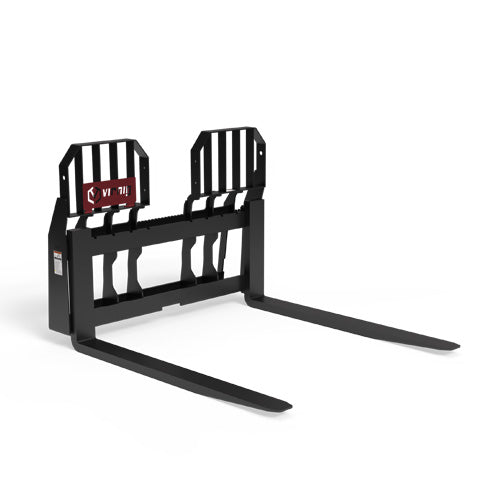

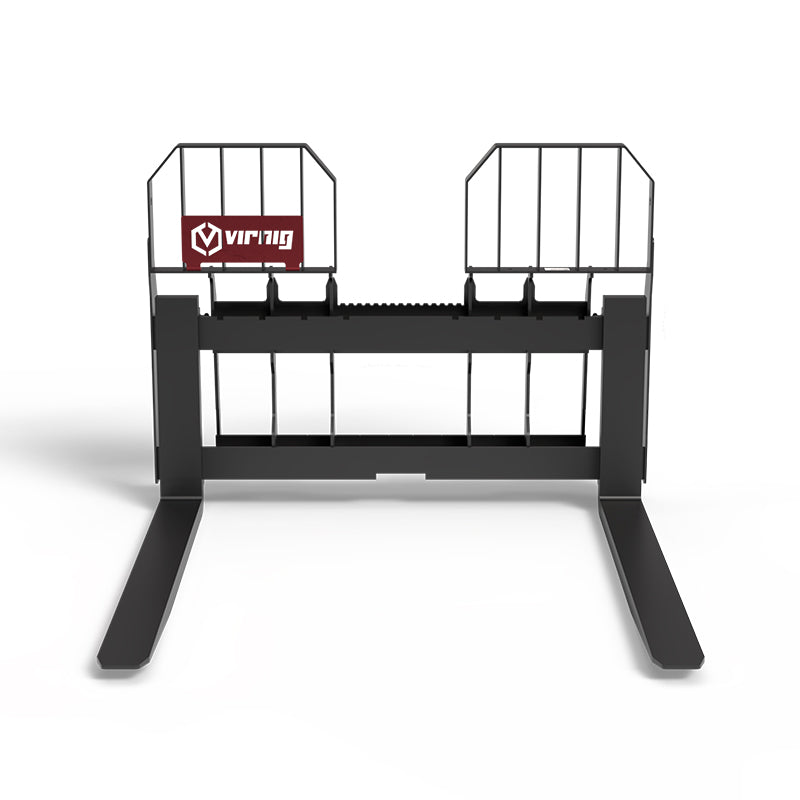

Virnig Rail Pallet Fork Walk-Through Class 3

SKU: HPFW4810 Currently In Stock

Sale price$2,690.00 USD

MOST IMPORTANT FEATURES

HIGH-VISIBILITY BACKREST

THE ¼″ HIGH-VISIBILITY BACKREST SUPPORTS LOADS WHILE PRESERVING FORWARD SIGHTLINES.

BEVELED FORK RAIL

A 1¼″ BEVELED RAIL PROVIDES THE SUPPORTING CARRIAGE FOR CLASS 3 FORK TINES.

FLUSH LOAD BACKREST

THE BACKREST SITS FLUSH WITH THE TINES TO HELP STABILIZE MATERIAL AGAINST THE FRAME.

ACCESS STEP

THE ACCESS STEP CAN BE INSTALLED ON EITHER SIDE TO SUIT THE LOADER AND OPERATOR.

PALLET AND MATERIAL HANDLING

VIRNIG RAIL PALLET FORK: WALK-THROUGH CLASS 3 HANDLES PALLETIZED MATERIALS WITH ADJUSTABLE FORGED FORK TINES.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Rail Pallet Fork Walk-Through Class 3 combines a Class 3 fork arrangement with an open center for loader cab access. It is designed for palletized material handling where the buyer needs the heavier rail configuration and prefers a dedicated walk-through backrest layout.

The frame uses a 1¼″ beveled rail and a ¼″ high-visibility brickguard. The guard sits flush with the tines to help stabilize material held against the frame, while adjustable fork spacing allows the lower support points to be positioned around the pallet. The step can be installed on either side to suit the machine.

Select tine length and rating by the actual load and its center of gravity, then check those requirements against the carrier's lifting limits. The walk-through opening changes the access arrangement; it does not change the machine's capacity. Confirm the complete Class 3 configuration when ordering rather than substituting dimensions from a standard rail fork.

KEY BENEFITS

  • 1/4″ high visibility brickguard.
  • 1-1/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Integrated step installed on either side.
  • Virnig rail pallet fork: walk-through class 3 handles palletized materials with adjustable forged fork tines.

TECHNICAL SPECIFICATIONS

  • Models: HPFW4810 | HPFW6010 | HPFW7210
  • Tine lengths: HPFW4810: 48; HPFW6010: 60; HPFW7210: 72 inches.
  • Tine width / thickness: 5 / 2 inches.
  • Frame width: 59.5 inches.
  • Overall height: 44.4 inches.
  • Tine spacing, minimum / maximum: 13 / 53 inches.
  • Attachment weight by model (lb): 740 | 810 | 875.
  • Fork capacity: 10,000 lb. The carrier rated capacity may be lower.

APPLICATIONS

  • Pallet loading
  • Material staging
  • Jobsite unloading

VIRNIG RAIL PALLET FORK: WALK-THROUGH CLASS 3

WORKING DESIGN

  • 1/4″ high visibility brickguard.
  • 1-1/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Integrated step installed on either side.

CONFIGURATION AND SPECIFICATIONS

  • Models: HPFW4810 | HPFW6010 | HPFW7210
  • Tine lengths: HPFW4810: 48; HPFW6010: 60; HPFW7210: 72 inches.
  • Tine width / thickness: 5 / 2 inches.
  • Frame width: 59.5 inches.
  • Overall height: 44.4 inches.
  • Tine spacing, minimum / maximum: 13 / 53 inches.
  • Attachment weight by model (lb): 740 | 810 | 875.
  • Fork capacity: 10,000 lb. The carrier rated capacity may be lower.

READY FOR THE FIELD

  • 1/4″ high visibility brickguard.
  • 1-1/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Integrated step installed on either side.
  • Virnig rail pallet fork: walk-through class 3 handles palletized materials with adjustable forged fork tines.
