VIRNIG

Skid Steer Auger Drive

For Skid Steers & Track Loaders

15-27 GPM Motor Options

Virnig

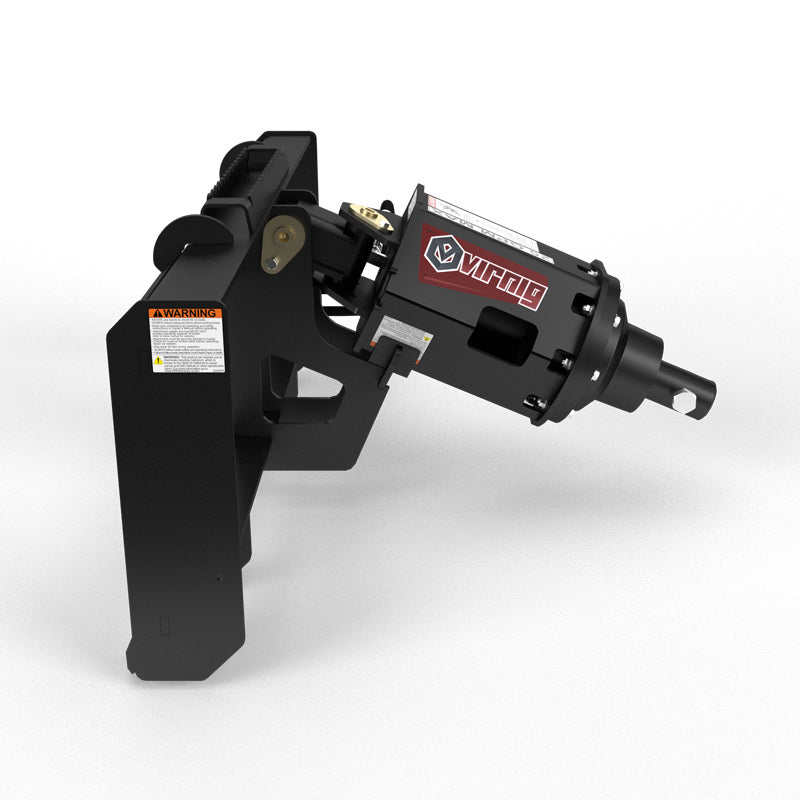

Virnig Skid Steer Auger Drive

SKU: AUG36VGHLD Currently In Stock

Sale price$3,845.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

TOP-ROUTED HOSES

HOSES ROUTED FROM TOP OF HOUSING FOR DEEPER DRILLING WITH 12″ DIAMETER BITS.

DIRECT HYDRAULIC DRIVE

A DIRECT-DRIVE MOTOR TURNS THE AUGER, WITH PRESSURE RELIEF FOR HYDRAULIC PROTECTION.

PLANETARY REDUCTION

PLANETARY REDUCTION DELIVERS CONSISTENT DRILLING TORQUE THROUGH THE DRIVE.

BIDIRECTIONAL OPERATION

FORWARD AND REVERSE ROTATION LET YOU DRILL INTO THE GROUND AND BACK THE BIT OUT.

DRIVE TORQUE

THE AUGHT36 DRIVE OFFERS 20% MORE TORQUE FOR DEMANDING DRILLING CONDITIONS.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

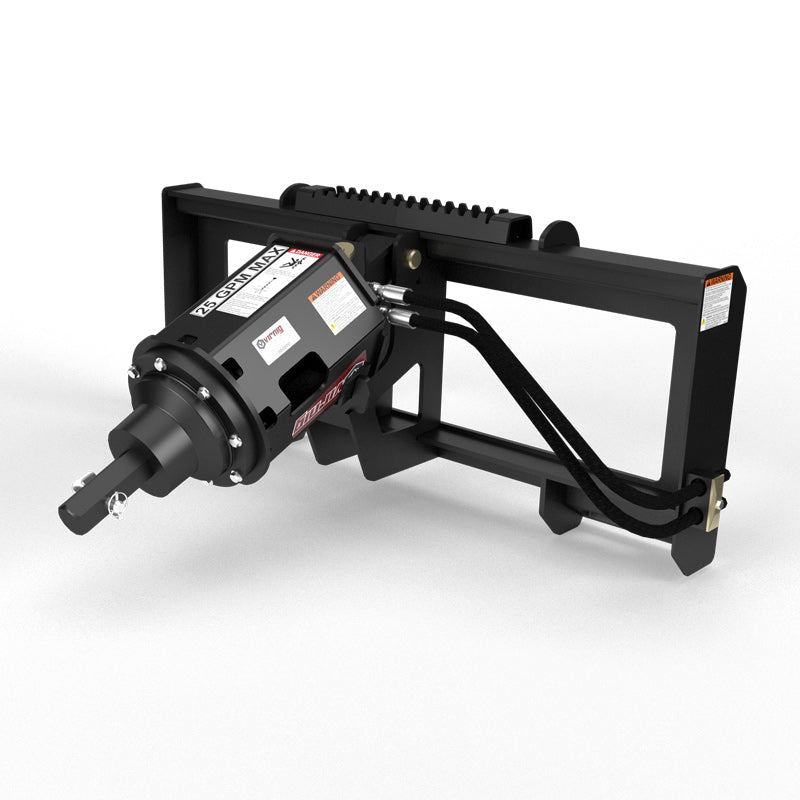

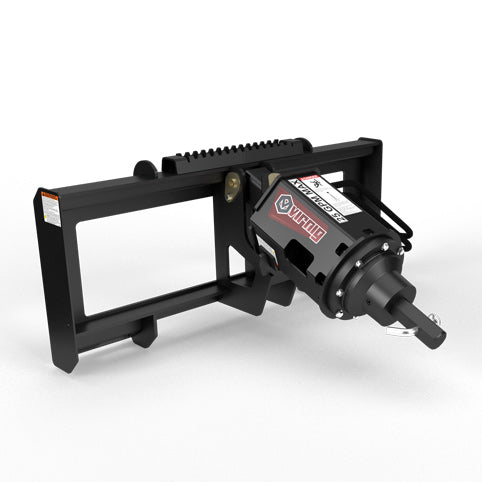

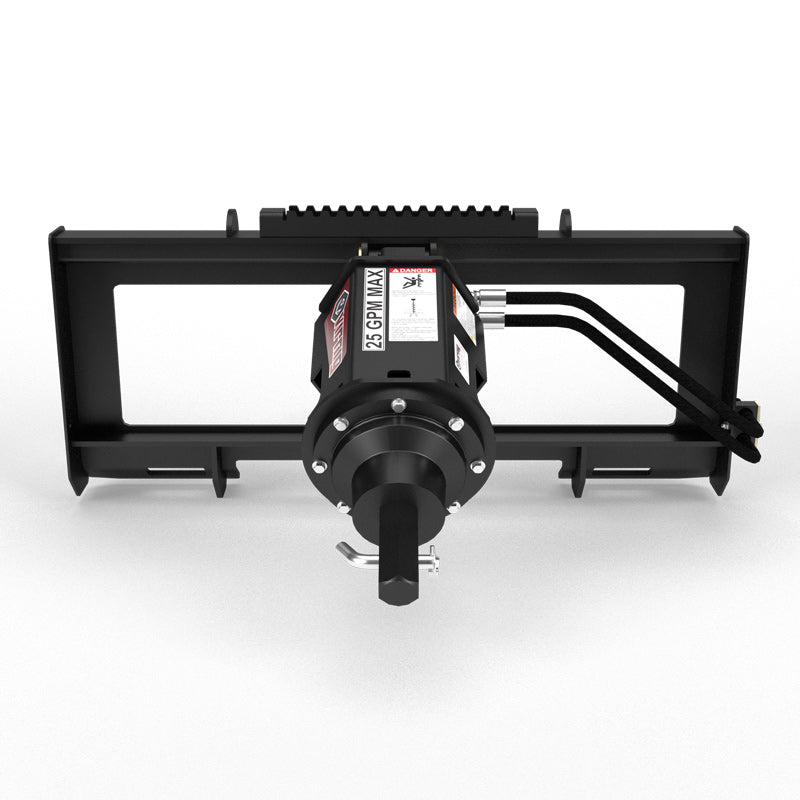

The Virnig Skid Steer Auger Drive powers compatible auger bits for drilling work with a loader-mounted hydraulic drive. Planetary reduction converts motor speed into usable drilling torque, while bidirectional rotation allows the operator to drive the bit into the ground or reverse it when withdrawing from the hole.

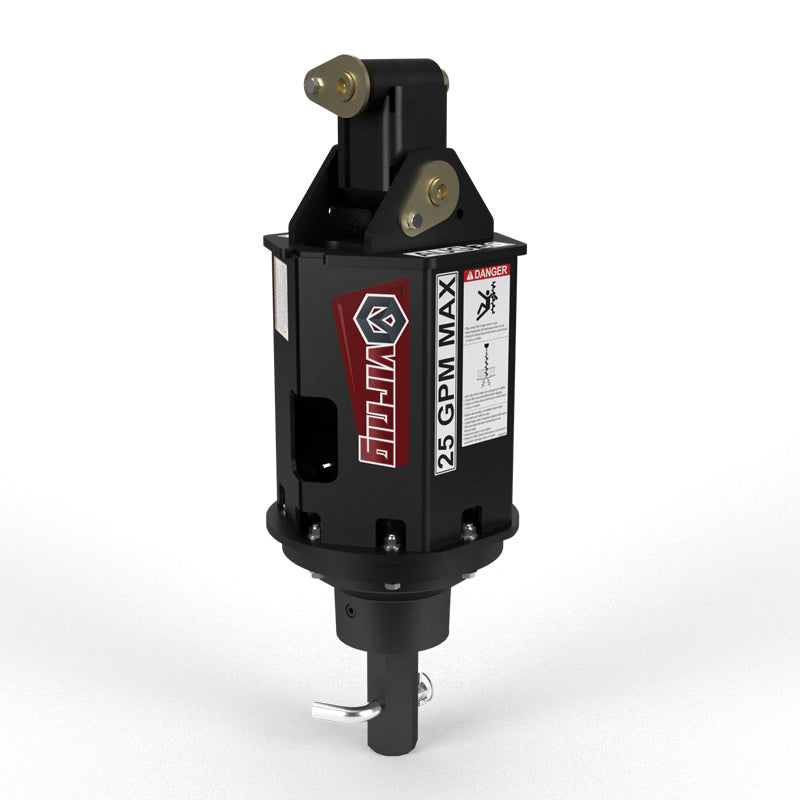

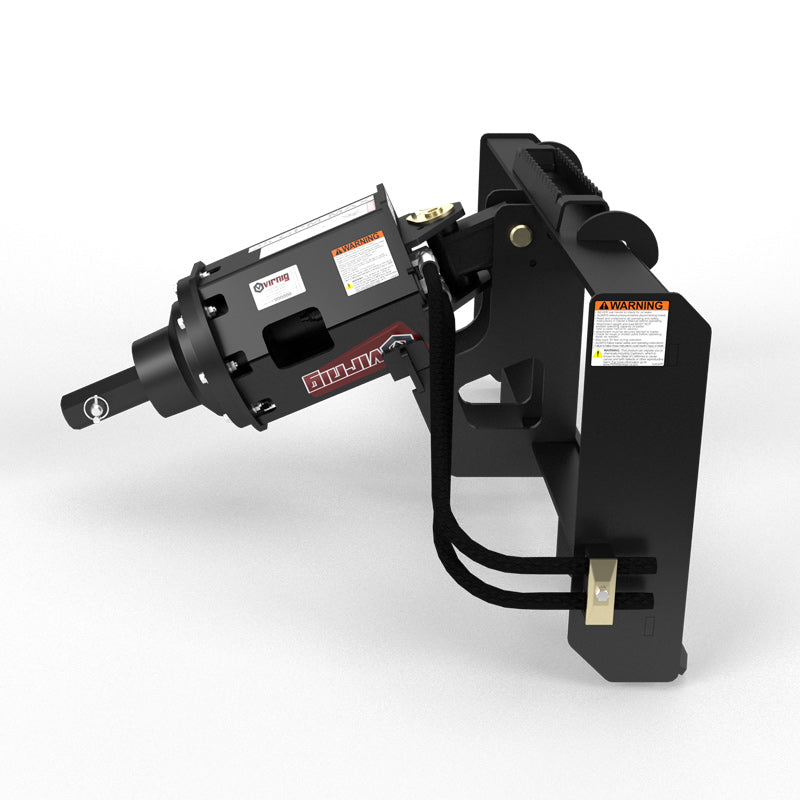

The direct-drive motor includes hydraulic pressure relief protection. Hoses route from the top of the housing, keeping the connections above the drilling area and allowing deeper work with compatible 12″ diameter bits. Drive choices let the attachment be matched to the loader's available hydraulic flow and the required bit size.

For tougher drilling conditions, the AUGHT36 high-torque option provides additional torque compared with the standard AUG36 drive. Select the output collar, motor, and bit together so the mechanical connection and hydraulic requirements agree. Auger bits are sold separately; choose a bit style and diameter for the soil and the hole being drilled.

KEY BENEFITS

  • Hoses routed from top of housing for deeper drilling with 12″ diameter bits.
  • Direct drive motor with hydraulic pressure relief protection.
  • Planetary reduction ensures longevity and consistent torque.
  • Bi-directional auger rotation.
  • Aught36 provides 20% more torque for tough drilling conditions.

TECHNICAL SPECIFICATIONS

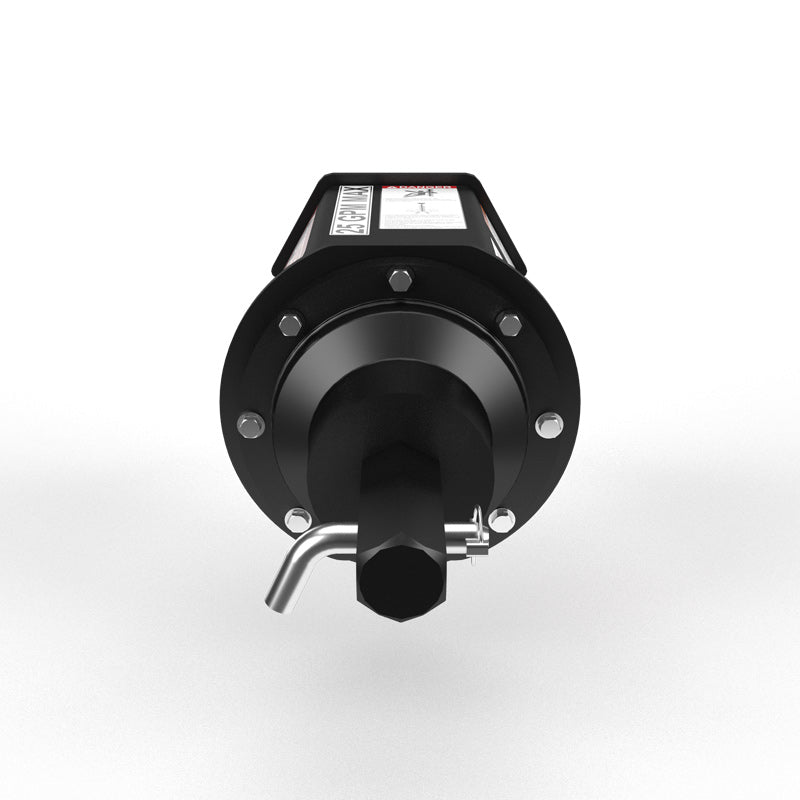

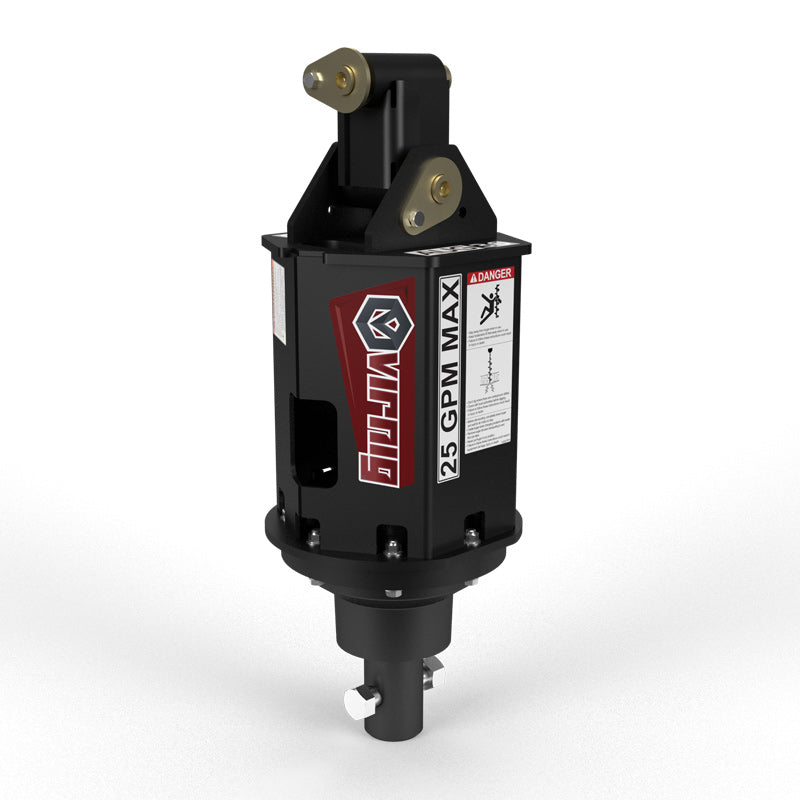

  • Output choices: 2-inch hex or 2 9/16-inch round, according to the selected drive.
  • Planetary reduction drive with bidirectional rotation.
  • The selected configuration includes the drive unit, mount, hose kit, and couplers. Auger bits are sold separately.
  • AUG36 drive: 15-25 GPM recommended flow; maximum bit diameter 36 inches; 2,730 ft-lb at 3,000 PSI; 67 RPM at 20 GPM.
  • AUGHT36 high-torque drive: 15-27 GPM recommended flow; maximum bit diameter 36 inches; 3,345 ft-lb at 3,000 PSI; 55 RPM at 20 GPM.
  • Approximate assembled weight: 280 lb for AUG36 or 305 lb for AUGHT36.

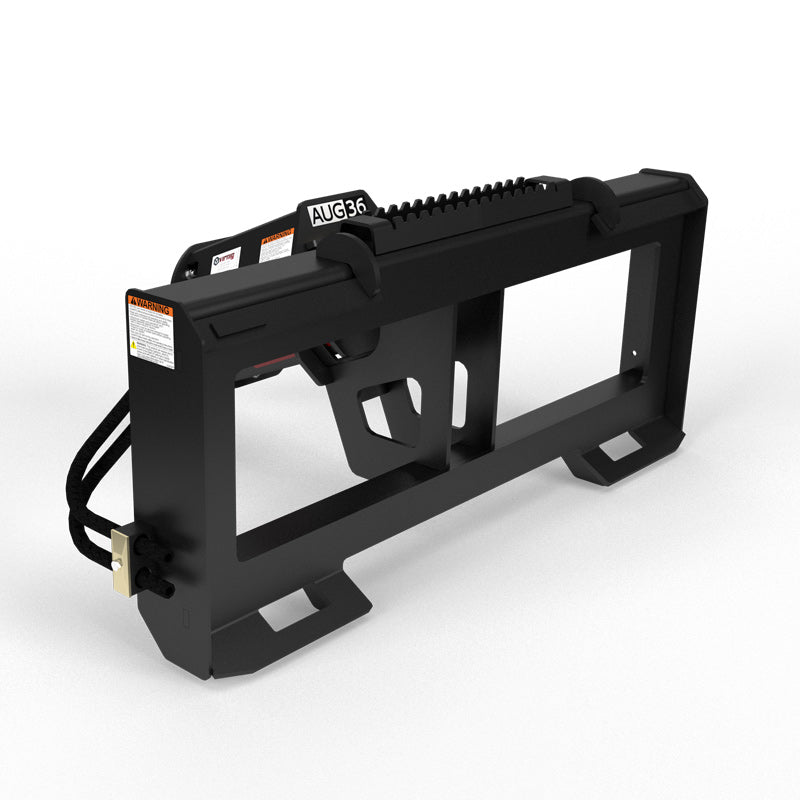

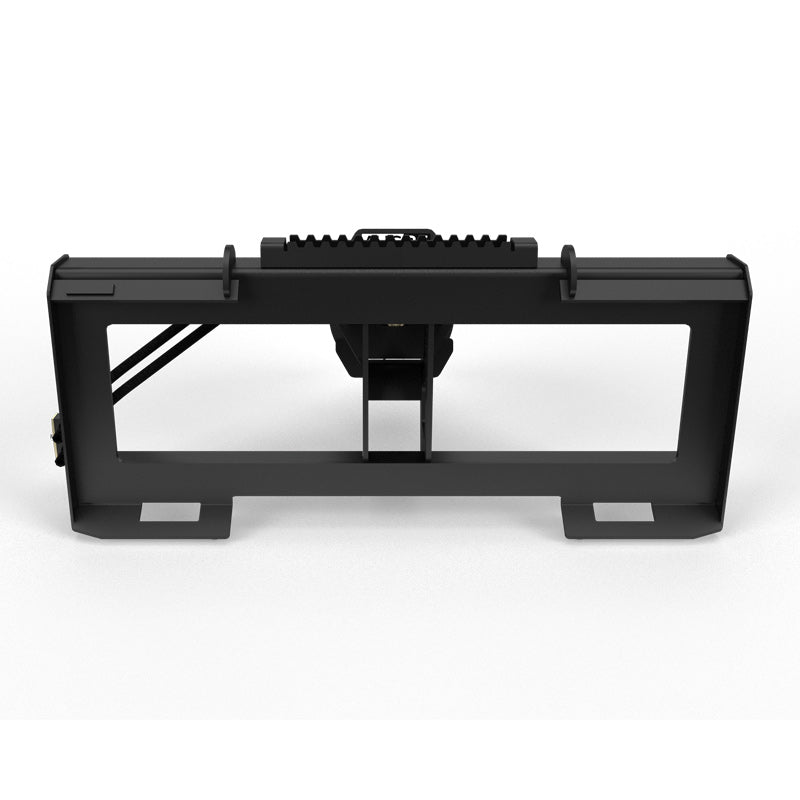

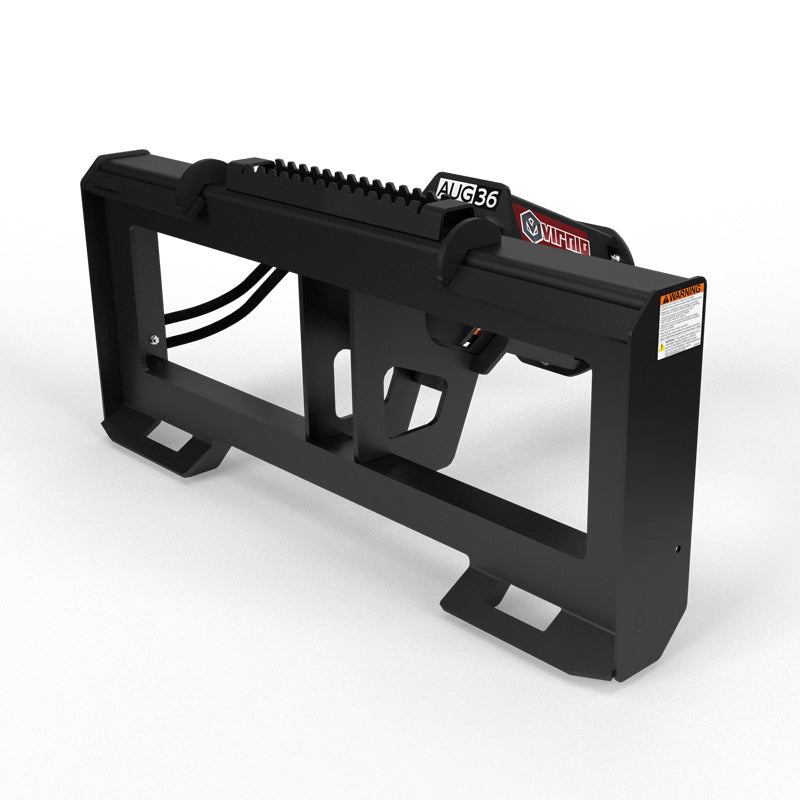

  • The assembled models use a universal skid steer mount.

APPLICATIONS

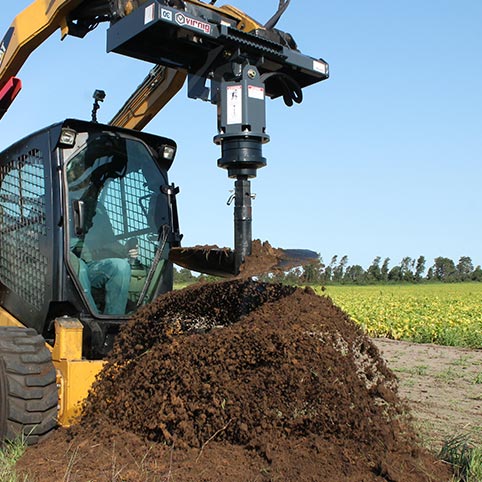

  • Post-hole drilling
  • Landscape planting
  • Foundation hole preparation

VIRNIG SKID STEER AUGER DRIVE

WORKING DESIGN

  • Hoses routed from top of housing for deeper drilling with 12″ diameter bits.
  • Direct drive motor with hydraulic pressure relief protection.
  • Planetary reduction ensures longevity and consistent torque.
  • Bi-directional auger rotation.
  • Aught36 provides 20% more torque for tough drilling conditions.

CONFIGURATION AND SPECIFICATIONS

  • Output choices: 2-inch hex or 2 9/16-inch round, according to the selected drive.
  • Planetary reduction drive with bidirectional rotation.
  • The selected configuration includes the drive unit, mount, hose kit, and couplers. Auger bits are sold separately.
  • AUG36 drive: 15-25 GPM recommended flow; maximum bit diameter 36 inches; 2,730 ft-lb at 3,000 PSI; 67 RPM at 20 GPM.
  • AUGHT36 high-torque drive: 15-27 GPM recommended flow; maximum bit diameter 36 inches; 3,345 ft-lb at 3,000 PSI; 55 RPM at 20 GPM.
  • Approximate assembled weight: 280 lb for AUG36 or 305 lb for AUGHT36.
  • The assembled models use a universal skid steer mount.

READY FOR THE FIELD

  • Hoses routed from top of housing for deeper drilling with 12″ diameter bits.
  • Direct drive motor with hydraulic pressure relief protection.
  • Planetary reduction ensures longevity and consistent torque.
  • Bi-directional auger rotation.
  • Aught36 provides 20% more torque for tough drilling conditions.
