VIRNIG

Tiller

For Skid Steers & Track Loaders

54-72″ Widths

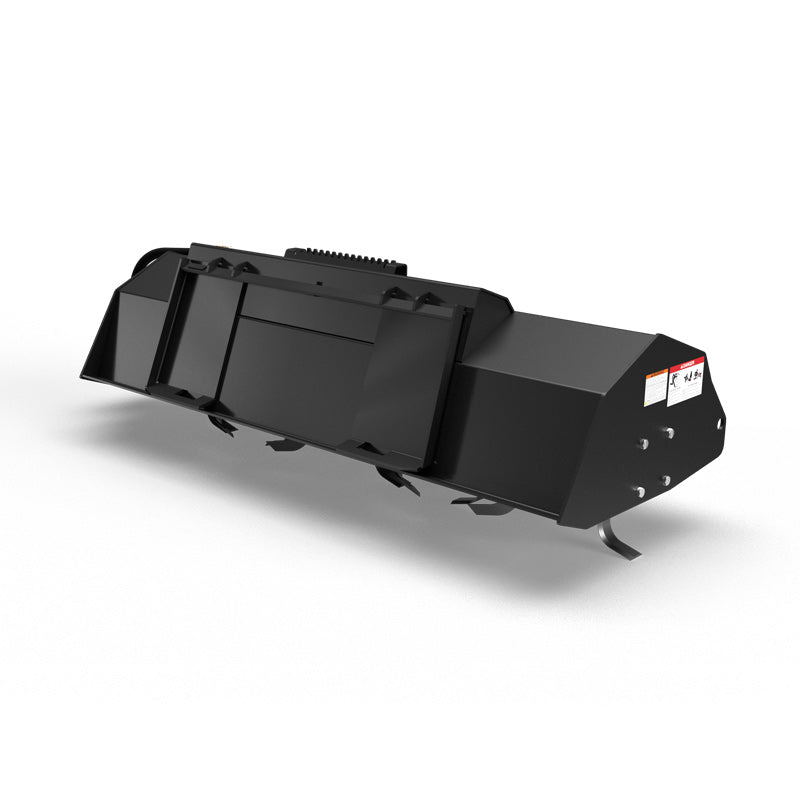

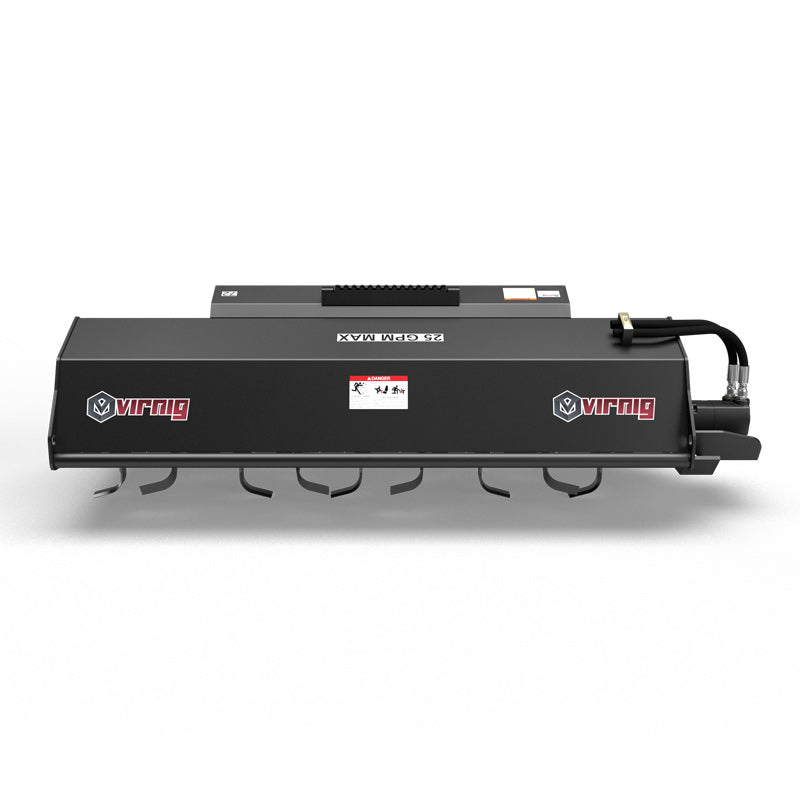

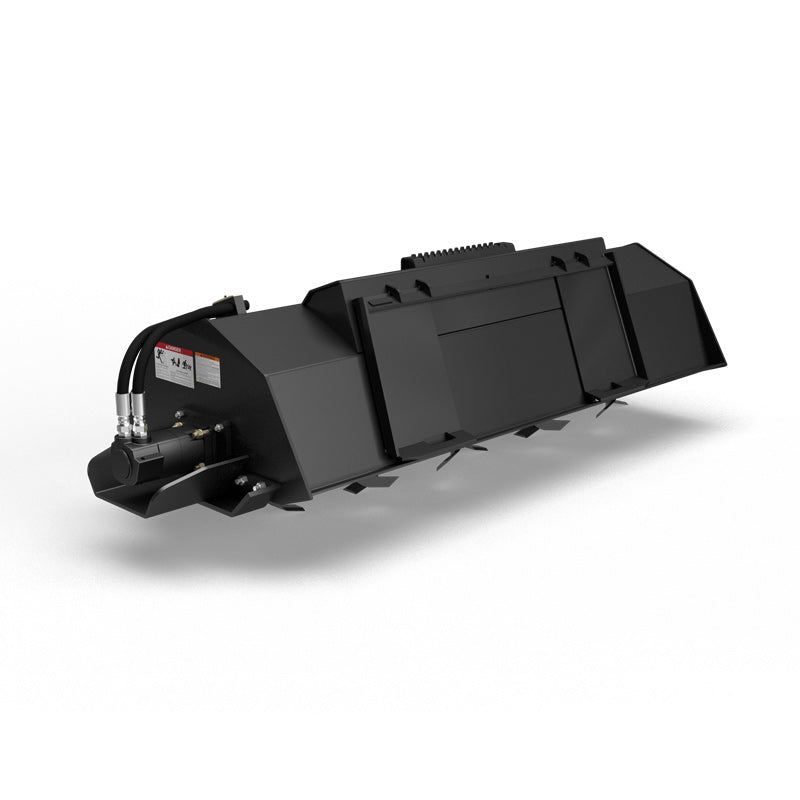

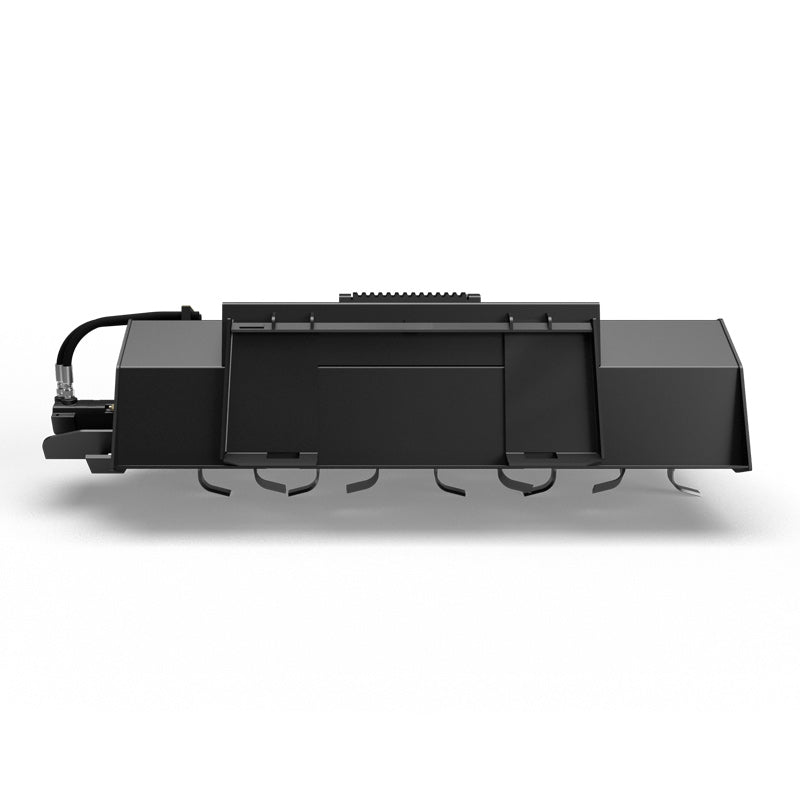

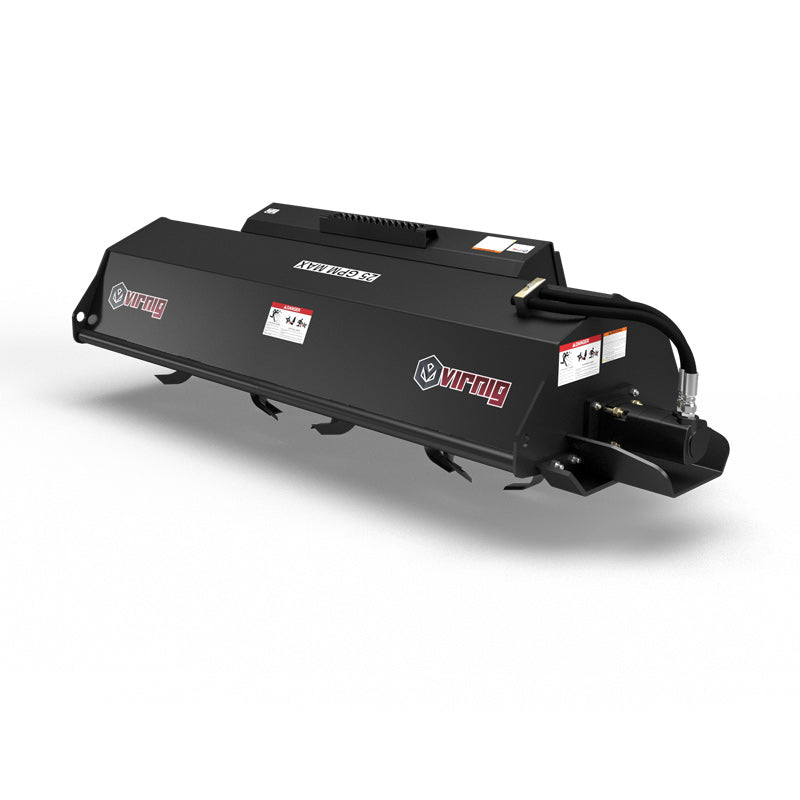

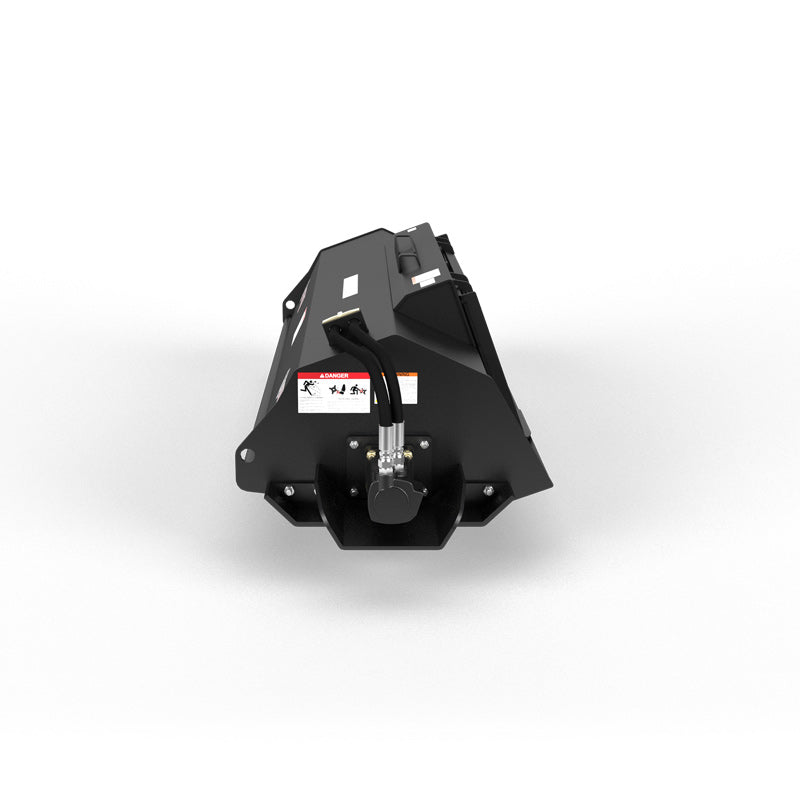

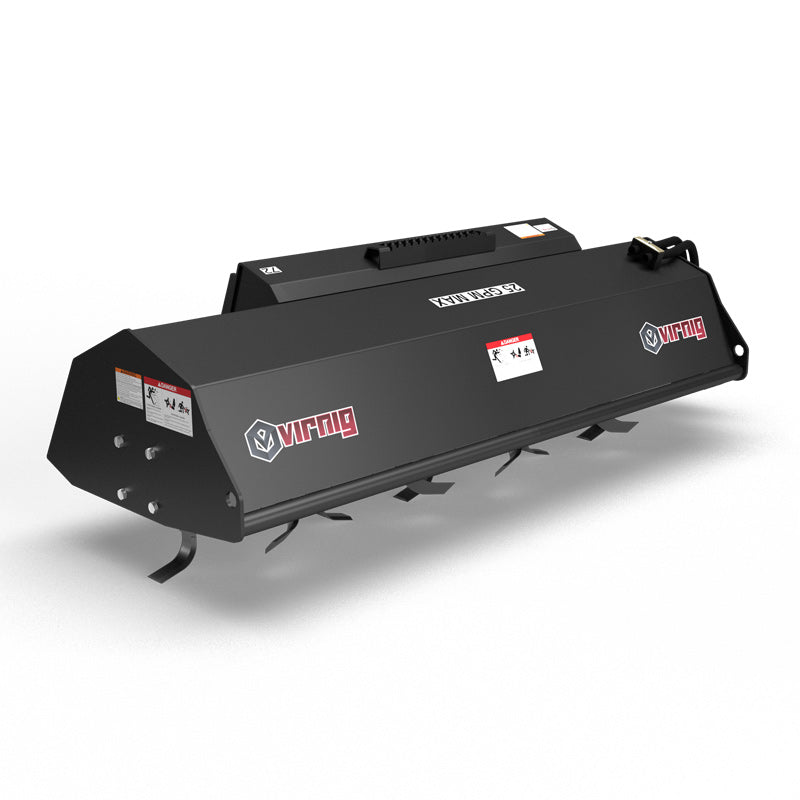

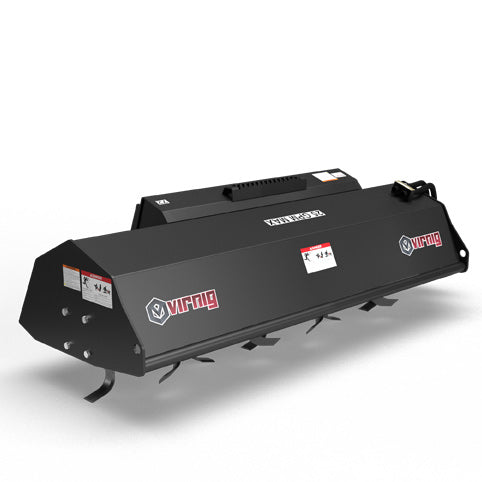

Virnig Tiller

Virnig

Virnig Tiller

SKU: TLR54 Currently In Stock

Sale price$8,385.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

DUAL-EDGE WORKING TINES

DUAL-EDGE TINES WORK IN EITHER DIRECTION FOR FLEXIBLE SOIL-PREPARATION PASSES.

TWO-INCH SHAFT BEARINGS

2″ BEARINGS SUPPORT BOTH ENDS OF THE TILLER SHAFT DURING SOIL PREPARATION.

REPLACEABLE HEAT-TREATED TINES

BOLT-ON, HEAT-TREATED TINES PROVIDE A REPLACEABLE WORKING EDGE FOR SOIL CULTIVATION.

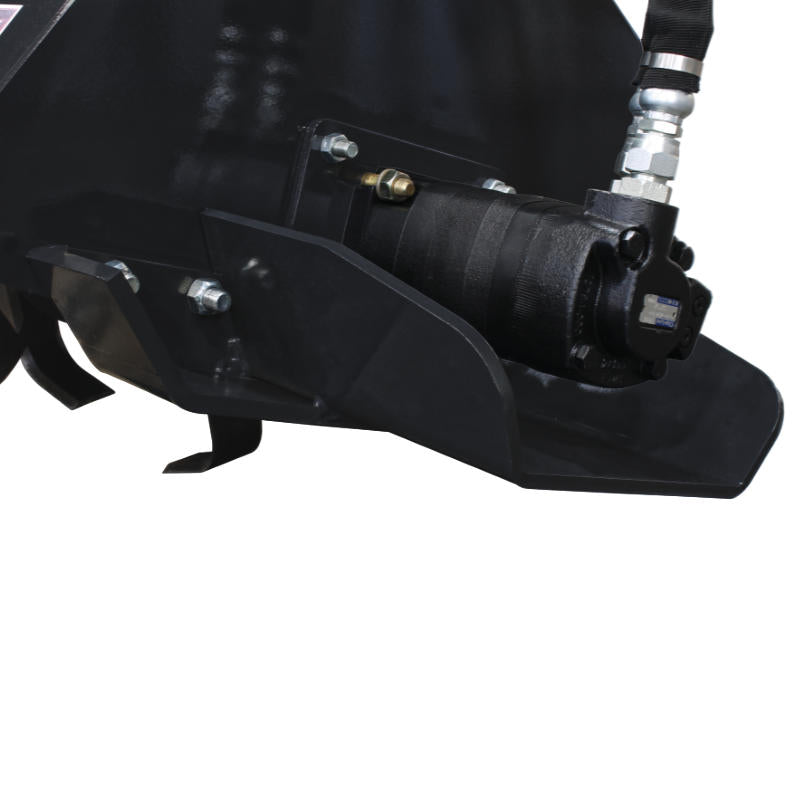

GUARDED MOTOR

BOTTOM AND SIDE GUARDS HELP SHIELD THE MOTOR FROM CONTACT DURING TILLING.

SOIL PREPARATION

VIRNIG TILLER BREAKS AND MIXES SOIL WITH REPLACEABLE, DUAL-EDGE TINES.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Tiller breaks and mixes soil with a rotating shaft of aggressive dual-edge tines. It gives a compatible loader a dedicated soil preparation tool for working the surface before planting or landscaping, with the ability to operate in forward or reverse to suit the direction of the pass.

Bolt-on, heat-treated tines provide replaceable working components rather than a permanently fixed cutting assembly. Their dual edges support bidirectional operation, while 2″ diameter bearings on both sides support the tiller shaft. This arrangement combines soil engagement with accessible wear parts for repeated preparation work.

Guards protect the motor on its bottom and sides, shielding it at exposed contact areas. Select the tiller width around the carrier and the area being prepared, and match the motor's hydraulic requirements to the loader. Soil conditions and the material present in the working area should guide the operating approach and the amount of material worked in each pass.

KEY BENEFITS

  • Aggressive dual-edge tines for operating in forward or reverse.
  • Tiller shaft supported by 2″ diameter bearings on each side.
  • Bolt-on heat-treated tines for max strength.
  • Guarded motor on bottom and sides.
  • Virnig Tiller breaks and mixes soil with replaceable, dual-edge tines.

TECHNICAL SPECIFICATIONS

  • Models: TLR54 TLR72
  • Working Width (in.): TLR54: 54.0; TLR72: 72.0
  • Overall Width (in.): TLR54: 70.5; TLR72: 88.5
  • Loader Width Coverage, Outside Tire (in.): TLR54: 68.0; TLR72: 80.0
  • Overall Height (in.): 28.0
  • Overall Depth (in.): 32.0
  • Tilling Depth (in.): 6.0
  • Working Offset (in.): TLR54: 7.0¹; TLR72: 4.0¹
  • Drum Diameter (in.): 22.0
  • Number of Tines (in.): TLR54: 28; TLR72: 36
  • Recommended Flow Rate (GPM): 15-25 Standard Flow Only
  • Approximate Weight (lbs): TLR54: 900; TLR72: 1050
  • Recommended Loader Capacity: Greater than 1300 lbs
  • ¹Distance between the center of the quick-tach plate and center of the working width.

APPLICATIONS

  • Garden preparation
  • Landscape soil preparation
  • Seedbed preparation

VIRNIG TILLER

WORKING DESIGN

  • Aggressive dual-edge tines for operating in forward or reverse.
  • Tiller shaft supported by 2″ diameter bearings on each side.
  • Bolt-on heat-treated tines for max strength.
  • Guarded motor on bottom and sides.

CONFIGURATION AND SPECIFICATIONS

  • Models: TLR54 TLR72
  • Working Width (in.): TLR54: 54.0; TLR72: 72.0
  • Overall Width (in.): TLR54: 70.5; TLR72: 88.5
  • Loader Width Coverage, Outside Tire (in.): TLR54: 68.0; TLR72: 80.0
  • Overall Height (in.): 28.0
  • Overall Depth (in.): 32.0
  • Tilling Depth (in.): 6.0
  • Working Offset (in.): TLR54: 7.0¹; TLR72: 4.0¹
  • Drum Diameter (in.): 22.0

READY FOR THE FIELD

  • Aggressive dual-edge tines for operating in forward or reverse.
  • Tiller shaft supported by 2″ diameter bearings on each side.
  • Bolt-on heat-treated tines for max strength.
  • Guarded motor on bottom and sides.
  • Virnig Tiller breaks and mixes soil with replaceable, dual-edge tines.
