VIRNIG

Tree Puller

For Skid Steers & Track Loaders

11.5″ Jaw Opening

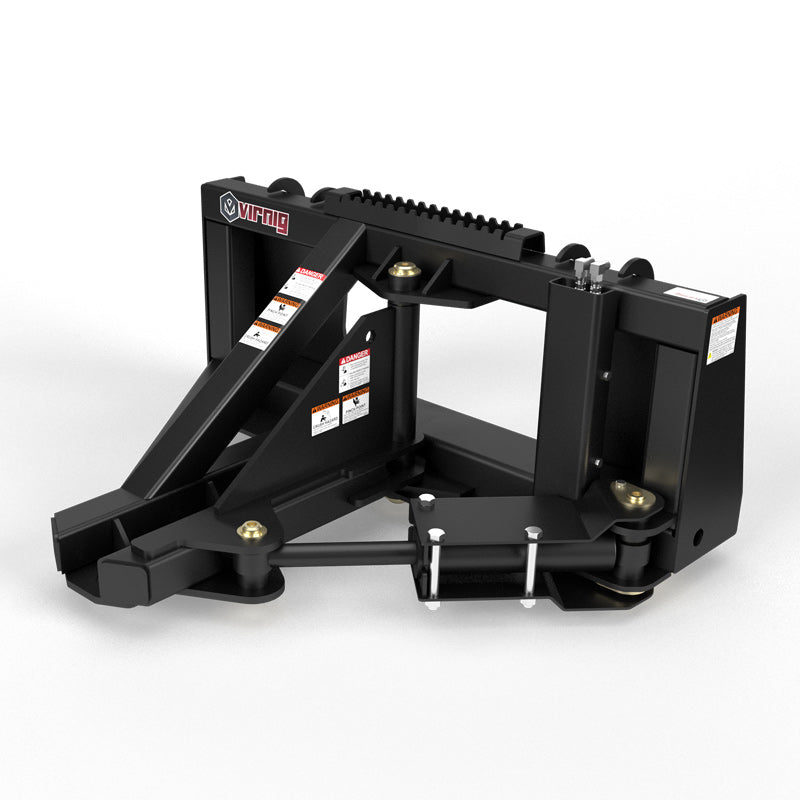

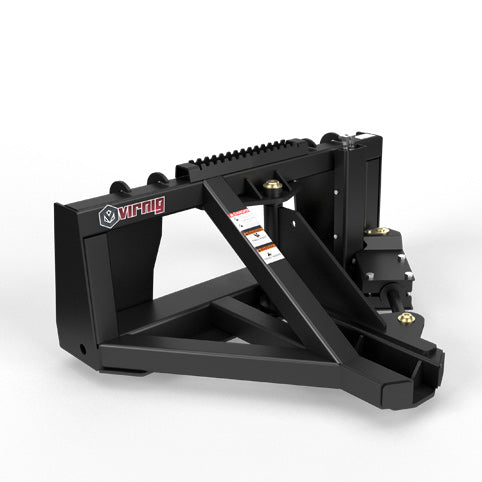

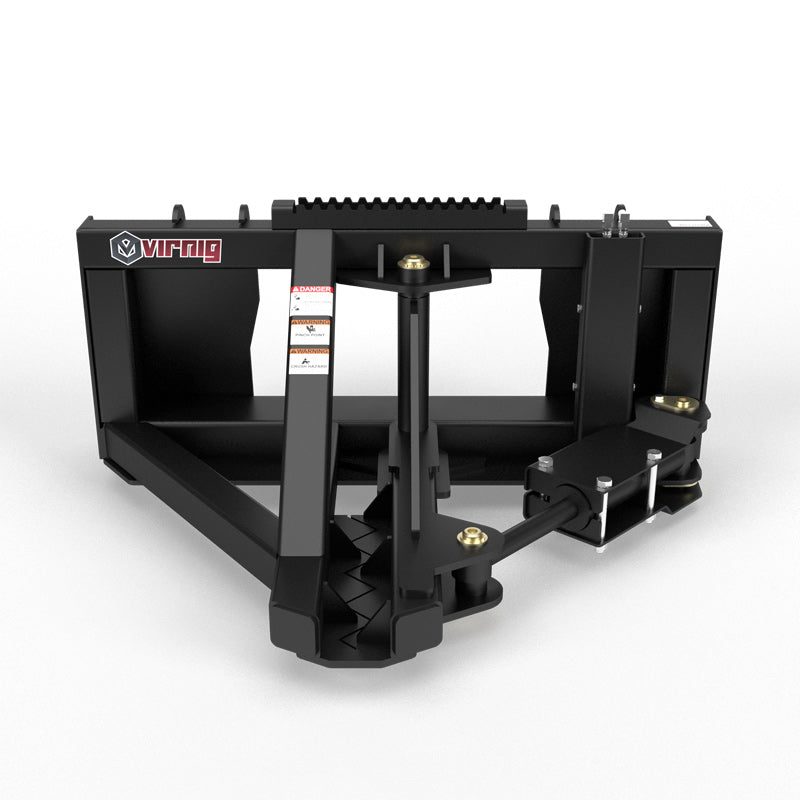

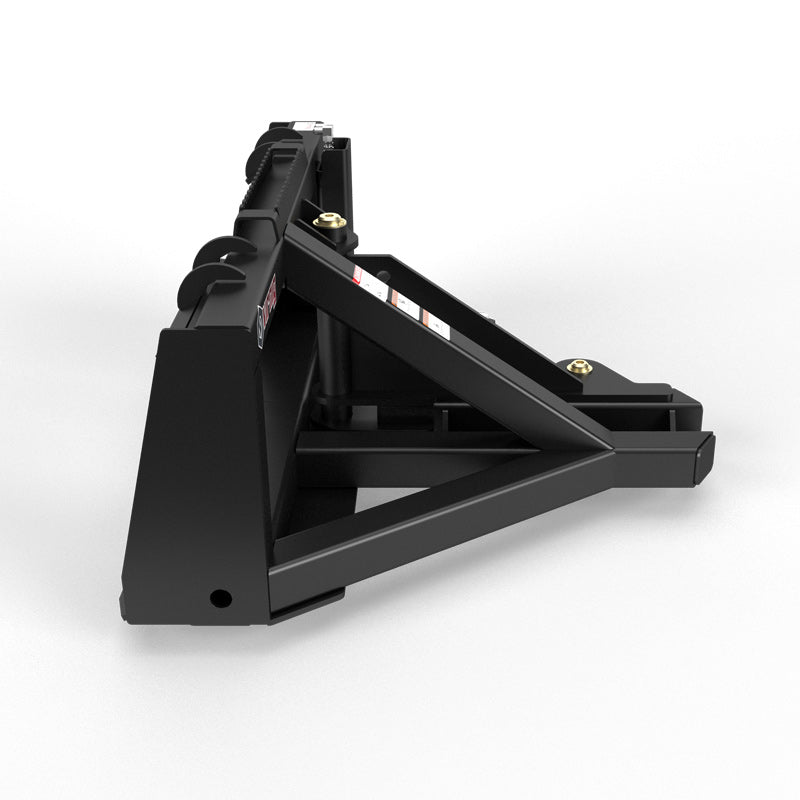

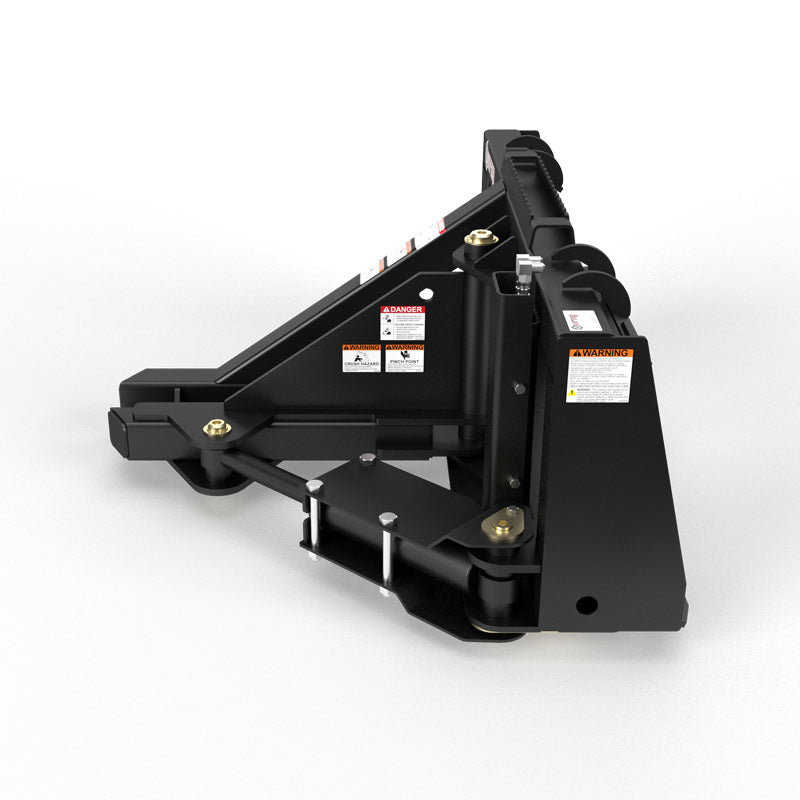

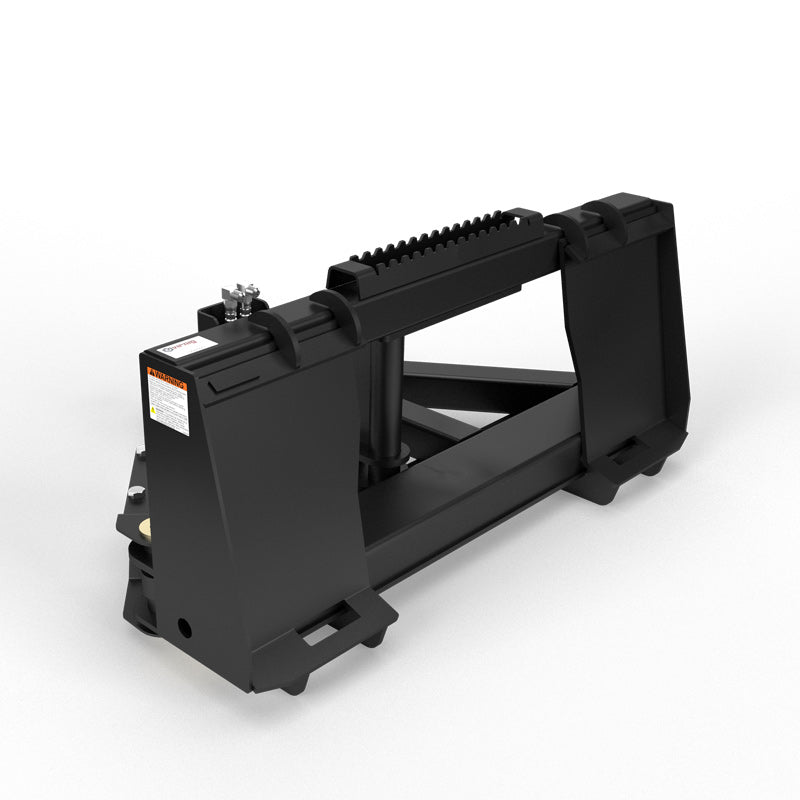

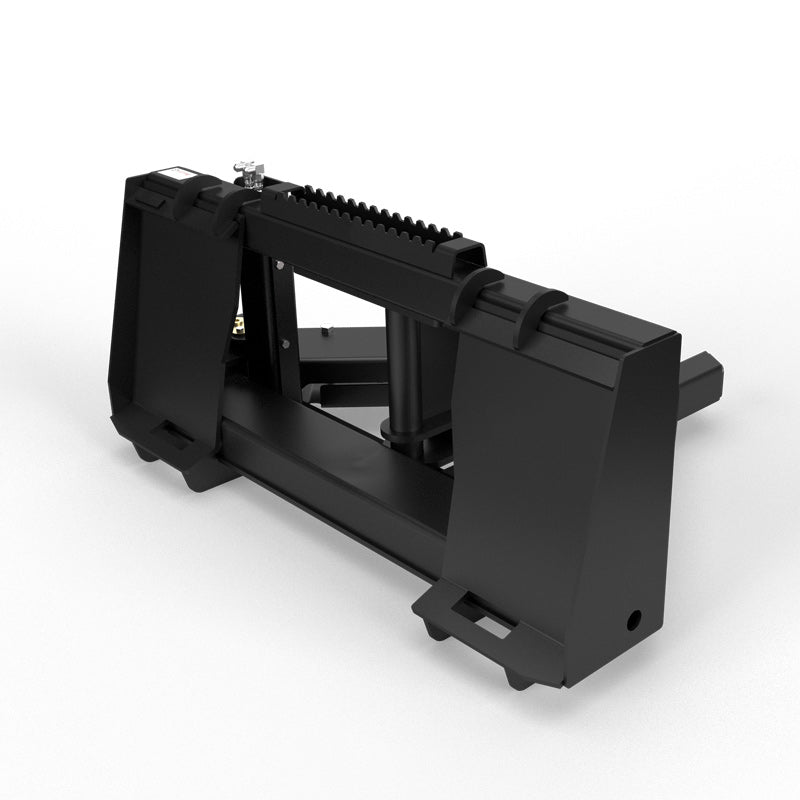

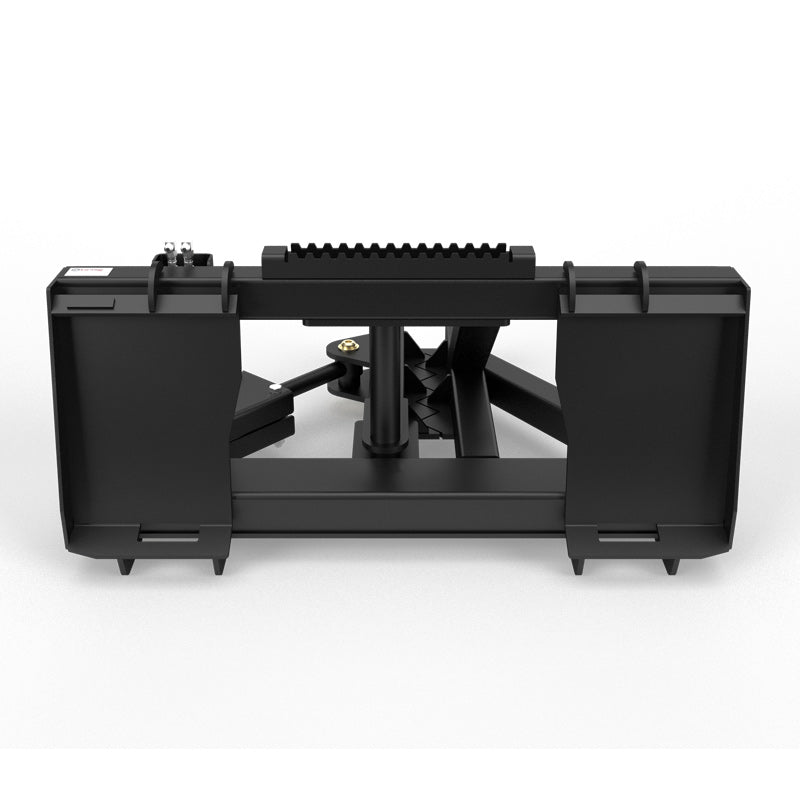

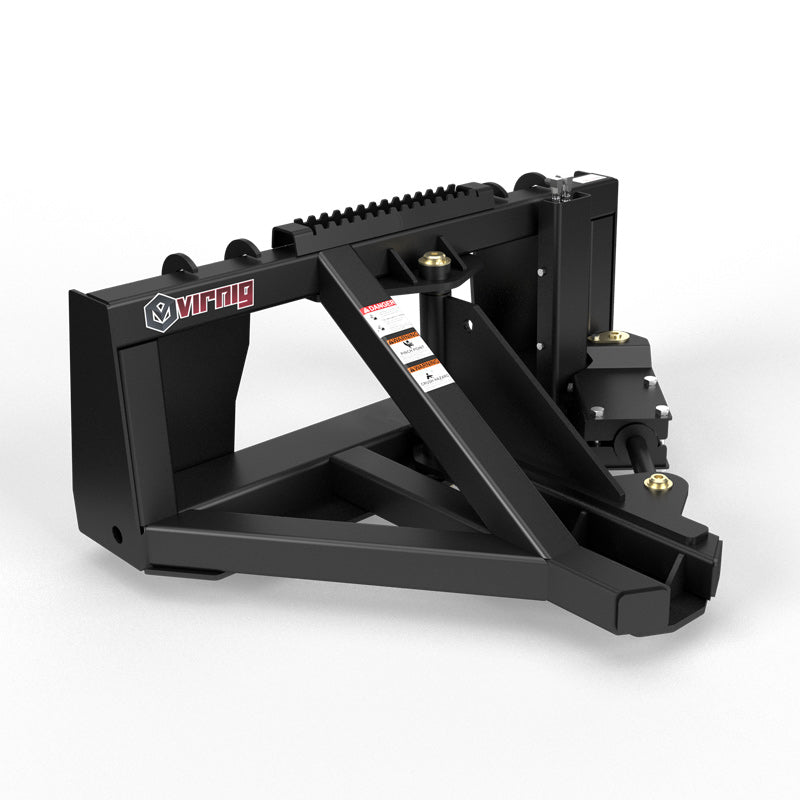

Virnig Tree Puller

Virnig

Virnig Tree Puller

SKU: TRP Currently In Stock

Sale price$3,065.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

CONTROLLED JAW CLOSURE

A HARD STOP HELPS GRIP SMALL TREES WITHOUT CLOSING THE JAWS FAR ENOUGH TO SHEAR THEM.

CYLINDER PROTECTION

A STANDARD GUARD SHIELDS THE HYDRAULIC CYLINDER WHILE HANDLING BRUSH AND DEBRIS.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

SMALL TREE REMOVAL

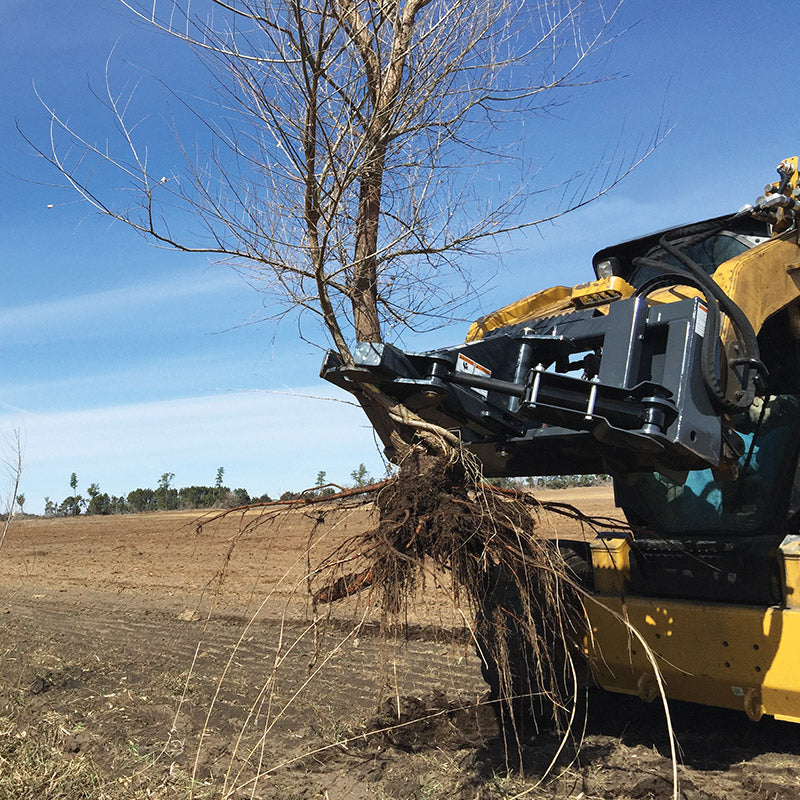

VIRNIG TREE PULLER GRIPS TREES AND FENCE POSTS FOR CONTROLLED REMOVAL.

JAW OPENING

THE 11.5″ JAW OPENING ACCEPTS TREE TRUNKS AND POSTS FOR GRIPPING AND PULLING.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Tree Puller grips trees and fence posts for removal with a compact hydraulic jaw arrangement. It concentrates the loader's pulling work at the object being removed, making it useful for property cleanup and fence-line work where a broad bucket or grapple cannot provide the same focused grip.

A hard stop allows small trees to be held without simply closing the jaws far enough to shear them off. This helps the operator maintain a pulling approach when root removal is the objective. The cylinder guard is standard, shielding the hydraulic cylinder from contact with the material gathered at the front of the attachment.

NitroSteel® cylinder rods and Teflon®-coated bushings equip the pivots for repeated gripping cycles. Match the attachment and expected pulling task to the loader's capacity and stability, accounting for the object's size and root conditions. For work that also requires dedicated soil-cutting jaws and digging teeth, consider the separate Digging Tree Puller configuration.

KEY BENEFITS

  • Hard stop allows small trees to be pulled without shearing them off.
  • Standard with cylinder guard.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Virnig tree puller grips trees and fence posts for controlled removal.
  • Jaw opening (in.): 11.5

TECHNICAL SPECIFICATIONS

  • Models: TRP
  • Overall Width (in.): 47.0
  • Overall Height (in.): 22.0
  • Overall Depth (in.): 37.3
  • Jaw Opening (in.): 11.5
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Pivot Pins (in.): 1.25 / 1.563
  • Approximate Weight (lbs): 465
  • Recommended Loader Capacity: Greater than 1500 lbs

APPLICATIONS

  • Small tree removal
  • Fence post removal
  • Property clearing

VIRNIG TREE PULLER

WORKING DESIGN

  • Hard stop allows small trees to be pulled without shearing them off.
  • Standard with cylinder guard.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.

CONFIGURATION AND SPECIFICATIONS

  • Models: TRP
  • Overall Width (in.): 47.0
  • Overall Height (in.): 22.0
  • Overall Depth (in.): 37.3
  • Jaw Opening (in.): 11.5
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Pivot Pins (in.): 1.25 / 1.563

READY FOR THE FIELD

  • Hard stop allows small trees to be pulled without shearing them off.
  • Standard with cylinder guard.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Virnig tree puller grips trees and fence posts for controlled removal.
  • Jaw opening (in.): 11.5
