VIRNIG

U-Blade

For Skid Steers & Track Loaders

3/8″ High-Carbon Steel Blade

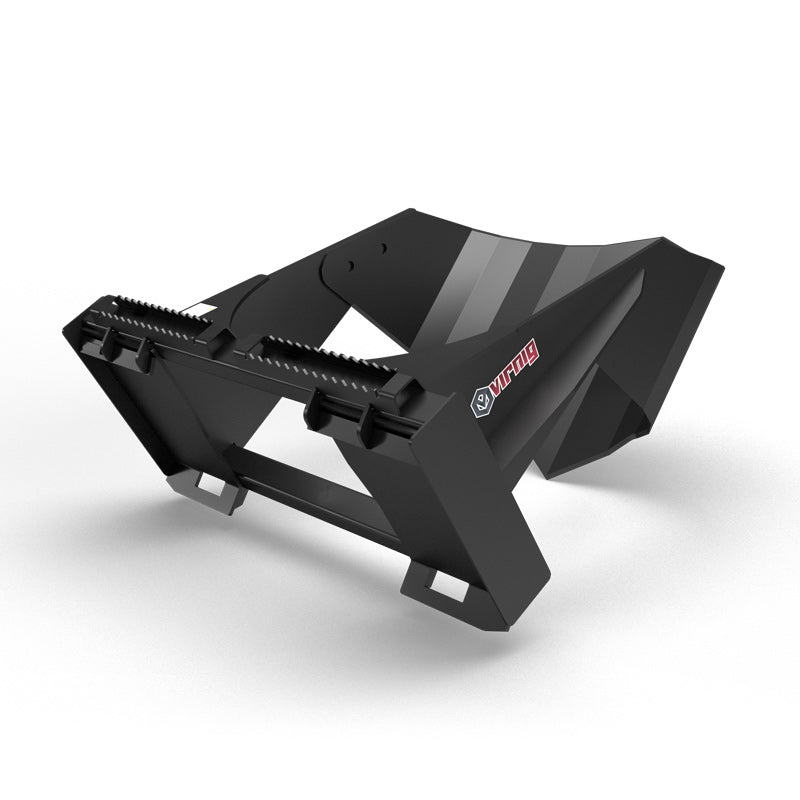

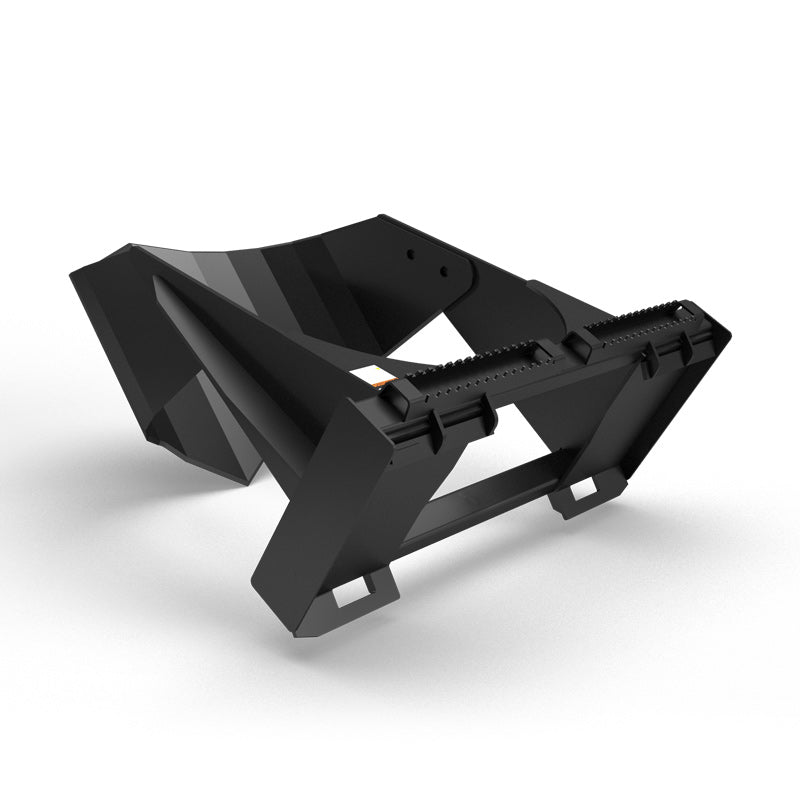

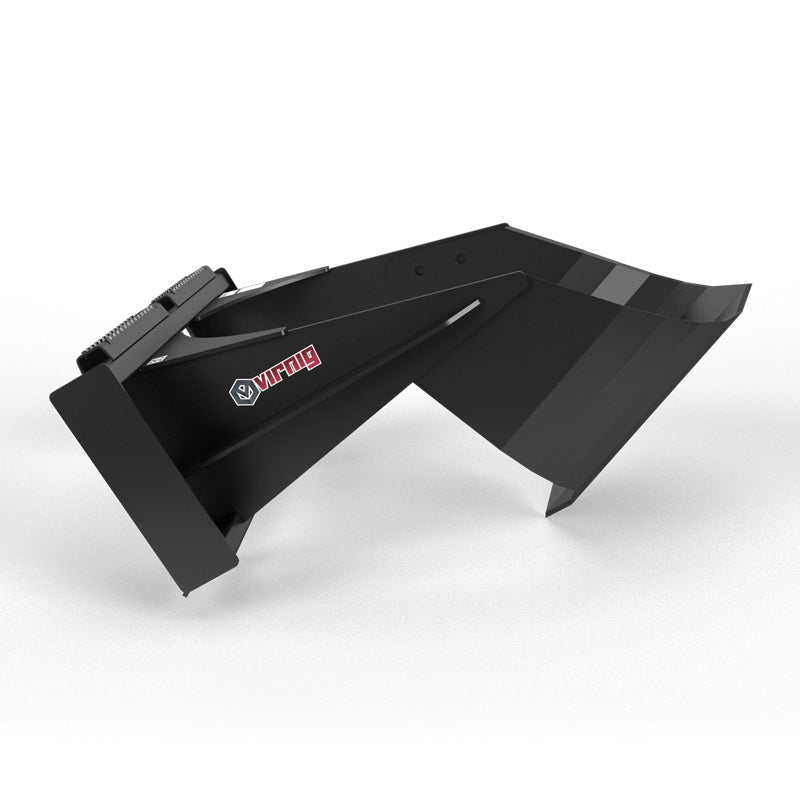

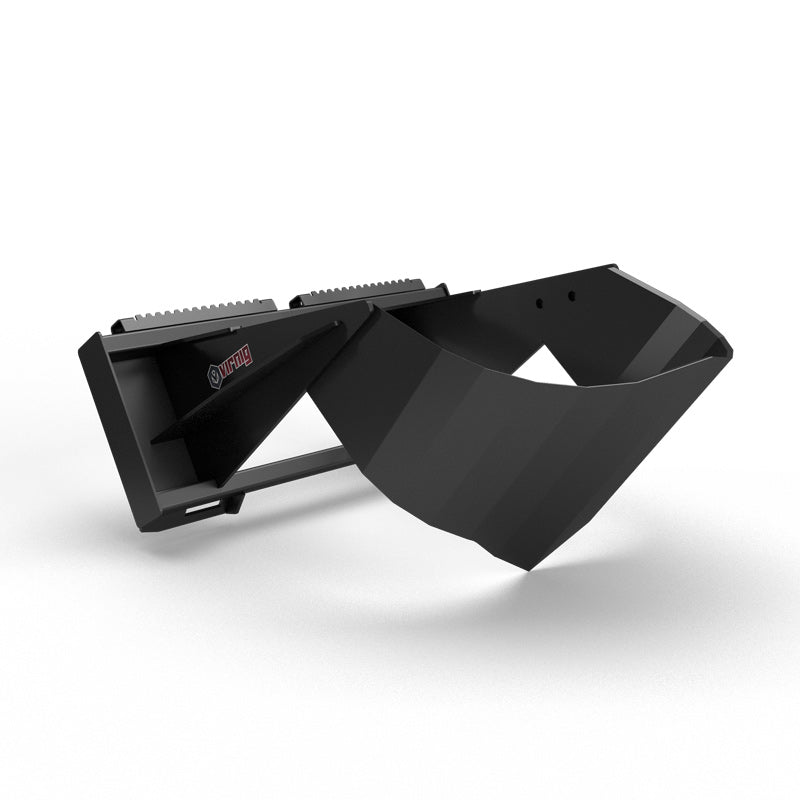

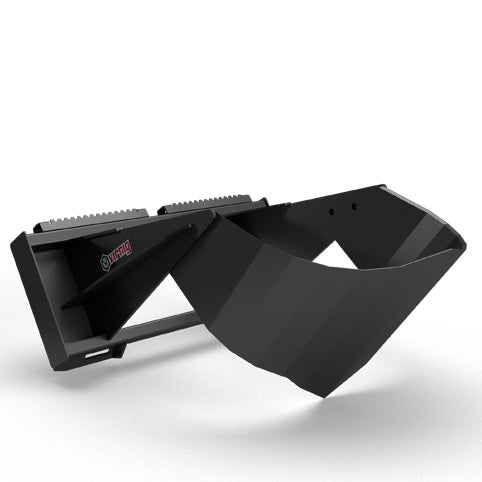

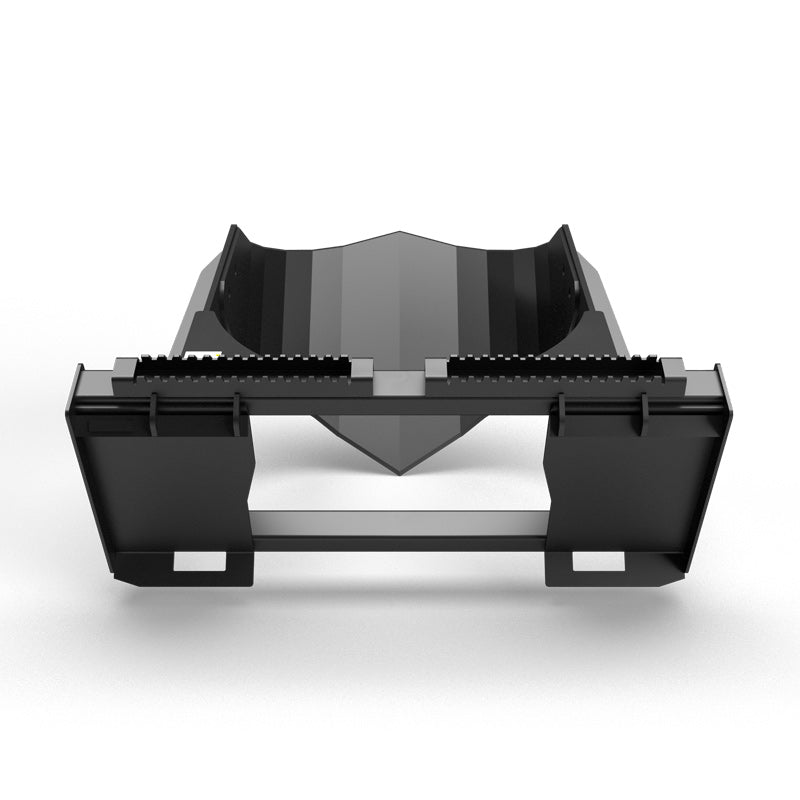

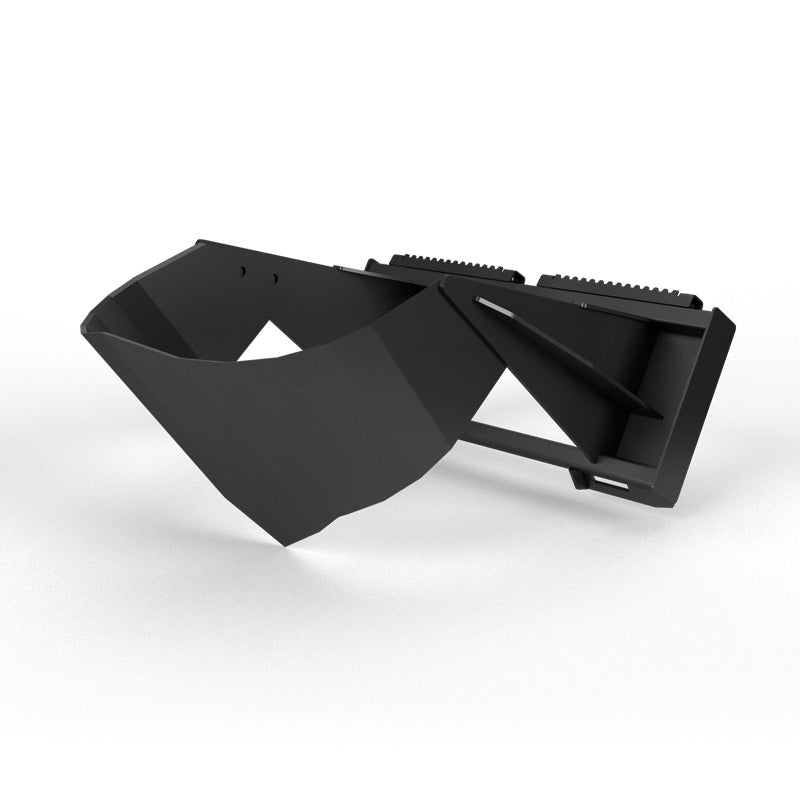

Virnig U-Blade

Virnig

Virnig U-Blade

SKU: UBV26 Currently In Stock

Sale price$2,015.00 USD

MOST IMPORTANT FEATURES

DIGGING AND TRANSPLANTING

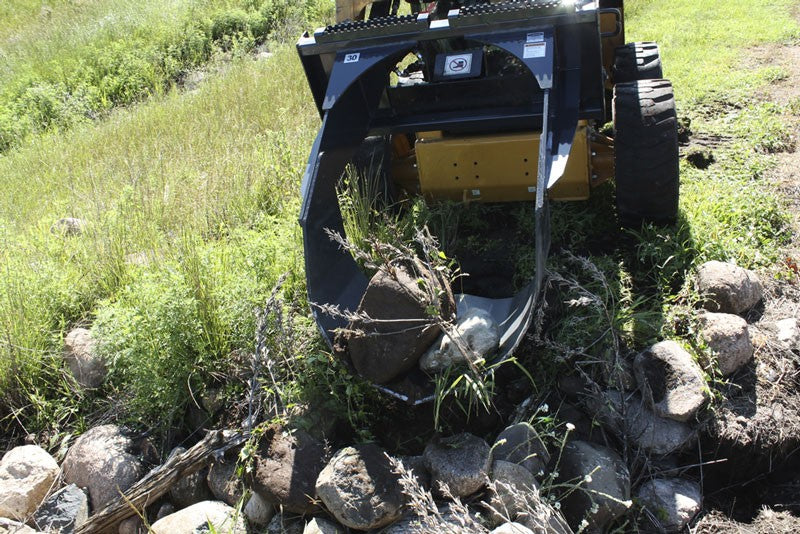

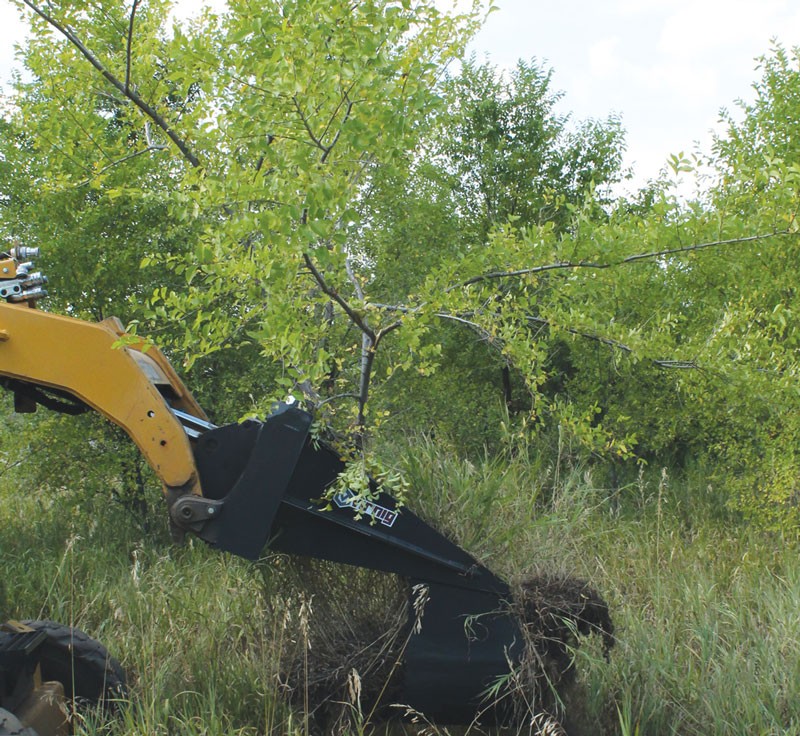

CARRY AND TRANSPLANT TREES AND ROCKS, DIG TRENCHES AND BREAK UP COMPACTED SOIL.

HIGH-CARBON STEEL BLADE

A ⅜″ HIGH-CARBON STEEL BLADE PROVIDES THE WORKING SURFACE FOR DIGGING AND TRENCHING.

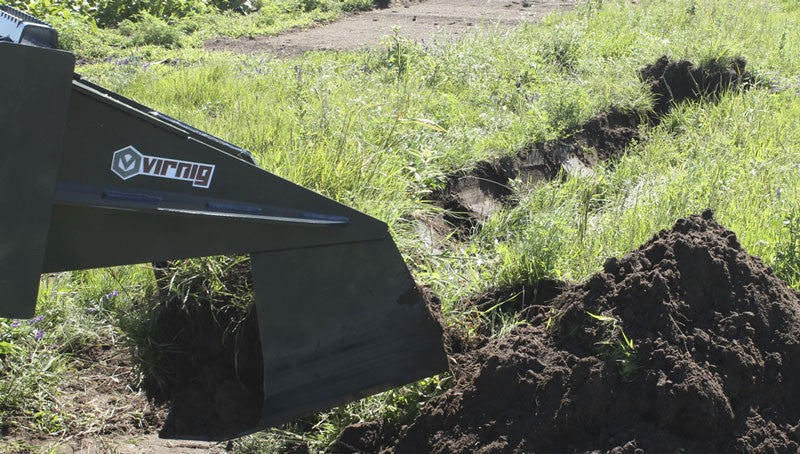

TRENCHING

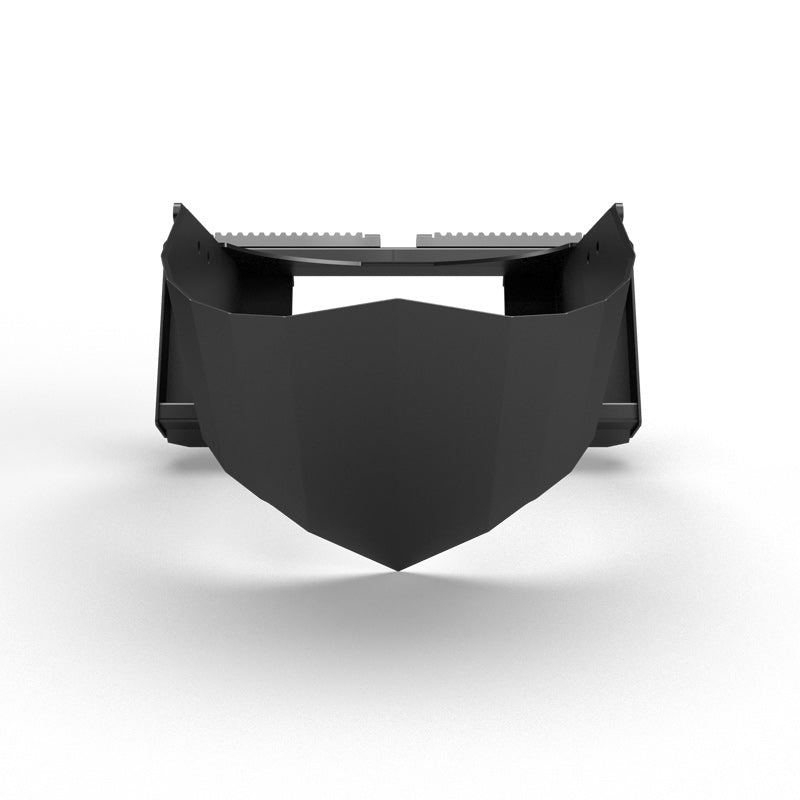

VIRNIG U-BLADE DIGS AND TRENCHES IN EITHER DIRECTION WITH A DUAL-POINT BLADE.

WIDTH OPTIONS

A 45.6″ OVERALL FRAME WIDTH POSITIONS THE CURVED BLADE FOR FOCUSED DIGGING WORK.

INSIDE BLADE DIAMETER

CHOOSE A 26″, 30″ OR 36″ INSIDE BLADE DIAMETER TO SUIT THE DIGGING TASK.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig U-Blade concentrates digging work into a dual-point blade for trenching, breaking compacted soil, and working around trees or rocks. Its shape allows digging in either direction, giving the operator another way to approach confined ground work without relying on a full-width bucket cutting edge.

The blade is made from ⅜″ high-carbon steel and provides focused contact points for entering the ground. Once material has been loosened, the attachment can also be used to carry and position trees or rocks within the carrier's capacity. The compact digging arrangement is useful where a broader bucket would disturb more surrounding soil.

Match the blade to the loader and the size of the material being handled, checking the carrier's capacity and the load position. Plan the digging approach around buried services, roots, and other obstacles before starting work. This is a passive digging blade, so it relies on the loader's movement and attachment positioning rather than a hydraulic cutting motor.

KEY BENEFITS

  • Carry and transplant trees and rocks, dig trenches and break up compacted soil.
  • 3/8″ thick high-carbon steel blade.
  • Virnig u-blade digs and trenches in either direction with a dual-point blade.
  • Overall width (in.): 45.6
  • Inside blade diameter (in.): 26.0 | 30.0 | 36.0

TECHNICAL SPECIFICATIONS

  • Models: UBV26 UBV30 UBV36
  • Inside Blade Diameter (in.): UBV26: 26.0; UBV30: 30.0; UBV36: 36.0
  • Overall Width (in.): 45.6
  • Height: Overall / Blade, With Sides (in.): UBV26: 38.0 / 17.5; UBV30: 43.5 / 22.5; UBV36: 41.0 / 19.5
  • Overall Length (in.): 46.8
  • Approximate Digging Depth (in.): 48.0¹
  • Approximate Weight (lbs): UBV26: 370; UBV30: 390; UBV36: 390
  • Recommended Loader Capacity: Greater than 1500 lbs
  • ¹Digging depth varies with size and brand of machine.

APPLICATIONS

  • Trenching
  • Breaking compacted soil
  • Tree and rock transplanting

VIRNIG U-BLADE

WORKING DESIGN

  • Carry and transplant trees and rocks, dig trenches and break up compacted soil.
  • 3/8″ thick high-carbon steel blade.

CONFIGURATION AND SPECIFICATIONS

  • Models: UBV26 UBV30 UBV36
  • Inside Blade Diameter (in.): UBV26: 26.0; UBV30: 30.0; UBV36: 36.0
  • Overall Width (in.): 45.6
  • Height: Overall / Blade, With Sides (in.): UBV26: 38.0 / 17.5; UBV30: 43.5 / 22.5; UBV36: 41.0 / 19.5
  • Overall Length (in.): 46.8
  • Approximate Digging Depth (in.): 48.0¹
  • Approximate Weight (lbs): UBV26: 370; UBV30: 390; UBV36: 390
  • Recommended Loader Capacity: Greater than 1500 lbs
  • ¹Digging depth varies with size and brand of machine.

READY FOR THE FIELD

  • Carry and transplant trees and rocks, dig trenches and break up compacted soil.
  • 3/8″ thick high-carbon steel blade.
  • Virnig u-blade digs and trenches in either direction with a dual-point blade.
  • Overall width (in.): 45.6
  • Inside blade diameter (in.): 26.0 | 30.0 | 36.0
