V20 Mini Skid Steer Angle Broom

For Mini Skid Steers

48-60″ Widths

Virnig

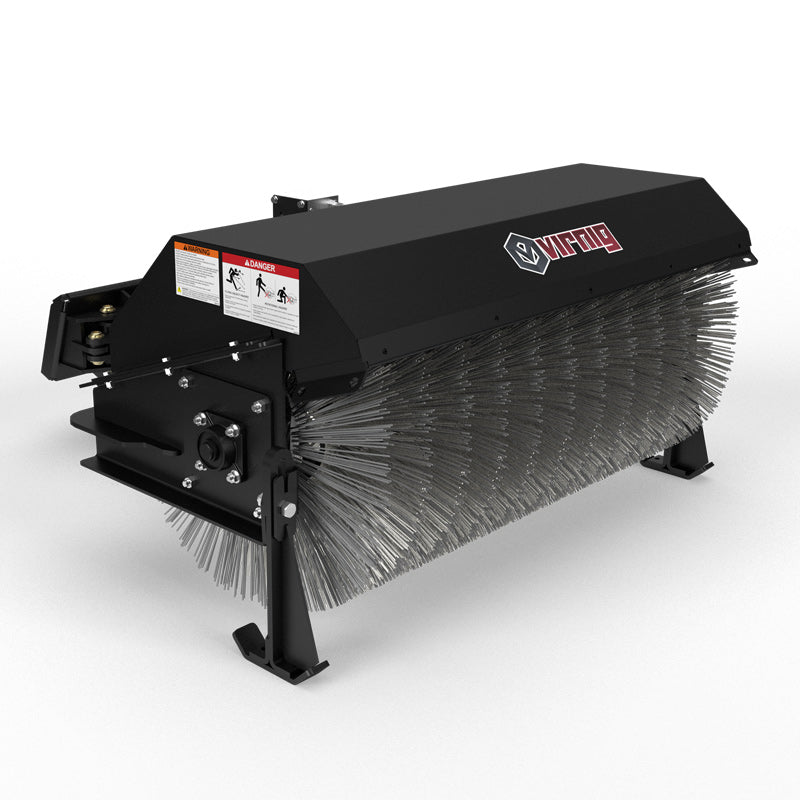

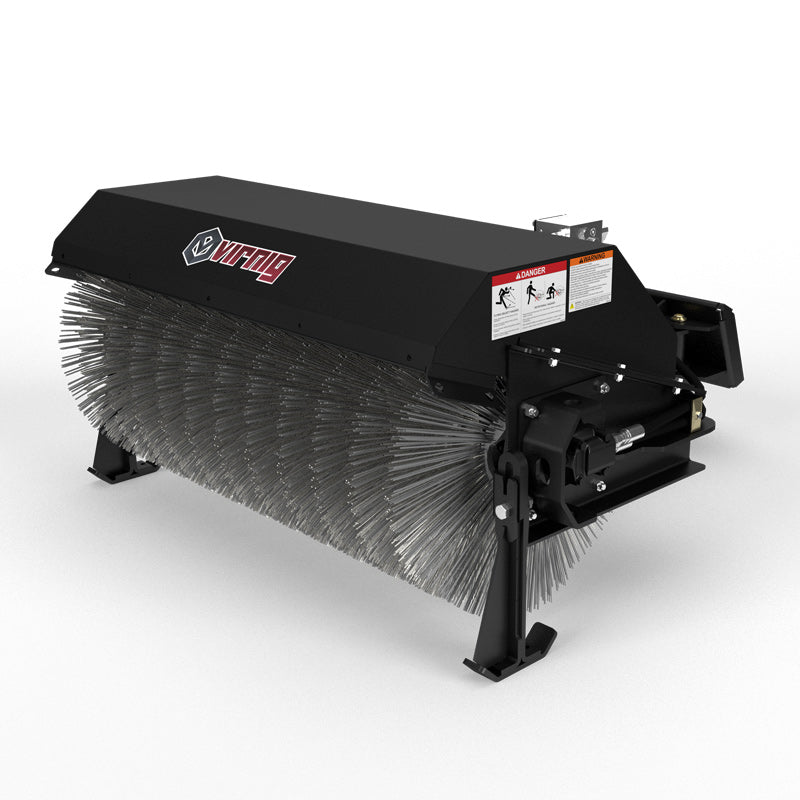

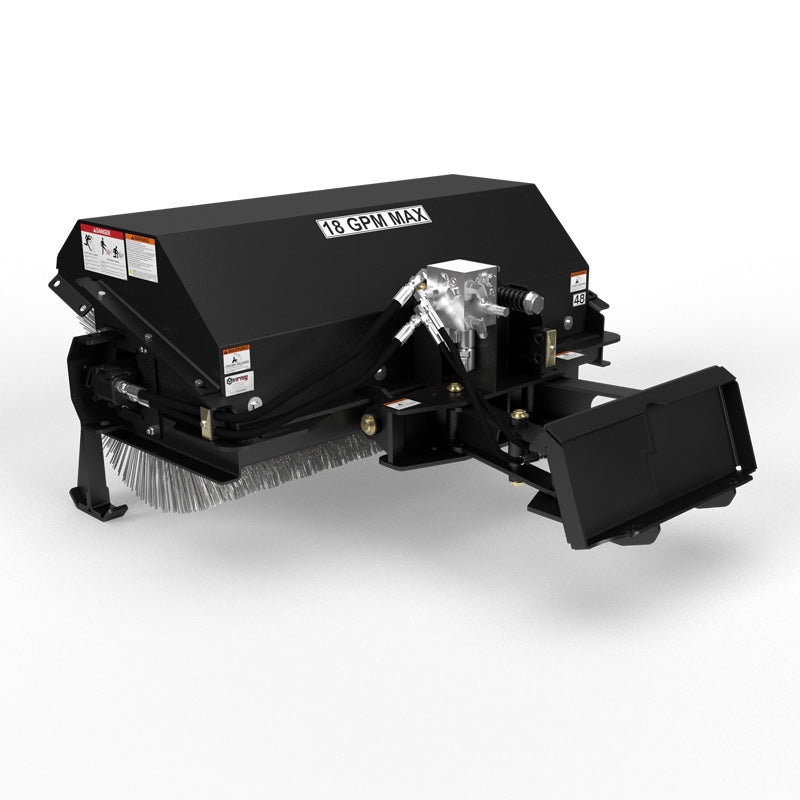

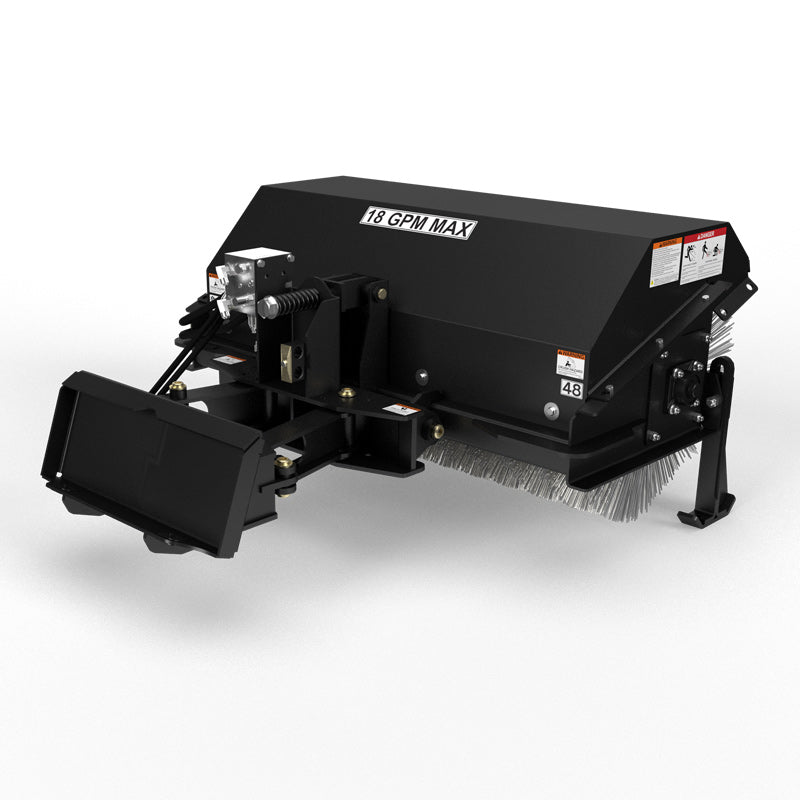

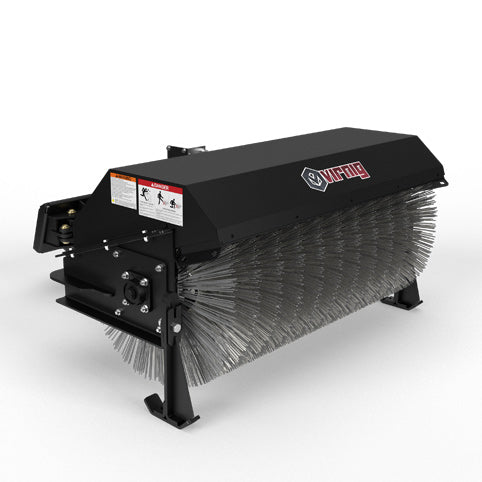

Virnig V20 Mini Skid Steer Angle Broom

SKU: CAB48 Currently In Stock

Sale price$6,600.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

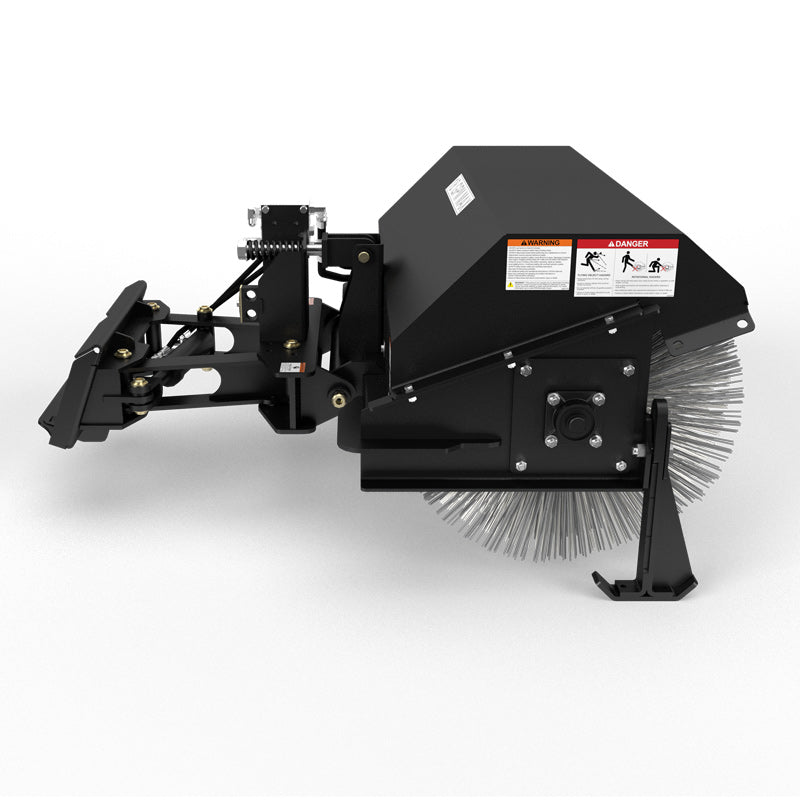

SELF-CENTERING LINKAGE

THE SWING LINKAGE SELF-CENTERS THE BROOM AS IT ANGLES FOR CONSISTENT SWEEPING CONTROL.

GUARDED DRIVE

A RECESSED MOTOR AND PROTECTIVE GUARD HELP SHIELD THE DRIVE FROM JOBSITE CONTACT.

GREASEABLE BEARING

A GREASEABLE 1¼″ BEARING SUPPORTS THE MINI BROOM AND PROVIDES A SERVICE POINT.

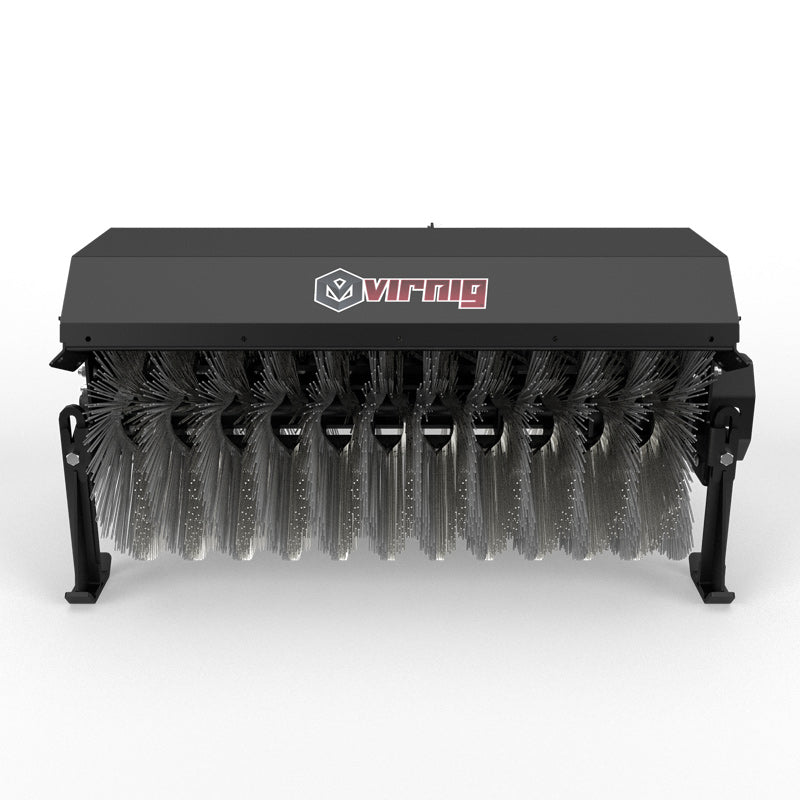

SERVICEABLE BRISTLES

REPLACE WAFERS EASILY WITHOUT DISCONNECTING HOSES. STANDARD WITH POLY/WIRE WAFERS.

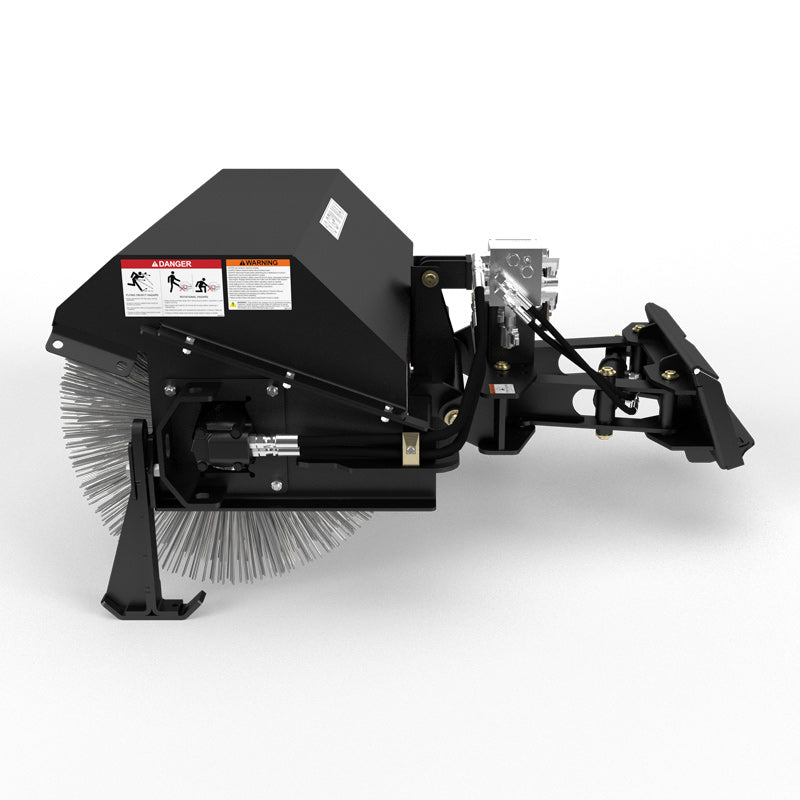

BRISTLE STORAGE SUPPORT

FLIP-DOWN STANDS KEEP THE BRISTLES OFF THE GROUND WHILE THE BROOM IS STORED.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Angle Broom sweeps loose material to the side with a brush arrangement sized for mini loaders. Its self-centering swing linkage follows the angled broom position, helping the operator move debris off the travel path while working in areas that suit the smaller carrier.

A recessed, guarded motor drives the brush, and a heavy-duty 1¼″ greasable bearing supports the rotating assembly. Poly/wire wafers are standard. The wafers can be replaced without disconnecting the hydraulic hoses, allowing the working bristles to be serviced without disturbing those connections.

Flip-down stands keep the bristles protected while the broom is stored. Choose the width and mini-loader mount around your machine and the area being maintained, then confirm the hydraulic requirements. This V20 angle broom moves material to the side rather than collecting it in a bucket, so plan where the swept debris will be left or gathered afterward.

KEY BENEFITS

  • Swing linkage system self-centers broom when angled.
  • Recessed and guarded motor.
  • Heavy-duty 1.25″ greasable bearing.
  • Replace wafers easily without disconnecting hoses. Standard with poly/wire wafers.
  • Stands flip down to protect bristles during storage.

TECHNICAL SPECIFICATIONS

  • Models: CAB48 CAB60
  • Sweeping Width, Straight (in.): CAB48: 48.0; CAB60: 60.0
  • Sweeping Width, Full Angle (in.): CAB48: 42.8; CAB60: 53.5
  • Loader Track Width Coverage, Full Angle (in.): CAB48: 38.0; CAB60: 48.0
  • Overall Width (in.): CAB48: 54.3; CAB60: 66.3
  • Overall Width, Full Angle (in.): CAB48: 58.5; CAB60: 68.5
  • Overall Height/Depth, Straight (in.): 27.7 / 56.9
  • Max Broom Angle (degrees): 28
  • Number of 26 Inch Diameter Wafers: CAB48: 23; CAB60: 29

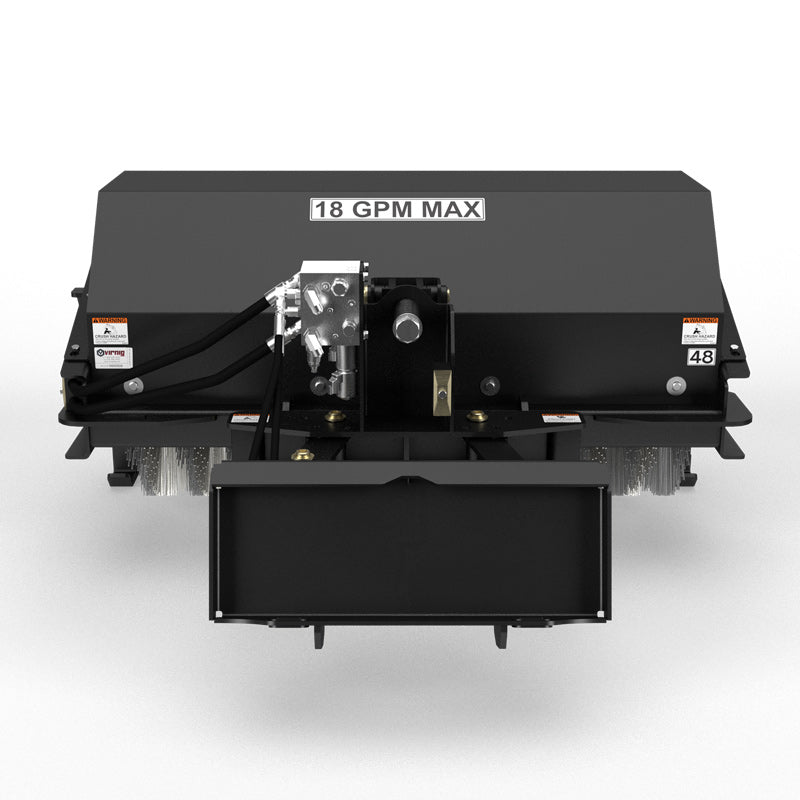

  • Recommended Flow Rate (GPM): 10-18 Standard Flow Only
  • Approximate Weight (lbs): CAB48: 495¹; CAB60: 530¹
  • Recommended Loader Capacity: Greater than 500 lbs
  • ¹ASV® mount adds approximately 30 lbs and Bobcat® mount adds 25 lbs to model weight.
  • Base manual adjustment is included. Hydraulic angle or rotation upgrades and required electrical controls are available by quote and are not included.

APPLICATIONS

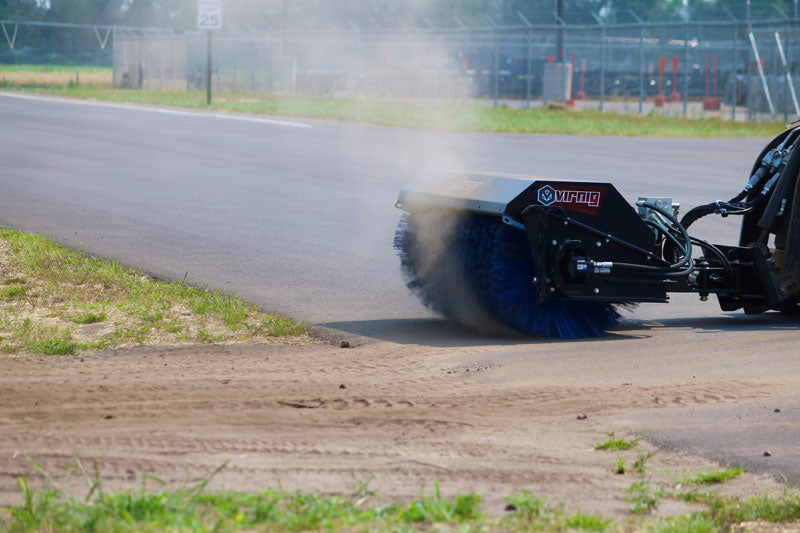

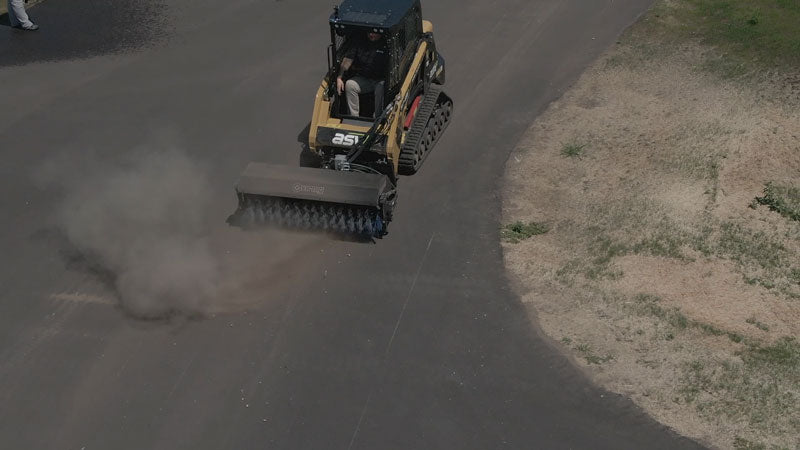

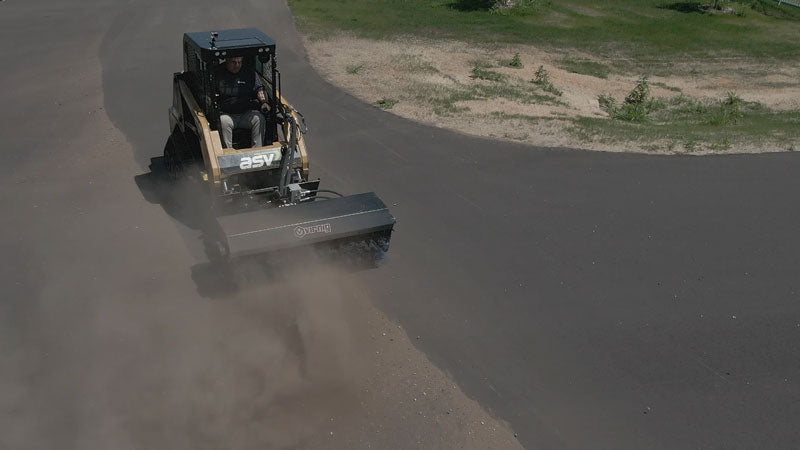

  • Roadside sweeping
  • Paved site cleanup
  • Light snow sweeping

VIRNIG V20 MINI SKID STEER ANGLE BROOM

WORKING DESIGN

  • Swing linkage system self-centers broom when angled.
  • Recessed and guarded motor.
  • Heavy-duty 1.25″ greasable bearing.
  • Replace wafers easily without disconnecting hoses. Standard with poly/wire wafers.
  • Stands flip down to protect bristles during storage.

CONFIGURATION AND SPECIFICATIONS

  • Models: CAB48 CAB60
  • Sweeping Width, Straight (in.): CAB48: 48.0; CAB60: 60.0
  • Sweeping Width, Full Angle (in.): CAB48: 42.8; CAB60: 53.5
  • Loader Track Width Coverage, Full Angle (in.): CAB48: 38.0; CAB60: 48.0
  • Overall Width (in.): CAB48: 54.3; CAB60: 66.3
  • Overall Width, Full Angle (in.): CAB48: 58.5; CAB60: 68.5
  • Overall Height/Depth, Straight (in.): 27.7 / 56.9
  • Max Broom Angle (degrees): 28
  • Number of 26 Inch Diameter Wafers: CAB48: 23; CAB60: 29

READY FOR THE FIELD

  • Swing linkage system self-centers broom when angled.
  • Recessed and guarded motor.
  • Heavy-duty 1.25″ greasable bearing.
  • Replace wafers easily without disconnecting hoses. Standard with poly/wire wafers.
  • Stands flip down to protect bristles during storage.
