VIRNIG

V20 Mini Skid Steer Closed Front Brush Cutter

For Mini Skid Steers

V20 Mini Skid Steer Closed Front Rotary Brush Cutter

Virnig

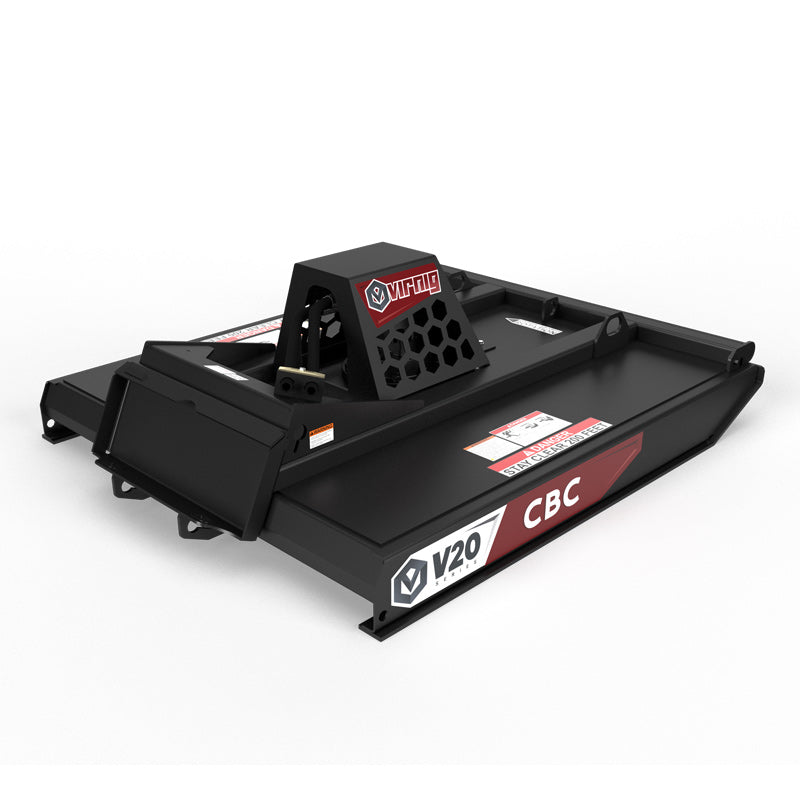

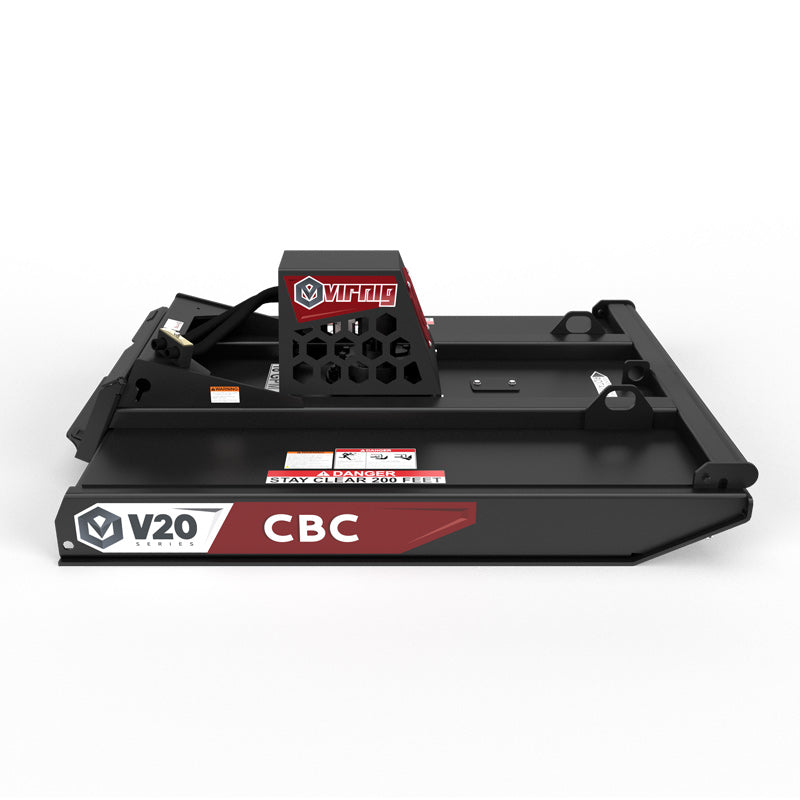

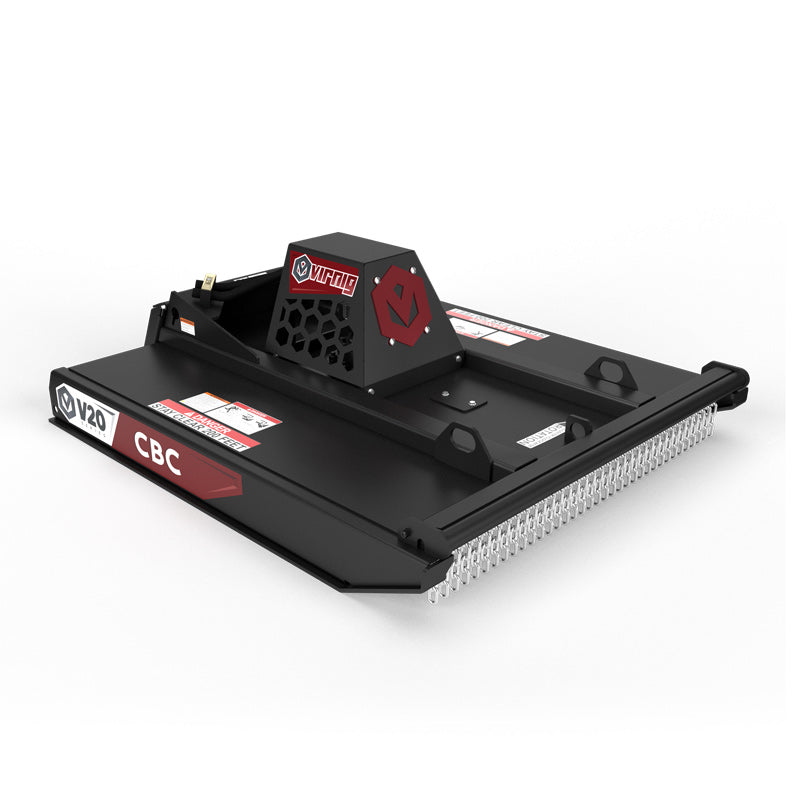

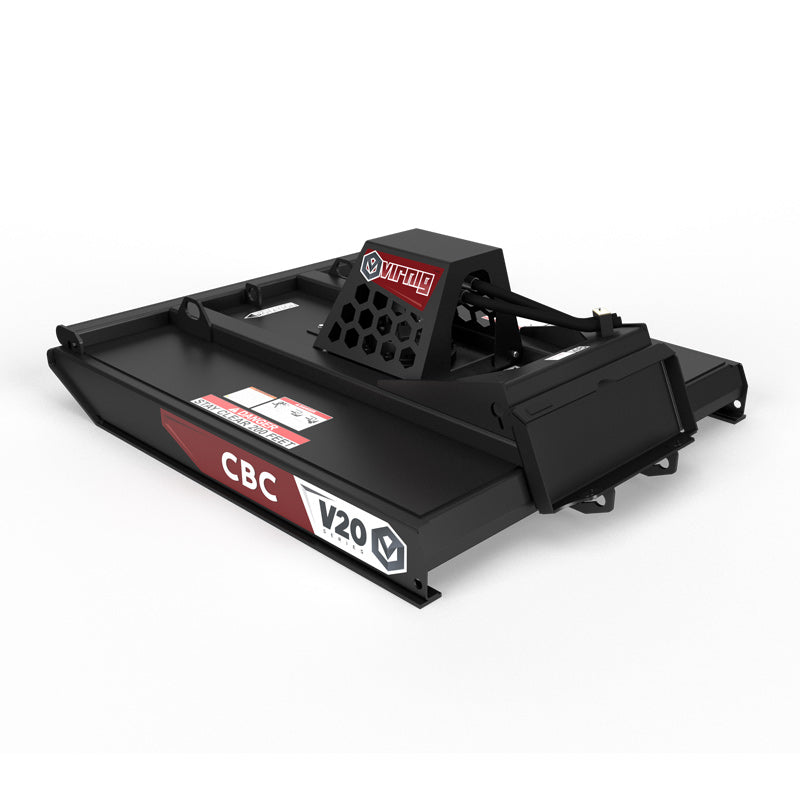

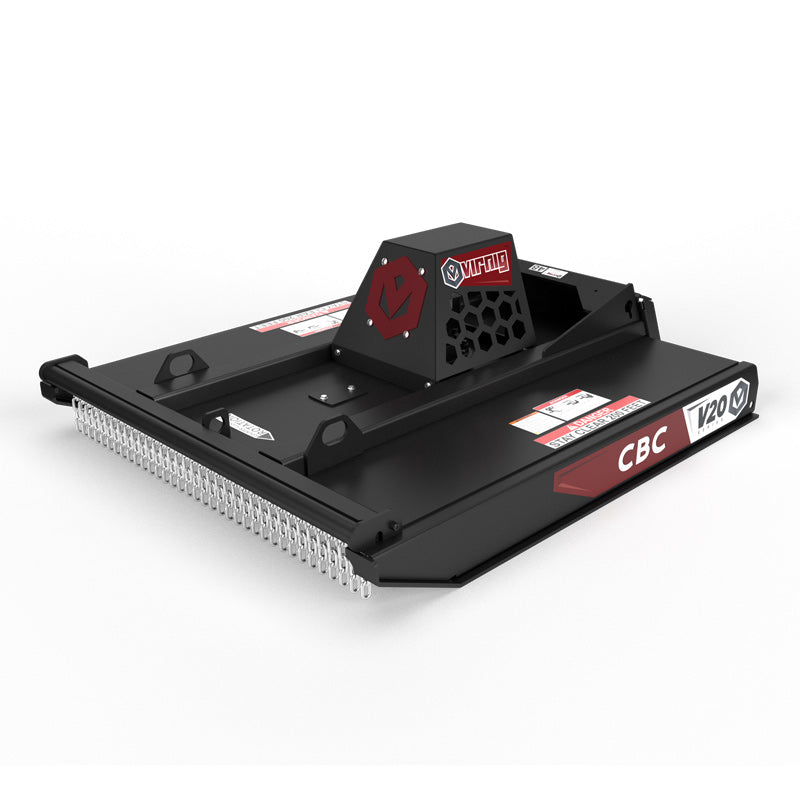

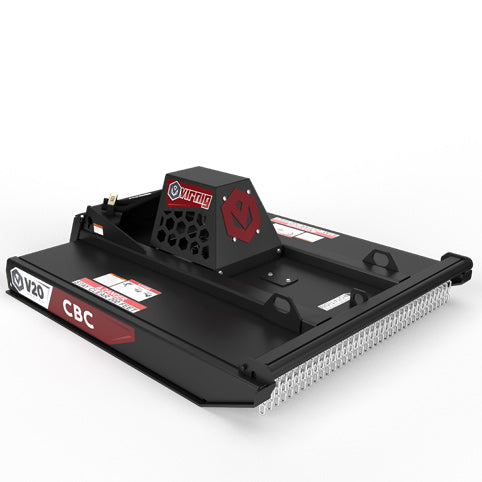

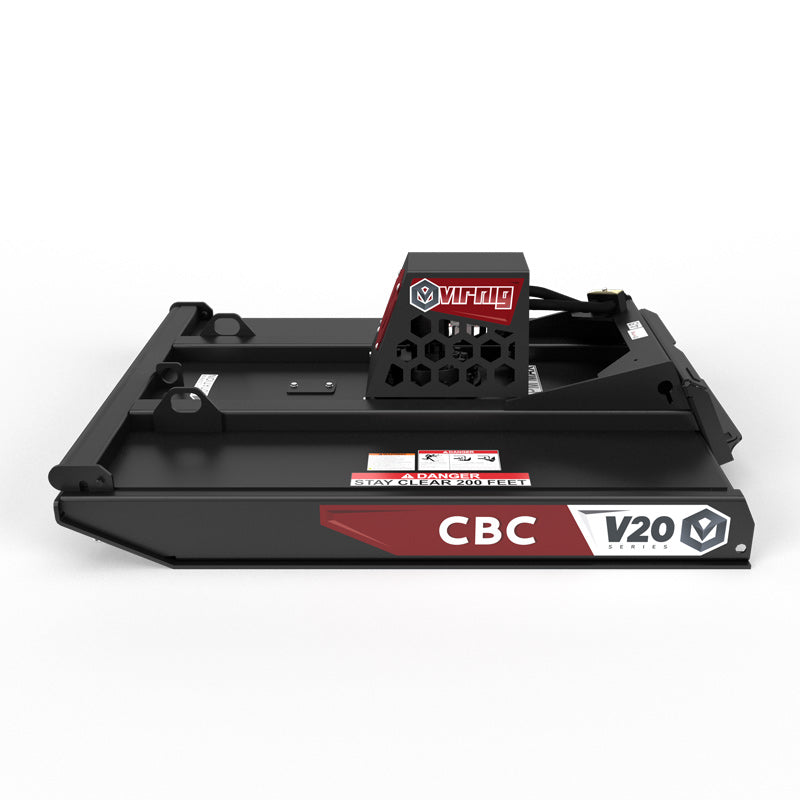

Virnig V20 Mini Skid Steer Closed Front Brush Cutter

SKU: CBC42-18 Currently In Stock

Sale price$7,570.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

DIRECT HYDRAULIC DRIVE

A DIRECT-DRIVE EATON® MOTOR TURNS THE CUTTER, WITH RELIEF VALVES FOR HYDRAULIC PROTECTION.

HYDRAULIC BRAKING

HYDRAULIC BRAKING STOPS THE FLYWHEEL IN LESS THAN 10 SECONDS AFTER FLOW IS SHUT OFF.

DRIVE PROTECTION

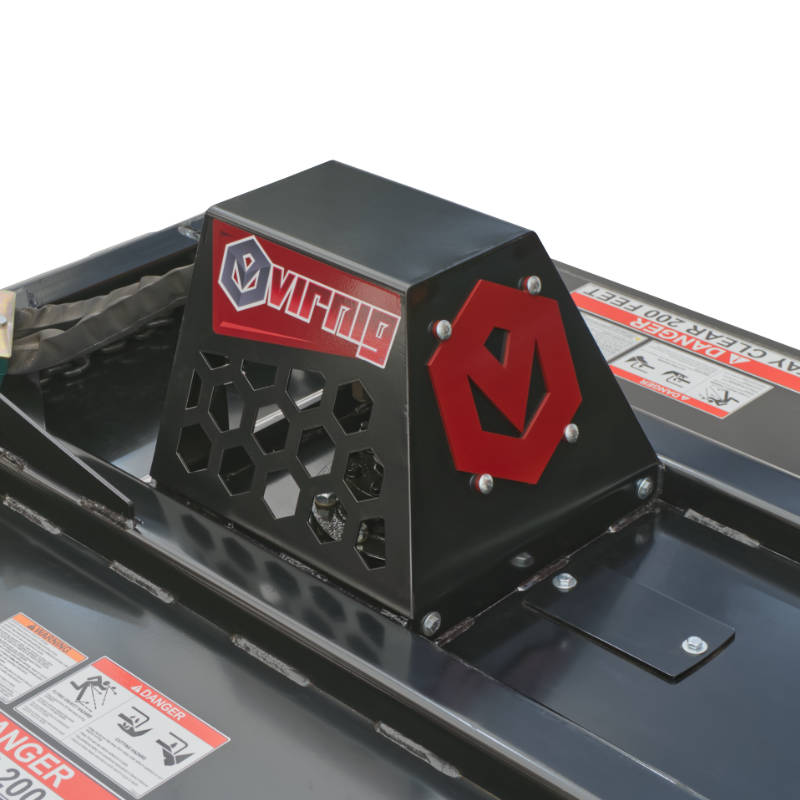

STANDARD MOTOR AND SPINDLE GUARDS SHIELD KEY DRIVE COMPONENTS DURING CLEARING.

ROUNDED FLYWHEEL

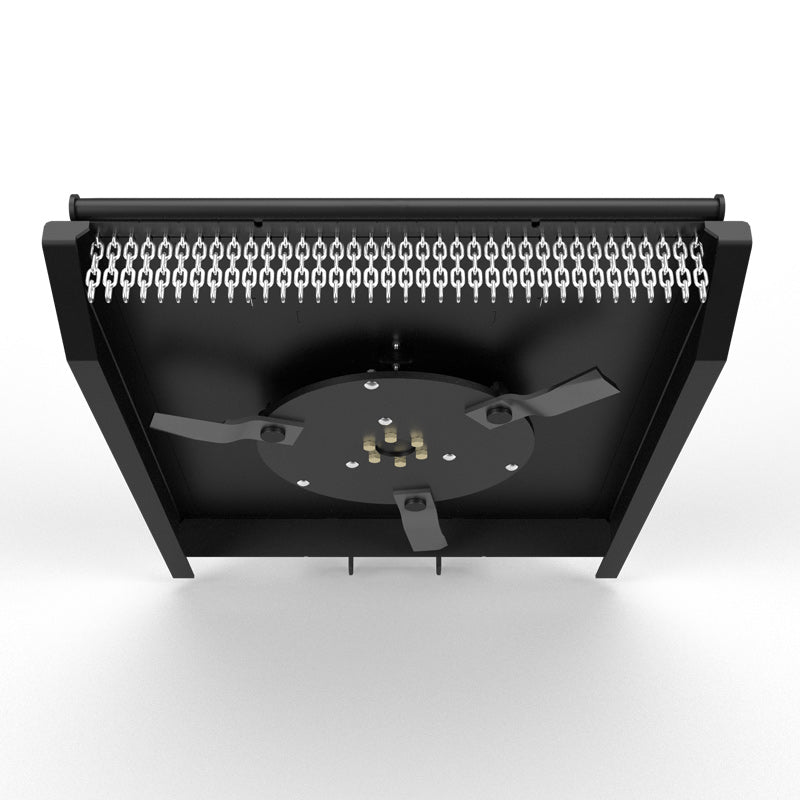

A ROUND FLYWHEEL CARRIES THREE UPDRAFT BLADES AND HELPS GLANCE OFF STUMPS.

BRUSH CLEARING

VIRNIG V20 MINI SKID STEER CLOSED FRONT BRUSH CUTTER CUTS BRUSH AND SMALL TREES FOR VEGETATION MANAGEMENT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

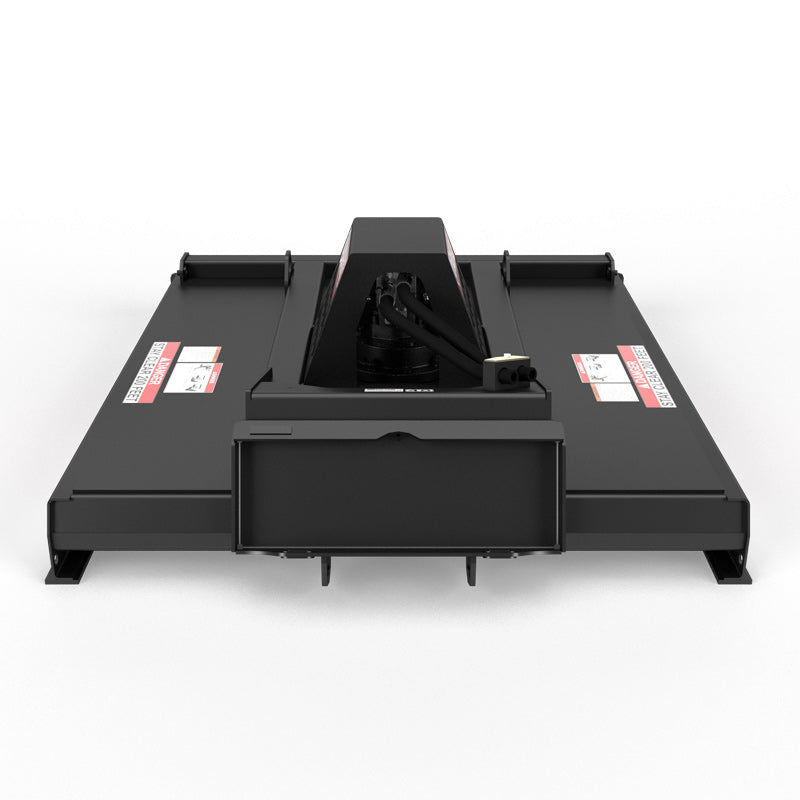

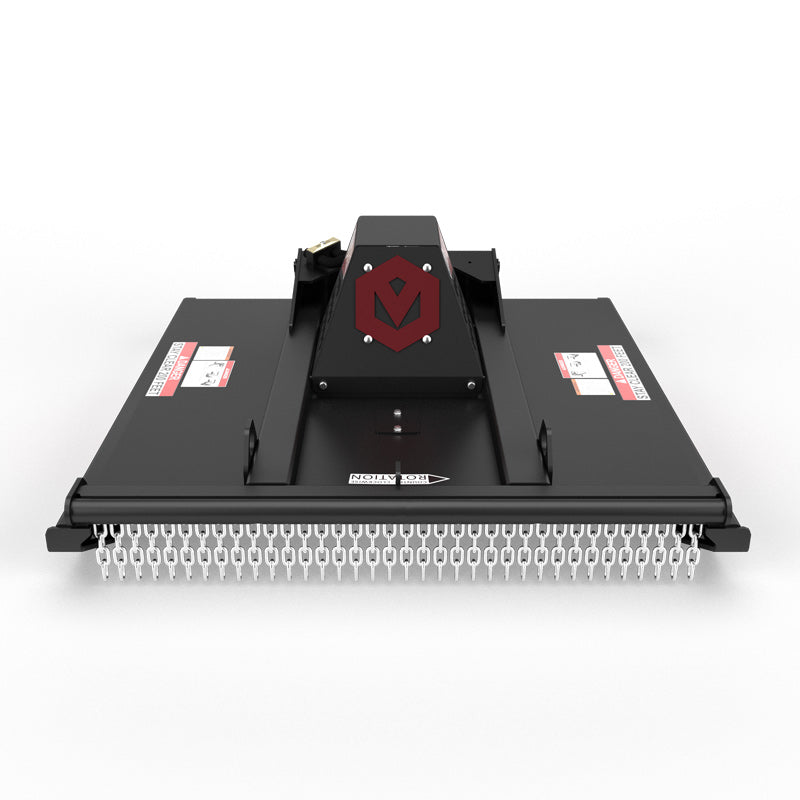

The Virnig V20 Mini Skid Steer Closed Front Brush Cutter brings vegetation maintenance to a compatible mini loader with 42″ or 48″ cutting widths. Its closed-front deck keeps material within the mowing area, where three updraft blades process grass, brush, and small trees up to 3″ in diameter.

A direct-drive Eaton® motor includes relief valve protection, with motor and spindle guards supplied as standard. The circular flywheel carries the three-blade cutting system, and hydraulic braking stops the flywheel in less than 10 seconds after shutdown. This arrangement provides a compact dedicated cutter rather than adapting a full-size skid steer deck to the mini carrier.

Match the 11-18 GPM hydraulic requirement and selected attachment weight to the machine, including any weight change from the chosen mount. Use the required personal protective equipment and operating clearances. If operating from a cab enclosure, use a shatterproof cab; the deck and guards do not replace the specified operator protection.

KEY BENEFITS

  • Direct drive Eaton® motor with relief valves.
  • Hydraulic braking stops flywheel in less than 10 seconds.
  • Standard motor guard and spindle guard.
  • Circular flywheel with 3 updraft blades bounces off stumps.
  • Virnig v20 mini skid steer closed front brush cutter cuts brush and small trees for vegetation management.

TECHNICAL SPECIFICATIONS

  • Models: CBC42 CBC48
  • Cut Width (in.): CBC42: 42.0; CBC48: 48.0
  • Overall Width (in.): CBC42: 47.0; CBC48: 53.0
  • Overall Height (in.): 20.5
  • Overall Depth (in.): CBC42: 58.0; CBC48: 64.0
  • Deck Height (in.): 6.5
  • Minimum Cut Height (in.): 2.0
  • Cutting Capacity, Diameter (in.): 3.0
  • Deck Thickness: Top / Side (in.): 0.19 / 0.19¹
  • Recommended Flow Rate (GPM): 11 - 18
  • Approximate Weight with Mini Universal Mount (lbs): CBC42: 620²; CBC48: 720²,³
  • Recommended Loader Capacity: Greater than 590 lbs
  • ¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength). ²Bobcat® mount adds 35 lbs to model weight, and ³ASV® mount adds approximately 40 lbs.

APPLICATIONS

  • Brush clearing
  • Property maintenance
  • Vegetation control

VIRNIG V20 MINI SKID STEER CLOSED FRONT BRUSH CUTTER

WORKING DESIGN

  • Direct drive Eaton® motor with relief valves.
  • Hydraulic braking stops flywheel in less than 10 seconds.
  • Standard motor guard and spindle guard.
  • Circular flywheel with 3 updraft blades bounces off stumps.

CONFIGURATION AND SPECIFICATIONS

  • Models: CBC42 CBC48
  • Cut Width (in.): CBC42: 42.0; CBC48: 48.0
  • Overall Width (in.): CBC42: 47.0; CBC48: 53.0
  • Overall Height (in.): 20.5
  • Overall Depth (in.): CBC42: 58.0; CBC48: 64.0
  • Deck Height (in.): 6.5
  • Minimum Cut Height (in.): 2.0
  • Cutting Capacity, Diameter (in.): 3.0
  • Deck Thickness: Top / Side (in.): 0.19 / 0.19¹

READY FOR THE FIELD

  • Direct drive Eaton® motor with relief valves.
  • Hydraulic braking stops flywheel in less than 10 seconds.
  • Standard motor guard and spindle guard.
  • Circular flywheel with 3 updraft blades bounces off stumps.
  • Virnig v20 mini skid steer closed front brush cutter cuts brush and small trees for vegetation management.
