VIRNIG

V20 Mini Skid Steer Digging Tree Puller

For Mini Skid Steers

V20 Mini Skid Steer Digging Tree Puller

Request QuoteAdd To Cart

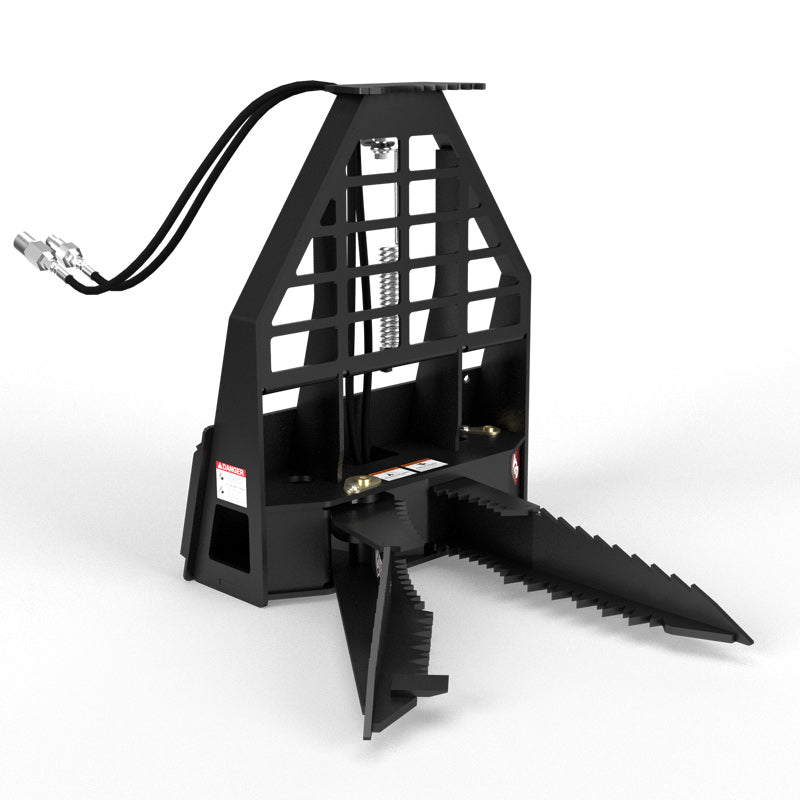

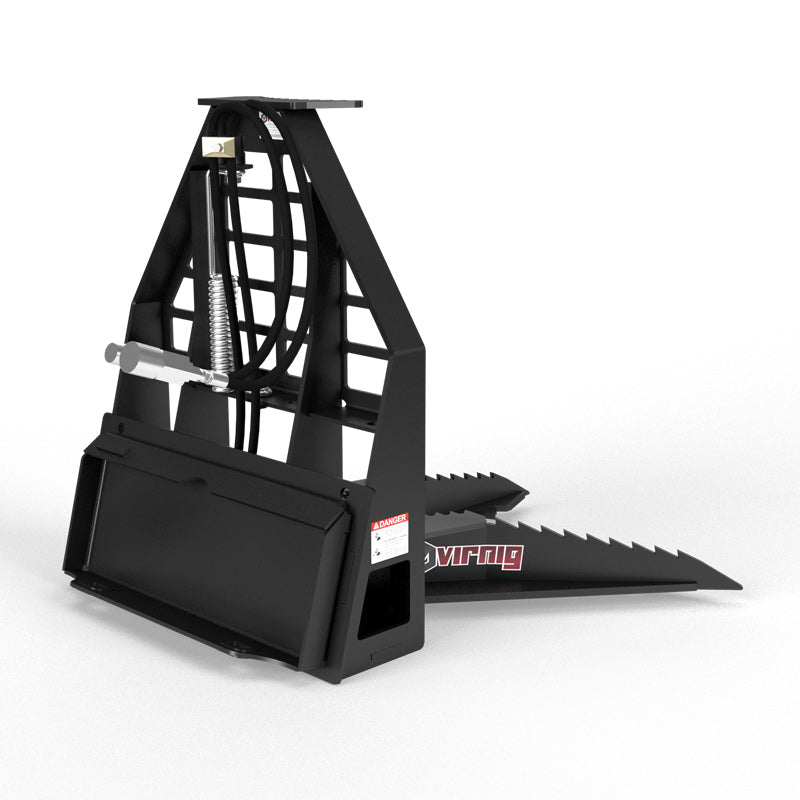

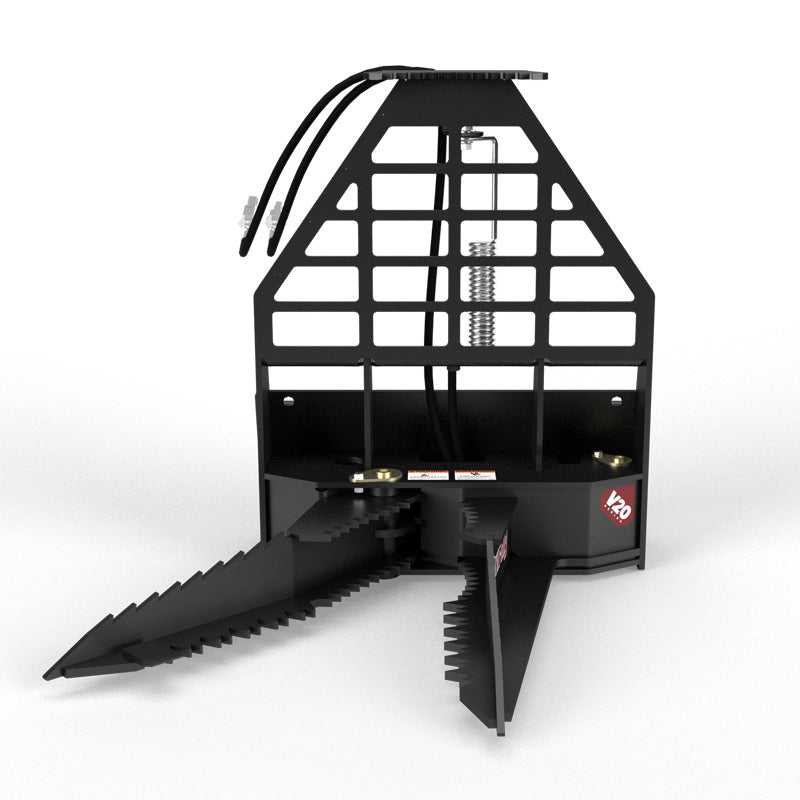

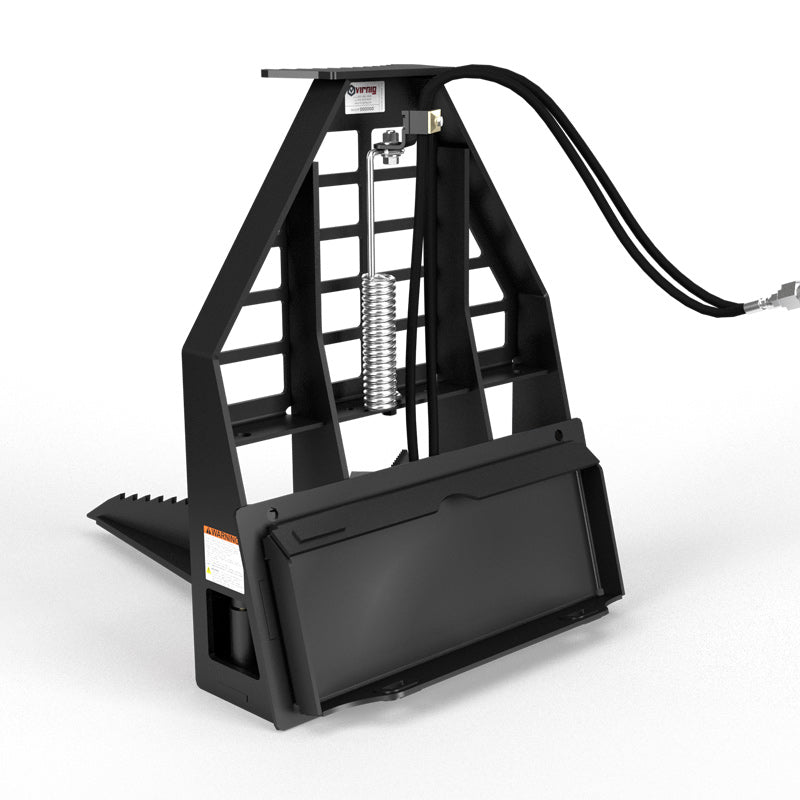

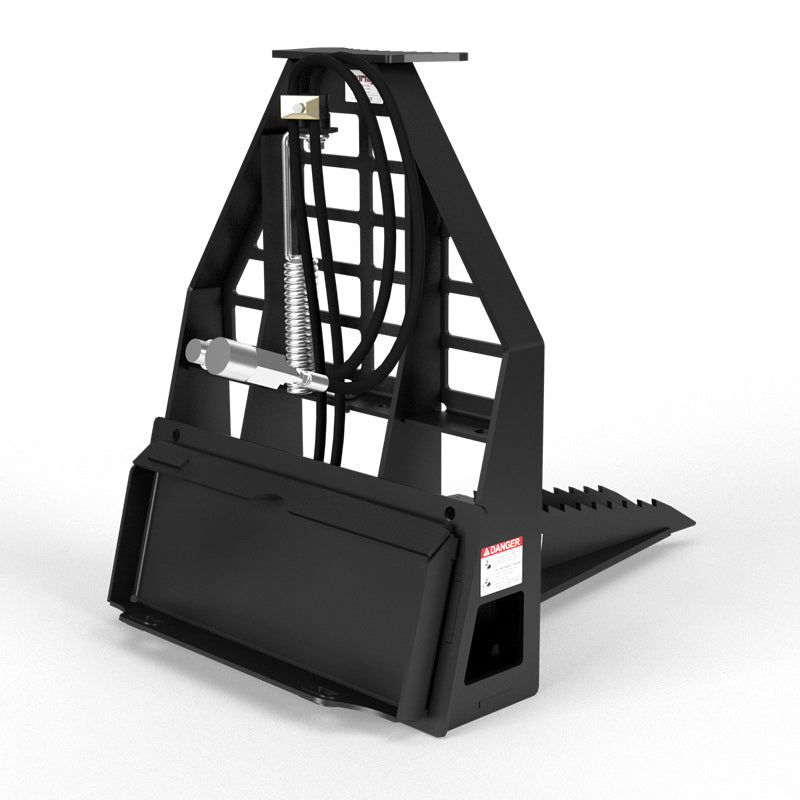

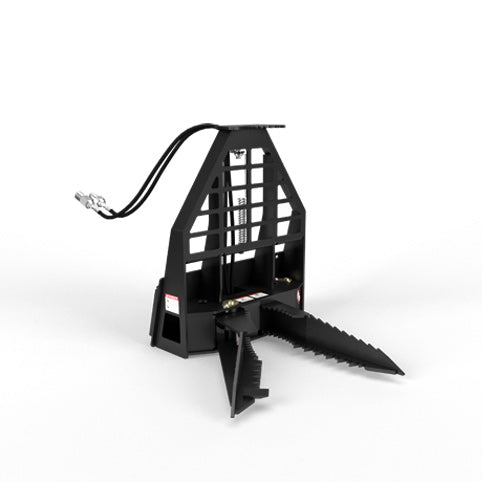

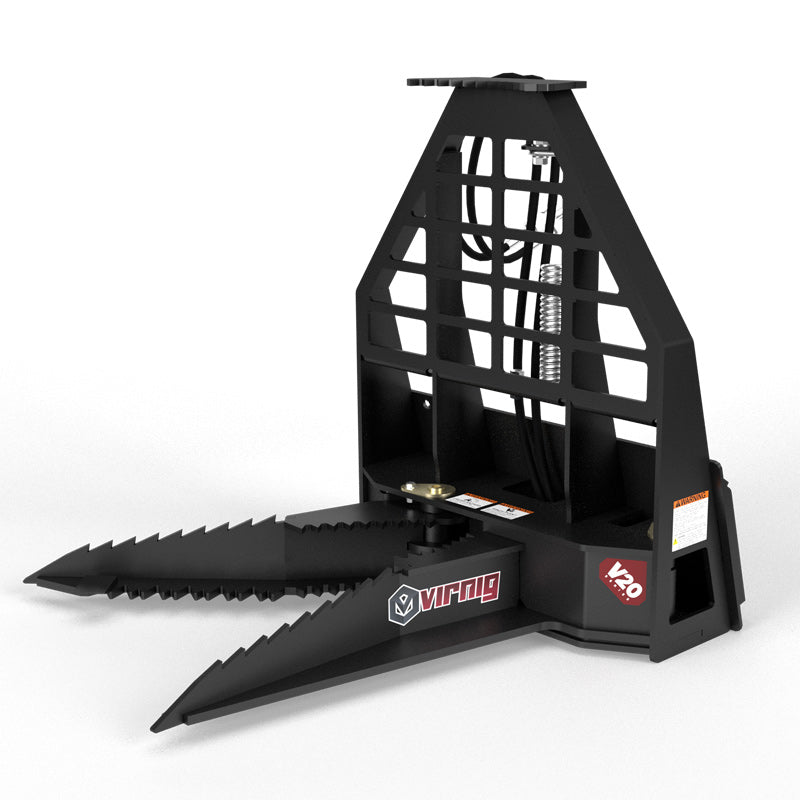

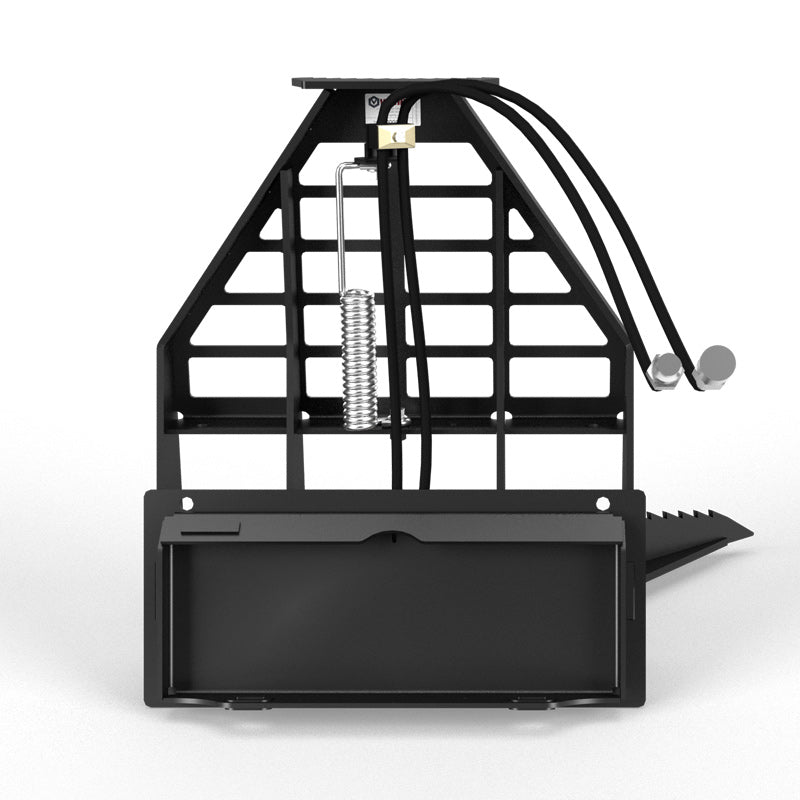

Virnig V20 Mini Skid Steer Digging Tree Puller

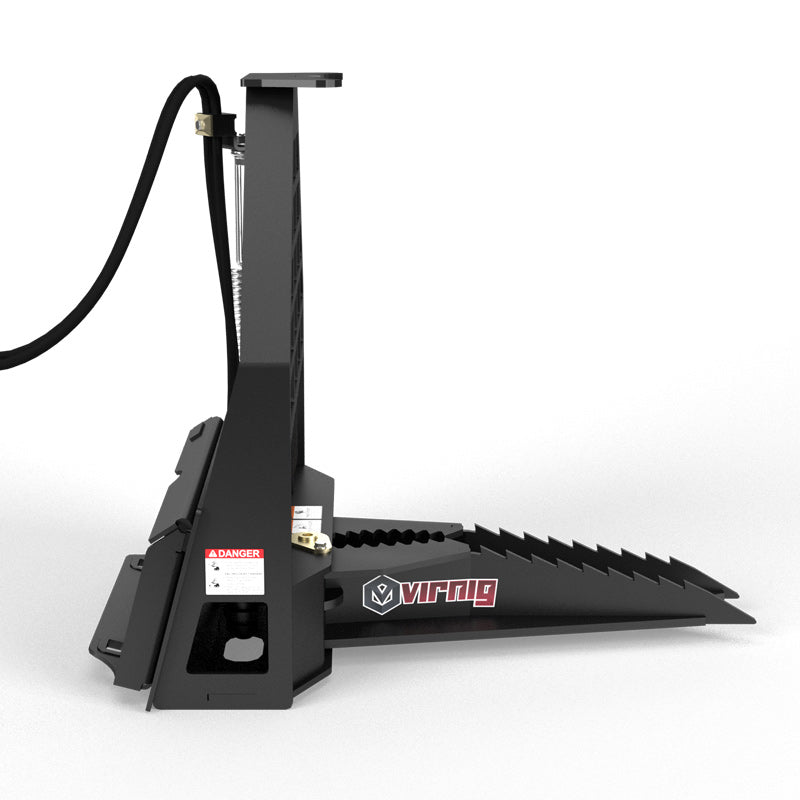

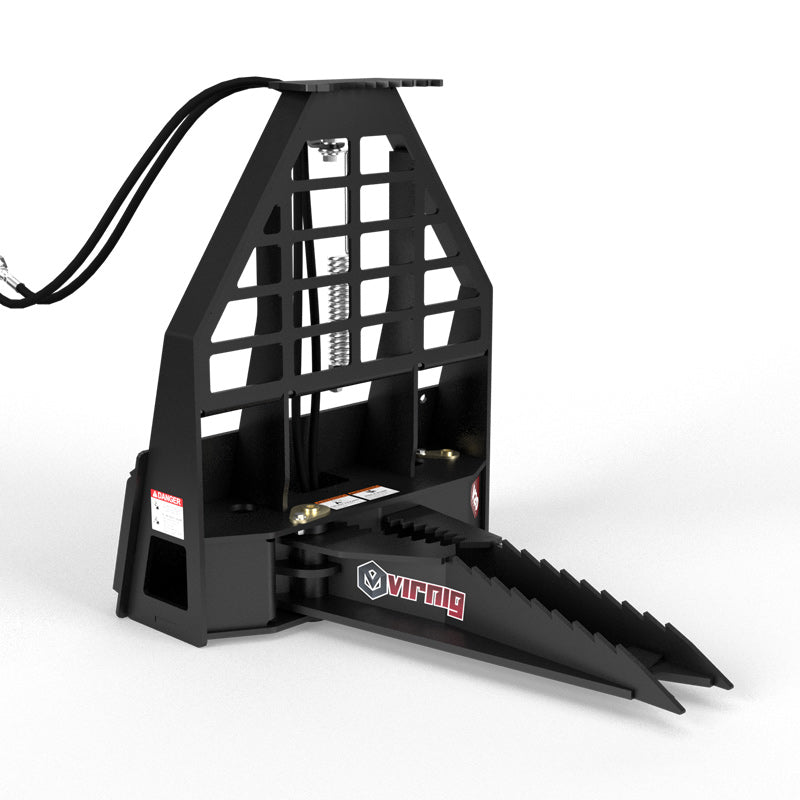

Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Digging Tree Puller; manufacturer family image, configuration may differ
Virnig

Virnig V20 Mini Skid Steer Digging Tree Puller

SKU: CTP Currently In Stock

$2,235.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

FIXED JAW

THE FIXED JAW HELPS CENTER THE TREE OR POST AS THE LOADER APPROACHES.

TAPERED SERRATED JAWS

1/2″ THICK SERRATED JAWS WITH SHARP AND TAPERED DESIGN FOR AGGRESSIVE CUTTING AND DIGGING.

ANGLED PROTECTIVE GUARD

1/4″ THICK GUARD WITH ANGLED CORNERS TO SHED FALLING TREES AWAY FROM LOADER AND OPERATOR.

TREE STABILIZING SERRATIONS

SERRATIONS ON GUARD TOP AND JAW BASE MAXIMIZE PULLING FORCE AND PROVIDE STABILITY FOR PULLING TREES.

PROTECTED SERVICEABLE CYLINDER

THE CYLINDER SITS INSIDE THE FRAME, WITH SIDE OPENINGS FOR SERVICE AND DIRT CLEANOUT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Digging Tree Puller combines soil engagement and hydraulic gripping for trees, stumps, and rocks. Its fixed jaw helps center the object during approach, while sharp, tapered ½″ serrated jaws work into the ground and around roots before the material is pulled.

Serrations at the guard top and jaw base help stabilize the object during the pulling operation. A ¼″ guard uses angled corners to help direct falling material away from the loader and operator. The cylinder is protected inside the frame, with side openings for access and dirt cleanout after digging work.

Optimized hose routing helps protect the hydraulic lines from contact damage around the attachment. Select the mounting interface for the mini skid steer and match the removal task to its actual capacity and stability. This is the compact V20 configuration, with its own jaw and guard construction rather than the heavier specifications of the full-size Digging Tree Puller.

KEY BENEFITS

  • Fixed jaw provides max strength and helps center objects while approaching.
  • 1/2″ thick serrated jaws with sharp and tapered design for aggressive cutting and digging.
  • 1/4″ thick guard with angled corners to shed falling trees away from loader and operator.
  • Serrations on guard top and jaw base maximize pulling force and provide stability for pulling trees.
  • Cylinder protected inside frame and side openings allow easy access and dirt cleanout.

TECHNICAL SPECIFICATIONS

  • Models: CTP
  • Overall Width (in.): 26.5
  • Overall Height (in.): 32.1
  • Overall Depth (in.): 37.9
  • Guard Height / Width / Thickness (in.): 32.1 / 25.3 / 0.25
  • Max Jaw Opening: Front / Base (in.): 15.3 / 3.0
  • Space Between Front Jaws (in.): 3.9
  • Jaw Thickness: Bottom / Top (in.): 0.5 / 0.38
  • Max Digging Depth (in.): 24.5
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0
  • Cylinder Pins / Pivot Pins (in.): 1.0 / 1.25
  • Approximate Weight (lbs): 250¹
  • Recommended Loader Capacity: Greater than 500 lbs
  • ¹ASV® & Bobcat® mounts add approximately 5 lbs to model weight.

APPLICATIONS

  • Tree removal
  • Root grubbing
  • Stump and rock extraction

VIRNIG V20 MINI SKID STEER DIGGING TREE PULLER

WORKING DESIGN

  • Fixed jaw provides max strength and helps center objects while approaching.
  • 1/2″ thick serrated jaws with sharp and tapered design for aggressive cutting and digging.
  • 1/4″ thick guard with angled corners to shed falling trees away from loader and operator.
  • Serrations on guard top and jaw base maximize pulling force and provide stability for pulling trees.
  • Cylinder protected inside frame and side openings allow easy access and dirt cleanout.

CONFIGURATION AND SPECIFICATIONS

  • Models: CTP
  • Overall Width (in.): 26.5
  • Overall Height (in.): 32.1
  • Overall Depth (in.): 37.9
  • Guard Height / Width / Thickness (in.): 32.1 / 25.3 / 0.25
  • Max Jaw Opening: Front / Base (in.): 15.3 / 3.0
  • Space Between Front Jaws (in.): 3.9

READY FOR THE FIELD

  • Fixed jaw provides max strength and helps center objects while approaching.
  • 1/2″ thick serrated jaws with sharp and tapered design for aggressive cutting and digging.
  • 1/4″ thick guard with angled corners to shed falling trees away from loader and operator.
  • Serrations on guard top and jaw base maximize pulling force and provide stability for pulling trees.
  • Cylinder protected inside frame and side openings allow easy access and dirt cleanout.
