VIRNIG

V20 Mini Skid Steer Multi-Purpose Bucket (4-In-1)

For Mini Skid Steers

36-54″ Widths

Request QuoteAdd To Cart

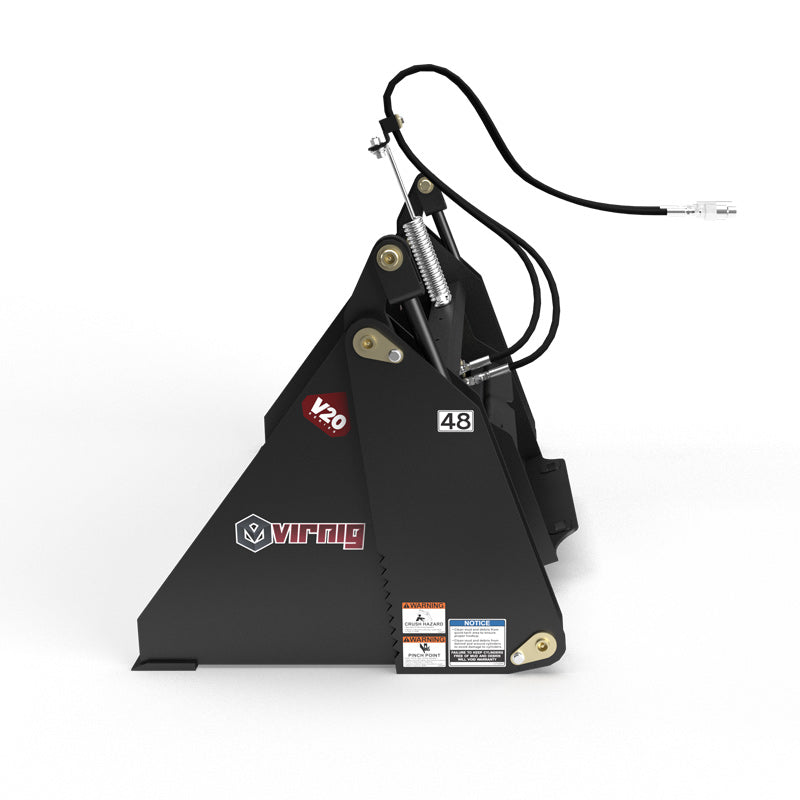

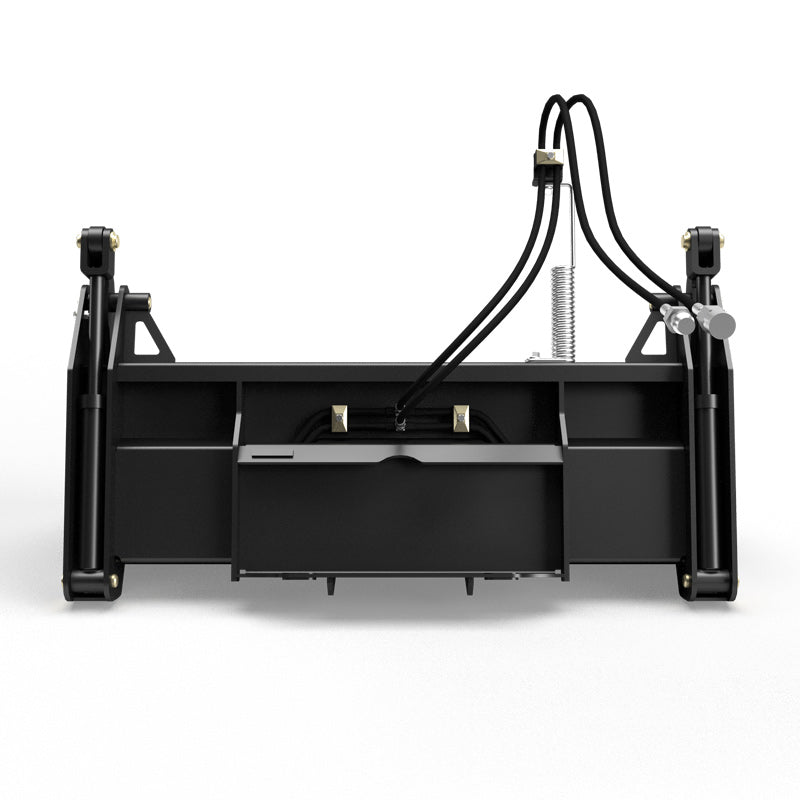

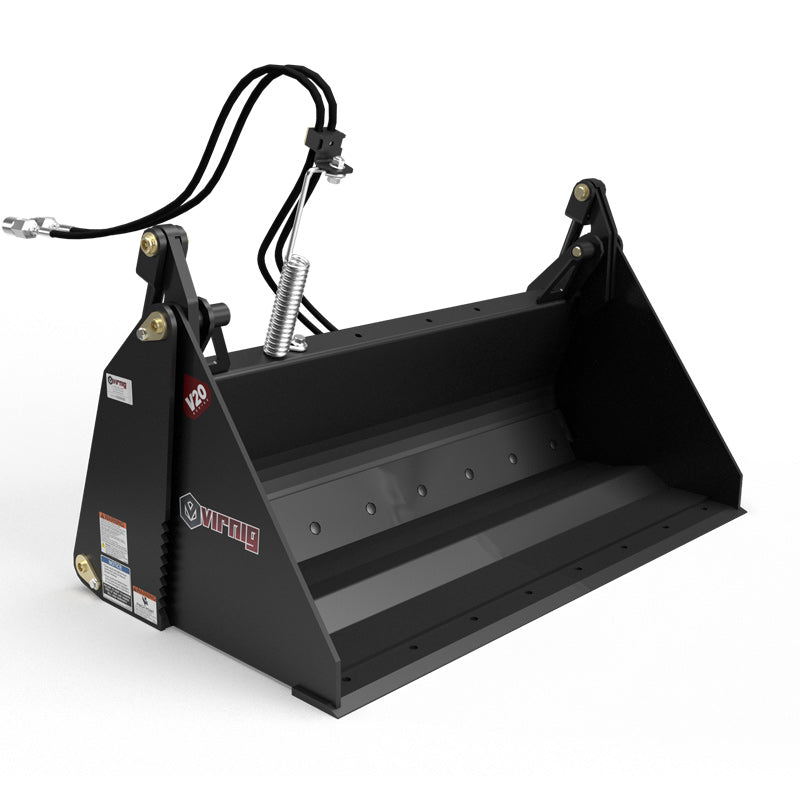

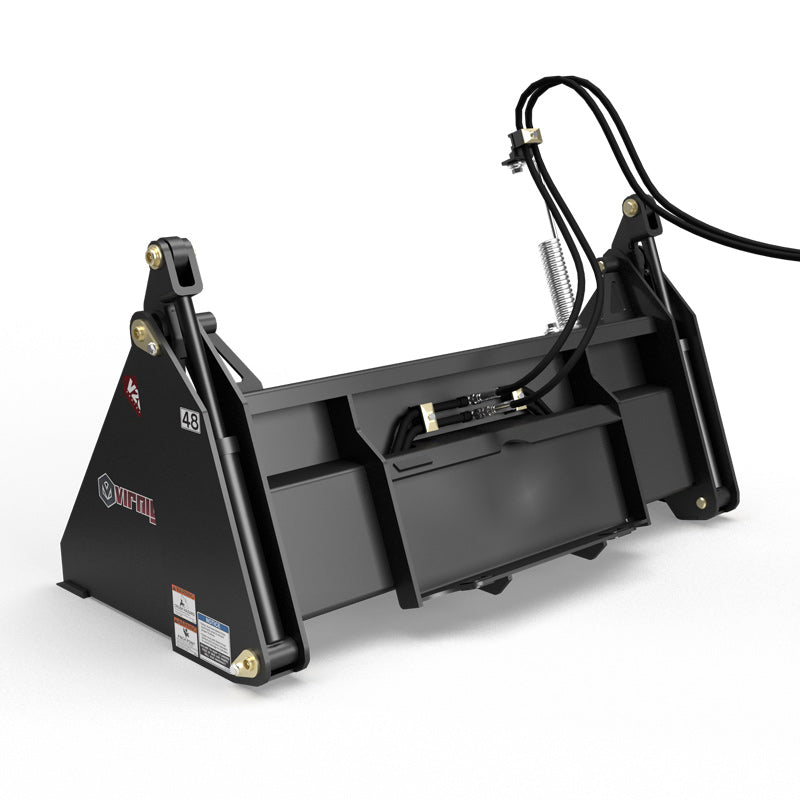

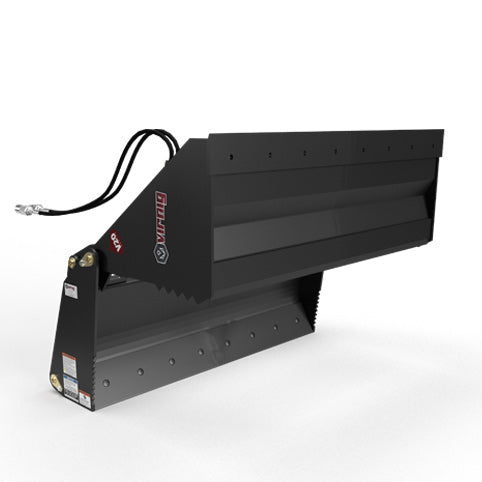

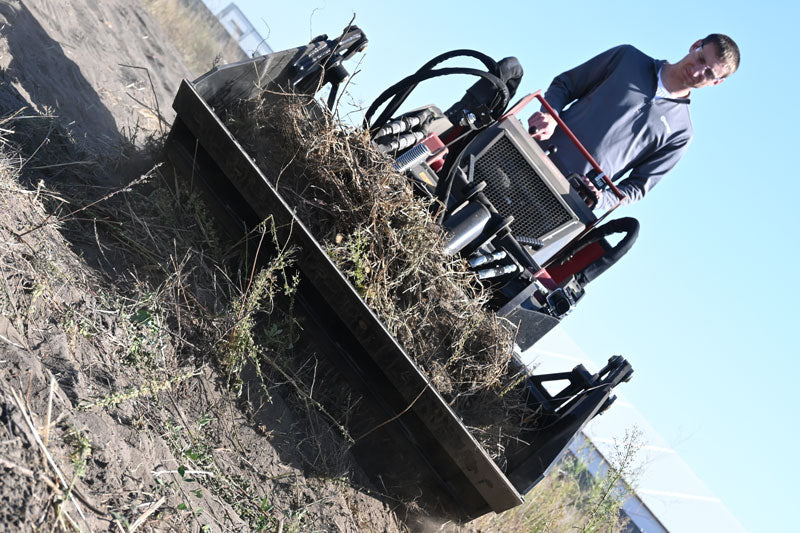

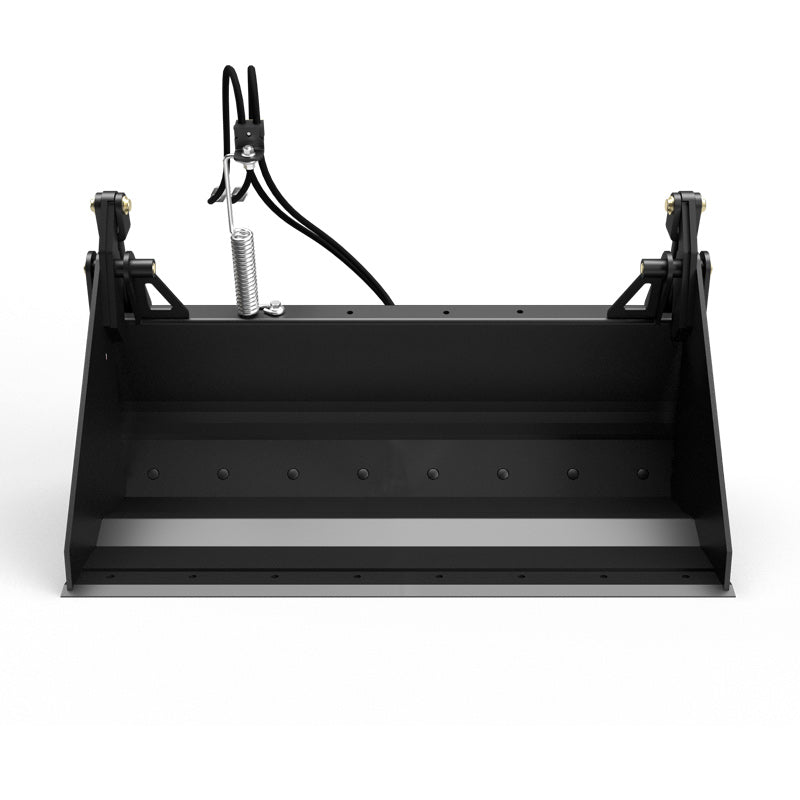

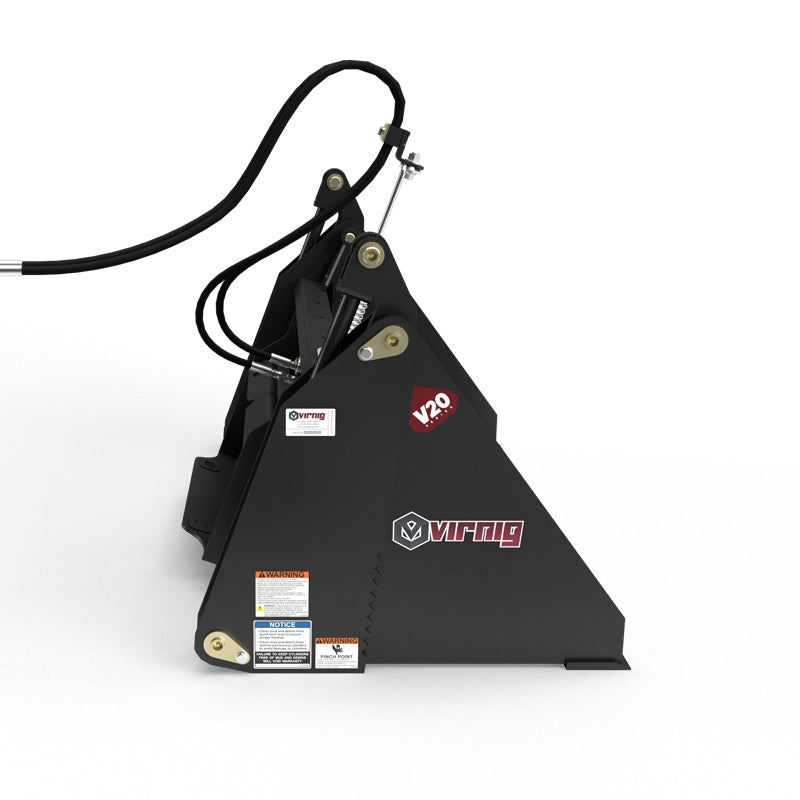

Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1)

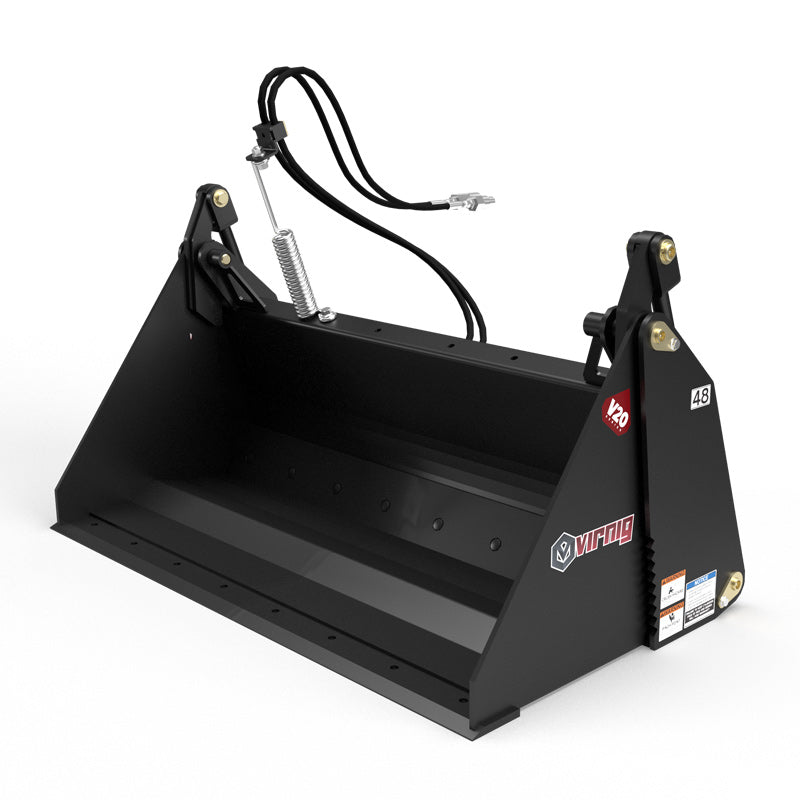

Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ

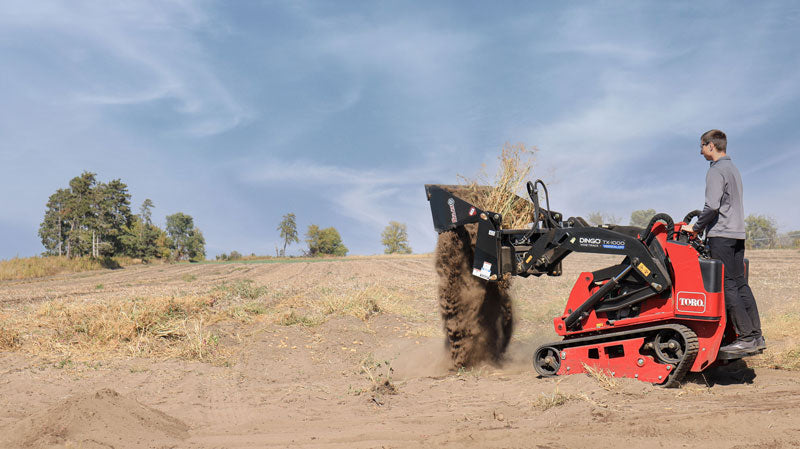

Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ

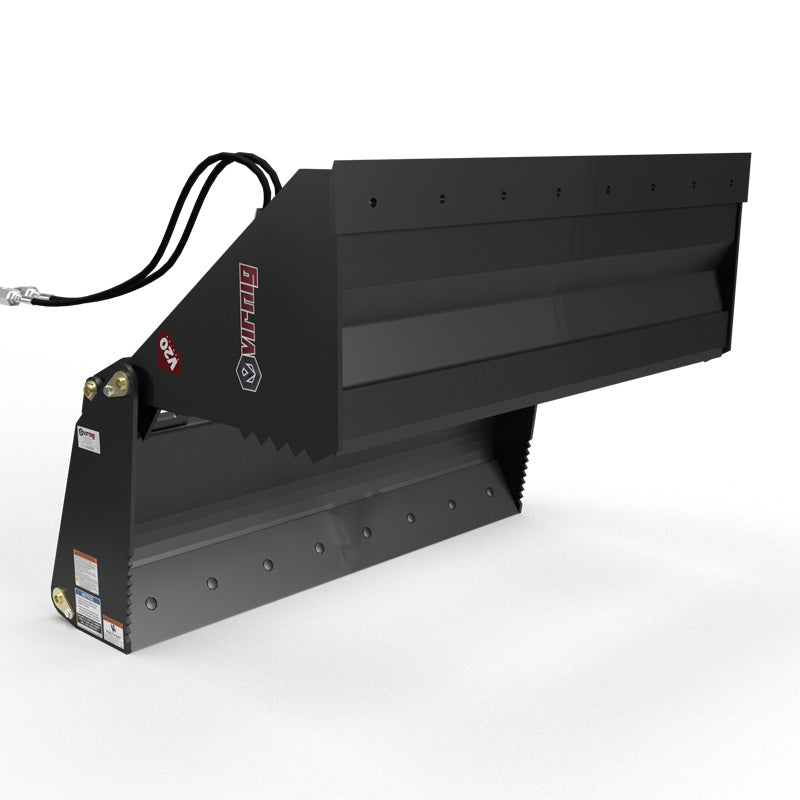

Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ

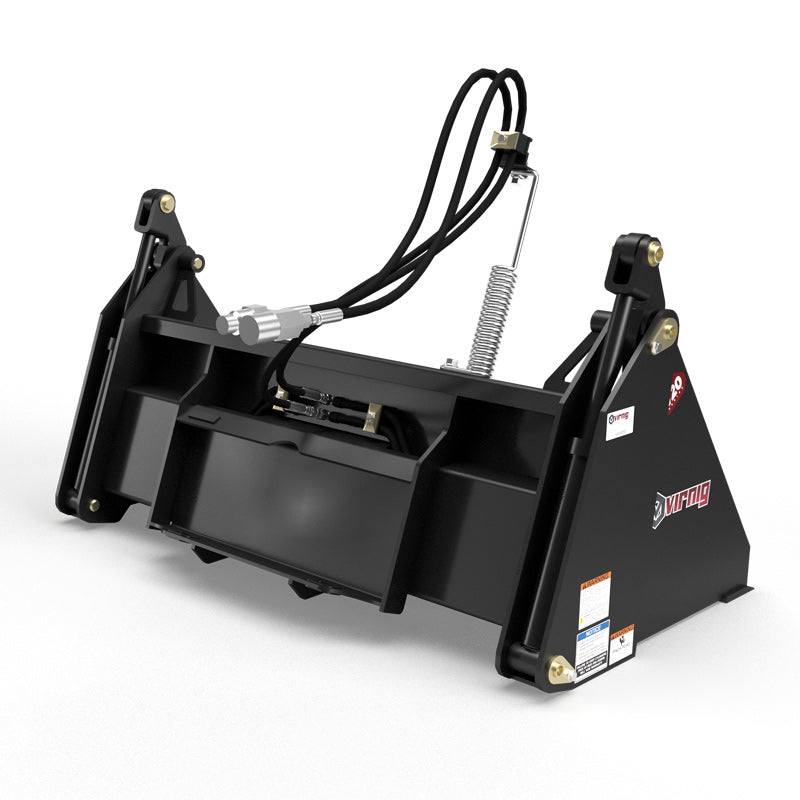

Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig

Virnig V20 Mini Skid Steer Multi-Purpose Bucket (4-in-1)

SKU: CMP36 Currently In Stock

$3,130.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

REPLACEABLE CUTTING EDGE

A ½″ X 6″ BOLT-ON DOZER EDGE PROVIDES A REPLACEABLE SURFACE FOR PUSHING AND LEVELING.

MATERIAL CONTAINMENT

A 3/16″ SHELL AND ⅜″ DOZER SIDE PLATES SUPPORT THE BUCKET'S MULTIPLE WORKING MODES.

WELD-ON CUTTING EDGE

½″ X 4″ WELD-ON EDGES AT THE FRONT AND REAR OF THE CLAM PROVIDE WORKING CONTACT SURFACES.

MATERIAL HANDLING

VIRNIG V20 MINI SKID STEER MULTI-PURPOSE BUCKET (4-IN-1) COMBINES DOZING, CLAMMING, LEVELING, AND BOTTOM DUMPING IN ONE BUCKET.

LOAD CAPACITY OPTIONS

MODEL CAPACITY OPTIONS LET YOU MATCH SCOOPING VOLUME TO THE MINI LOADER'S LIFT LIMIT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Multi-Purpose Bucket combines dozing, clamming, leveling, and bottom dumping in one 4-in-1 attachment. It gives the mini loader several ways to work and place material without changing between a plain bucket and a separate grading tool for each task.

The opening bucket arrangement supports gripping and bottom release, while a ½″ × 6″ dozer bolt-on edge provides a serviceable working surface. The shell is 3⁄16″ thick and the dozer side plates are ⅜″ thick. Half-inch × 4″ weld-on edges are fitted at the bucket front and back of the clam.

Select the width and mounting interface for the mini skid steer, then check the hydraulic connections needed for the opening action. Account for the complete attachment weight and material load when choosing the configuration. The V20's compact construction is specific to this family rather than a scaled description of the full-size V50 or V60 4-in-1 bucket.

KEY BENEFITS

  • 1/2″ x 6″ dozer bolt-on edge.
  • 3/16″ shell and 3/8″ dozer side plates.
  • 1/2″ x 4″ weld-on edge at bucket front and back of clam.
  • Virnig v20 mini skid steer multi-purpose bucket (4-in-1) combines dozing, clamming, leveling, and bottom dumping in one bucket.
  • Capacity: struck / heaped (cu. ft.): 4.9 / 5.9 | 5.8 / 6.9 | 6.6 / 7.9 | 7.5 / 8.9

TECHNICAL SPECIFICATIONS

  • Models: CMP36 CMP42 CMP48 CMP54
  • Width: Overall / Inside (in.): CMP36: 37.8 / 34.6; CMP42: 43.8 / 40.6; CMP48: 49.8 / 46.6; CMP54: 55.8 / 52.6
  • Height: Overall / Bucket / Open (in.): 27.0 / 15.7 / 41.9
  • Depth: Overall / Inside (in.): 29.0 / 20.2
  • Capacity: Struck / Heaped (cu. ft.): CMP36: 4.9 / 5.9; CMP42: 5.8 / 6.9; CMP48: 6.6 / 7.9; CMP54: 7.5 / 8.9
  • Dozer Width (in.): CMP36: 36.9; CMP42: 42.9; CMP48: 48.9; CMP54: 54.9
  • Clam Opening (in.): 28.7
  • Thickness: Shell / Dozer Side Plates (in.): 0.19 / 0.38
  • Cylinder Bore / Stroke (in.): 1.5 / 8.0
  • Cylinder & Hinge Pin Diameter (in.): 1.0
  • Approximate Weight (lbs): CMP36: 395; CMP42: 410; CMP48: 430; CMP54: 445
  • Recommended Loader Capacity: Less than 1650 lbs

APPLICATIONS

  • Grading
  • Clamping and carrying material
  • Controlled bottom dumping

VIRNIG V20 MINI SKID STEER MULTI-PURPOSE BUCKET (4-IN-1)

WORKING DESIGN

  • 1/2″ x 6″ dozer bolt-on edge.
  • 3/16″ shell and 3/8″ dozer side plates.
  • 1/2″ x 4″ weld-on edge at bucket front and back of clam.

CONFIGURATION AND SPECIFICATIONS

  • Models: CMP36 CMP42 CMP48 CMP54
  • Width: Overall / Inside (in.): CMP36: 37.8 / 34.6; CMP42: 43.8 / 40.6; CMP48: 49.8 / 46.6; CMP54: 55.8 / 52.6
  • Height: Overall / Bucket / Open (in.): 27.0 / 15.7 / 41.9
  • Depth: Overall / Inside (in.): 29.0 / 20.2
  • Capacity: Struck / Heaped (cu. ft.): CMP36: 4.9 / 5.9; CMP42: 5.8 / 6.9; CMP48: 6.6 / 7.9; CMP54: 7.5 / 8.9
  • Dozer Width (in.): CMP36: 36.9; CMP42: 42.9; CMP48: 48.9; CMP54: 54.9
  • Clam Opening (in.): 28.7
  • Thickness: Shell / Dozer Side Plates (in.): 0.19 / 0.38
  • Cylinder Bore / Stroke (in.): 1.5 / 8.0

READY FOR THE FIELD

  • 1/2″ x 6″ dozer bolt-on edge.
  • 3/16″ shell and 3/8″ dozer side plates.
  • 1/2″ x 4″ weld-on edge at bucket front and back of clam.
  • Virnig v20 mini skid steer multi-purpose bucket (4-in-1) combines dozing, clamming, leveling, and bottom dumping in one bucket.
  • Capacity: struck / heaped (cu. ft.): 4.9 / 5.9 | 5.8 / 6.9 | 6.6 / 7.9 | 7.5 / 8.9
