VIRNIG

V20 Mini Skid Steer Open Front Brush Cutter

For Mini Skid Steers

V20 Mini Skid Steer Open Front Rotary Brush Cutter

Virnig

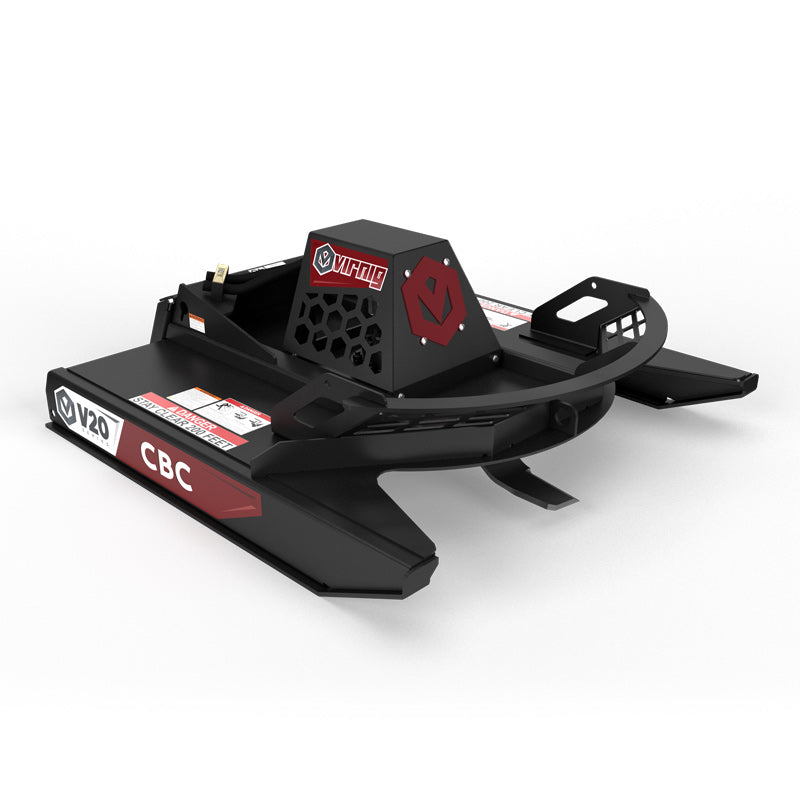

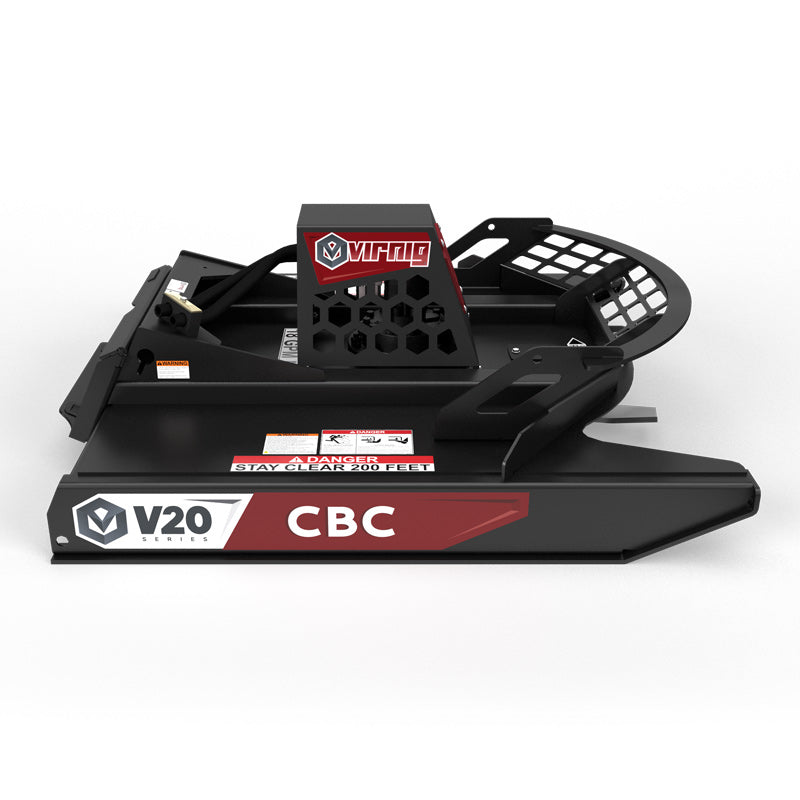

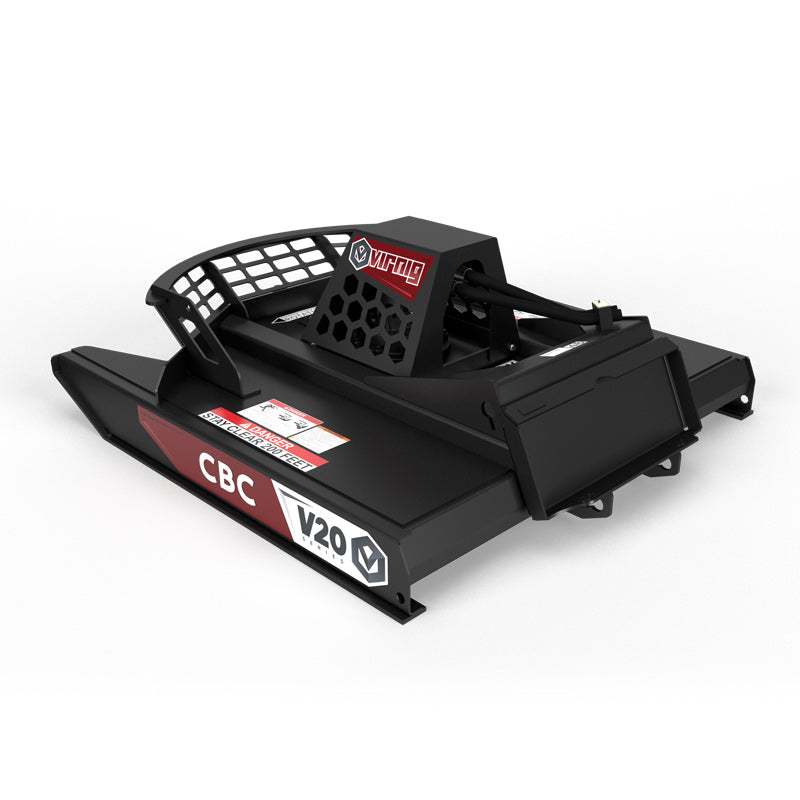

Virnig V20 Mini Skid Steer Open Front Brush Cutter

SKU: CBC42-18-O Currently In Stock

Sale price$8,000.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

DIRECT HYDRAULIC DRIVE

A DIRECT-DRIVE EATON® MOTOR TURNS THE CUTTER, WITH RELIEF VALVES FOR HYDRAULIC PROTECTION.

HYDRAULIC BRAKING

HYDRAULIC BRAKING STOPS THE FLYWHEEL IN LESS THAN 10 SECONDS AFTER FLOW IS SHUT OFF.

DRIVE PROTECTION

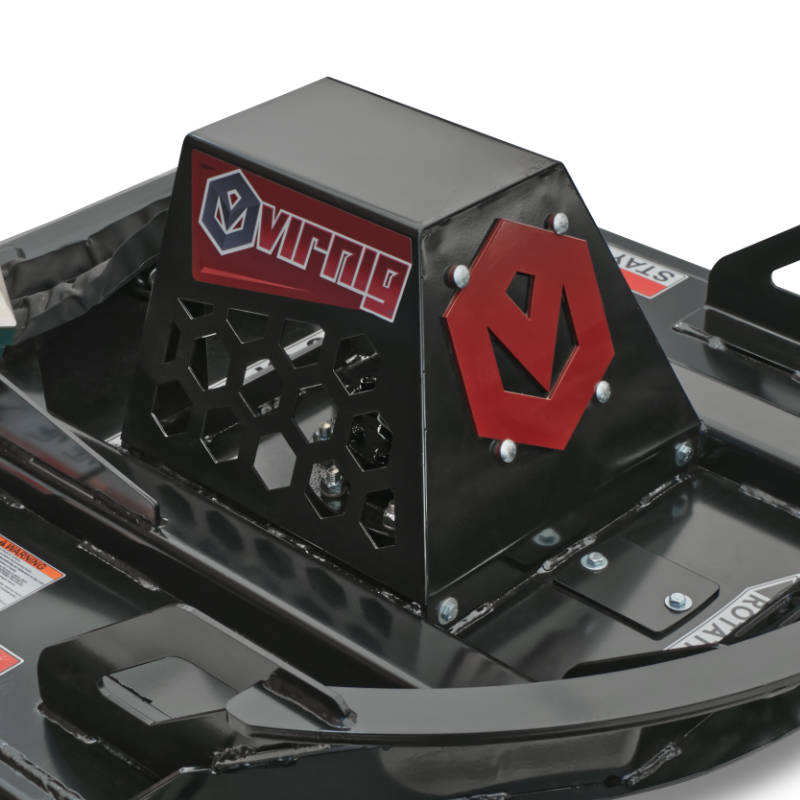

STANDARD MOTOR AND SPINDLE GUARDS SHIELD KEY DRIVE COMPONENTS DURING CLEARING.

ROUNDED FLYWHEEL

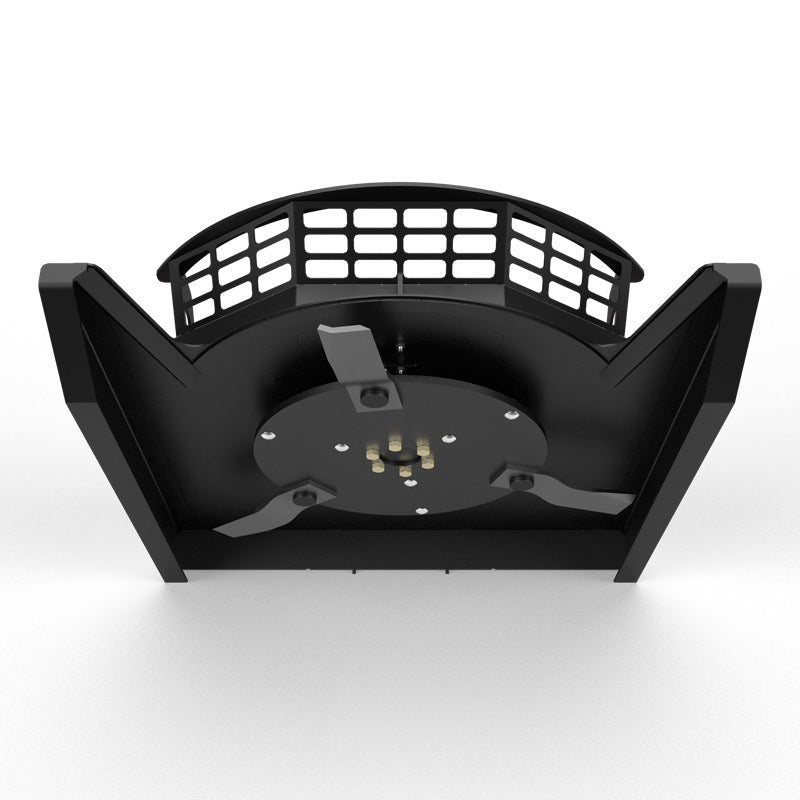

A ROUND FLYWHEEL CARRIES THREE UPDRAFT BLADES AND HELPS GLANCE OFF STUMPS.

BRUSH CLEARING

VIRNIG V20 MINI SKID STEER OPEN FRONT BRUSH CUTTER CUTS BRUSH AND SMALL TREES FOR VEGETATION MANAGEMENT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

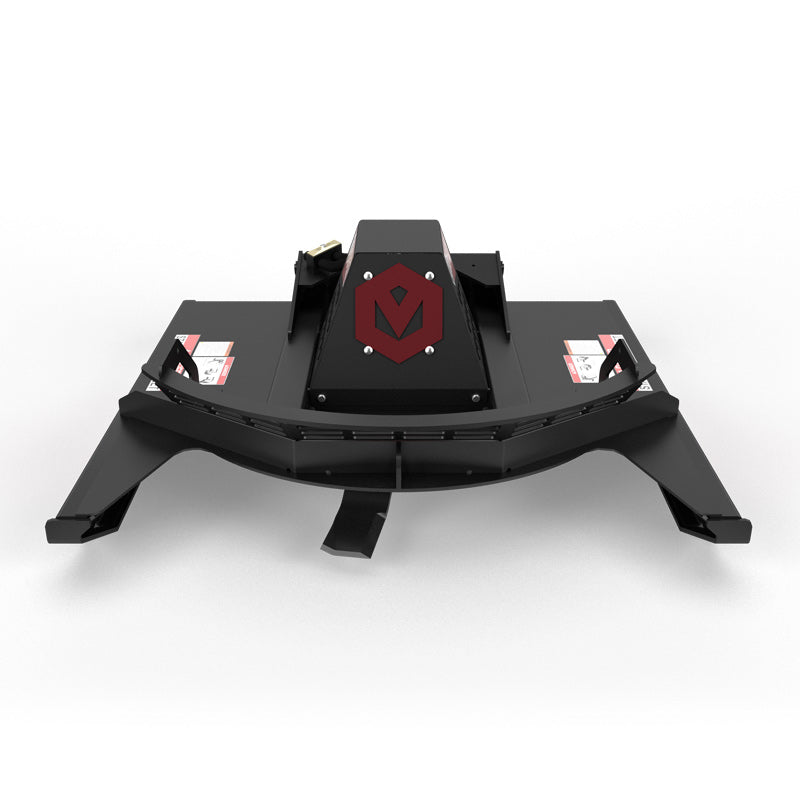

The Virnig V20 Mini Skid Steer Open Front Brush Cutter gives a mini loader direct blade access to standing vegetation. The open-front deck helps feed brush into the cutting zone, with 42″ and 48″ cutting widths for grass, brush, and small trees up to 3″ in diameter.

A direct-drive Eaton® motor with relief valve protection powers the circular flywheel and three updraft blades. Hydraulic braking stops the flywheel in less than 10 seconds after shutdown. Motor and spindle guards are standard, protecting key drive components while the open deck front provides the material entry arrangement.

Choose the width and mounting interface for the mini skid steer, then verify the 11-18 GPM hydraulic requirement and complete attachment weight. The open front requires careful control of the cutting area and appropriate personal protective equipment. If the carrier has a cab enclosure, do not operate without a shatterproof cab.

KEY BENEFITS

  • Direct drive Eaton® motor with relief valves.
  • Hydraulic braking stops flywheel in less than 10 seconds.
  • Standard motor guard and spindle guard.
  • Circular flywheel with 3 updraft blades bounces off stumps.
  • Virnig v20 mini skid steer open front brush cutter cuts brush and small trees for vegetation management.

TECHNICAL SPECIFICATIONS

  • Models: CBC42-O | CBC48-O
  • Cut Width (in.): CBC42-O: 42.0; CBC48-O: 48.0
  • Overall Width (in.): CBC42-O: 47.0; CBC48-O: 53.0
  • Overall Height (in.): 20.5
  • Overall Depth (in.): CBC42-O: 51.3; CBC48-O: 57.3
  • Deck Height (in.): 6.5
  • Minimum Cut Height (in.): 2.0
  • Cutting Capacity, Diameter (in.): 3.0
  • Deck Thickness: Top / Side (in.): 0.19 / 0.19¹
  • Recommended Flow Rate (GPM): 11 - 18
  • Approximate Weight with Mini Universal Mount (lbs): CBC42-O: 590²; CBC48-O: 690²,³
  • Recommended Loader Capacity: Greater than 590 lbs
  • ¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength). ²Bobcat® mount adds 35 lbs to model weight, and ³ASV® mount adds approximately 40 lbs.

APPLICATIONS

  • Brush clearing
  • Property maintenance
  • Vegetation control

VIRNIG V20 MINI SKID STEER OPEN FRONT BRUSH CUTTER

WORKING DESIGN

  • Direct drive Eaton® motor with relief valves.
  • Hydraulic braking stops flywheel in less than 10 seconds.
  • Standard motor guard and spindle guard.
  • Circular flywheel with 3 updraft blades bounces off stumps.

CONFIGURATION AND SPECIFICATIONS

  • Models: CBC42-O | CBC48-O
  • Cut Width (in.): CBC42-O: 42.0; CBC48-O: 48.0
  • Overall Width (in.): CBC42-O: 47.0; CBC48-O: 53.0
  • Overall Height (in.): 20.5
  • Overall Depth (in.): CBC42-O: 51.3; CBC48-O: 57.3
  • Deck Height (in.): 6.5
  • Minimum Cut Height (in.): 2.0
  • Cutting Capacity, Diameter (in.): 3.0
  • Deck Thickness: Top / Side (in.): 0.19 / 0.19¹

READY FOR THE FIELD

  • Direct drive Eaton® motor with relief valves.
  • Hydraulic braking stops flywheel in less than 10 seconds.
  • Standard motor guard and spindle guard.
  • Circular flywheel with 3 updraft blades bounces off stumps.
  • Virnig v20 mini skid steer open front brush cutter cuts brush and small trees for vegetation management.
