Virnig V20 Mini Skid Steer Power Rake

Roll over image to zoom in Click on image to zoom

Virnig

Virnig V20 Mini Skid Steer Power Rake

SKU: CPR48 Currently In Stock

Configuration: 48" V20 Mini Skid Steer Manual Power Rake | 10-18 GPM

Variant

$10,305.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility

Quantity:

Ask a Question or Request a Quote

(805)-334-5208

operations@currenhaus.com

Product Specifications

Parts & Support

MOST IMPORTANT FEATURES

BIDIRECTIONAL OPERATION

WORK IN FORWARD OR REVERSE TO RAKE MATERIAL FROM EITHER TRAVEL DIRECTION.

REVERSIBLE AND REMOVABLE END PLATES

REVERSE OR REMOVE THE END PLATES TO CHANGE HOW THE RAKE CONTAINS MATERIAL.

ADJUSTABLE WORKING ANGLE

ANGLE THE RAKE 25° LEFT OR RIGHT TO DIRECT MATERIAL TO THE SIDE OF THE PASS.

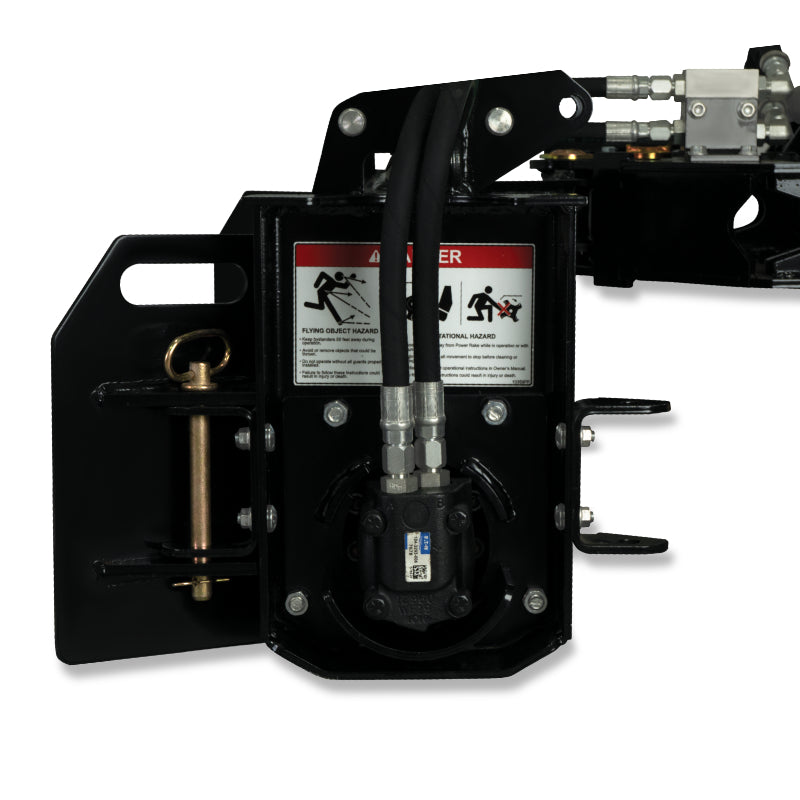

MOTOR PROTECTION

A PROTECTIVE GUARD HELPS SHIELD THE HYDRAULIC MOTOR DURING GROUND WORK.

TERRAIN-FOLLOWING DESIGN

THE FLOATING DESIGN FOLLOWS THE SURFACE WHILE RETAINING FULL DOWN-PRESSURE CAPABILITY.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Power Rake conditions soil and separates surface debris to prepare a seedbed with a mini loader. It operates in forward or reverse, allowing the operator to choose the direction that suits the space and material flow instead of approaching every pass from the same side.

The rake angles 25° left or right to direct material, with reversible and removable end plates for containment. A floating design follows the surface for a smoother finish while still providing full down-pressure capability. Carbide-tip teeth engage the soil, and a guarded motor protects the drive at the working assembly.

Choose the width and mounting configuration for the mini skid steer and match the hydraulic requirements to the carrier. The combination of angle control, reversible operation, and adjustable containment helps adapt the rake to different finishing passes. Set up the attachment around the soil and debris present rather than relying on one working position for every area.

KEY BENEFITS

Bi-directional operation in forward or reverse.
Reversible and removable end plates.
Angle the rake 25° left or right.
Guarded motor.
Floating design for a smooth finish and provides full down pressure capability.

TECHNICAL SPECIFICATIONS

Models: CPR48 CPR60
Raking Width (in.): CPR48: 48.0; CPR60: 60.0
Raking Width at Full Angle (in.): CPR48: 44.0; CPR60: 54.2
Overall Width (in.): CPR48: 56.0; CPR60: 68.0
Overall Height (in.): 22.2
Overall Depth (in.): 52.6
Drum Diameter (in.): 7.0
Number of Teeth: CPR48: 62; CPR60: 78
Float Link Angle (degrees): 22
Max Rake Angle (degrees): 25
Recommended Flow Rate (GPM): 10-18 Standard Flow Only
Approximate Weight (lbs): CPR48: 520¹; CPR60: 565¹
Recommended Loader Capacity: Greater than 515 lbs
¹Bobcat® mount adds 25 lbs to model weight, and ASV® mount adds approximately 30 lbs.

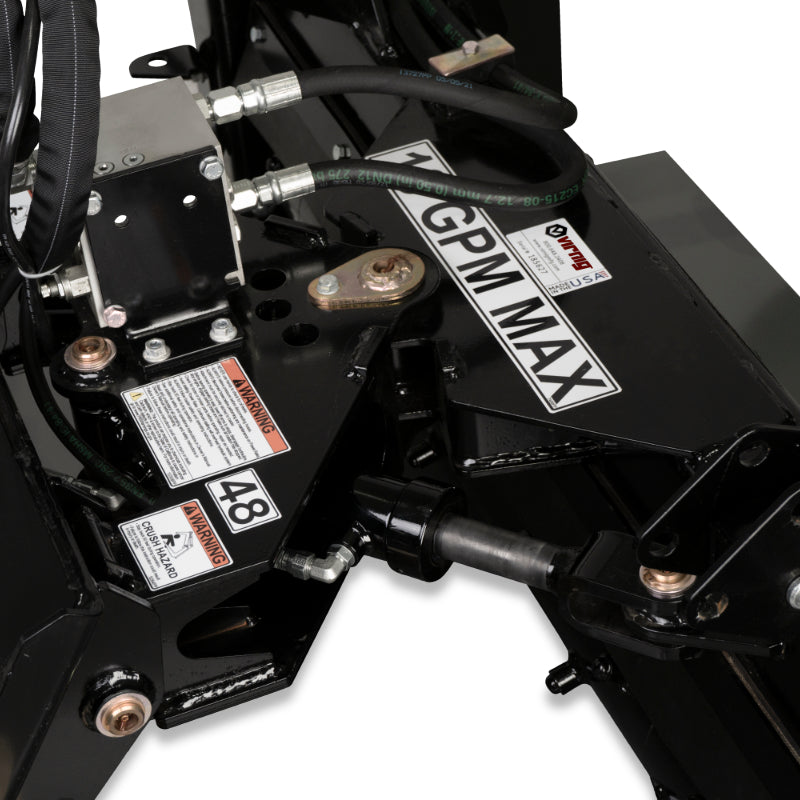

Base manual adjustment is included. Hydraulic angle or rotation upgrades and required electrical controls are available by quote and are not included.
