VIRNIG

V20 Mini Skid Steer Rail Pallet Fork

For Mini Skid Steers

2,200 lb Fork Capacity

Virnig

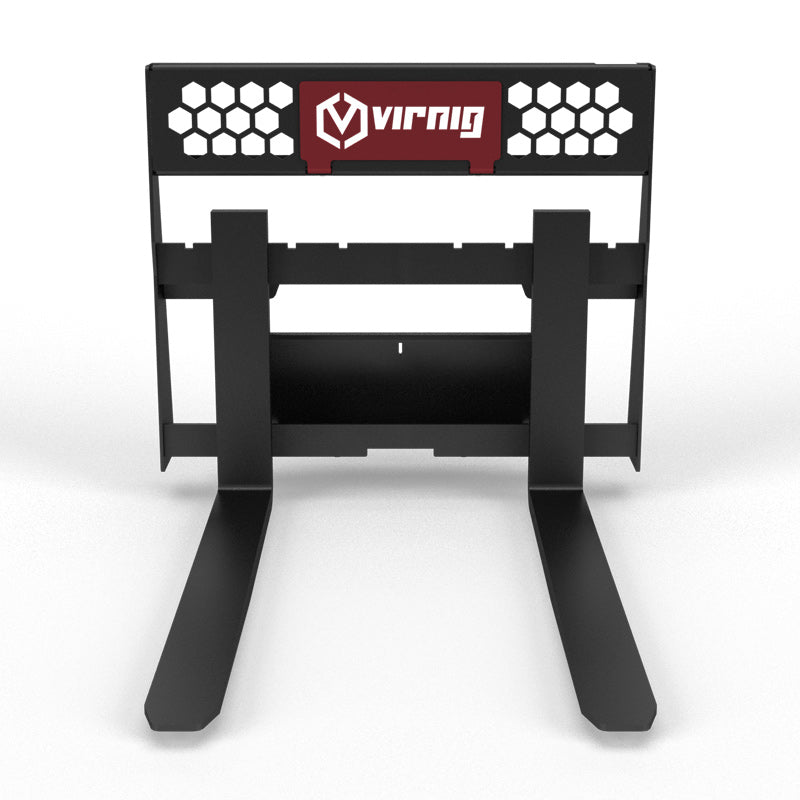

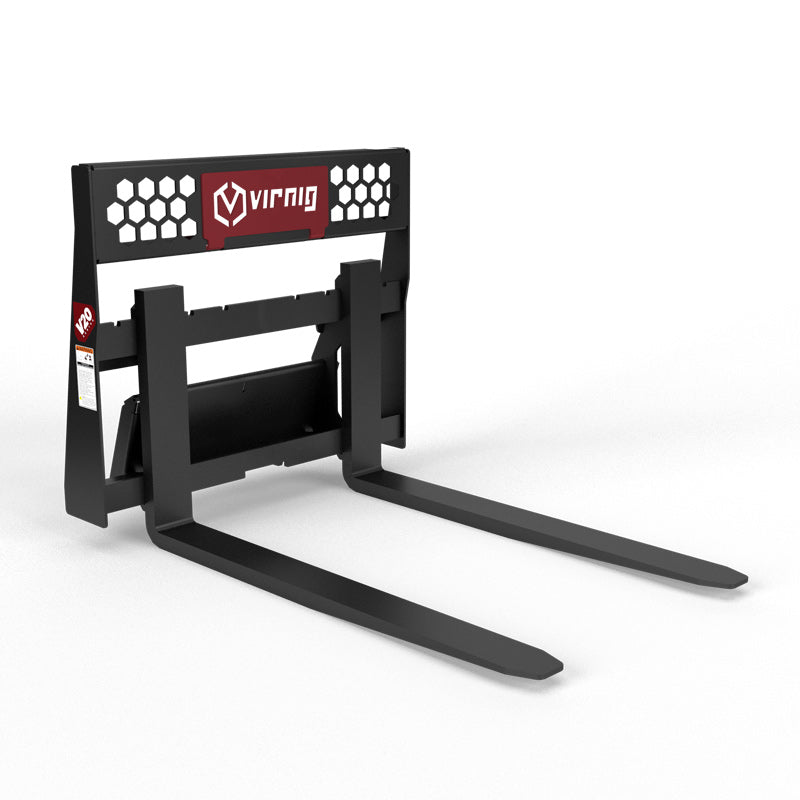

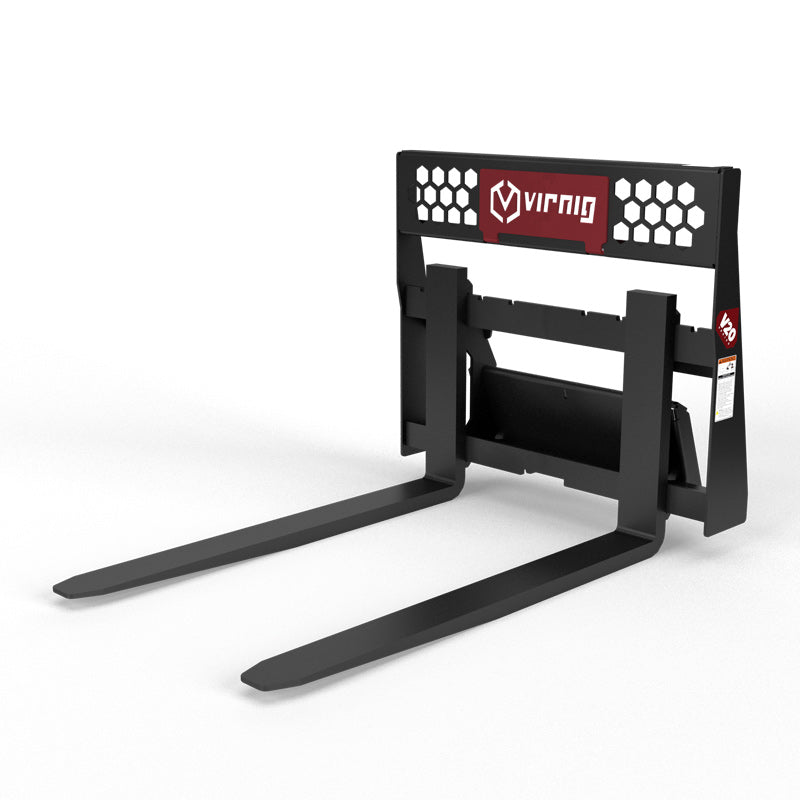

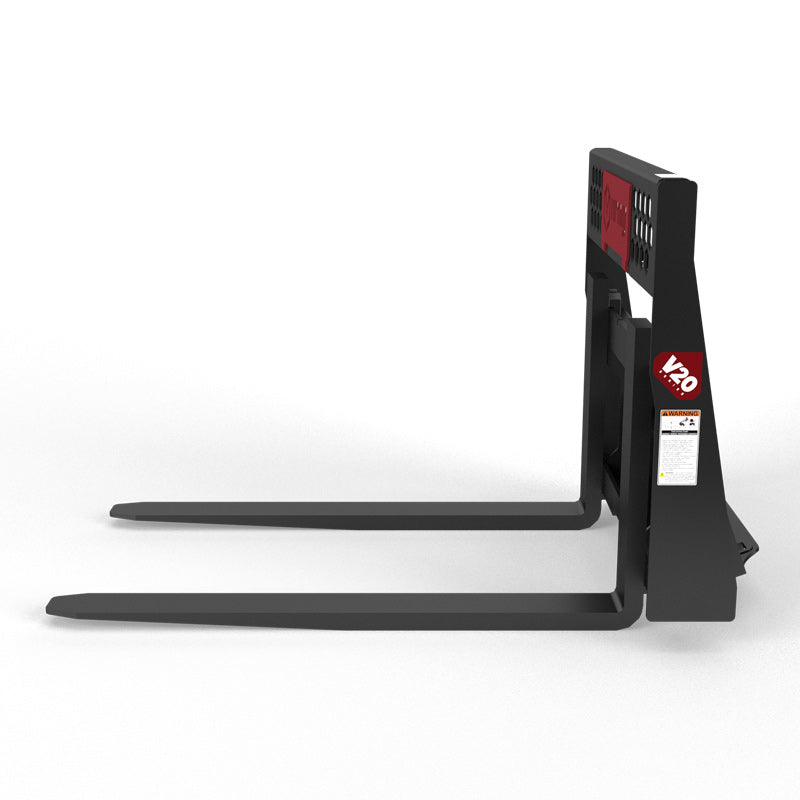

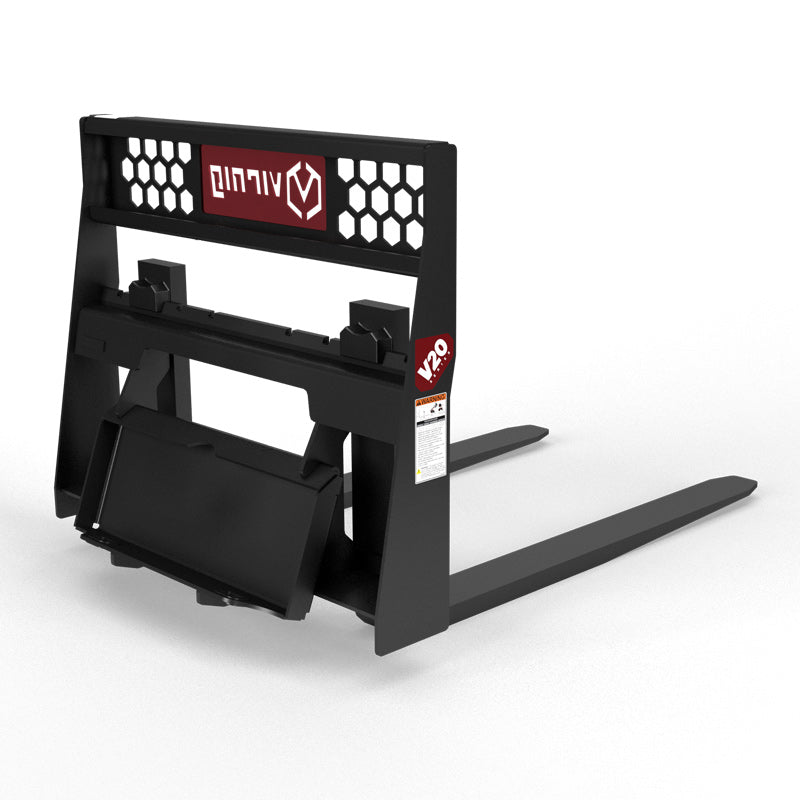

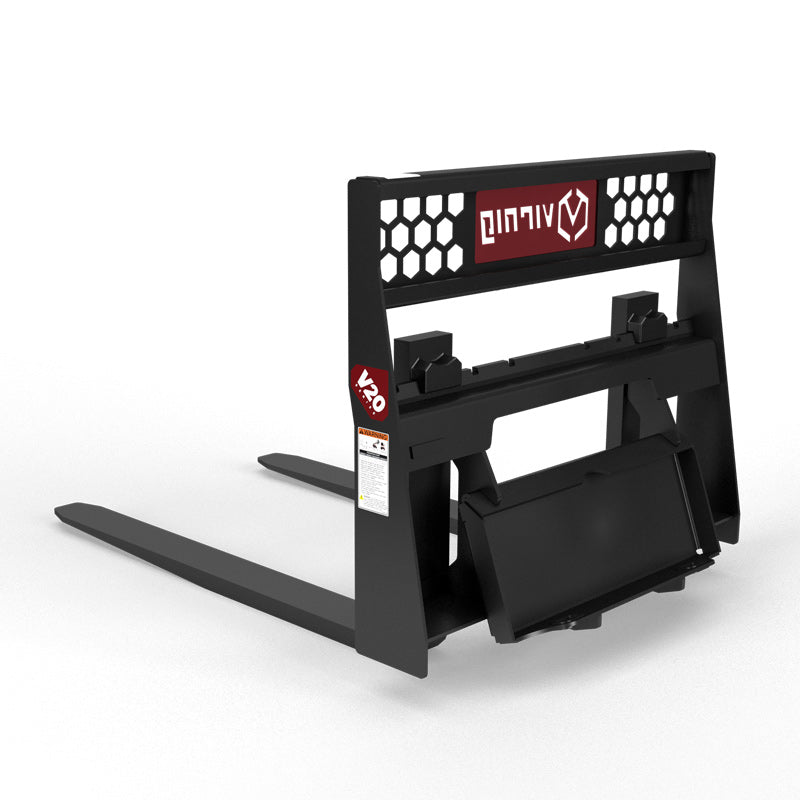

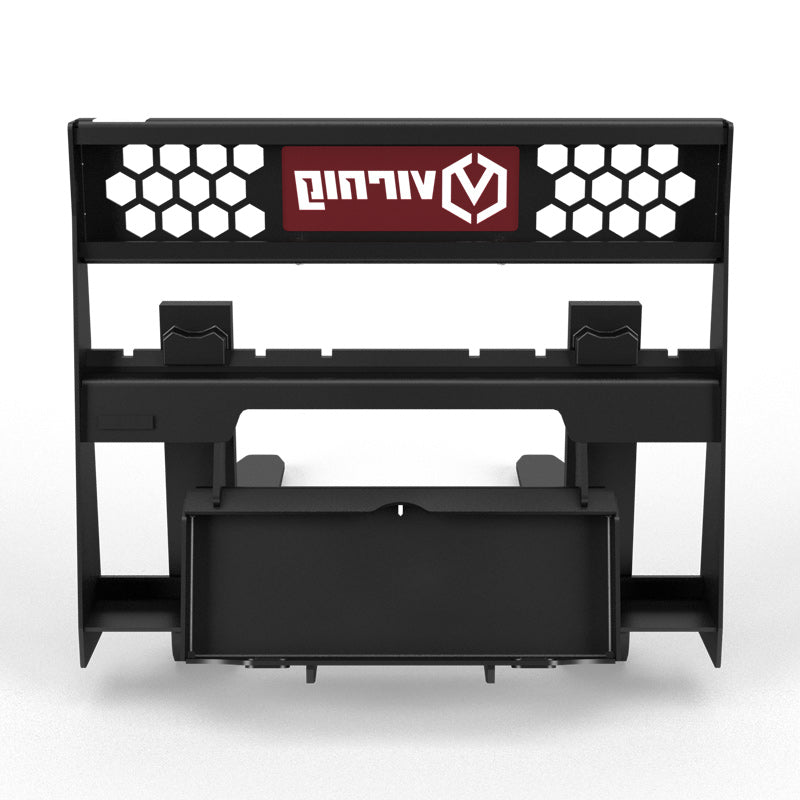

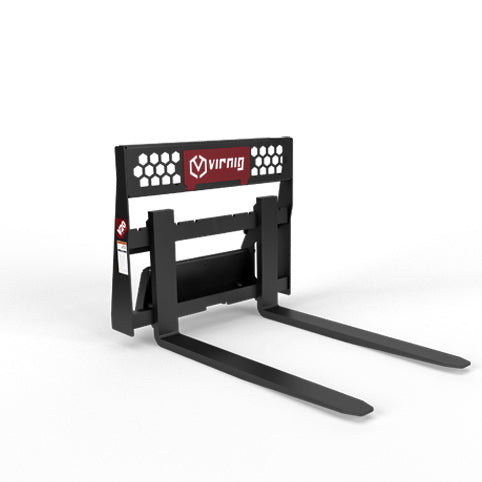

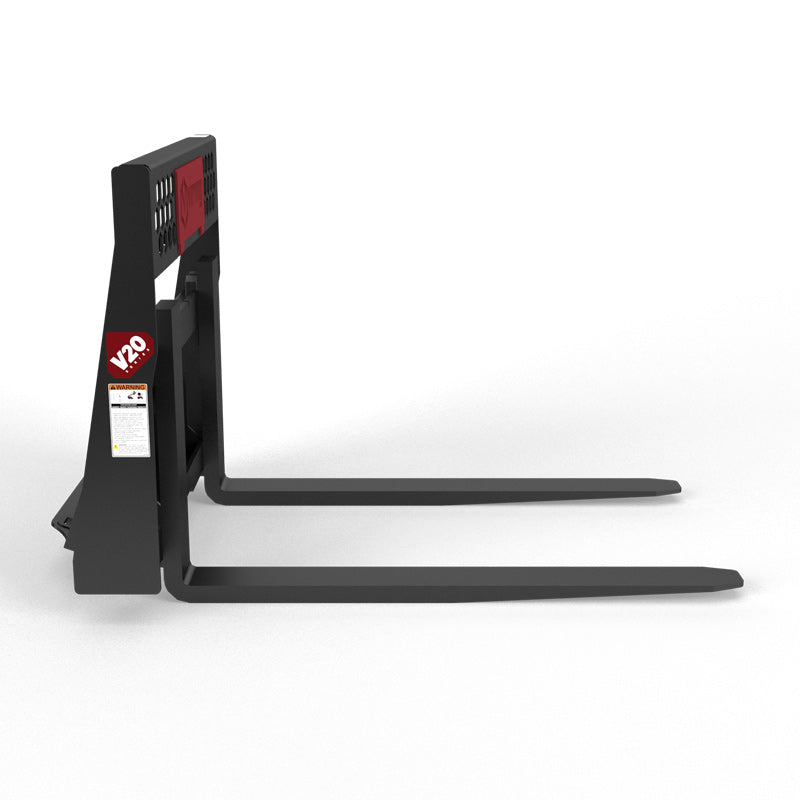

Virnig V20 Mini Skid Steer Rail Pallet Fork

SKU: CPF3622 Currently In Stock

Sale price$1,380.00 USD

MOST IMPORTANT FEATURES

BEVELED RAIL AND BACKREST

A 3/16″ BRICKGUARD AND ¾″ BEVELED RAIL SUPPORT THE MINI FORK'S LOAD-HANDLING FRAME.

FLUSH LOAD BACKREST

THE BACKREST SITS FLUSH WITH THE TINES TO HELP STABILIZE MATERIAL AGAINST THE FRAME.

PALLET HANDLING

VIRNIG V20 MINI SKID STEER RAIL PALLET FORK HANDLES PALLETIZED MATERIALS WITH ADJUSTABLE FORGED FORK TINES.

TINE LENGTH OPTIONS

36″, 42″ AND 48″ FORGED TINES LET YOU MATCH THE FORK REACH TO THE LOAD.

ADJUSTABLE TINE SPACING

ADJUST TINE SPACING FROM 8.4″ TO 30.9″ TO ALIGN THE FORKS WITH THE PALLET.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Rail Pallet Fork handles palletized material with a compact frame and adjustable forged tines. It brings fork loading capability to a mini carrier for work where a bucket is not the right support for the material or where the load needs to be placed on its pallet.

The frame uses a 3⁄16″ brickguard and ¾″ beveled rail. The brickguard sits flush with the tines to help stabilize material against the backrest. Available 36″ and 42″ tines provide different reaches, with adjustable spacing to position the support points around the pallet.

This standard V20 frame is 36″ wide, distinct from the separate wide rail configuration. The fork family has a 2,200 lb rating, but the mini loader's actual capacity and load center may impose a substantially lower limit. Match the mounting interface and include the attachment's weight when checking the complete lifting setup.

KEY BENEFITS

  • 3/16″ brickguard and 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Virnig V20 Mini Skid Steer Rail Pallet Fork handles palletized materials with adjustable forged fork tines.
  • 3/16″ brickguard and 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.

TECHNICAL SPECIFICATIONS

  • Models: CPF3622 | CPF4222
  • Overall Width (in.): 36.0
  • Overall Height (in.): 30.1
  • Tine, Length / Width / Thickness (in.): CPF3622: 36.0 / 3.0 / 1.19; CPF4222: 42.0 / 3.0 / 1.19
  • Tine Space, Min / Max (in.): 8.4 / 30.9
  • Approximate Weight (lbs): CPF3622: 245; CPF4222: 255
  • Capacity (lbs): 2200
  • Recommended Loader Capacity (lbs): Less than 1650

APPLICATIONS

  • Pallet loading
  • Material staging
  • Jobsite unloading

VIRNIG V20 MINI SKID STEER RAIL PALLET FORK

WORKING DESIGN

  • 3/16″ brickguard and 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.

CONFIGURATION AND SPECIFICATIONS

  • Models: CPF3622 | CPF4222
  • Overall Width (in.): 36.0
  • Overall Height (in.): 30.1
  • Tine, Length / Width / Thickness (in.): CPF3622: 36.0 / 3.0 / 1.19; CPF4222: 42.0 / 3.0 / 1.19
  • Tine Space, Min / Max (in.): 8.4 / 30.9
  • Approximate Weight (lbs): CPF3622: 245; CPF4222: 255
  • Capacity (lbs): 2200
  • Recommended Loader Capacity (lbs): Less than 1650

READY FOR THE FIELD

  • 3/16″ brickguard and 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Virnig V20 Mini Skid Steer Rail Pallet Fork handles palletized materials with adjustable forged fork tines.
  • 3/16″ brickguard and 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
