VIRNIG

V20 Mini Skid Steer Root Rake Grapple

For Mini Skid Steers

36-48″ Widths

Virnig

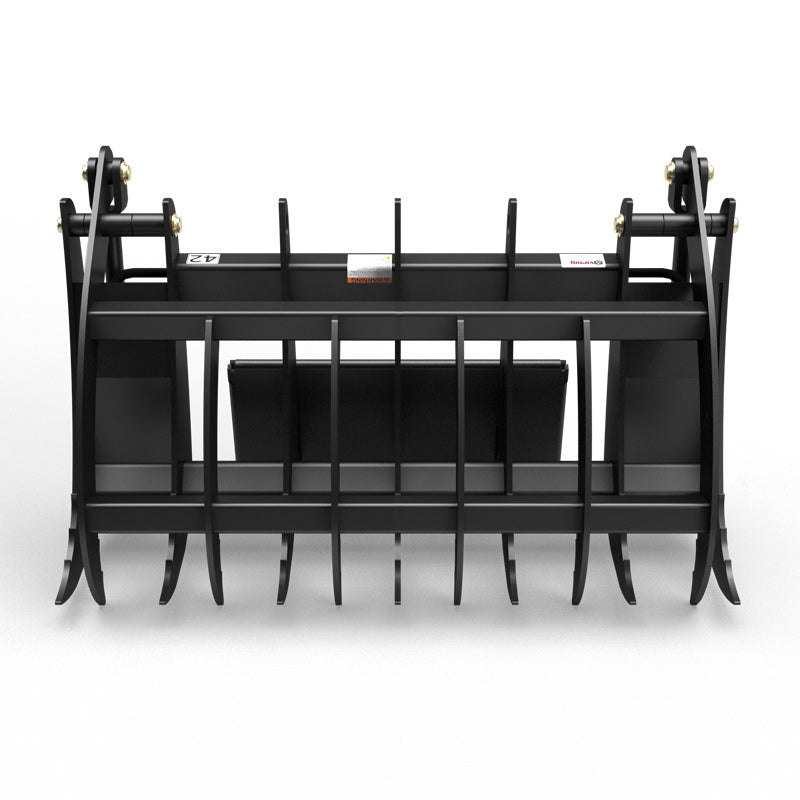

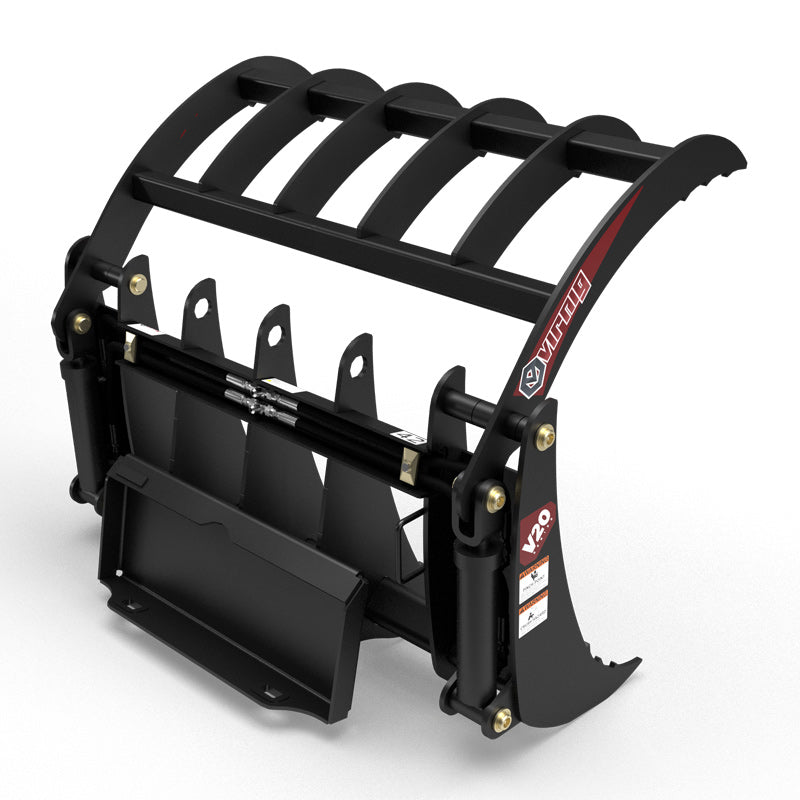

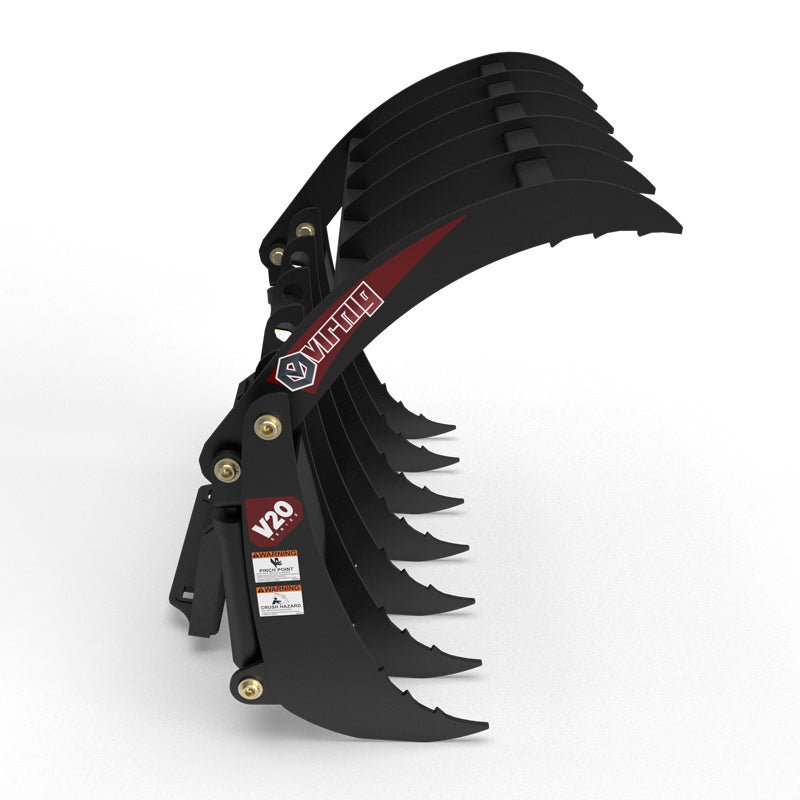

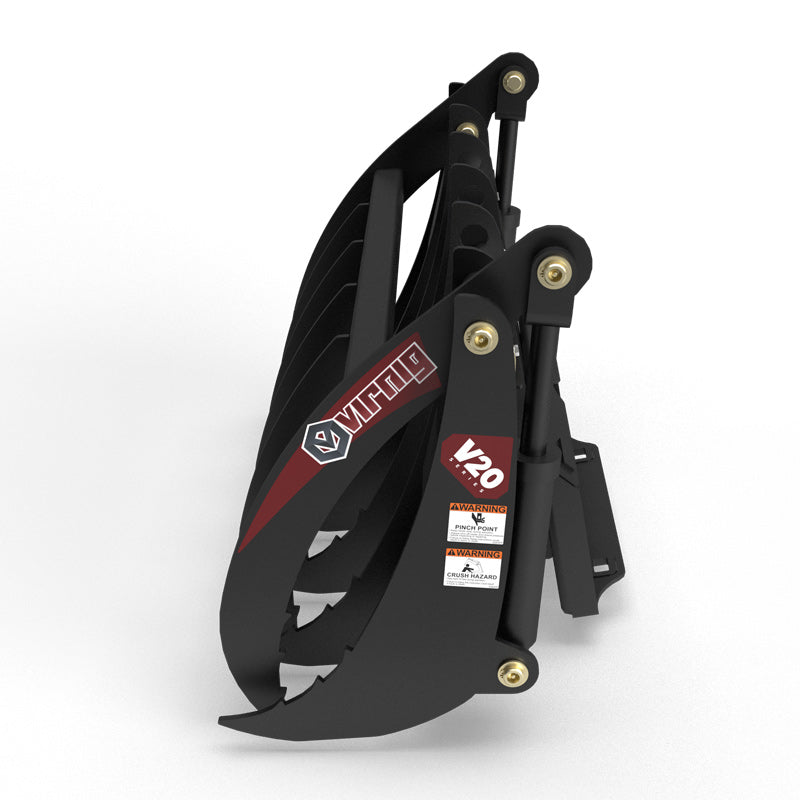

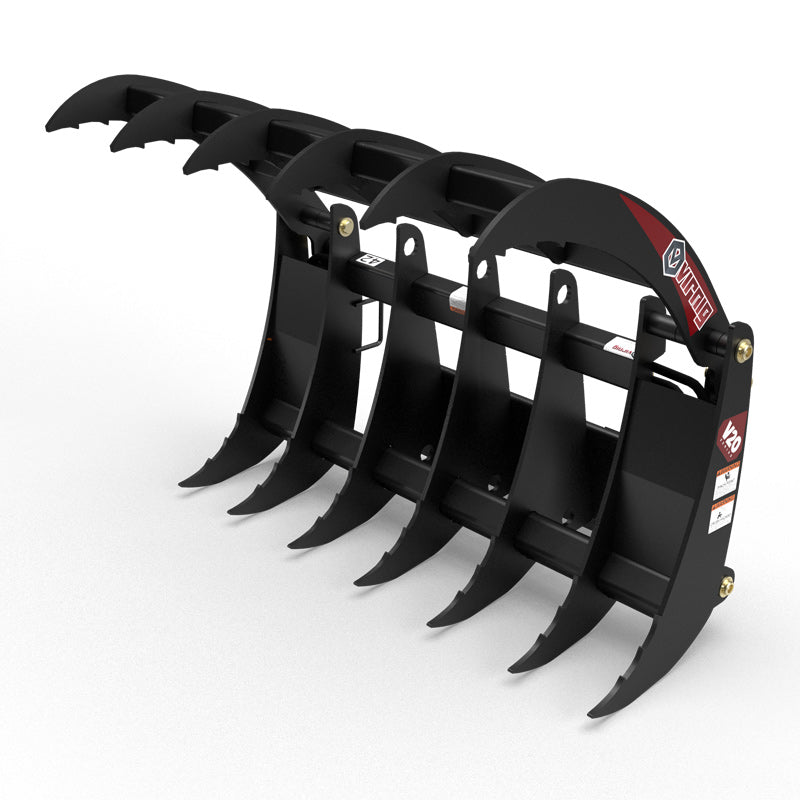

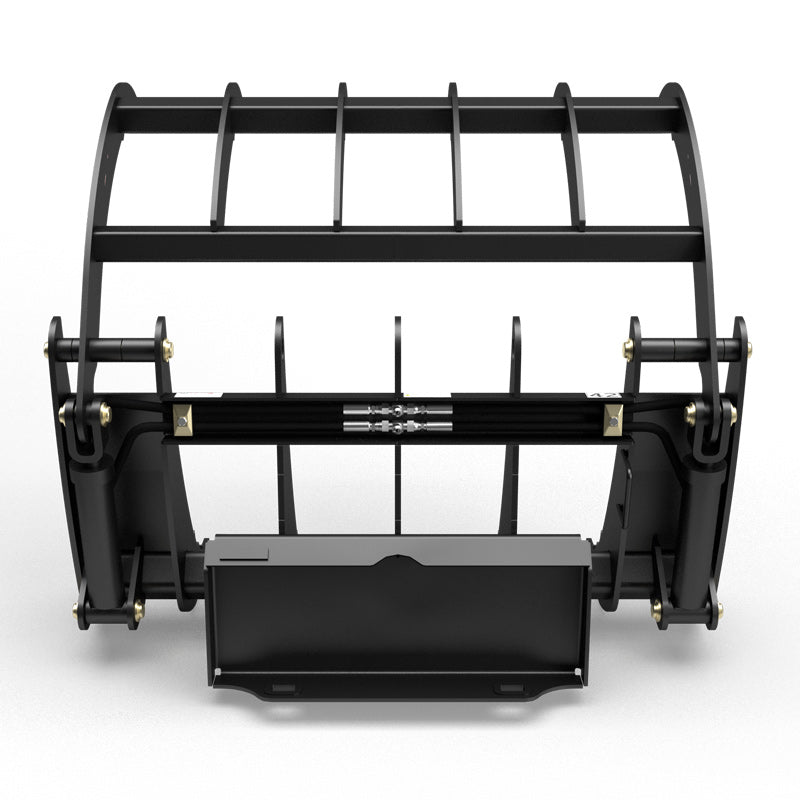

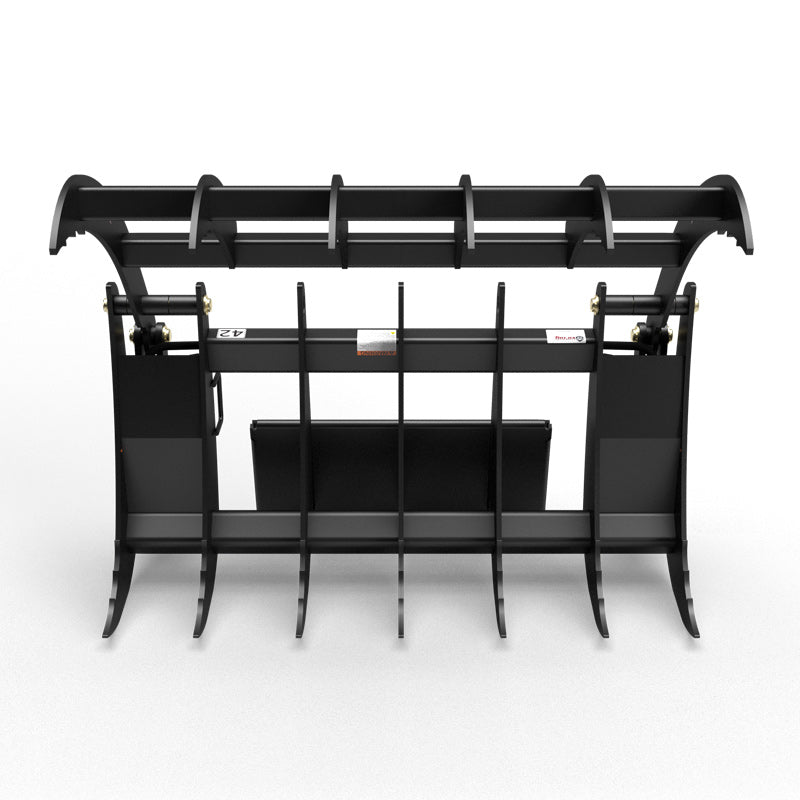

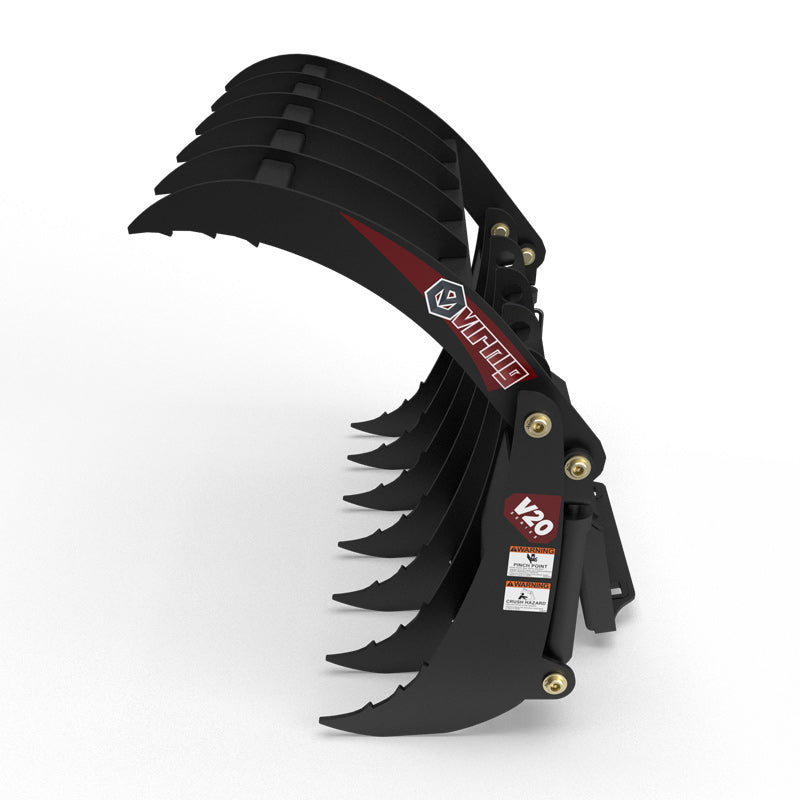

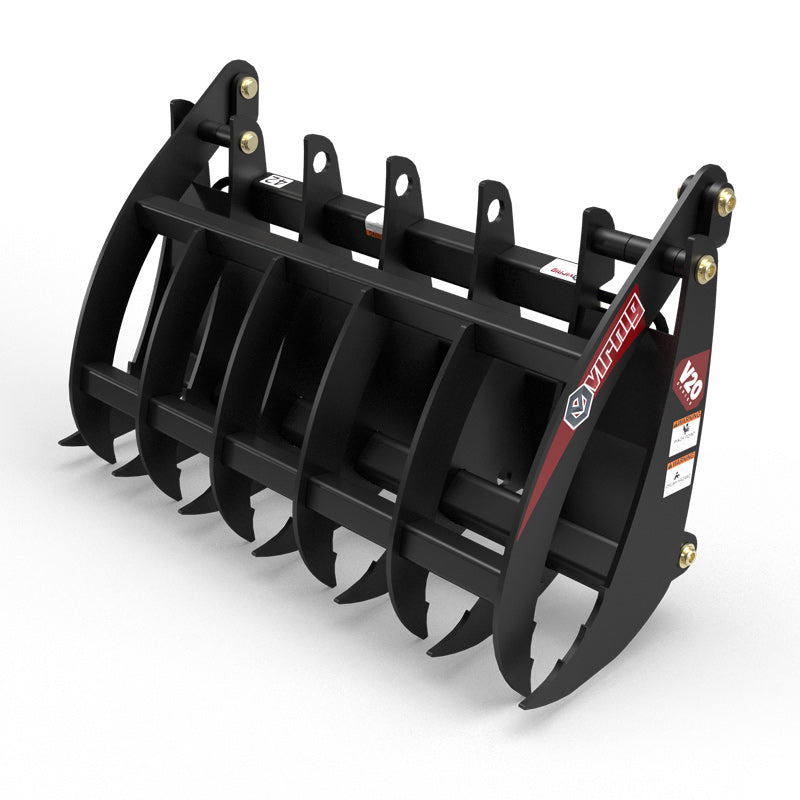

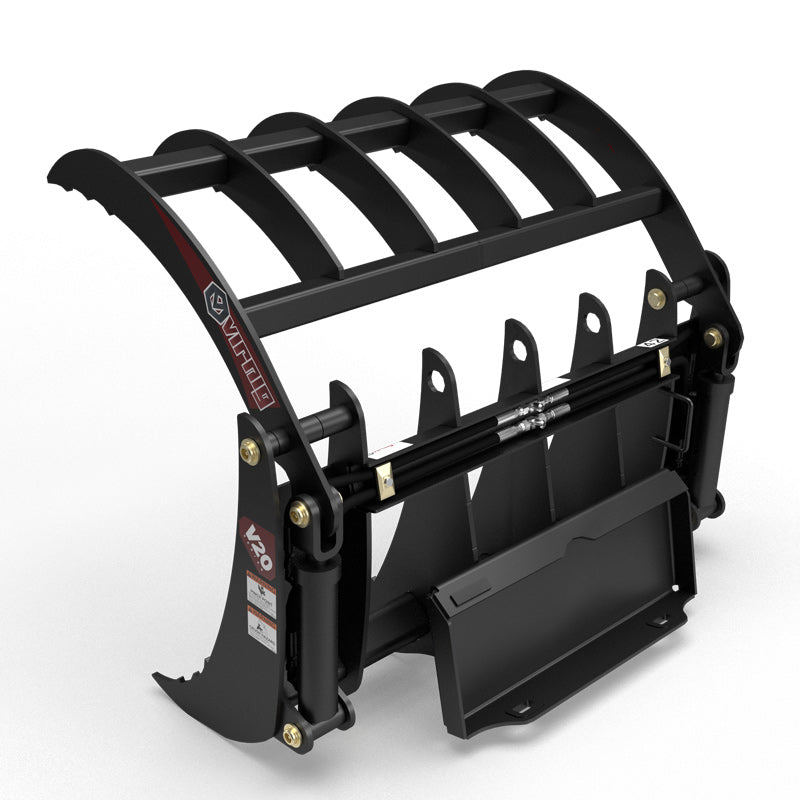

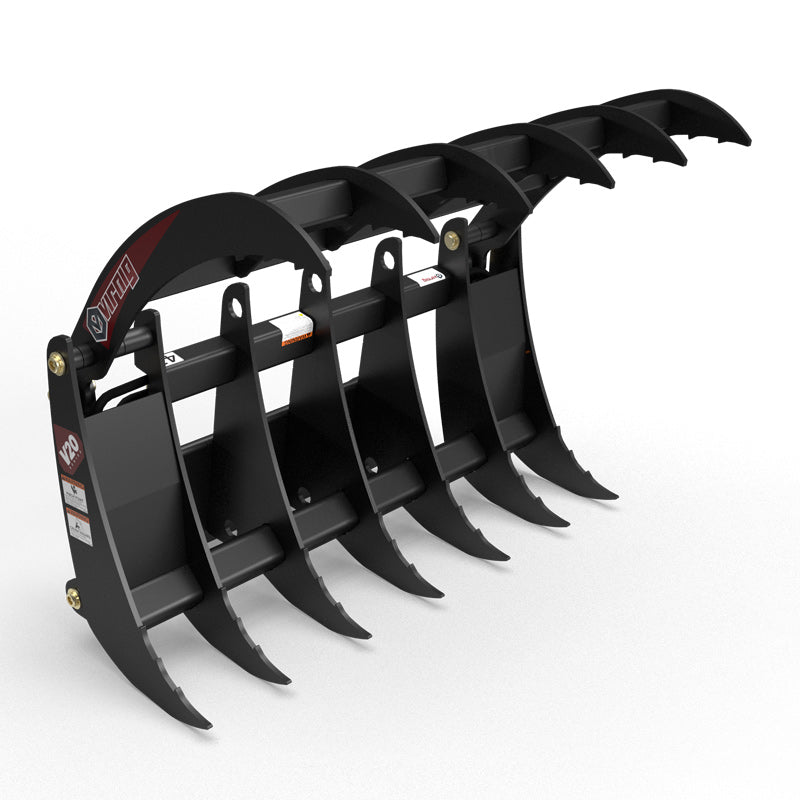

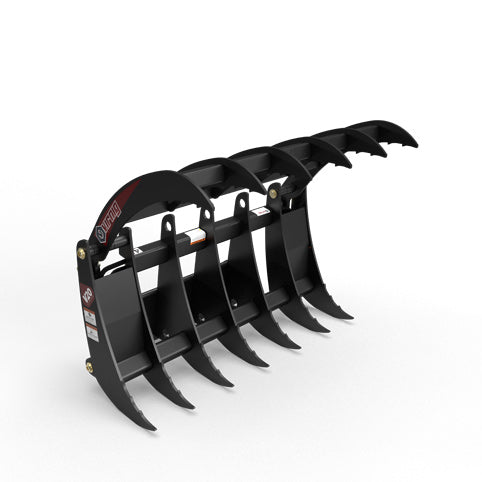

Virnig V20 Mini Skid Steer Root Rake Grapple

SKU: CRG36 Currently In Stock

Sale price$3,185.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES PROVIDE RIGID SUPPORT WHEN LIFTING AND SORTING UNEVEN LOADS.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

OPEN MATERIAL HANDLING

VIRNIG V20 MINI SKID STEER ROOT RAKE GRAPPLE DIGS, RAKES, PILES, AND LOADS BRUSH WITH A TOOTHED LOWER FRAME AND HYDRAULIC GRAPPLE.

GRAPPLE JAW OPENING

A 32.2″ JAW OPENING GATHERS BRUSH AND ROOT MATERIAL BEFORE CLAMPING THE LOAD.

WIDTH OPTIONS

THREE FRAME WIDTHS LET YOU MATCH THE MINI ROOT RAKE TO THE CARRIER AND ACCESS AREA.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Root Rake Grapple combines raking and load retention in a compact cleanup attachment. The toothed lower frame works into brush and roots, while the hydraulic grapple holds the gathered material for loading or removal from areas reached by the mini skid steer.

Every tine is made from one piece of steel for rigidity through the lower frame. The open layout allows loose soil to fall away as debris is gathered, helping separate the vegetation from surrounding ground material. The upper grapple adds retention for projecting branches and other loads that would be difficult to balance on a plain rake.

NitroSteel® cylinder rods and Teflon®-coated pivot bushings equip the hydraulic connections for repeated opening and closing. Choose the width and mini-loader mounting configuration around your machine and typical cleanup task. Account for the complete attachment weight and load position, particularly when carrying material that extends beyond the frame.

KEY BENEFITS

  • Every tine is made from one piece of steel for maximum rigidity.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Virnig v20 mini skid steer root rake grapple digs, rakes, piles, and loads brush with a toothed lower frame and hydraulic grapple.
  • Grapple jaw opening (in.): 32.2
  • Overall width (in.): 35.8 | 43.8 | 51.8

TECHNICAL SPECIFICATIONS

  • Models: CRG36 CRG42 CRG48
  • Overall Width (in.): CRG36: 35.8; CRG42: 43.8; CRG48: 51.8
  • Height: Overall / Bucket (in.): 24.7 / 23.6
  • Overall Depth (in.): 21.5
  • Number of Tines (w/ sides): CRG36: 6; CRG42: 7; CRG48: 8
  • Space Between Tines / Grapple Jaws (in.): CRG36: 6.8 / 7.2; CRG42: 7.0 / 7.3; CRG48: 7.1 / 7.4
  • Tine Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.0 / 1.0
  • Grapple Jaw Opening (in.): 32.2
  • Approximate Weight (lbs): CRG36: 270; CRG42: 300; CRG48: 335²
  • Recommended Loader Capacity: Greater than 500 lbs
  • ¹Material is AR400 Plate (150,000 PSI Minimum Yield Strength). mount adds 20 lbs to model weight, and ASV® mount adds approximately 35 lbs.

APPLICATIONS

  • Brush removal
  • Root cleanup
  • Land clearing

VIRNIG V20 MINI SKID STEER ROOT RAKE GRAPPLE

WORKING DESIGN

  • Every tine is made from one piece of steel for maximum rigidity.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.

CONFIGURATION AND SPECIFICATIONS

  • Models: CRG36 CRG42 CRG48
  • Overall Width (in.): CRG36: 35.8; CRG42: 43.8; CRG48: 51.8
  • Height: Overall / Bucket (in.): 24.7 / 23.6
  • Overall Depth (in.): 21.5
  • Number of Tines (w/ sides): CRG36: 6; CRG42: 7; CRG48: 8
  • Space Between Tines / Grapple Jaws (in.): CRG36: 6.8 / 7.2; CRG42: 7.0 / 7.3; CRG48: 7.1 / 7.4
  • Tine Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.0 / 1.0

READY FOR THE FIELD

  • Every tine is made from one piece of steel for maximum rigidity.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Virnig v20 mini skid steer root rake grapple digs, rakes, piles, and loads brush with a toothed lower frame and hydraulic grapple.
  • Grapple jaw opening (in.): 32.2
  • Overall width (in.): 35.8 | 43.8 | 51.8
