VIRNIG

V20 Mini Skid Steer Rotating Log Grapple

For Mini Skid Steers

V20 Mini Skid Steer Rotating Log Grapple

Request QuoteAdd To Cart

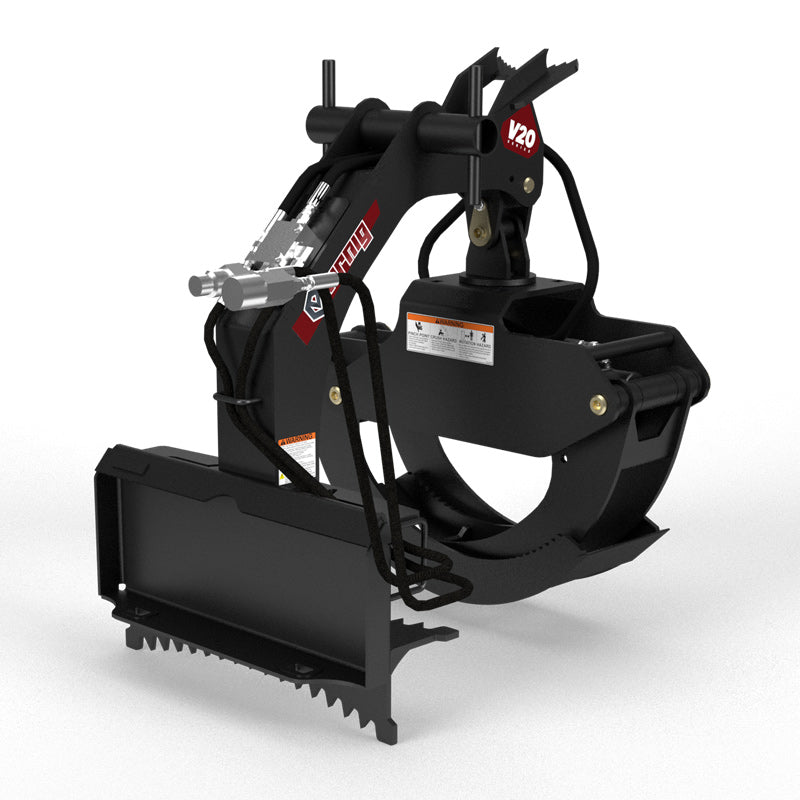

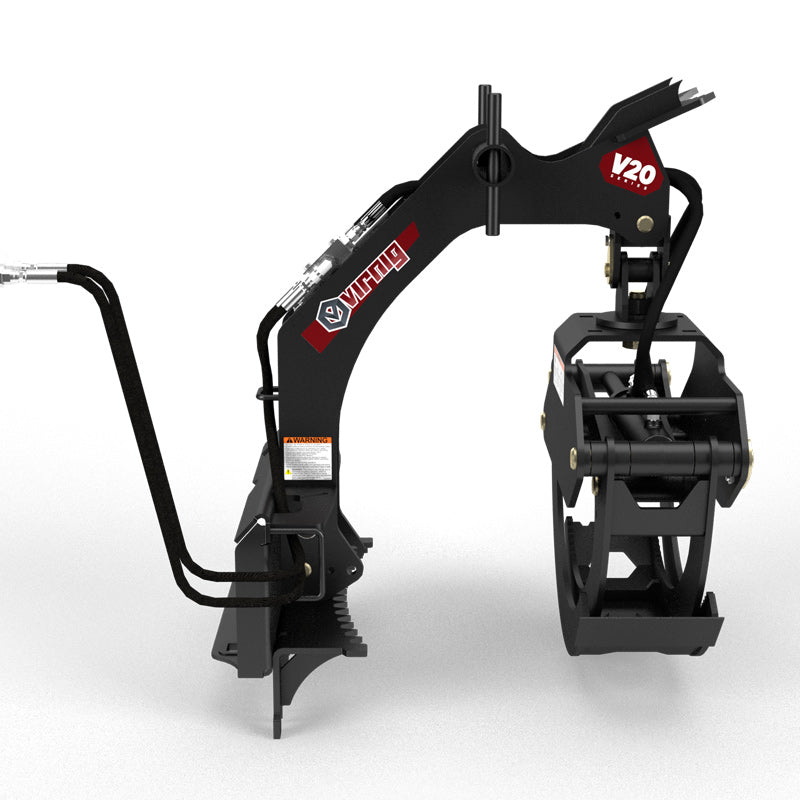

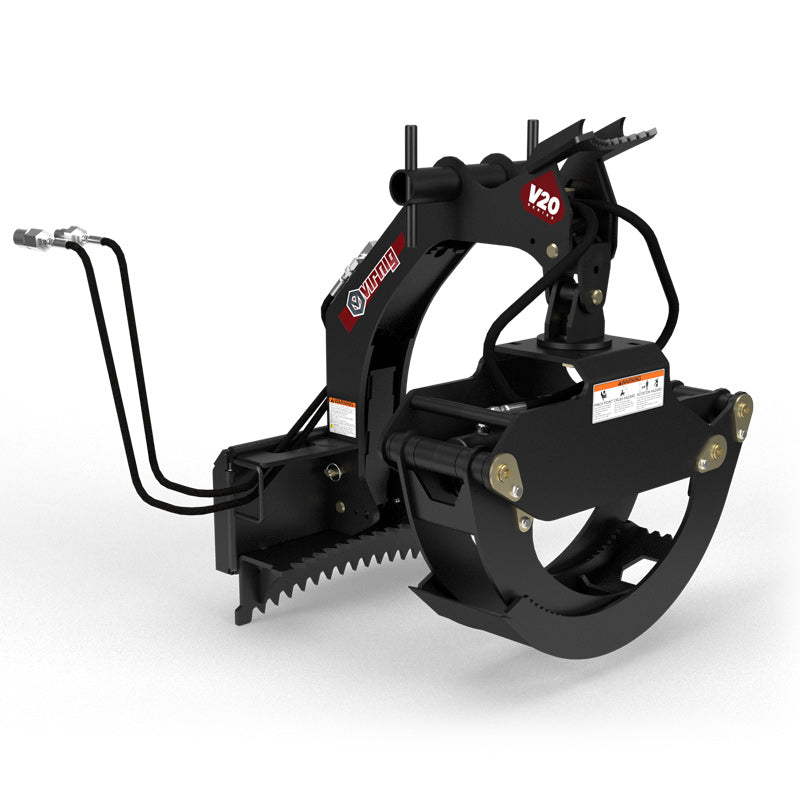

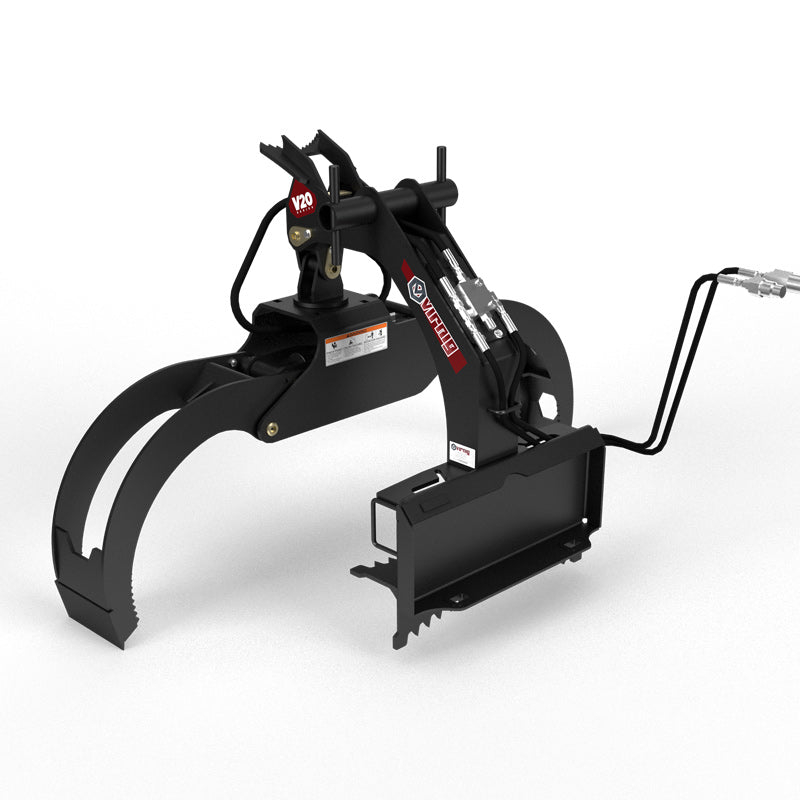

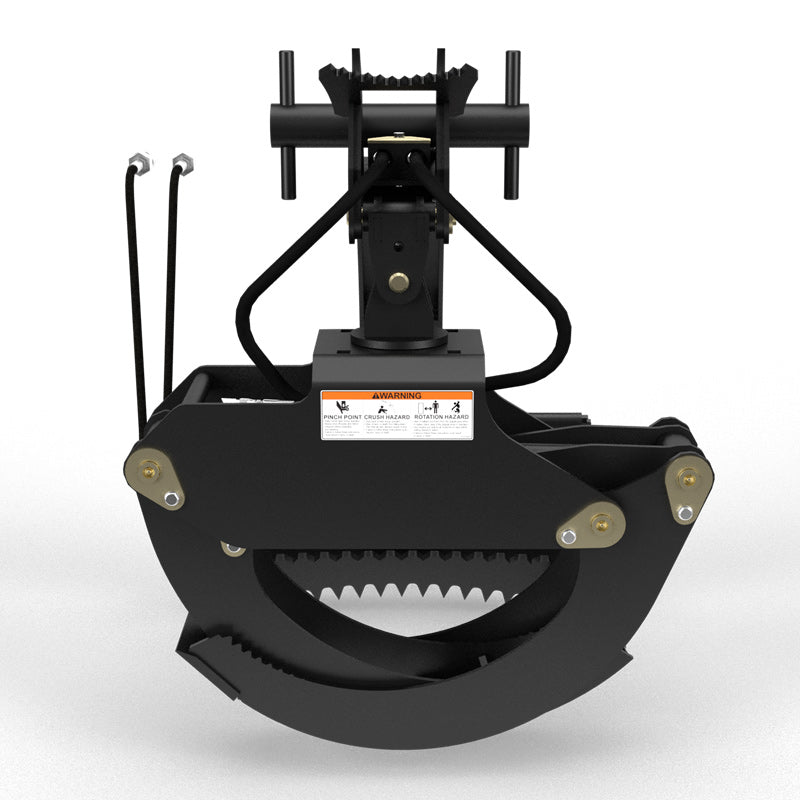

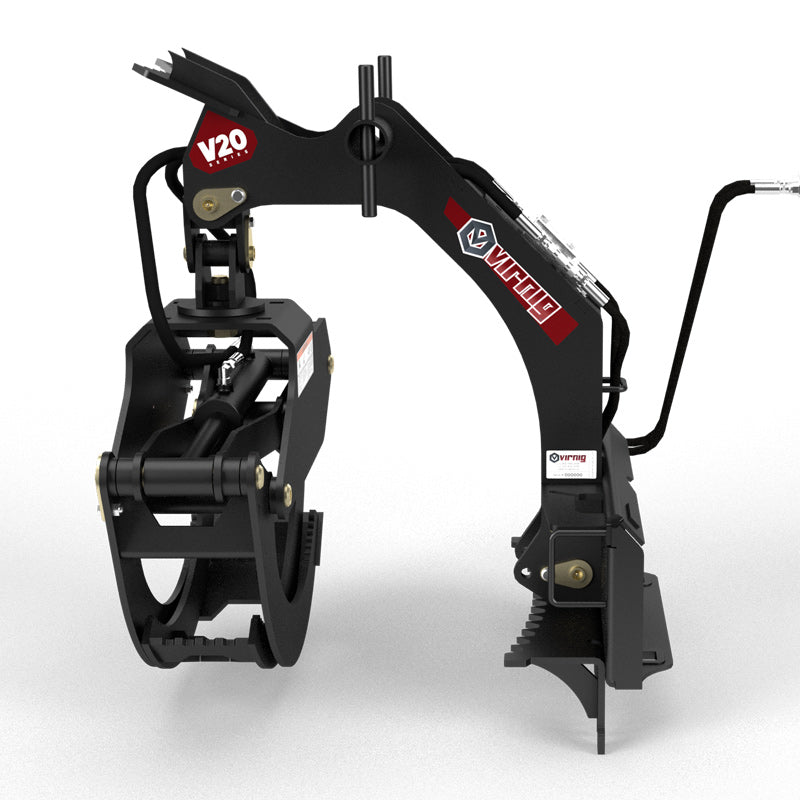

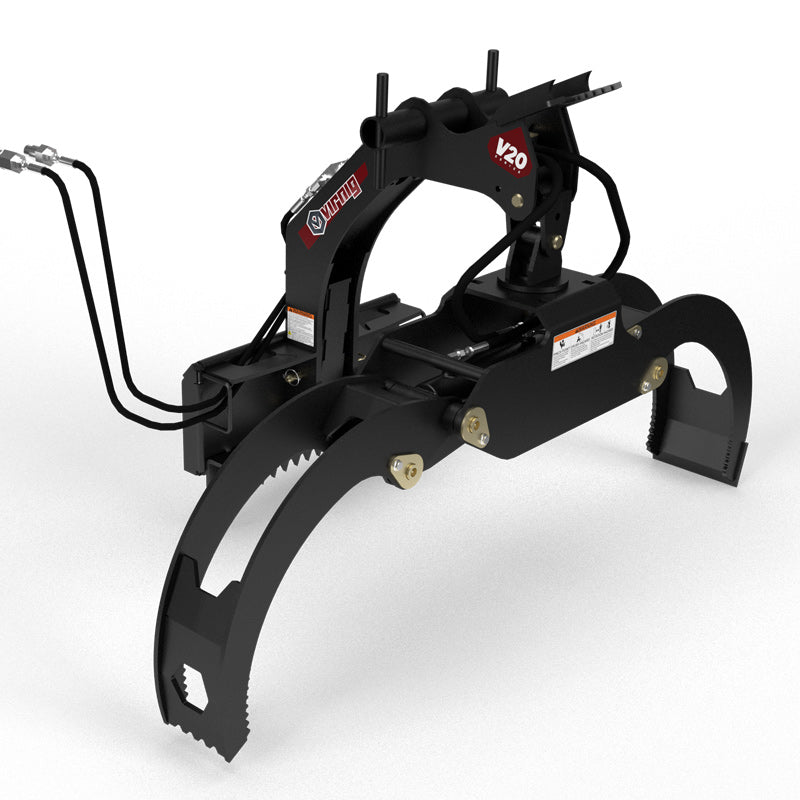

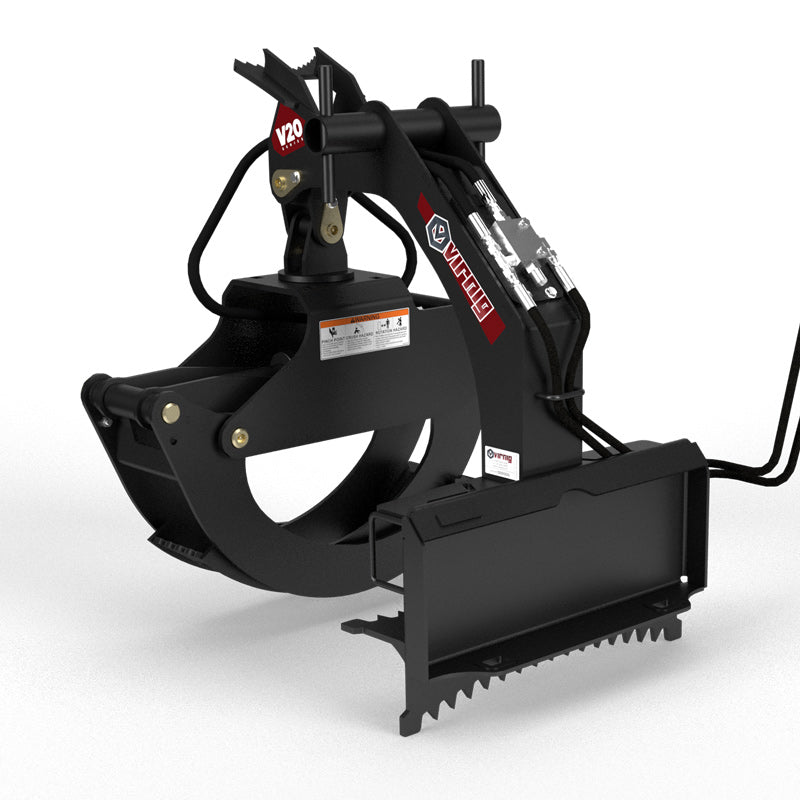

Virnig V20 Mini Skid Steer Rotating Log Grapple

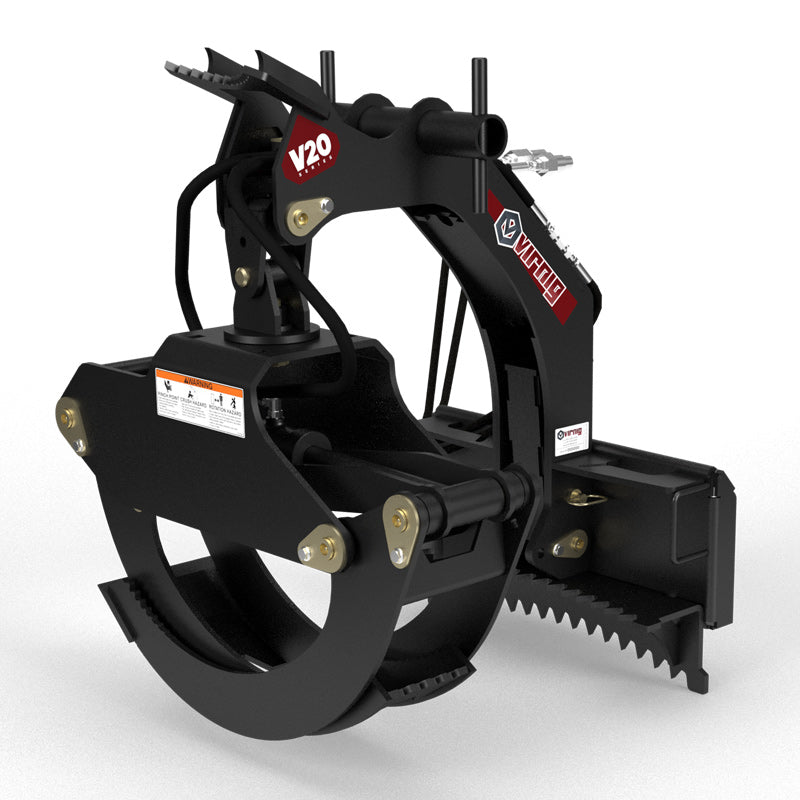

Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ

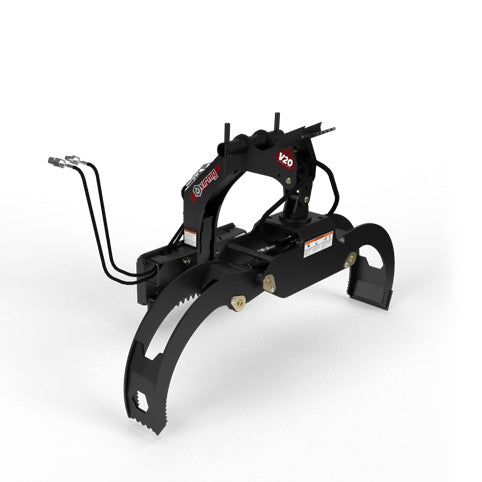

Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ

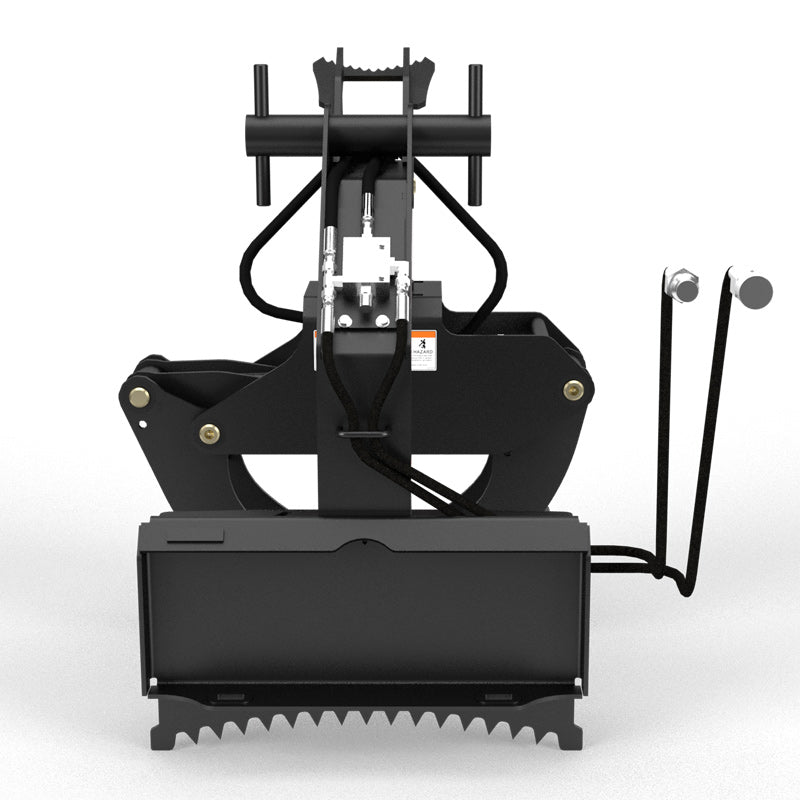

Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Rotating Log Grapple; manufacturer family image, configuration may differ
Virnig

Virnig V20 Mini Skid Steer Rotating Log Grapple

SKU: CLG Currently In Stock

$4,040.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

60-INCH JAW OPENING

JAWS FEATURE 60″ OPENING AND BYPASS EACH OTHER FOR GRABBING SMALLER LOGS.

AR400 GRAPPLE TINES

AR400 STEEL JAW TINES WITH SERRATED TIPS TO PROVIDE A BETTER GRIP.

HYDRAULIC HOLDING VALVE

HOLDING VALVE PREVENTS JAWS FROM DRIFTING OPEN DURING OPERATION.

PUSH BAR AND TIE-OFF POINTS

STANDARD PUSH BAR, ROPE TIE-OFF POINTS AND TRAILER RECEIVER HITCH. RECEIVER NOT COMPATIBLE WITH HYDRAULIC ROTATION OPTION.

SERRATED LOG CRADLE

SERRATED CRADLE SECURES LOGS IN VERTICAL AND HORIZONTAL POSITIONS.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Rotating Log Grapple grips and positions logs with a compact frame for mini loaders. Its jaws open to 60″ and bypass each other when closing, allowing the same grapple to gather larger material and close down around smaller logs without relying on a fixed minimum gap.

AR400 steel jaw tines use serrated tips for grip, while a serrated cradle supports logs in vertical or horizontal positions. A holding valve helps prevent the jaws from drifting open during operation. The standard push bar and rope tie-off points add handling features around the main grapple assembly.

Manual rotation provides 270° of positioning, with a 360° hydraulic rotation option available. The standard receiver hitch is not compatible with the hydraulic rotation configuration, so select the arrangement for the way you plan to work. Confirm the mini-loader mount and capacity for the complete grapple and the log's actual weight and position.

KEY BENEFITS

  • Jaws feature 60″ opening and bypass each other for grabbing smaller logs.
  • AR400 steel jaw tines with serrated tips to provide a better grip.
  • Holding valve prevents jaws from drifting open during operation.
  • Standard push bar, rope tie-off points and trailer receiver hitch. Receiver not compatible with hydraulic rotation option.
  • Serrated cradle secures logs in vertical and horizontal positions.

TECHNICAL SPECIFICATIONS

  • Models: CLG
  • Overall Width, Jaw Closed (in.): 29.4
  • Overall Height: Manual / Hydraulic Rotate (in.): 37.4 / 41.8
  • Overall Depth (in.): 31.1
  • Jaw Tine Thickness (in.): .375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Diameter (in.): 1.25 / 1.0
  • Grapple Jaw Opening (in.): 60.0
  • Grapple Jaw Minimum Closing Diameter (in.): 7.0
  • Hydraulic Rotator Capacity: Static / Dynamic (lbs): 6750 / 3375
  • Approximate Weight: Manual / Hydraulic Rotate (lbs): 300² / 350²
  • Recommended Loader Capacity: Less than 1650 lbs
  • ¹Material is AR400 Plate (150,000 PSI Minimum Yield Strength). ²Bobcat mount adds approximately 40 lbs to model weight, and ASV mount adds 45 lbs.
  • Base manual adjustment is included. Hydraulic angle or rotation upgrades and required electrical controls are available by quote and are not included.

APPLICATIONS

  • Log handling
  • Tree service cleanup
  • Landscape material placement

VIRNIG V20 MINI SKID STEER ROTATING LOG GRAPPLE

WORKING DESIGN

  • Jaws feature 60″ opening and bypass each other for grabbing smaller logs.
  • AR400 steel jaw tines with serrated tips to provide a better grip.
  • Holding valve prevents jaws from drifting open during operation.
  • Standard push bar, rope tie-off points and trailer receiver hitch. Receiver not compatible with hydraulic rotation option.
  • Serrated cradle secures logs in vertical and horizontal positions.

CONFIGURATION AND SPECIFICATIONS

  • Models: CLG
  • Overall Width, Jaw Closed (in.): 29.4
  • Overall Height: Manual / Hydraulic Rotate (in.): 37.4 / 41.8
  • Overall Depth (in.): 31.1
  • Jaw Tine Thickness (in.): .375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Diameter (in.): 1.25 / 1.0

READY FOR THE FIELD

  • Jaws feature 60″ opening and bypass each other for grabbing smaller logs.
  • AR400 steel jaw tines with serrated tips to provide a better grip.
  • Holding valve prevents jaws from drifting open during operation.
  • Standard push bar, rope tie-off points and trailer receiver hitch. Receiver not compatible with hydraulic rotation option.
  • Serrated cradle secures logs in vertical and horizontal positions.
