VIRNIG

V20 Mini Skid Steer Scrap Grapple

For Mini Skid Steers

36-48″ Widths

Virnig

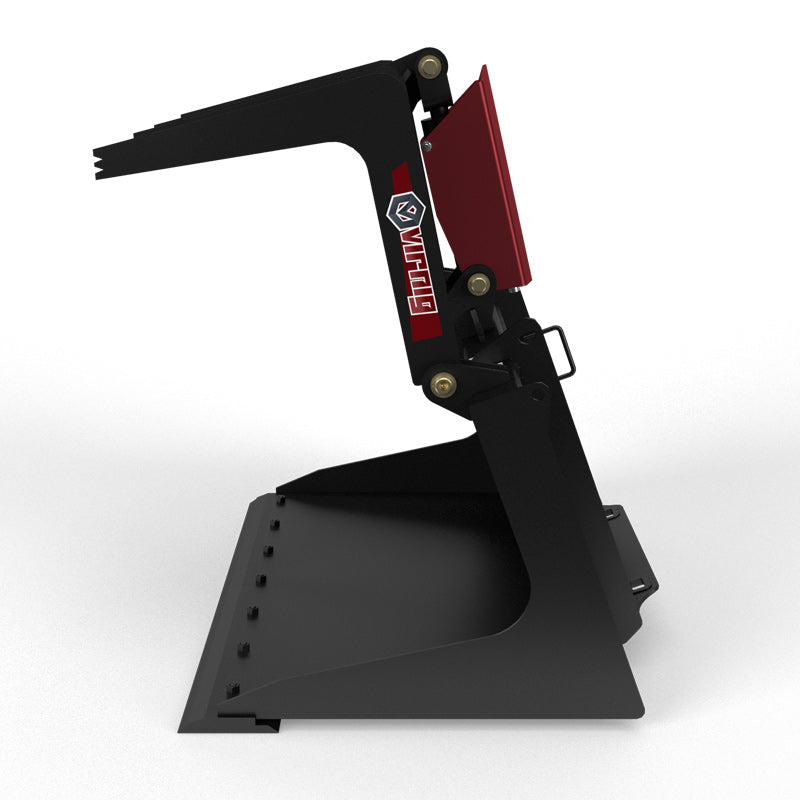

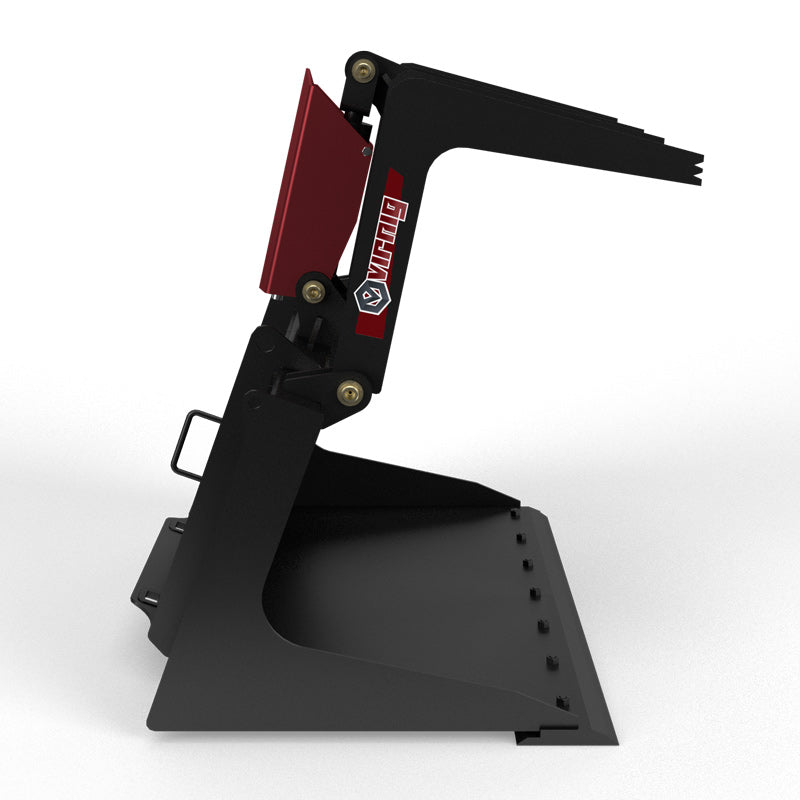

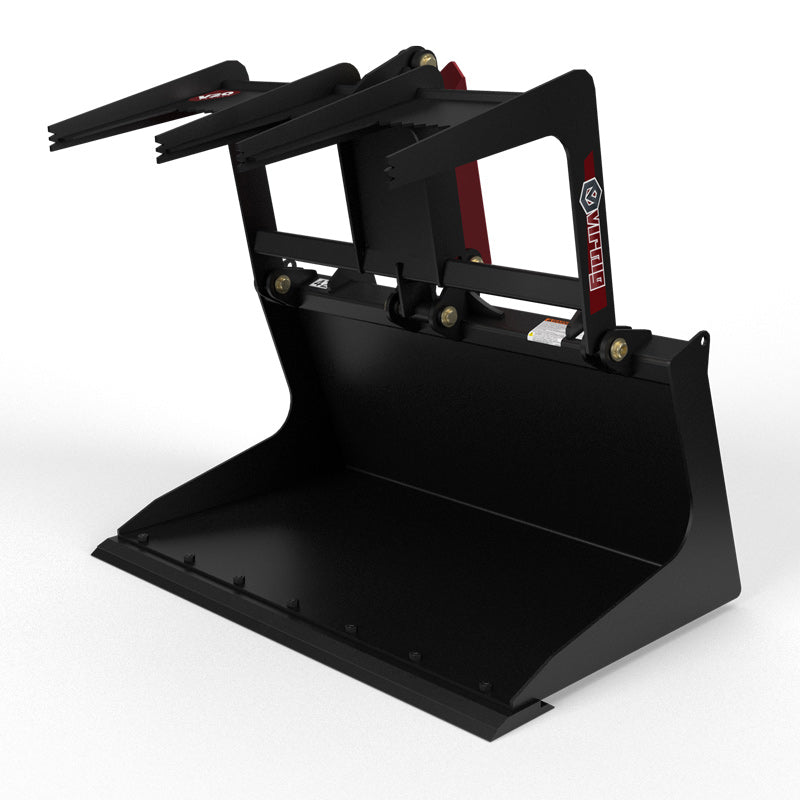

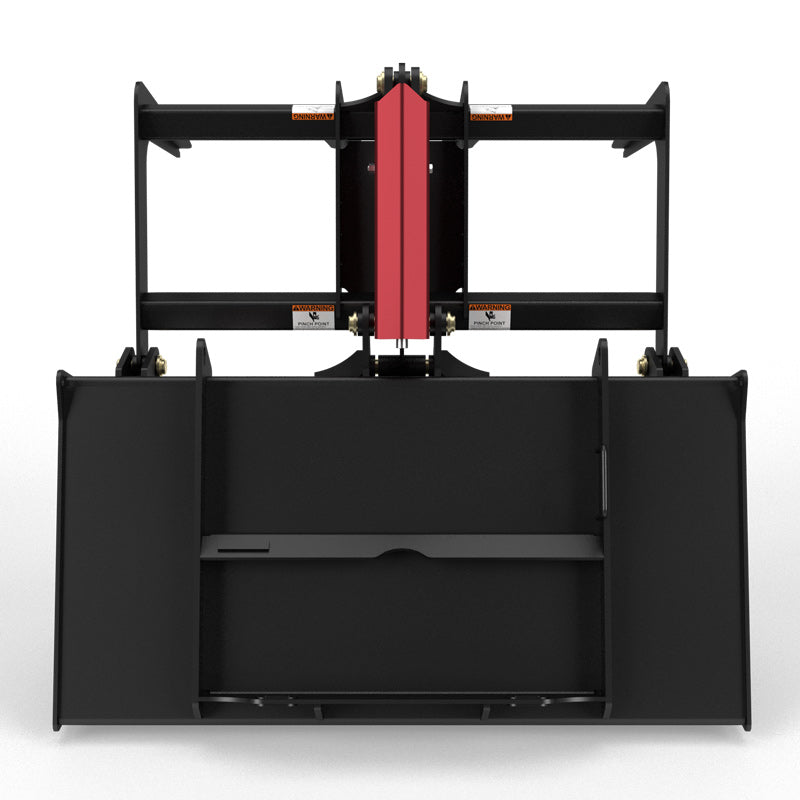

Virnig V20 Mini Skid Steer Scrap Grapple

SKU: CSG36 Currently In Stock

Sale price$2,610.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED HINGE BUSHINGS SUPPORT SMOOTH JAW MOVEMENT.

WELD-ON CUTTING EDGE

A ½″ X 4″ WELD-ON EDGE FORMS THE BUCKET'S FRONT GROUND-CONTACT SURFACE.

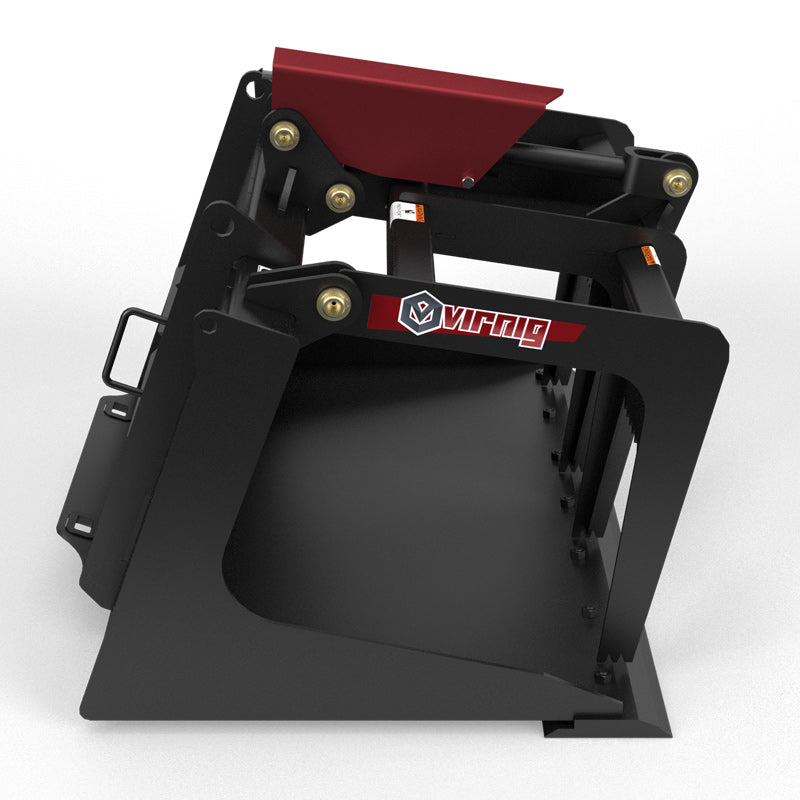

CYLINDER PROTECTION

A STANDARD GUARD SHIELDS THE HYDRAULIC CYLINDER WHILE HANDLING BRUSH AND DEBRIS.

DEBRIS CLEANUP

VIRNIG V20 MINI SKID STEER SCRAP GRAPPLE SCOOPS LOOSE DEBRIS AND CLAMPS BULKY LOADS IN A SOLID-BOTTOM BUCKET.

GRAPPLE JAW OPENING

A 30.9″ JAW OPENING ACCEPTS UNEVEN DEBRIS WHILE THE SOLID BUCKET FLOOR RETAINS SMALLER MATERIAL.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Scrap Grapple combines a solid-bottom bucket and hydraulic jaw for collecting loose debris with a mini loader. The bucket retains smaller material while the grapple holds bulky pieces against it, making the attachment useful for cleanup loads containing a mixture of loose and irregular objects.

A ½″ × 4″ weld-on edge provides the leading bucket surface for entering the pile and gathering material. The solid floor distinguishes the scrap grapple from V20 skeleton configurations that allow soil to sift through. A standard cylinder guard shields the hydraulic cylinder from contact with the debris being handled.

NitroSteel® cylinder rods and Teflon®-coated hinge bushings equip the moving connection for repeated clamping cycles. Match the mounting interface and width to the mini skid steer, and include the attachment weight when checking the load. Choose this solid-floor arrangement when retaining loose material matters more than sorting it out beneath the bucket.

KEY BENEFITS

  • Nitrosteel® cylinder rods and Teflon® coated bushings on hinge.
  • 1/2″ x 4″ weld-on edge.
  • Standard with cylinder guard.
  • Virnig v20 mini skid steer scrap grapple scoops loose debris and clamps bulky loads in a solid-bottom bucket.
  • Grapple jaw opening (in.): 30.9

TECHNICAL SPECIFICATIONS

  • Models: CSG36 CSG42 CSG48
  • Overall Width (in.): CSG36: 36.0; CSG42: 42.0; CSG48: 48.0
  • Height: Overall / Bucket (in.): 27.0 / 24.5
  • Overall Depth (in.): 30.8
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.0 / 1.0
  • Grapple Jaw Opening (in.): 30.9
  • Approximate Weight (lbs): CSG36: 325¹; CSG42: 355¹; CSG48: 380¹
  • Recommended Loader Capacity: Greater than 500 lbs
  • ¹Bobcat® mount adds approximately 10 lbs to model weight.

APPLICATIONS

  • Debris cleanup
  • Loose material loading
  • Bulky scrap handling

VIRNIG V20 MINI SKID STEER SCRAP GRAPPLE

WORKING DESIGN

  • NitroSteel® cylinder rods and Teflon® coated bushings on hinge.
  • 1/2″ x 4″ weld-on edge.
  • Standard with cylinder guard.

CONFIGURATION AND SPECIFICATIONS

  • Models: CSG36 CSG42 CSG48
  • Overall Width (in.): CSG36: 36.0; CSG42: 42.0; CSG48: 48.0
  • Height: Overall / Bucket (in.): 27.0 / 24.5
  • Overall Depth (in.): 30.8
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.0 / 1.0
  • Grapple Jaw Opening (in.): 30.9
  • Approximate Weight (lbs): CSG36: 325¹; CSG42: 355¹; CSG48: 380¹
  • Recommended Loader Capacity: Greater than 500 lbs

READY FOR THE FIELD

  • Nitrosteel® cylinder rods and Teflon® coated bushings on hinge.
  • 1/2″ x 4″ weld-on edge.
  • Standard with cylinder guard.
  • Virnig v20 mini skid steer scrap grapple scoops loose debris and clamps bulky loads in a solid-bottom bucket.
  • Grapple jaw opening (in.): 30.9
