VIRNIG

V20 Mini Skid Steer Skeleton Rock Bucket

For Mini Skid Steers

36-48″ Widths

Virnig

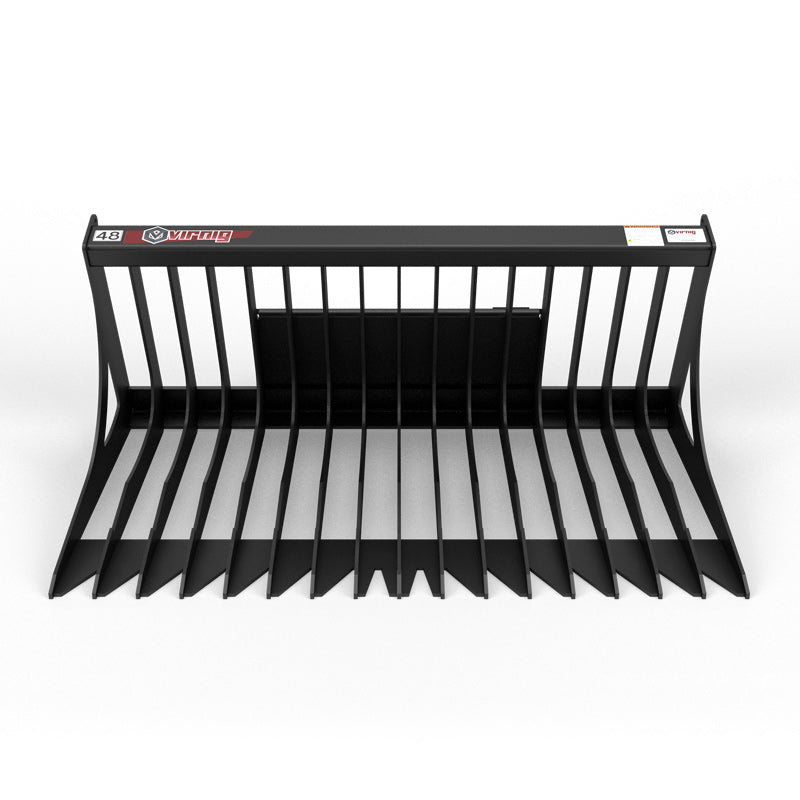

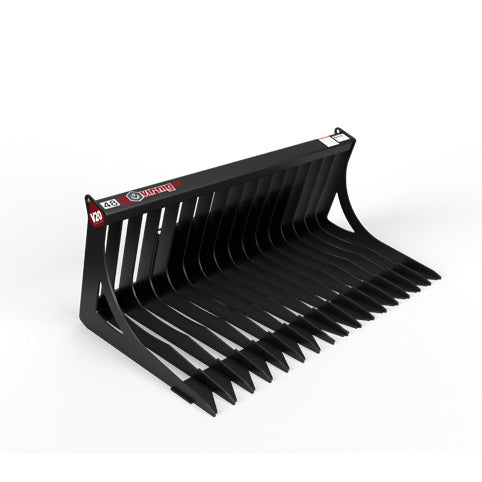

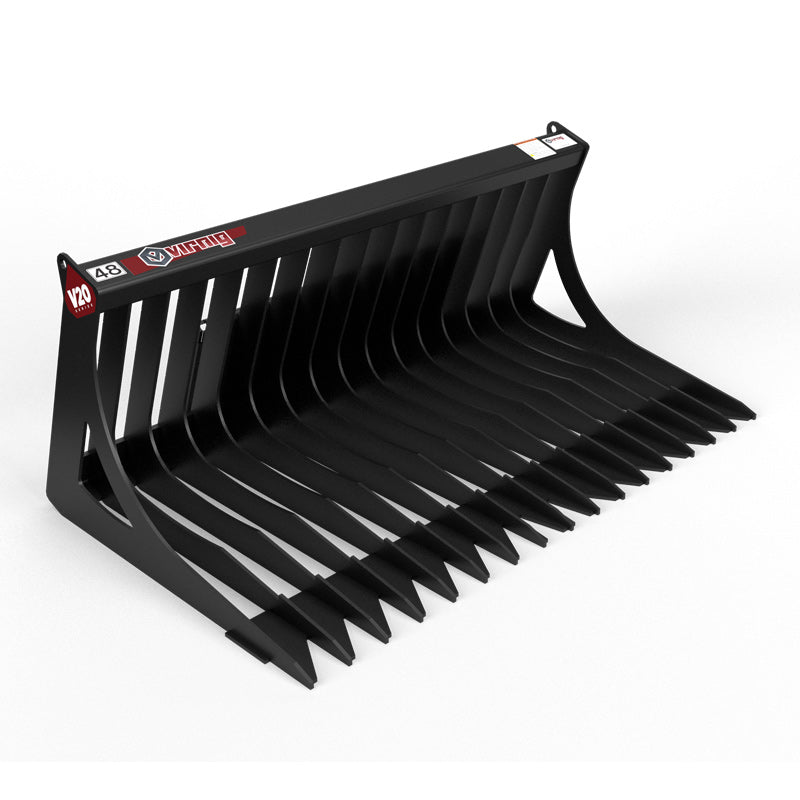

Virnig V20 Mini Skid Steer Skeleton Rock Bucket

SKU: CSRB36 Currently In Stock

Sale price$1,225.00 USD

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES PROVIDE RIGID SUPPORT WHEN LIFTING AND SORTING UNEVEN LOADS.

ROCK RETENTION

NOTCHES NEAR THE TINE TIPS HELP RETAIN ROCKS DURING LIFTING AND TRANSPORT.

GUSSETED CONSTRUCTION

GUSSETS REINFORCE THE TINE TIPS WHERE THEY CONTACT AND SUPPORT THE LOAD.

OPEN MATERIAL HANDLING

VIRNIG V20 MINI SKID STEER SKELETON ROCK BUCKET SEPARATES ROCKS FROM LOOSE SOIL AS IT GATHERS AND CARRIES MATERIAL.

TINE THICKNESS

¼″ STEEL TINES SUPPORT ROCKS WHILE THE OPEN FLOOR ALLOWS LOOSE SOIL TO FALL THROUGH.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Skeleton Rock Bucket collects stones while allowing loose soil to fall through its open tine floor. It brings sorting and scooping to a mini loader, making it useful for rocky ground cleanup where removing every bucket of soil would carry away material that could stay on the site.

Every tine is made from one piece of steel, with fully gusseted tips reinforcing the working end. Notches near the tips help retain rocks inside the lower frame. The V20 CSRB family uses its own compact tine arrangement and attachment weights rather than the heavier construction of the full-size rock bucket families.

Choose the width and mini-loader mount around your machine and the material being collected. This is the plain rock bucket without a hydraulic upper grapple, so load retention depends on bucket angle and controlled travel. Check the complete attachment and rock load against the carrier's capacity before lifting and carrying material away.

KEY BENEFITS

  • Every tine is made from one piece of steel for maximum rigidity.
  • Notch near tine tips hold rocks securely.
  • Tine tips fully gusseted for added strength.
  • Virnig v20 mini skid steer skeleton rock bucket separates rocks from loose soil as it gathers and carries material.
  • Tine thickness (in.): 0.25¹

TECHNICAL SPECIFICATIONS

  • Models: CSRB36 CSRB42 CSRB48
  • Width: Overall / Inside (in.): CSRB36: 36.0 / 35.0; CSRB42: 40.9 / 39.9; CSRB48: 46.8 / 45.8
  • Overall Height (in.): 20.4
  • Depth: Overall / Inside (in.): 31.2 / 20.5
  • Number of Tines (w/ sides): CSRB36: 13; CSRB42: 15; CSRB48: 17
  • Space Between Tines (in.): 2.9
  • Tine Thickness (in.): 0.25¹
  • Side Plate Thickness (in.): 0.25¹
  • Approximate Weight (lbs): CSRB36: 180²; CSRB42: 205²; CSRB48: 225²,³
  • Recommended Loader Capacity: Greater than 500 lbs
  • ¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength). mount adds 15 lbs to model weight, and ³ASV® mount adds approximately 30 lbs.

APPLICATIONS

  • Rock cleanup
  • Soil separation
  • Site preparation

VIRNIG V20 MINI SKID STEER SKELETON ROCK BUCKET

WORKING DESIGN

  • Every tine is made from one piece of steel for maximum rigidity.
  • Notch near tine tips hold rocks securely.
  • Tine tips fully gusseted for added strength.

CONFIGURATION AND SPECIFICATIONS

  • Models: CSRB36 CSRB42 CSRB48
  • Width: Overall / Inside (in.): CSRB36: 36.0 / 35.0; CSRB42: 40.9 / 39.9; CSRB48: 46.8 / 45.8
  • Overall Height (in.): 20.4
  • Depth: Overall / Inside (in.): 31.2 / 20.5
  • Number of Tines (w/ sides): CSRB36: 13; CSRB42: 15; CSRB48: 17
  • Space Between Tines (in.): 2.9
  • Tine Thickness (in.): 0.25¹
  • Side Plate Thickness (in.): 0.25¹
  • Approximate Weight (lbs): CSRB36: 180²; CSRB42: 205²; CSRB48: 225²,³

READY FOR THE FIELD

  • Every tine is made from one piece of steel for maximum rigidity.
  • Notch near tine tips hold rocks securely.
  • Tine tips fully gusseted for added strength.
  • Virnig v20 mini skid steer skeleton rock bucket separates rocks from loose soil as it gathers and carries material.
  • Tine thickness (in.): 0.25¹
