VIRNIG

V20 Mini Skid Steer Snow Blower

For Mini Skid Steers

Virnig

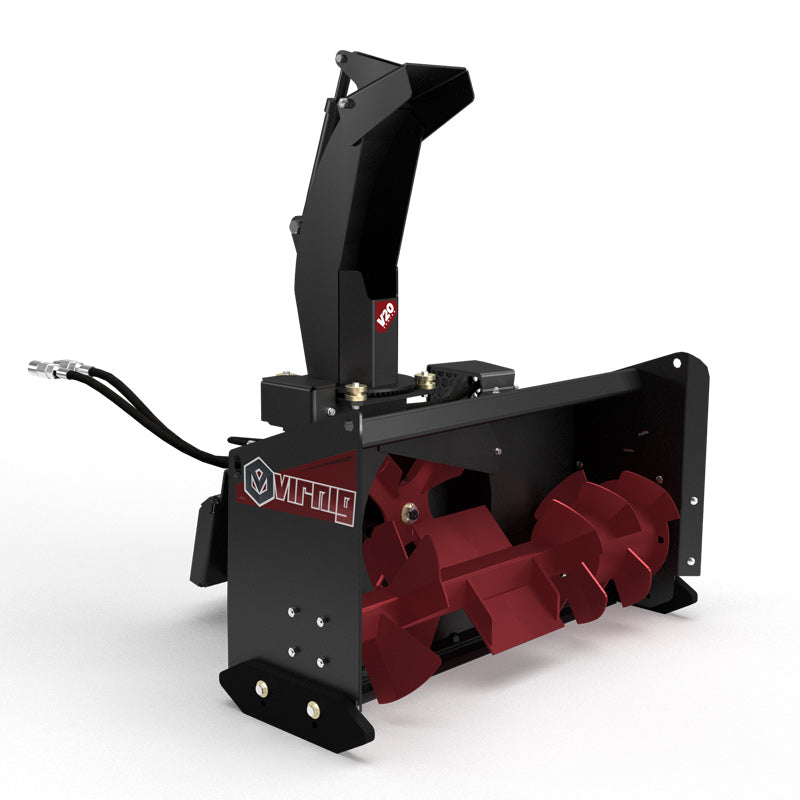

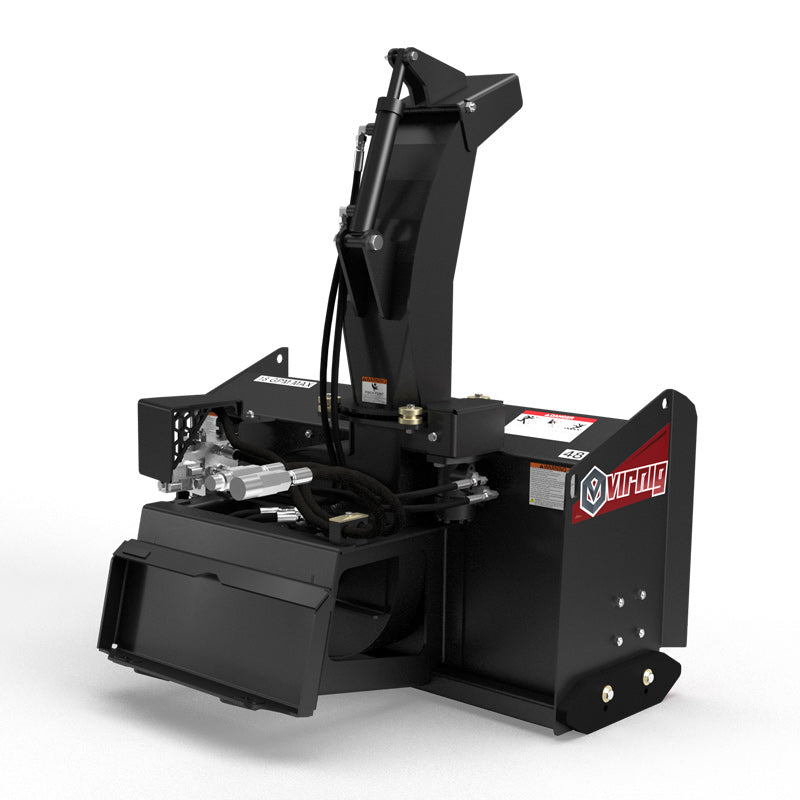

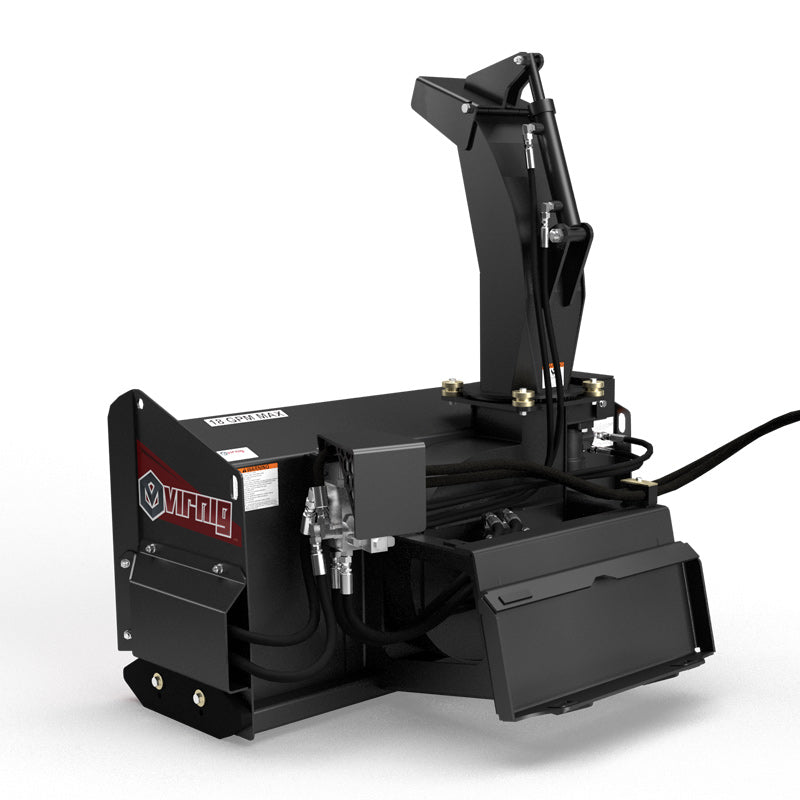

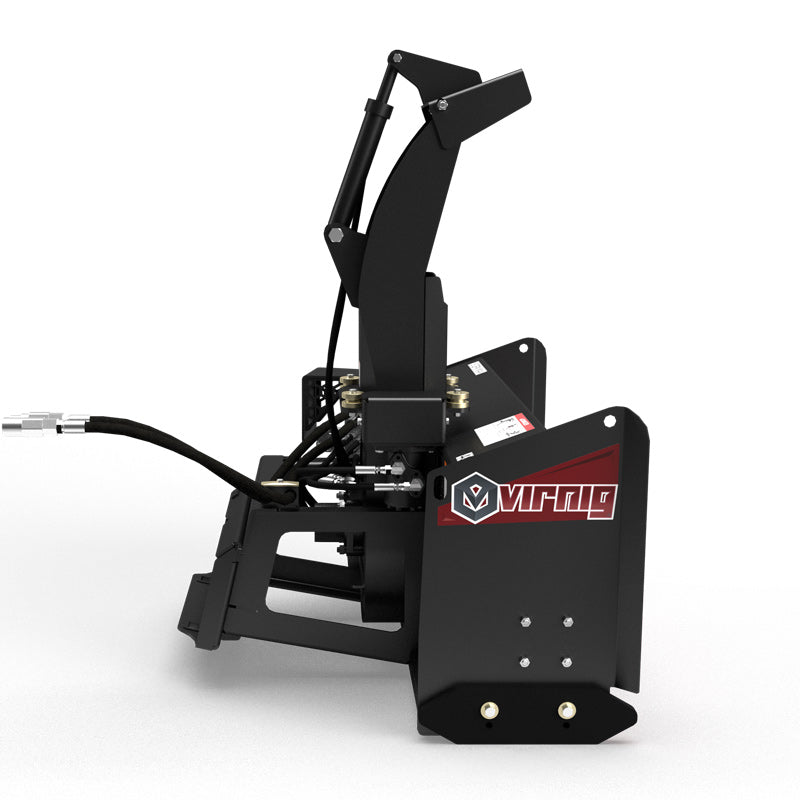

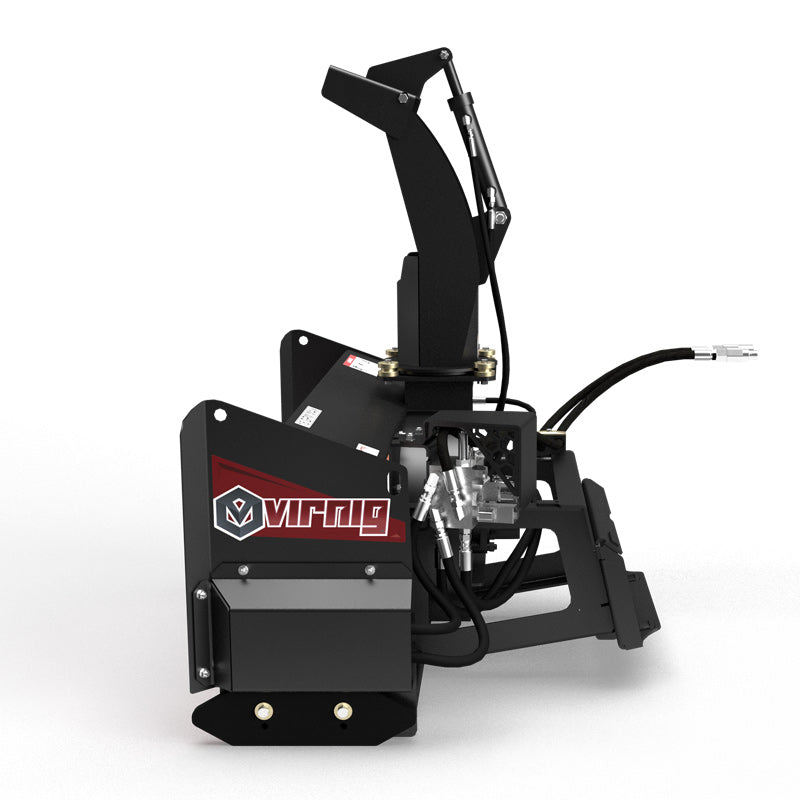

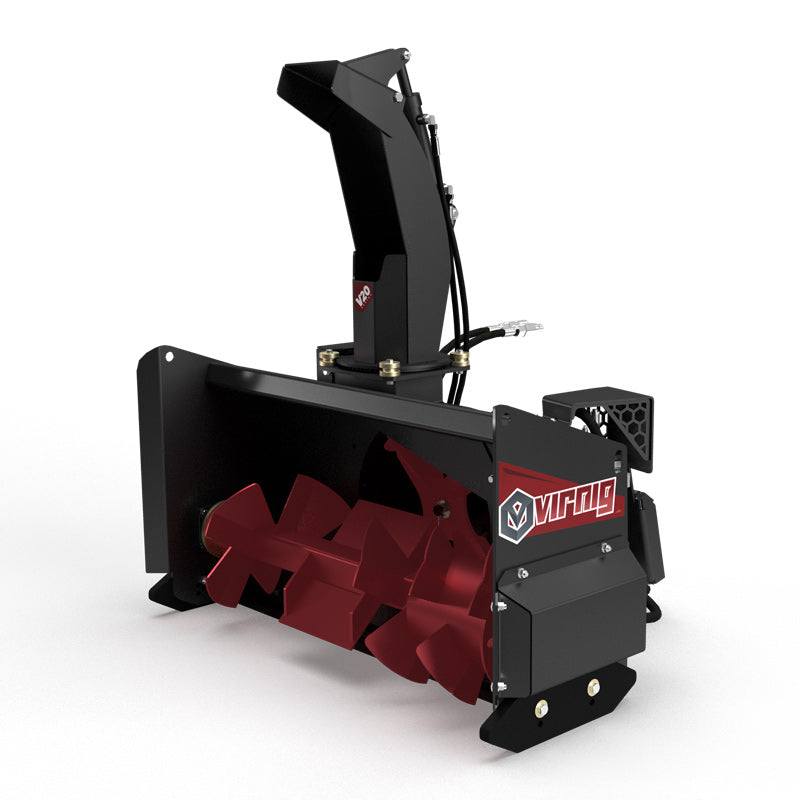

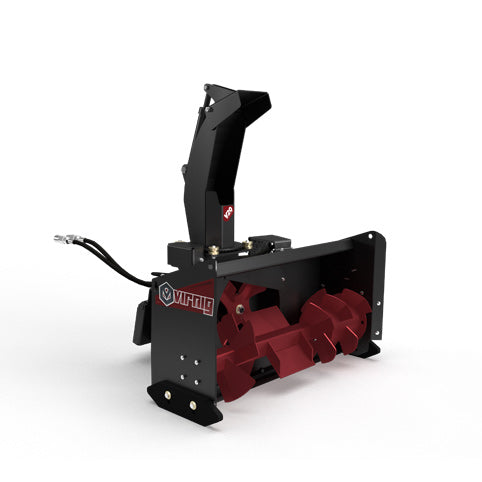

Virnig V20 Mini Skid Steer Snow Blower

SKU: CSB48-18+EL8TRX Currently In Stock

Sale price$9,395.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

PADDLE AUGER

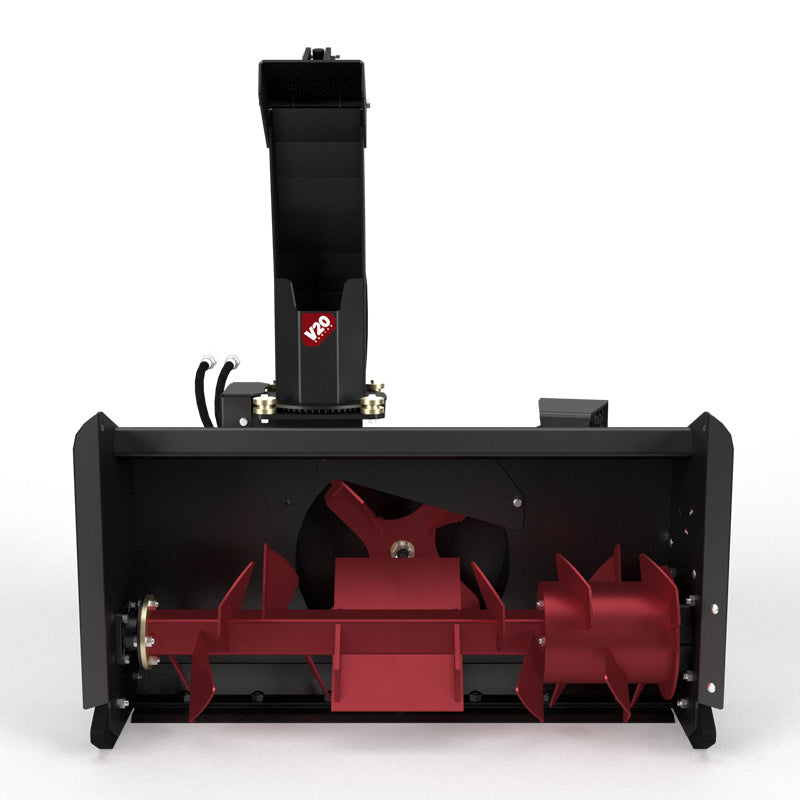

ANGLED AUGER PADDLES CHEW THROUGH SNOW AND CONTINUALLY FEED THE FAN.

DIRECT HYDRAULIC DRIVE

DIRECT-DRIVE PARKER® MOTORS POWER THE BLOWER, WITH RELIEF VALVES FOR HYDRAULIC PROTECTION.

SERVICEABLE SKID SHOES

ADJUSTABLE AND REVERSIBLE POLY SKID SHOES DESIGNED TO HOP OVER SMALL OBSTRUCTIONS.

REINFORCED FAN HOUSING

A 3/16″ FAN HOUSING ADDS STRUCTURAL SUPPORT AROUND THE SNOW BLOWER'S FAN.

270-DEGREE CHUTE ROTATION

270° HYDRAULIC CHUTE ROTATION WITH DEFLECTOR CONTROL FROM THE PLATFORM OR IN CAB.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

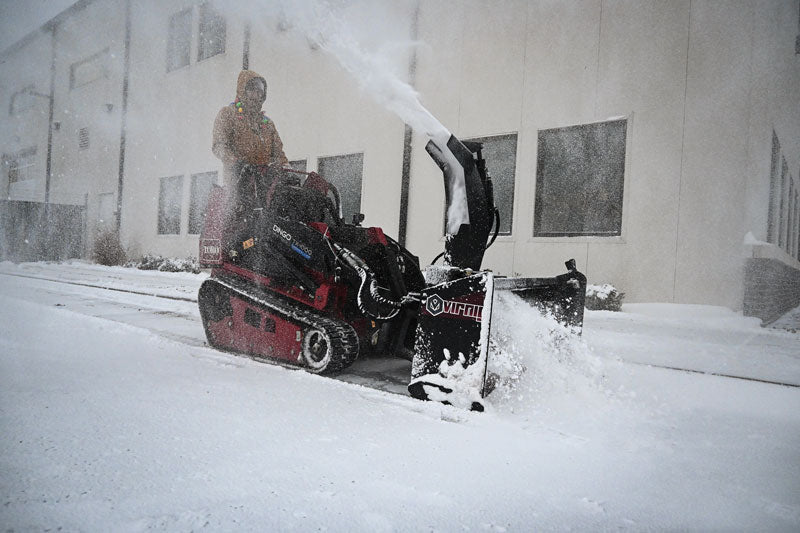

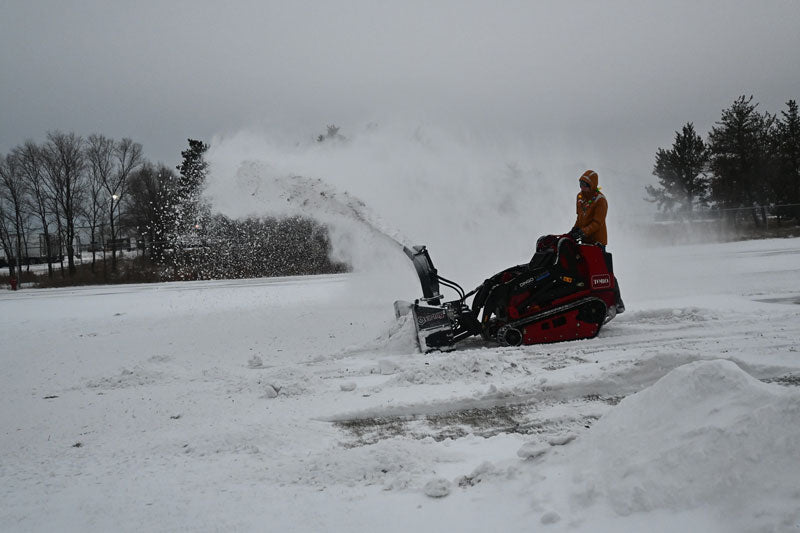

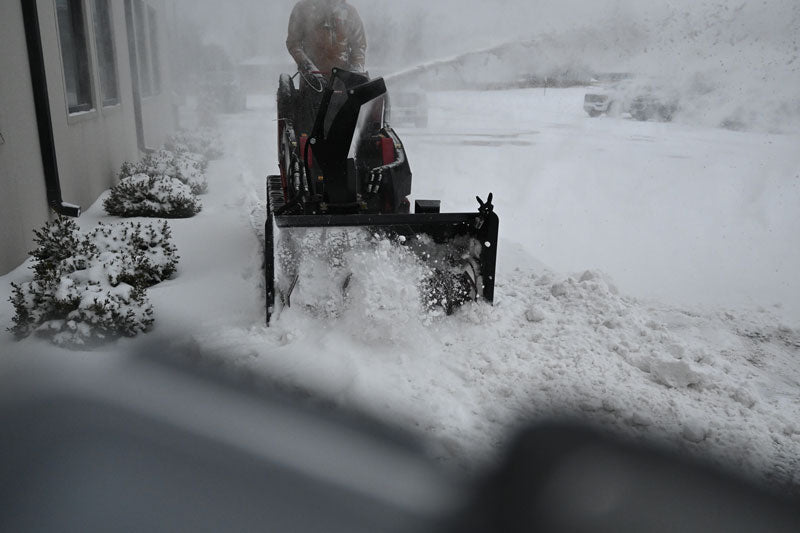

The Virnig V20 Mini Skid Steer Snow Blower gathers and throws snow with a compact attachment for mini loaders. Angled auger paddles break into the snow and feed it toward the fan, giving the operator a way to move material beyond the clearing path instead of pushing every pass into a nearby pile.

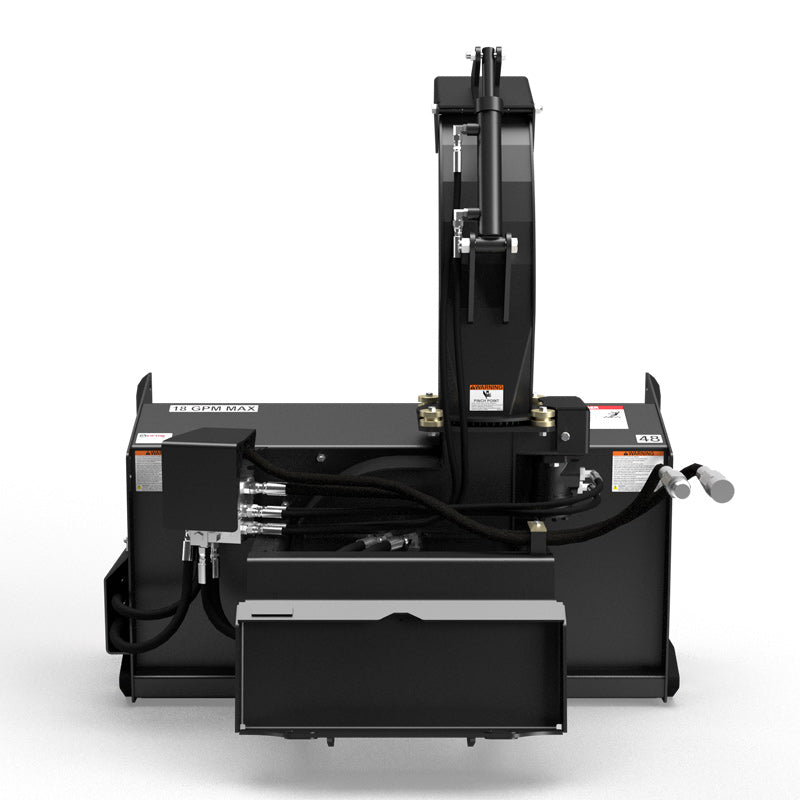

Direct-drive Parker® motors include relief valves for hydraulic protection. A 3⁄16″ fan housing supports the discharge assembly, while adjustable, reversible poly skid shoes help the blower pass over small obstructions. Guards shield the valves and electrical components from contact around the attachment.

The chute rotates hydraulically through 270°, with deflector control from the platform or cab for directing the discharge. Choose the width, mount, and control setup for the mini skid steer, then confirm the hydraulic requirements. Plan snow placement around people, vehicles, and property, keeping the discharge area clear throughout operation.

KEY BENEFITS

  • Angled auger paddles chew through snow and continually feed the fan.
  • Direct drive Parker® motors with relief valves.
  • Adjustable and reversible poly skid shoes designed to hop over small obstructions.
  • 3/16″ fan housing reduces distortion.
  • 270° hydraulic chute rotation with deflector control from the platform or in cab.

TECHNICAL SPECIFICATIONS

  • Models: CSB48-18
  • Overall Width / Cut Width (in.): 48.5 / 48.0
  • Height: Max w. Chute / Cut (in.): 54.0 / 21.9
  • Overall Depth (in.): 37.2
  • Fan: Diameter / Depth (in.): 17.5 / 5.1
  • Auger Diameter (in.): 14.0
  • Throwing Distance: Up to 30 Feet
  • Recommended Flow Rate (GPM): 10-18
  • Approximate Weight (lbs): 610¹,²,³
  • Recommended Loader Capacity: Less than 1650 lbs
  • ¹Bobcat® mount adds approximately 15 lbs to model weight, ²Universal skid steer mount adds 70 lbs and ³ASV® mount adds 30 lbs.
  • Price includes the selected electrical controller. Match the controller to the carrier connection and hydraulic system.

APPLICATIONS

  • Driveway clearing
  • Snow relocation
  • Commercial winter maintenance

VIRNIG V20 MINI SKID STEER SNOW BLOWER

WORKING DESIGN

  • Angled auger paddles chew through snow and continually feed the fan.
  • Direct drive Parker® motors with relief valves.
  • Adjustable and reversible poly skid shoes designed to hop over small obstructions.
  • 3/16″ fan housing reduces distortion.
  • 270° hydraulic chute rotation with deflector control from the platform or in cab.

CONFIGURATION AND SPECIFICATIONS

  • Models: CSB48-18
  • Overall Width / Cut Width (in.): 48.5 / 48.0
  • Height: Max w. Chute / Cut (in.): 54.0 / 21.9
  • Overall Depth (in.): 37.2
  • Fan: Diameter / Depth (in.): 17.5 / 5.1
  • Auger Diameter (in.): 14.0
  • Throwing Distance: Up to 30 Feet

READY FOR THE FIELD

  • Angled auger paddles chew through snow and continually feed the fan.
  • Direct drive Parker® motors with relief valves.
  • Adjustable and reversible poly skid shoes designed to hop over small obstructions.
  • 3/16″ fan housing reduces distortion.
  • 270° hydraulic chute rotation with deflector control from the platform or in cab.
