VIRNIG

V20 Mini Skid Steer Snow/Light Material Bucket

For Mini Skid Steers

36-60″ Widths

Virnig

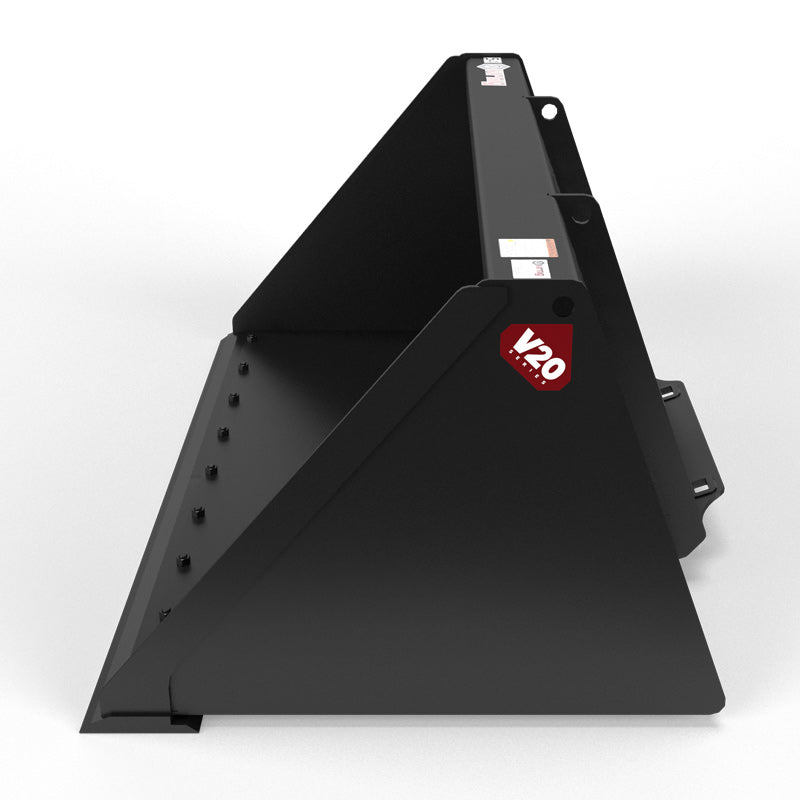

Virnig V20 Mini Skid Steer Snow/Light Material Bucket

SKU: CLMB36 Currently In Stock

Sale price$1,055.00 USD

MOST IMPORTANT FEATURES

MATERIAL CONTAINMENT

A 3/16″ SHELL AND SIDE PLATES CONTAIN HIGH-VOLUME LOADS OF SNOW AND LIGHT MATERIAL.

WELD-ON CUTTING EDGE

A ½″ X 4″ WELD-ON EDGE FORMS THE BUCKET'S FRONT GROUND-CONTACT SURFACE.

OPERATOR SIGHTLINES

WINDOWS PRESERVE FORWARD SIGHTLINES; CHOOSE A SOLID BACK WHEN PREFERRED.

MATERIAL HANDLING

VIRNIG V20 MINI SKID STEER SNOW/LIGHT MATERIAL BUCKET CARRIES HIGH VOLUMES OF SNOW, MULCH, AND OTHER LOW-DENSITY MATERIALS.

LOAD CAPACITY OPTIONS

MODEL CAPACITY OPTIONS LET YOU SIZE THE BUCKET FOR BULKY, LOW-DENSITY MATERIAL.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Snow/Light Material Bucket carries larger volumes of snow, mulch, and other low-density material with a mini loader. Its high-volume shape helps gather bulky contents that fill a compact dirt bucket quickly, making it useful for repeated cleanup and material movement around properties and yards.

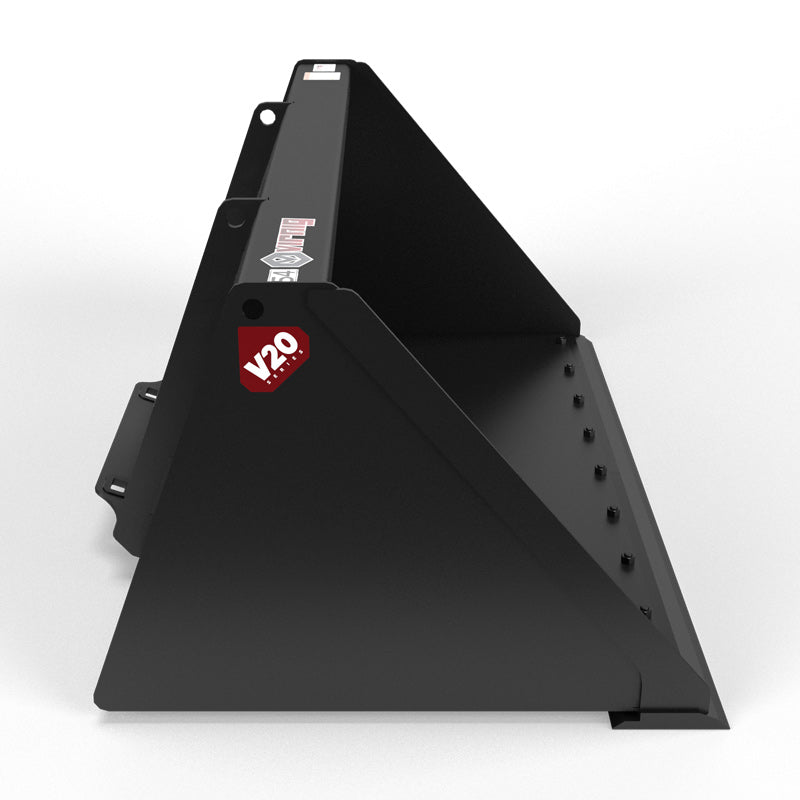

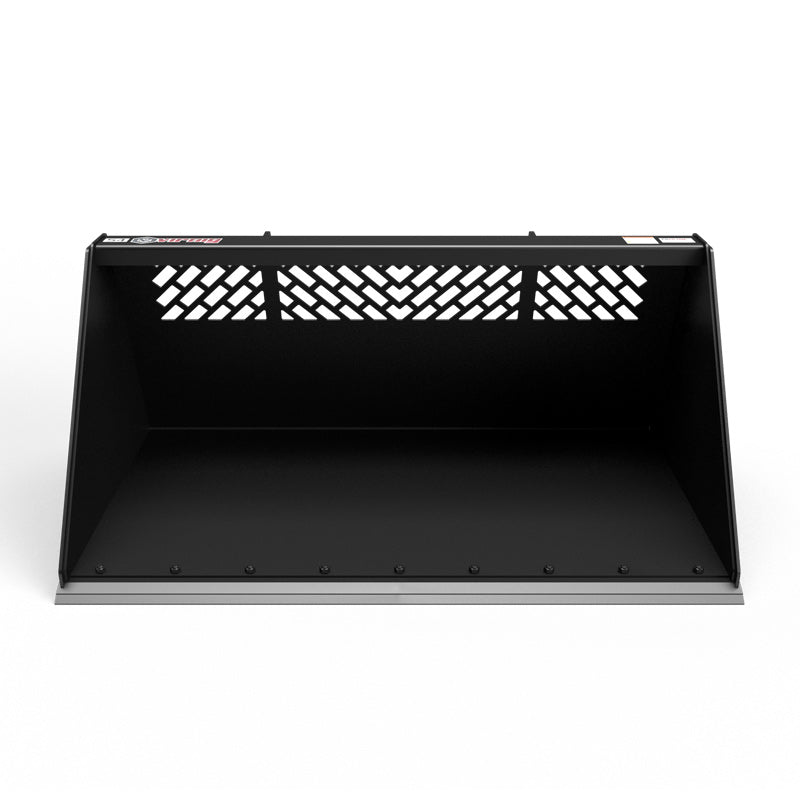

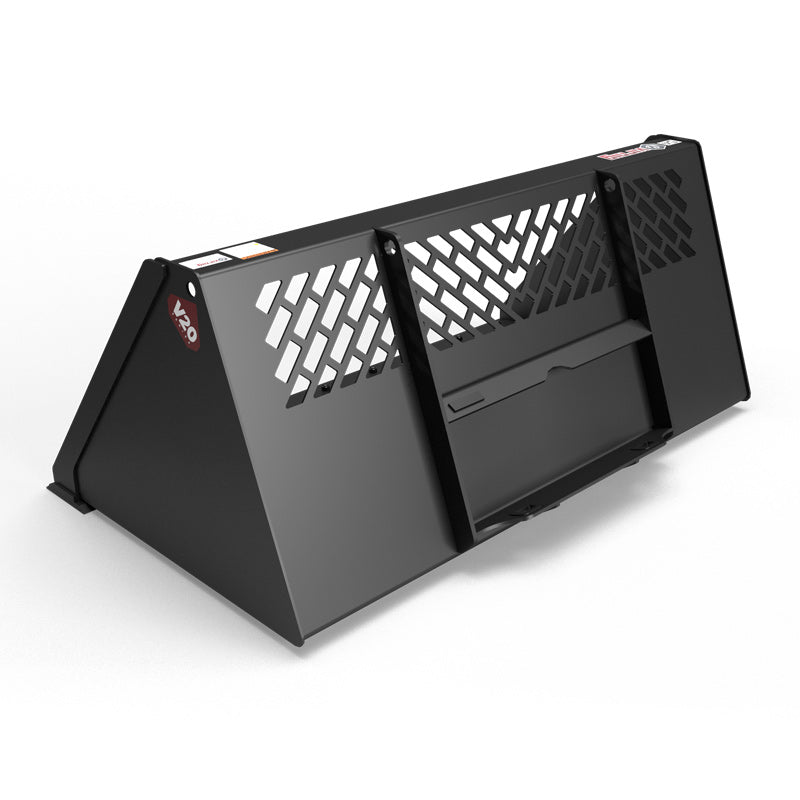

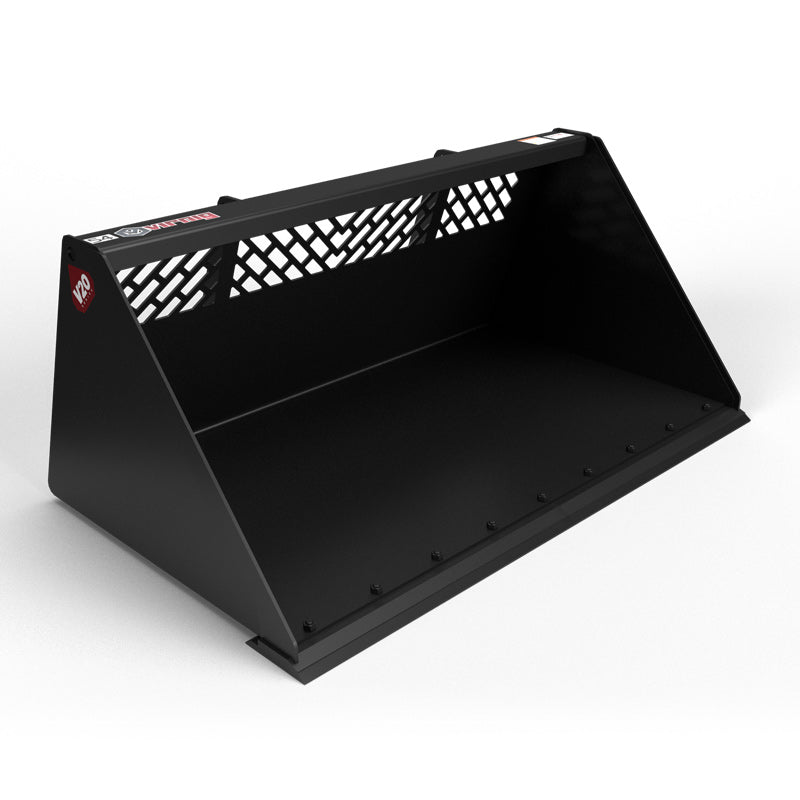

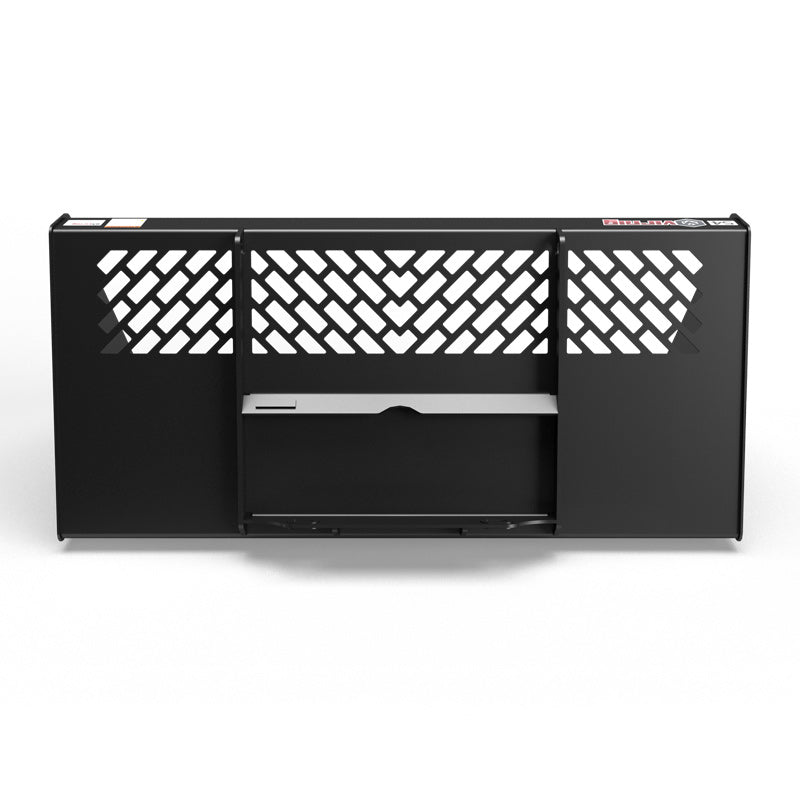

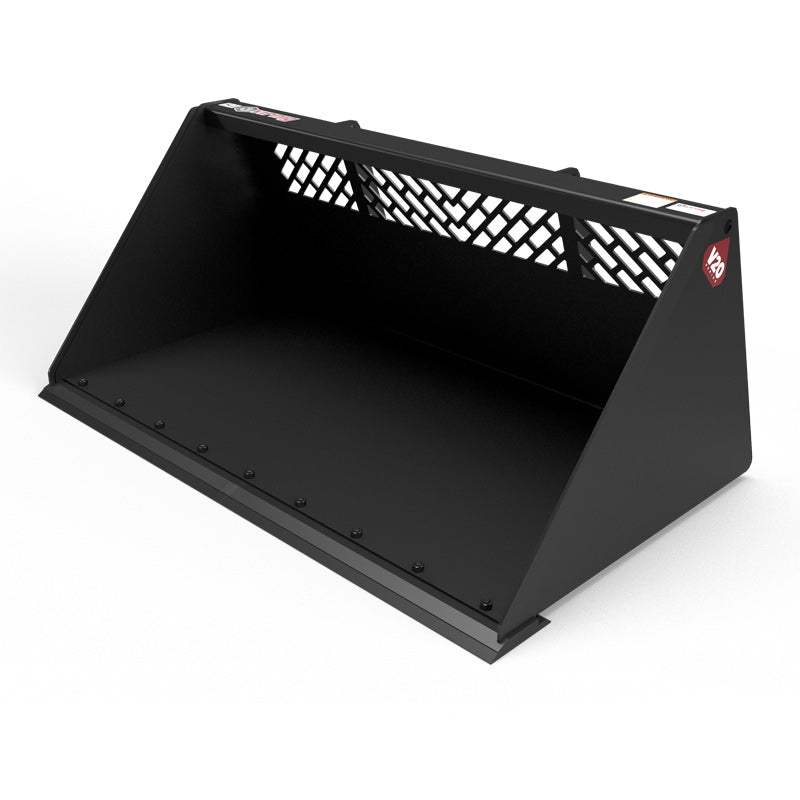

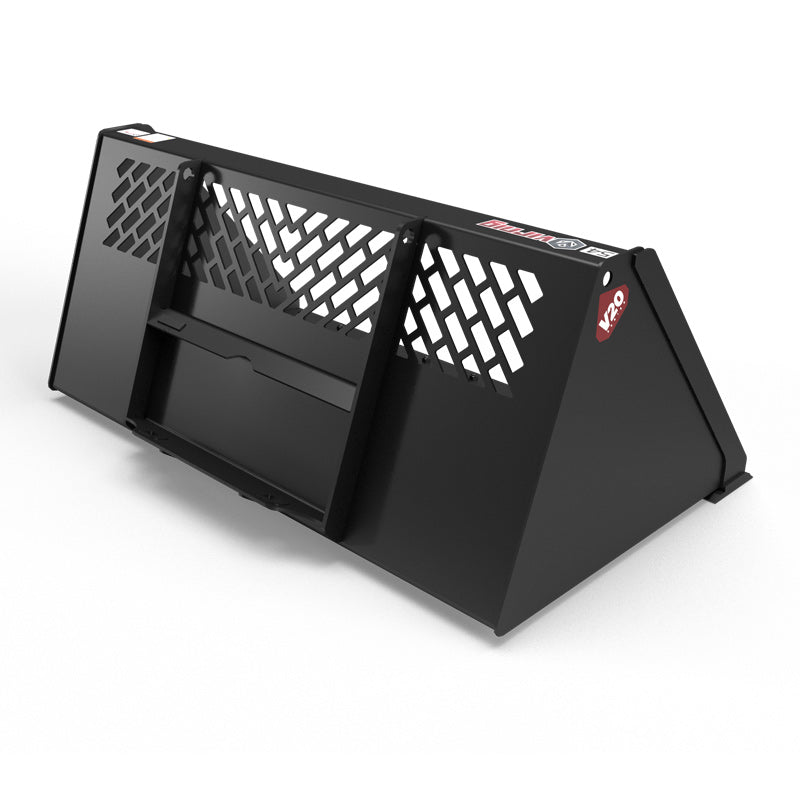

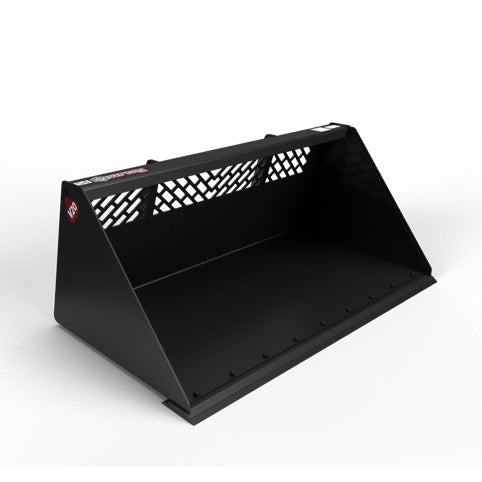

The shell and side plates are 3⁄16″ thick, with a ½″ × 4″ weld-on edge at the front. Visibility windows let the operator see through the rear of the bucket during positioning. A solid-back option is also available for buyers who prefer that bucket configuration.

Choose the width, back style, and mounting interface for your mini skid steer. The extra volume is intended for lighter materials, and wet or compacted snow can weigh much more than loose powder. Keep the combined attachment and contents within the carrier's rating rather than assuming the bucket should always be filled to its available capacity.

KEY BENEFITS

  • 3/16″ shell and side plates.
  • 1/2″ x 4″ weld-on edge.
  • Windows for better operator visibility. available with a solid back.
  • Virnig v20 mini skid steer snow/light material bucket carries high volumes of snow, mulch, and other low-density materials.
  • Capacity: struck / heaped (cu. ft.): 8.3 / 9.9 9.8 / 11.7 11.3 / 13.5 12.8 / 15.3 14.3 / 17.1

TECHNICAL SPECIFICATIONS

  • Models: CLMB36 CLMB42 CLMB48 CLMB54 CLMB60
  • Width: Overall / Inside (in.) 3: 36.0 / 34.6 42.0 / 40.6 48.0 / 46.6 54.0 / 52.6 60.0 / 58.6
  • Overall Height (in.): 23.3
  • Depth: Overall / Inside (in.): 34.7 / 31.3
  • Capacity: Struck / Heaped (cu. ft.): 8.3 / 9.9 9.8 / 11.7 11.3 / 13.5 12.8 / 15.3 14.3 / 17.1
  • Bucket Back Angle (degrees): 70
  • Shell Thickness (in.): 0.19
  • Side Plate Thickness (in.): 0.19
  • Approximate Weight (lbs): CLMB36: 215¹; CLMB42: 235¹; CLMB48: 255¹,²; CLMB54: 275¹,²; CLMB60: 295¹,²
  • Recommended Loader Capacity: Less than 1650 lbs
  • ¹Bobcat® mount adds 10 lbs to model weight, and ²ASV® mount adds approximately 5 lbs.

APPLICATIONS

  • Snow loading
  • Mulch handling
  • Light material transport

VIRNIG V20 MINI SKID STEER SNOW/LIGHT MATERIAL BUCKET

WORKING DESIGN

  • 3/16″ shell and side plates.
  • 1/2″ x 4″ weld-on edge.
  • Windows for better operator visibility. Available with a solid back.

CONFIGURATION AND SPECIFICATIONS

  • Models: CLMB36 CLMB42 CLMB48 CLMB54 CLMB60
  • Width: Overall / Inside (in.) 3: 36.0 / 34.6 42.0 / 40.6 48.0 / 46.6 54.0 / 52.6 60.0 / 58.6
  • Overall Height (in.): 23.3
  • Depth: Overall / Inside (in.): 34.7 / 31.3
  • Capacity: Struck / Heaped (cu. ft.): 8.3 / 9.9 9.8 / 11.7 11.3 / 13.5 12.8 / 15.3 14.3 / 17.1
  • Bucket Back Angle (degrees): 70
  • Shell Thickness (in.): 0.19
  • Side Plate Thickness (in.): 0.19
  • Approximate Weight (lbs): CLMB36: 215¹; CLMB42: 235¹; CLMB48: 255¹,²; CLMB54: 275¹,²; CLMB60: 295¹,²

READY FOR THE FIELD

  • 3/16″ shell and side plates.
  • 1/2″ x 4″ weld-on edge.
  • Windows for better operator visibility. available with a solid back.
  • Virnig v20 mini skid steer snow/light material bucket carries high volumes of snow, mulch, and other low-density materials.
  • Capacity: struck / heaped (cu. ft.): 8.3 / 9.9 9.8 / 11.7 11.3 / 13.5 12.8 / 15.3 14.3 / 17.1
