VIRNIG

V20 Mini Skid Steer Tiller

For Mini Skid Steers

Virnig

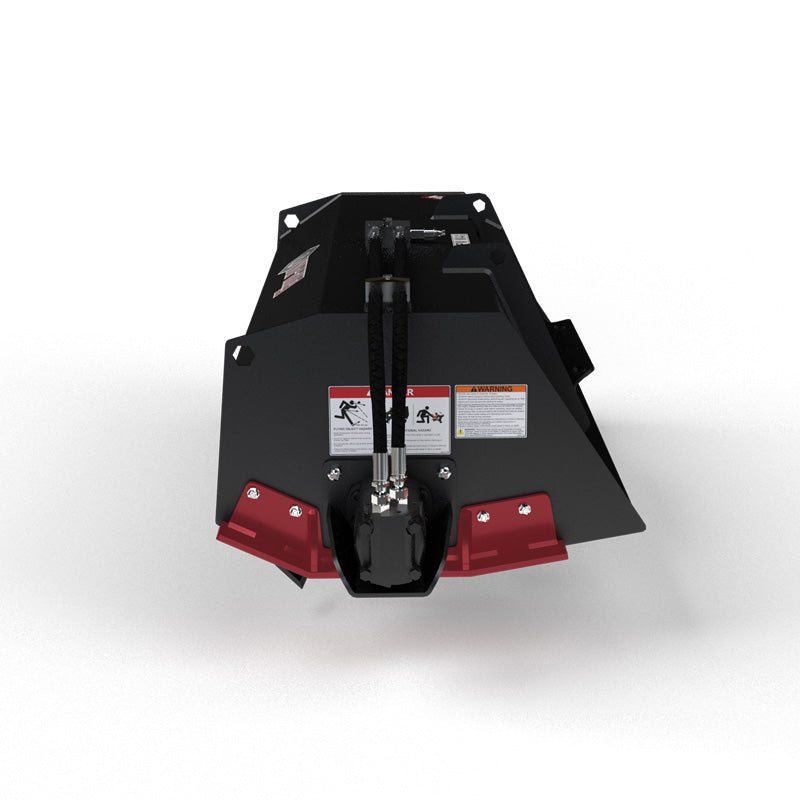

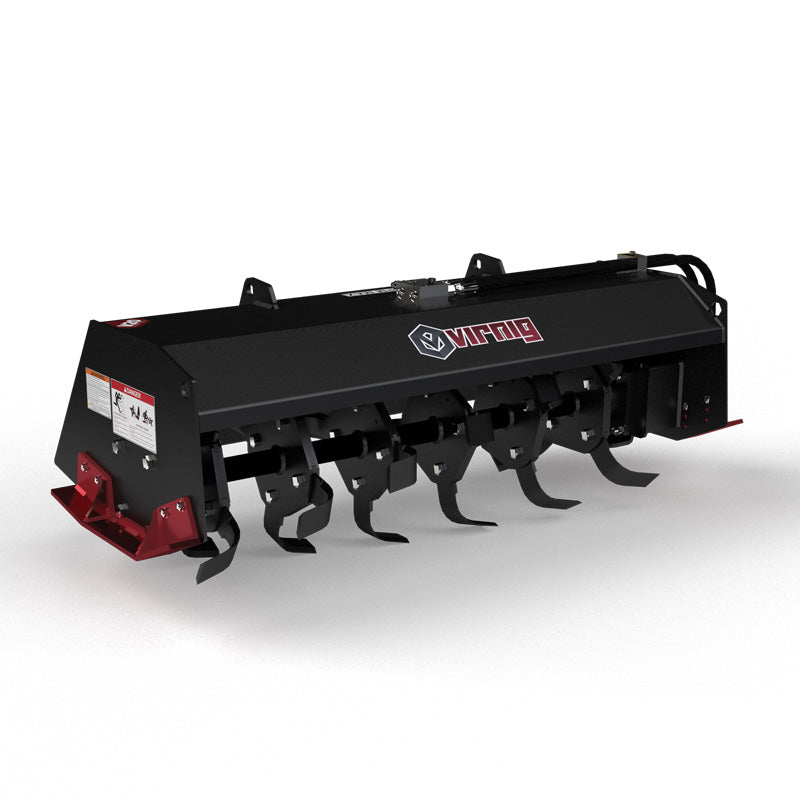

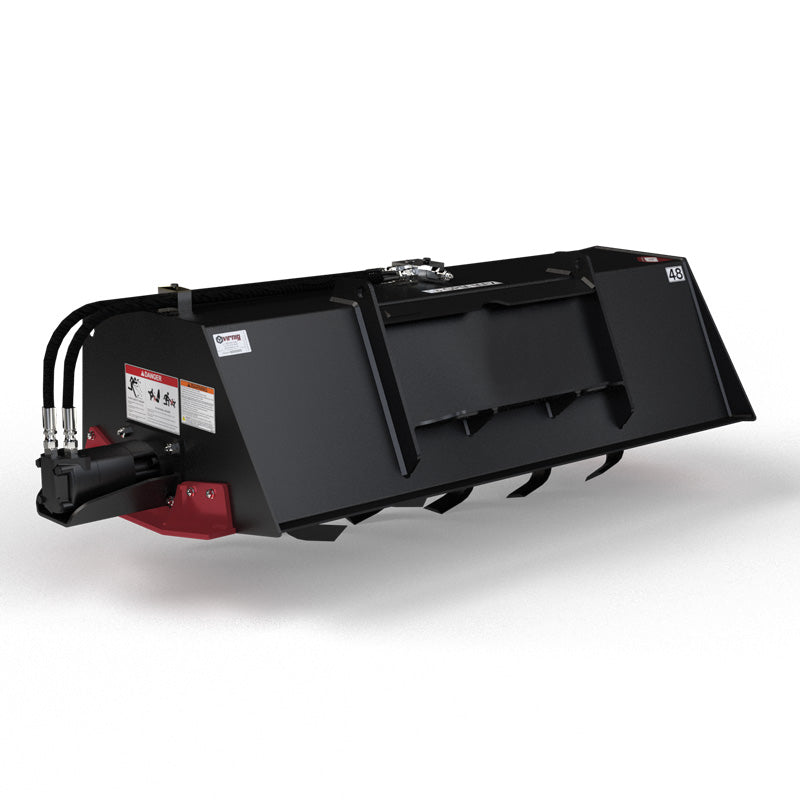

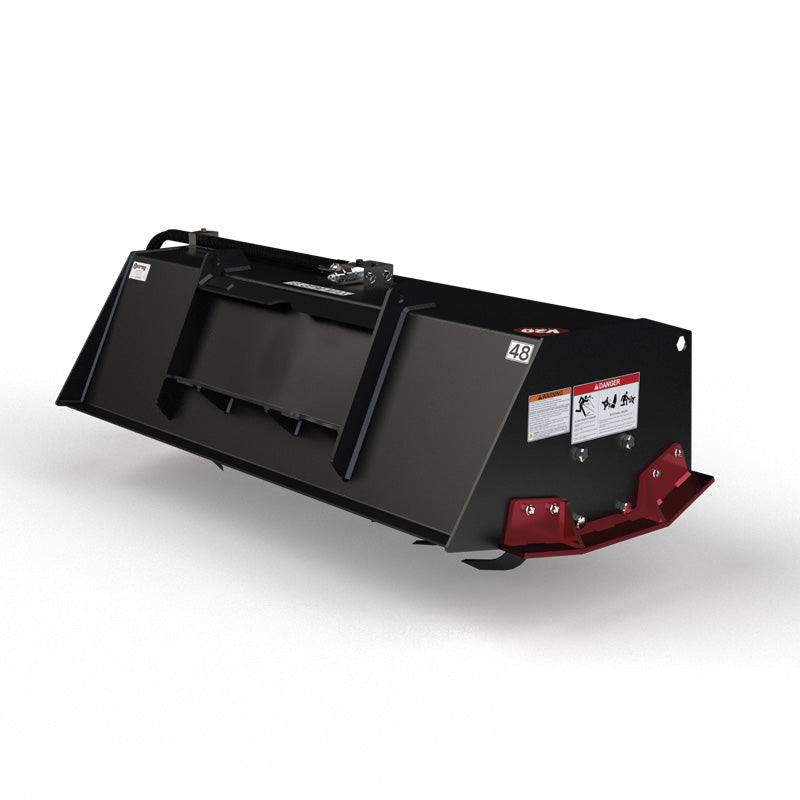

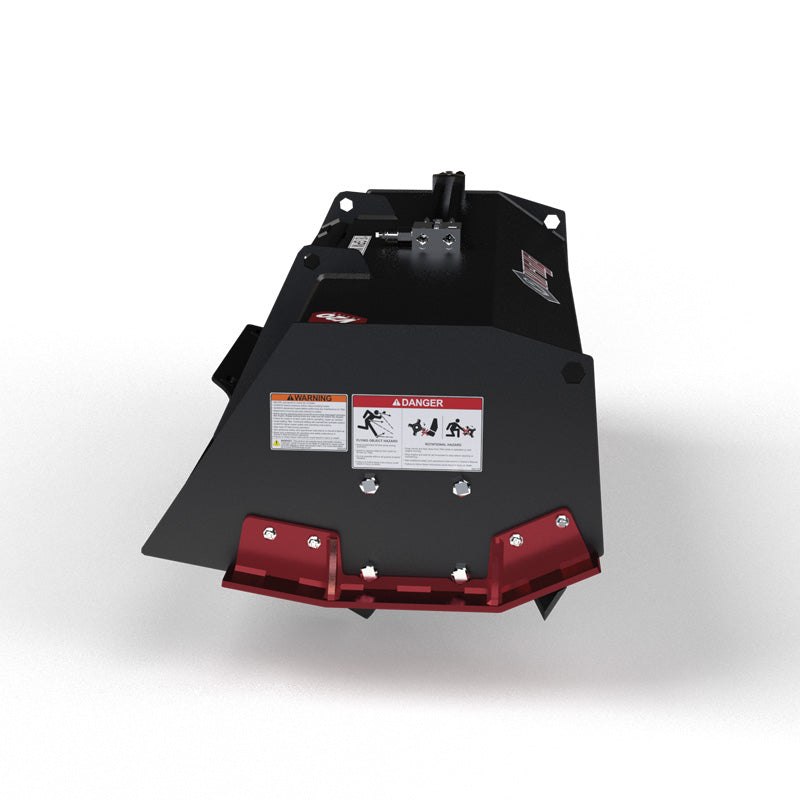

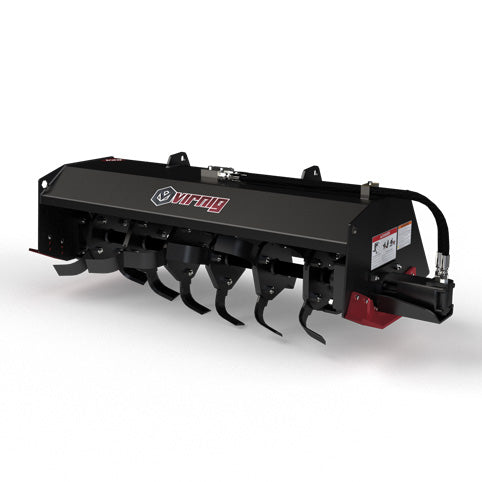

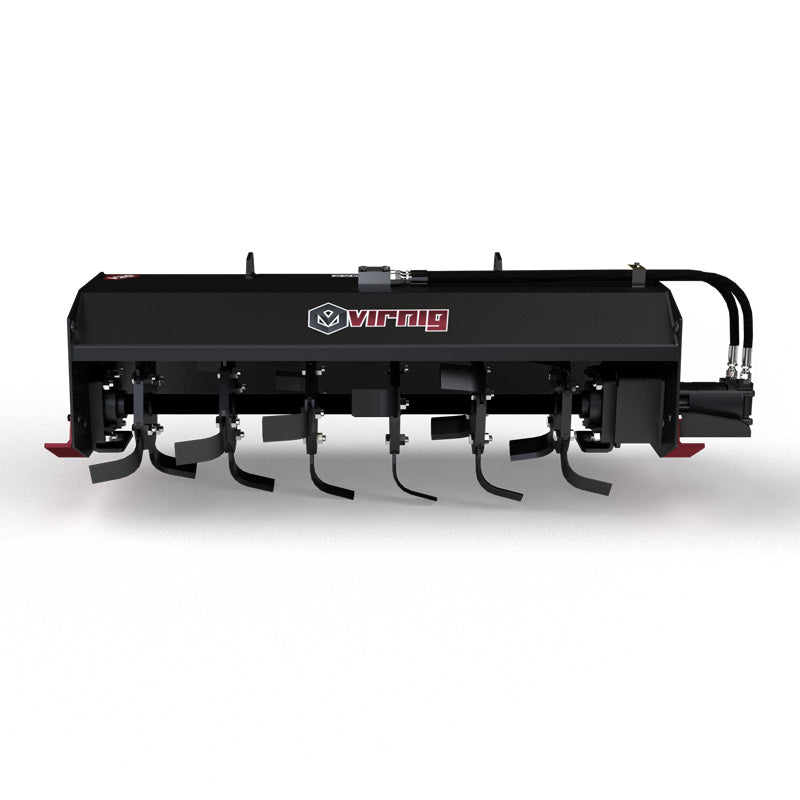

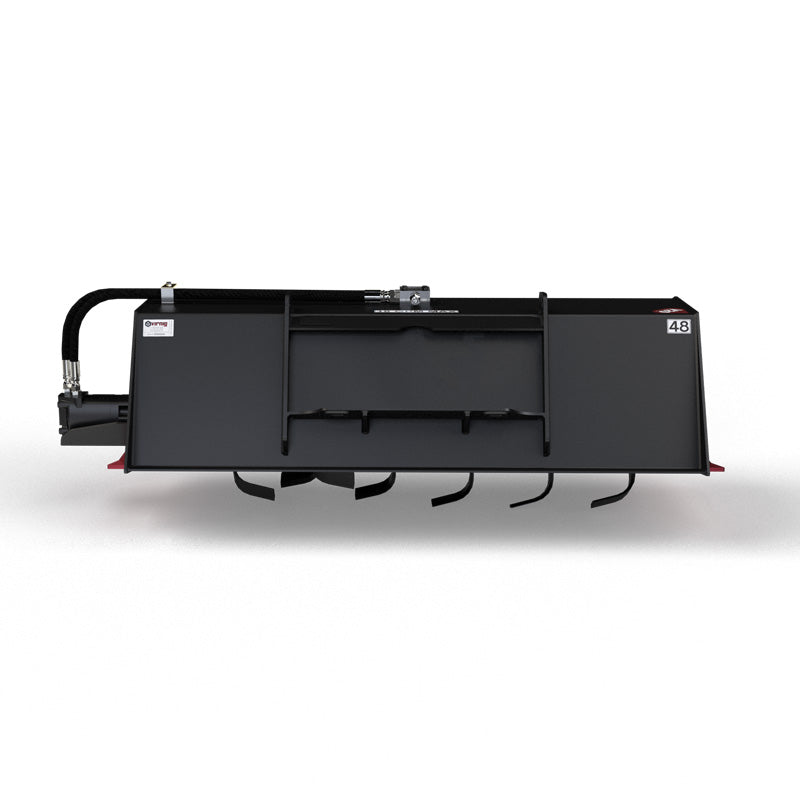

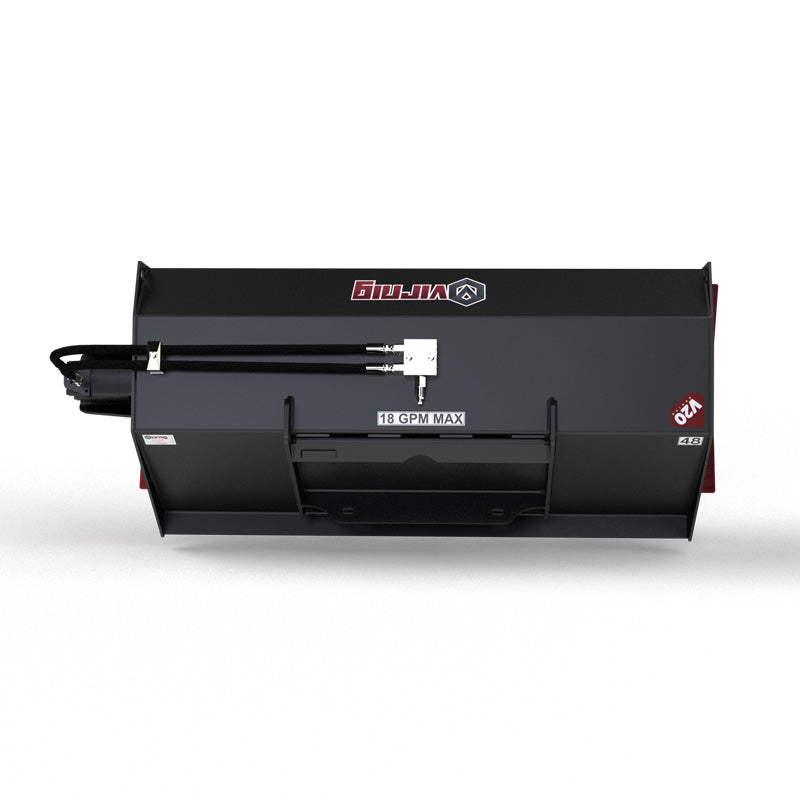

Virnig V20 Mini Skid Steer Tiller

SKU: CTLR48 Currently In Stock

Sale price$5,300.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

DUAL-EDGE HEAT-TREATED TINES

BOLT-ON, HEAT-TREATED DUAL-EDGE TINES FOR BI-DIRECTIONAL OPERATION AND LONGEVITY.

ADJUSTABLE TILLING DEPTH

ADJUSTABLE SKID SHOES SET THE WORKING DEPTH BETWEEN 4″ AND 6″ FOR SOIL PREPARATION.

TWO-INCH SHAFT BEARINGS

2″ BEARINGS SUPPORT BOTH ENDS OF THE TILLER SHAFT DURING SOIL PREPARATION.

GUARDED MOTOR

BOTTOM AND SIDE GUARDS HELP SHIELD THE MOTOR FROM CONTACT DURING TILLING.

SOIL PREPARATION

VIRNIG V20 MINI SKID STEER TILLER BREAKS AND MIXES SOIL WITH REPLACEABLE, DUAL-EDGE TINES.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Tiller breaks and mixes soil with a powered tine shaft sized for mini loaders. It provides a dedicated preparation tool for planting and landscaping work where the surface needs to be worked and blended rather than only scraped level with a passive grading edge.

Bolt-on, heat-treated dual-edge tines support operation in either direction and provide replaceable working components as wear occurs. Adjustable skid shoes set a tilling depth from 4-6″. Two-inch diameter bearings support both sides of the tiller shaft, while the motor is guarded on the bottom and sides.

Select the width and mini-loader mount for your machine, checking the hydraulic requirements and complete attachment weight. Set the shoes for the intended working depth and adapt the pass to the soil conditions. The compact V20 arrangement is intended to bring soil mixing capability to the mini carrier without substituting the dimensions of a full-size tiller.

KEY BENEFITS

  • Bolt-on, heat-treated dual-edge tines for bi-directional operation and longevity.
  • Adjustable skid shoes provide 4” - 6” tilling depth.
  • Tiller shaft supported by 2″ diameter bearings on each side.
  • Guarded motor on bottom and sides.
  • Virnig V20 Mini Skid Steer Tiller breaks and mixes soil with replaceable, dual-edge tines.

TECHNICAL SPECIFICATIONS

  • Models: CTLR48
  • Working Width (in.): 48.0
  • Overall Width (in.): 64.9
  • Overall Height (in.): 22.2
  • Overall Depth (in.): 26
  • Tilling Depth (in.): 6.0
  • Drum Diameter (in.): 18.5
  • Number of Tines: 24
  • Recommended Flow Rate (GPM): 10-18
  • Approximate Weight (lbs): 470¹
  • Recommended Loader Capacity: Greater than 500 lbs
  • ¹Bobcat® mount adds approximately 10 lbs to model weight.

APPLICATIONS

  • Garden preparation
  • Landscape soil preparation
  • Seedbed preparation

VIRNIG V20 MINI SKID STEER TILLER

WORKING DESIGN

  • Bolt-on, heat-treated dual-edge tines for bi-directional operation and longevity.
  • Adjustable skid shoes provide 4” - 6” tilling depth.
  • Tiller shaft supported by 2″ diameter bearings on each side.
  • Guarded motor on bottom and sides.

CONFIGURATION AND SPECIFICATIONS

  • Models: CTLR48
  • Working Width (in.): 48.0
  • Overall Width (in.): 64.9
  • Overall Height (in.): 22.2
  • Overall Depth (in.): 26
  • Tilling Depth (in.): 6.0
  • Drum Diameter (in.): 18.5

READY FOR THE FIELD

  • Bolt-on, heat-treated dual-edge tines for bi-directional operation and longevity.
  • Adjustable skid shoes provide 4” - 6” tilling depth.
  • Tiller shaft supported by 2″ diameter bearings on each side.
  • Guarded motor on bottom and sides.
  • Virnig V20 Mini Skid Steer Tiller breaks and mixes soil with replaceable, dual-edge tines.
