VIRNIG

V20 Mini Skid Steer Trailer Mover

For Mini Skid Steers

2,500 lb Attachment Lifting Rating

Virnig

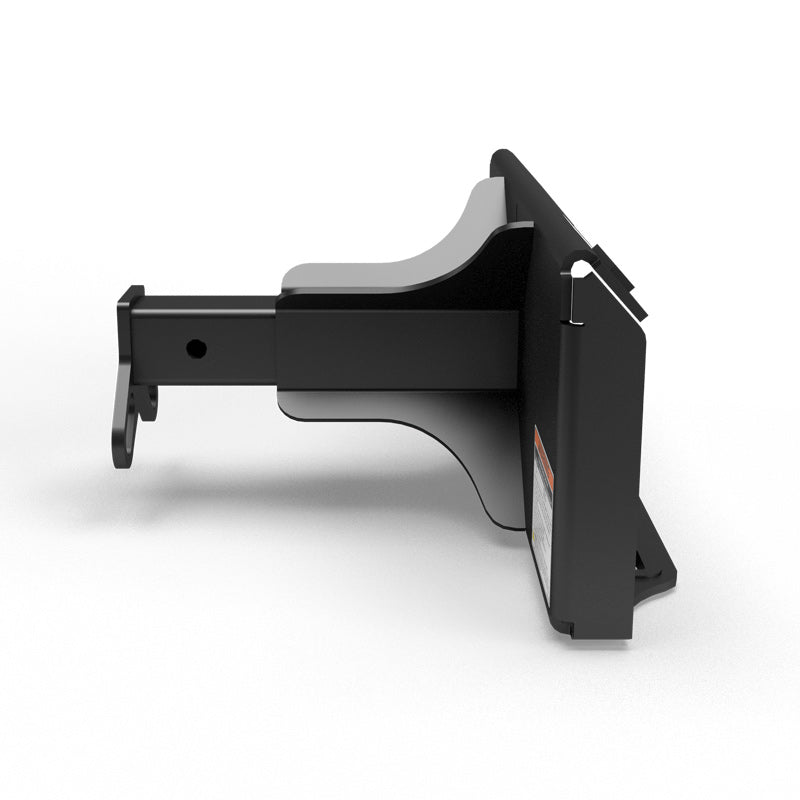

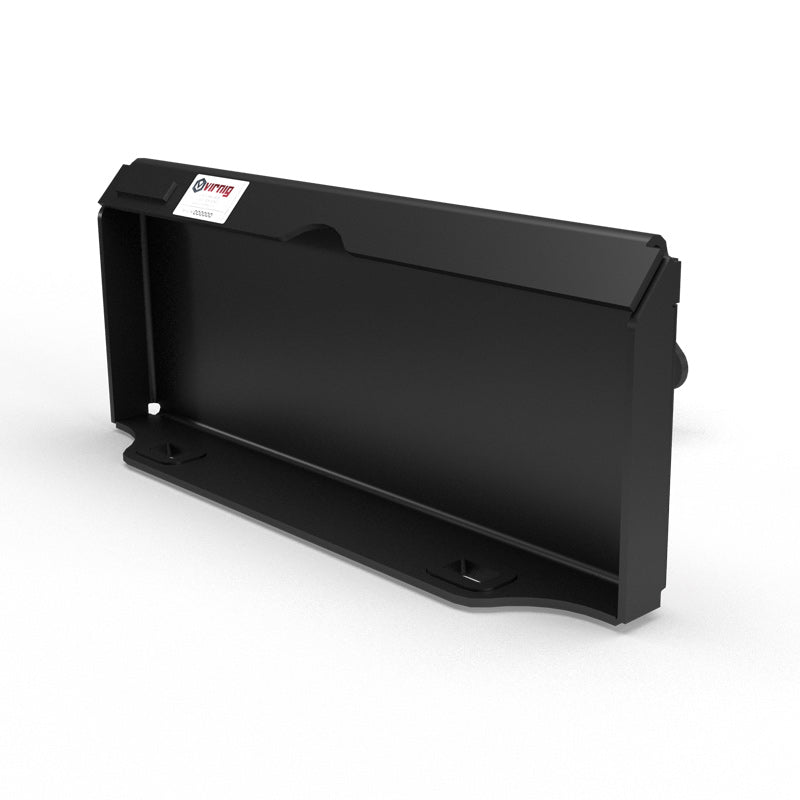

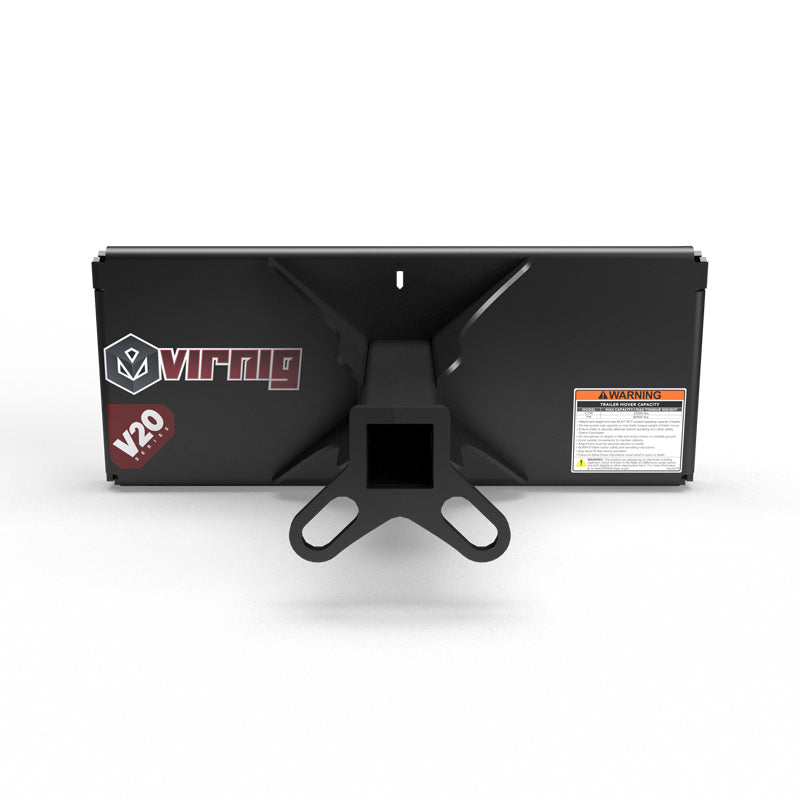

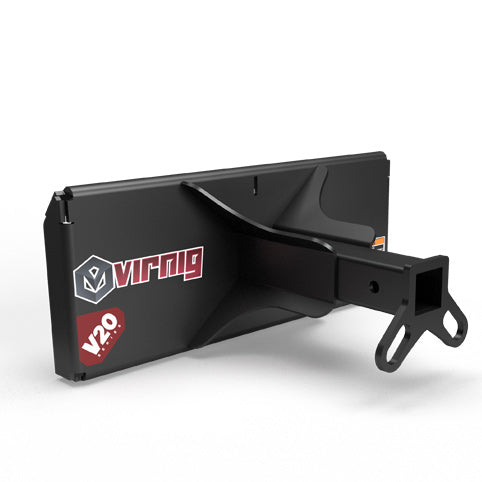

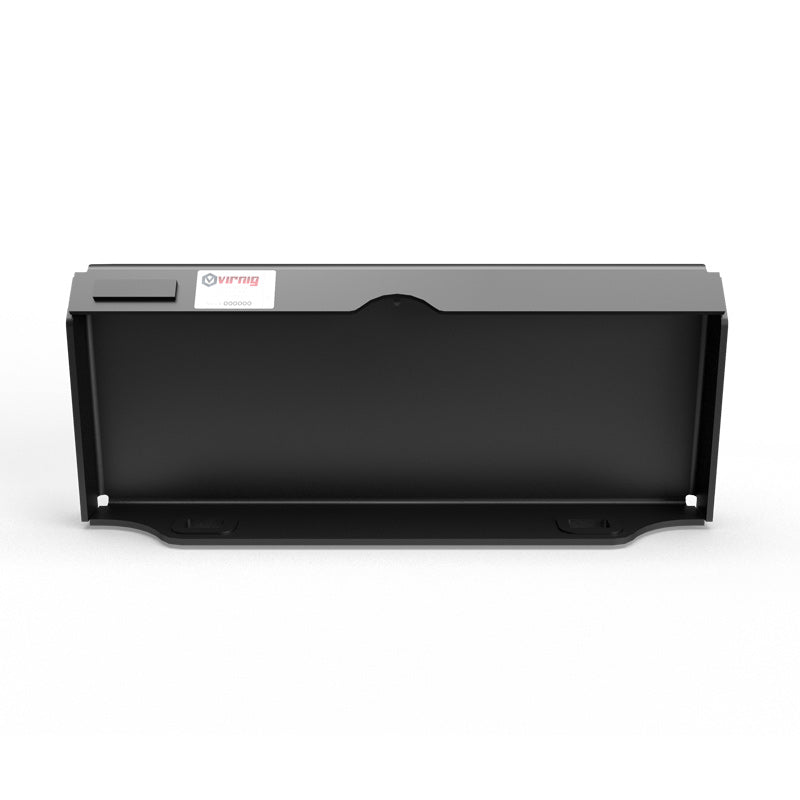

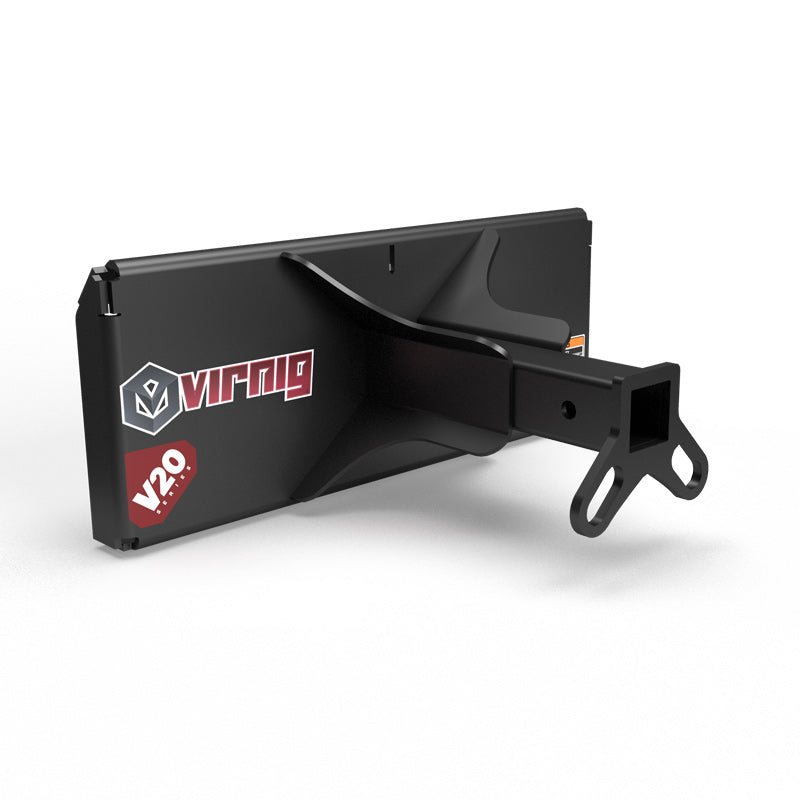

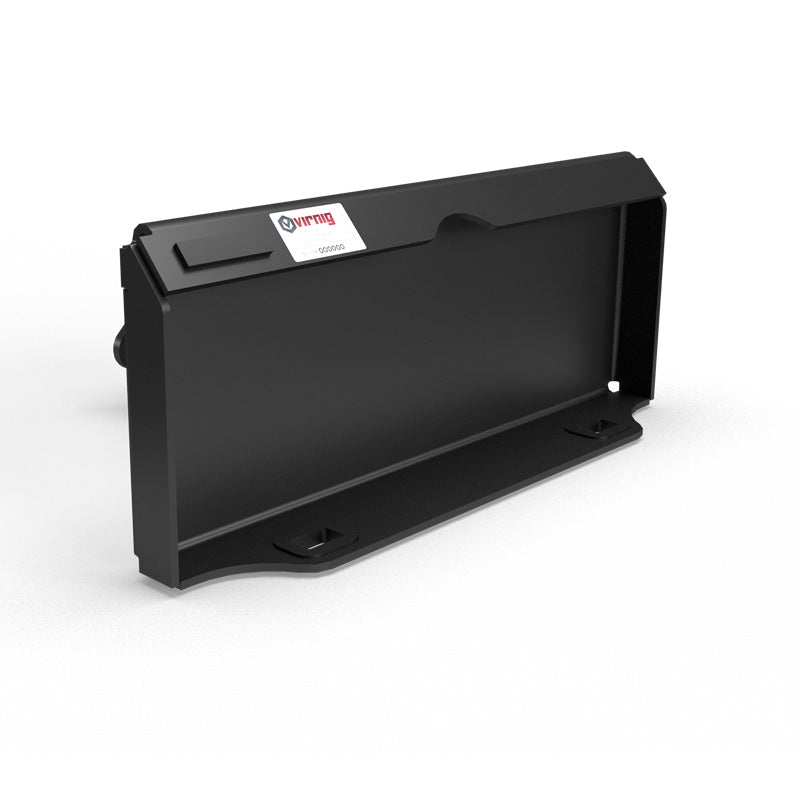

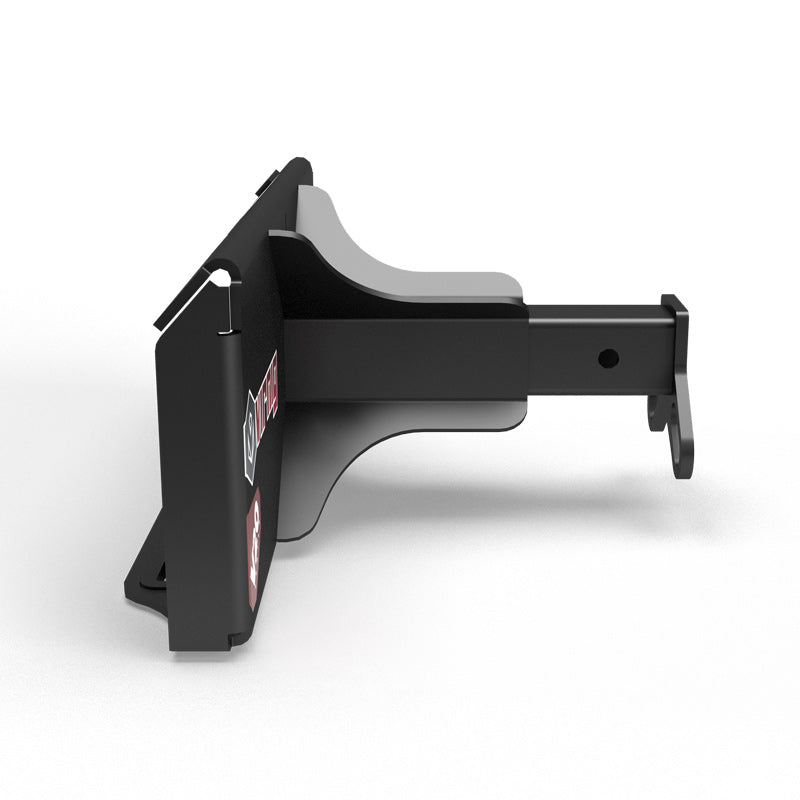

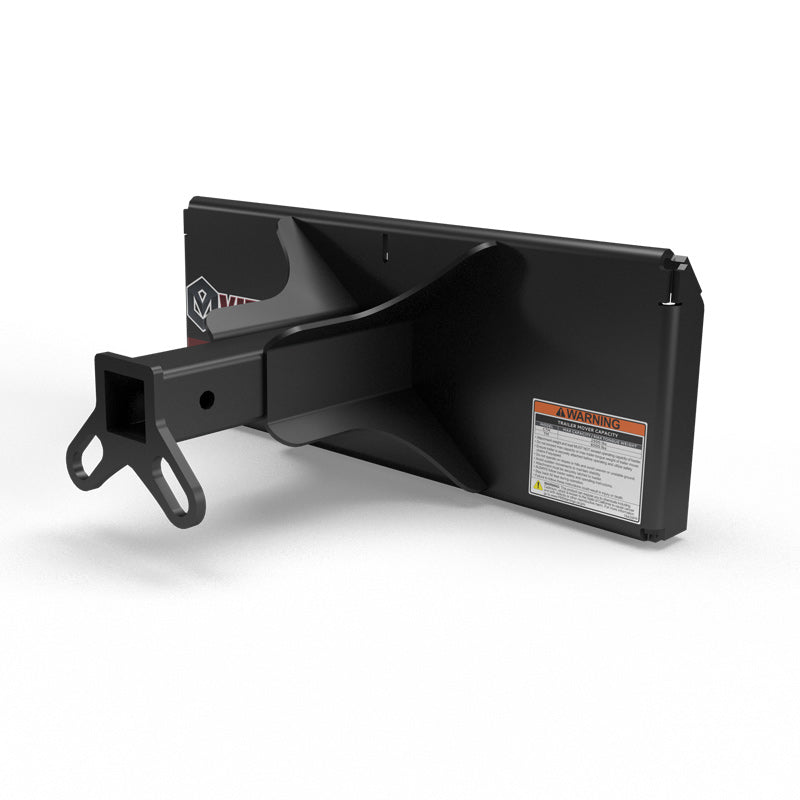

Virnig V20 Mini Skid Steer Trailer Mover

SKU: CTM Currently In Stock

Sale price$555.00 USD

MOST IMPORTANT FEATURES

FREESTANDING FRAME

FREE-STANDING DESIGN FOR EASY LOADER HOOKUP AND RECEIVER TUBE ACCEPTS 2″ TRAILER HITCHES.

2,500-LB ATTACHMENT RATING

THE ATTACHMENT HAS A 2,500 LB LIFTING RATING; CARRIER AND HITCH LIMITS STILL APPLY.

CHAIN ATTACHMENT POINTS

FRAME SLOTS ACCEPT TRAILER SAFETY CHAINS, WITH A SEPARATE HOLE FOR THE HITCH PIN.

HITCH ACCESSORIES SOLD SEPARATELY

V20 MINI SKID TRAILER MOVER DOES NOT INCLUDE ANY ACCESSORIES, SUCH AS TRAILER HITCH, HITCH BALL OR HITCH PIN.

YARD TRAILER POSITIONING

VIRNIG V20 MINI SKID STEER TRAILER MOVER MANEUVERS TRAILERS OVER SHORT DISTANCES IN YARDS AND TIGHT WORK AREAS.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Trailer Mover positions trailers over short distances around yards and confined work areas. Its free-standing frame makes loader hookup straightforward, and the receiver tube accepts a selected 2″ trailer hitch for the coupling arrangement needed by the trailer.

Slots provide locations for trailer safety chains, and a hole allows the hitch pin to be secured. The compact V20 frame brings this maneuvering function to a mini carrier, rather than requiring the larger full-size Trailer Mover. The correct hitch arrangement must still be selected for the trailer being moved.

The attachment has a 2,500 lb lifting rating, which is not a gross trailer-weight or towing rating. Stay within the mini loader's capacity and the ratings of the complete hitch assembly. The trailer hitch, hitch ball, and hitch pin are not included; supply compatible components before using the attachment for trailer movement.

KEY BENEFITS

  • Free-standing design for easy loader hookup and receiver tube accepts 2″ trailer hitches.
  • Industry leading 2,500lb lifting capacity.
  • Slots for attaching trailer safety chains and hole to secure hitch pin.
  • V20 Mini Skid Trailer Mover does not include any accessories, such as trailer hitch, hitch ball or hitch pin.
  • Virnig V20 Mini Skid Steer Trailer Mover maneuvers trailers over short distances in yards and tight work areas.

TECHNICAL SPECIFICATIONS

  • Models: CTM
  • Overall Width (in.): Toro® / Bobcat® / ASV®: 24.2 / 36 / 42.8
  • Overall Height (in.): Toro® / Bobcat® / ASV®: 10.0 / 18.9 / 16.0
  • Overall Length (in.): Toro® / Bobcat® / ASV®: 16.3 / 14.9 / 15.0
  • Hitch Receiver Tube ID / Length (in.): 2.0 / 12.4
  • Approximate Weight (lbs): Toro® / Bobcat® / ASV®: 45 / 75 / 75
  • Max Lifting Capacity / Max Trailer Tongue Weight (lbs): 2500

APPLICATIONS

  • Yard trailer positioning
  • Equipment trailer maneuvering
  • Storage area organization

VIRNIG V20 MINI SKID STEER TRAILER MOVER

WORKING DESIGN

  • Free-standing design for easy loader hookup and receiver tube accepts 2″ trailer hitches.
  • Industry leading 2,500lb lifting capacity.
  • Slots for attaching trailer safety chains and hole to secure hitch pin.
  • V20 Mini Skid Trailer Mover does not include any accessories, such as trailer hitch, hitch ball or hitch pin.

CONFIGURATION AND SPECIFICATIONS

  • Models: CTM
  • Overall Width (in.): Toro® / Bobcat® / ASV®: 24.2 / 36 / 42.8
  • Overall Height (in.): Toro® / Bobcat® / ASV®: 10.0 / 18.9 / 16.0
  • Overall Length (in.): Toro® / Bobcat® / ASV®: 16.3 / 14.9 / 15.0
  • Hitch Receiver Tube ID / Length (in.): 2.0 / 12.4
  • Approximate Weight (lbs): Toro® / Bobcat® / ASV®: 45 / 75 / 75
  • Max Lifting Capacity / Max Trailer Tongue Weight (lbs): 2500

READY FOR THE FIELD

  • Free-standing design for easy loader hookup and receiver tube accepts 2″ trailer hitches.
  • Industry leading 2,500lb lifting capacity.
  • Slots for attaching trailer safety chains and hole to secure hitch pin.
  • V20 Mini Skid Trailer Mover does not include any accessories, such as trailer hitch, hitch ball or hitch pin.
  • Virnig V20 Mini Skid Steer Trailer Mover maneuvers trailers over short distances in yards and tight work areas.
