VIRNIG

V20 Mini Skid Steer Wide Rail Pallet Fork

For Mini Skid Steers

2,200 lb Fork Capacity

Request QuoteAdd To Cart

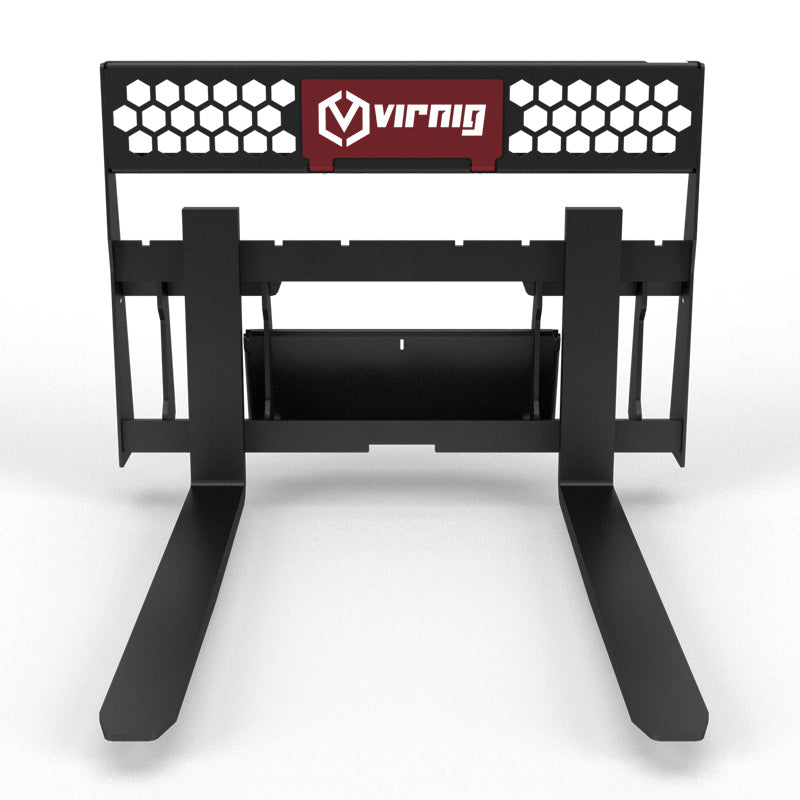

Virnig V20 Mini Skid Steer Wide Rail Pallet Fork

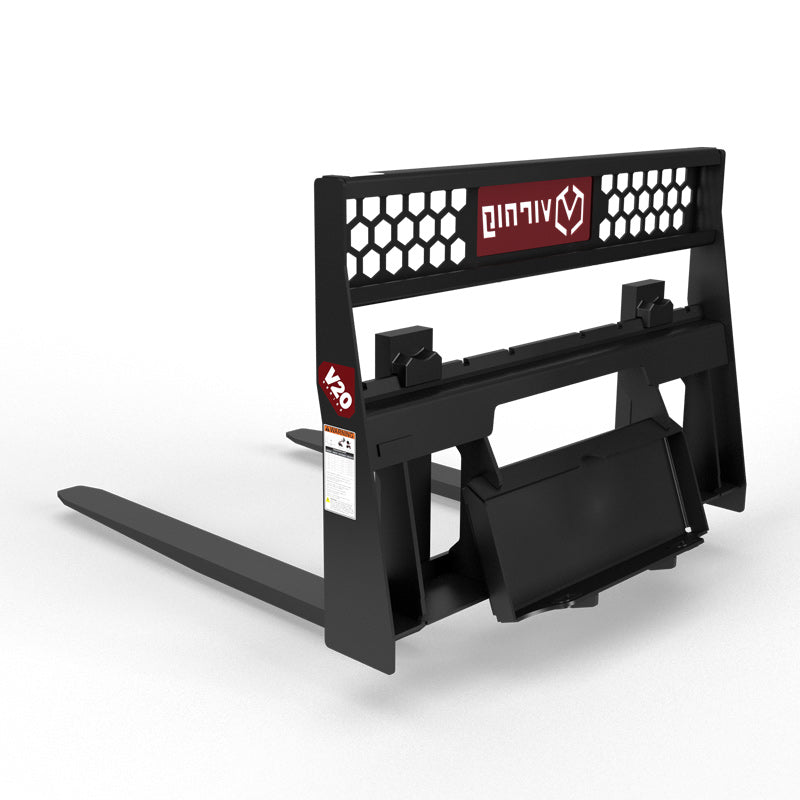

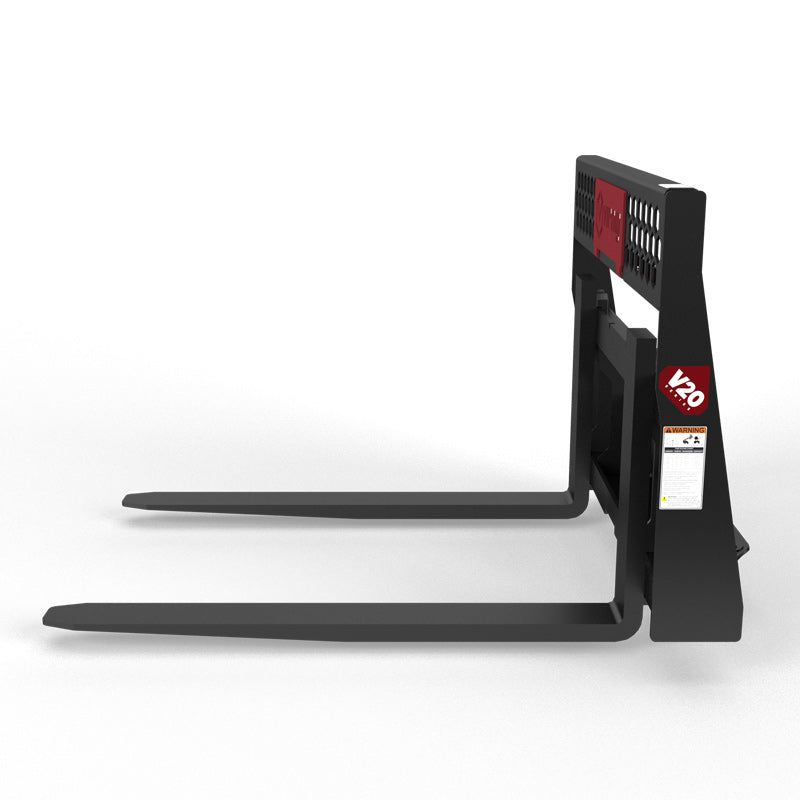

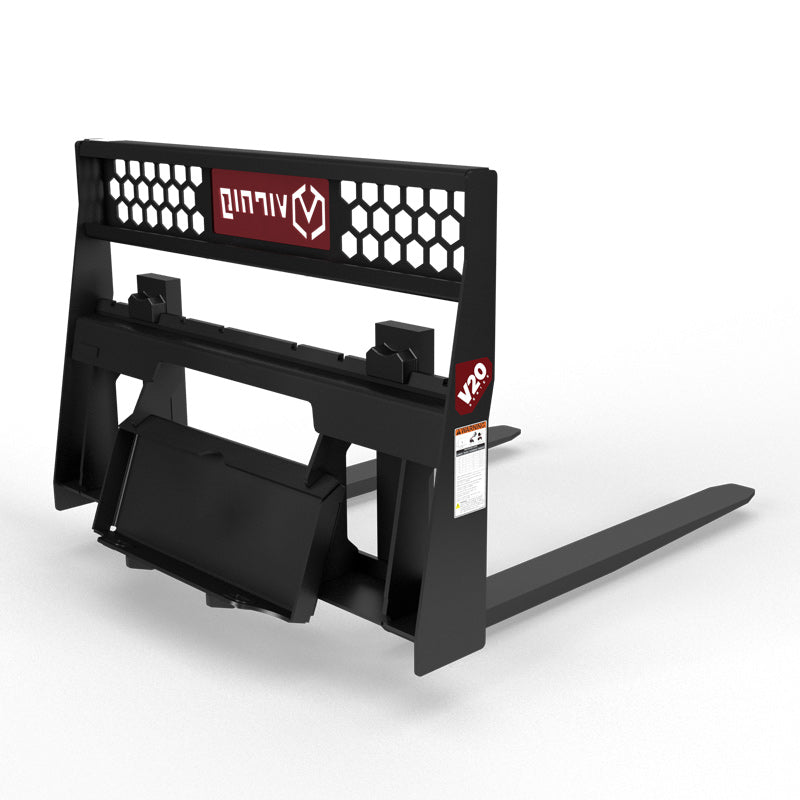

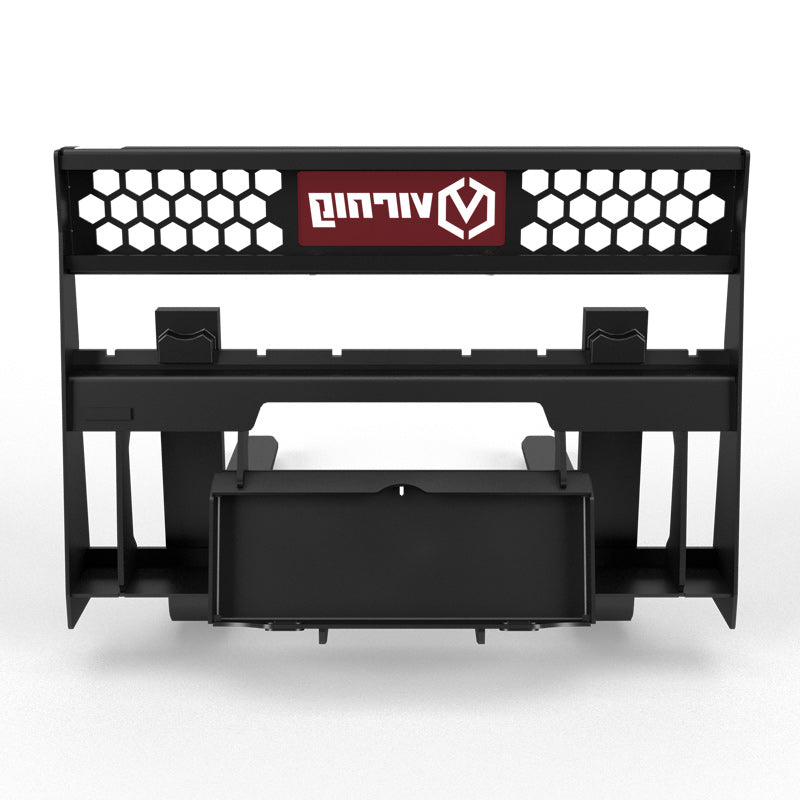

Virnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differ
Virnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differVirnig V20 Mini Skid Steer Wide Rail Pallet Fork; manufacturer family image, configuration may differ
Virnig

Virnig V20 Mini Skid Steer Wide Rail Pallet Fork

SKU: CWPF3622 Currently In Stock

$1,595.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

BEVELED RAIL AND BACKREST

A 3/16″ BRICKGUARD AND ¾″ BEVELED RAIL SUPPORT THE MINI FORK'S LOAD-HANDLING FRAME.

FLUSH LOAD BACKREST

THE BACKREST SITS FLUSH WITH THE TINES TO HELP STABILIZE MATERIAL AGAINST THE FRAME.

ASV CONFIGURATION STEP

THE ASV® FORK CONFIGURATION INCLUDES A BOLT-ON STEP FOR OPERATOR ACCESS.

PALLET HANDLING

VIRNIG V20 MINI SKID STEER WIDE RAIL PALLET FORK HANDLES PALLETIZED MATERIALS WITH ADJUSTABLE FORGED FORK TINES.

WIDE FORK CARRIAGE

A 42″ FRAME AND 8.4-37.6″ TINE SPACING PROVIDE A WIDER LOAD-HANDLING ARRANGEMENT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V20 Mini Skid Steer Wide Rail Pallet Fork provides a wider fork frame for handling palletized material with a mini loader. Its adjustable forged tines offer a broader positioning range than the standard V20 rail frame, allowing the support points to be set around different pallet and load arrangements.

A 3⁄16″ brickguard sits flush with the tines to help stabilize material held against the frame. The ¾″ beveled rail supports the forks, with 36″ or 42″ tine lengths available. ASV® pallet fork configurations include a bolt-on step, so the entry arrangement should be checked for the selected machine mount.

The fork family has a 2,200 lb rating, which does not increase the mini loader's own lifting capacity. Choose the mount and tine length around the carrier, pallet depth, and actual load center. This is the wide rail configuration; its frame width and spacing range differ from the standard V20 pallet fork.

KEY BENEFITS

  • 3/16″ brickguard and 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • ASV® pallet fork includes bolt-on step.
  • Virnig V20 Mini Skid Steer Wide Rail Pallet Fork handles palletized materials with adjustable forged fork tines.
  • 3/16″ brickguard and 3/4″ beveled rail.

TECHNICAL SPECIFICATIONS

  • Models: CWPF3622 | CWPF4222
  • Width, Overall w/ Step / Frame (in.): 47.0 / 42.0
  • Overall Height (in.): 30.1
  • Tine, Length / Width / Thickness (in.): CWPF3622: 36.0 / 3.0 / 1.19; CWPF4222: 42.0 / 3.0 / 1.19
  • Tine Space, Min / Max (in.): 8.4 / 37.6
  • Approximate Weight (lbs): CWPF3622: 265¹; CWPF4222: 275¹
  • Capacity (lbs): 2200
  • Recommended Loader Capacity (lbs): Less than 1650
  • ¹Bobcat® & ASV® models weigh approximately 5 lbs less.

APPLICATIONS

  • Pallet loading
  • Material staging
  • Jobsite unloading

VIRNIG V20 MINI SKID STEER WIDE RAIL PALLET FORK

WORKING DESIGN

  • 3/16″ brickguard and 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • ASV® pallet fork includes bolt-on step.

CONFIGURATION AND SPECIFICATIONS

  • Models: CWPF3622 | CWPF4222
  • Width, Overall w/ Step / Frame (in.): 47.0 / 42.0
  • Overall Height (in.): 30.1
  • Tine, Length / Width / Thickness (in.): CWPF3622: 36.0 / 3.0 / 1.19; CWPF4222: 42.0 / 3.0 / 1.19
  • Tine Space, Min / Max (in.): 8.4 / 37.6
  • Approximate Weight (lbs): CWPF3622: 265¹; CWPF4222: 275¹
  • Capacity (lbs): 2200
  • Recommended Loader Capacity (lbs): Less than 1650
  • ¹Bobcat® & ASV® models weigh approximately 5 lbs less.

READY FOR THE FIELD

  • 3/16″ brickguard and 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • ASV® pallet fork includes bolt-on step.
  • Virnig V20 Mini Skid Steer Wide Rail Pallet Fork handles palletized materials with adjustable forged fork tines.
  • 3/16″ brickguard and 3/4″ beveled rail.
