VIRNIG

V30 Compact Tractor Angle Snow Blade

For Compact Tractors

60-72″ Widths

Request QuoteAdd To Cart

Virnig V30 Compact Tractor Angle Snow Blade

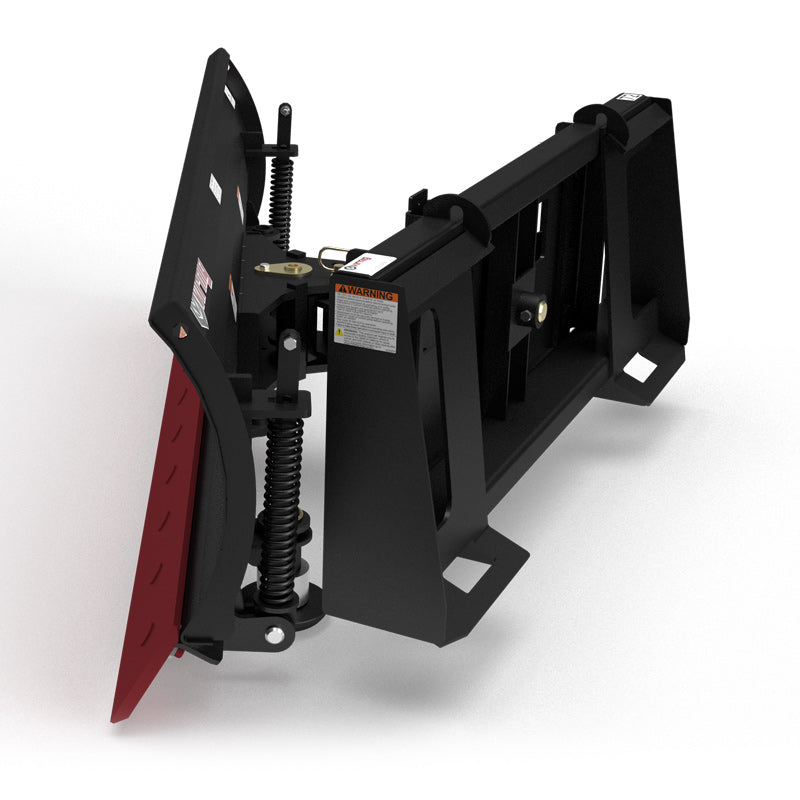

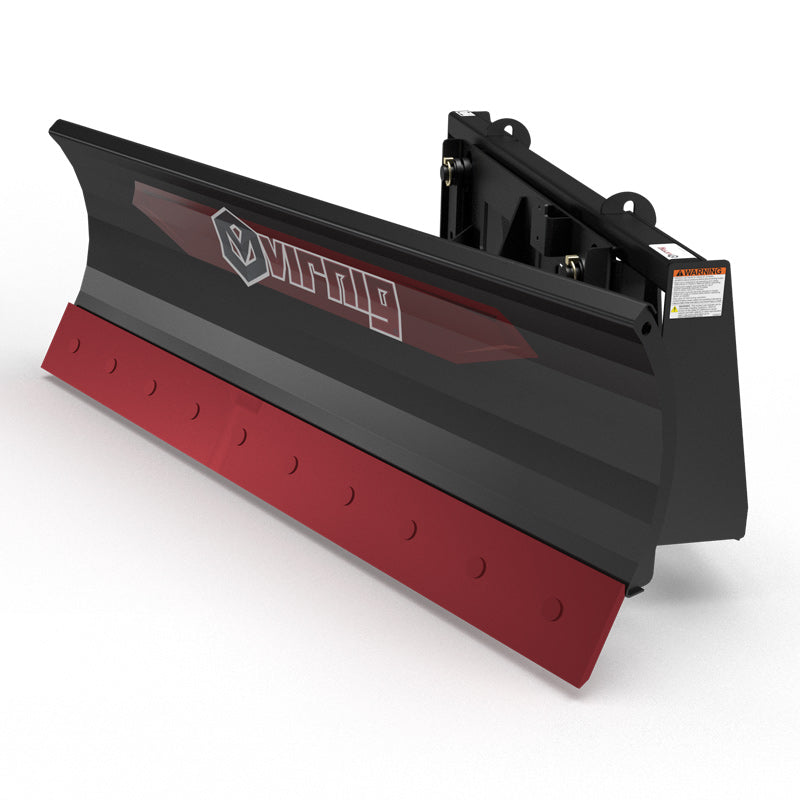

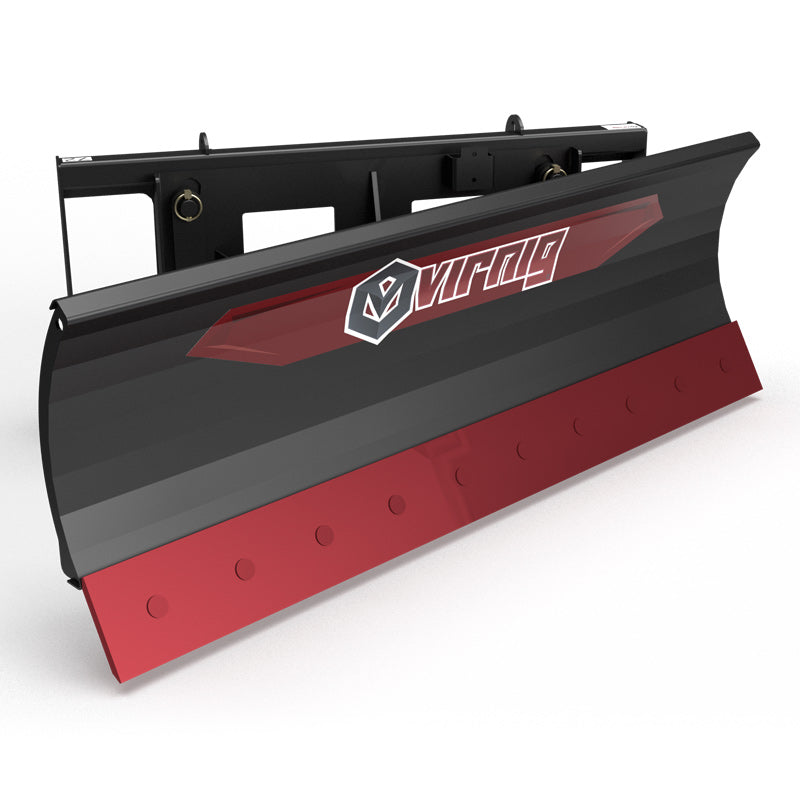

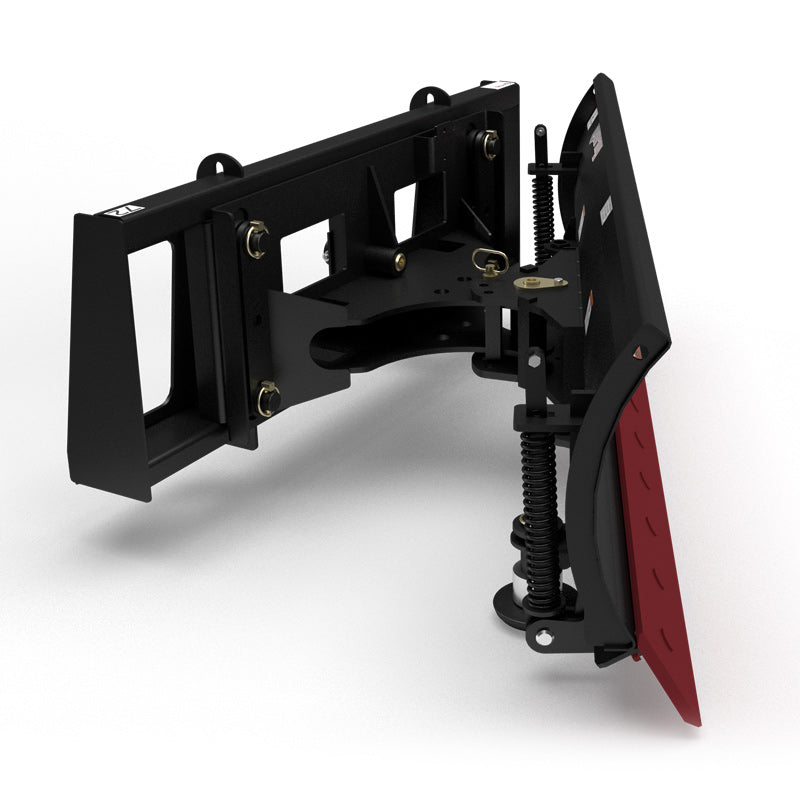

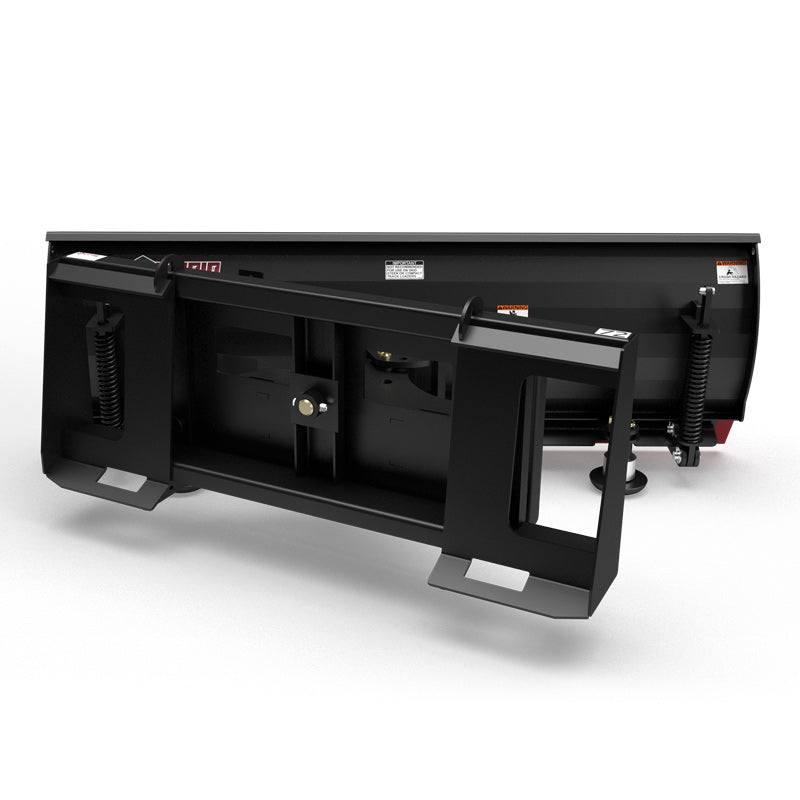

Virnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differVirnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differVirnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differVirnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differVirnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differVirnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differVirnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differVirnig V30 Compact Tractor Angle Snow Blade; manufacturer family image, configuration may differ
Virnig

Virnig V30 Compact Tractor Angle Snow Blade

SKU: SBS60-CT Currently In Stock

$2,820.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

SIDE-TO-SIDE OSCILLATION

4° SIDE-TO-SIDE OSCILLATION HELPS THE WORKING EDGE FOLLOW UNEVEN SURFACES.

ADJUSTABLE WORKING ANGLE

ANGLE THE BLADE UP TO 28° LEFT OR RIGHT TO DIRECT SNOW TO EITHER SIDE.

TRIP-EDGE PROTECTION

THE TRIP EDGE YIELDS WHEN IT MEETS AN OBSTRUCTION TO HELP LIMIT IMPACT LOADS.

REPLACEABLE CUTTING EDGE

5/8″ X 6″ REVERSIBLE STEEL BOLT-ON EDGE ALLOWS 3 1/2″ OF WEAR.

DRIVEWAY PLOWING

VIRNIG V30 COMPACT TRACTOR ANGLE SNOW BLADE ANGLES THE PLOW TO CLEAR AND WINDROW SNOW.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V30 Compact Tractor Angle Snow Blade clears and windrows snow with a plow configured for compact tractor loaders. The blade angles 28° left or right, allowing snow to be directed toward the side of the route rather than gathered and carried away one bucket at a time.

Four degrees of side-to-side oscillation help follow uneven surfaces, and a trip edge is designed to yield at an obstruction. A ⅝″ × 6″ reversible steel bolt-on edge provides up to 3½″ of wear. The 60″ and 72″ model choices offer different straight and angled clearing widths.

Manual angle is standard, with one-cylinder and two-cylinder hydraulic angle options available. Choose the control arrangement around the tractor's available hydraulic connections. The attachment uses a universal skid steer mounting interface, so confirm the tractor loader has the correct connection and capacity rather than assuming every compact tractor mount is compatible.

KEY BENEFITS

  • 4° side-to-side oscillation follows uneven surfaces.
  • Angle the blade 28° left or right.
  • Trip edge protects operator and equipment.
  • 5/8″ x 6″ reversible steel bolt-on edge allows 3 1/2″ of wear.
  • Virnig v30 compact tractor angle snow blade angles the plow to clear and windrow snow.

TECHNICAL SPECIFICATIONS

  • Models: SBS60-CT | SBS72-CT
  • Overall Width, Straight / Full Angle (in.): SBS60-CT: 61.0 / 53.8; SBS72-CT: 73.0 / 64.4
  • Overall Height (in.): 21.0
  • Overall Depth, Straight (in.): 28.5
  • Blade Angle (degrees): (+/-)28
  • Moldboard Thickness (in.): 0.12
  • Cutting Edge (in.): 5/8 x 6 Bolt-on
  • Oscillation (degrees): (+/-) 4
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0
  • Cylinder Pins / Hinge Pins Diameter (in.): 1.0 / 1.25
  • Approximate Weight (lbs): SBS60-CT: 385¹; SBS72-CT: 410¹
  • Recommended Loader Capacity (lbs): Less than 1000

APPLICATIONS

  • Driveway plowing
  • Parking lot clearing
  • Winter site maintenance

VIRNIG V30 COMPACT TRACTOR ANGLE SNOW BLADE

WORKING DESIGN

  • 4° side-to-side oscillation follows uneven surfaces.
  • Angle the blade 28° left or right.
  • Trip edge protects operator and equipment.
  • 5/8″ x 6″ reversible steel bolt-on edge allows 3 1/2″ of wear.

CONFIGURATION AND SPECIFICATIONS

  • Models: SBS60-CT | SBS72-CT
  • Overall Width, Straight / Full Angle (in.): SBS60-CT: 61.0 / 53.8; SBS72-CT: 73.0 / 64.4
  • Overall Height (in.): 21.0
  • Overall Depth, Straight (in.): 28.5
  • Blade Angle (degrees): (+/-)28
  • Moldboard Thickness (in.): 0.12
  • Cutting Edge (in.): 5/8 x 6 Bolt-on
  • Oscillation (degrees): (+/-) 4
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0

READY FOR THE FIELD

  • 4° side-to-side oscillation follows uneven surfaces.
  • Angle the blade 28° left or right.
  • Trip edge protects operator and equipment.
  • 5/8″ x 6″ reversible steel bolt-on edge allows 3 1/2″ of wear.
  • Virnig v30 compact tractor angle snow blade angles the plow to clear and windrow snow.
