VIRNIG

V30 Compact Tractor Rail Pallet Fork

For Compact Tractors

2,200 lb Fork Capacity

Virnig

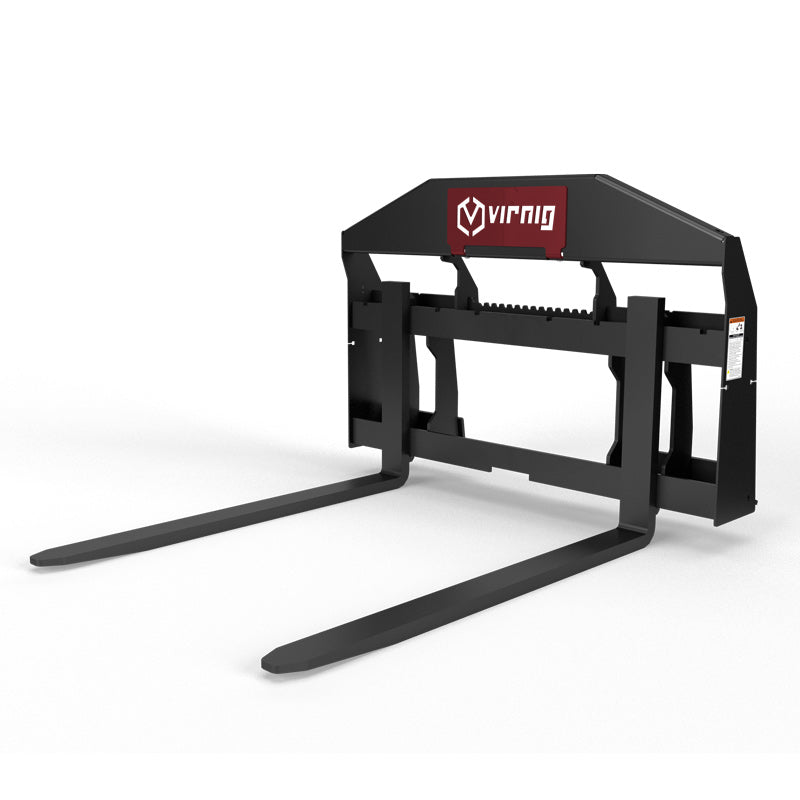

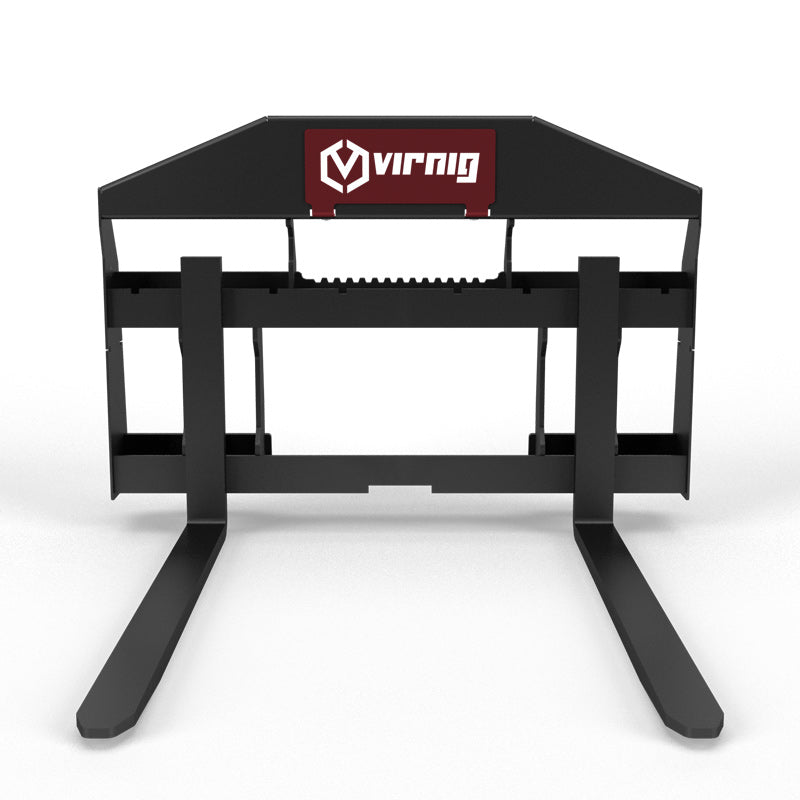

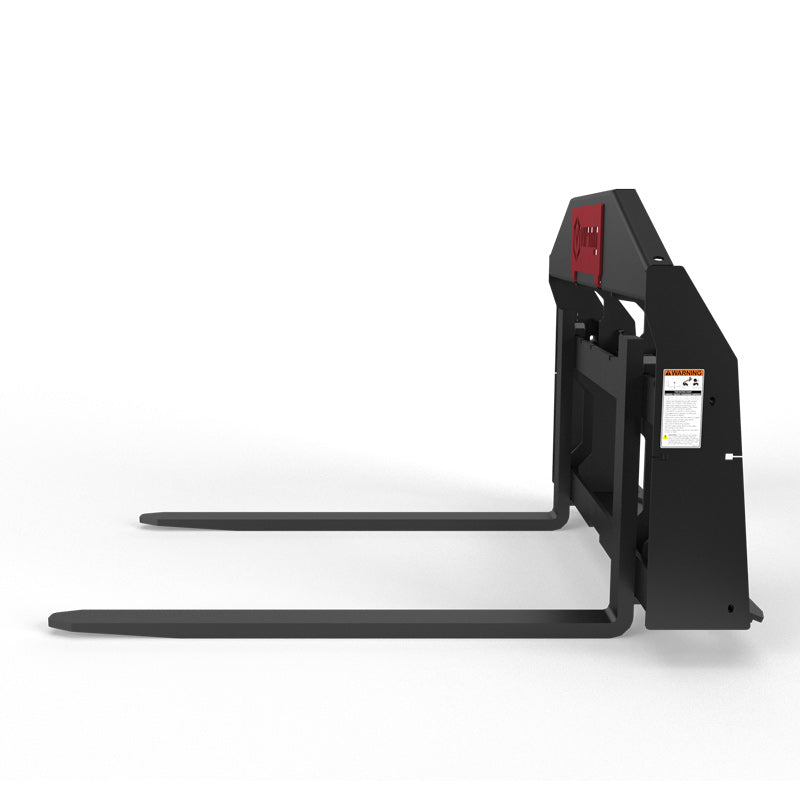

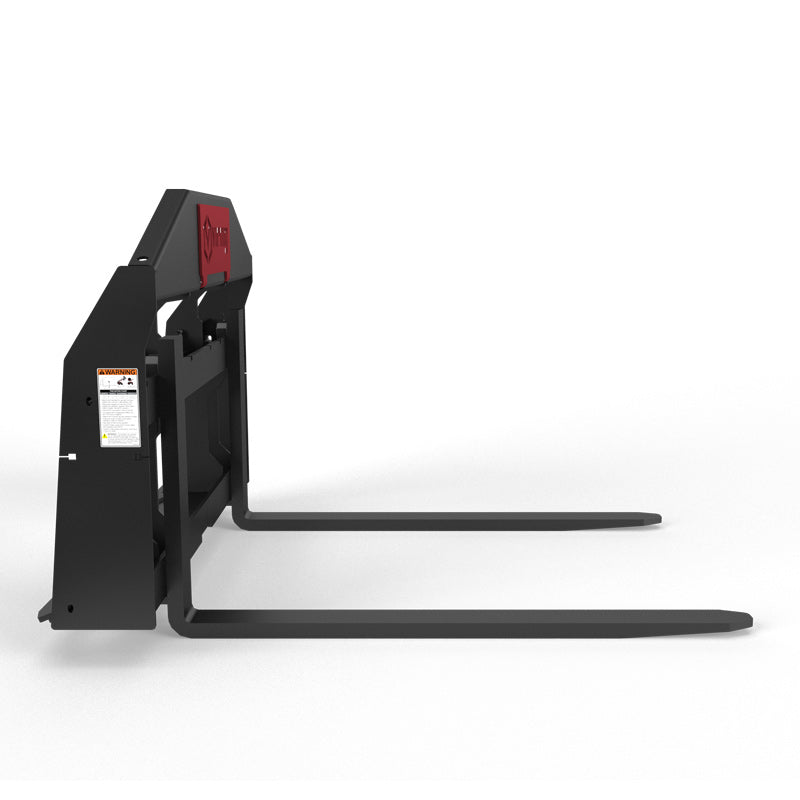

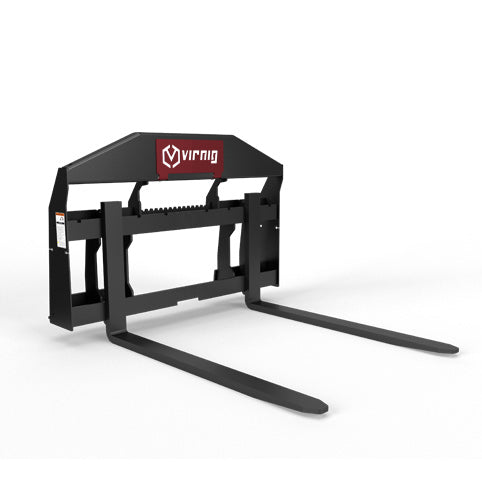

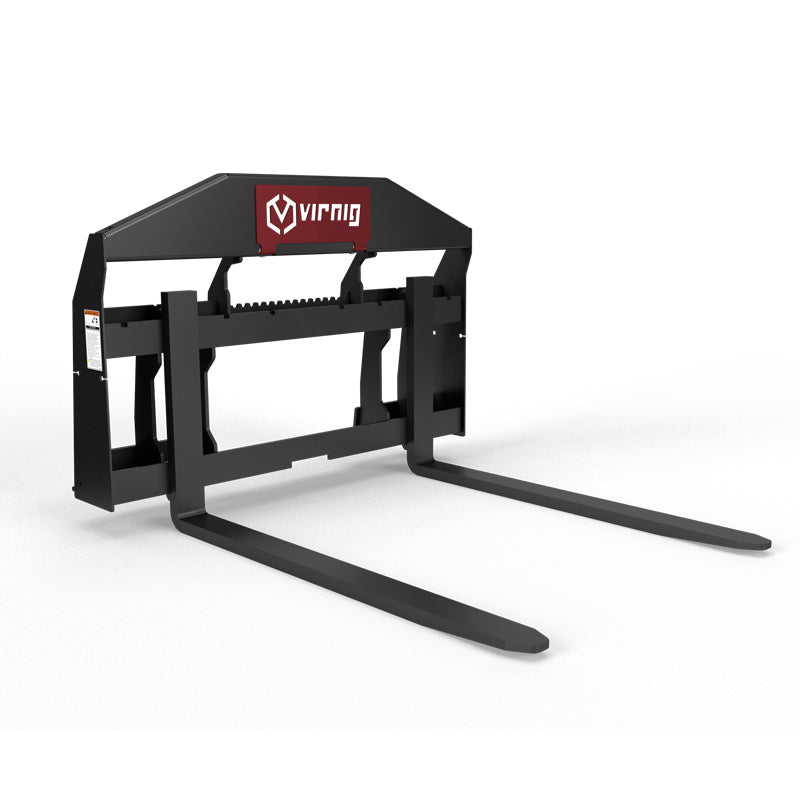

Virnig V30 Compact Tractor Rail Pallet Fork

SKU: PF3622-CT Currently In Stock

Sale price$1,200.00 USD

MOST IMPORTANT FEATURES

BEVELED RAIL AND BACKREST

A ¾″ BEVELED RAIL AND 3/16″ BACKREST FORM THE TRACTOR FORK'S LOAD-SUPPORTING FRAME.

FLUSH LOAD BACKREST

THE BACKREST SITS FLUSH WITH THE TINES TO HELP STABILIZE LOADS AGAINST THE FRAME.

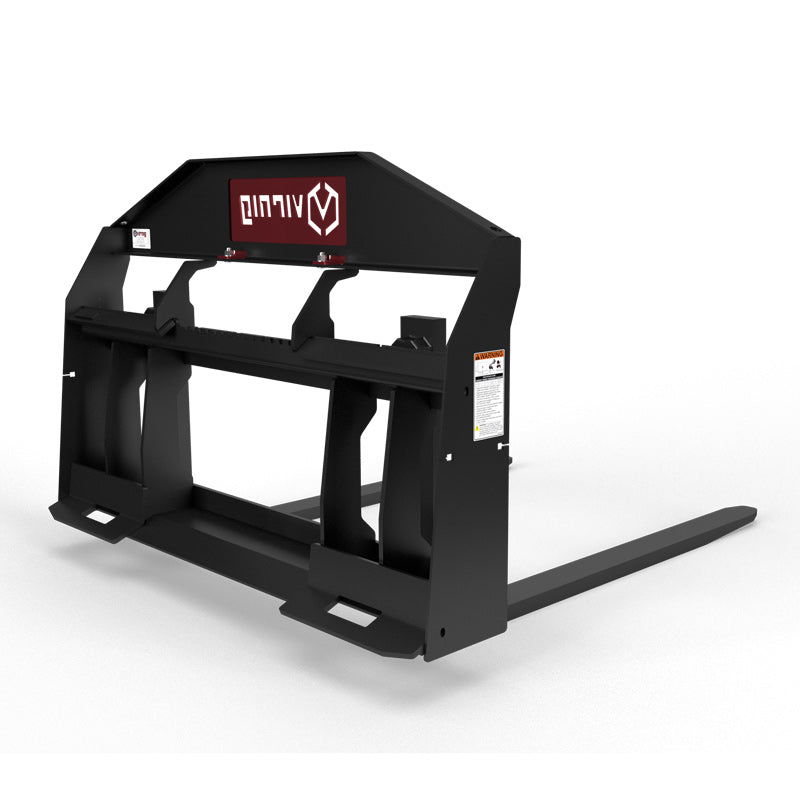

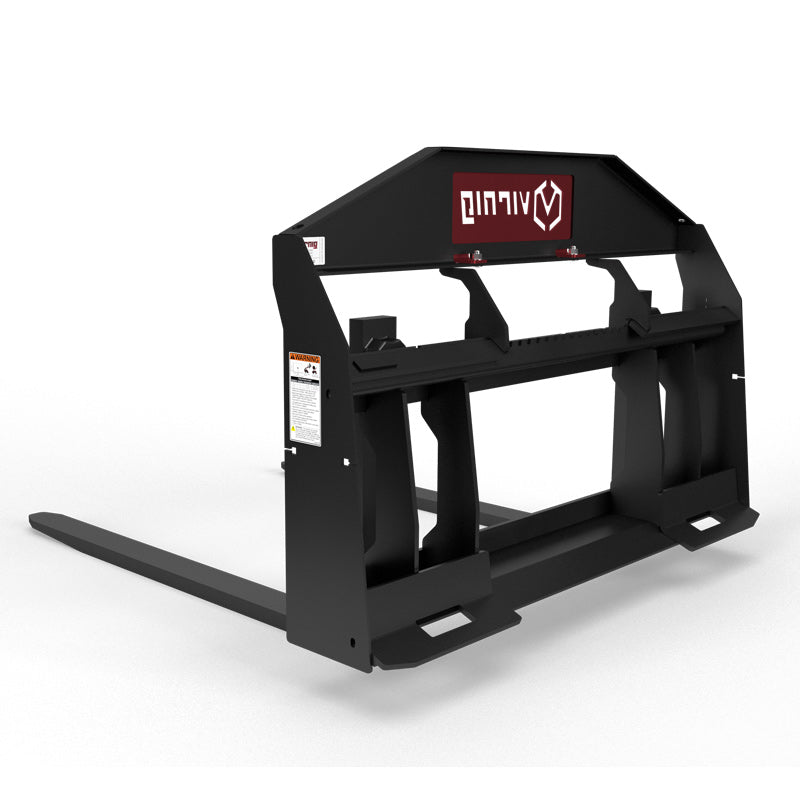

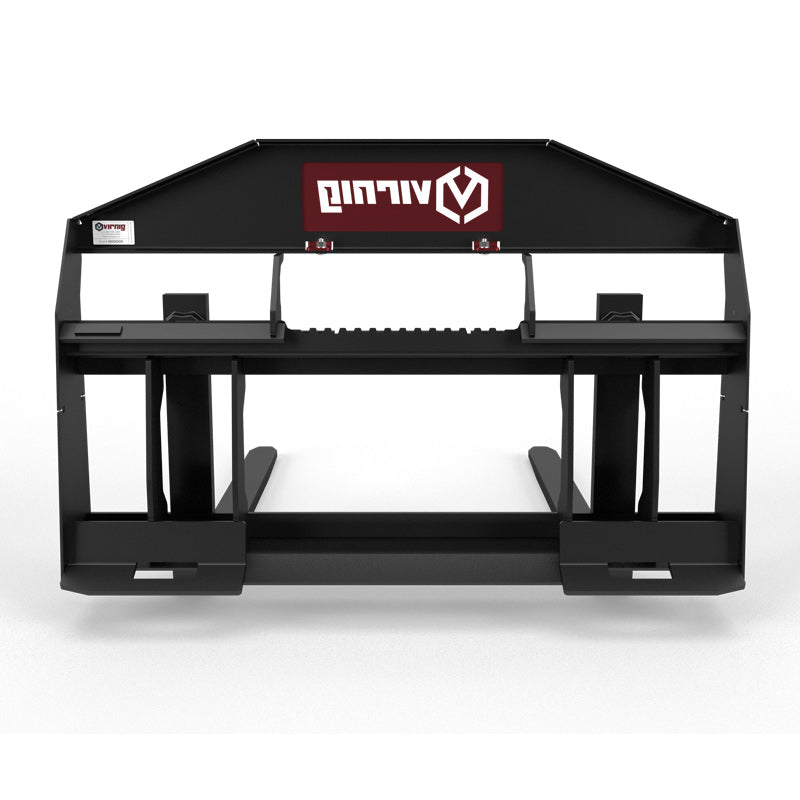

CENTERED MOUNT BRACING

CENTERED QUICK-ATTACH BRACING KEEPS THE HOOKUP AREA ACCESSIBLE WHEN MOUNTING THE FORK.

PALLET HANDLING

VIRNIG V30 COMPACT TRACTOR RAIL PALLET FORK HANDLES PALLETIZED MATERIALS WITH ADJUSTABLE FORGED FORK TINES.

TINE LENGTH OPTIONS

36″, 42″ AND 48″ FORGED TINE OPTIONS MATCH THE FORK REACH TO THE PALLET AND LOAD.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V30 Compact Tractor Rail Pallet Fork gives a compact tractor loader adjustable forged tines for palletized material handling. It provides a dedicated support arrangement for loads that are better lifted from underneath than carried in a bucket, helping with material placement around properties, storage areas, and work sites.

The frame uses a ¾″ beveled rail and a 3⁄16″ backrest. The brickrest is flush with the tines to help stabilize the load against the frame, while bracing centered on the quick-attach area assists with hookup alignment. Adjustable spacing allows the tine support points to be set around the pallet.

Choose the tine length for the load and confirm the tractor loader's universal skid steer mounting interface. The fork family's rating does not increase the tractor's capacity, which may be lower and depends on load position. Include the attachment weight and the distance of the load from the frame when checking the complete lifting arrangement.

KEY BENEFITS

  • 3/4” beveled rail and 3/16″ backrest.
  • Brickrest flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.
  • Virnig V30 Compact Tractor Rail Pallet Fork handles palletized materials with adjustable forged fork tines.
  • 3/4” beveled rail and 3/16″ backrest.

TECHNICAL SPECIFICATIONS

  • Models: PF3622-CT | PF4222-CT
  • Width, Overall w/ Step / Frame (in.): 50.5 / 45.5
  • Overall Height (in.): 29.7
  • Tine, Length / Width / Thickness (in.): 36.0 / 3.0 / 1.19 42.0 / 3.0 / 1.19 48.0 / 3.0 / 1.19
  • Tine Space, Min / Max (in.): 8.9 / 40.9
  • Approximate Weight (lbs): PF3622-CT: 255; PF4222-CT: 265
  • Capacity (lbs): 2200
  • Recommended Loader Capacity (lbs): Less than 1500

APPLICATIONS

  • Pallet loading
  • Material staging
  • Jobsite unloading

VIRNIG V30 COMPACT TRACTOR RAIL PALLET FORK

WORKING DESIGN

  • 3/4” beveled rail and 3/16″ backrest.
  • Brickrest flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.

CONFIGURATION AND SPECIFICATIONS

  • Models: PF3622-CT | PF4222-CT
  • Width, Overall w/ Step / Frame (in.): 50.5 / 45.5
  • Overall Height (in.): 29.7
  • Tine, Length / Width / Thickness (in.): 36.0 / 3.0 / 1.19 42.0 / 3.0 / 1.19 48.0 / 3.0 / 1.19
  • Tine Space, Min / Max (in.): 8.9 / 40.9
  • Approximate Weight (lbs): PF3622-CT: 255; PF4222-CT: 265
  • Capacity (lbs): 2200
  • Recommended Loader Capacity (lbs): Less than 1500

READY FOR THE FIELD

  • 3/4” beveled rail and 3/16″ backrest.
  • Brickrest flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.
  • Virnig V30 Compact Tractor Rail Pallet Fork handles palletized materials with adjustable forged fork tines.
  • 3/4” beveled rail and 3/16″ backrest.
