VIRNIG

V30 Compact Tractor Skeleton Grapple

For Compact Tractors

48-72″ Widths

Virnig

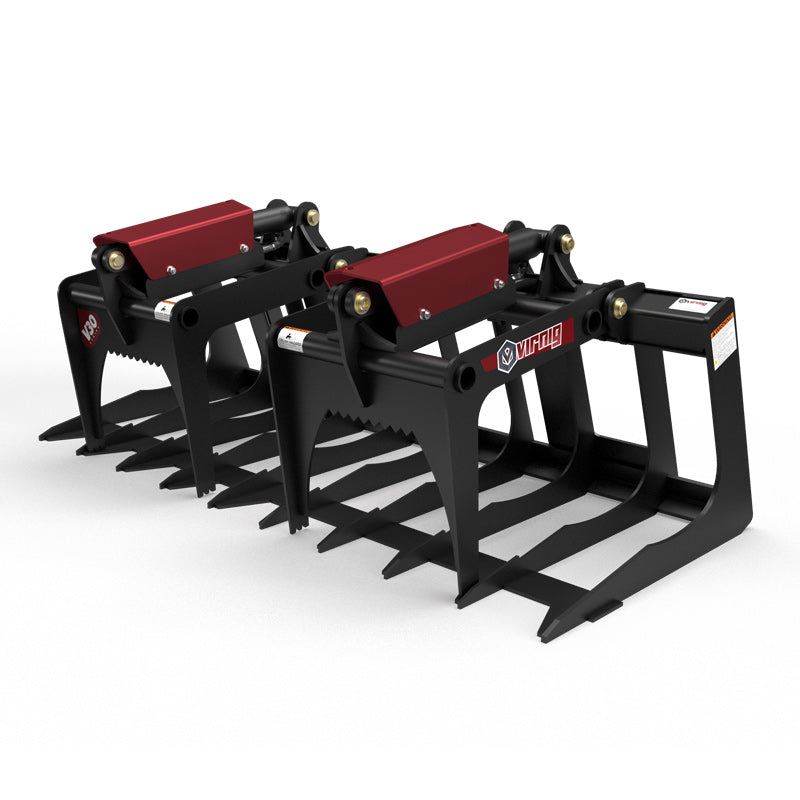

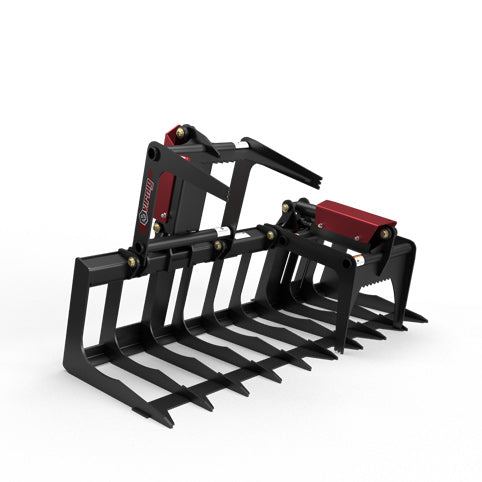

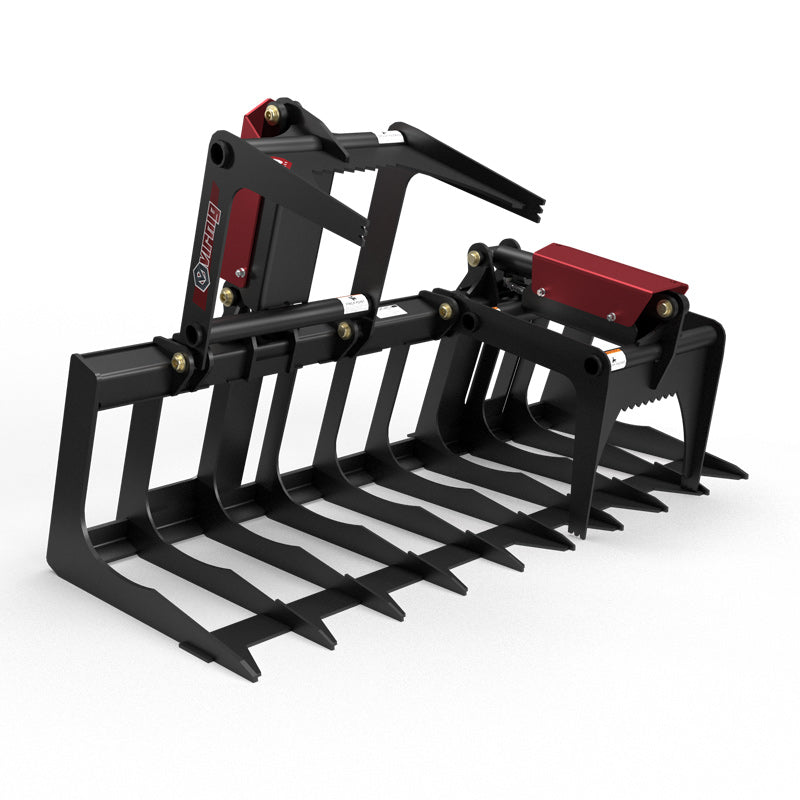

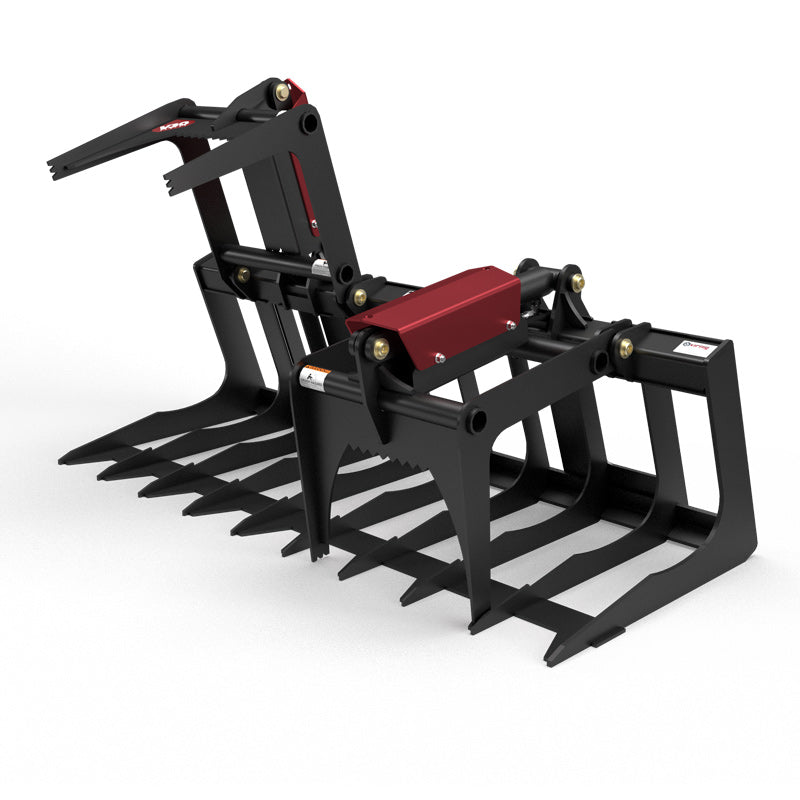

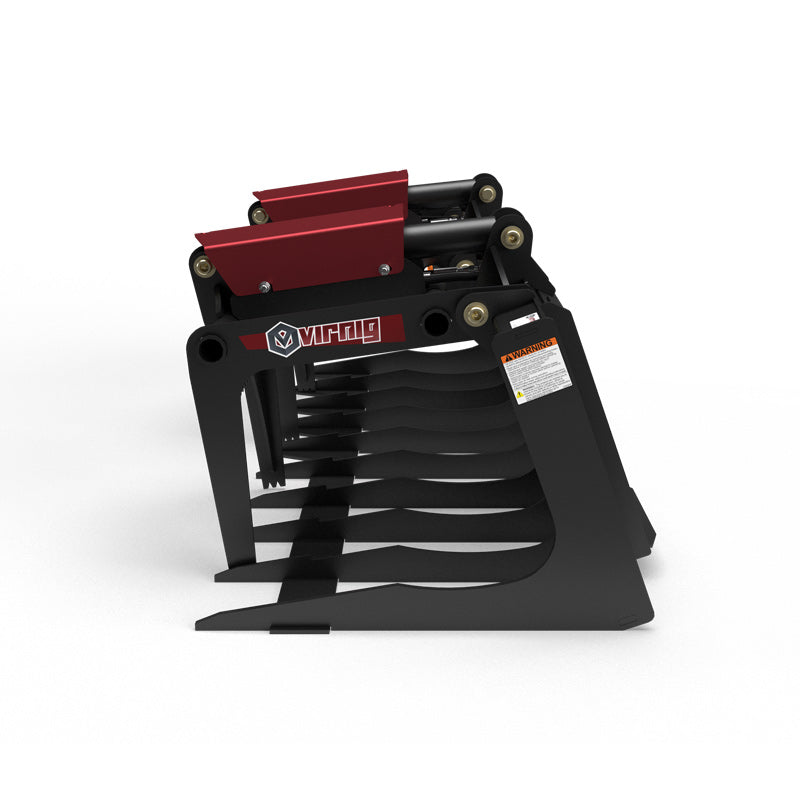

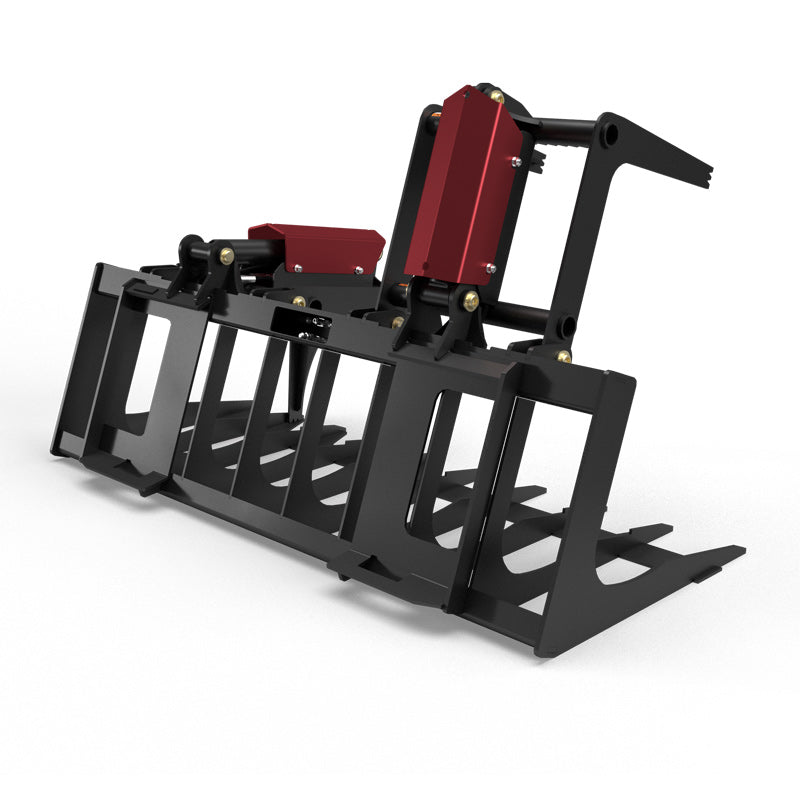

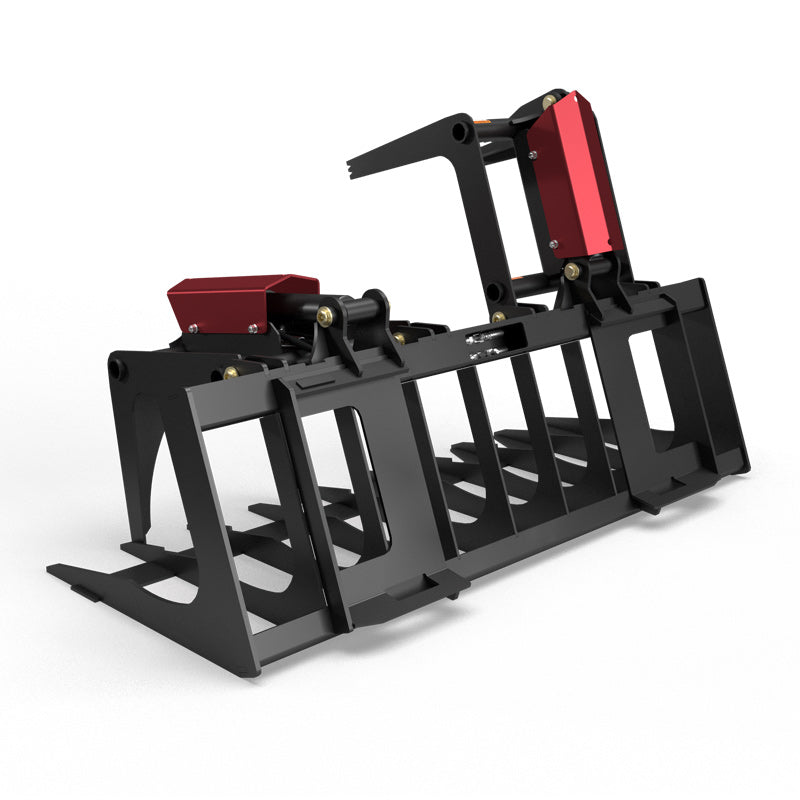

Virnig V30 Compact Tractor Skeleton Grapple

SKU: SGV48-CT Currently In Stock

Sale price$2,960.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE TINES PROVIDE RIGID SUPPORT WHEN GATHERING AND CARRYING UNEVEN MATERIAL.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED HINGE BUSHINGS SUPPORT SMOOTH JAW MOVEMENT.

CYLINDER GUARDS

OPTIONAL GUARDS ADD A SHIELD AROUND THE CYLINDERS FOR BRUSH AND DEBRIS HANDLING.

OPEN MATERIAL HANDLING

VIRNIG V30 COMPACT TRACTOR SKELETON GRAPPLE GATHERS BRUSH, LOGS, AND UNEVEN DEBRIS WHILE LETTING LOOSE SOIL FALL THROUGH.

GRAPPLE JAW OPENING

THE 28.7″ JAW OPENING PROVIDES SPACE TO GATHER BRUSH AND UNEVEN MATERIAL.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V30 Compact Tractor Skeleton Grapple gathers brush, logs, and irregular debris with an open lower frame sized for compact tractor loaders. Loose soil can fall through the floor while the upper grapple holds the larger material, making it useful for property cleanup without carrying unnecessary dirt with every load.

One-piece steel tines provide rigidity through the bucket floor. The SGV-CT family uses a wider-spaced skeleton layout for brush and debris, distinct from the closer rock-sorting arrangement. NitroSteel® cylinder rods and Teflon®-coated hinge bushings equip the hydraulic connection, with optional cylinder guards available for additional shielding.

Select the width and attachment weight around the tractor's lifting capacity and typical cleanup loads. Confirm the universal skid steer mounting interface on the loader and the auxiliary hydraulic connection for the grapple. This compact tractor family should be selected using its own dimensions and weights rather than those of the larger skid steer skeleton grapples.

KEY BENEFITS

  • Every tine is made from one piece for maximum rigidity.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on hinge.
  • Optional cylinder guards available.
  • Virnig v30 compact tractor skeleton grapple gathers brush, logs, and uneven debris while letting loose soil fall through.
  • Grapple jaw opening (in.): 28.7

TECHNICAL SPECIFICATIONS

  • Models: SGV48-CT | SGV54-CT | SGV60-CT | SGV66-CT | SGV72-CT
  • Overall Width (in.): SGV48-CT: 47.9; SGV54-CT: 54.3; SGV60-CT: 60.9; SGV66-CT: 67.5; SGV72-CT: 74.1
  • Height: Overall / Bucket (in.): 22.9 / 19.0
  • Depth: Overall / Inside (in.): 29.0 / 23.5
  • Number of tines: SGV48-CT: 8; SGV54-CT: 9; SGV60-CT: 10; SGV66-CT: 11; SGV72-CT: 12
  • Space between tines (in.): 6.4
  • Tine Thickness (in.): 0.25¹
  • Side Plate Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.0
  • Grapple Jaw Opening (in.): 28.7
  • Approximate weight (lb): SGV48-CT: 290; SGV54-CT: 305; SGV60-CT: 320; SGV66-CT: 335; SGV72-CT: 350
  • Recommended Loader Capacity: Less than 1500 lbs
  • ¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength)

APPLICATIONS

  • Brush handling
  • Log loading
  • Property cleanup

VIRNIG V30 COMPACT TRACTOR SKELETON GRAPPLE

WORKING DESIGN

  • Every tine is made from one piece for maximum rigidity.
  • NitroSteel® cylinder rods and Teflon® coated bushings on hinge.
  • Optional cylinder guards available.

CONFIGURATION AND SPECIFICATIONS

  • Models: SGV48-CT | SGV54-CT | SGV60-CT | SGV66-CT | SGV72-CT
  • Overall Width (in.): SGV48-CT: 47.9; SGV54-CT: 54.3; SGV60-CT: 60.9; SGV66-CT: 67.5; SGV72-CT: 74.1
  • Height: Overall / Bucket (in.): 22.9 / 19.0
  • Depth: Overall / Inside (in.): 29.0 / 23.5
  • Number of tines: SGV48-CT: 8; SGV54-CT: 9; SGV60-CT: 10; SGV66-CT: 11; SGV72-CT: 12
  • Space between tines (in.): 6.4
  • Tine Thickness (in.): 0.25¹
  • Side Plate Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0

READY FOR THE FIELD

  • Every tine is made from one piece for maximum rigidity.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on hinge.
  • Optional cylinder guards available.
  • Virnig v30 compact tractor skeleton grapple gathers brush, logs, and uneven debris while letting loose soil fall through.
  • Grapple jaw opening (in.): 28.7
