VIRNIG

V30 Compact Tractor Skeleton Rock Bucket

For Compact Tractors

48-72″ Widths

Virnig

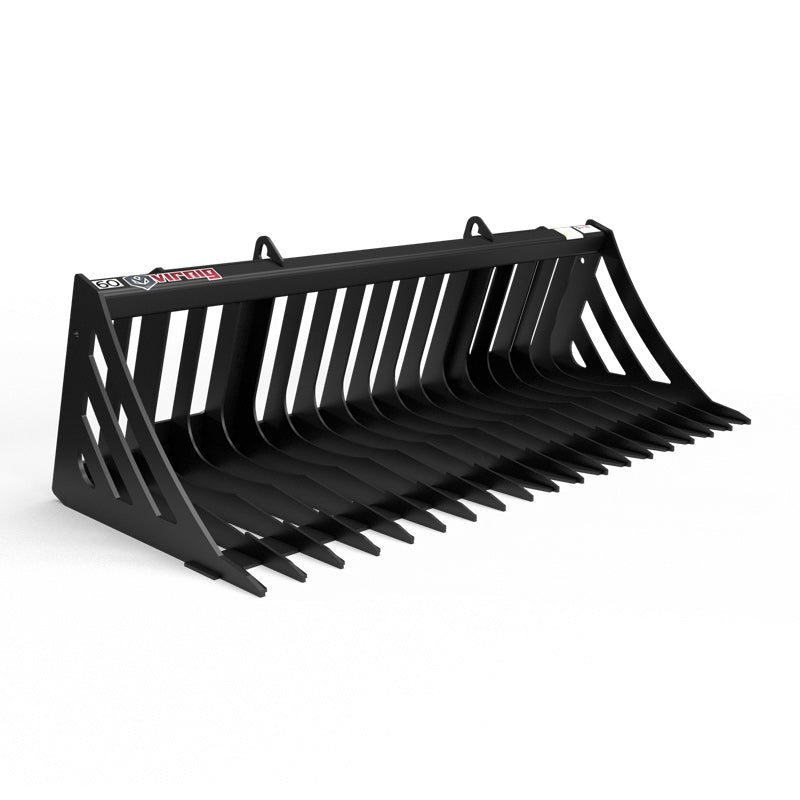

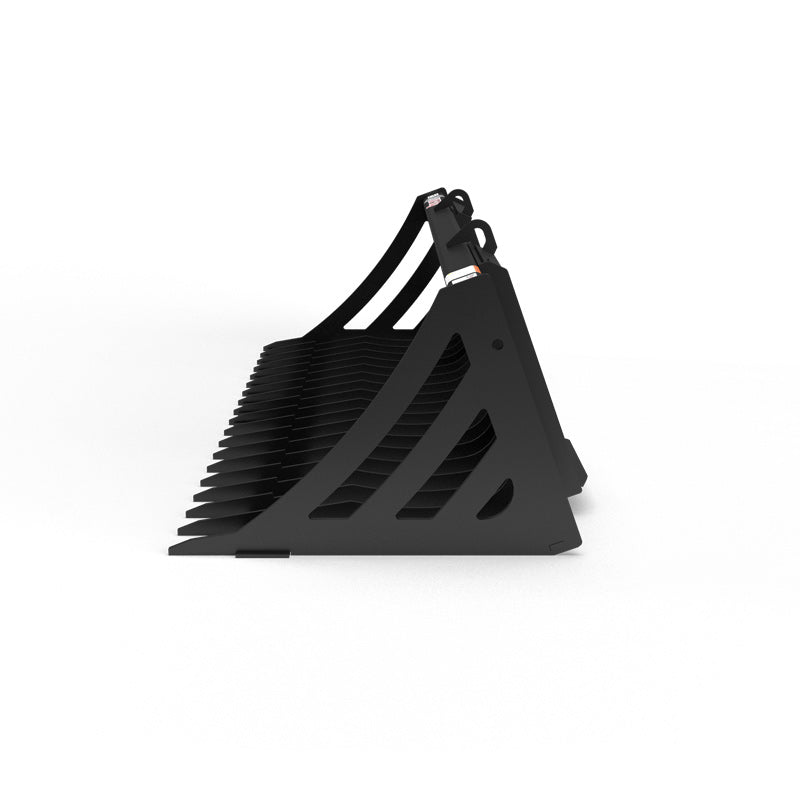

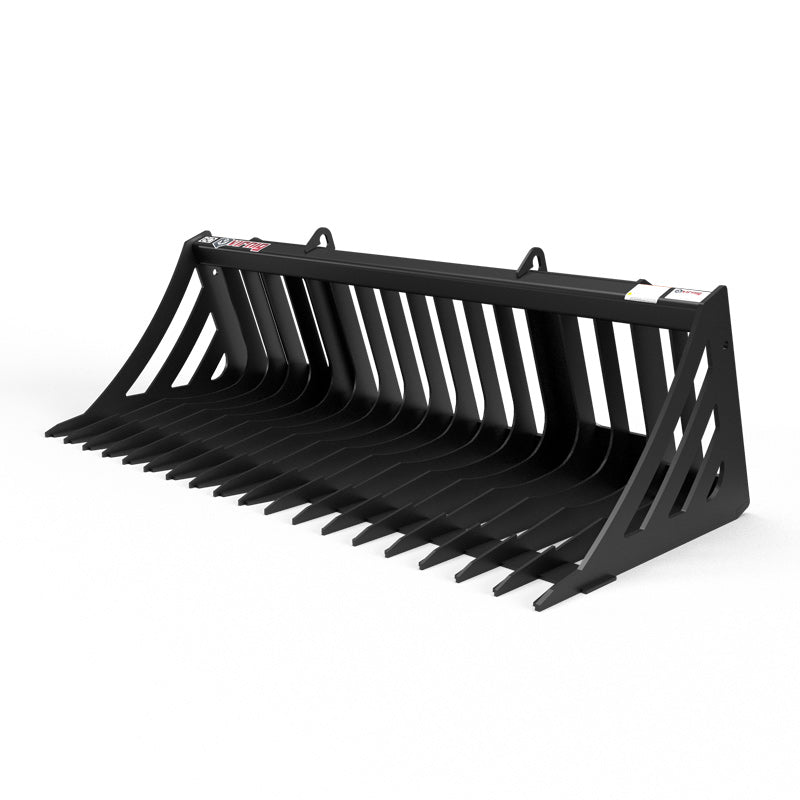

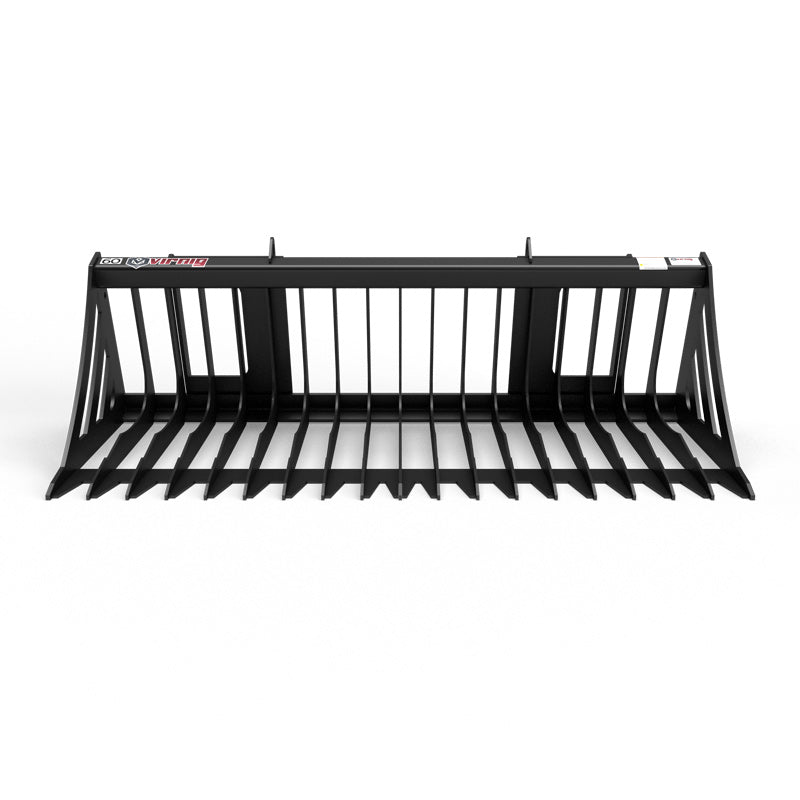

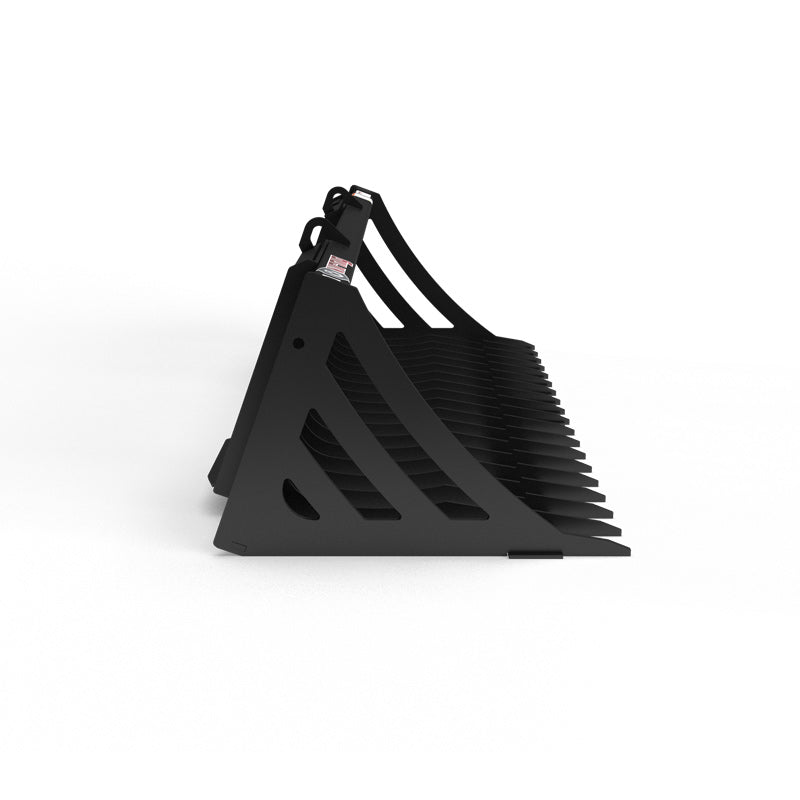

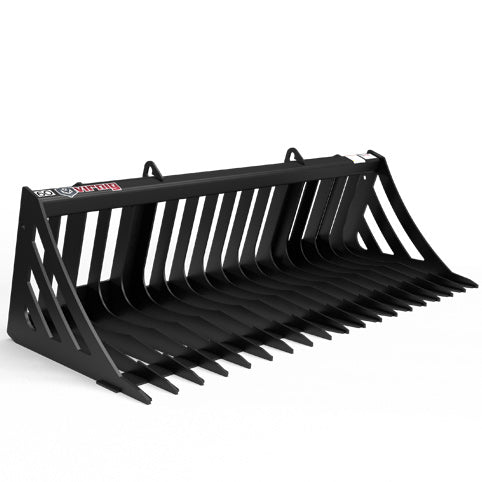

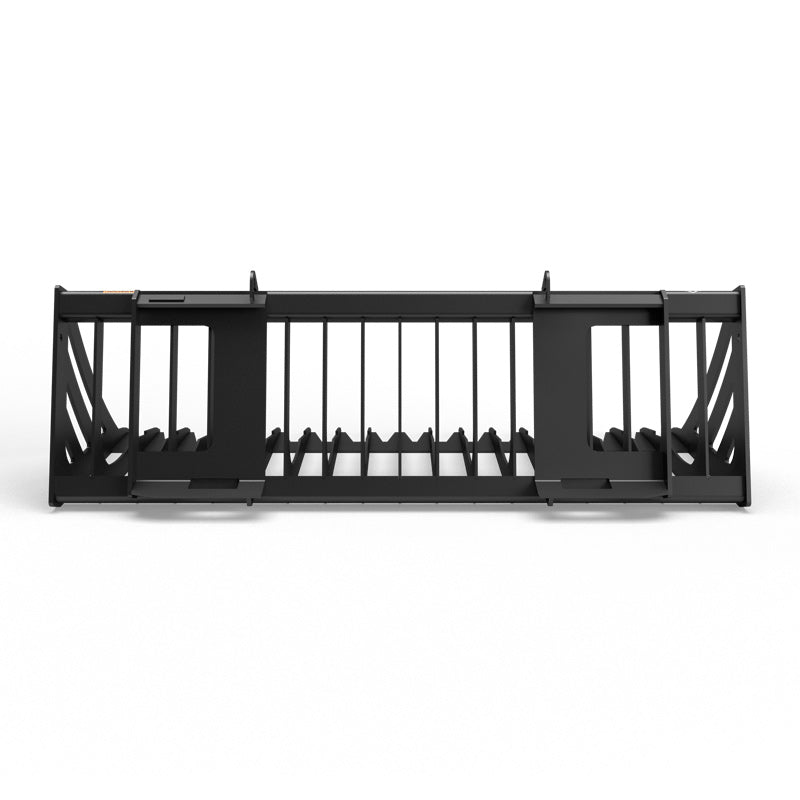

Virnig V30 Compact Tractor Skeleton Rock Bucket

SKU: SRV48-CT Currently In Stock

Sale price$1,075.00 USD

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES SUPPORT ROCKS WHILE THE OPEN FLOOR LETS LOOSE SOIL FALL THROUGH.

ROCK RETENTION

A ROCK DAM AND NOTCHED TINE TIPS HELP RETAIN ROCKS WHILE LOOSE SOIL FALLS THROUGH.

OPEN MATERIAL HANDLING

VIRNIG V30 COMPACT TRACTOR SKELETON ROCK BUCKET SEPARATES ROCKS FROM LOOSE SOIL AS IT GATHERS AND CARRIES MATERIAL.

TINE THICKNESS

¼″ STEEL TINES SUPPORT ROCKS WHILE THE OPEN FLOOR ALLOWS LOOSE SOIL TO FALL THROUGH.

WIDTH OPTIONS

MULTIPLE FRAME WIDTHS LET YOU MATCH ROCK-SORTING COVERAGE TO THE TRACTOR AND WORK AREA.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V30 Compact Tractor Skeleton Rock Bucket collects rocks while allowing loose soil to sift through the open floor. It is useful for cleaning rocky ground and gathering stones without removing every bucket of surrounding loose material, bringing a dedicated sorting bucket to a compact tractor loader.

Each tine is made from one piece of steel for rigidity through the lower frame. A rock dam and notches near the tine tips help retain stones once they are gathered. The SRV-CT family uses its own compact tractor dimensions and tine arrangement, separate from the full-size V40, V50, and V60 rock buckets.

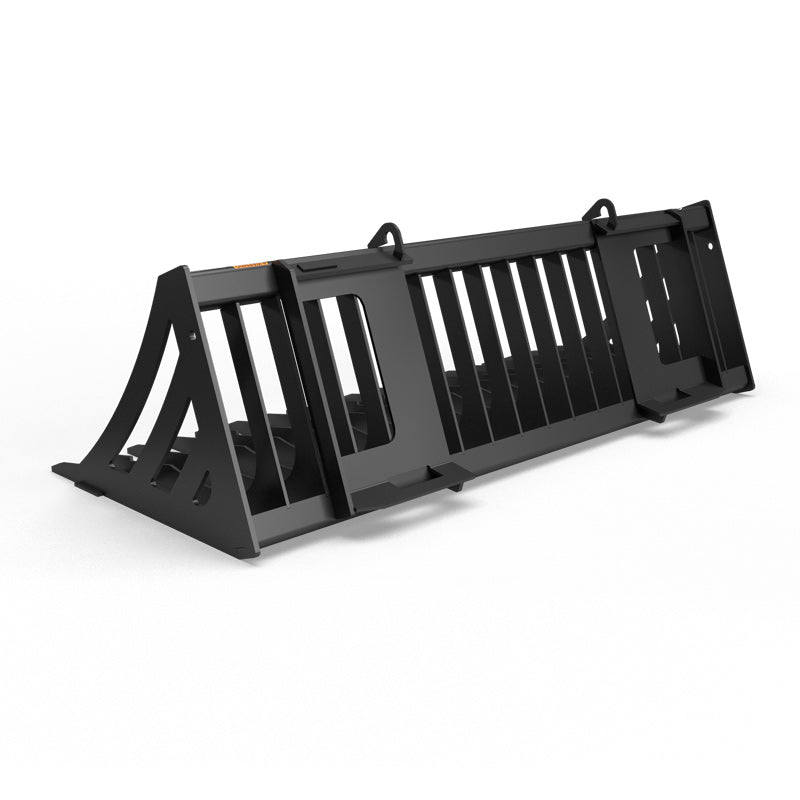

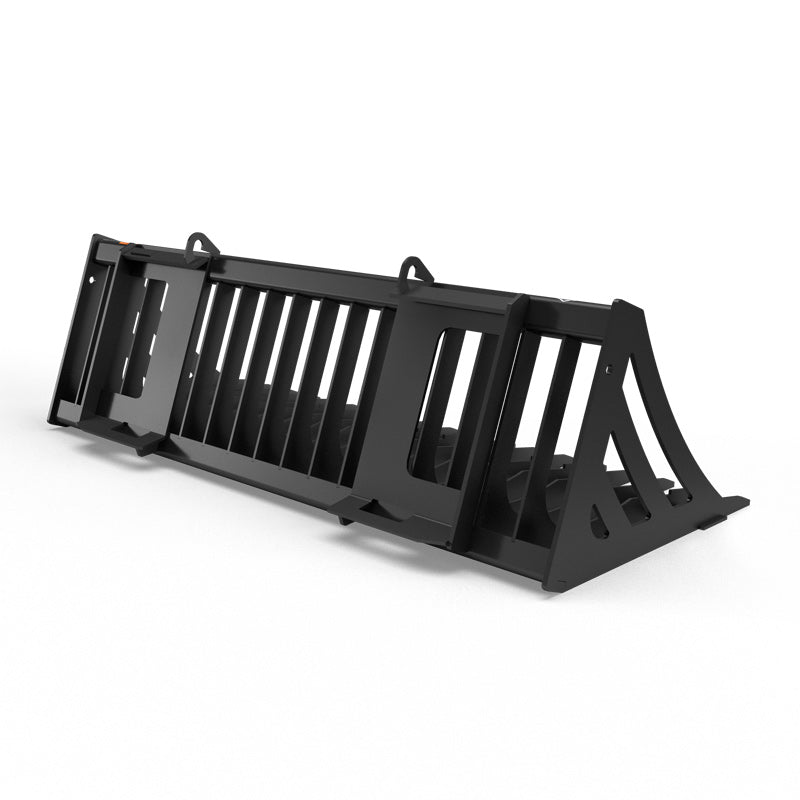

Select the width and attachment weight around the tractor's capacity and the material being handled. The bucket uses a universal skid steer interface, so confirm the loader connection before ordering. This is a plain sorting bucket without a hydraulic upper grapple, relying on bucket angle and controlled travel to keep the rock load contained.

KEY BENEFITS

  • Every tine is made from one piece steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.
  • Virnig v30 compact tractor skeleton rock bucket separates rocks from loose soil as it gathers and carries material.
  • Tine thickness (in.): 0.25¹
  • Width: overall / inside (in.): 50.9 / 46.3 | 54.3 / 52.6 | 60.9 / 59.3 | 67.5 / 65.9 | 74.1 / 72.5

TECHNICAL SPECIFICATIONS

  • Models: SRV48-CT SRV54-CT SRV60-CT SRV66-CT SRV72-CT
  • Width: Overall / Inside (in.): SRV48-CT: 50.9 / 46.3; SRV54-CT: 54.3 / 52.6; SRV60-CT: 60.9 / 59.3; SRV66-CT: 67.5 / 65.9; SRV72-CT: 74.1 / 72.5
  • Overall Height (in.): 19.9
  • Depth: Overall / Inside (in.): 29.0 / 23.5
  • Number of Tines (w/ sides): SRV48-CT: 15; SRV54-CT: 17; SRV60-CT: 19; SRV66-CT: 21; SRV72-CT: 23
  • Space Between Tines (in.): 3.1
  • Tine Thickness (in.): 0.25¹
  • Side Plate Thickness (in.): 0.375¹
  • Approximate Weight (lbs): SRV48-CT: 210; SRV54-CT: 230; SRV60-CT: 250; SRV66-CT: 270; SRV72-CT: 290
  • Recommended Loader Capacity: Less than 1500 lbs
  • ¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Rock cleanup
  • Soil separation
  • Site preparation

VIRNIG V30 COMPACT TRACTOR SKELETON ROCK BUCKET

WORKING DESIGN

  • Every tine is made from one piece steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.

CONFIGURATION AND SPECIFICATIONS

  • Models: SRV48-CT SRV54-CT SRV60-CT SRV66-CT SRV72-CT
  • Width: Overall / Inside (in.): SRV48-CT: 50.9 / 46.3; SRV54-CT: 54.3 / 52.6; SRV60-CT: 60.9 / 59.3; SRV66-CT: 67.5 / 65.9; SRV72-CT: 74.1 / 72.5
  • Overall Height (in.): 19.9
  • Depth: Overall / Inside (in.): 29.0 / 23.5
  • Number of Tines (w/ sides): SRV48-CT: 15; SRV54-CT: 17; SRV60-CT: 19; SRV66-CT: 21; SRV72-CT: 23
  • Space Between Tines (in.): 3.1
  • Tine Thickness (in.): 0.25¹
  • Side Plate Thickness (in.): 0.375¹
  • Approximate Weight (lbs): SRV48-CT: 210; SRV54-CT: 230; SRV60-CT: 250; SRV66-CT: 270; SRV72-CT: 290

READY FOR THE FIELD

  • Every tine is made from one piece steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.
  • Virnig v30 compact tractor skeleton rock bucket separates rocks from loose soil as it gathers and carries material.
  • Tine thickness (in.): 0.25¹
  • Width: overall / inside (in.): 50.9 / 46.3 | 54.3 / 52.6 | 60.9 / 59.3 | 67.5 / 65.9 | 74.1 / 72.5
