VIRNIG

V30 Compact Tractor Skeleton Rock Grapple

For Compact Tractors

48-72″ Widths

Virnig

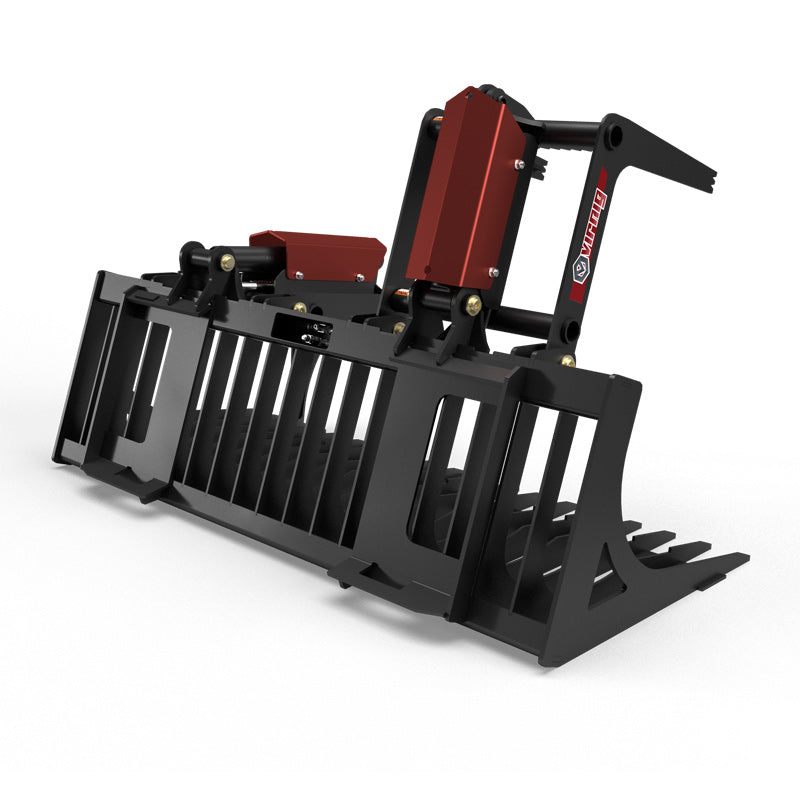

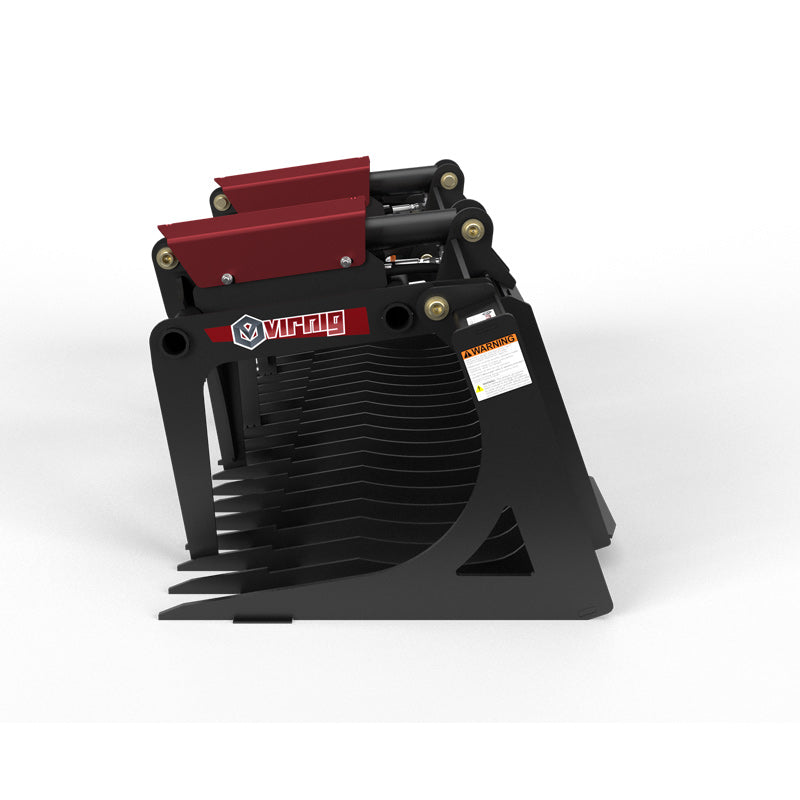

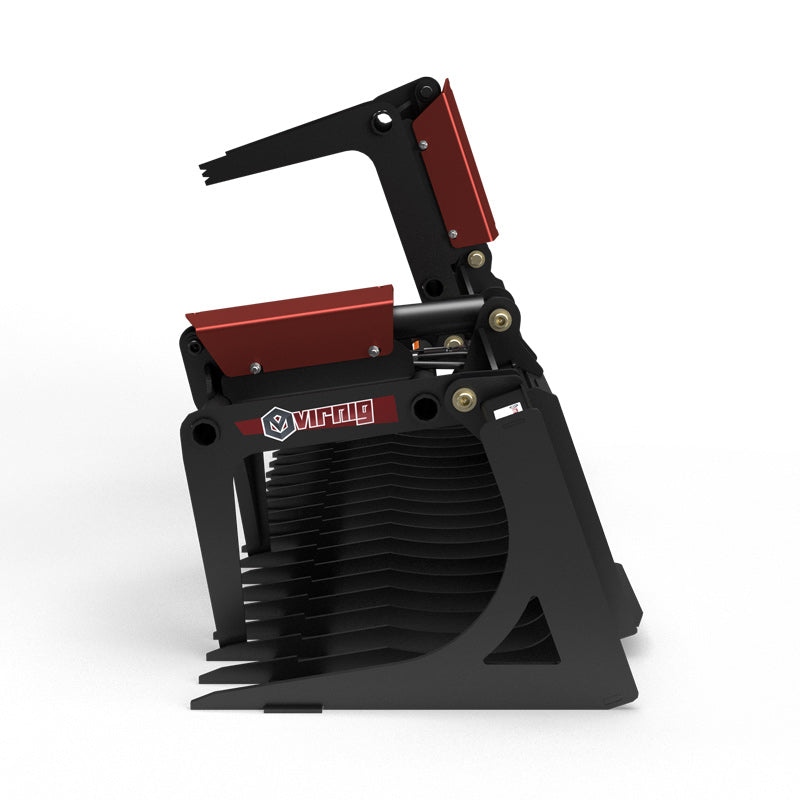

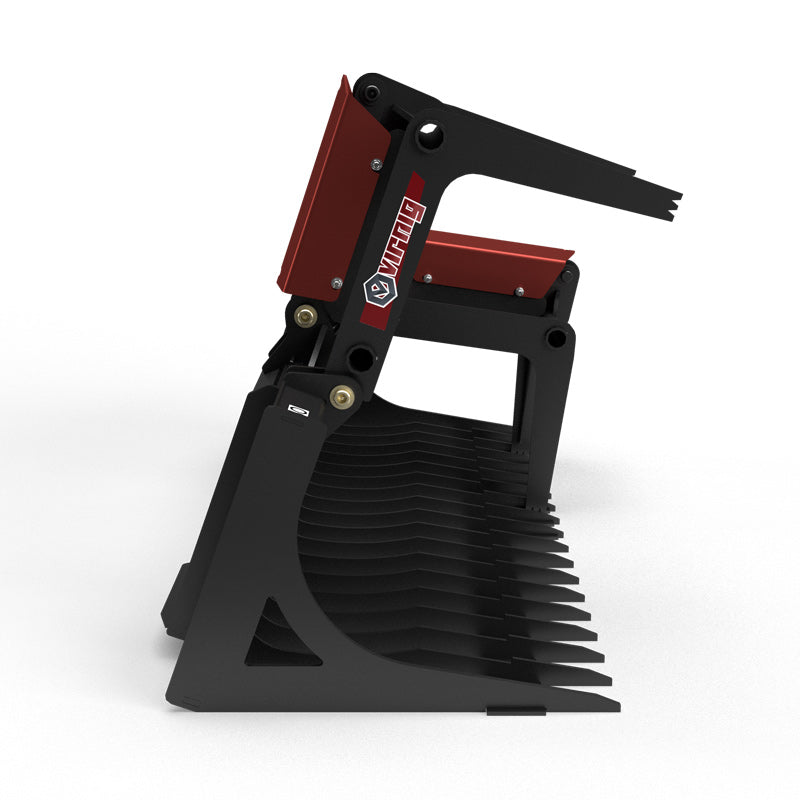

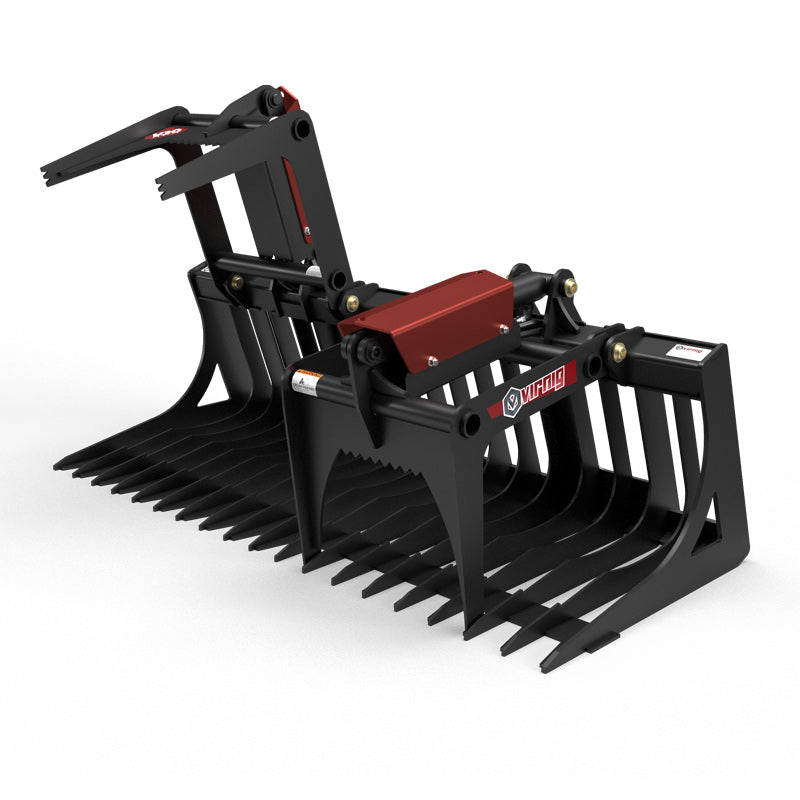

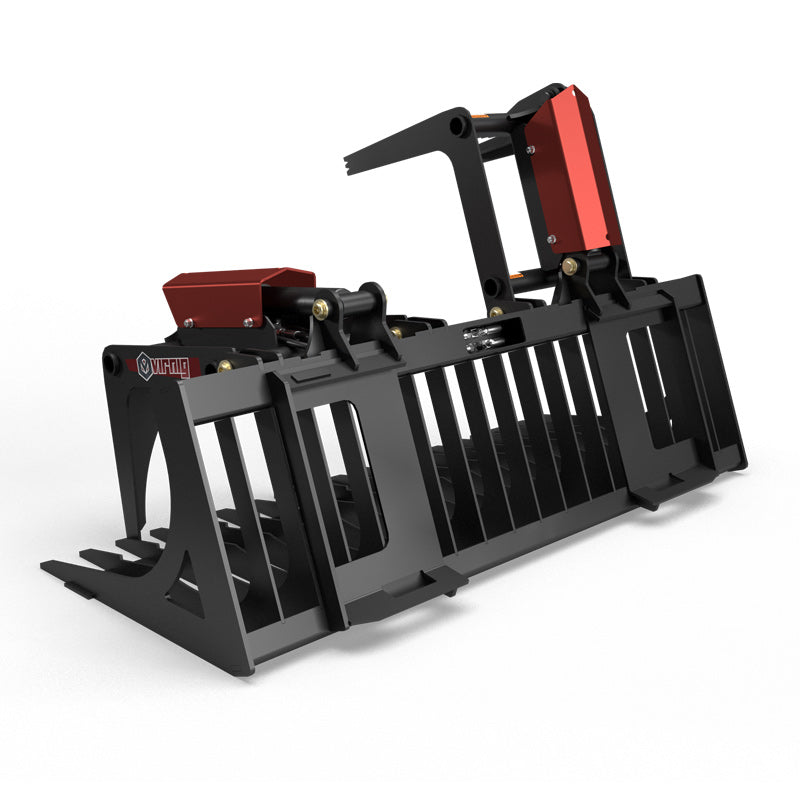

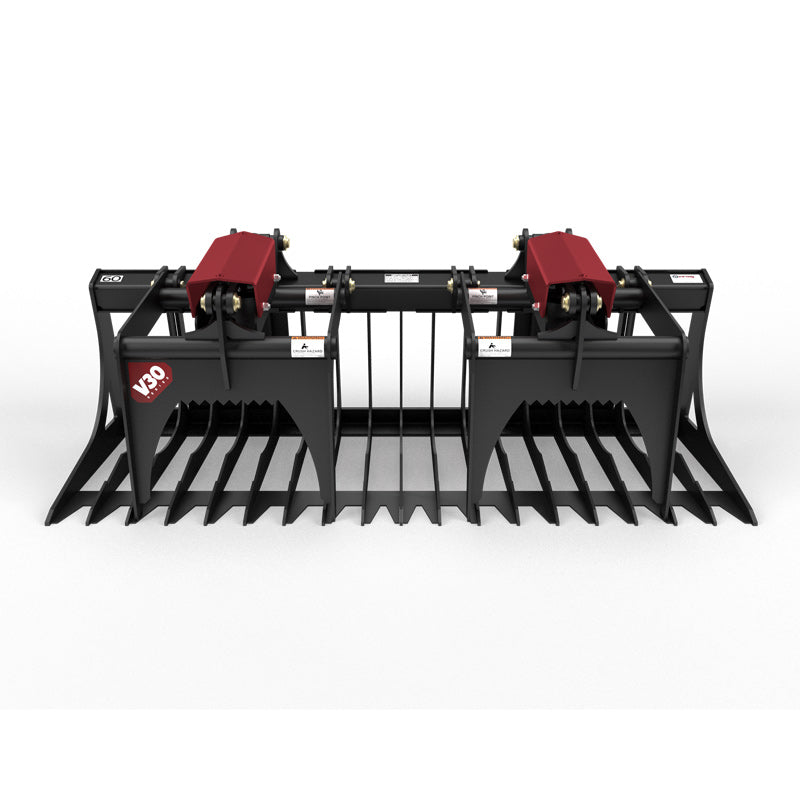

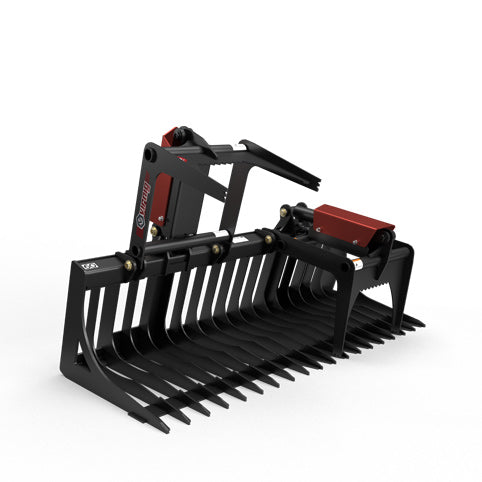

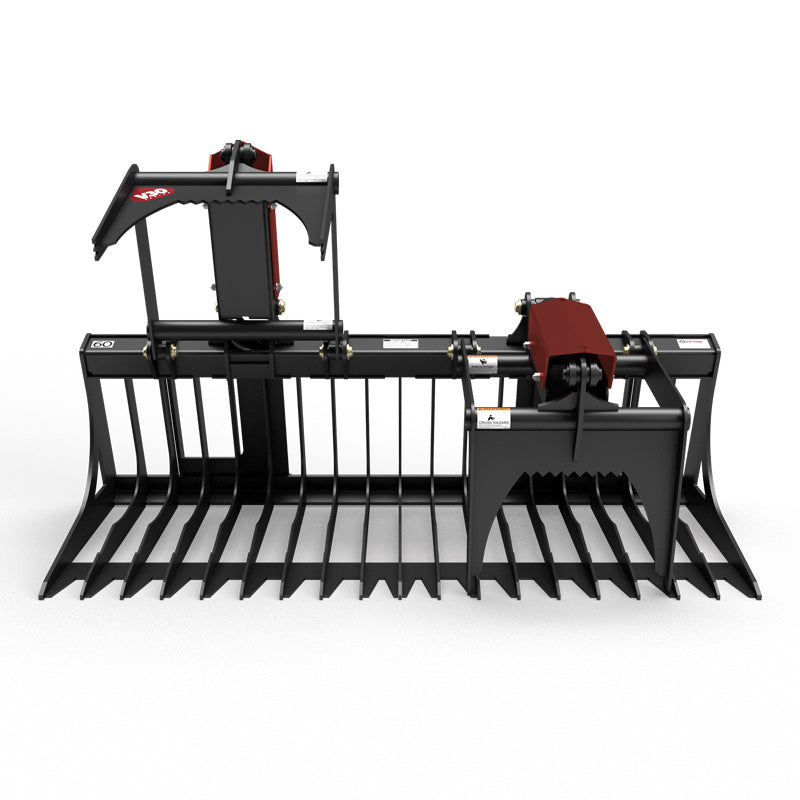

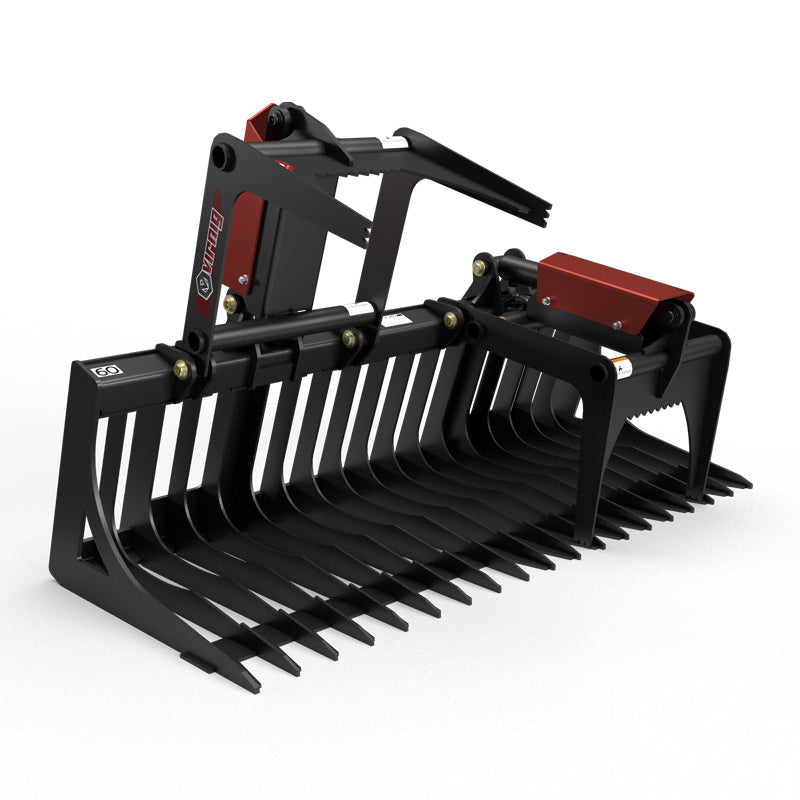

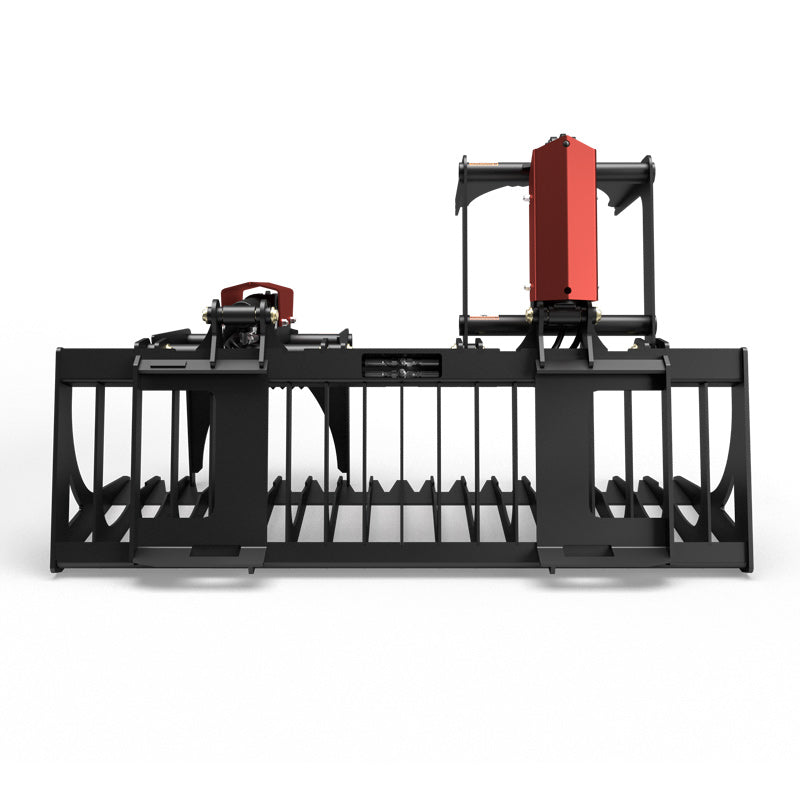

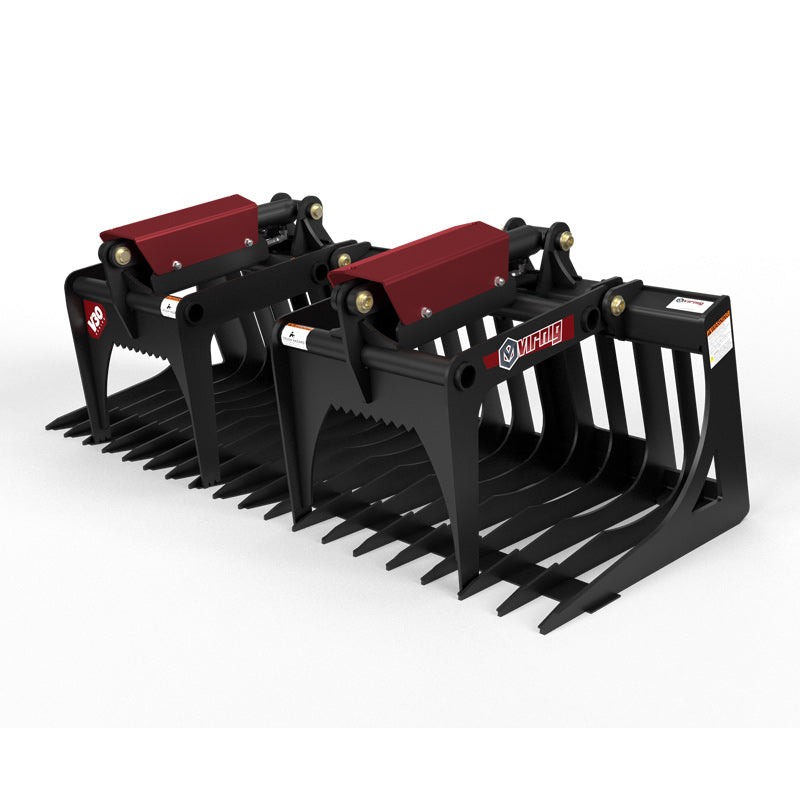

Virnig V30 Compact Tractor Skeleton Rock Grapple

SKU: SRGV48-CT Currently In Stock

Sale price$3,250.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE ¼″ GRADE 50 STEEL TINES FORM A RIGID FRAME FOR ROCK AND DEBRIS HANDLING.

CURVED SIDE PLATES

CURVED SIDE PLATES ALLOW WIDER MATERIAL TO EXTEND BEYOND THE SIDES OF THE GRAPPLE.

ROCK RETENTION

A ROCK DAM AND NOTCHED TINE TIPS HELP RETAIN ROCKS WHILE LOOSE SOIL FALLS THROUGH.

GUSSETED TINES

GUSSETS REINFORCE THE TINES TO SUPPORT MATERIAL DURING RAKING AND LOADING.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED HINGE BUSHINGS SUPPORT SMOOTH JAW MOVEMENT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V30 Compact Tractor Skeleton Rock Grapple sorts loose soil from rocks while securing irregular material with a hydraulic jaw. Its open lower frame lets finer material fall through, while the rock dam and notches near the tine tips help keep collected stones inside the bucket.

Each tine is made from one piece of ¼″ Grade 50 steel, with full gusseting reinforcing the working frame. Curved side plates allow wider material to be handled, while the closer-spaced rock layout distinguishes this SRGV-CT family from the ordinary compact tractor skeleton grapple. NitroSteel® rods and Teflon®-coated hinge bushings equip the hydraulic connection.

Choose the width and weight around the compact tractor loader, the rocks being gathered, and the load position. Confirm the loader's universal skid steer interface and auxiliary hydraulics before ordering. The grapple improves load retention, but the tractor's actual lifting capacity remains the limit for the attachment and contents together.

KEY BENEFITS

  • Every tine is made from one piece of 1/4″ grade 50 steel for maximum rigidity.
  • Curved side plate to allow wide material handling.
  • Rock dam and notch near tine tips hold rocks securely.
  • Tines fully gusseted for added strength.
  • NitroSteel® cylinder rods and Teflon® coated bushings on hinge.

TECHNICAL SPECIFICATIONS

  • Models: SRGV48-CT | SRGV54-CT | SRGV60-CT | SRGV66-CT | SRGV72-CT
  • Overall Width (in.): SRGV48-CT: 47.9; SRGV54-CT: 54.3; SRGV60-CT: 60.9; SRGV66-CT: 67.5; SRGV72-CT: 74.1
  • Height: Overall / Bucket (in.): 22.9 / 19.0
  • Depth: Overall / Inside (in.): 29.0 / 23.5
  • Number of tines: SRGV48-CT: 15; SRGV54-CT: 17; SRGV60-CT: 19; SRGV66-CT: 21; SRGV72-CT: 23
  • Space between tines (in.): 3.1
  • Tine Thickness (in.): 0.25¹
  • Side Plate Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.0
  • Grapple Jaw Opening (in.): 28.7
  • Approximate weight (lb): SRGV48-CT: 345; SRGV54-CT: 365; SRGV60-CT: 385; SRGV66-CT: 405; SRGV72-CT: 425
  • Recommended Loader Capacity: Less than 1500 lbs
  • ¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength)

APPLICATIONS

  • Rock cleanup
  • Sorting rocky soil
  • Handling uneven debris

VIRNIG V30 COMPACT TRACTOR SKELETON ROCK GRAPPLE

WORKING DESIGN

  • Every tine is made from one piece of 1/4″ grade 50 steel for maximum rigidity.
  • Curved side plate to allow wide material handling.
  • Rock dam and notch near tine tips hold rocks securely.
  • Tines fully gusseted for added strength.
  • NitroSteel® cylinder rods and Teflon® coated bushings on hinge.

CONFIGURATION AND SPECIFICATIONS

  • Models: SRGV48-CT | SRGV54-CT | SRGV60-CT | SRGV66-CT | SRGV72-CT
  • Overall Width (in.): SRGV48-CT: 47.9; SRGV54-CT: 54.3; SRGV60-CT: 60.9; SRGV66-CT: 67.5; SRGV72-CT: 74.1
  • Height: Overall / Bucket (in.): 22.9 / 19.0
  • Depth: Overall / Inside (in.): 29.0 / 23.5
  • Number of tines: SRGV48-CT: 15; SRGV54-CT: 17; SRGV60-CT: 19; SRGV66-CT: 21; SRGV72-CT: 23
  • Space between tines (in.): 3.1
  • Tine Thickness (in.): 0.25¹
  • Side Plate Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0

READY FOR THE FIELD

  • Every tine is made from one piece of 1/4″ grade 50 steel for maximum rigidity.
  • Curved side plate to allow wide material handling.
  • Rock dam and notch near tine tips hold rocks securely.
  • Tines fully gusseted for added strength.
  • NitroSteel® cylinder rods and Teflon® coated bushings on hinge.
