VIRNIG

V30 Compact Tractor Utility Fork

For Compact Tractors

48-72″ Widths

Request QuoteAdd To Cart

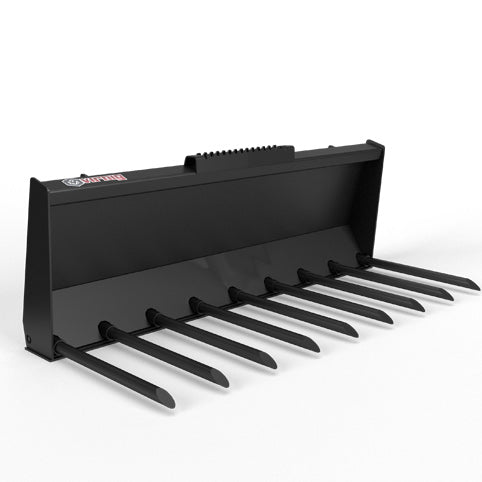

Virnig V30 Compact Tractor Utility Fork

Virnig V30 Compact Tractor Utility Fork; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V30 Compact Tractor Utility Fork; manufacturer family image, configuration may differ
Virnig

Virnig V30 Compact Tractor Utility Fork

SKU: UV48-CT Currently In Stock

$1,635.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

OPEN TINE ENTRY

AN UNOBSTRUCTED TINE ENTRY SLIDES INTO MATERIAL WITHOUT A FRONT CROSS MEMBER IN THE WAY.

REPLACEABLE TINES

HIGH-STRENGTH TINES CAN BE REPLACED INDIVIDUALLY TO KEEP THE FORK IN SERVICE.

MANURE HANDLING

VIRNIG V30 COMPACT TRACTOR UTILITY FORK SLIDES INTO SEMI-LOOSE MATERIAL WITH REPLACEABLE TINES AND AN OPEN FRONT.

CARRIER MATCHING

WIDTH-DEPENDENT ATTACHMENT WEIGHTS LET YOU CHOOSE A FORK SUITED TO THE TRACTOR'S LIFT LIMIT.

WIDTH OPTIONS

MULTIPLE FORK WIDTHS LET YOU MATCH MATERIAL-HANDLING COVERAGE TO YOUR TRACTOR.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V30 Compact Tractor Utility Fork enters manure, brush, and other semi-loose material with an open front and replaceable tines. The absence of a front cross member allows the tine tips to slide into the pile, helping gather material that can be difficult to enter cleanly with a solid bucket edge.

High-strength replaceable tines form the load support, with individual replacement available when a working tine becomes worn or damaged. The open floor lets finer loose material fall away rather than retaining every piece. This plain utility fork is intended for supporting a load on the tines without an upper hydraulic jaw.

Choose the width and attachment weight around the compact tractor loader and expected material. Confirm the universal skid steer mounting interface and keep the complete load within the tractor's actual lifting capacity. If the cleanup work requires clamping loose or irregular material, compare the separate V30 Utility Fork Grapple configuration before choosing the attachment.

KEY BENEFITS

  • No cross member for better penetration.
  • High strength replaceable tines.
  • Virnig v30 compact tractor utility fork slides into semi-loose material with replaceable tines and an open front.
  • Approximate weight (lbs): 305 | 335 | 365 | 400 | 430
  • Overall width (in.): 49.0 | 54.5 | 60.5 | 66.5 | 72.5

TECHNICAL SPECIFICATIONS

  • Models: UV48-CT UV54-CT UV60-CT UV66-CT UV72-CT
  • Overall Width (in.): UV48-CT: 49.0; UV54-CT: 54.5; UV60-CT: 60.5; UV66-CT: 66.5; UV72-CT: 72.5
  • Height: Overall / Bucket (in.): 27.2 / 21.4
  • Overall Depth (in.): 27.3
  • Number of Tines: UV48-CT: 7; UV54-CT: 8; UV60-CT: 9; UV66-CT: 10; UV72-CT: 11
  • Space Between Tines (in.): UV48-CT: 6.0; UV54-CT: 5.9; UV60-CT: 5.7; UV66-CT: 5.6; UV72-CT: 5.4
  • Tine Diameter (in.): 1.5¹
  • Approximate Weight (lbs): UV48-CT: 305; UV54-CT: 335; UV60-CT: 365; UV66-CT: 400; UV72-CT: 430
  • Recommended Loader Capacity: Less than 1500 lbs
  • ¹Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Manure handling
  • Brush loading
  • Farm cleanup

VIRNIG V30 COMPACT TRACTOR UTILITY FORK

WORKING DESIGN

  • No cross member for better penetration.
  • High strength replaceable tines.

CONFIGURATION AND SPECIFICATIONS

  • Models: UV48-CT UV54-CT UV60-CT UV66-CT UV72-CT
  • Overall Width (in.): UV48-CT: 49.0; UV54-CT: 54.5; UV60-CT: 60.5; UV66-CT: 66.5; UV72-CT: 72.5
  • Height: Overall / Bucket (in.): 27.2 / 21.4
  • Overall Depth (in.): 27.3
  • Number of Tines: UV48-CT: 7; UV54-CT: 8; UV60-CT: 9; UV66-CT: 10; UV72-CT: 11
  • Space Between Tines (in.): UV48-CT: 6.0; UV54-CT: 5.9; UV60-CT: 5.7; UV66-CT: 5.6; UV72-CT: 5.4
  • Tine Diameter (in.): 1.5¹
  • Approximate Weight (lbs): UV48-CT: 305; UV54-CT: 335; UV60-CT: 365; UV66-CT: 400; UV72-CT: 430
  • Recommended Loader Capacity: Less than 1500 lbs

READY FOR THE FIELD

  • No cross member for better penetration.
  • High strength replaceable tines.
  • Virnig v30 compact tractor utility fork slides into semi-loose material with replaceable tines and an open front.
  • Approximate weight (lbs): 305 | 335 | 365 | 400 | 430
  • Overall width (in.): 49.0 | 54.5 | 60.5 | 66.5 | 72.5
Request a Quote
