VIRNIG

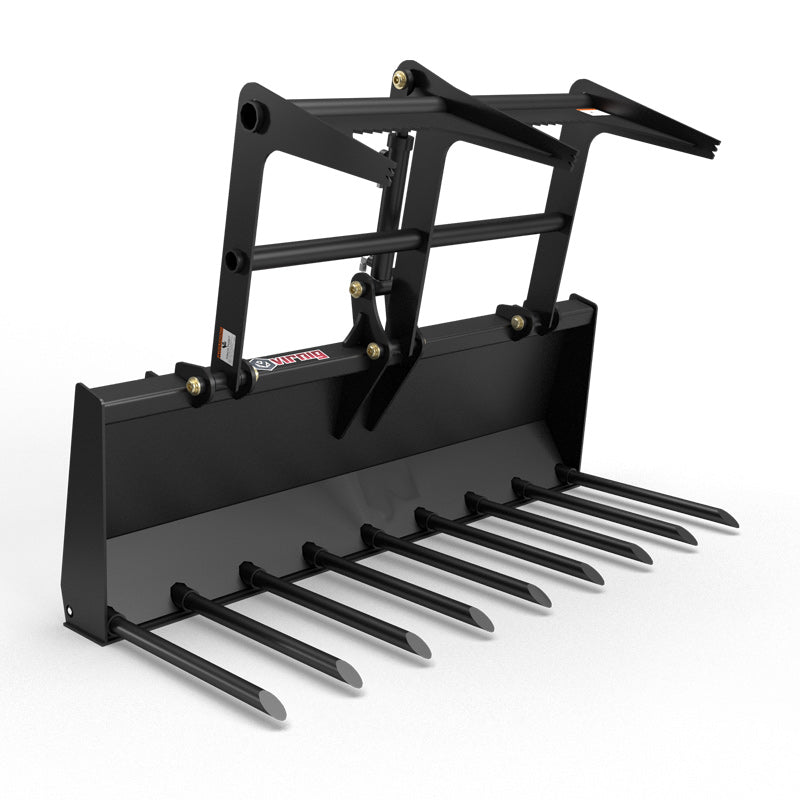

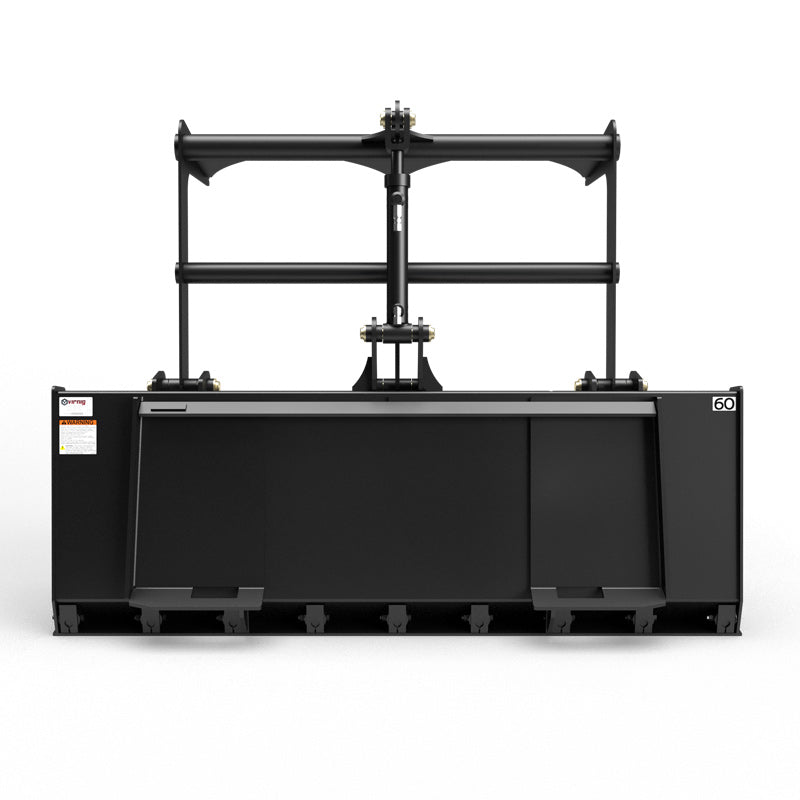

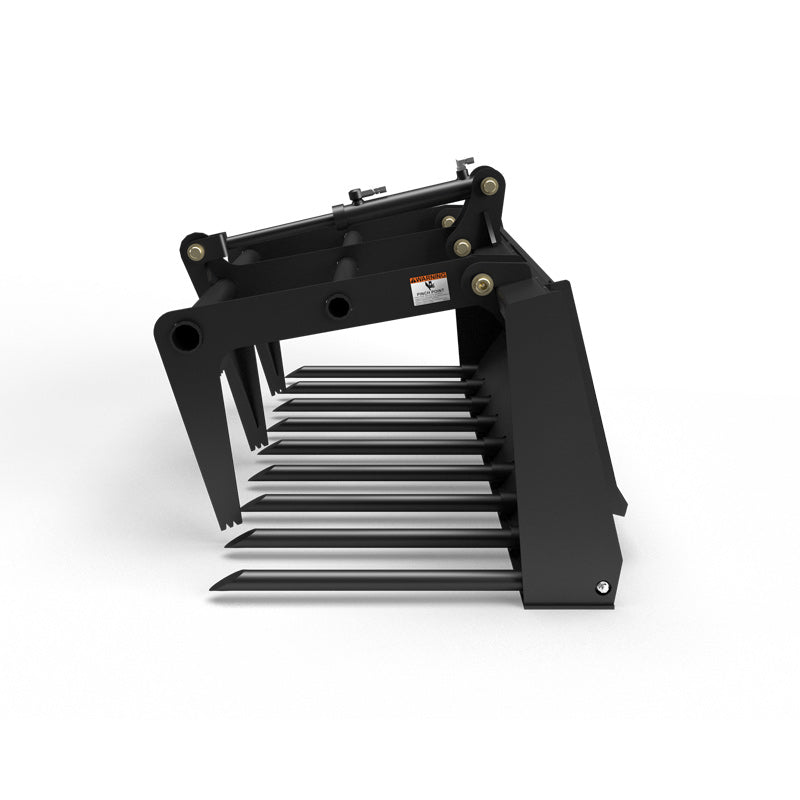

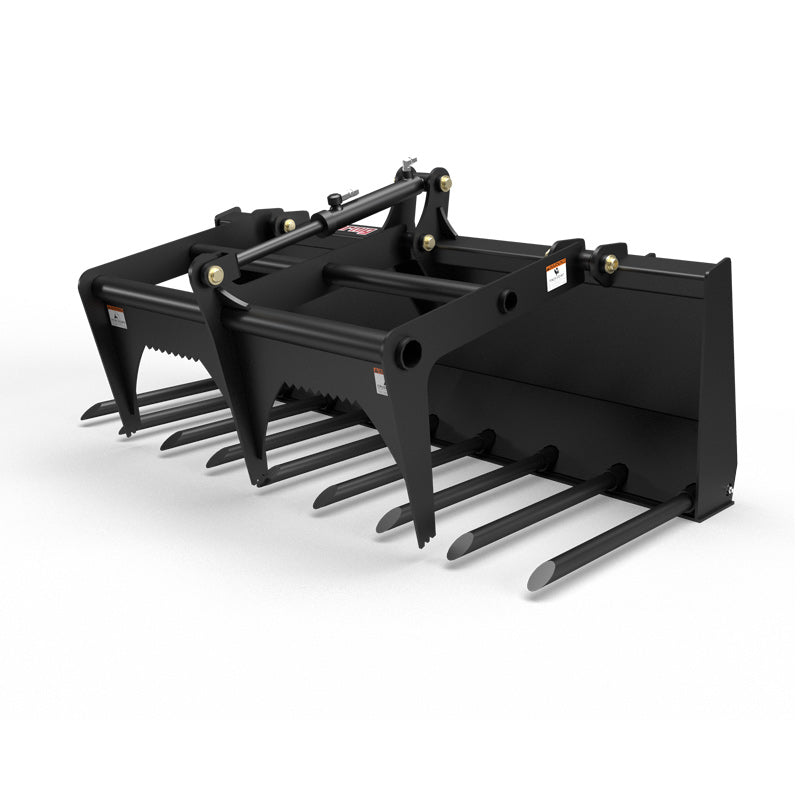

V30 Compact Tractor Utility Fork Grapple

For Compact Tractors

48-72″ Widths

Virnig

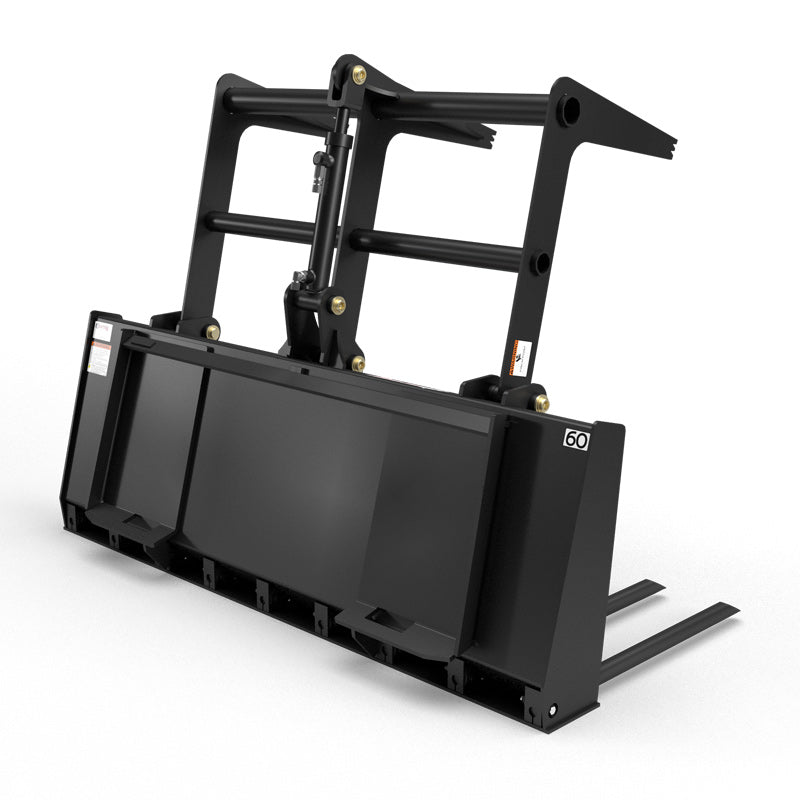

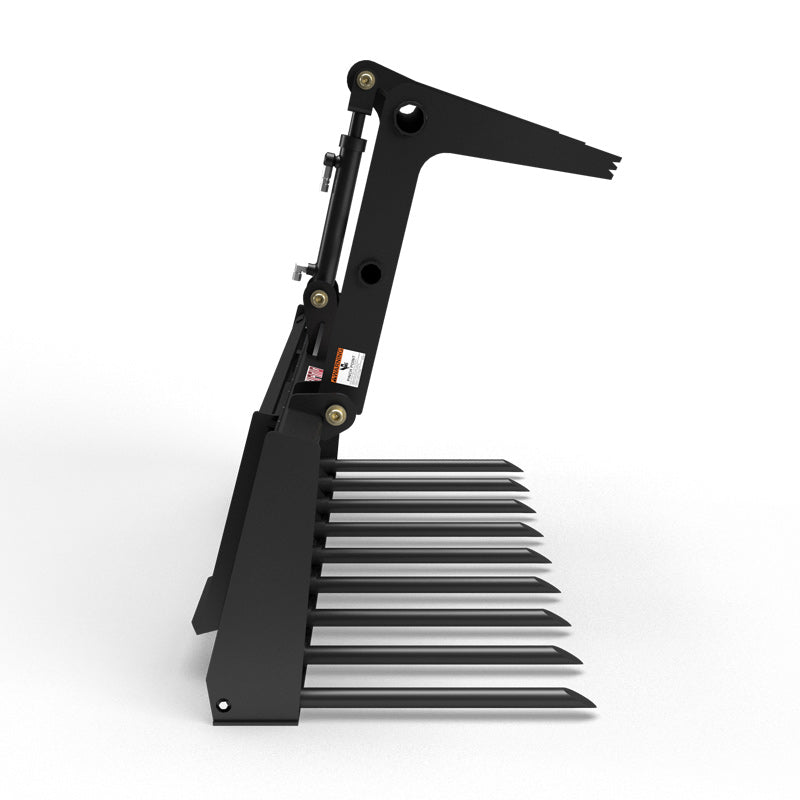

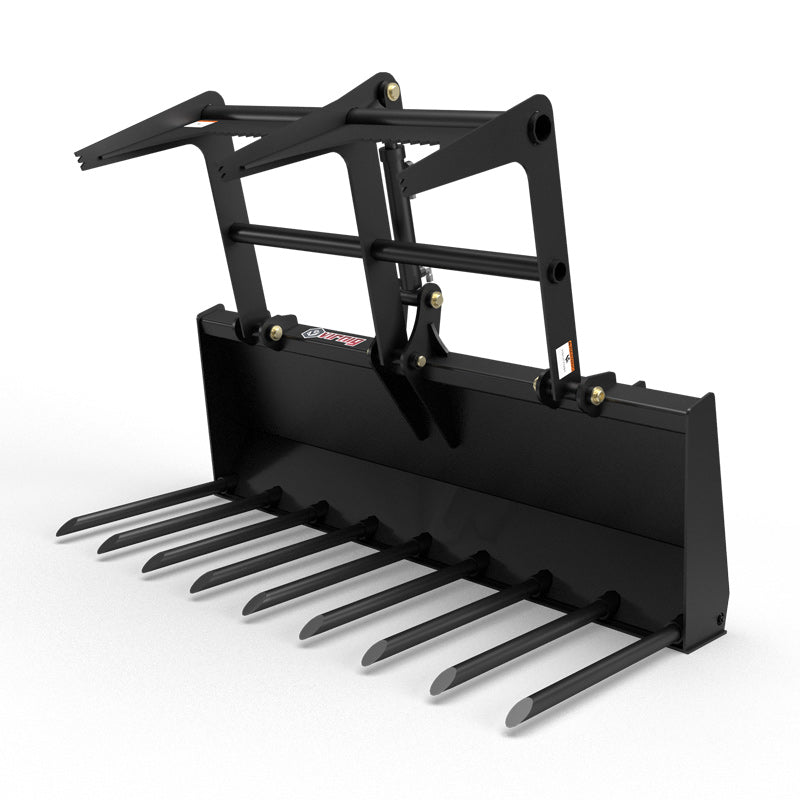

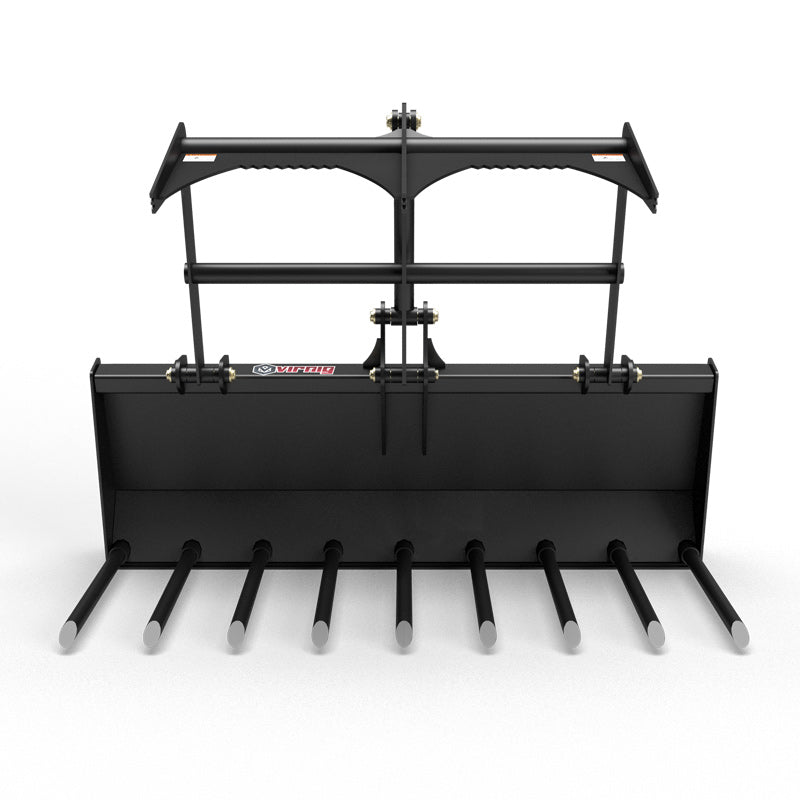

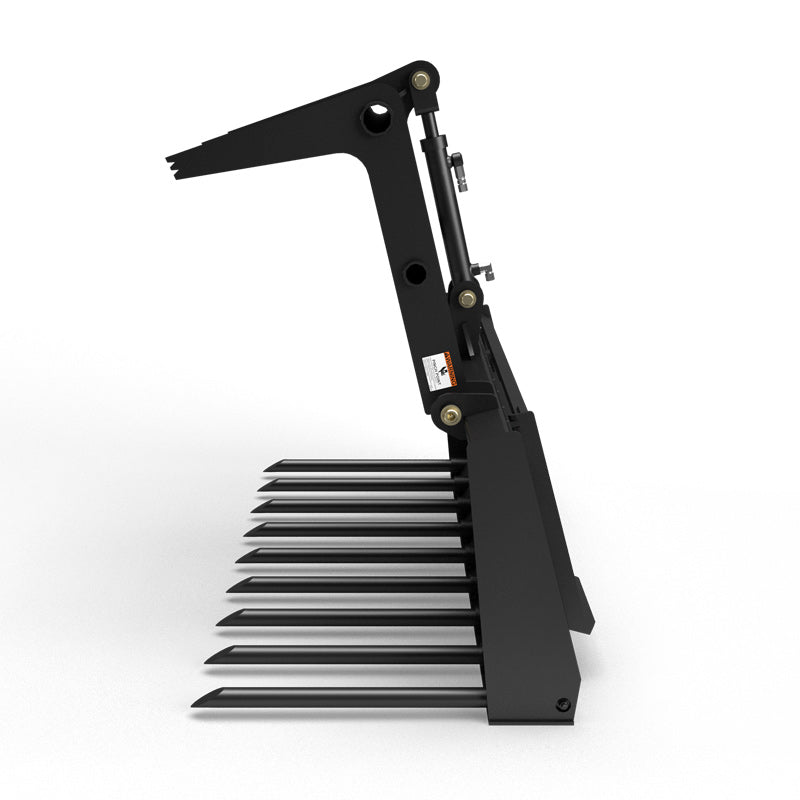

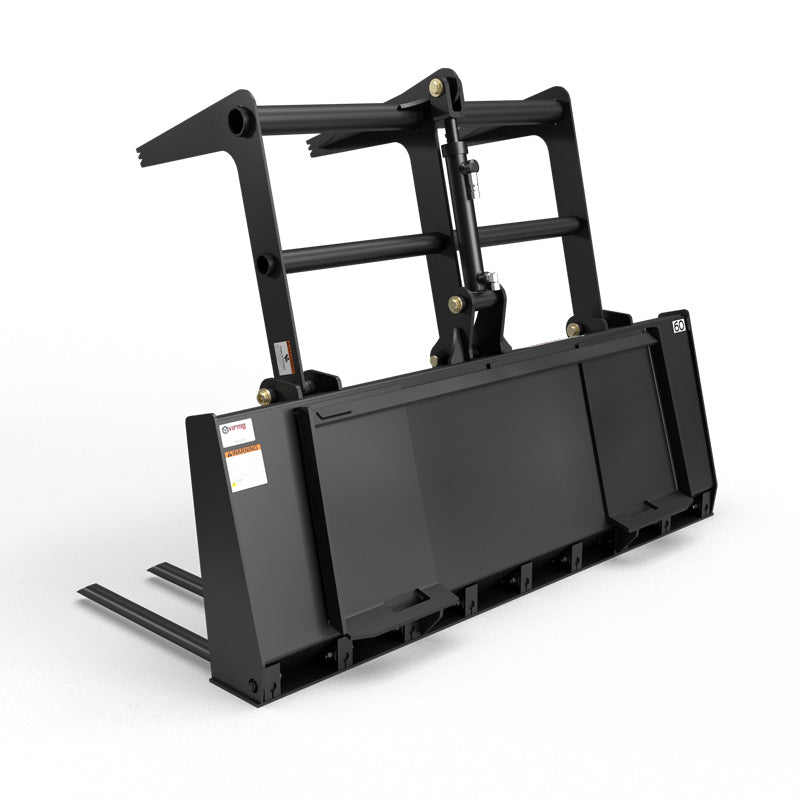

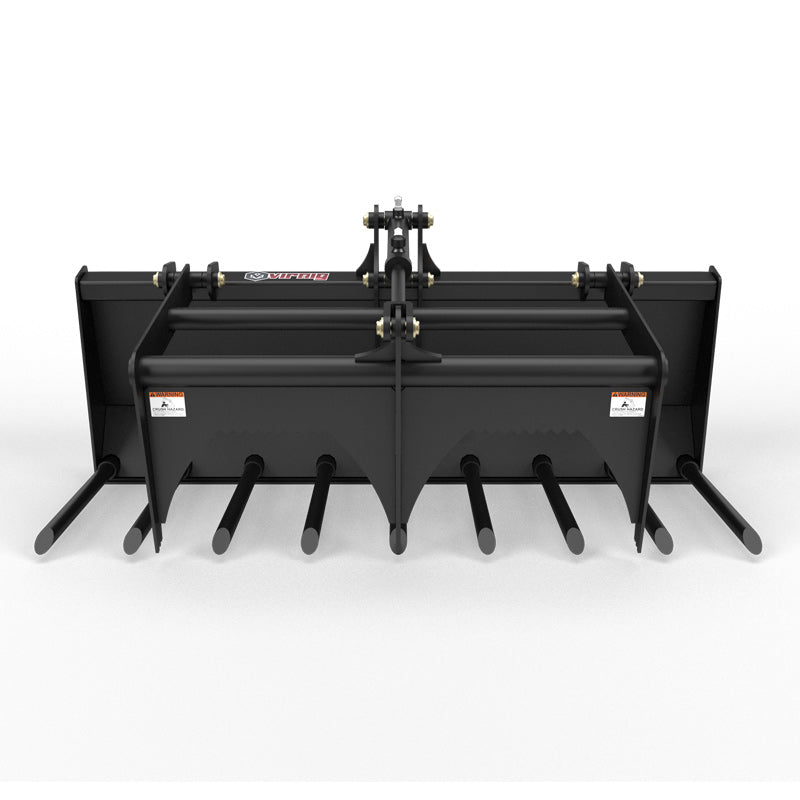

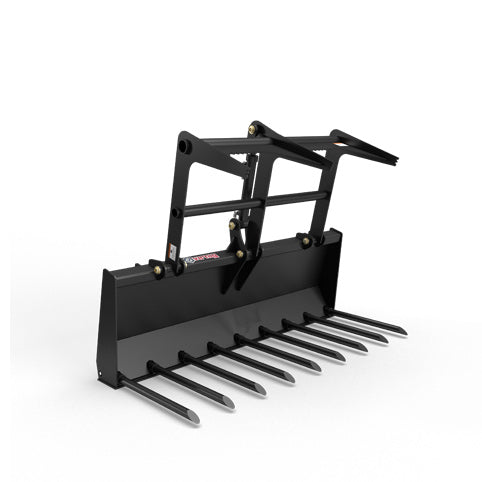

Virnig V30 Compact Tractor Utility Fork Grapple

SKU: UGV48-CT Currently In Stock

Sale price$3,055.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

LOW-PROFILE VISIBILITY

THE LOW PROFILE HELPS THE OPERATOR SEE THE FORK TINES WHEN APPROACHING MATERIAL.

REPLACEABLE TINES

HIGH-STRENGTH TINES CAN BE REPLACED INDIVIDUALLY TO KEEP THE FORK IN SERVICE.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED HINGE BUSHINGS SUPPORT SMOOTH JAW MOVEMENT.

MANURE HANDLING

VIRNIG V30 COMPACT TRACTOR UTILITY FORK GRAPPLE COMBINES PENETRATING FORK TINES WITH A HYDRAULIC JAW FOR MANURE, BRUSH, AND DEBRIS.

GRAPPLE JAW OPENING

A 37.5″ JAW OPENING PROVIDES ROOM TO GATHER MATERIAL BEFORE THE GRAPPLE CLOSES.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V30 Compact Tractor Utility Fork Grapple combines penetrating tines and a hydraulic jaw for manure, brush, and loose cleanup material. Its low-profile arrangement helps the operator see the working area, while the grapple holds the gathered load against the lower fork during movement and placement.

High-strength replaceable tines provide serviceable load-support components. The open fork layout allows loose fine material to fall through, and the upper jaw adds retention for material that would be difficult to balance on a plain utility fork. NitroSteel® cylinder rods and Teflon®-coated hinge bushings equip the hydraulic connection.

Select the width and complete attachment weight around the compact tractor loader's capacity. The attachment uses a universal skid steer mounting interface and requires suitable auxiliary hydraulics for the grapple. Check the actual loader connection, hydraulic provision, and load position rather than assuming the compact tractor name guarantees compatibility with every machine.

KEY BENEFITS

  • Low profile for excellent visibility.
  • High strength replaceable tines.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on hinge.
  • Virnig v30 compact tractor utility fork grapple combines penetrating fork tines with a hydraulic jaw for manure, brush, and debris.
  • Grapple jaw opening (in.): 37.5

TECHNICAL SPECIFICATIONS

  • Models: UGV48-CT UGV54-CT UGV60-CT UGV66-CT UGV72-CT
  • Overall Width (in.): UGV48-CT: 49.0; UGV54-CT: 54.5; UGV60-CT: 60.5; UGV66-CT: 66.5; UGV72-CT: 72.5
  • Height: Overall / Bucket (in.): 28.2 / 20.5
  • Overall Depth (in.): 36.3
  • Number of Tines: UGV48-CT: 7; UGV54-CT: 8; UGV60-CT: 9; UGV66-CT: 10; UGV72-CT: 11
  • Space Between Tines (in.): UGV48-CT: 6.0; UGV54-CT: 5.9; UGV60-CT: 5.7; UGV66-CT: 5.6; UGV72-CT: 5.4
  • Tine Diameter (in.): 1.5¹
  • Grapple Jaw Opening (in.): 37.5
  • Cylinder Bore / Stroke (in.): 1.25 / 8.0
  • Cylinder Pins / Hinge Pins Diameter (in.): 1.0
  • Approximate Weight (lbs): UGV48-CT: 480; UGV54-CT: 510; UGV60-CT: 540; UGV66-CT: 570; UGV72-CT: 600
  • Recommended Loader Capacity: Less than 1500 lbs
  • ¹Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Manure handling
  • Brush cleanup
  • Farm material handling

VIRNIG V30 COMPACT TRACTOR UTILITY FORK GRAPPLE

WORKING DESIGN

  • Low profile for excellent visibility.
  • High strength replaceable tines.
  • NitroSteel® cylinder rods and Teflon® coated bushings on hinge.

CONFIGURATION AND SPECIFICATIONS

  • Models: UGV48-CT UGV54-CT UGV60-CT UGV66-CT UGV72-CT
  • Overall Width (in.): UGV48-CT: 49.0; UGV54-CT: 54.5; UGV60-CT: 60.5; UGV66-CT: 66.5; UGV72-CT: 72.5
  • Height: Overall / Bucket (in.): 28.2 / 20.5
  • Overall Depth (in.): 36.3
  • Number of Tines: UGV48-CT: 7; UGV54-CT: 8; UGV60-CT: 9; UGV66-CT: 10; UGV72-CT: 11
  • Space Between Tines (in.): UGV48-CT: 6.0; UGV54-CT: 5.9; UGV60-CT: 5.7; UGV66-CT: 5.6; UGV72-CT: 5.4
  • Tine Diameter (in.): 1.5¹
  • Grapple Jaw Opening (in.): 37.5
  • Cylinder Bore / Stroke (in.): 1.25 / 8.0

READY FOR THE FIELD

  • Low profile for excellent visibility.
  • High strength replaceable tines.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on hinge.
  • Virnig v30 compact tractor utility fork grapple combines penetrating fork tines with a hydraulic jaw for manure, brush, and debris.
  • Grapple jaw opening (in.): 37.5
