VIRNIG

V40 Angle Snow Blade

For Skid Steers & Track Loaders

60-96″ Widths

Request QuoteAdd To Cart

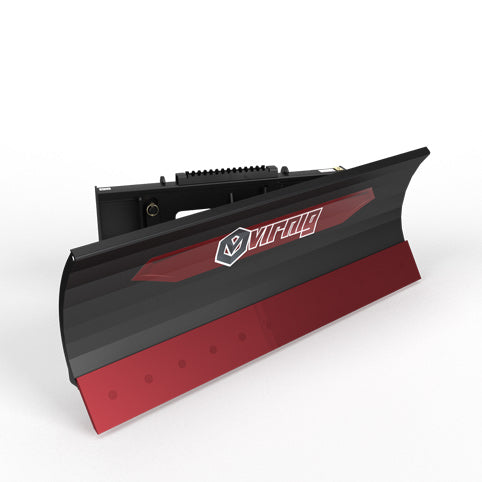

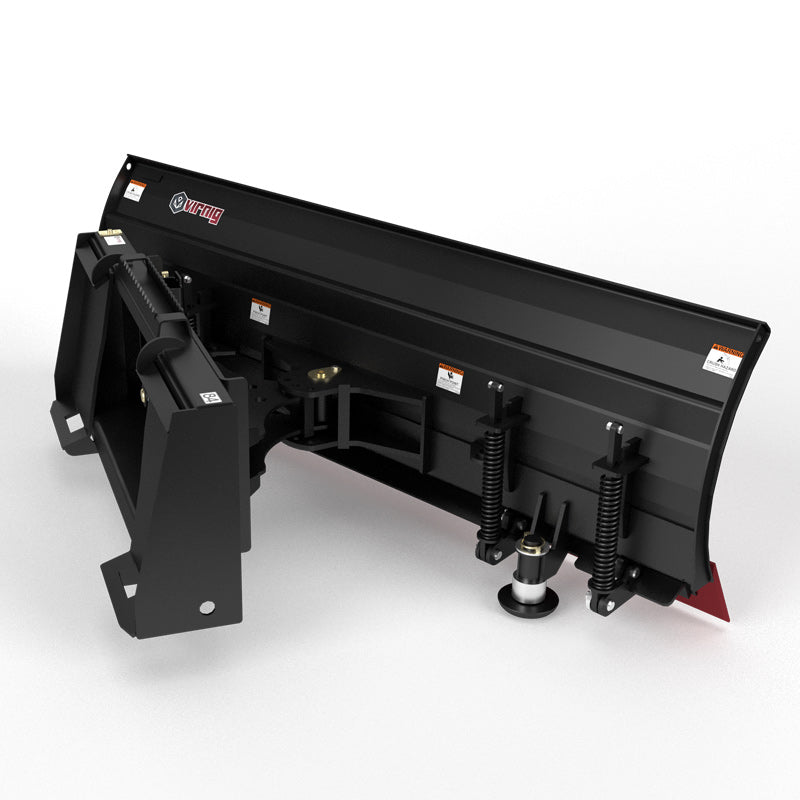

Virnig V40 Angle Snow Blade

Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V40 Angle Snow Blade; manufacturer family image, configuration may differVirnig V40 Angle Snow Blade; manufacturer family image, configuration may differVirnig V40 Angle Snow Blade; manufacturer family image, configuration may differVirnig V40 Angle Snow Blade; manufacturer family image, configuration may differVirnig V40 Angle Snow Blade; manufacturer family image, configuration may differVirnig V40 Angle Snow Blade; manufacturer family image, configuration may differVirnig V40 Angle Snow Blade; manufacturer family image, configuration may differVirnig V40 Angle Snow Blade; manufacturer family image, configuration may differVirnig V40 Angle Snow Blade; manufacturer family image, configuration may differVirnig V40 Angle Snow Blade; manufacturer family image, configuration may differ
Virnig

Virnig V40 Angle Snow Blade

SKU: SBS60-UT Currently In Stock

$3,250.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

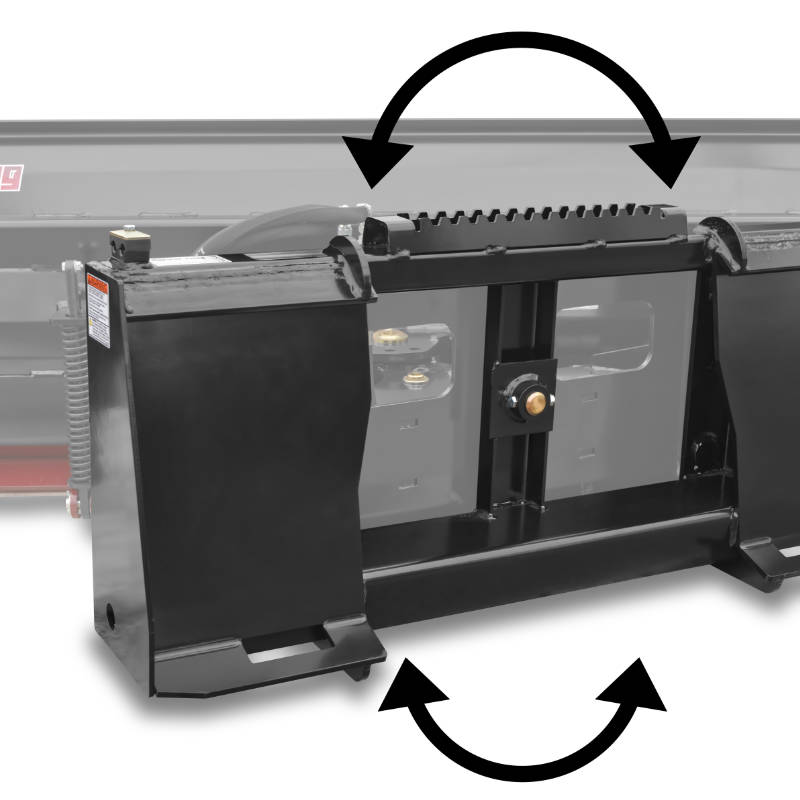

SIDE-TO-SIDE OSCILLATION

4° SIDE-TO-SIDE OSCILLATION HELPS THE WORKING EDGE FOLLOW UNEVEN SURFACES.

ADJUSTABLE WORKING ANGLE

ANGLE THE BLADE UP TO 28° LEFT OR RIGHT TO DIRECT SNOW TO EITHER SIDE.

TRIP-EDGE PROTECTION

THE TRIP EDGE YIELDS WHEN IT MEETS AN OBSTRUCTION TO HELP LIMIT IMPACT LOADS.

REPLACEABLE CUTTING EDGE

5/8″ X 8″ REVERSIBLE STEEL BOLT-ON EDGE ALLOWS 5 1/2″ OF WEAR.

DRIVEWAY PLOWING

VIRNIG V40 ANGLE SNOW BLADE ANGLES THE PLOW TO CLEAR AND WINDROW SNOW.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V40 Angle Snow Blade clears and windrows snow with a blade that angles up to 28° left or right. It gives the loader a directional plowing tool for moving snow toward the edge of a drive, yard, or access route instead of carrying each load away in a bucket.

Four degrees of side-to-side oscillation help the blade follow uneven surfaces, while the trip edge is designed to yield when it encounters an obstruction. A ⅝″ × 8″ reversible steel bolt-on edge provides up to 5½″ of wear, allowing the working edge to be turned before replacement.

Manual angle is standard, with one-cylinder and two-cylinder hydraulic angle options available. Choose the control arrangement around the loader's hydraulic connections and how often the blade direction needs to change. Check clearing width at full angle as well as straight width, since the effective path narrows when the blade is turned.

KEY BENEFITS

  • 4° side-to-side oscillation follows uneven surfaces.
  • Angle the blade 28° left or right.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.
  • Virnig v40 angle snow blade angles the plow to clear and windrow snow.

TECHNICAL SPECIFICATIONS

  • Models: SBS60-UT SBS72-UT SBS84-UT SBS96-UT
  • Width: Overall, Straight / Full Angle (in.): SBS60-UT: 62.0 / 54.7; SBS72-UT: 74.0 / 65.3; SBS84-UT: 86.0 / 75.9; SBS96-UT: 98.0 / 86.5
  • Overall Height (in.): 25.8
  • Overall Depth, Straight (in.): 31.6
  • Blade Angle (degrees): (+/-) 28
  • Moldboard Thickness (in.): 0.19
  • Cutting Edge (in.): 5/8 x 8 Bolt-on
  • Blade Oscillation (degrees): (+/-) 4
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0
  • Cylinder Pins / Hinge Pins Diameter (in.): 1.0 / 1.25
  • Approximate Weight (lbs): SBS60-UT: 570¹; SBS72-UT: 635¹; SBS84-UT: 680¹; SBS96-UT: 725¹
  • Recommended Loader Capacity: Less than 1500 lbs
  • ¹Weight with steel edge installed.

APPLICATIONS

  • Driveway plowing
  • Parking lot clearing
  • Winter site maintenance

VIRNIG V40 ANGLE SNOW BLADE

WORKING DESIGN

  • 4° side-to-side oscillation follows uneven surfaces.
  • Angle the blade 28° left or right.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.

CONFIGURATION AND SPECIFICATIONS

  • Models: SBS60-UT SBS72-UT SBS84-UT SBS96-UT
  • Width: Overall, Straight / Full Angle (in.): SBS60-UT: 62.0 / 54.7; SBS72-UT: 74.0 / 65.3; SBS84-UT: 86.0 / 75.9; SBS96-UT: 98.0 / 86.5
  • Overall Height (in.): 25.8
  • Overall Depth, Straight (in.): 31.6
  • Blade Angle (degrees): (+/-) 28
  • Moldboard Thickness (in.): 0.19
  • Cutting Edge (in.): 5/8 x 8 Bolt-on
  • Blade Oscillation (degrees): (+/-) 4
  • Cylinder Bore / Stroke (in.): 2.0 / 6.0

READY FOR THE FIELD

  • 4° side-to-side oscillation follows uneven surfaces.
  • Angle the blade 28° left or right.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.
  • Virnig v40 angle snow blade angles the plow to clear and windrow snow.
