VIRNIG

V40 Closed Front Brush Cutter

For Skid Steers & Track Loaders

60-78″ Widths

Virnig

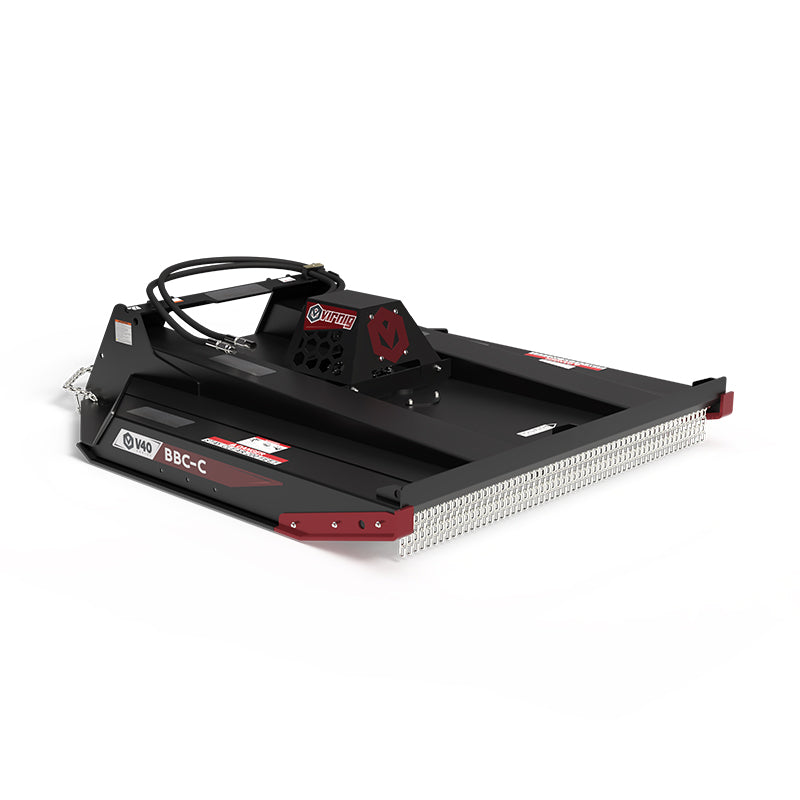

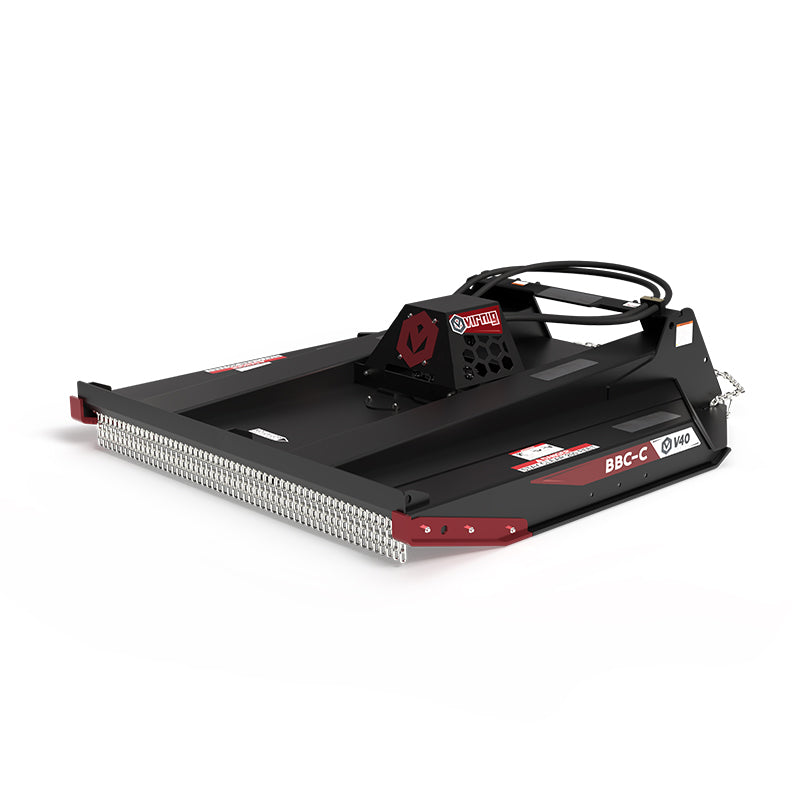

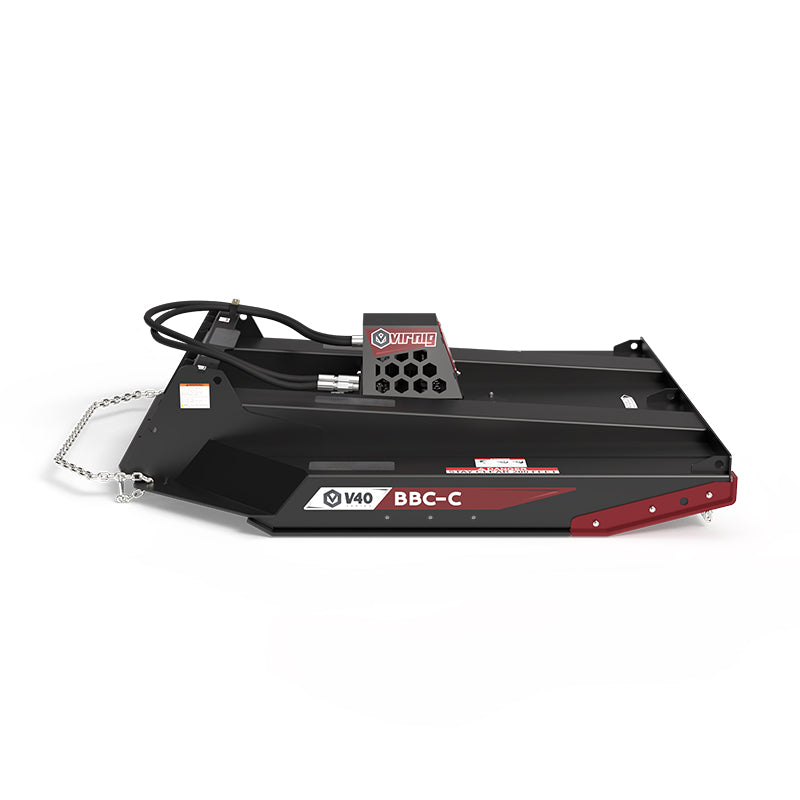

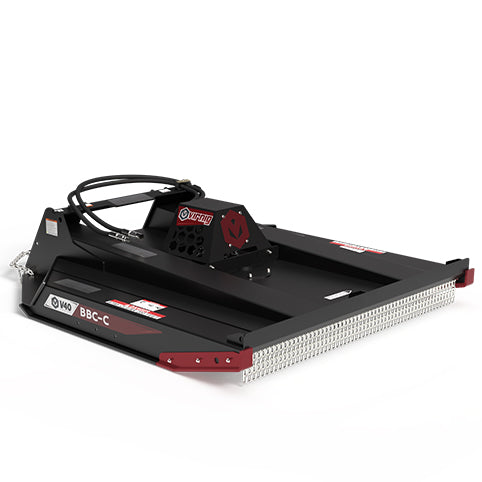

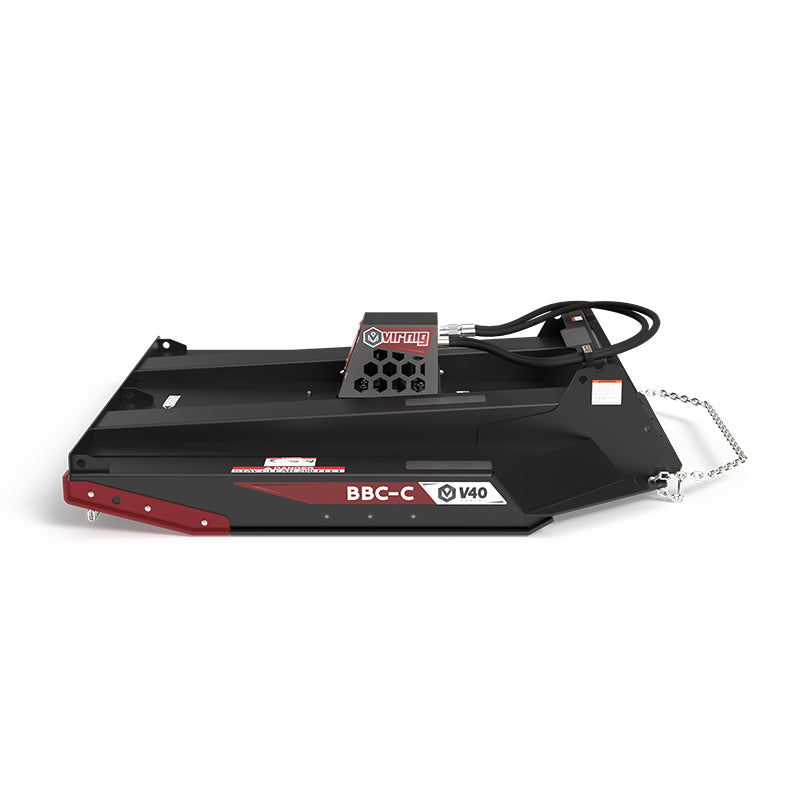

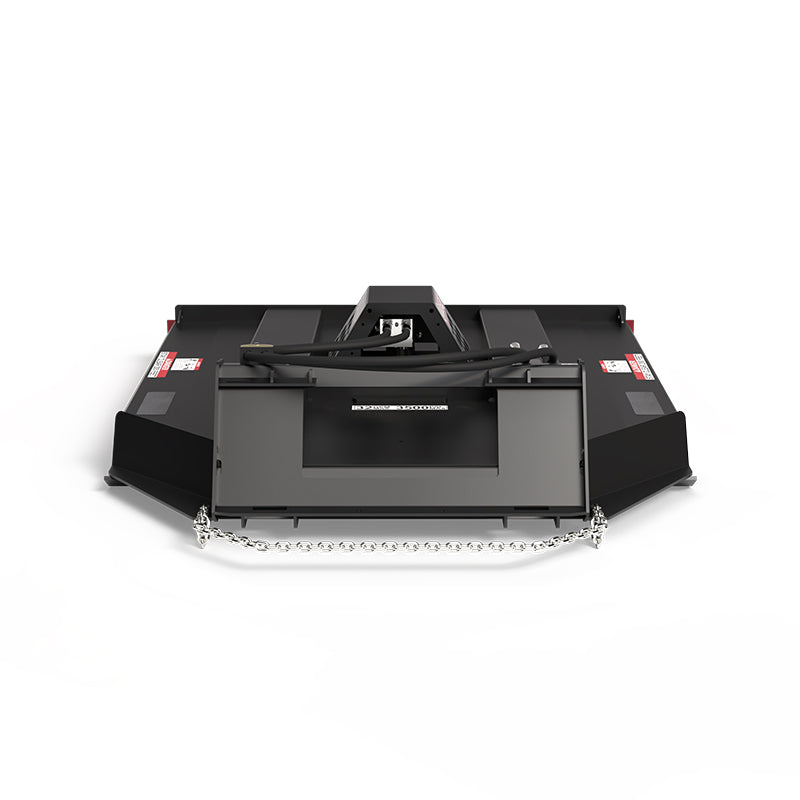

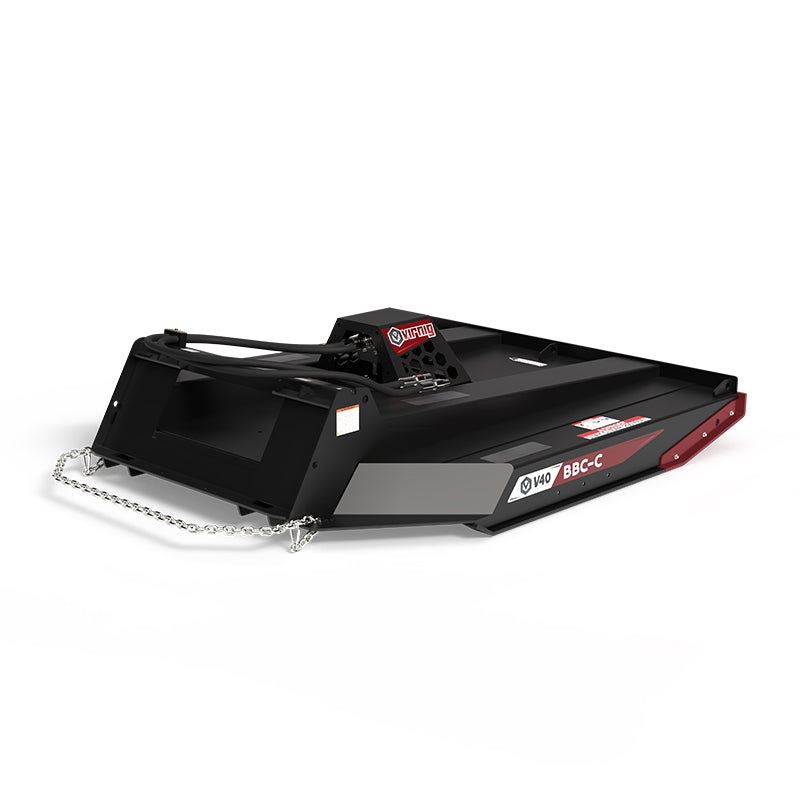

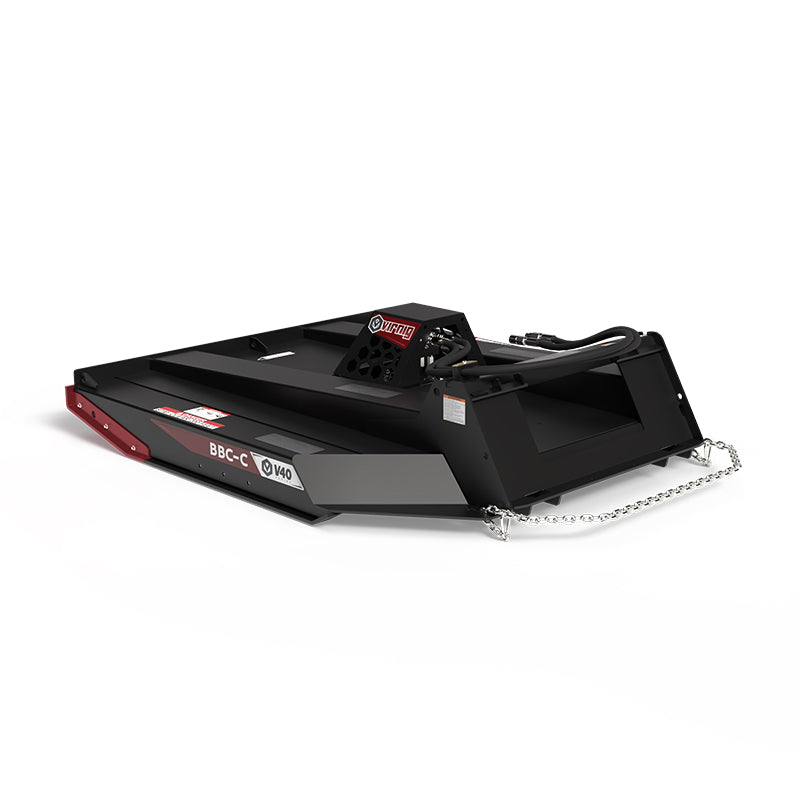

Virnig V40 Closed Front Brush Cutter

SKU: BBC60-18-C Currently In Stock

Sale price$8,565.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

DIRECT HYDRAULIC DRIVE

DIRECT DRIVE EATON® MOTOR WITH PRESSURE RELIEF, MOTOR AND SPINDLE GUARDS PREVENT DOWNTIME.

HYDRAULIC BRAKING

HYDRAULIC BRAKING STOPS FLYWHEEL WITHIN 10 SECONDS, CHAIN CURTAIN HELPS CONTAIN FLYING DEBRIS AND LIFT LIMIT CHAIN PROTECTS OPERATOR.

ROUNDED FLYWHEEL

ROUND FLYWHEEL TO GLANCE OFF OBJECTS AND ENSURE UNIFORM ENERGY DISTRIBUTION TO EXTEND DRIVETRAIN LIFE.

THREE UPDRAFT BLADES

3 UPDRAFT MACHINE SHARPENED BLADES WITH 60% LONGER EDGE THAN INDUSTRY STANDARD TO PROCESS MATERIAL FOR A SUPERIOR FINISH.

REPLACEABLE FRONT SKIDS

REPLACEABLE FRONT SKID SHOES DESIGNED TO CUT GROUND LEVEL AND HELP GLIDE OVER ROUGH TERRAIN.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V40 Closed Front Brush Cutter turns a compatible skid steer into a practical vegetation maintenance tool for grass, brush, and trees up to 3″ in diameter. Its closed-front deck keeps material beneath the cutting area for repeated processing, making it a useful choice for maintaining overgrown properties and established access routes.

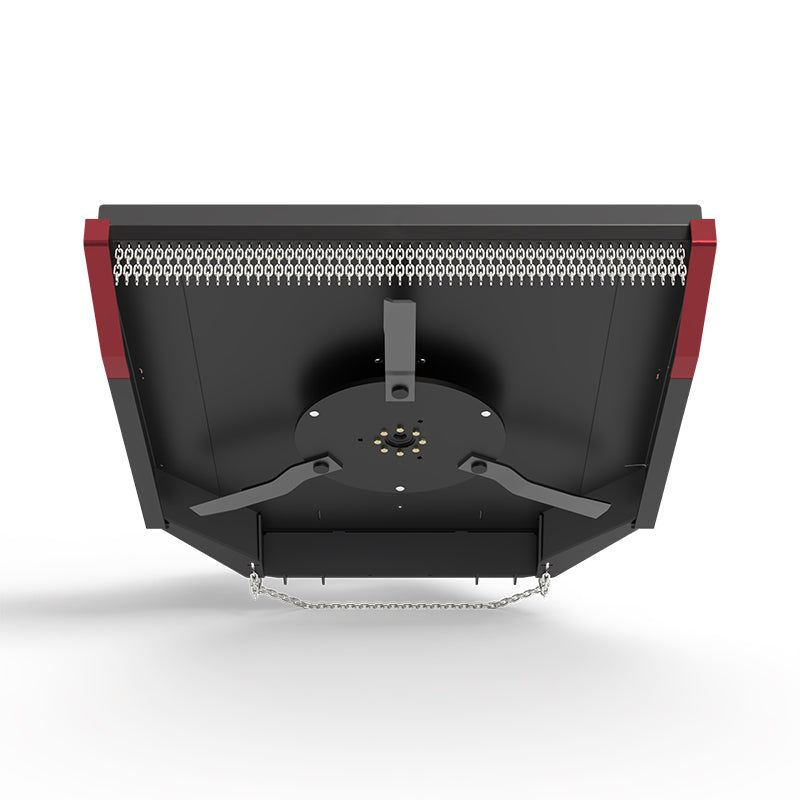

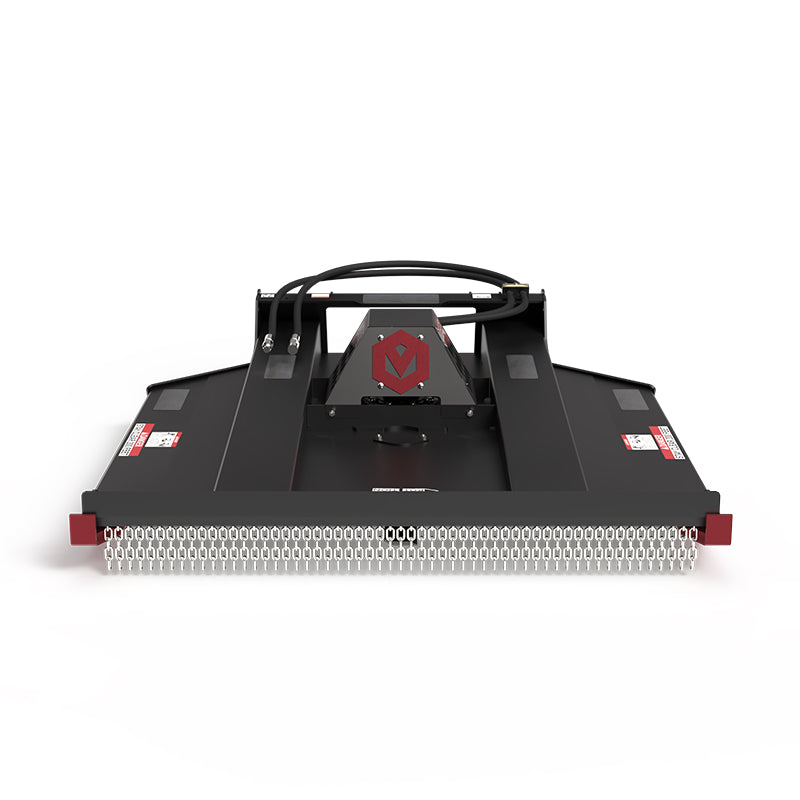

A direct-drive Eaton motor powers three updraft blades that lift and recut vegetation under the deck. Hydraulic braking stops the flywheel within 10 seconds after shutdown, while the front chain curtain helps contain debris at the cutting opening. Replaceable front skid shoes provide serviceable contact surfaces as the deck moves across the ground.

Choose from 60-78″ cutting widths to balance coverage with the space available on the job. Match the selected motor's hydraulic flow and pressure requirements to the loader before ordering. The closed front and chain curtain do not replace operator protection; use the required protective equipment and do not operate without a shatterproof cab.

KEY BENEFITS

  • Direct drive Eaton® motor with pressure relief, motor and spindle guards prevent downtime.
  • Hydraulic braking stops flywheel within 10 seconds, chain curtain helps contain flying debris and lift limit chain protects operator.
  • Round flywheel to glance off objects and ensure uniform energy distribution to extend drivetrain life.
  • 3 updraft machine sharpened blades with 60% longer edge than industry standard to process material for a superior finish.
  • Replaceable front skid shoes designed to cut ground level and help glide over rough terrain.

TECHNICAL SPECIFICATIONS

  • Models: BBC60-C | BBC66-C | BBC72-C | BBC78-C
  • Cut Width (in.): BBC60-C: 60.0; BBC66-C: 66.0; BBC72-C: 72.0; BBC78-C: 78.0
  • Overall Height / Width / Depth (in.): BBC60-C: 22.5 / 66.0 / 76.0; BBC66-C: 22.5 / 72.0 / 82.0; BBC72-C: 22.5 / 78.0 / 88.0; BBC78-C: 22.5 / 84.0 / 94.0
  • Deck Height (in.): 8.5
  • Minimum Cut Height (in.): 1.8
  • Cutting Capacity, Diameter (in.): 3.0
  • Deck Thickness, Top / Side (in.): 0.19 / 0.25
  • Recommended Flow Rate (GPM): 14-25 Standard Flow / 26-32 High Flow
  • Max Operating Pressure (PSI): 3500
  • Flywheel Weight (lbs): BBC60-C: 180; BBC66-C: 215; BBC72-C: 220; BBC78-C: 225
  • Approximate Weight (lbs): BBC60-C: 1170¹; BBC66-C: 1285¹; BBC72-C: 1375¹; BBC78-C: 1470¹
  • Recommended Operating Cap (50%): Less than 4200 pounds

APPLICATIONS

  • Brush clearing
  • Property maintenance
  • Vegetation control

VIRNIG V40 CLOSED FRONT BRUSH CUTTER

WORKING DESIGN

  • Direct drive Eaton® motor with pressure relief, motor and spindle guards prevent downtime.
  • Hydraulic braking stops flywheel within 10 seconds, chain curtain helps contain flying debris and lift limit chain protects operator.
  • Round flywheel to glance off objects and ensure uniform energy distribution to extend drivetrain life.
  • 3 updraft machine sharpened blades with 60% longer edge than industry standard to process material for a superior finish.
  • Replaceable front skid shoes designed to cut ground level and help glide over rough terrain.

CONFIGURATION AND SPECIFICATIONS

  • Models: BBC60-C | BBC66-C | BBC72-C | BBC78-C
  • Cut Width (in.): BBC60-C: 60.0; BBC66-C: 66.0; BBC72-C: 72.0; BBC78-C: 78.0
  • Overall Height / Width / Depth (in.): BBC60-C: 22.5 / 66.0 / 76.0; BBC66-C: 22.5 / 72.0 / 82.0; BBC72-C: 22.5 / 78.0 / 88.0; BBC78-C: 22.5 / 84.0 / 94.0
  • Deck Height (in.): 8.5
  • Minimum Cut Height (in.): 1.8
  • Cutting Capacity, Diameter (in.): 3.0
  • Deck Thickness, Top / Side (in.): 0.19 / 0.25
  • Recommended Flow Rate (GPM): 14-25 Standard Flow / 26-32 High Flow
  • Max Operating Pressure (PSI): 3500

READY FOR THE FIELD

  • Direct drive Eaton® motor with pressure relief, motor and spindle guards prevent downtime.
  • Hydraulic braking stops flywheel within 10 seconds, chain curtain helps contain flying debris and lift limit chain protects operator.
  • Round flywheel to glance off objects and ensure uniform energy distribution to extend drivetrain life.
  • 3 updraft machine sharpened blades with 60% longer edge than industry standard to process material for a superior finish.
  • Replaceable front skid shoes designed to cut ground level and help glide over rough terrain.
