VIRNIG

V40 Low Profile Dirt Bucket

For Skid Steers & Track Loaders

60-84″ Widths

Virnig

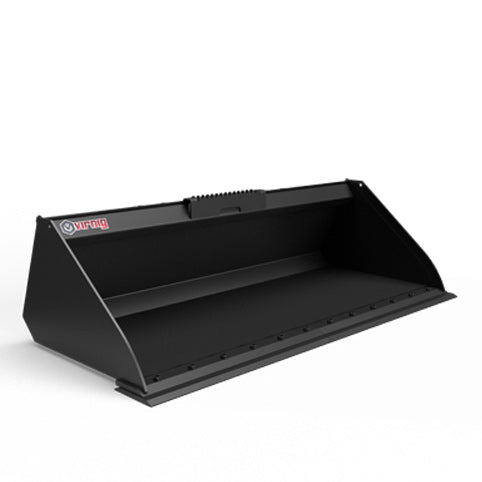

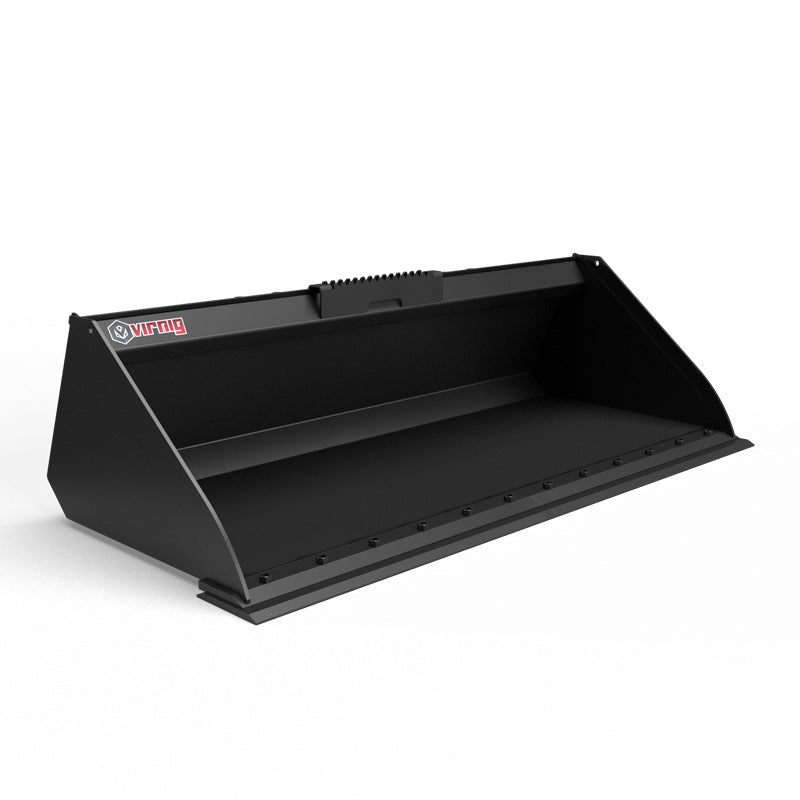

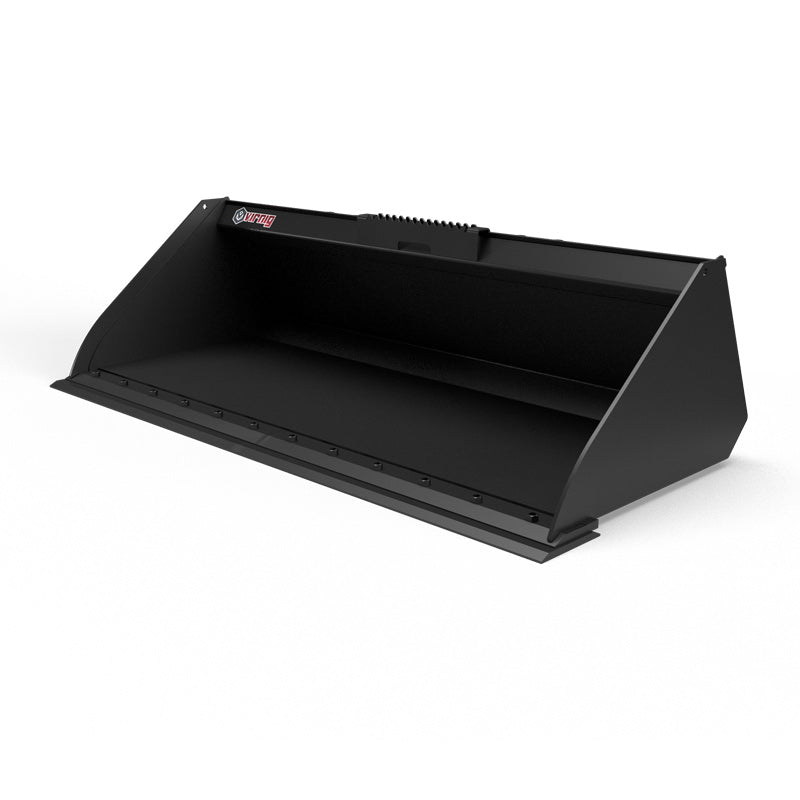

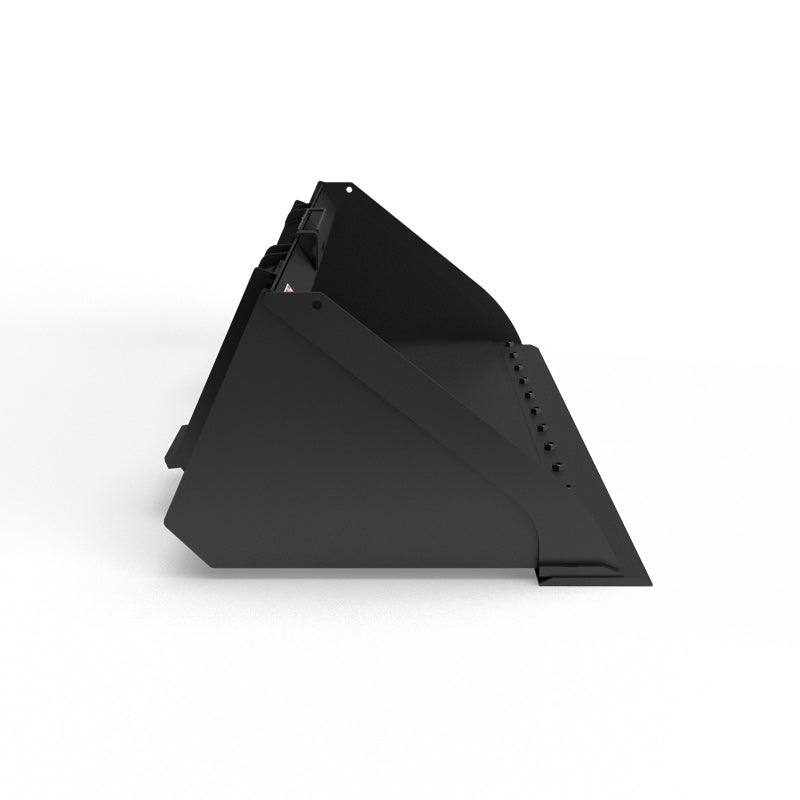

Virnig V40 Low Profile Dirt Bucket

SKU: EDV60 Currently In Stock

Sale price$1,435.00 USD

MOST IMPORTANT FEATURES

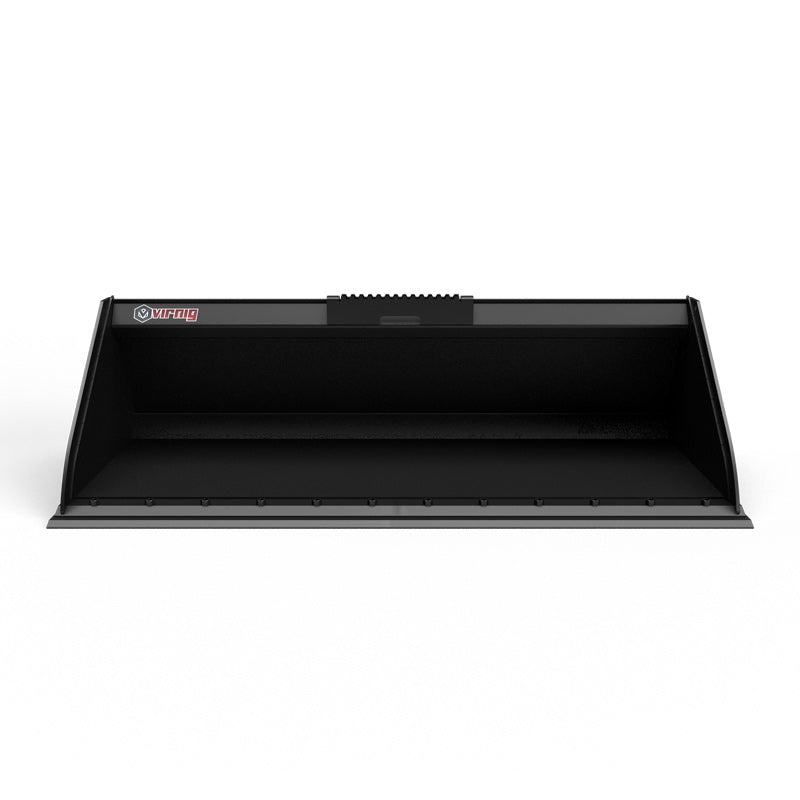

VISIBLE CUTTING EDGE

A VISIBLE CUTTING EDGE HELPS THE OPERATOR PLACE THE BUCKET FOR DIGGING AND GRADING.

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S WORKING CONTACT WITH THE GROUND.

GUSSETED CONSTRUCTION

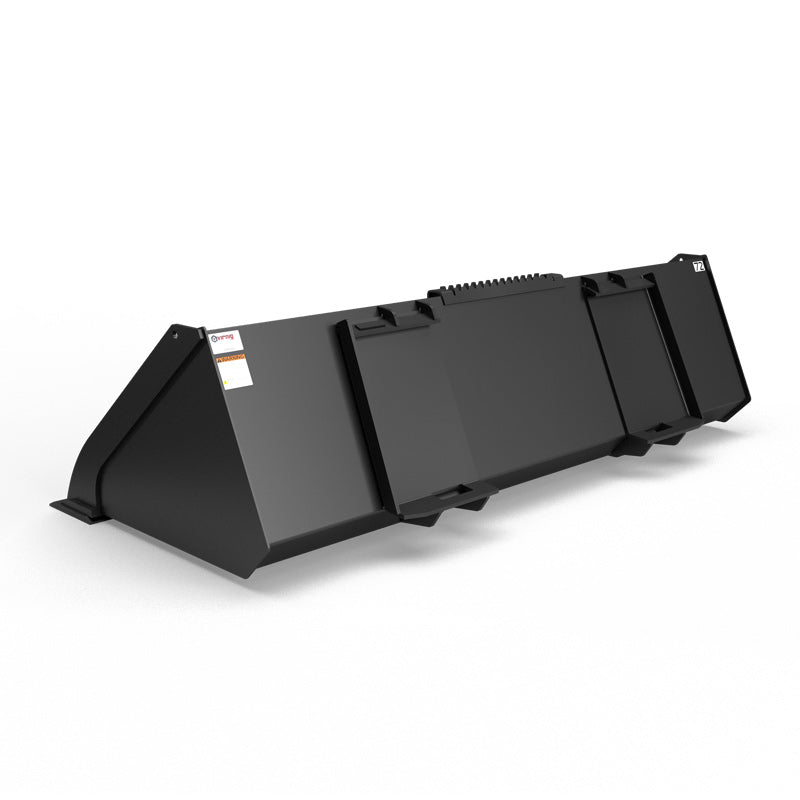

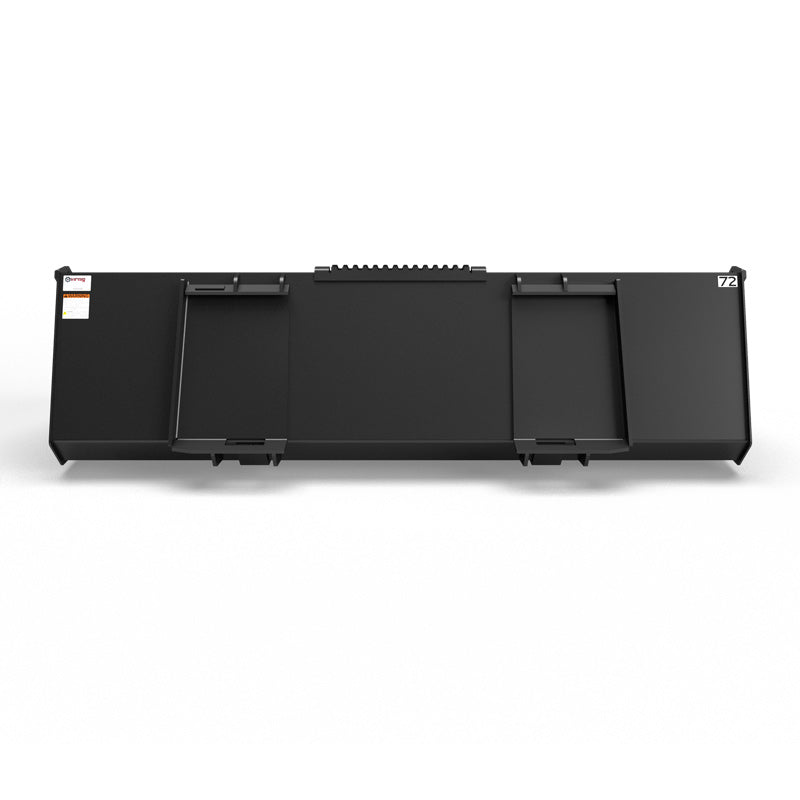

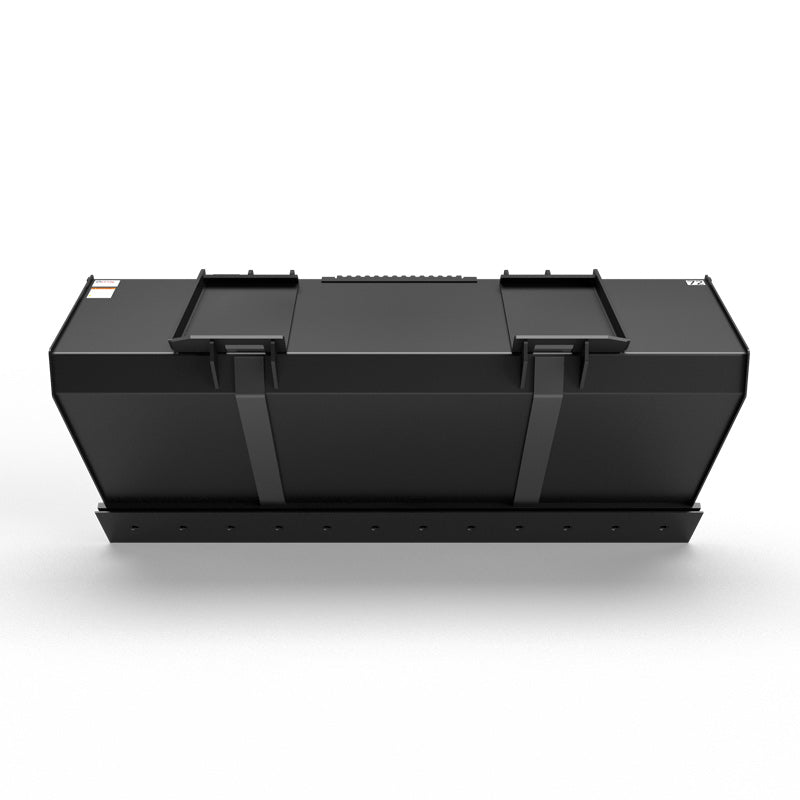

ADDITIONAL REAR GUSSETS REINFORCE THE BUCKET NEAR ITS MOUNTING AREA.

BOTTOM WEAR PROTECTION

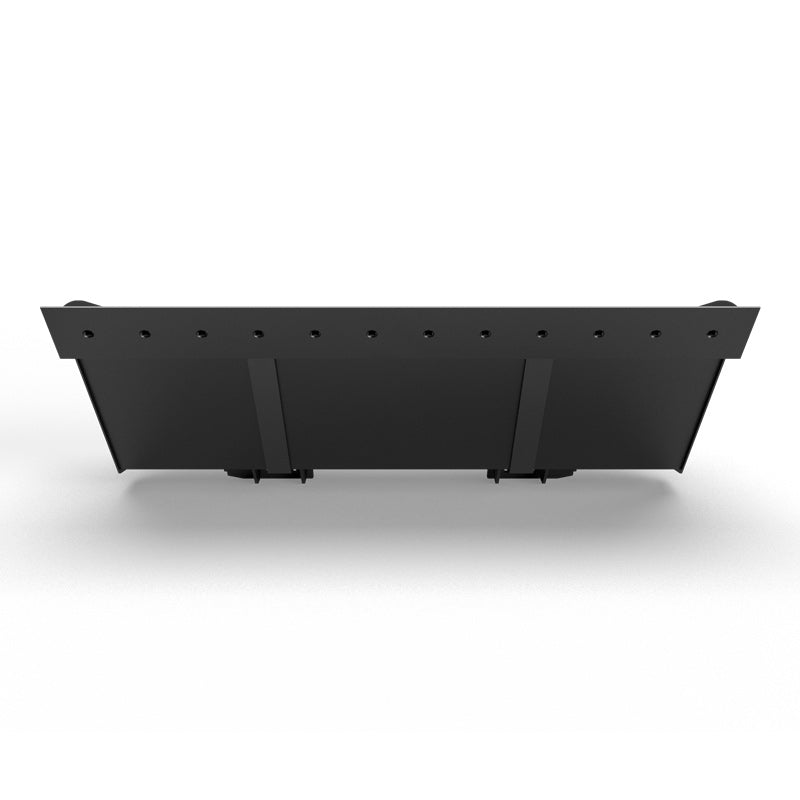

½″ X 3″ WEAR BARS SHIELD THE BUCKET FLOOR FROM DIRECT GROUND CONTACT.

MATERIAL HANDLING

VIRNIG V40 LOW PROFILE DIRT BUCKET KEEPS THE CUTTING EDGE VISIBLE FOR DIGGING AND GRADING.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V40 Low Profile Dirt Bucket keeps the cutting edge visible from inside the cab for digging and grading. The lower bucket profile helps the operator monitor the working edge as it enters the ground or approaches a finished grade, rather than relying only on the bucket's outside position.

A ¾″ × 6″ weld-on edge provides the leading contact surface. Additional gusseting reinforces the back of the bucket, while ½″ × 3″ wear bars protect the underside at ground contact points. The solid bucket floor also allows loosened material to be scooped and carried away after the grading pass.

Choose a width that suits the loader and the areas being worked, accounting for attachment weight and the density of the load. The V40 is a dedicated low-profile dirt bucket, with construction details distinct from the V50 and V60 models. It is suited to buyers who prioritize a clear view of the edge during everyday earthmoving.

KEY BENEFITS

  • Cutting edge visible from inside cab.
  • 3/4″ x 6″ weld-on edge.
  • Additional gusseting on back of bucket.
  • 1/2″ x 3″ wear bars protect the bucket bottom.
  • Virnig v40 low profile dirt bucket keeps the cutting edge visible for digging and grading.

TECHNICAL SPECIFICATIONS

  • Models: EDV60 EDV66 EDV72 EDV78 EDV84
  • Width: Overall / Inside (in.): EDV60: 61.5 / 59.3; EDV66: 67.5 / 65.3; EDV72: 73.5 / 71.3; EDV78: 79.5 / 77.3; EDV84: 85.5 / 83.3
  • Overall Height (in.): 20.0
  • Depth: Overall / Inside (in.): 35.0 / 31.8
  • Capacity: Struck / Heaped (cu. ft.): EDV60: 11.6 / 13.9; EDV66: 12.8 / 15.4; EDV72: 14.1 / 16.9; EDV78: 15.4 / 18.9; EDV84: 16.7 / 20.0
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.19
  • Side Plate Thickness (in.): 0.19
  • Structural Wear Bars Under Bucket (1/2″ x 3″): EDV60: 2; EDV66: 2; EDV72: 2; EDV78: 3; EDV84: 3
  • Approximate Weight (lbs): EDV60: 395; EDV66: 420; EDV72: 445; EDV78: 480; EDV84: 505
  • Recommended Loader Capacity: Less than 2000 lbs

APPLICATIONS

  • Digging
  • Grading
  • Dirt loading

VIRNIG V40 LOW PROFILE DIRT BUCKET

WORKING DESIGN

  • Cutting edge visible from inside cab.
  • 3/4″ x 6″ weld-on edge.
  • Additional gusseting on back of bucket.
  • 1/2″ x 3″ wear bars protect the bucket bottom.

CONFIGURATION AND SPECIFICATIONS

  • Models: EDV60 EDV66 EDV72 EDV78 EDV84
  • Width: Overall / Inside (in.): EDV60: 61.5 / 59.3; EDV66: 67.5 / 65.3; EDV72: 73.5 / 71.3; EDV78: 79.5 / 77.3; EDV84: 85.5 / 83.3
  • Overall Height (in.): 20.0
  • Depth: Overall / Inside (in.): 35.0 / 31.8
  • Capacity: Struck / Heaped (cu. ft.): EDV60: 11.6 / 13.9; EDV66: 12.8 / 15.4; EDV72: 14.1 / 16.9; EDV78: 15.4 / 18.9; EDV84: 16.7 / 20.0
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.19
  • Side Plate Thickness (in.): 0.19
  • Structural Wear Bars Under Bucket (1/2″ x 3″): EDV60: 2; EDV66: 2; EDV72: 2; EDV78: 3; EDV84: 3

READY FOR THE FIELD

  • Cutting edge visible from inside cab.
  • 3/4″ x 6″ weld-on edge.
  • Additional gusseting on back of bucket.
  • 1/2″ x 3″ wear bars protect the bucket bottom.
  • Virnig v40 low profile dirt bucket keeps the cutting edge visible for digging and grading.
