VIRNIG

V40 Open Front Brush Cutter

For Skid Steers & Track Loaders

60-78″ Widths

Virnig

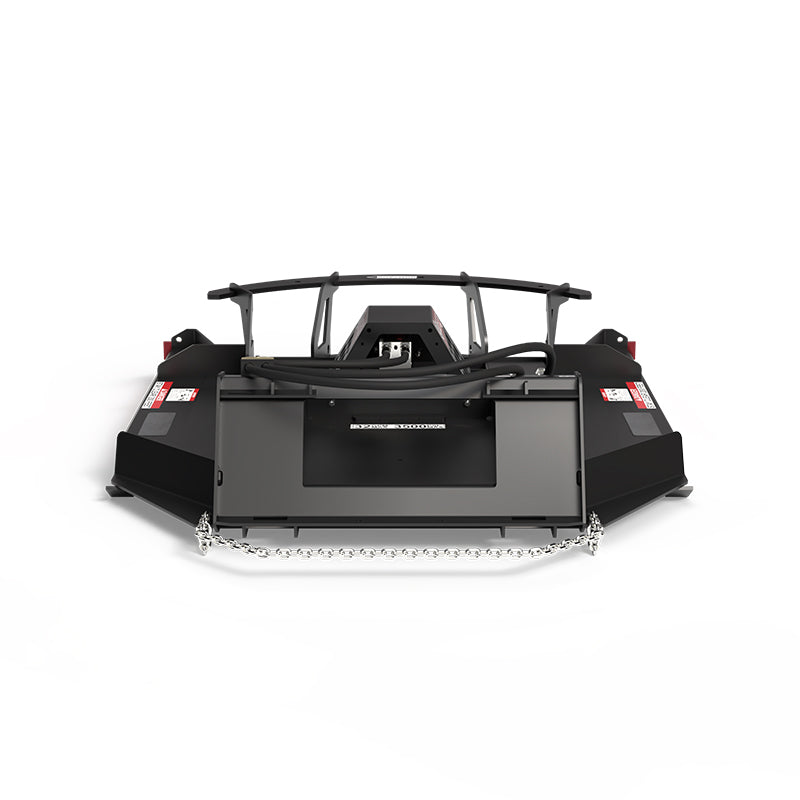

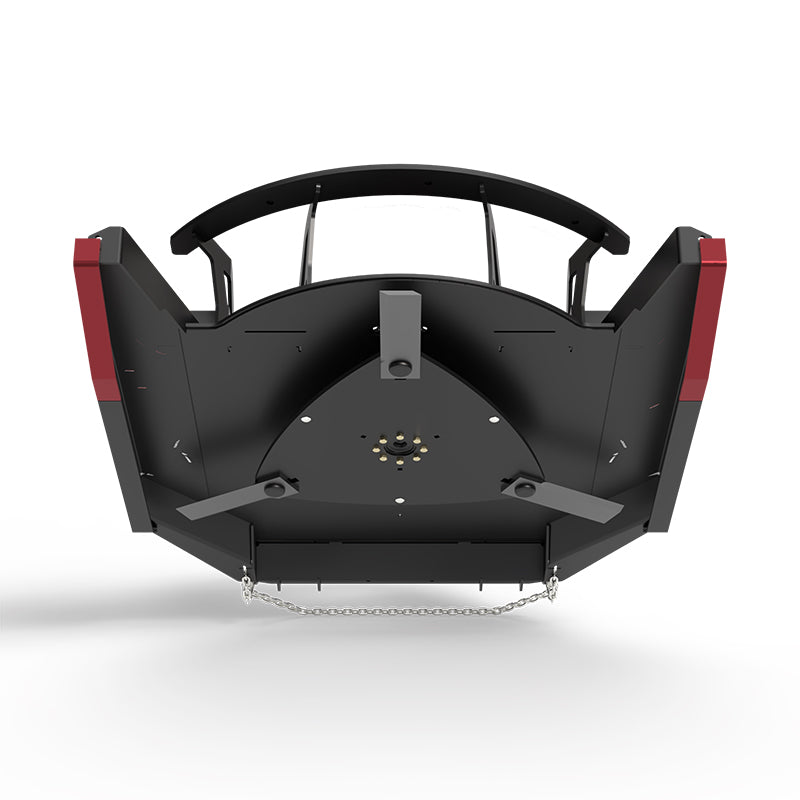

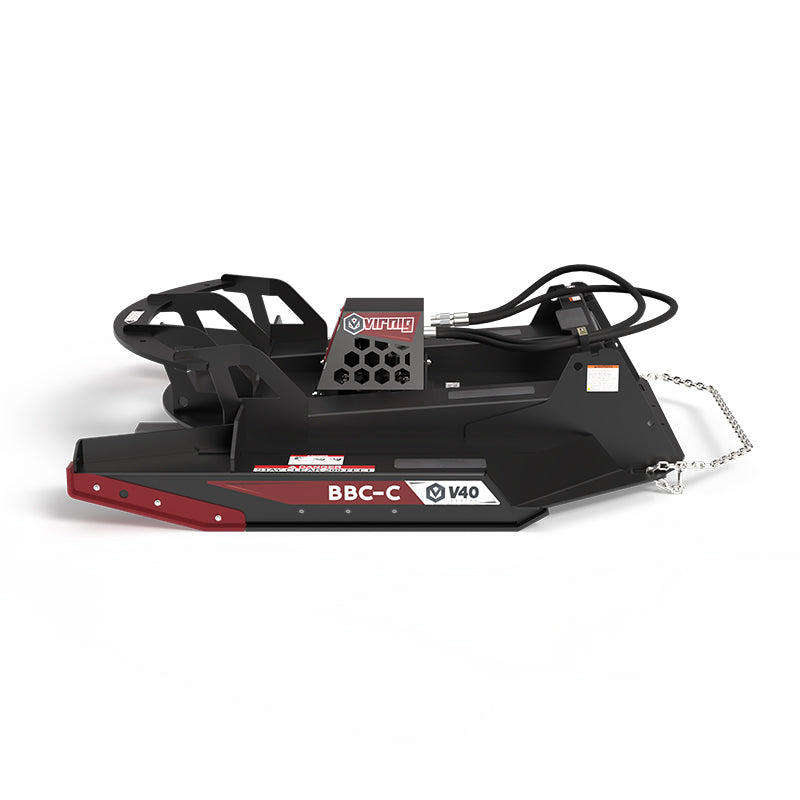

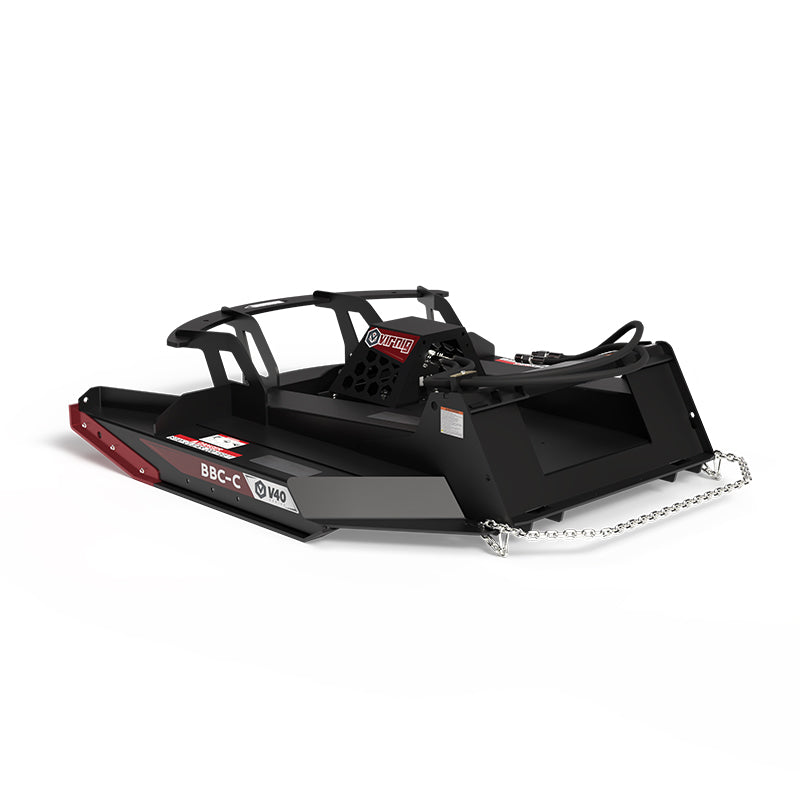

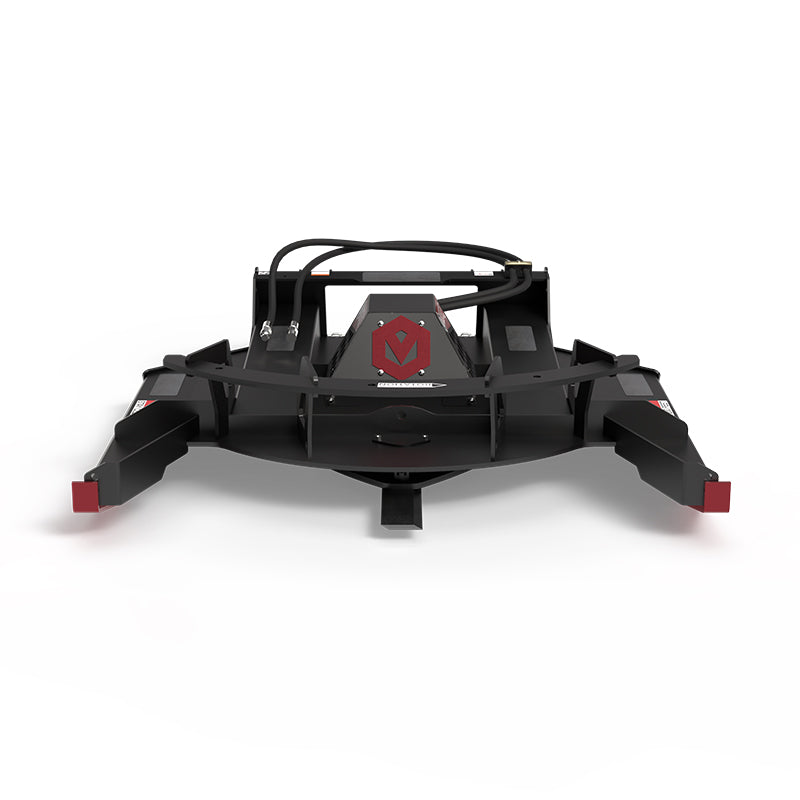

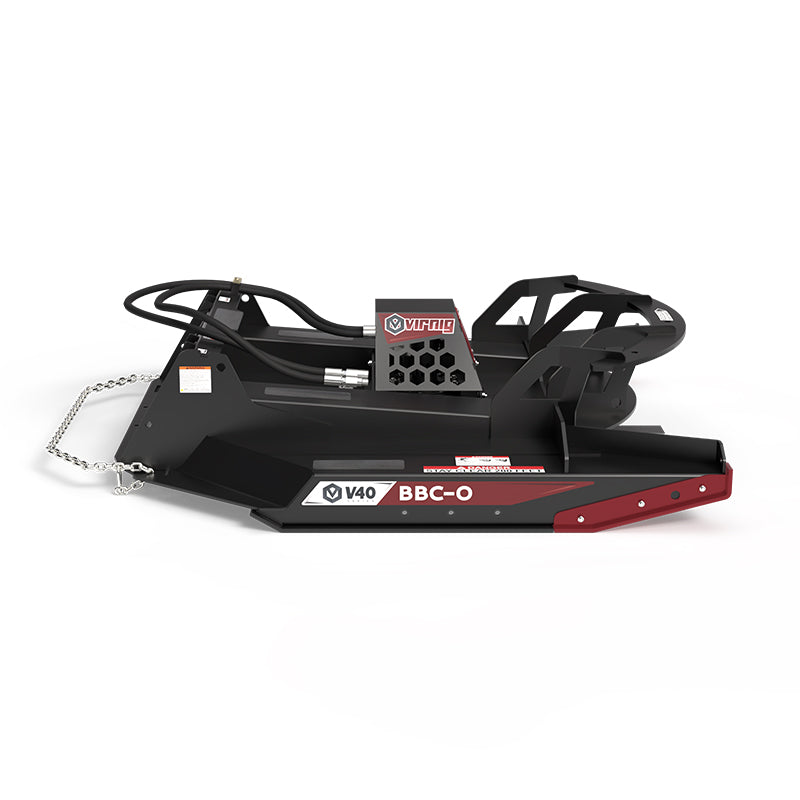

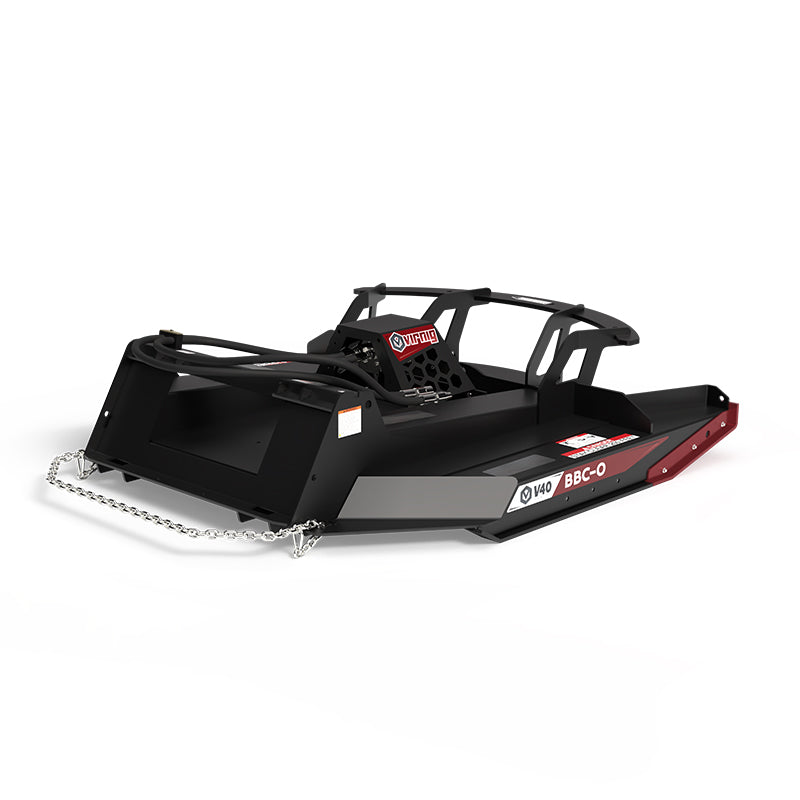

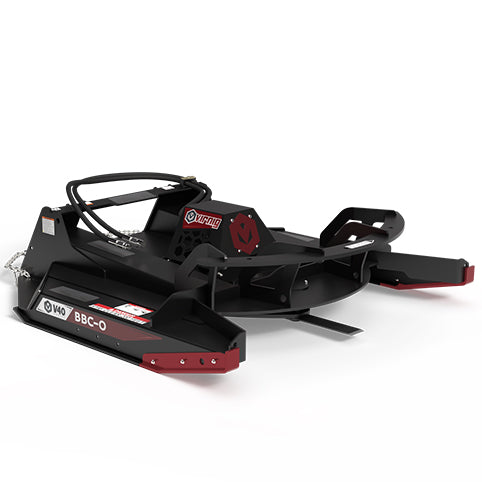

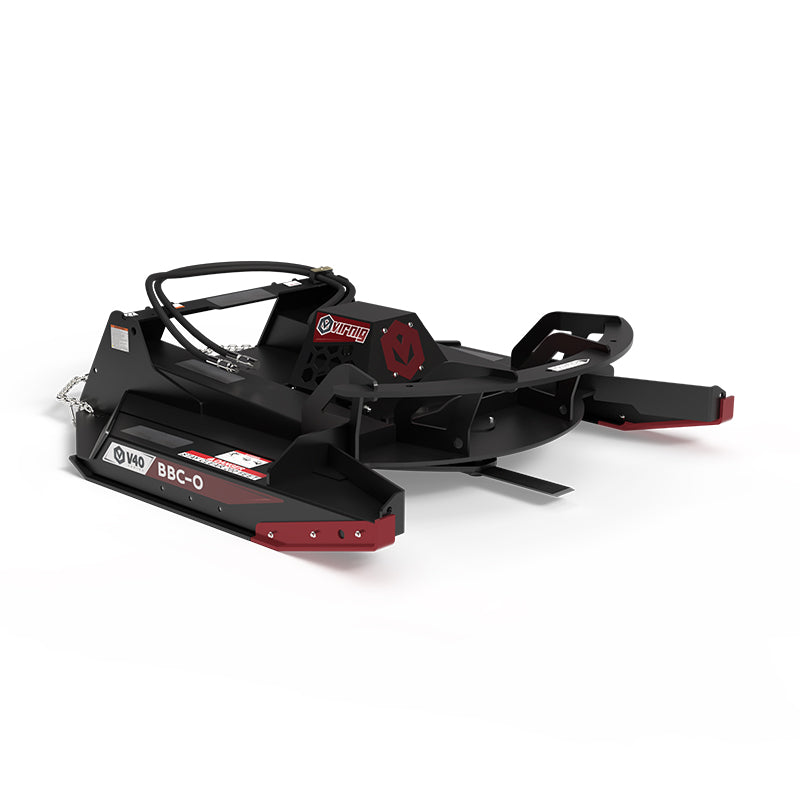

Virnig V40 Open Front Brush Cutter

SKU: BBC60-18-O Currently In Stock

Sale price$9,045.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

DIRECT HYDRAULIC DRIVE

DIRECT DRIVE EATON® MOTOR WITH PRESSURE RELIEF, MOTOR AND SPINDLE GUARDS PREVENT DOWNTIME.

HYDRAULIC BRAKING

HYDRAULIC BRAKING STOPS FLYWHEEL WITHIN 10 SECONDS AND LIFT LIMIT CHAIN PROTECTS OPERATOR.

ROUNDED FLYWHEEL

ROUNDED FLYWHEEL TO GLANCE OFF OBJECTS AND ENSURE UNIFORM ENERGY DISTRIBUTION TO EXTEND DRIVETRAIN LIFE.

THREE DOUBLE-SIDED BLADES

THREE DOUBLE-SIDED BLADES PROVIDE UP TO 39″ OF ACTIVE CUTTING EDGE FOR BRUSH PROCESSING.

REPLACEABLE FRONT SKIDS

REPLACEABLE FRONT SKID SHOES DESIGNED TO CUT GROUND LEVEL AND HELP GLIDE OVER ROUGH TERRAIN.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V40 Open Front Brush Cutter gives standing brush direct access to the cutting blades through an open-front deck. The compact cutting arrangement is useful for approaching vegetation at its base and working into overgrowth, rather than relying on the enclosed leading edge of a conventional mowing deck.

A direct-drive Eaton motor powers three double-sided blades with up to 39″ of active cutting edge. The flywheel carries energy through the cut, while hydraulic braking stops rotation within 10 seconds after shutdown. Replaceable front skid shoes provide contact surfaces that can be renewed as the cutter works over rough ground.

Choose a width and hydraulic motor configuration that suit both the loader and the clearing area. Check the selected flow range, pressure limit, and attachment weight against the carrier before use. The open cutting front requires careful control of the work zone; use all specified guarding and operator protection, including a shatterproof cab.

KEY BENEFITS

  • Direct drive Eaton® motor with pressure relief, motor and spindle guards prevent downtime.
  • Hydraulic braking stops flywheel within 10 seconds and lift limit chain protects operator.
  • Rounded flywheel to glance off objects and ensure uniform energy distribution to extend drivetrain life.
  • 3 double-sided blades feature up to 39″ of active cutting edge, 3x more than 2-blade cutters, while machine sharpened edges cut like axes to process material and deliver a manicured finish.
  • Replaceable front skid shoes designed to cut ground level and help glide over rough terrain.

TECHNICAL SPECIFICATIONS

  • Models: BBC60-O | BBC66-O | BBC72-O | BBC78-O
  • Cut Width (in.): BBC60-O: 60.0; BBC66-O: 66.0; BBC72-O: 72.0; BBC78-O: 78.0
  • Overall Height / Width / Depth (in.): BBC60-O: 21.5 / 66.0 / 69.8; BBC66-O: 21.5 / 72.0 / 75.8; BBC72-O: 21.5 / 78.0 / 81.8; BBC78-O: 21.5 / 84.0 / 87.8
  • Deck Height (in.): 7.5
  • Minimum Cut Height (in.): 1.8
  • Cutting Capacity, Diameter (in.): 5.0
  • Deck Thickness, Top / Side (in.): 0.25
  • Recommended Flow Rate (GPM): 14-25 Standard Flow / 26-32 High Flow
  • Max Operating Pressure (PSI): 3500
  • Flywheel Weight (lbs): BBC60-O: 265; BBC66-O: 265; BBC72-O: 270; BBC78-O: 270
  • Approximate Weight (lbs): BBC60-O: 1335¹; BBC66-O: 1410¹; BBC72-O: 1505¹; BBC78-O: 1590¹
  • Recommended Operating Cap (50%): Less than 4200 pounds
  • ¹Standard flow weight. High flow models add approximately 40 lbs to model weight.

APPLICATIONS

  • Brush clearing
  • Property maintenance
  • Vegetation control

VIRNIG V40 OPEN FRONT BRUSH CUTTER

WORKING DESIGN

  • Direct drive Eaton® motor with pressure relief, motor and spindle guards prevent downtime.
  • Hydraulic braking stops flywheel within 10 seconds and lift limit chain protects operator.
  • Rounded flywheel to glance off objects and ensure uniform energy distribution to extend drivetrain life.
  • 3 double-sided blades feature up to 39″ of active cutting edge, 3x more than 2-blade cutters, while machine sharpened edges cut like axes to process material and deliver a manicured finish.
  • Replaceable front skid shoes designed to cut ground level and help glide over rough terrain.

CONFIGURATION AND SPECIFICATIONS

  • Models: BBC60-O | BBC66-O | BBC72-O | BBC78-O
  • Cut Width (in.): BBC60-O: 60.0; BBC66-O: 66.0; BBC72-O: 72.0; BBC78-O: 78.0
  • Overall Height / Width / Depth (in.): BBC60-O: 21.5 / 66.0 / 69.8; BBC66-O: 21.5 / 72.0 / 75.8; BBC72-O: 21.5 / 78.0 / 81.8; BBC78-O: 21.5 / 84.0 / 87.8
  • Deck Height (in.): 7.5
  • Minimum Cut Height (in.): 1.8
  • Cutting Capacity, Diameter (in.): 5.0
  • Deck Thickness, Top / Side (in.): 0.25
  • Recommended Flow Rate (GPM): 14-25 Standard Flow / 26-32 High Flow
  • Max Operating Pressure (PSI): 3500

READY FOR THE FIELD

  • Direct drive Eaton® motor with pressure relief, motor and spindle guards prevent downtime.
  • Hydraulic braking stops flywheel within 10 seconds and lift limit chain protects operator.
  • Rounded flywheel to glance off objects and ensure uniform energy distribution to extend drivetrain life.
  • 3 double-sided blades feature up to 39″ of active cutting edge, 3x more than 2-blade cutters, while machine sharpened edges cut like axes to process material and deliver a manicured finish.
  • Replaceable front skid shoes designed to cut ground level and help glide over rough terrain.
