VIRNIG

V40 Root Rake Grapple

For Skid Steers & Track Loaders

60-72″ Widths

Request QuoteAdd To Cart

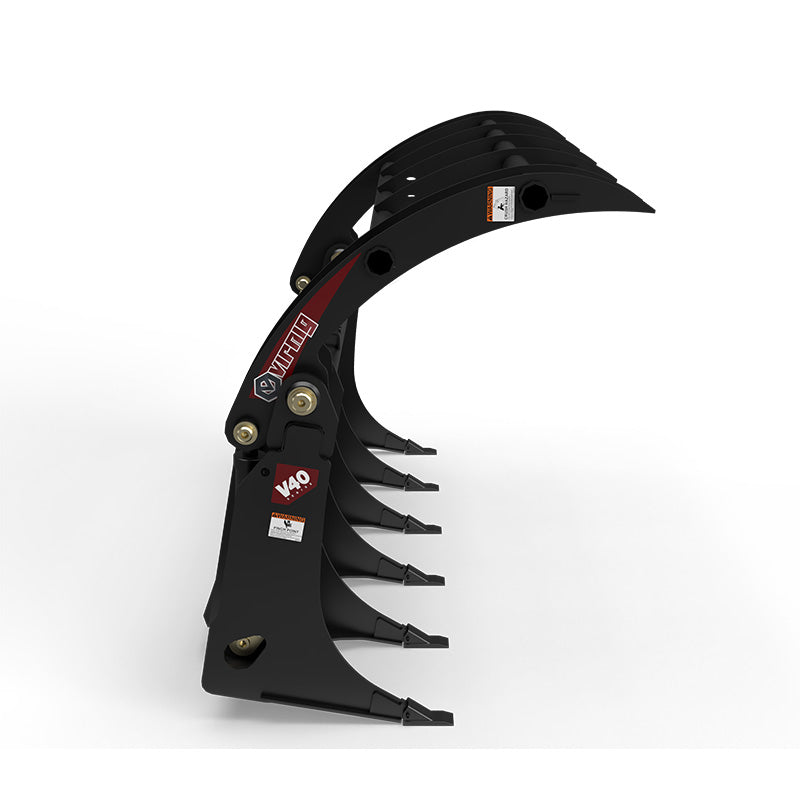

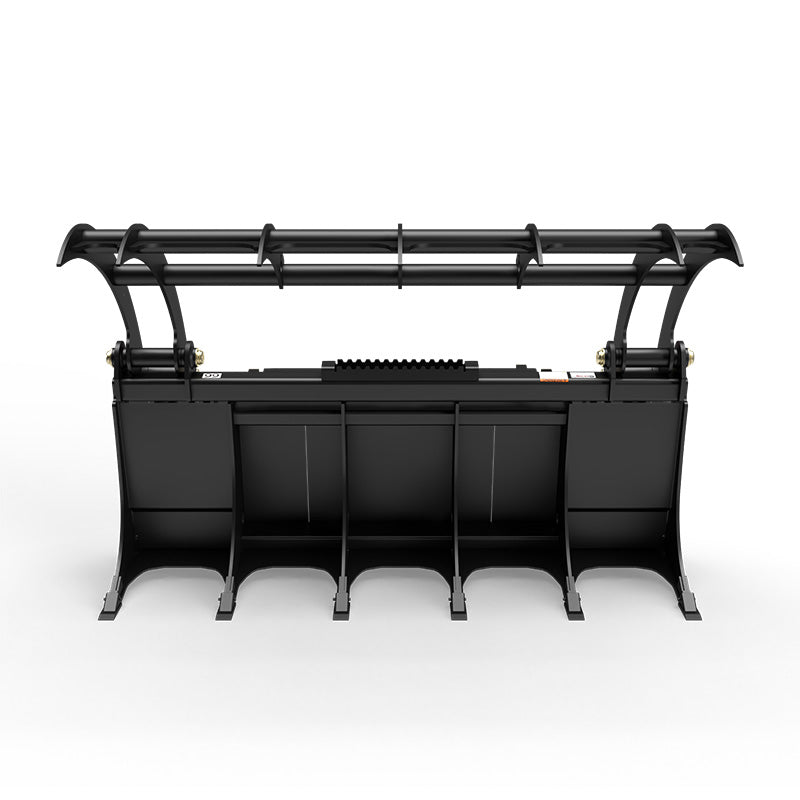

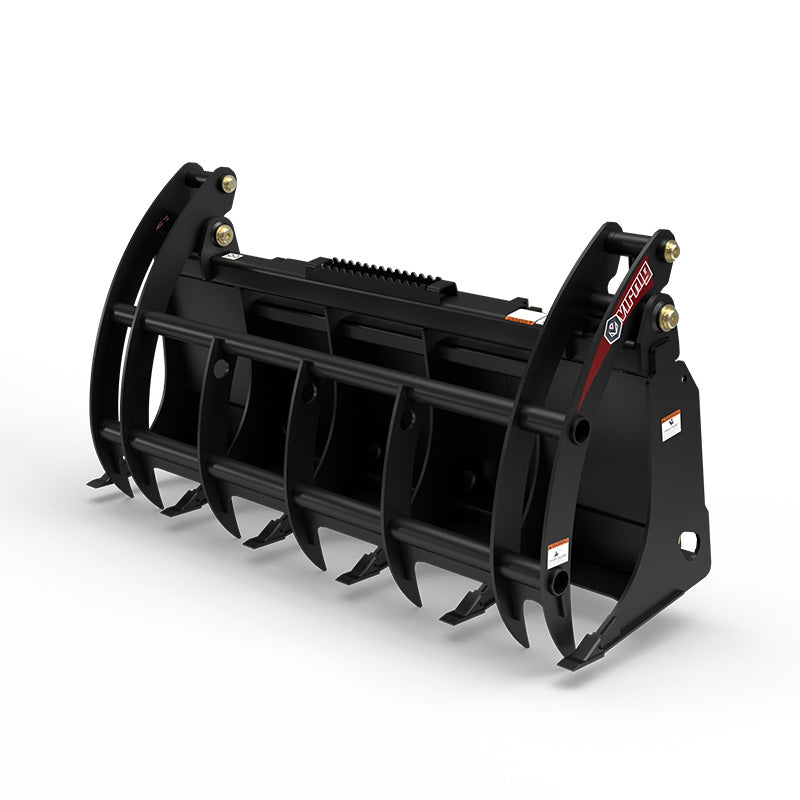

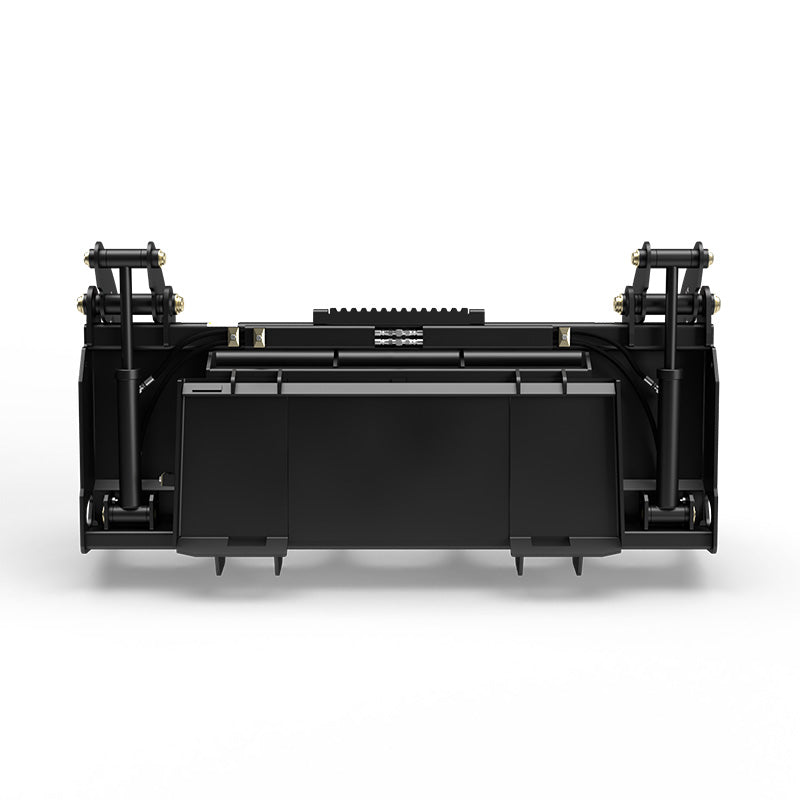

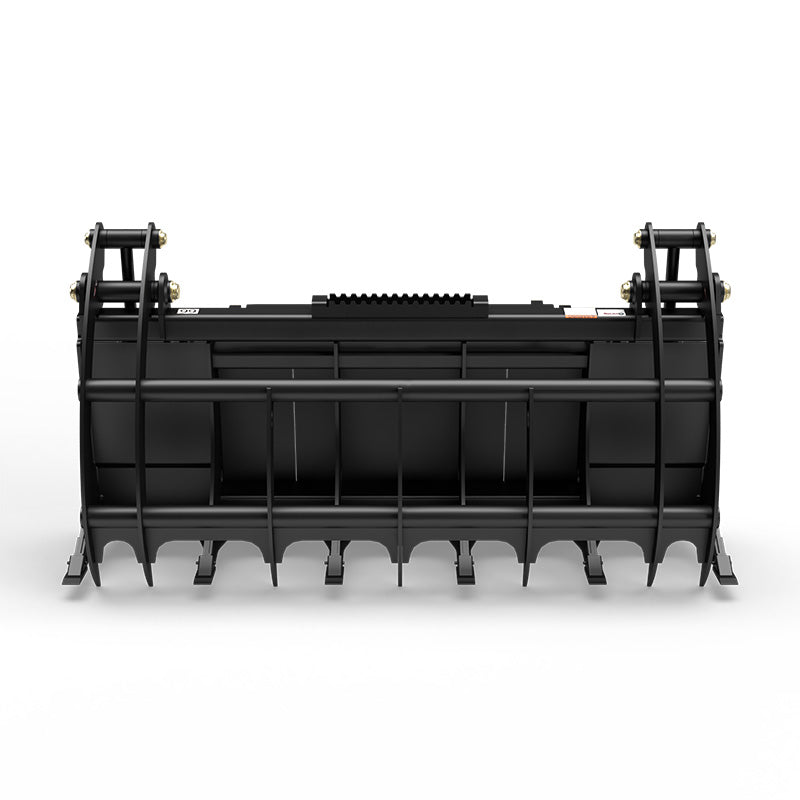

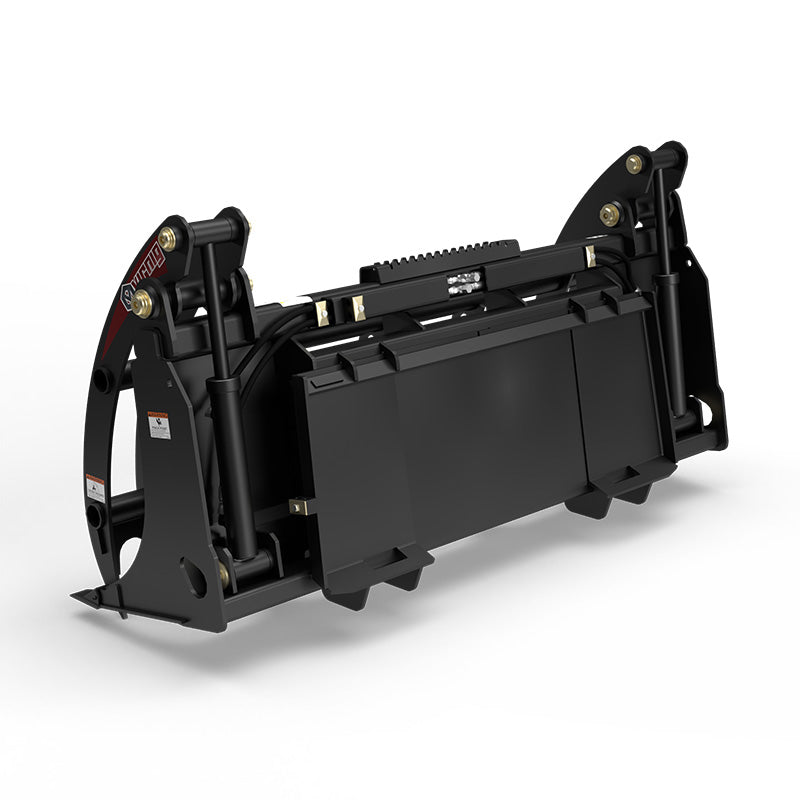

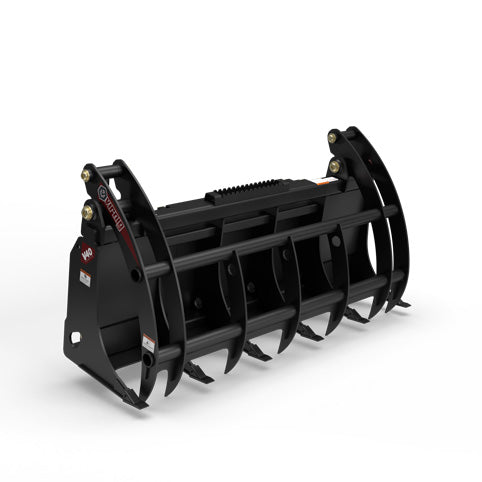

Virnig V40 Root Rake Grapple

Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differVirnig V40 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig

Virnig V40 Root Rake Grapple

SKU: URG60-UT Currently In Stock

$4,890.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

REPLACEABLE CAST TEETH

REPLACEABLE CAST TEETH LET YOU RENEW THE DIGGING SURFACE WITHOUT REPLACING THE FRAME.

OPEN MATERIAL HANDLING

VIRNIG V40 ROOT RAKE GRAPPLE DIGS, RAKES, PILES, AND LOADS BRUSH WITH A TOOTHED LOWER FRAME AND HYDRAULIC GRAPPLE.

GRAPPLE JAW OPENING

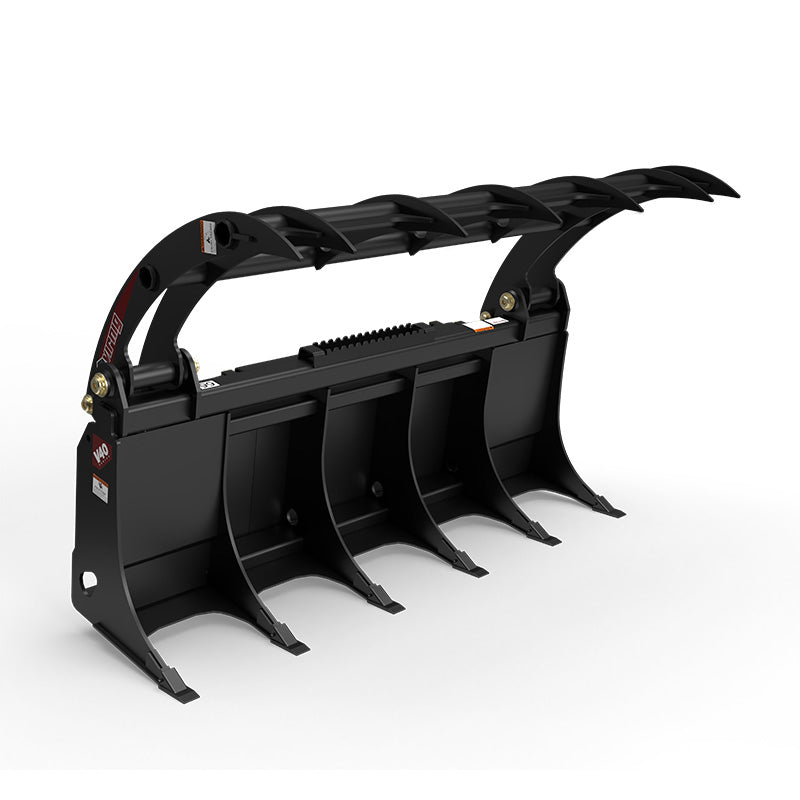

A 44.1″ JAW OPENING PROVIDES ROOM FOR BRUSH PILES AND IRREGULAR LOADS.

WIDTH OPTIONS

MULTIPLE FRAME WIDTHS LET YOU MATCH THE RAKE TO THE LOADER AND CLEARING AREA.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V40 Root Rake Grapple brings digging, raking, piling, and loading together in one attachment. Its toothed lower frame works into roots and brush, while the hydraulic grapple gathers loosened material for removal. The open layout allows loose soil to fall through instead of carrying it away with every pile.

Replaceable cast teeth provide serviceable points at the digging edge. NitroSteel® cylinder rods and Teflon®-coated bushings equip the hydraulic pivots for repeated opening and closing. The V40 URG-UT arrangement is useful when cleanup requires engaging the ground and then holding irregular vegetation during transport.

Choose the model around the carrier's capacity and the working area. Known clearance concerns affect 60″ and 66″ URG-UT models on Takeuchi® TL12 loaders, and all V40 widths on John Deere® 330G, 331G, 332G, and 333G loaders. Confirm the selected attachment's clearance through its operating range before ordering.

KEY BENEFITS

  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Replaceable cast teeth.
  • Virnig v40 root rake grapple digs, rakes, piles, and loads brush with a toothed lower frame and hydraulic grapple.
  • Grapple jaw opening (in.): 44.1
  • Overall width (in.): 61.5 | 67.5 | 73.5

TECHNICAL SPECIFICATIONS

  • Models: URG60-UT URG66-UT URG72-UT
  • Overall Width (in.): URG60-UT: 61.5; URG66-UT: 67.5; URG72-UT: 73.5
  • Height: Overall / Bucket (in.): 34.2 / 29.3
  • Overall Depth (in.): 22.1
  • Number of Teeth: URG60-UT: 6; URG66-UT: 6; URG72-UT: 7
  • Space Between Teeth (in.): URG60-UT: 10.2; URG66-UT: 11.4; URG72-UT: 10.2
  • Space Between: Tines / Grapple Jaws (in.): URG60-UT: 5.0 / 10.9; URG66-UT: 5.0 / 12.4; URG72-UT: 5.0 / 11.1
  • Tine Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 44.1
  • Approximate Weight (lbs): URG60-UT: 625; URG66-UT: 645; URG72-UT: 695
  • Recommended Loader Capacity: Less than 2200 lbs
  • ¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Brush removal
  • Root cleanup
  • Land clearing

VIRNIG V40 ROOT RAKE GRAPPLE

WORKING DESIGN

  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Replaceable cast teeth.

CONFIGURATION AND SPECIFICATIONS

  • Models: URG60-UT URG66-UT URG72-UT
  • Overall Width (in.): URG60-UT: 61.5; URG66-UT: 67.5; URG72-UT: 73.5
  • Height: Overall / Bucket (in.): 34.2 / 29.3
  • Overall Depth (in.): 22.1
  • Number of Teeth: URG60-UT: 6; URG66-UT: 6; URG72-UT: 7
  • Space Between Teeth (in.): URG60-UT: 10.2; URG66-UT: 11.4; URG72-UT: 10.2
  • Space Between: Tines / Grapple Jaws (in.): URG60-UT: 5.0 / 10.9; URG66-UT: 5.0 / 12.4; URG72-UT: 5.0 / 11.1
  • Tine Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375

READY FOR THE FIELD

  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Replaceable cast teeth.
  • Virnig v40 root rake grapple digs, rakes, piles, and loads brush with a toothed lower frame and hydraulic grapple.
  • Grapple jaw opening (in.): 44.1
  • Overall width (in.): 61.5 | 67.5 | 73.5
