VIRNIG

V40 Skeleton Grapple

For Skid Steers & Track Loaders

66-84″ Widths

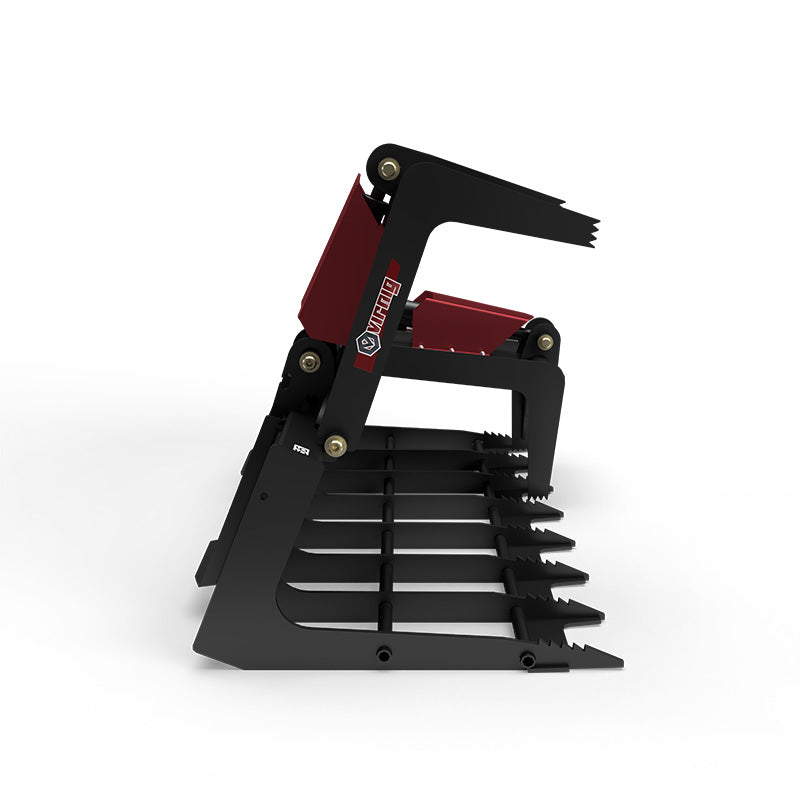

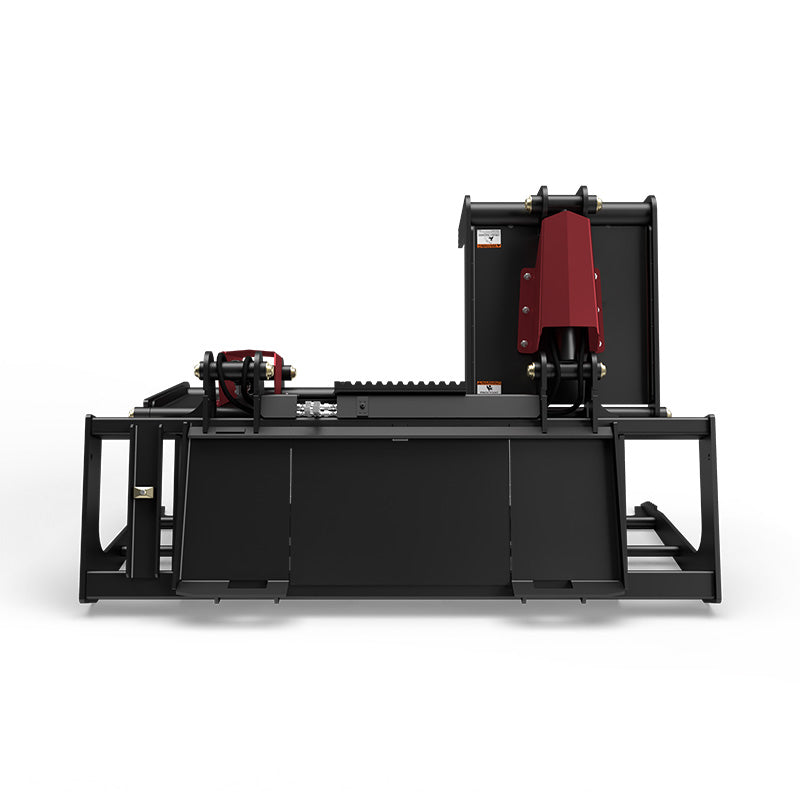

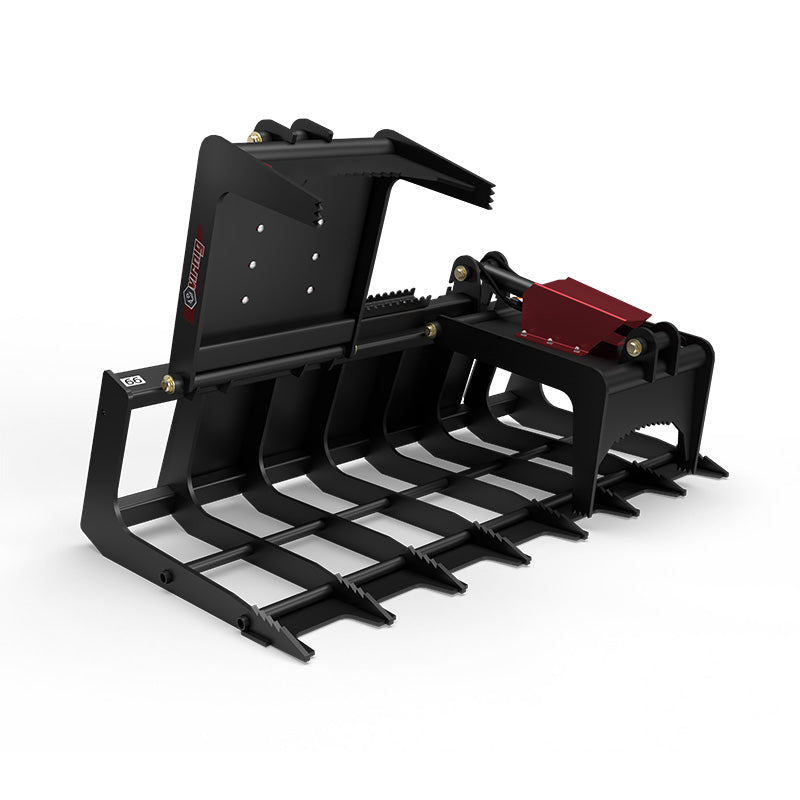

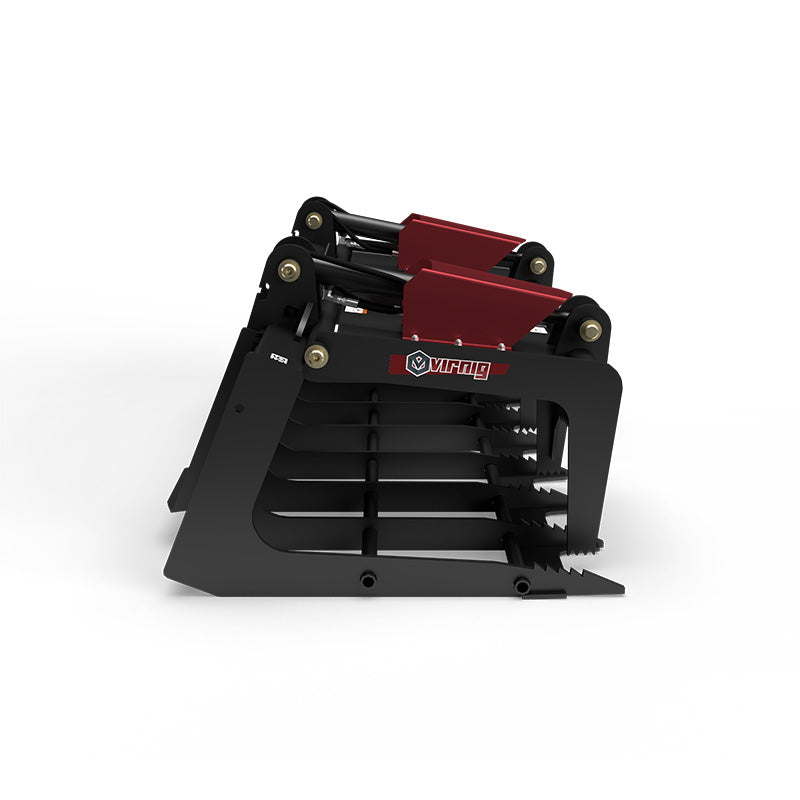

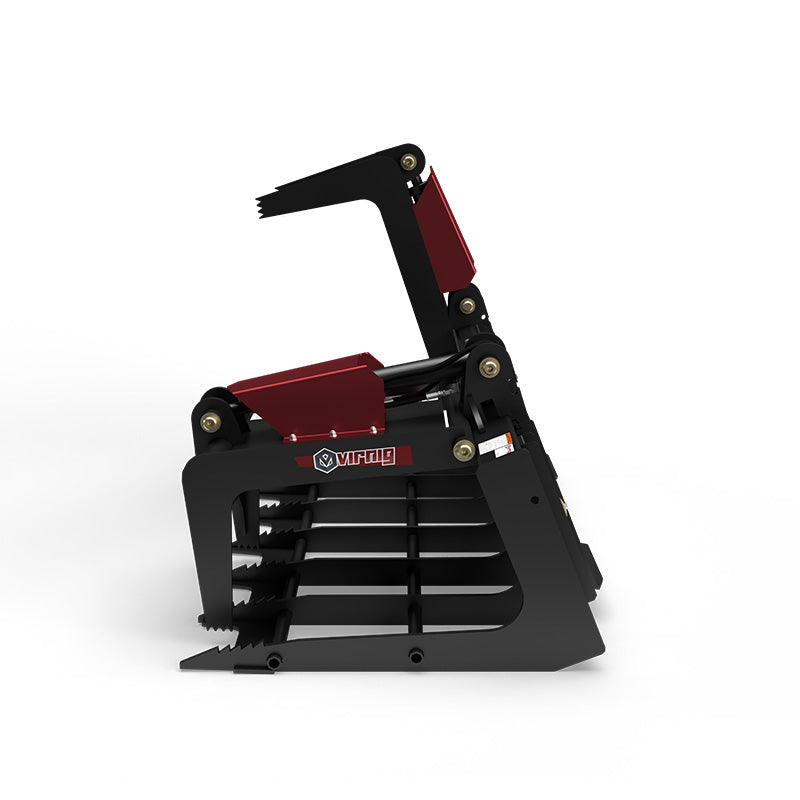

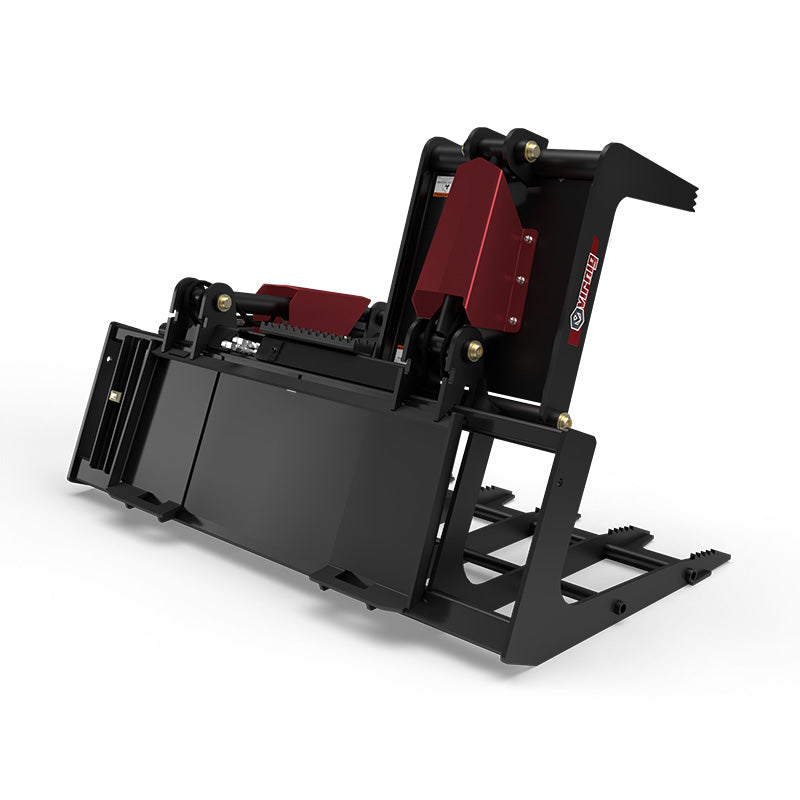

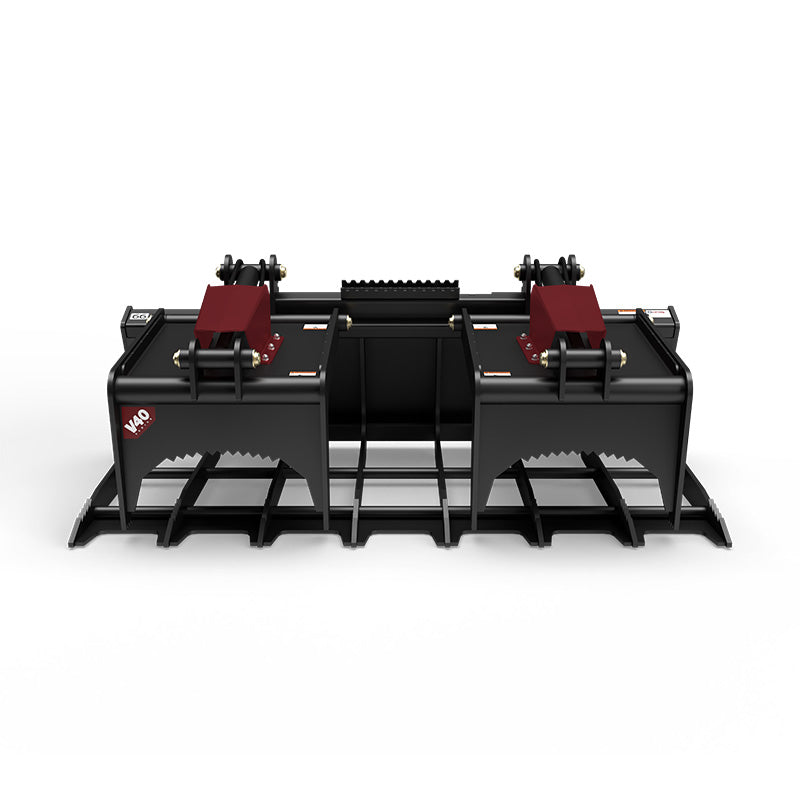

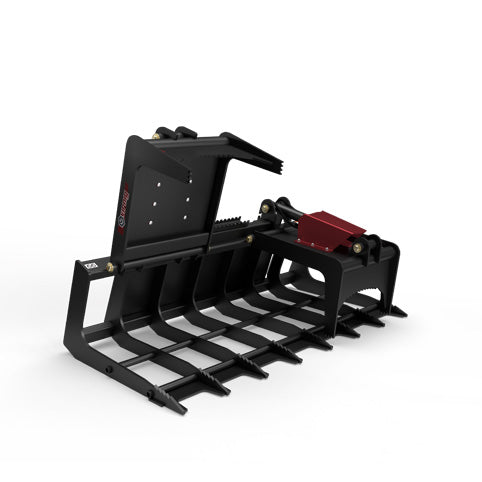

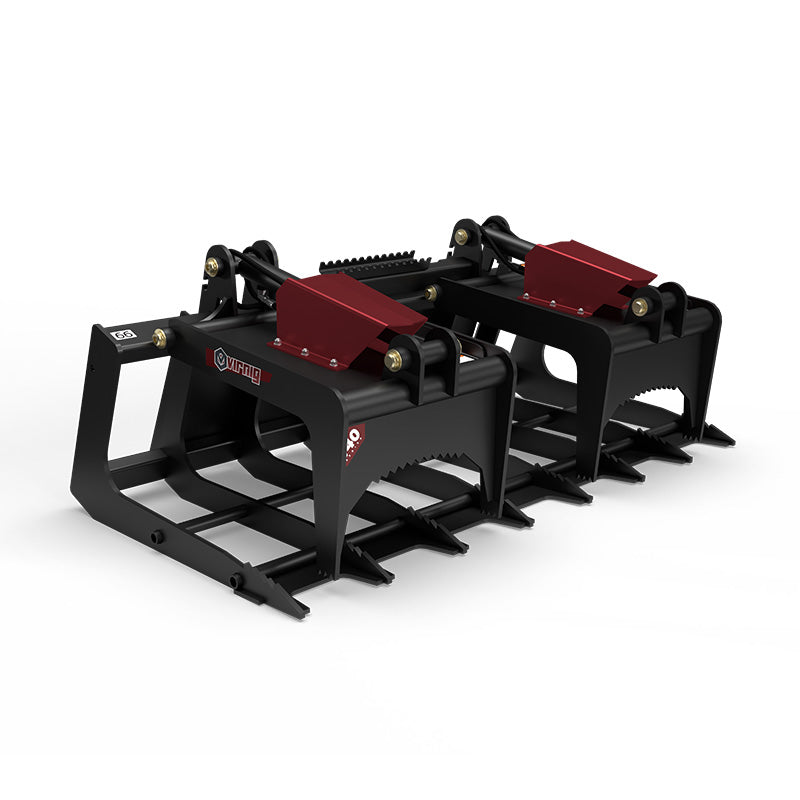

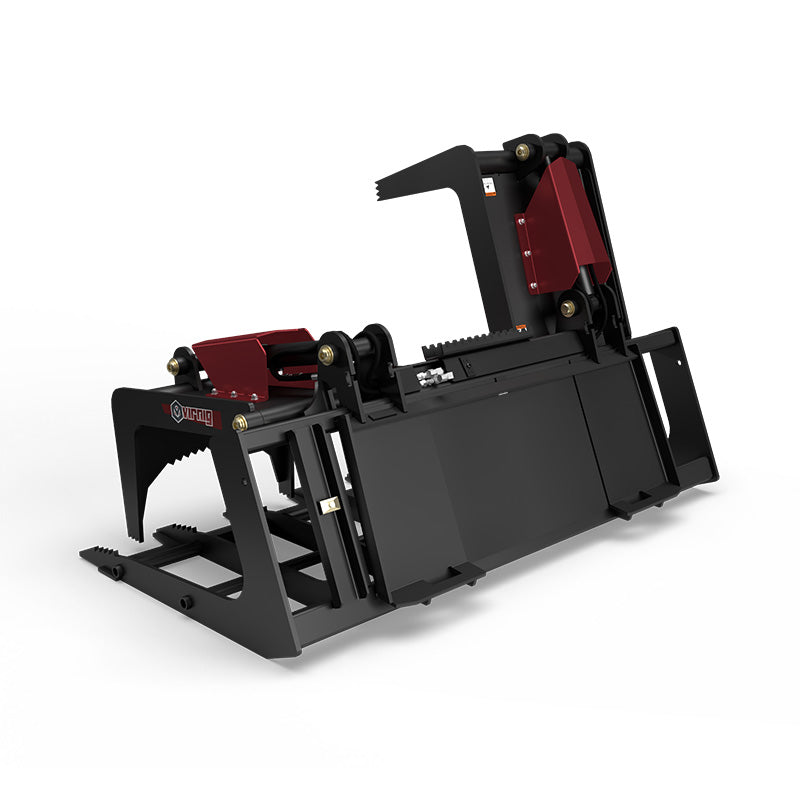

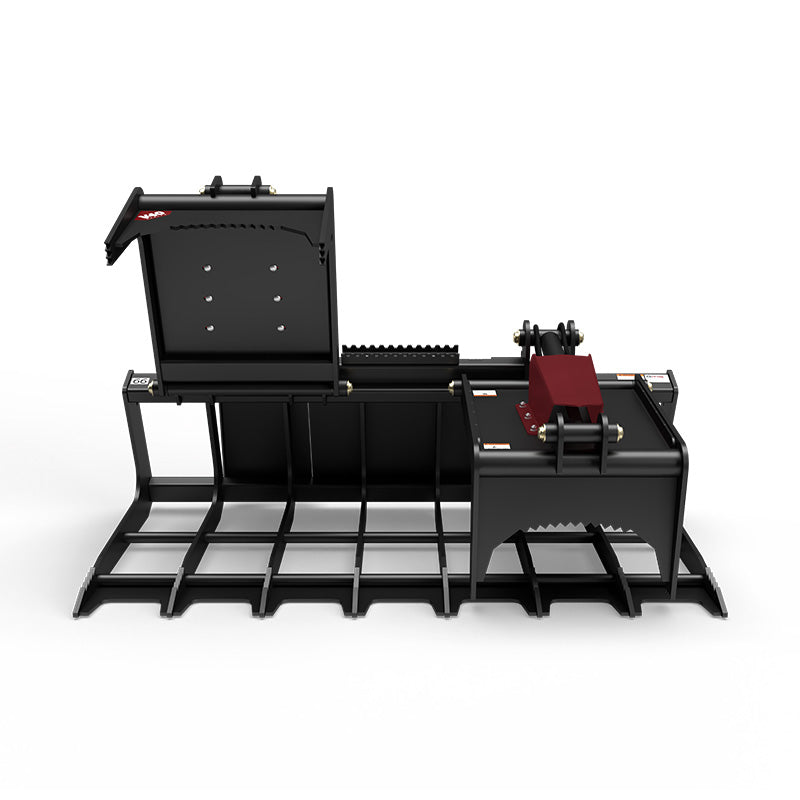

Virnig V40 Skeleton Grapple

Virnig

Virnig V40 Skeleton Grapple

SKU: BSGV66 Currently In Stock

Sale price$4,720.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES PROVIDE RIGID SUPPORT WHEN LIFTING AND SORTING UNEVEN LOADS.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED HINGE BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

OPEN MATERIAL HANDLING

VIRNIG V40 SKELETON GRAPPLE GATHERS BRUSH, LOGS, AND UNEVEN DEBRIS WHILE LETTING LOOSE SOIL FALL THROUGH.

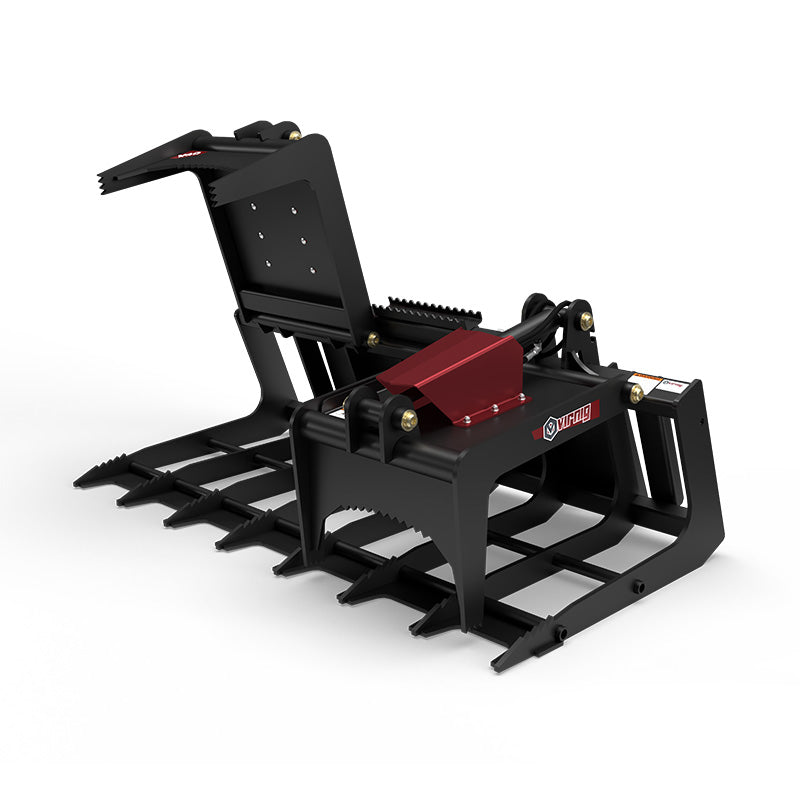

GRAPPLE JAW OPENING

A 35.2″ JAW OPENING ACCEPTS BULKY BRUSH AND UNEVEN DEBRIS BEFORE CLAMPING THE LOAD.

WIDTH OPTIONS

CHOOSE THE BUCKET WIDTH THAT FITS YOUR LOADER AND THE SPACE AVAILABLE ON SITE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V40 Skeleton Grapple gathers brush, logs, and irregular debris without carrying every scoop of loose soil along with the load. Its open lower frame supports bulky material while allowing finer loose material to fall through, helping operators separate cleanup debris from the ground beneath it.

Each tine is cut from one piece of steel for rigidity through the lower frame. The hydraulic grapple secures material that would be difficult to balance in a plain bucket, while NitroSteel® cylinder rods and Teflon®-coated hinge bushings equip the moving connections for repeated opening and closing during cleanup work.

Choose the model width around the loader's capacity, job access, and typical load size. Optional cylinder guards are available where additional cylinder shielding is needed. Check attachment clearance carefully on John Deere® 330G, 331G, 332G, and 333G loaders, which have a known interference concern, before selecting the final configuration.

KEY BENEFITS

  • Every tine is made from one piece of steel for maximum rigidity.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on hinges.
  • Virnig v40 skeleton grapple gathers brush, logs, and uneven debris while letting loose soil fall through.
  • Grapple jaw opening (in.): 35.2
  • Overall width (in.): 67.5 | 73.5 | 85.5

TECHNICAL SPECIFICATIONS

  • Models: BSGV66 BSGV72 BSGV84
  • Overall Width (in.): BSGV66: 67.5; BSGV72: 73.5; BSGV84: 85.5
  • Height: Overall / Bucket (in.): 26.5 / 20.3
  • Overall Depth (in.): 36.9
  • Number of Tines (w/ sides): BSGV66: 8; BSGV72: 9; BSGV84: 10
  • Space Between Tines (in.): BSGV66: 8.9; BSGV72: 8.5; BSGV84: 8.9
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.25
  • Grapple Jaw Opening (in.): 35.2
  • Approximate Weight (lbs): BSGV66: 780; BSGV72: 815; BSGV84: 860
  • Recommended Loader Capacity: Less than 2400 lbs
  • ¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Brush handling
  • Log loading
  • Property cleanup

VIRNIG V40 SKELETON GRAPPLE

WORKING DESIGN

  • Every tine is made from one piece of steel for maximum rigidity.
  • NitroSteel® cylinder rods and Teflon® coated bushings on hinges.

CONFIGURATION AND SPECIFICATIONS

  • Models: BSGV66 BSGV72 BSGV84
  • Overall Width (in.): BSGV66: 67.5; BSGV72: 73.5; BSGV84: 85.5
  • Height: Overall / Bucket (in.): 26.5 / 20.3
  • Overall Depth (in.): 36.9
  • Number of Tines (w/ sides): BSGV66: 8; BSGV72: 9; BSGV84: 10
  • Space Between Tines (in.): BSGV66: 8.9; BSGV72: 8.5; BSGV84: 8.9
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.25

READY FOR THE FIELD

  • Every tine is made from one piece of steel for maximum rigidity.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on hinges.
  • Virnig v40 skeleton grapple gathers brush, logs, and uneven debris while letting loose soil fall through.
  • Grapple jaw opening (in.): 35.2
  • Overall width (in.): 67.5 | 73.5 | 85.5
