VIRNIG

V40 Skeleton Rock Grapple

For Skid Steers & Track Loaders

66-84″ Widths

Virnig

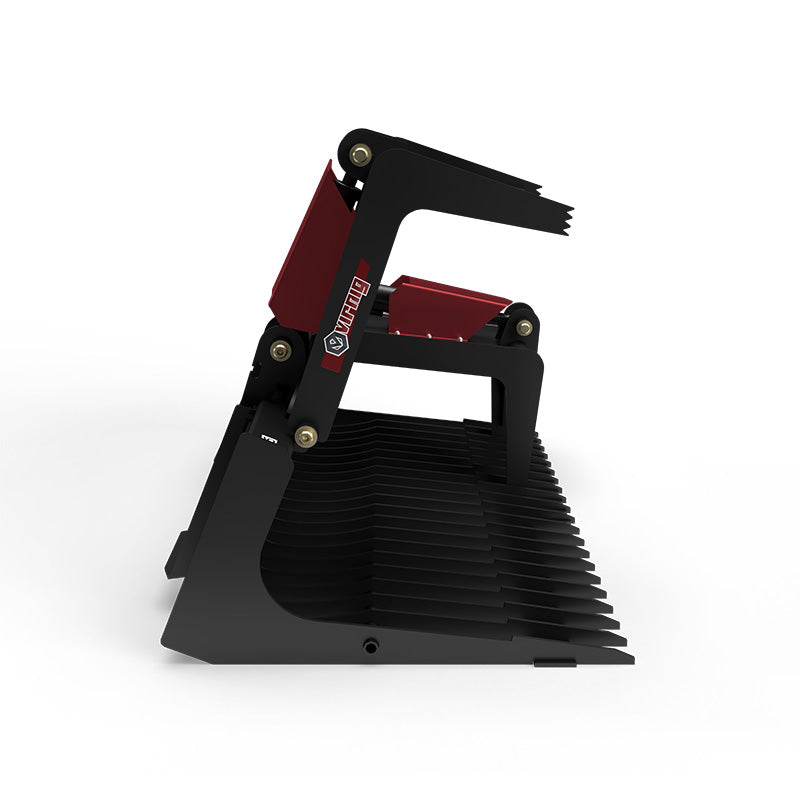

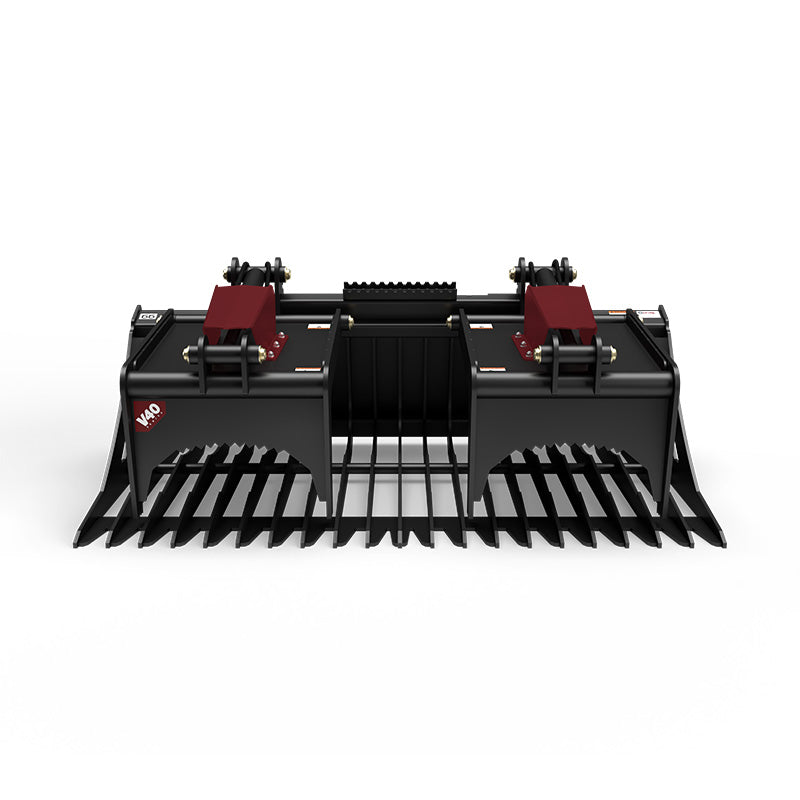

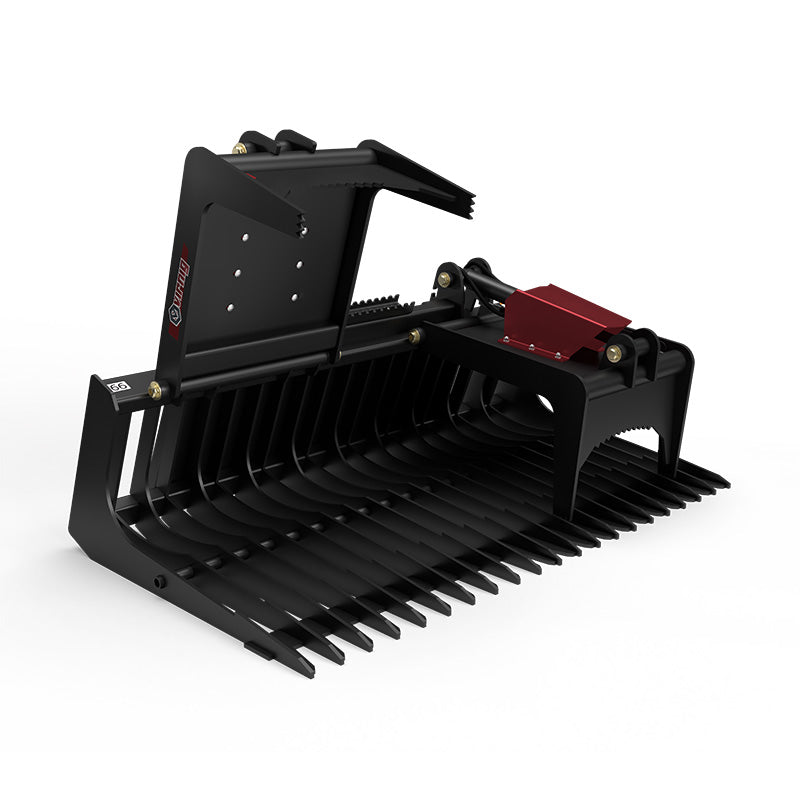

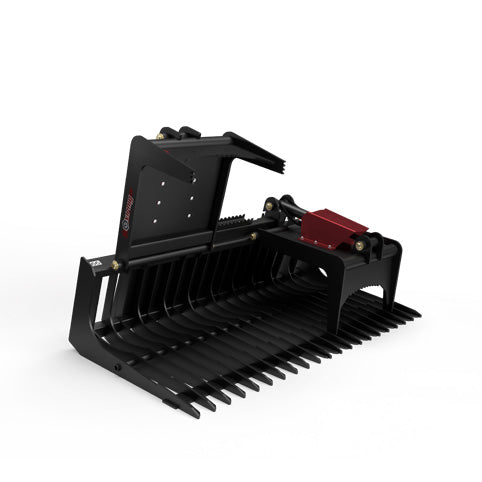

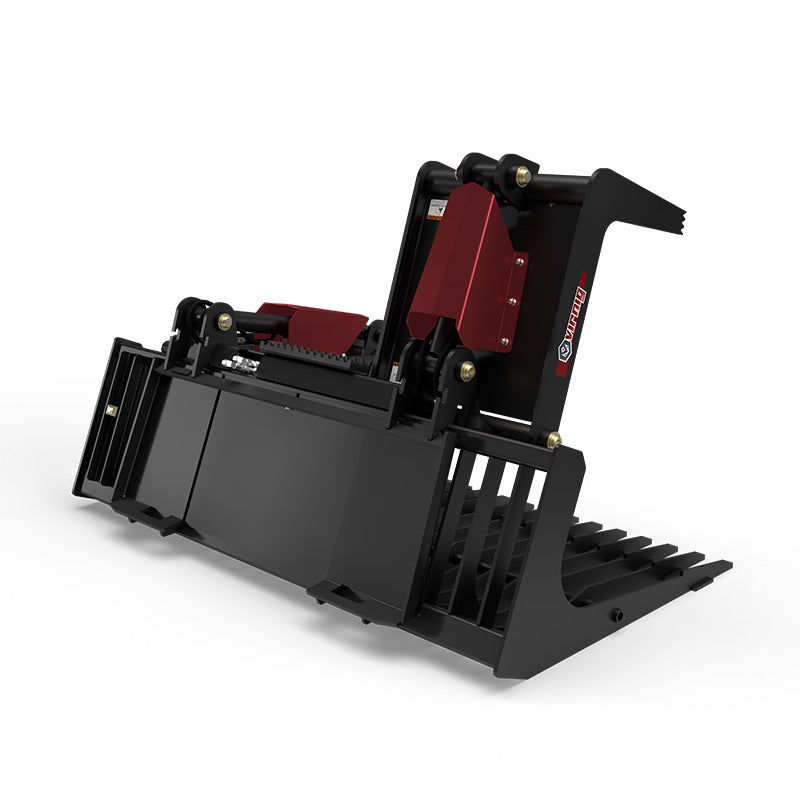

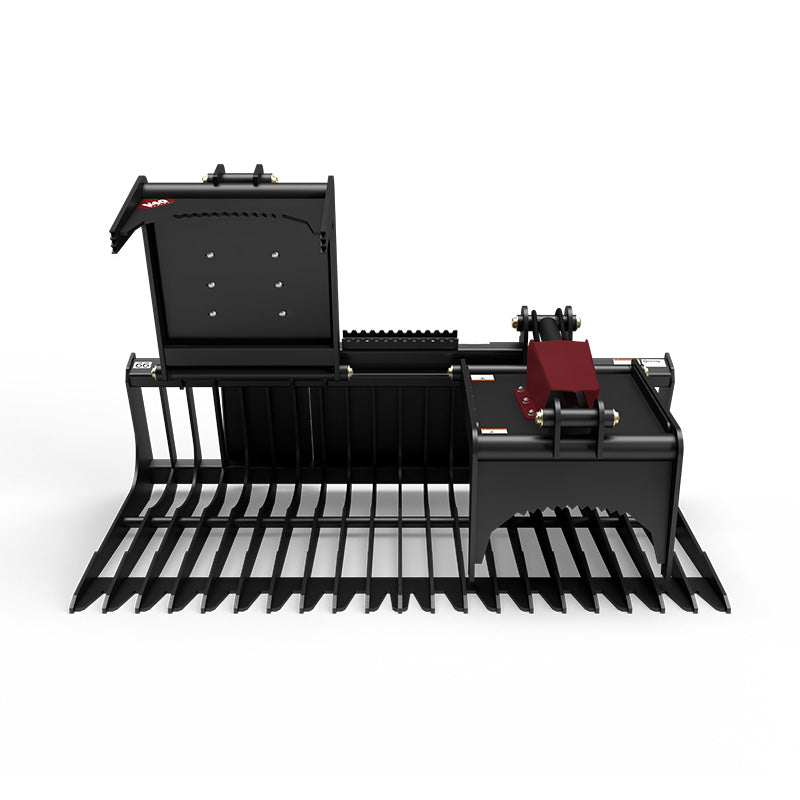

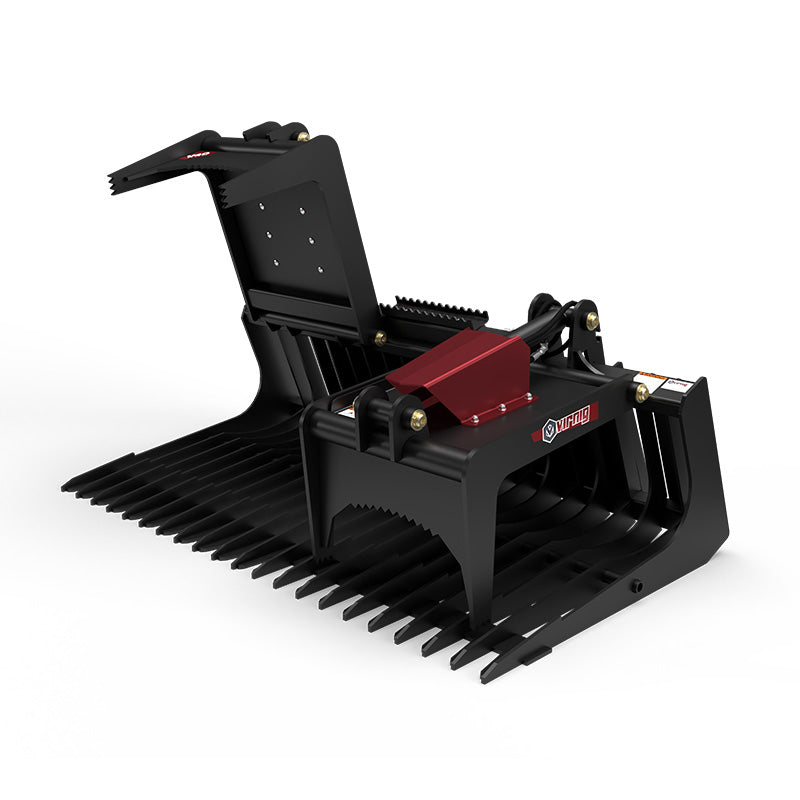

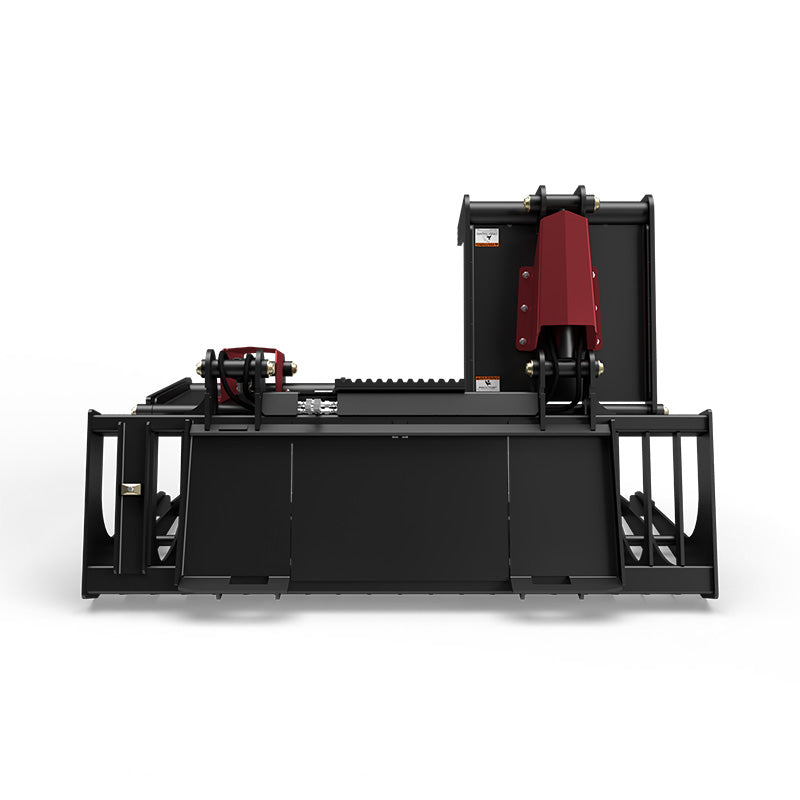

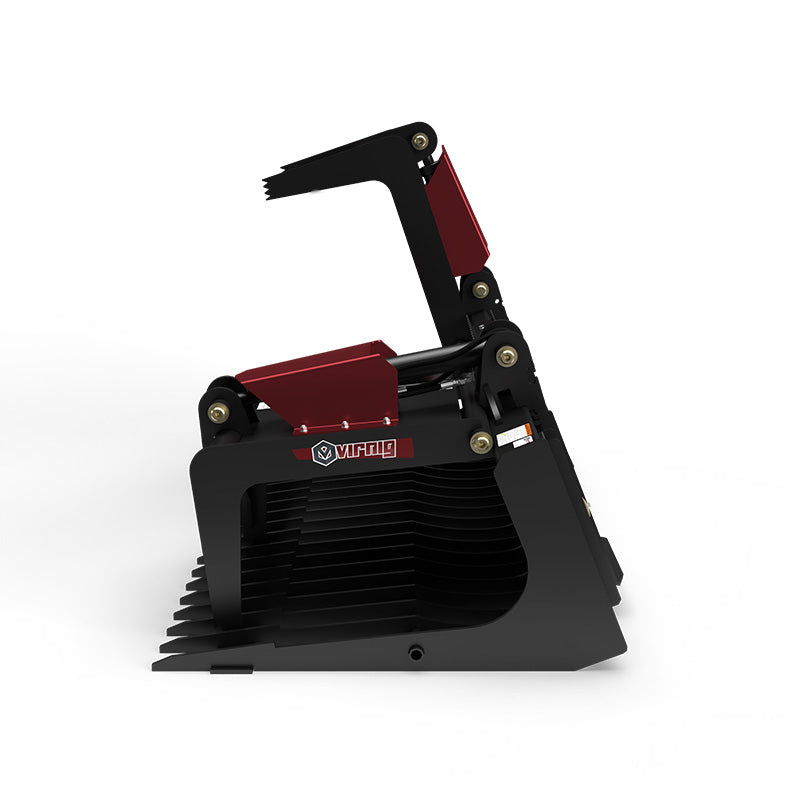

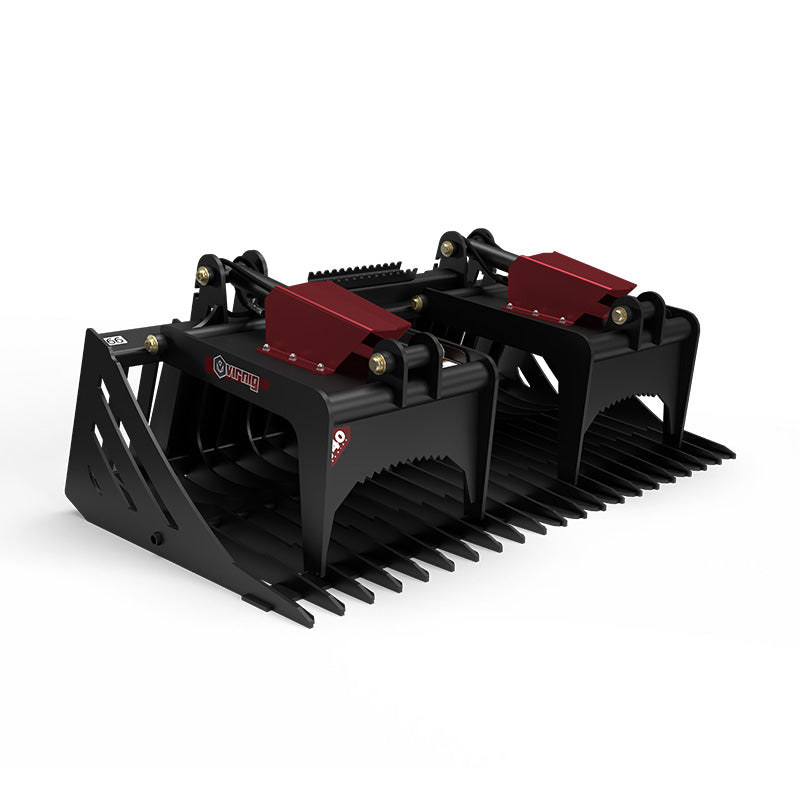

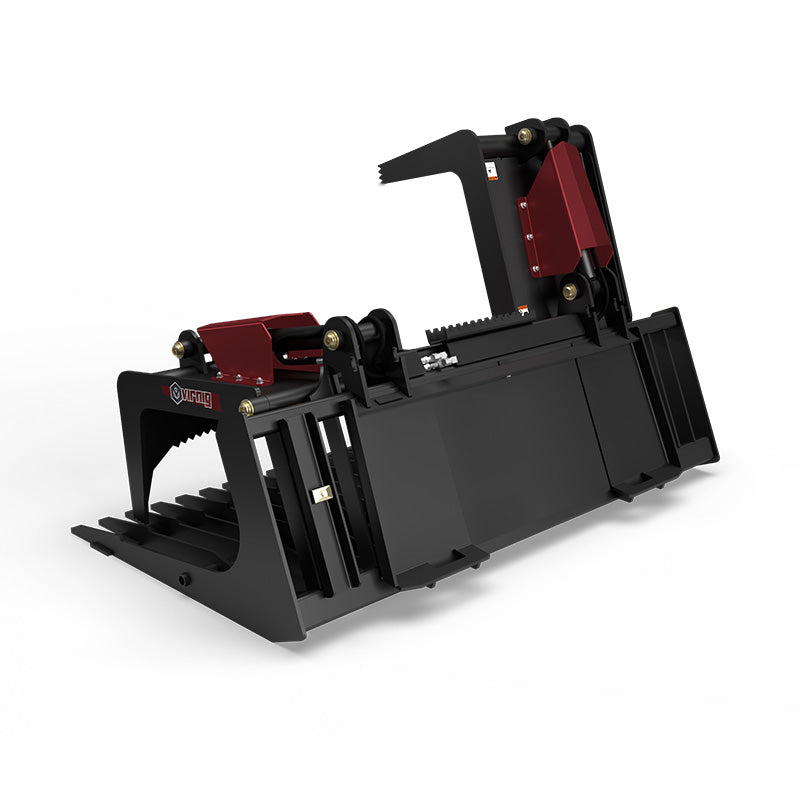

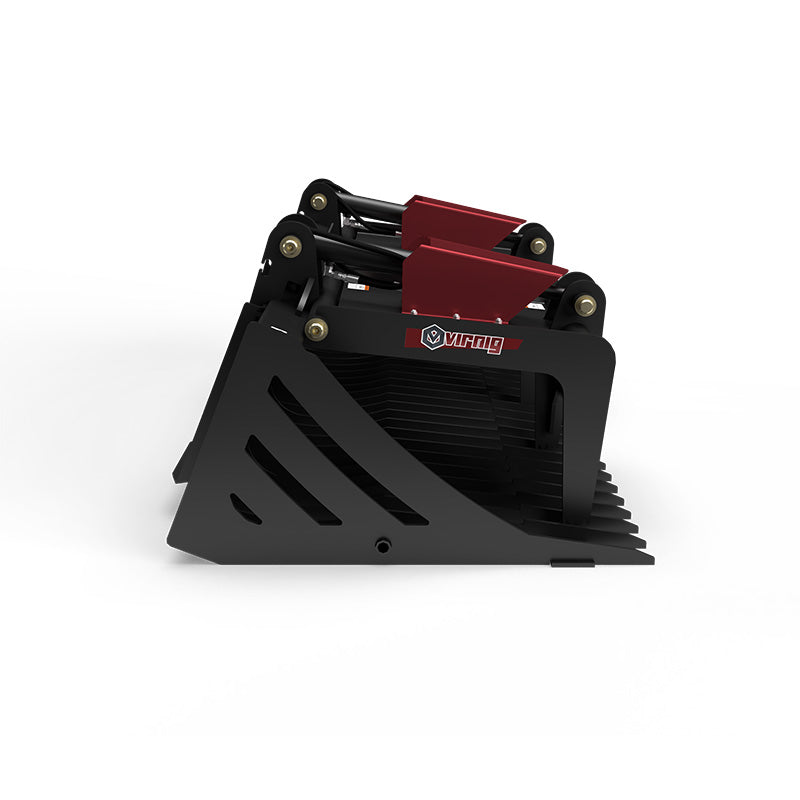

Virnig V40 Skeleton Rock Grapple

SKU: BSRGV66 Currently In Stock

Sale price$5,470.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

ONE-PIECE ALTERNATING TINES

ALTERNATING ONE-PIECE STEEL TINES REINFORCE THE OPEN FLOOR FOR MATERIAL HANDLING.

ROCK RETENTION

A ROCK DAM AND NOTCHED TINE TIPS HELP RETAIN ROCKS WHILE LOOSE SOIL FALLS THROUGH.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED BUSHINGS SUPPORT THE HYDRAULIC GRAPPLE PIVOTS.

OPEN MATERIAL HANDLING

VIRNIG V40 SKELETON ROCK GRAPPLE SECURES ROCKS AND UNEVEN LOADS WHILE ITS OPEN BOTTOM LETS LOOSE SOIL FALL THROUGH.

GRAPPLE JAW OPENING

A 35.2″ JAW OPENING ACCEPTS BULKY BRUSH AND UNEVEN DEBRIS BEFORE CLAMPING THE LOAD.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V40 Skeleton Rock Grapple gathers rocks and uneven debris while allowing loose soil to sift through its open bottom. Its rock dam and notches near the tine tips help keep stones in the bucket, while the hydraulic grapple secures loads that are difficult to contain with an open bucket alone.

Every other tine is made from one piece of steel, forming the structure of the lower frame. NitroSteel® cylinder rods and Teflon®-coated bushings equip the moving hydraulic connections. The combination of a sorting floor and upper grapple is useful for cleanup work where rocks need to be collected without hauling unnecessary loose dirt.

Optional open sides provide another configuration for handling material that extends beyond the bucket. Select the width and weight around the carrier's actual capacity. The V40 BSRGV family has a known clearance concern on John Deere® 330G, 331G, 332G, and 333G loaders, so confirm interference through the grapple's operating range before ordering.

KEY BENEFITS

  • Every other tine is made from one piece of steel.
  • Rock dam and notch near tine tips hold rocks securely.
  • Nitrosteel® cylinder rods and Teflon® coated bushings.
  • Virnig v40 skeleton rock grapple secures rocks and uneven loads while its open bottom lets loose soil fall through.
  • Grapple jaw opening (in.): 35.2

TECHNICAL SPECIFICATIONS

  • Models: BSRGV66 BSRGV72 BSRGV84
  • Overall Width (in.): BSRGV66: 67.6; BSRGV72: 74.3; BSRGV84: 87.5
  • Height: Overall / Bucket (in.): 26.5 / 20.0
  • Overall Depth (in.): 39.9
  • Number of Tines (w/ sides): BSRGV66: 21; BSRGV72: 23; BSRGV84: 27
  • Space Between Tines (in.): 2.9
  • Tine Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.25
  • Grapple Jaw Opening (in.): 35.2
  • Approximate Weight (lbs): BSRGV66: 925; BSRGV72: 960; BSRGV84: 1040
  • Recommended Loader Capacity: Less than 2400 lbs
  • ¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Rock cleanup
  • Sorting rocky soil
  • Handling uneven debris

VIRNIG V40 SKELETON ROCK GRAPPLE

WORKING DESIGN

  • Every other tine is made from one piece of steel.
  • Rock dam and notch near tine tips hold rocks securely.
  • NitroSteel® cylinder rods and Teflon® coated bushings.

CONFIGURATION AND SPECIFICATIONS

  • Models: BSRGV66 BSRGV72 BSRGV84
  • Overall Width (in.): BSRGV66: 67.6; BSRGV72: 74.3; BSRGV84: 87.5
  • Height: Overall / Bucket (in.): 26.5 / 20.0
  • Overall Depth (in.): 39.9
  • Number of Tines (w/ sides): BSRGV66: 21; BSRGV72: 23; BSRGV84: 27
  • Space Between Tines (in.): 2.9
  • Tine Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.25

READY FOR THE FIELD

  • Every other tine is made from one piece of steel.
  • Rock dam and notch near tine tips hold rocks securely.
  • Nitrosteel® cylinder rods and Teflon® coated bushings.
  • Virnig v40 skeleton rock grapple secures rocks and uneven loads while its open bottom lets loose soil fall through.
  • Grapple jaw opening (in.): 35.2
